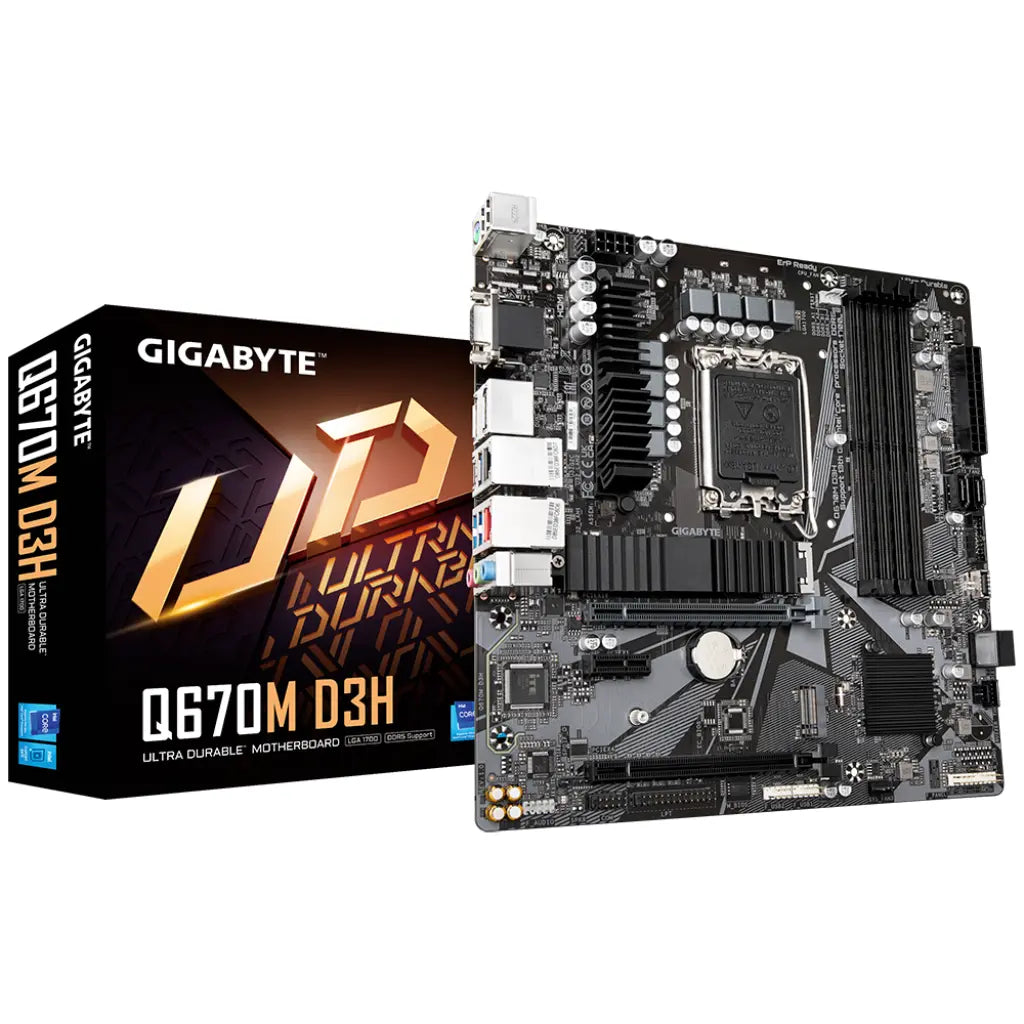

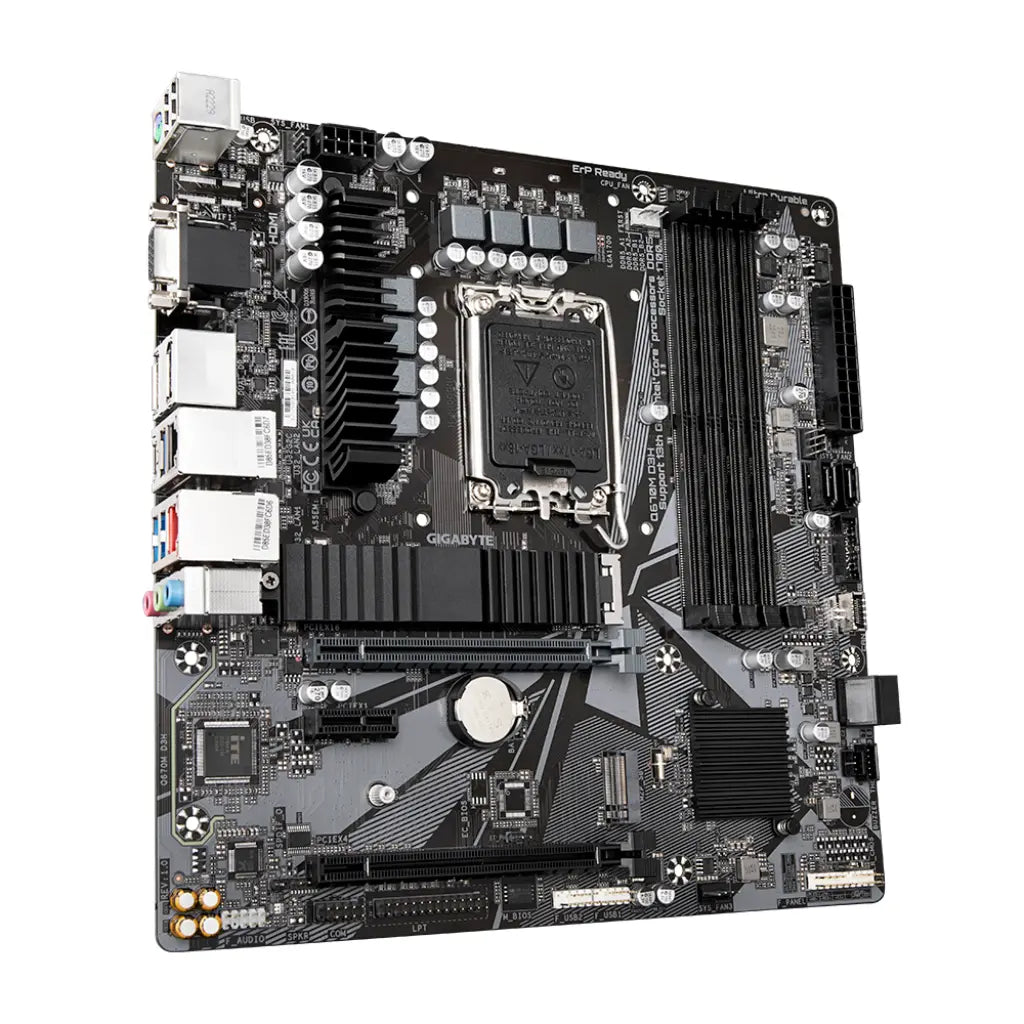

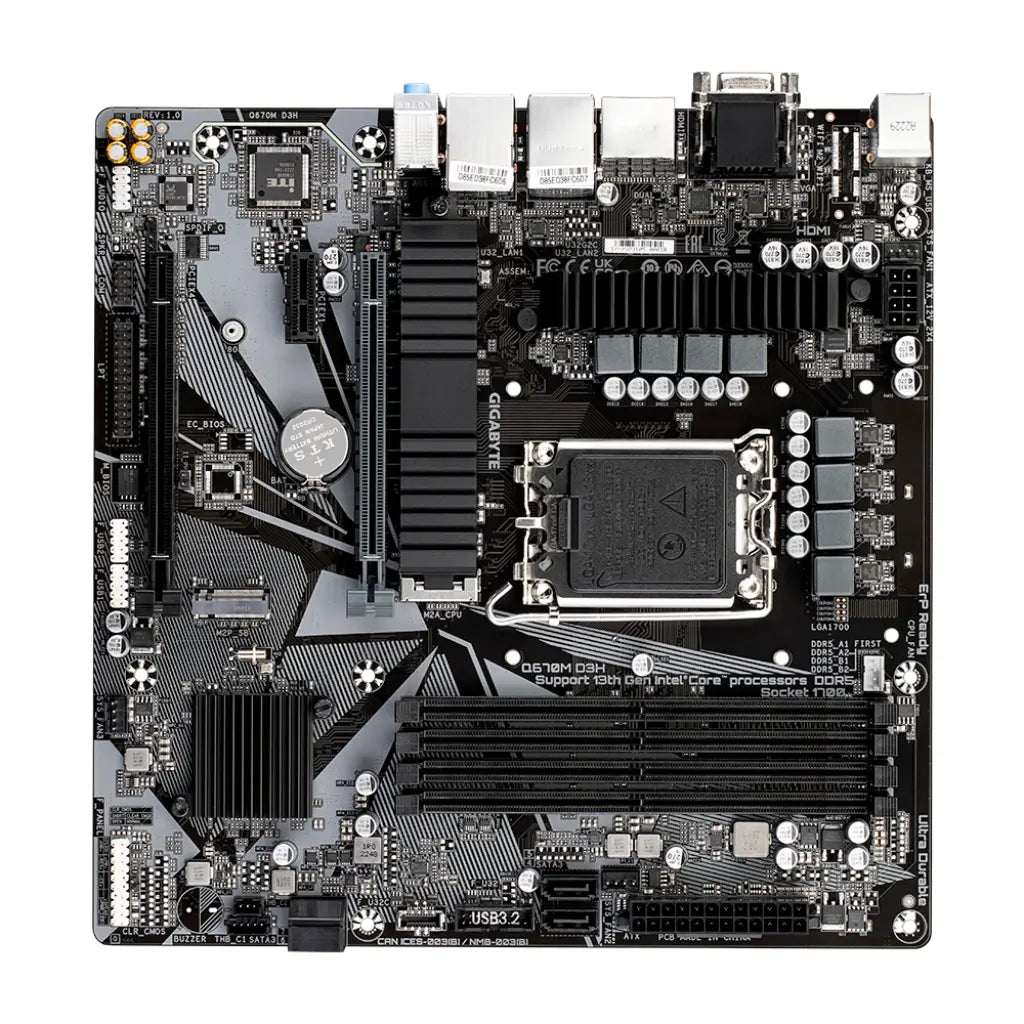

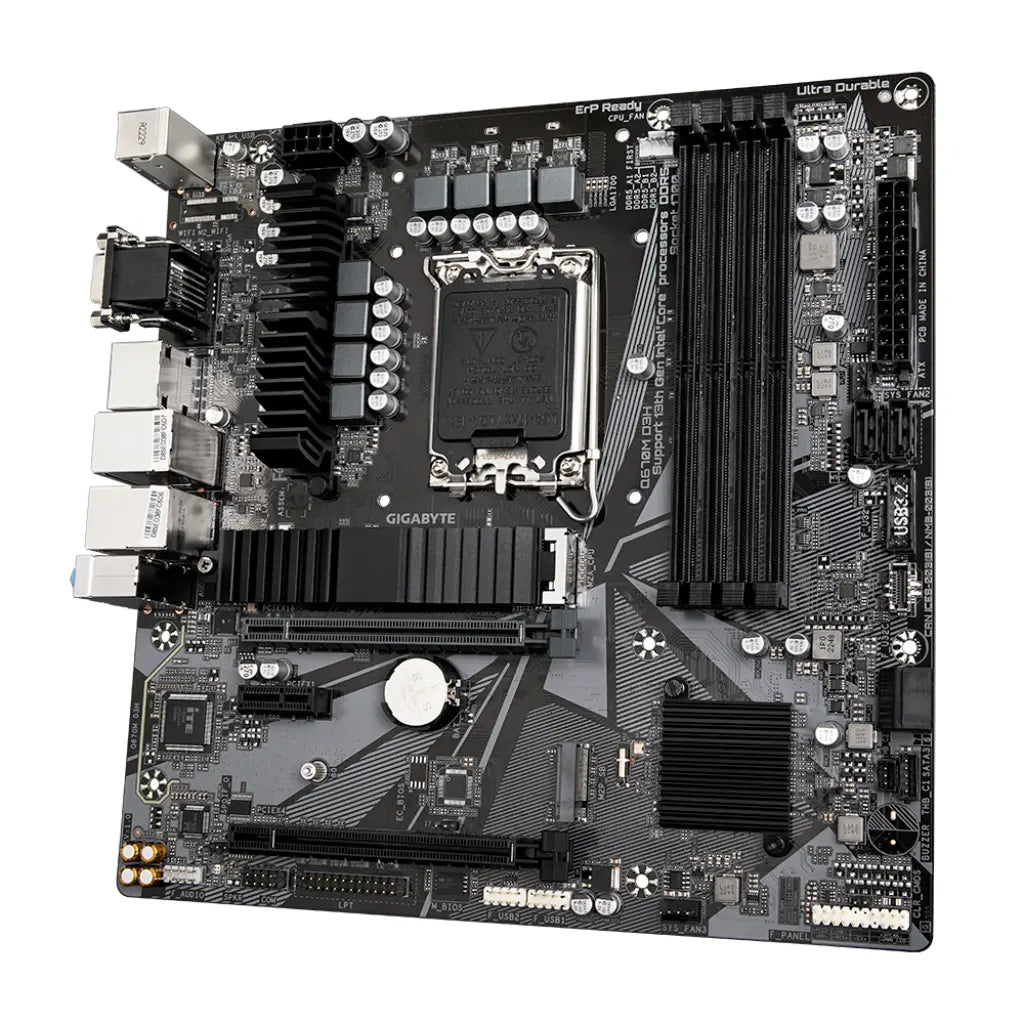

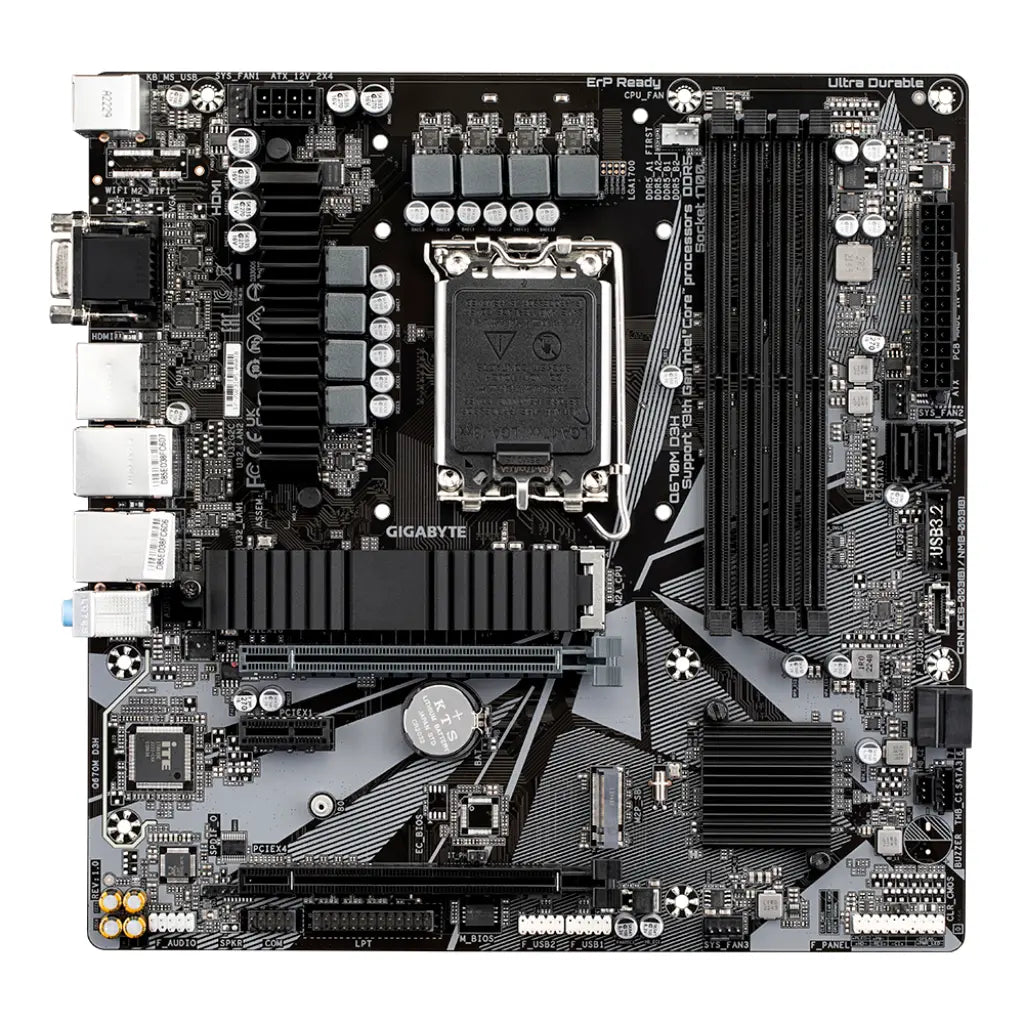

Gigabyte Q670M D3H Intel Q670 LGA1700 Socket DDR5 Micro-ATX Motherboard

Product Description:

🔌 Intel LGA1700 Socket: Supports 14th, 13th & 12th Gen Intel® Core™, Pentium® Gold & Celeron® processors for ultimate compatibility.

⚡ DDR5 Memory Support: 4 DIMM slots, up to 256GB, with XMP 3.0 for extreme performance tuning.

🚀 Dual PCIe 4.0 M.2 Slots: Ultra-fast NVMe storage with RAID 0/1/5 support and Thermal Guard for heat protection.

🌐 Dual Intel LAN: 2.5GbE + 1GbE for high-speed networking and bandwidth management.

🔋 6+1+1 Hybrid Digital VRM: Premium power design with MOS heatsink for stable CPU performance under heavy loads.

🔗 USB 3.2 Gen2 Type-C: Rear I/O with fast connectivity plus HDMI & DisplayPort for multi-display setups.

The Gigabyte Q670M D3H motherboard delivers next-level performance for Intel’s latest processors. Featuring DDR5 memory support, PCIe 4.0 architecture, and dual M.2 slots with Thermal Guard, it ensures blazing-fast storage and superior reliability. Its robust 6+1+1 VRM design and advanced cooling keep your system stable under demanding workloads. With dual Intel LAN and USB 3.2 Gen2 Type-C, this board is built for speed, connectivity, and durability.

Product Specifications:

Specification	Details
Brand	Gigabyte
Model	Q670M D3H
Chipset	Intel Q670
Socket	LGA1700
Supported CPU	14th / 13th / 12th Gen Intel® Core™, Pentium® Gold, Celeron®
Memory Support	DDR5, 4 DIMMs, up to 256GB
Expansion Slots	1 x PCIe 4.0 x16, 1 x PCIe 4.0 x4, 1 x PCIe 3.0 x1
Storage	2 x M.2 (PCIe 4.0), 4 x SATA 6Gb/s
Networking	Intel 2.5GbE LAN + Intel 1GbE LAN
USB Ports	Rear: USB 3.2 Gen2 Type-C, USB 3.2 Gen1, USB 2.0
Audio	8-Channel HD Audio with Audio Noise Guard
Form Factor	Micro-ATX
Country of Origin	China
Model Number	Q670M D3H
Warranty	3 Years
Weight	0.8 kg
