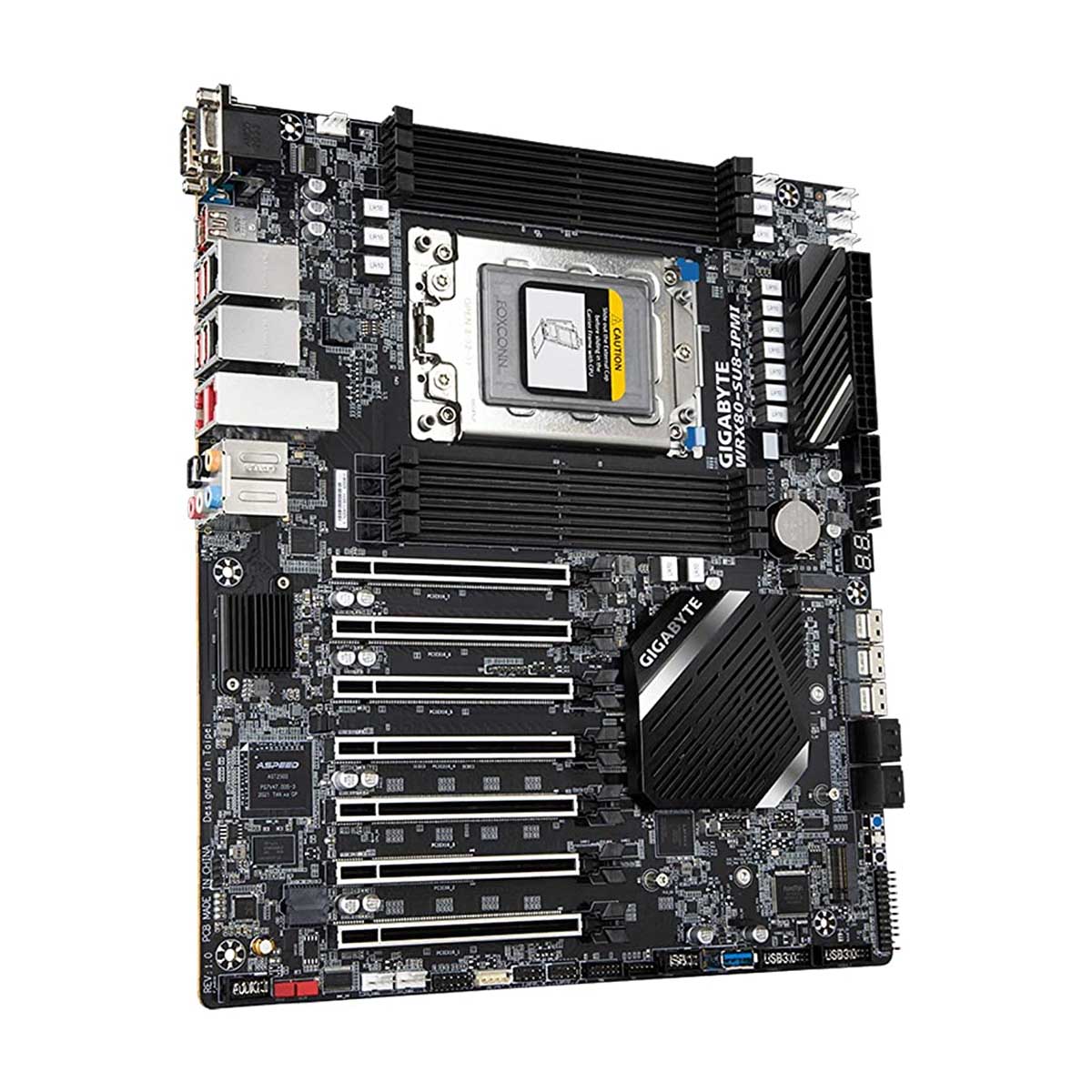

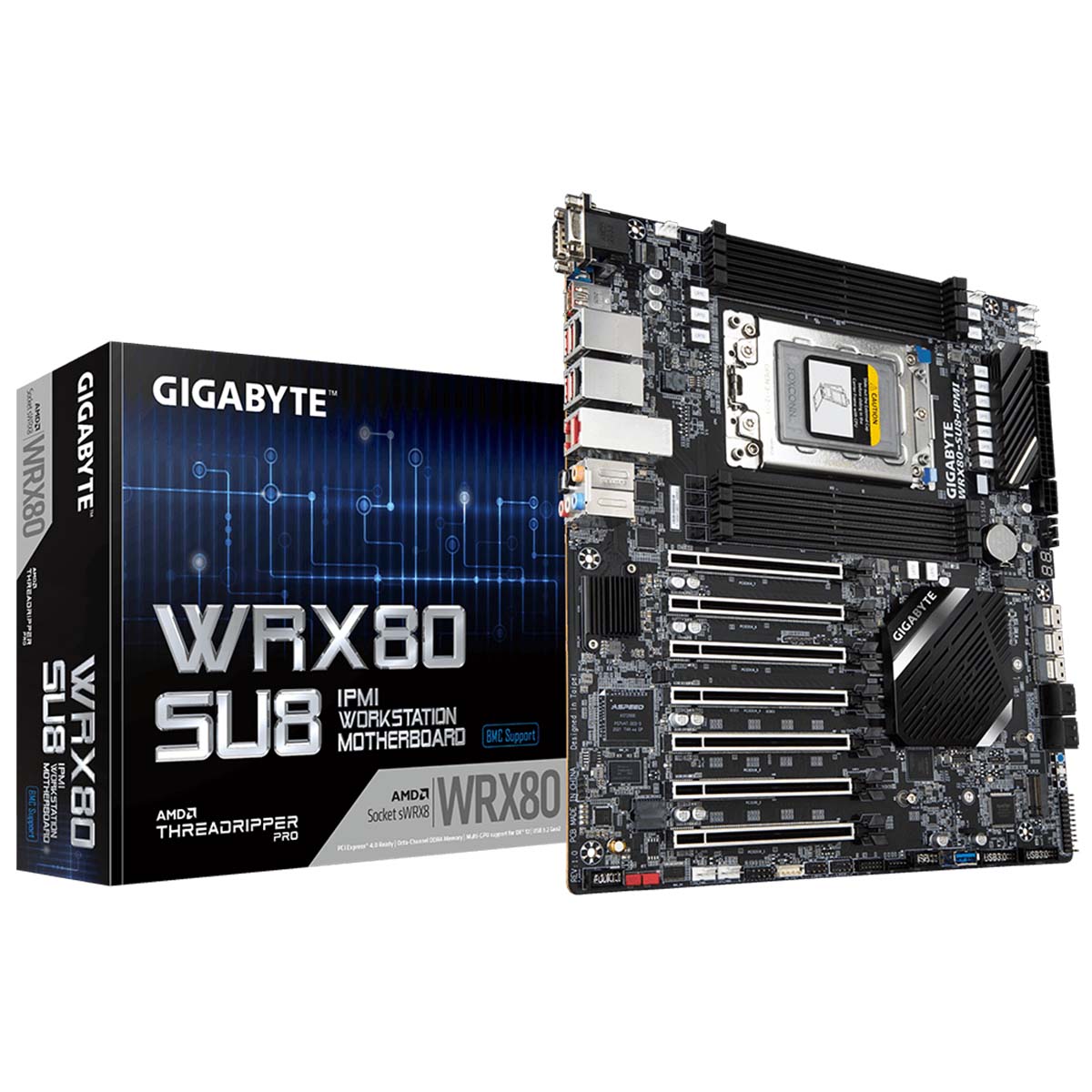

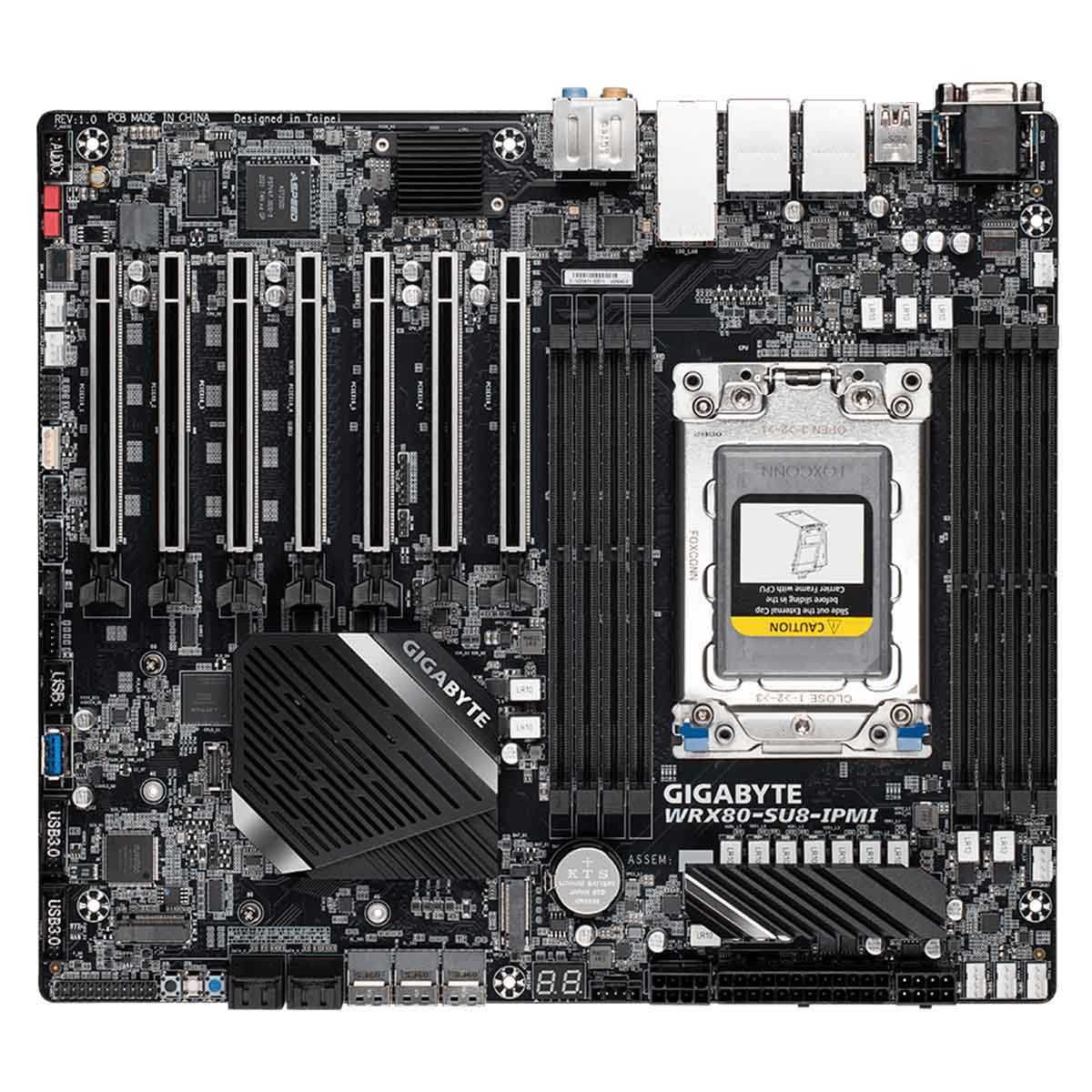

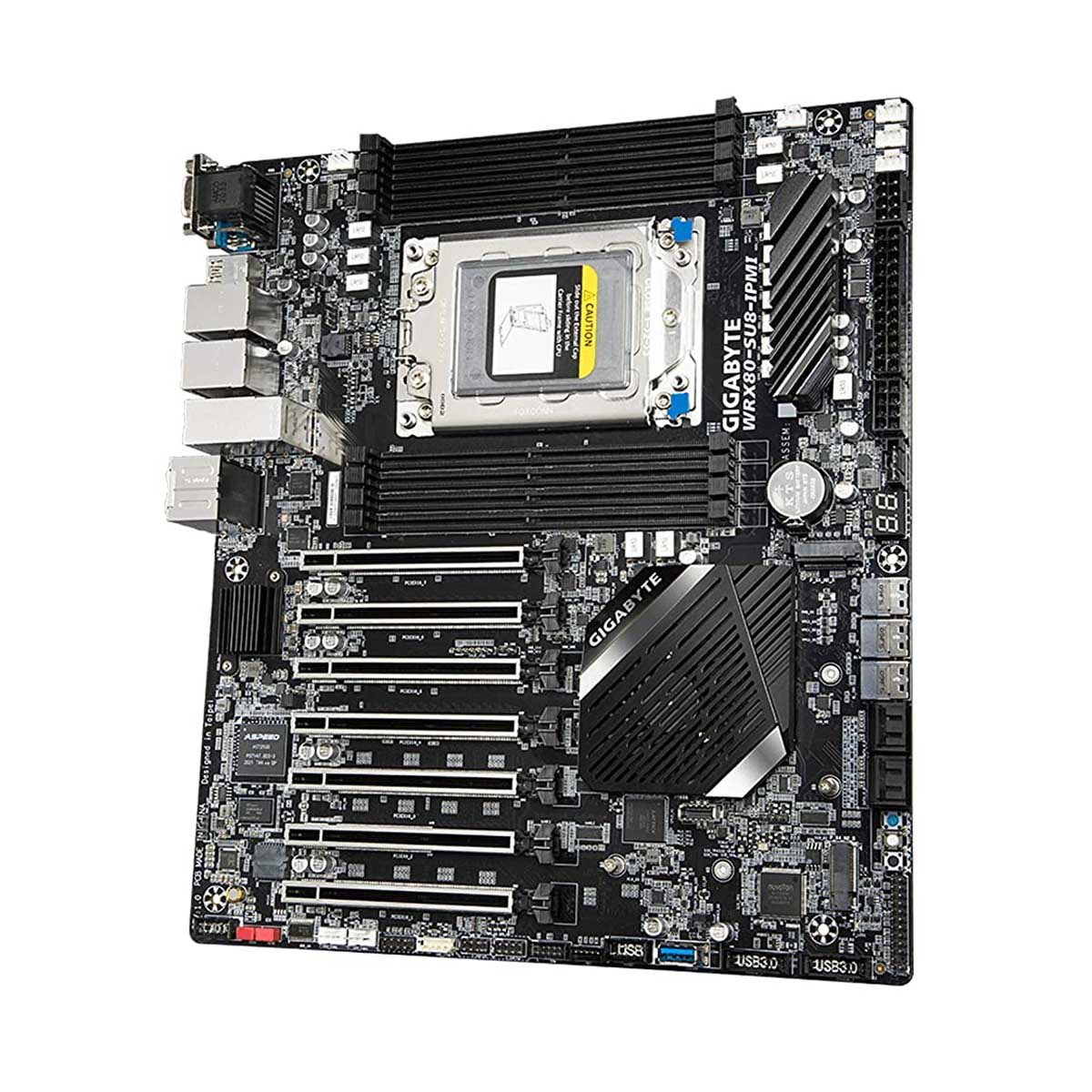

GIGABYTE WRX80 SU8 IPMI AMD sWRX8 4094 Socket CEB Workstation Motherboard with 7 PCIe 4.0 Slots and USB-C

GIGABYTE WRX80 SU8 IPMI AMD sWRX8 4094 Socket CEB Workstation Motherboard with 7 PCIe 4.0 Slots and USB-C

Brand: GIGABYTE
Regular price Rs. 90,999.00
Regular price Rs. 200,000.00 Sale price Rs. 90,999.00
Sale Sold out
  • Free Shipping: We deliver to 27000+ pin codes in India.
  • 10-Days Return: We got you covered with easy returns.
  • Original Warranty: This product has original Brand warranty.
Easy Returns Cancellation Policy Shipping Policy Trust Center
  • The GIGABYTE WRX80-SU8-IPM workstation motherboard is designed to support the latest Threadripper PRO 3000WX processors with sWRX8 4094 Socket and DDR4 memory up to 1024GB with 8 Channel Architecture.
  • WRX80-SU8-IPMI equips several new components to ensure the best PCIe 4.0 signal quality, including PCB, PCIe Slots, M.2 Connectors, Re-drivers, Switches that are specifically designed for PCIe 4.0. There will be no compromise on PCIe 4.0 performance on PCIe, M.2 and SlimSAS interface.
  • With leadership architecture of AMD Ryzen Threadripper PRO, max out the 128 PCIe 4.0 lanes from 3000WX series with 6 PCIe 4.0 x16 and 1 PCIe 4.0 x8 slot that makes WRX80-SU8-IPMI the various card configuration and fulfill your content creation, deep learning and virtual machine application.
  • WRX80-SU8-IPMI are built with dual M.2 Slots with a PCIe NVMe + SATA dual-mode design. It can offer user flexible storage configuration and adaptation to fit most users’ requests. The onboard USB Type-C header for USB 3.2 Gen2 makes access convenient when connecting a USB 3.2 Gen2 drive or charging your new mobile device.

~section~

Gigabyte WRX80-SU8-IPMI AMD sWRX8 Workstation Motherboard - From TPSTech
Gigabyte WRX80-SU8-IPMI AMD sWRX8 Workstation Motherboard - From TPSTech

Performance Unleashed

GIGABYTE WRX80-SU8-IPMI workstation motherboard equips several new components to ensure the best PCIe 4.0 signal quality, including PCB, PCIe Slots, M.2 Connectors, Re-drivers, Switches that are specifically designed for PCIe 4.0. There will be no compromise on PCIe 4.0 performance on PCIe, M.2 and SlimSAS interface.

Gigabyte WRX80-SU8-IPMI AMD sWRX8 Workstation Motherboard - From TPSTech

7 PCIe 4.0 Slots

Max out the 128 PCIe 4.0 lanes from 3000WX series with 6 PCIe 4.0 x16 and 1 PCIe 4.0 x8 slot that makes WRX80-SU8-IPMI the various card configuration and fulfill your content creation, deep learning and virtual machine application.

Gigabyte WRX80-SU8-IPMI AMD sWRX8 Workstation Motherboard - From TPSTech

Dual-Mode M.2 Slot Design

WRX80-SU8-IPMI are built with dual M.2 Slots with a PCIe NVMe + SATA dual-mode design. It can offer user flexible storage configuration and adaptation to fit most users’ requests.

Gigabyte WRX80-SU8-IPMI AMD sWRX8 Workstation Motherboard - From TPSTech

Premium Components

Components are meticulously selected to guarantee a super stable operating environment and allow the processors and the memory to deliver their maximum performance.

Gigabyte WRX80-SU8-IPMI AMD sWRX8 Workstation Motherboard - From TPSTech

Connectivity

The Intel X550AT2 is a high-performance, backward compatible with 10GBASE-T/ 5GBASE-T/ 2.5GBASE-T/ 1000BASE-T Ethernet Controller which is able to provide up to 10 GbE network connectivity as well as Intel SR-IOV feature.

Gigabyte WRX80-SU8-IPMI AMD sWRX8 Workstation Motherboard - From TPSTech

USB-Type C

AMD's native USB 3.2 Gen2 provides USB 3.2 Gen2 ports with speeds up to 10Gbps. With twice the bandwidth compared to its previous generation as well as backwards compatibility with USB 2.0 and USB 3.2 Gen1.

Gigabyte WRX80-SU8-IPMI AMD sWRX8 Workstation Motherboard - From TPSTech

GIGABYTE Remote Management

With ASPEED AST 2500 BMC, Gigabyte server boards can provide an IPMI 2.0 compliant solution for IT managers to do remote management through the web interface.

Gigabyte WRX80-SU8-IPMI AMD sWRX8 Workstation Motherboard - From TPSTech

GIGABYTE Control Center

GIGABYTE Control Center is a windows-based application that helps IT managers to fully control and monitor multiple servers without hassle.

Gigabyte WRX80-SU8-IPMI AMD sWRX8 Workstation Motherboard - From TPSTech

Ultra Durable

Industry Leading Ultra Durable PCIe Armor comes with durable locking bracket providing firm and strong protection

Gigabyte WRX80-SU8-IPMI AMD sWRX8 Workstation Motherboard - From TPSTech

One Piece Stainless Shield

The innovative one piece stainless steel shielding design from GIGABYTE reinforces the PCIe connectors to provide the extra strength required to support heavy graphics cards.

~section~

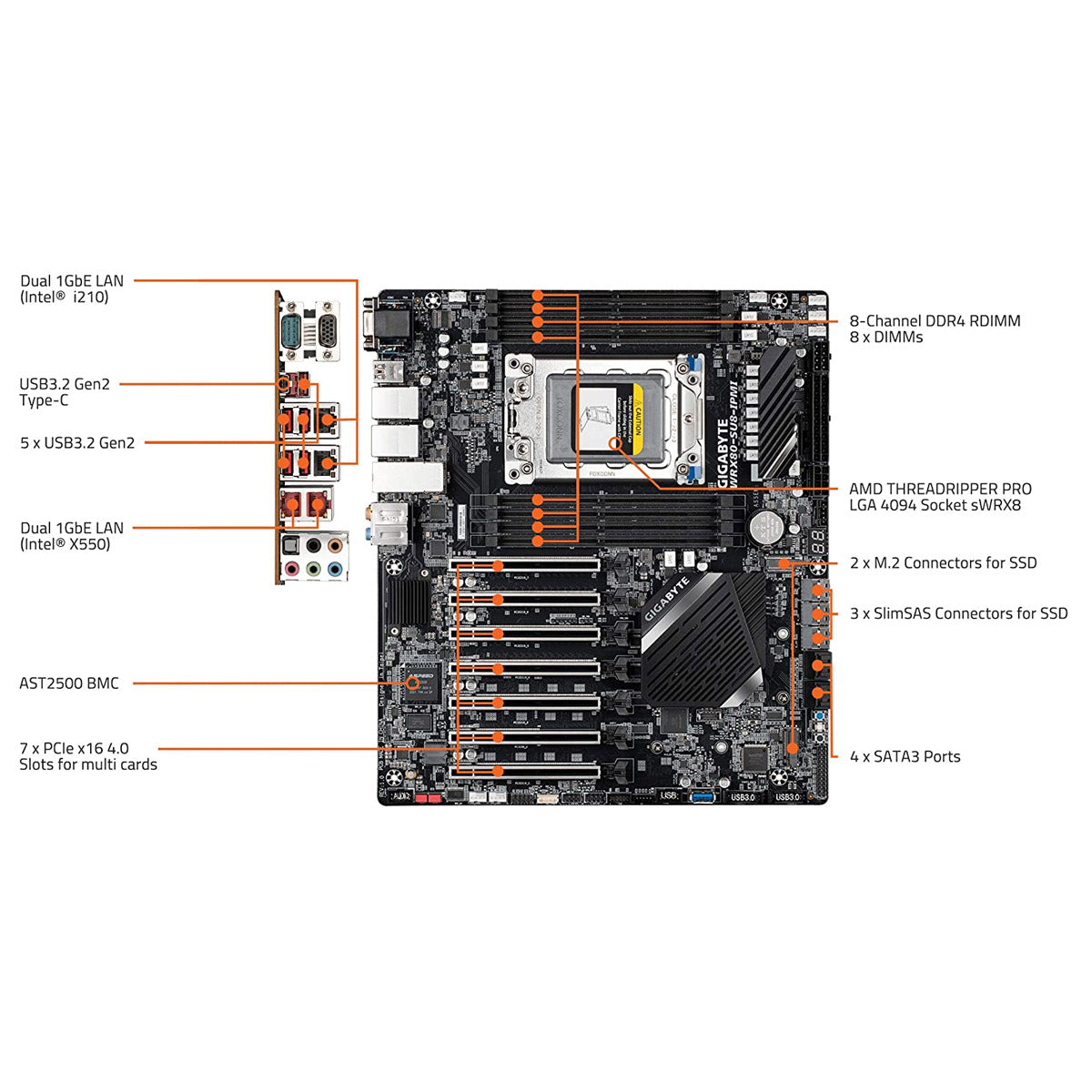

Model GIGABYTE WRX80-SU8-IPMI
CPU Socket Single sWRX8 4094 socket
CPU Support Ryzen Threadripper PRO 3000WX (up to 64C)
Single sWRX8 4094 socket CPU
Chipset AMD WRX80 Chipset
Memory 8 x DDR4 DIMM slots supports
8 channels memory architecture (1 DIMM per channel)
Support up to DDR4 3200/2933/2600 MHz
Support for UDIMM (ECC), RDIMM, 3DS RDIMM and LRDIMM memory modules
Support system memory capacity up to 1024GB
On-Board Graphics support Integrated Graphics Processor
1 x DisplayPort 1.2
1 x HDMI 2.1(4K@60HZ)
Expansion Slot (Slot7) PCIe x16 (running at Gen4 x16)
(Slot6) PCIe x16 (running at Gen4 x16)
(Slot5) PCIe x16 (running at Gen4 x16)
(Slot4) PCIe x16 (running at Gen4 x16)
(Slot3) PCIe x16 (running at Gen4 x16)
(Slot2) PCIe x16 (running at Gen4 x8)
(Slot1) PCIe x16 (running at Gen4 x16)
LAN Dual Intel X550 10GbE LAN
Dual Intel i210AT GbE LAN (NCSI MLAN)
Storage 4 x SATA 6Gb/s connectors (support software RAID 0; RAID1; RAID5; RAID10)
2 x M.2 Connectors (Socket 3; M key; Form Factor 2242/2280 ; Supports PCIe gen4 x4 or SATA mode)
2 x slimSAS (PCIe gen4 x4 or 4x SATAIII) + 1 x slimSAS (PCIe gen4 x4) connectors
Audio Realtek ALC1220-VB codec
High Definition Audio
2/4/5.1/7.1-channel
Support for S/PDIF Out
USB Ports 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support
5 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
1 x USB Type-C header onboard, with USB3.2 Gen2 support
2 x USB 3.2 Gen 1 header onboard
1 x USB 3.2 Gen 1 vertical connector onboard
1 x USB 2.0 header on board

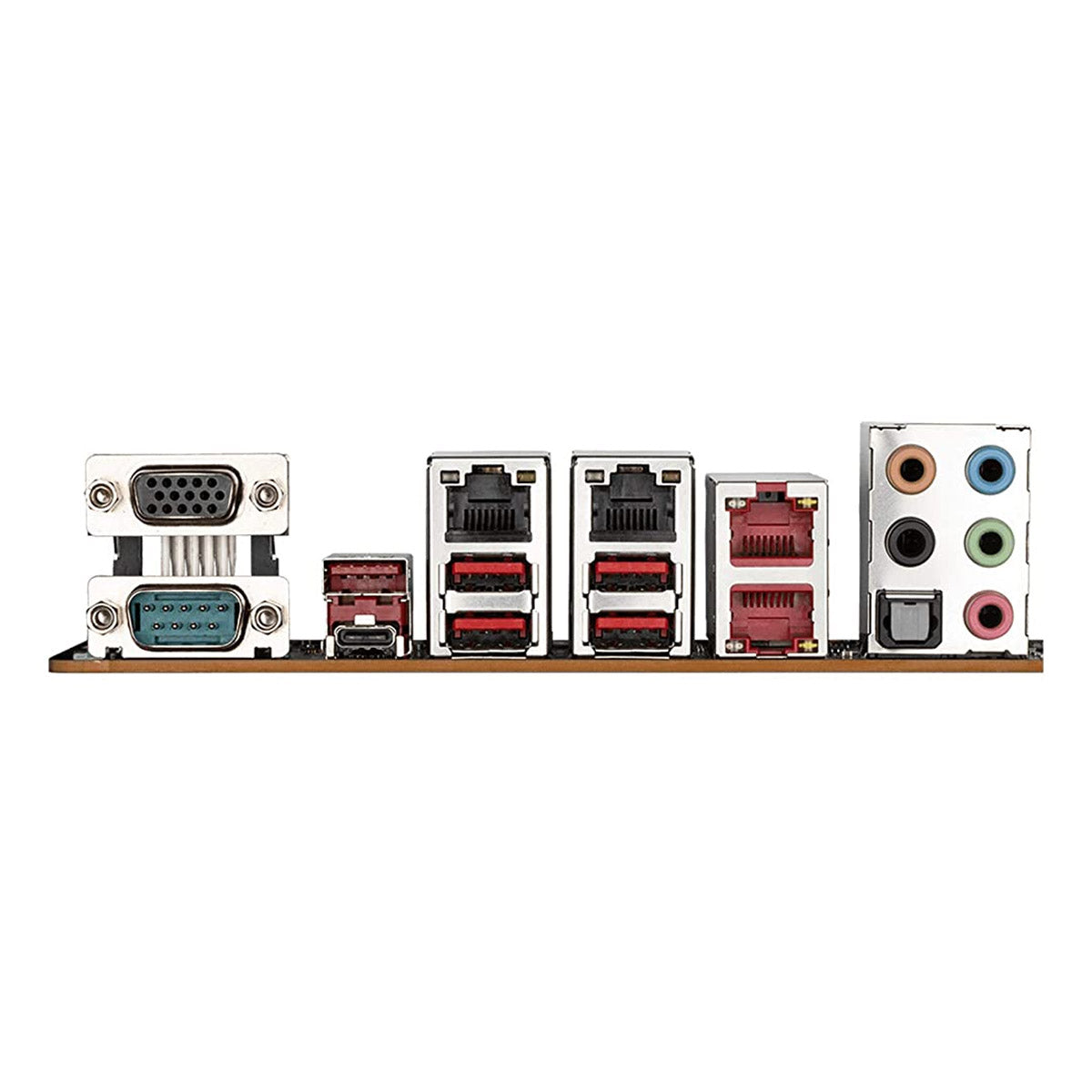

Back Panel I/O Ports 1 x D-sub port
1 x serial port
1 x USB 3.2 Gen 2 Type-C port (red)
5 x USB 3.2 Gen 2 Type-A port (red)
2 x GbE RJ-45 ports
2 x 10GbE RJ-45 ports
1 x optical S/PDIF Out connector
5 x audio jacks
Internal I/O ports 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V CPU power connector
1 x 8-pin ATX 12V GPU power connector
1 x CPU fan header
6 x system fan headers
4 x SATA 6Gb/s connectors
2 x M.2 Socket 3 connectors
3 x slimSAS connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C header, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 1 vertical connector
2 x USB 3.2 Gen 1 header
1 x USB 2.0 header
1 x Thunderbolt™ add-in card connector
1 x Trusted Platform Module(TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
1 x serial port header
1 x chassis intrusion header
1 x Clear CMOS jumper
2 x SATA SGPIO headers
1 x BMC_VGA jumper
1 x BMC_WATCHD jumper
1 x SMB_IPMB connector
1 x PMBUS header
1 x Speaker
Dimensions 30.5 cm x 26.7 cm (12 x 9.6 )
CEB Form Factor
Warranty 3 Years of Brand Warranty
