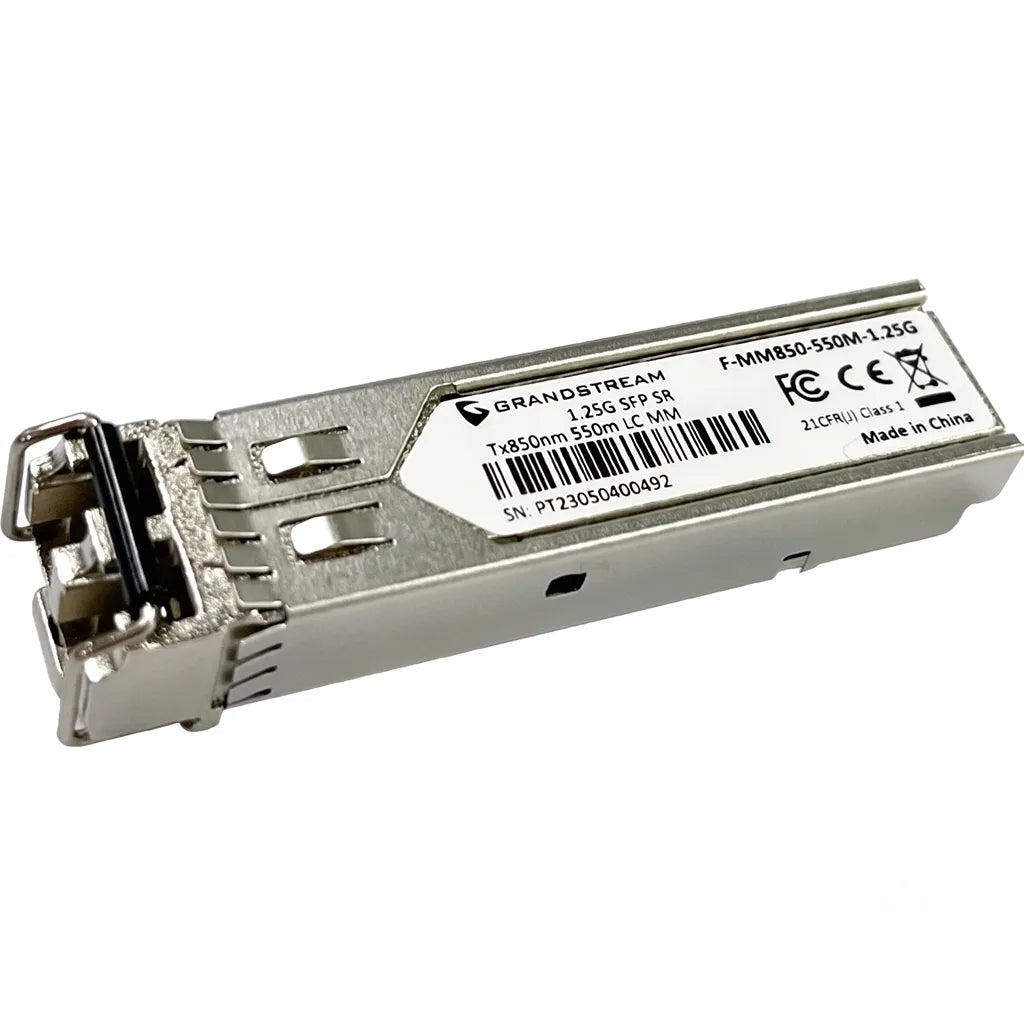

• Grandstream F-MM850-550M-1.25G 1.25Gbps multi-mode SFP fiber transceiver side angle for enterprise optical networking.

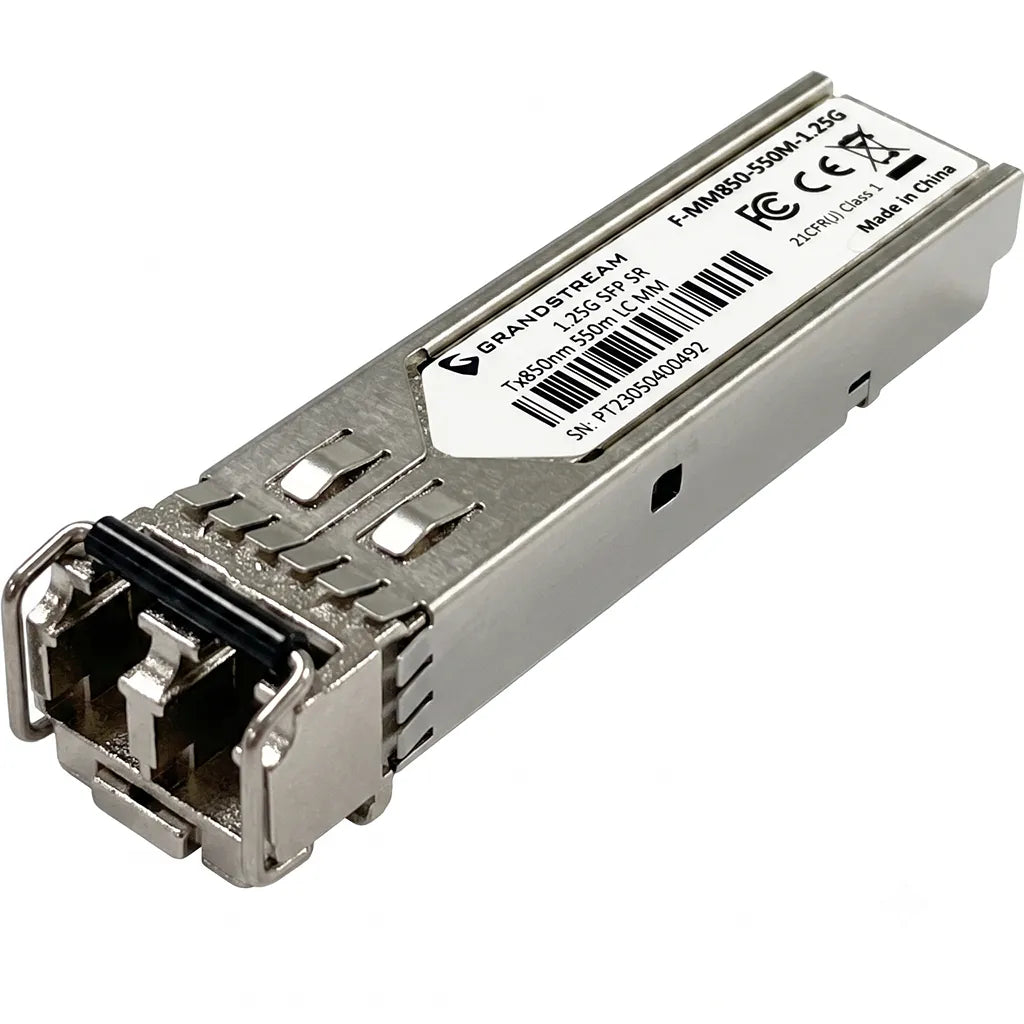

  • Grandstream F-MM850-550M-1.25G 1.25G multi-mode SFP fiber transceiver module front angled view with Duplex LC connector.

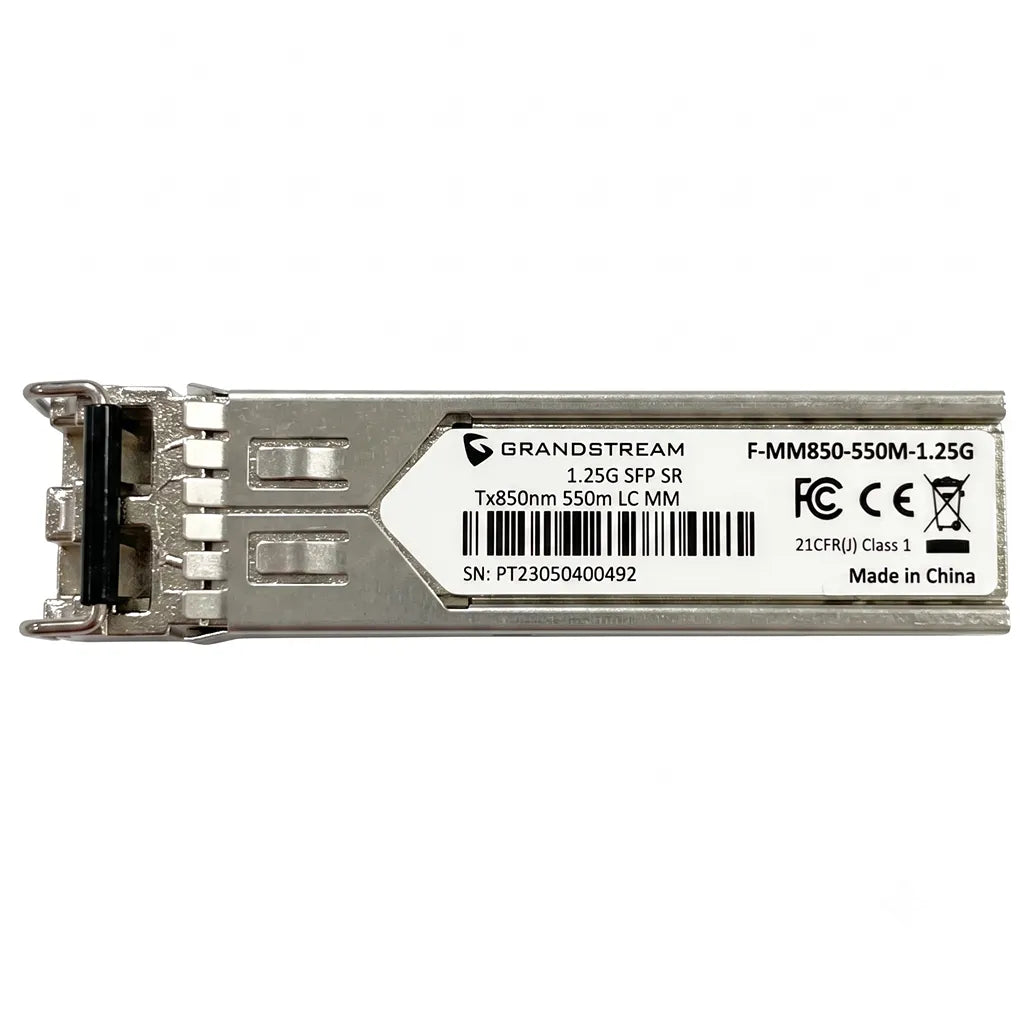

  • Top view of Grandstream F-MM850-550M-1.25G multi-mode SFP fiber transceiver showing product label and Duplex LC interface.

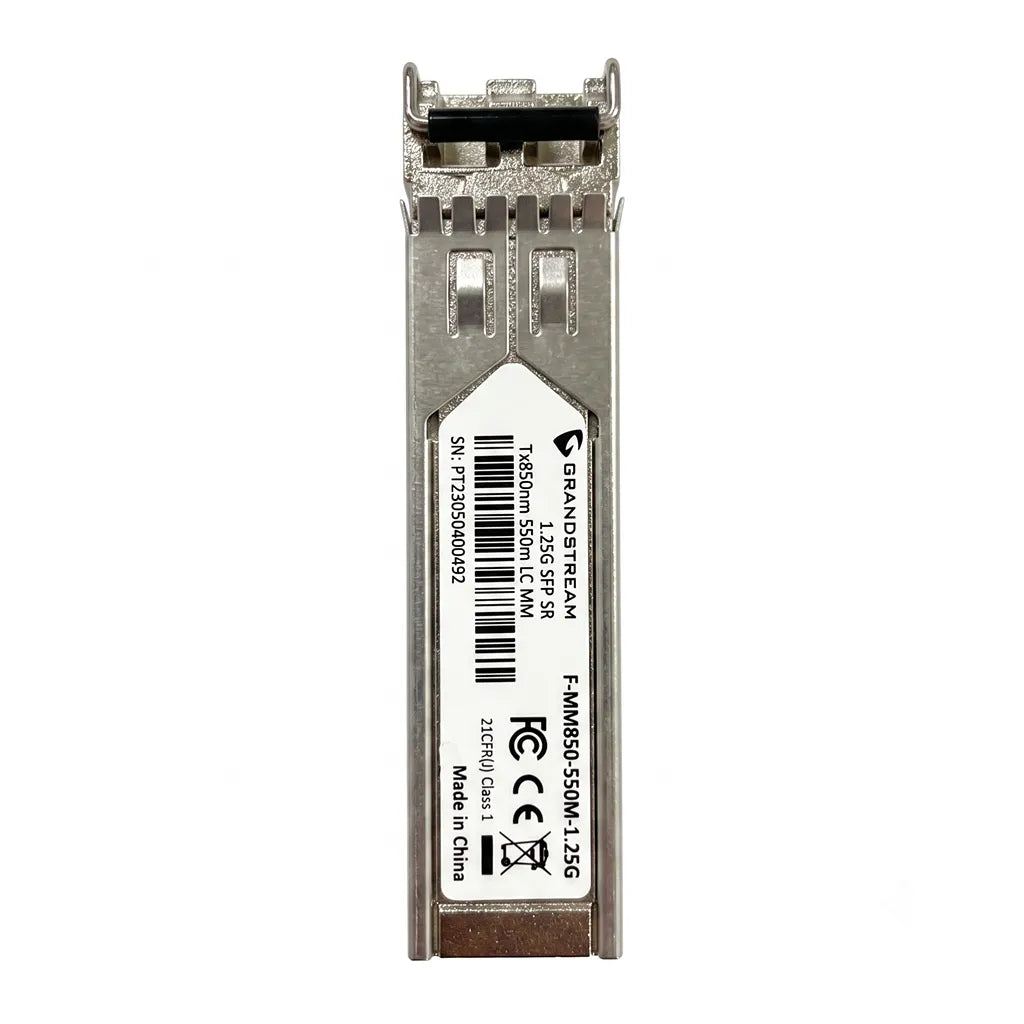

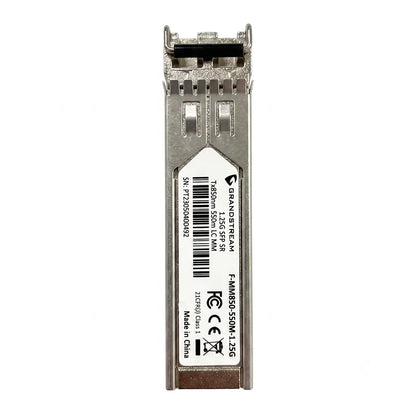

  • Rear view of the Grandstream F-MM850-550M-1.25G 1.25G multi-mode SFP fiber transceiver module.

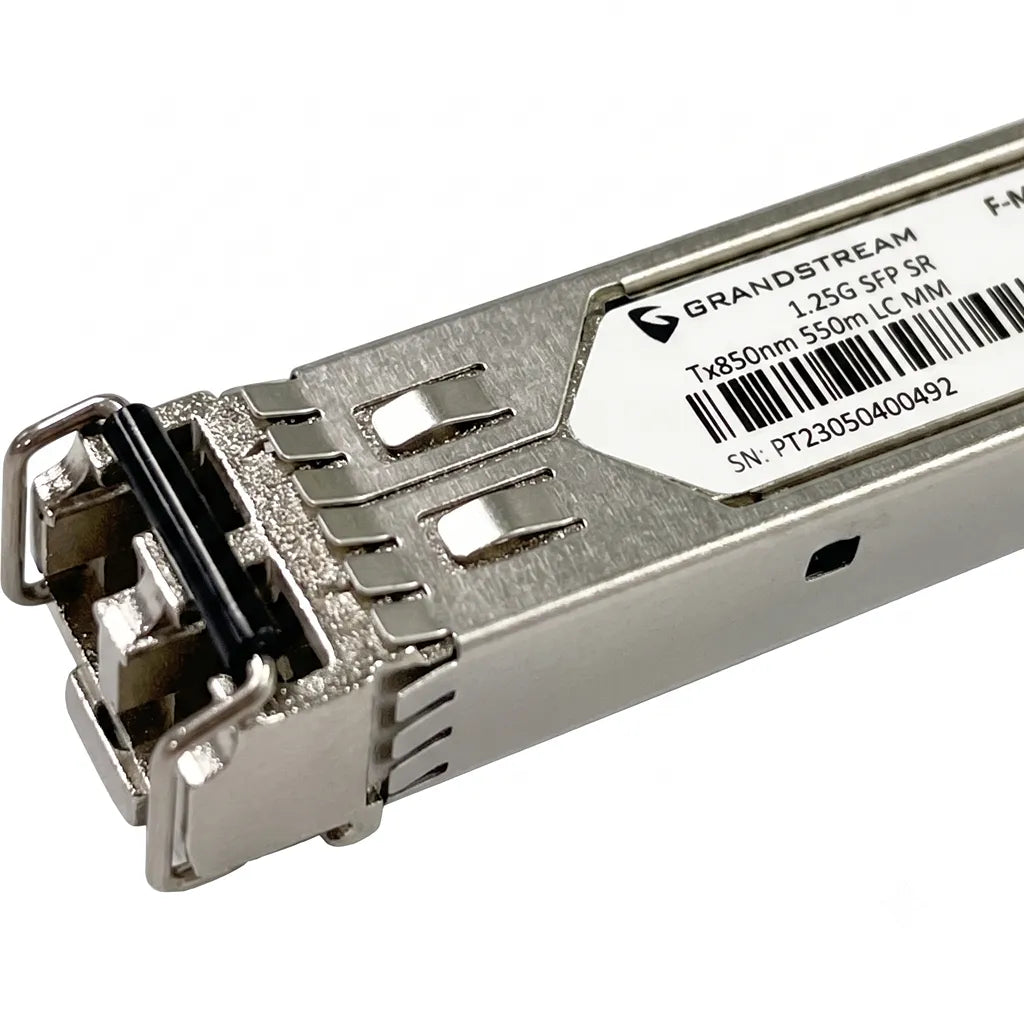

  • Close-up of the Duplex LC connector on the Grandstream F-MM850-550M-1.25G multi-mode SFP fiber module.

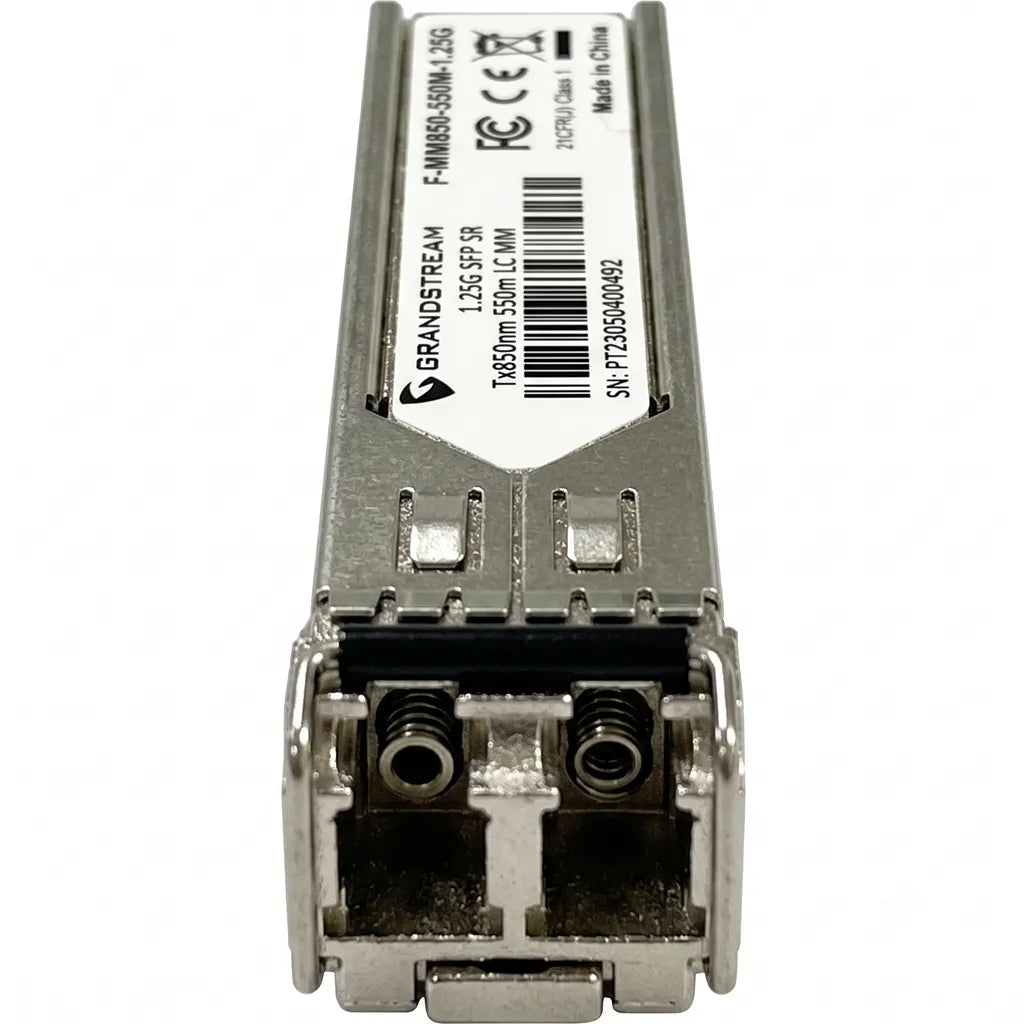

  • Front connector view of Grandstream F-MM850-550M-1.25G multi-mode SFP fiber transceiver with Duplex LC ports.
1 6

Grandstream F-MM850-550M-1.25G Multi-Mode SFP Fiber Module 1.25Gbps

Grandstream F-MM850-550M-1.25G Multi-Mode SFP Fiber Module 1.25Gbps

Brand: Grandstream
Rs. 1,525.00
50% off Rs. 2,999.00 Rs. 1,525.00
Sale Sold out
  • 100% Genuine Product
  • Highly ā­ Rated on Trustpilot & Google
  • > 15 Lakh Orders Fulfilled
Loading Offers...
+ Offers

Product Description:

šŸ”Œ High Speed 1.25Gbps Connectivity Supports 1.25Gbps SFP data transmission for reliable fiber network connections in enterprise environments.

šŸŒ Multi-Mode Fiber Support Designed for multi-mode fiber networks with an 850nm wavelength and transmission distances up to 550 meters on OM2 fiber.

šŸ”„ Hot Pluggable SFP Module Enables quick installation and replacement without powering down compatible networking equipment.

šŸ“Š Digital Diagnostic Monitoring Integrated DDM via I2C helps monitor transceiver operating status for easier network maintenance.

šŸ¢ Built for Enterprise Networks Low power consumption with low EMI and excellent ESD protection makes it suitable for enterprise LANs and optical links.

The Grandstream F-MM850-550M-1.25G is a hot-pluggable multi-mode SFP fiber module designed for dependable 1.25Gbps optical networking. Operating at an 850nm wavelength with Duplex LC connectivity, it supports transmission distances up to 550 meters over OM2 fiber. With integrated Digital Diagnostic Monitoring, low power consumption, and low EMI performance, it is an ideal choice for enterprise LANs, network switches, and other compatible optical networking applications.

Product Specifications:

Specification Details
Brand Grandstream
Model F-MM850-550M-1.25G
Product Type SFP Fiber Module
Fiber Mode Multi-Mode Fiber
Connector Type Duplex LC
Nominal Wavelength 850nm
Data Rate 1.25Gbps SFP
Transfer Distance (OM2) 550m (50/125Āµm)
Transfer Distance (OM1) 300m (62.5/125Āµm)
Digital Diagnostic Monitoring Yes (DDM via I2C)
Maximum Power Consumption 0.8W
Operating Voltage 3.3V Ā±0.3V
TX Power -10 to -3dBm (Ā±3dB)
RX Power -18 to -3dBm (Ā±3dB)
Standards SFF-8472, SFP MSA, IEEE 802.3z, RoHS-6
Installation Hot Pluggable
Recommended Applications Enterprise LAN Networks, Optical Links
Country of Origin China
Warranty 2 Year Manufacturer Warranty

Ā
