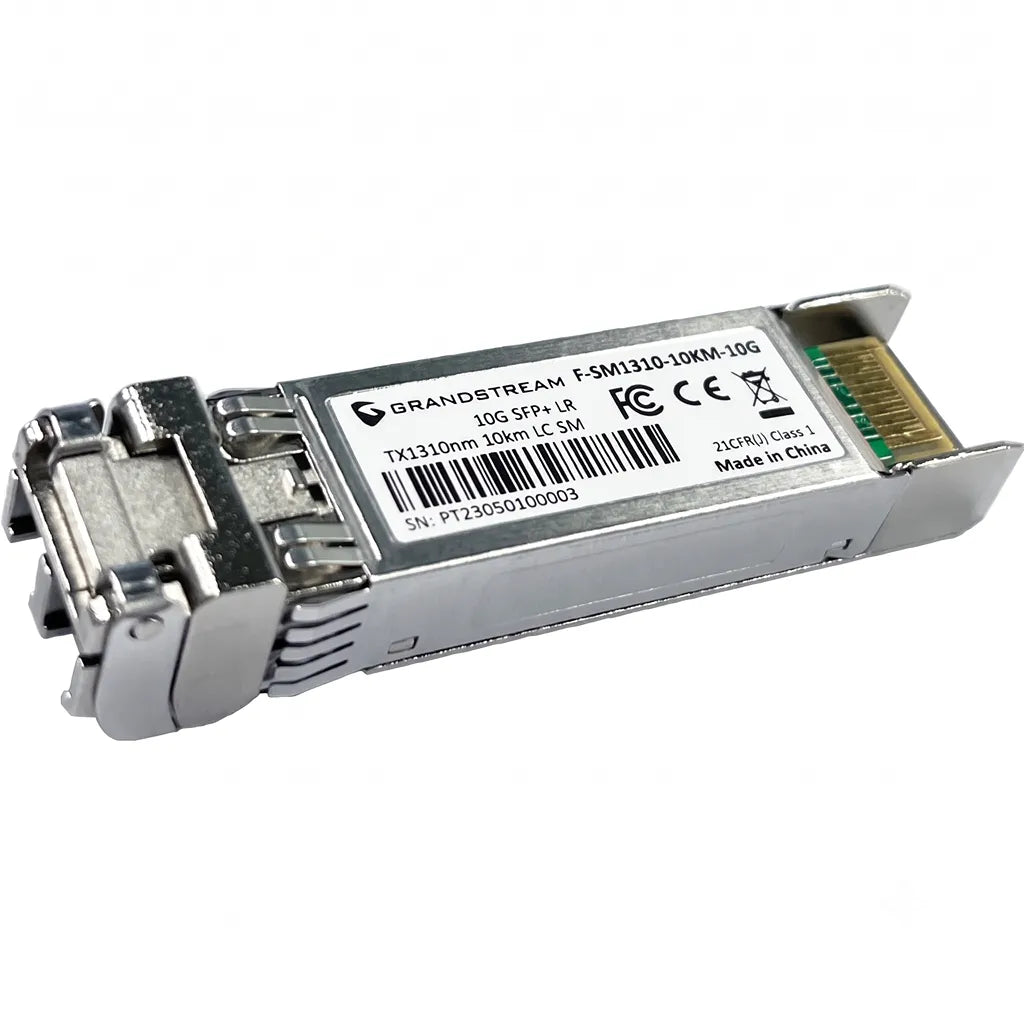

• Side perspective view of Grandstream F-SM1310-10KM-10G 10G SFP+ single-mode fiber module with Duplex LC interface.

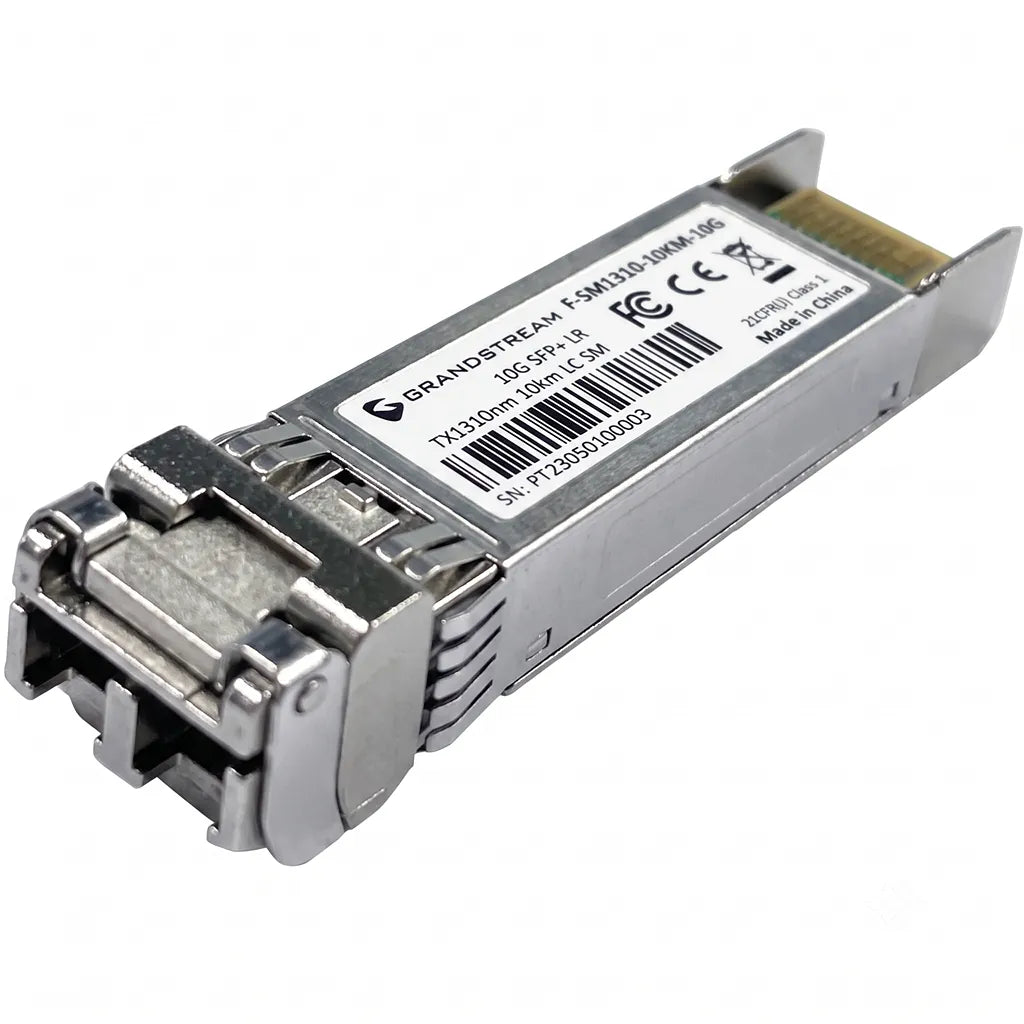

  • Grandstream F-SM1310-10KM-10G 10G SFP+ single-mode fiber module with Duplex LC connector shown in front angled view.

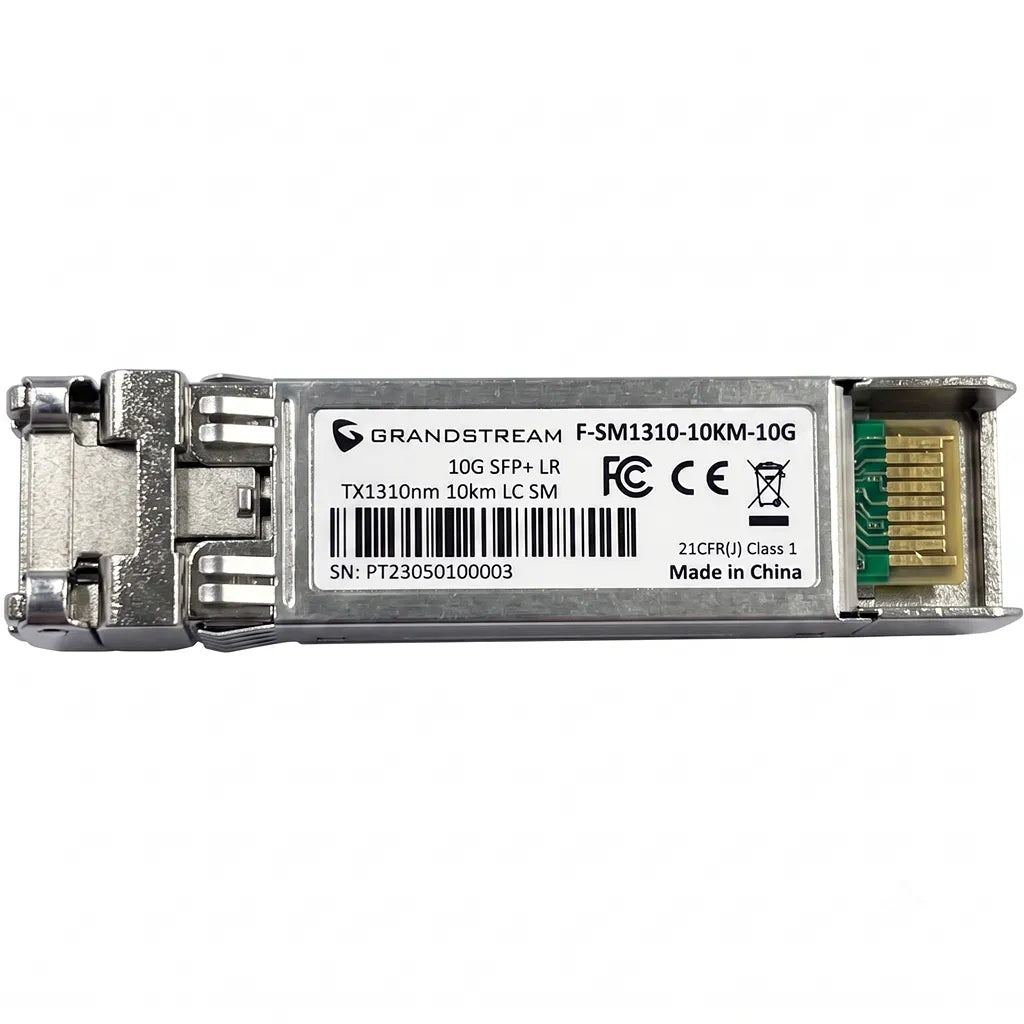

  • Top view of Grandstream F-SM1310-10KM-10G 10G SFP+ single-mode fiber transceiver with product label and LC interface.

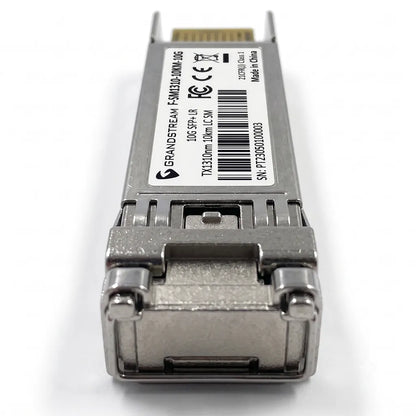

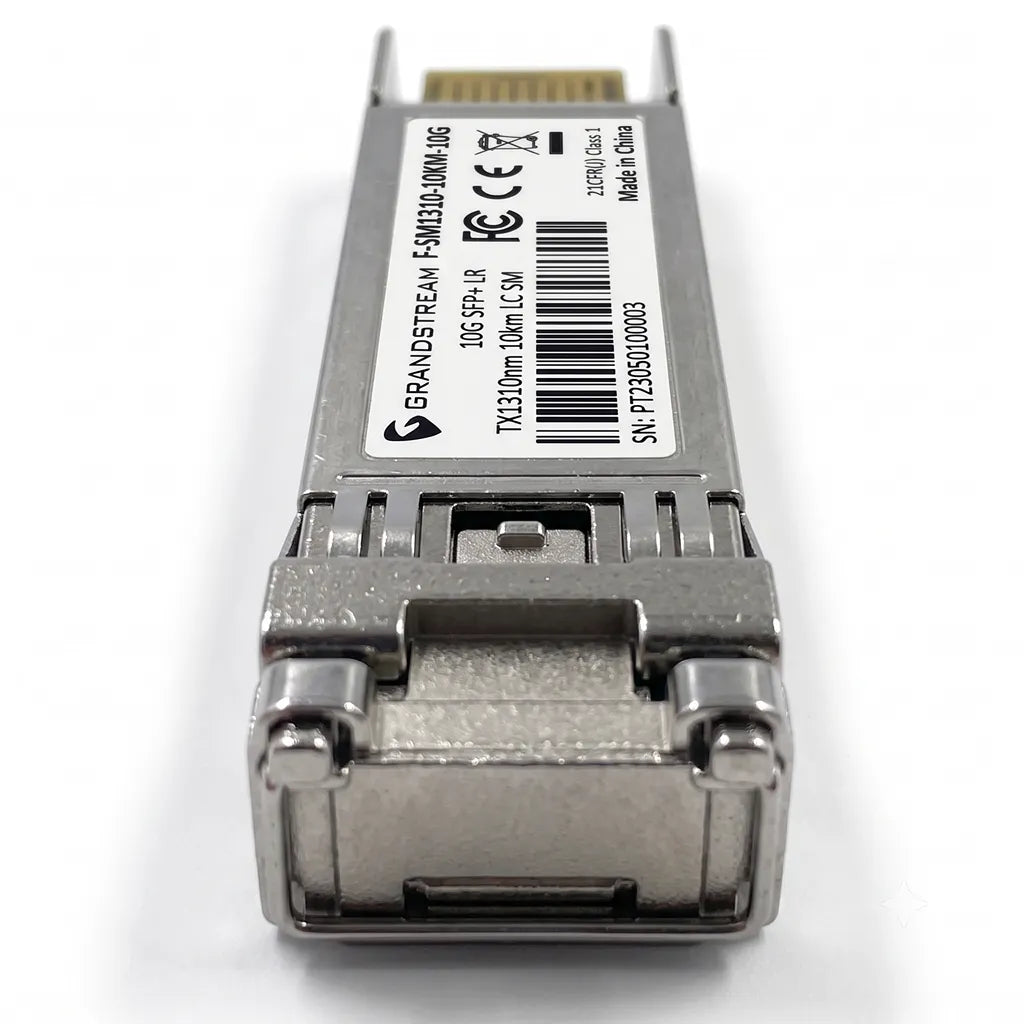

  • Front connector view of Grandstream F-SM1310-10KM-10G 10G SFP+ fiber module for single-mode optical networking.

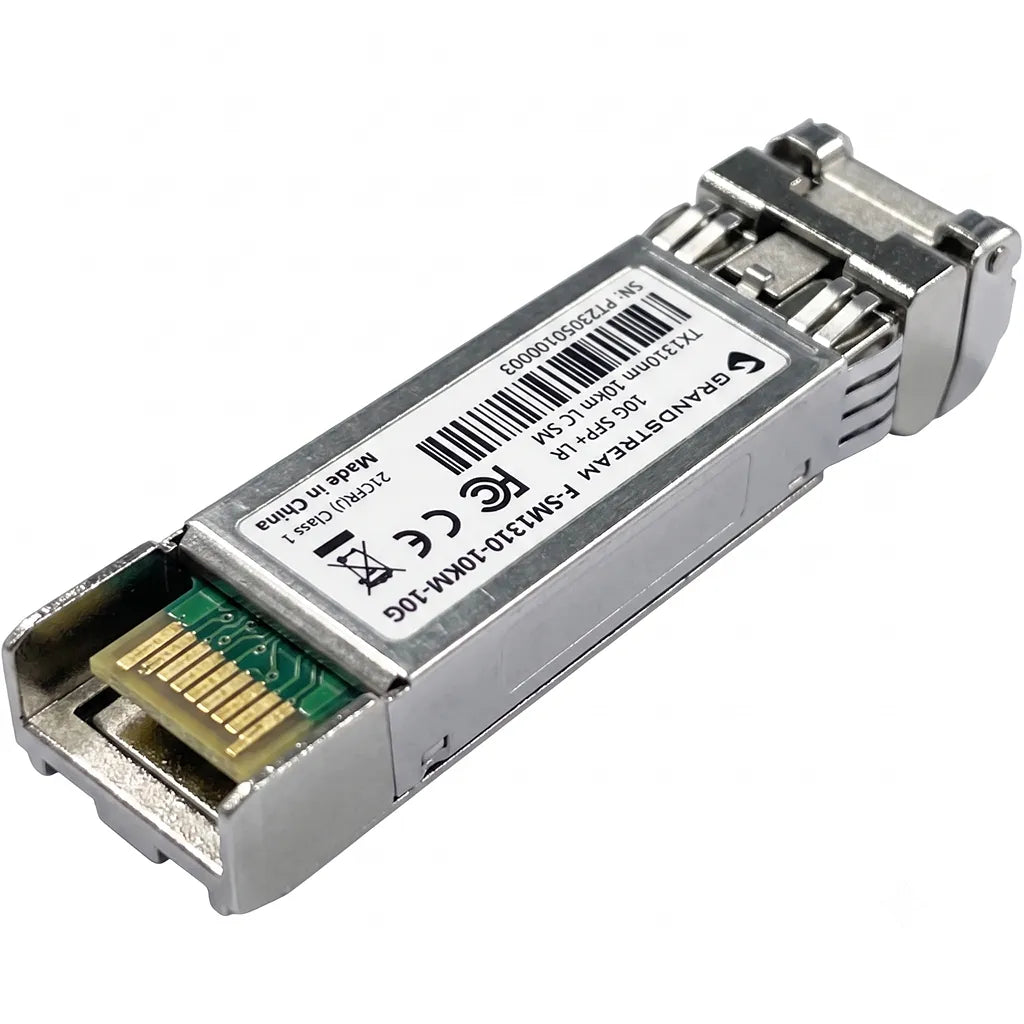

  • Rear angled view of Grandstream F-SM1310-10KM-10G SFP+ fiber module showing gold-plated edge connector.

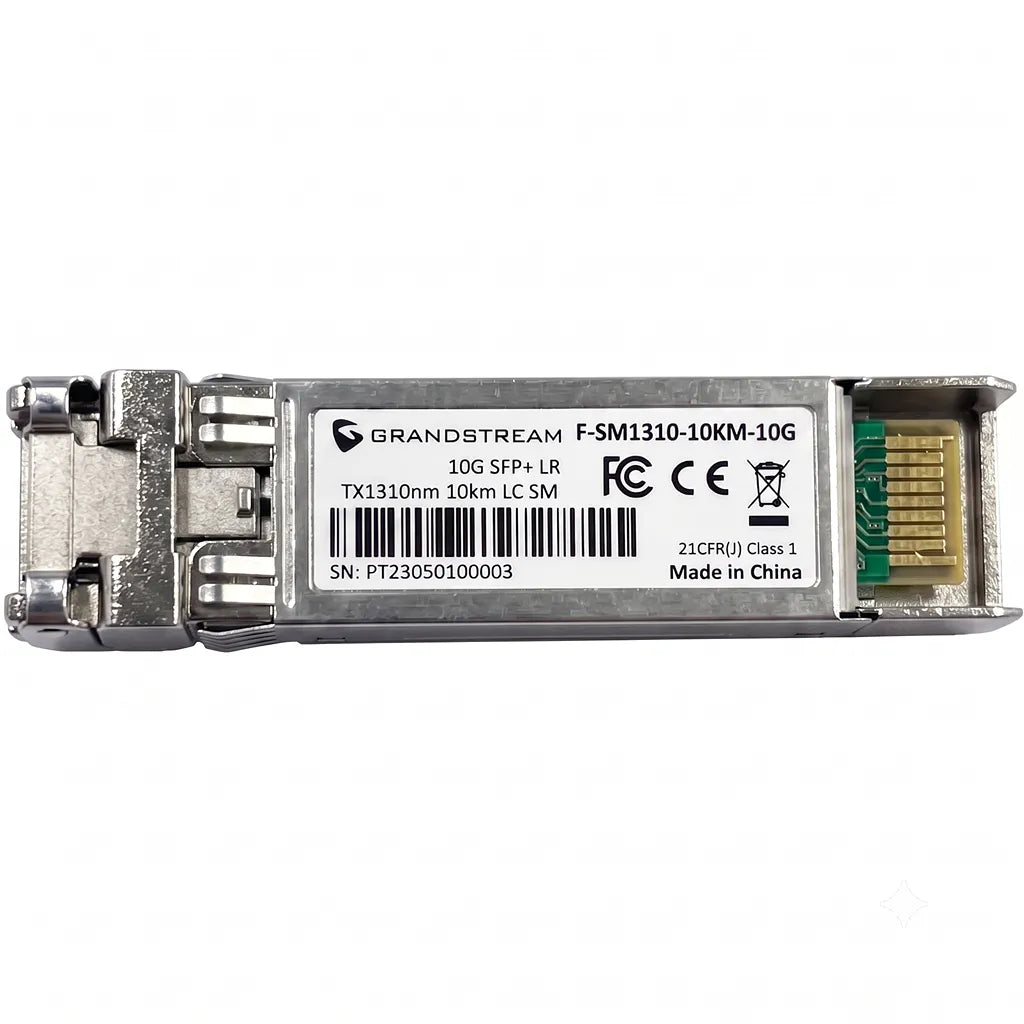

  • Flat top view of Grandstream F-SM1310-10KM-10G 10Gbps SFP+ optical transceiver for 10km single-mode fiber.
1 6

Grandstream F-SM1310-10KM-10G SFP+ Fiber Module

Grandstream F-SM1310-10KM-10G SFP+ Fiber Module

Brand: Grandstream
Rs. 3,347.00
32% off Rs. 4,899.00 Rs. 3,347.00 Utsav Offer
Sale Sold out
  • 100% Genuine, Brand New & Sealed
  • Original Manufacturer Warranty
  • Trusted Since 2014 · 15 Lakh+ Orders
Loading Offers...
+ Offers
Chat with us on WhatsAppReal people, quick replies
Chat with sales Get support

Product Description:

🔌 High Speed 10Gbps Connectivity – Supports 10Gbps SFP+ data transmission for reliable high bandwidth network connections over fiber.

🌐 Single-Mode Fiber Support – Designed for single-mode fiber with a 1310nm wavelength and up to 10km transmission distance for long-range networking.

📊 Integrated Digital Diagnostics – Supports Digital Diagnostic Monitoring (DDM) over I2C, allowing convenient monitoring of module operating status.

⚡ Low Power Operation – Consumes a maximum of only 1W, helping reduce power usage in enterprise networking environments.

🔄 Broad SFP+ Compatibility – Hot-pluggable Duplex LC transceiver designed for compatible 10Gb Ethernet SFP+ networking equipment.

The Grandstream F-SM1310-10KM-10G SFP+ Fiber Module is a hot-pluggable single-mode optical transceiver built for reliable 10Gb Ethernet connectivity. Operating at a 1310nm wavelength with a transmission distance of up to 10km, it features a Duplex LC connector, integrated Digital Diagnostic Monitoring (DDM), and low 1W power consumption. Ideal for enterprise LANs and optical network links requiring stable, high-speed fiber communication.

Product Specifications:

Specification Details
Brand Grandstream
Model F-SM1310-10KM-10G
Product Type SFP+ Fiber Module
Fiber Mode Single-Mode Fiber
Connector Type Duplex LC
Data Rate 10Gbps SFP+
Nominal Wavelength 1310nm
Transfer Distance 10km
Digital Diagnostic Monitoring Yes, I2C Integrated DDM
Maximum Power Consumption 1W
TX Power -8.2 to 0.5 dBm (±3dB)
RX Power -14.4 to 0.5 dBm (±3dB)
Operating Voltage 3.3V ±0.3V
Standards SFF-8472, SFP+ MSA, IEEE 802.3ae, RoHS-6
Compliance FCC, CE, FDA
Country of Origin China
Warranty 1-Year Limited Warranty
