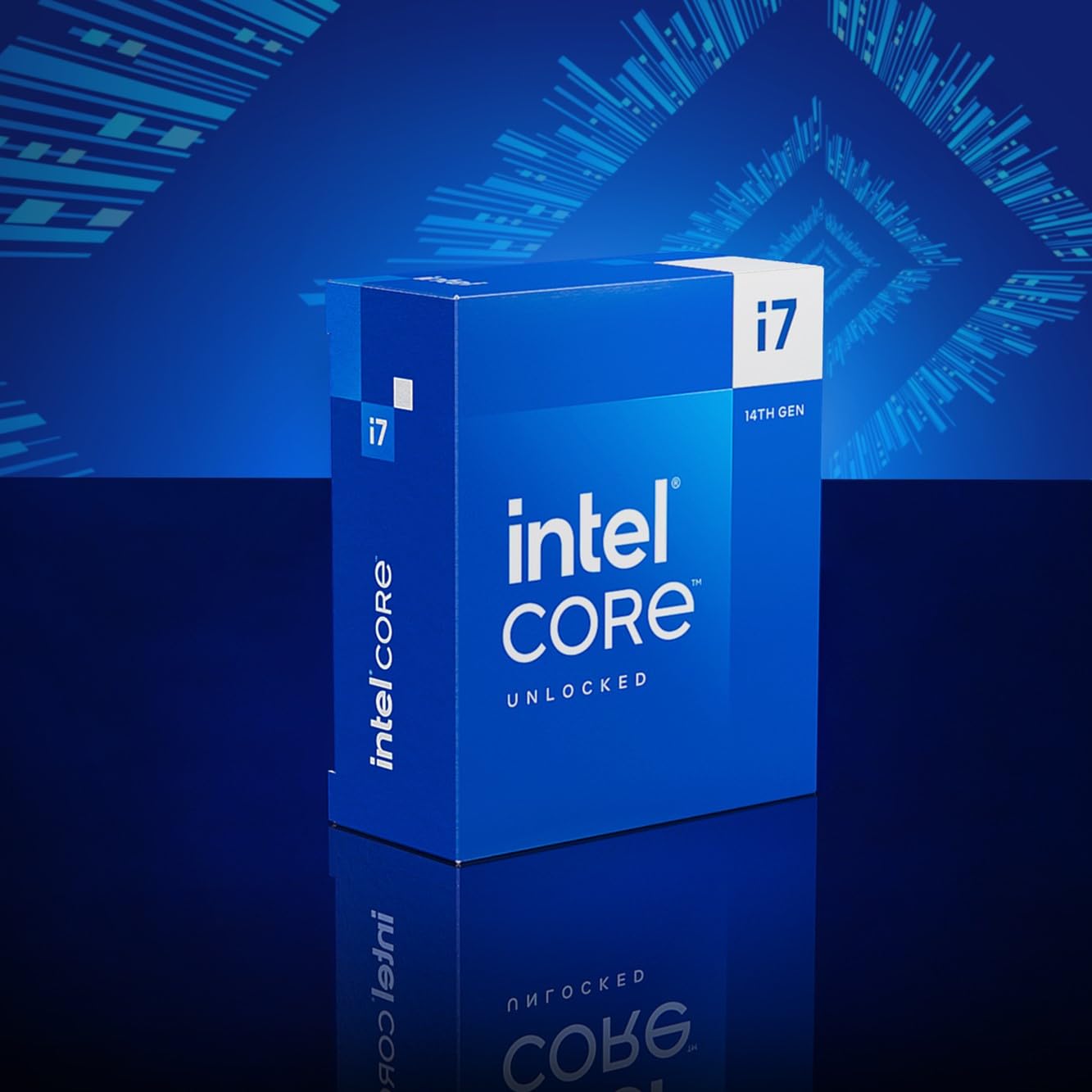

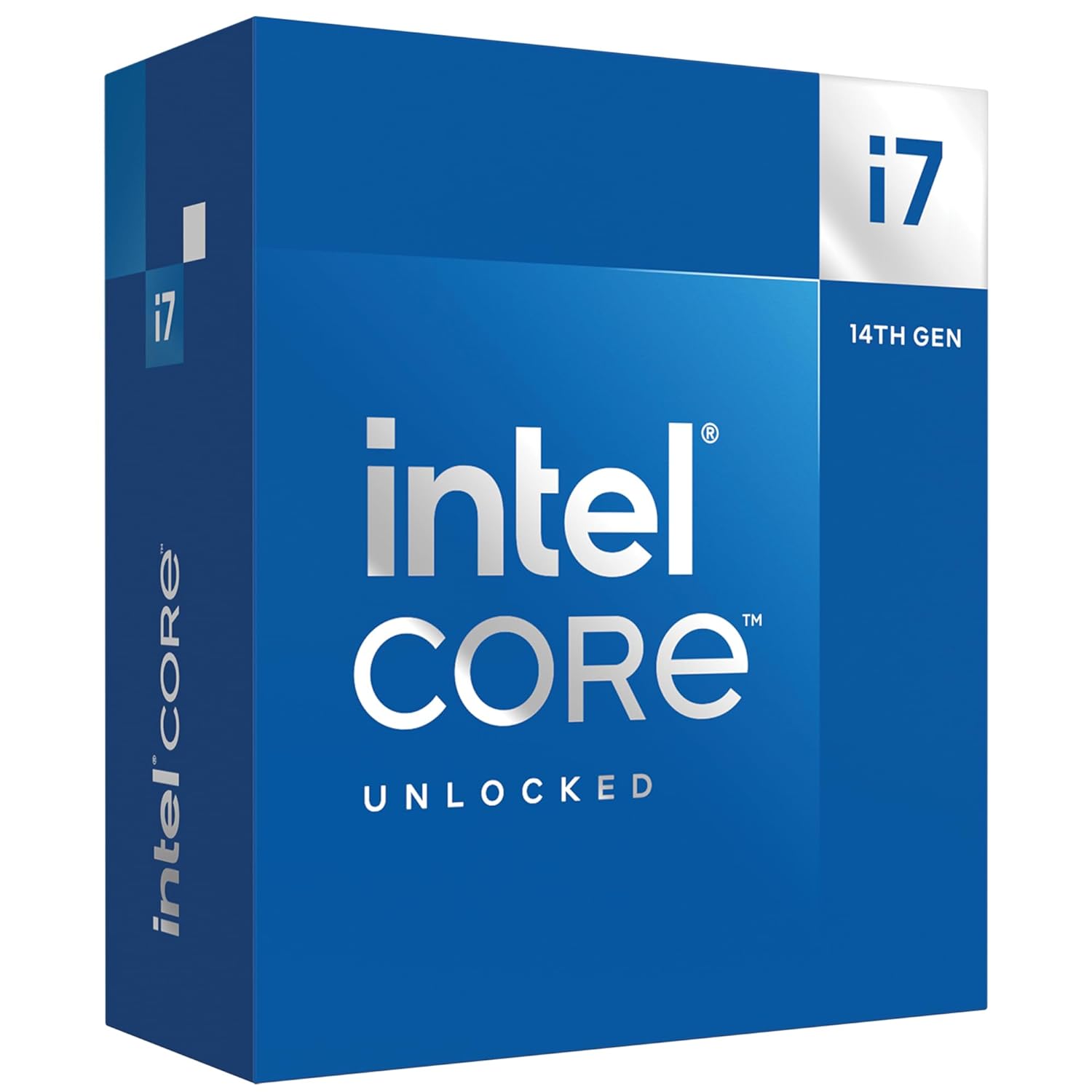

Intel Core i7-14700KF 20 Cores 28 Threads 33MB Cache 5.6 GHz LGA 1700 14th Gen RAPTOR LAKE Desktop Processor
Intel Core i7-14700KF 20 Cores 28 Threads 33MB Cache 5.6 GHz LGA 1700 14th Gen RAPTOR LAKE Desktop Processor
- Free Shipping
- 7-Days Return
- Original Warranty
Product Description:
Power up your productivity, gaming, and content creation with the Intel Core i7-14700KF 3.4 GHz 20-Core LGA 1700 Processor. Built with the Intel 7 process, this 14th generation desktop processor delivers improved power efficiency with a total of 20 cores while fitting the LGA 1700 socket. Featuring an optimized Hybrid Core Architecture, the Core i7-14700KF powers demanding applications and games with eight 5.6 GHz Performance-cores while the 12 low-voltage Efficient-cores handle background tasks for smooth multitasking. The built-in Intel Thread Director ensures that the two work seamlessly together by dynamically and intelligently assigning workloads to the right core at the right time.
With 30MB of cache and a 5.6 GHz Turbo Boost Max 3.0 frequency, this processor is made to handle intense workloads. You can overclock this processor for even greater performance. The Core i7-14700KF also supports PCI Express 5.0 and up to 192GB of dual-channel DDR5 ECC memory at 5600 MHz.
The Core i7-14700KF features integrated Intel UHD 770 Graphics. Please note that a thermal solution is NOT included. This processor is backed by a 3-year warranty.
Hybrid Core Design
Performance-cores provide the speed to handle high-end games and demanding applications while low-priority and background tasks such as streaming video, playing music, and encoding media are handled by the processor’s Efficient-cores.
Intel Thread Director
The Intel Thread Director is built into the CPU’s cores, working with the operating system to ensure each of the 28 threads are assigned to the right core at the right time.
PCIe 4.0 & 5.0
This processor supports up to four PCIe 4.0 and sixteen PCIe 5.0 lanes, delivering 20 lanes in total for exceptional data throughput with compatible devices.
Integrated Graphics
Driven by Intel Xe architecture, the integrated Intel UHD 770 Graphics delivers fast, rich 3D performance for high-quality visuals with support for either one 7680 x 4320 resolution 8K monitor or up to four 3840 x 2160 resolution 4K displays with high-dynamic range.
Gaussian & Neural Accelerator 3.0
Gaussian and Neural Accelerator 3.0 (GNA) technology helps with noise suppression while enhancing background blurring during video chats.
Intel Deep Learning Boost
Accelerates AI inference to improve performance for deep learning workloads.
~section~
Model | i7-14700KF |
Total Core(s) | 20 |
Performance Core(s) | 8 |
Efficient Core(s) | 12 |
Thread(s) | 28 |
Base Frequency |
2.5 GHz
|
Max Turbo Frequency |
5.6 GHz
|
Overclockable | Yes |
Cache |
33 MB Intel® Smart Cache
|
Total L2 Cache |
28 MB
|
Lithography | Intel 7 |
TDP | Processor Base Power : 125 W Maximum Turbo Power : 253 W |
Max Memory Size | 192 GB |
Memory support | Up to DDR5 5600MHz Up to DDR4 3200MHz |
Memory channel | 2 |
Processor Graphics |
Intel® UHD Graphics 770
|
PCIe Express Version | PCIe 5.0 PCIe 4.0 |
Max Operating Temperature | 100°C |
Socket | LGA 1700 |
Instruction Set Extension |
Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2
|
Launch Date | 01/2024 |
Product Family | Intel Core i7 Processors 14th Gen Series |
Warranty | 3 Years Brand Warranty |
