Microtek ONLINE UPS 1KVA 1PH:1PH 36V-IB MAX+ Pure Sinewave Online UPS
Microtek ONLINE UPS 1KVA 1PH:1PH 36V-IB MAX+ Pure Sinewave Online UPS
- Pan India Free Shipping
- Easy 7-Days Return Policy
- Original Brand Warranty
- 100% Genuine Product
- Highly ⭐ Rated on Trustpilot & Google
- > 15 Lakh Orders Fulfilled
Couldn't load pickup availability
Product Description:
⚡ Double Conversion Online Technology: Continuously converts AC to DC and back to AC to provide stable pure sinewave power for critical equipment.
🛡️ Reliable Device Protection: Wide input voltage range, EMI/RFI noise filtering, overload, short-circuit and over-temperature protection help safeguard connected equipment.
🔋 Built-In 36V Battery System: Includes three 12V 7Ah batteries and supports automatic battery charging even when the UPS is switched off.

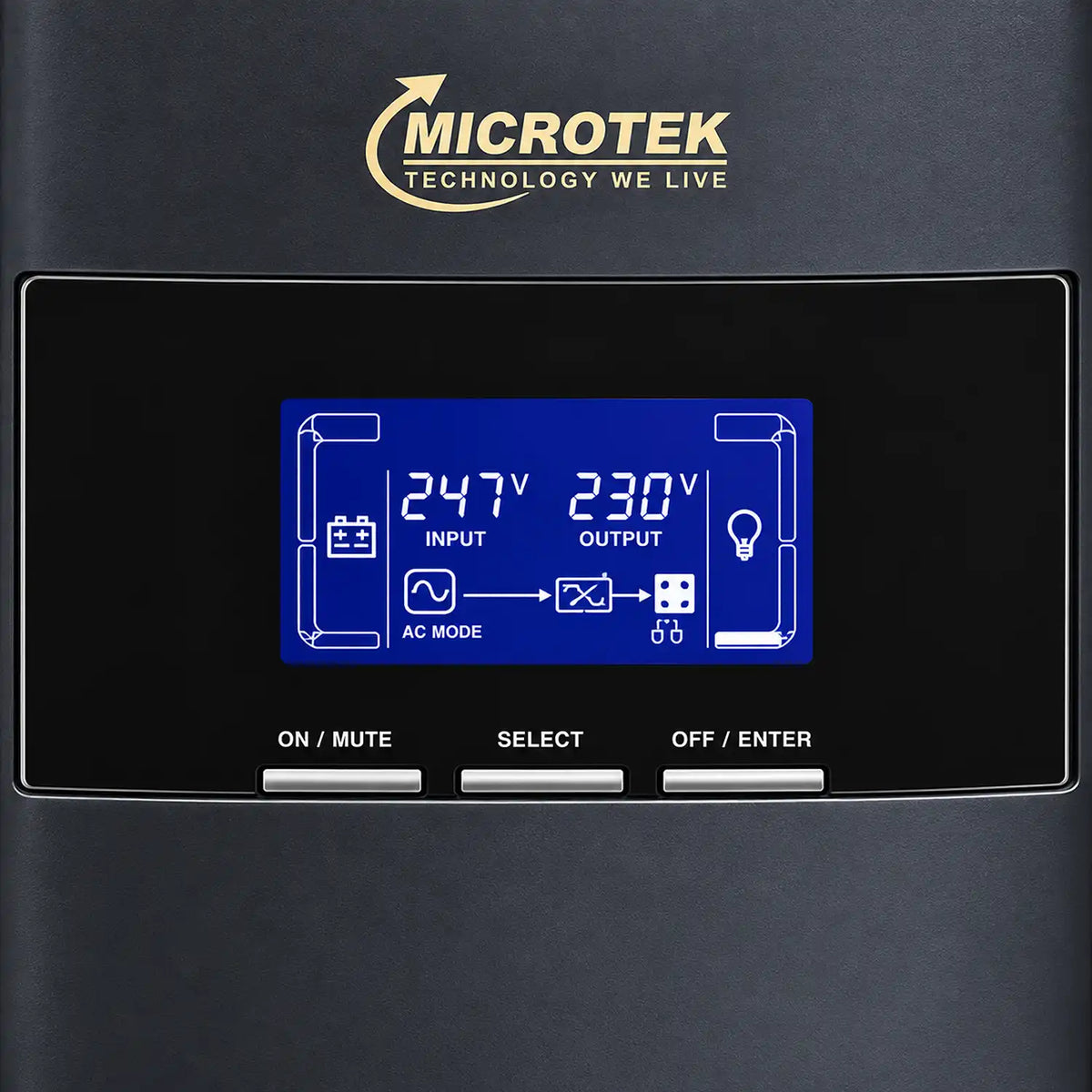

📟 Smart Monitoring & Communication: LCD display provides status information, while RS232 communication supports monitoring software and an optional SNMP card.
🖥️ Critical-Application Ready: Designed for computer networks, servers, cyber cafés and laboratories, with generator compatibility and zero transfer time from AC to battery mode.
The Microtek ON LINE UPS 1KVA 1PH:1PH 36V-IB MAX+ is a 1KVA/900W high-frequency online UPS designed for critical applications such as computer networks, servers, cyber cafés and laboratories. Its double-conversion technology delivers pure sinewave output, while advanced PFC, battery management, protection features and LCD monitoring support dependable operation. The built-in 36V battery system makes it suitable for professional equipment requiring continuous, stable power backup.
Product Specifications:
| Specification | Details |
|---|---|
| Brand | Microtek |
| Product Model | ON LINE UPS 1KVA 1PH:1PH 36V-IB MAX+ |
| SKU | 899-711-1001 |
| Product Type | Online UPS |
| Rated Capacity | 1 KVA / 900 Watts |
| Phase | Single Phase In, Single Phase Out |
| Input Phase | Single Phase with Ground |
| Input Voltage Range, Load <50% | 118 ~ 295 V (± 5 V) |
| Input Voltage Range, Load >50% | 160 ~ 295 V (± 5 V) |
| Input Frequency | 40 ~ 70 Hz |
| Power Factor | ≥0.99 @ full load |
| Output Voltage | 208 / 220 / 230 / 240 V AC |
| Output Frequency, Synchronized | 47 ~ 53 Hz or 57 ~ 63 Hz |
| Output Frequency, Battery Mode | 50 Hz ± 0.1 Hz or 60 Hz ± 0.1 Hz |
| Waveform | Pure Sinewave |
| THD, Linear Load | ≤2% |
| THD, Non-Linear Load | ≤4% |
| AC to Battery Transfer Time | Zero |
| Inverter to Bypass Transfer Time | <4 ms |
| Efficiency | 85% ~ 92% |
| Crest Factor | 3:1 Max |
| DC Voltage | 36 V (7 Ah × 3 Nos. Battery inside) |
| Battery Charge Current | 0.7 ~ 0.8 Amps |
| Communication Interface | RS232, SNMP (Optional) |
| Display | LCD Display |
| Noise Level | Less than 50 dBA @ 1 Meter with Fan Speed Control |
| UPS Overload / Short Circuit | 110% / 300% |
| Technology | High Frequency and Double Conversion Online Technology |
| Power Electronics | High End IGBT Based |
| Controller | High End Micro Controller Based |
| PFC | Advanced PFC Technology |
| Battery Management | Advanced Battery Management |
| EMI/RFI Protection | EMI / RFI Noise Filter |
| Generator Compatibility | Yes, supplying sinewave voltage |
| Output Frequency | Fixed at 50Hz or synchronized with input frequency |
| Static Bypass | Enable or Disable |
| Outlets | Programmable and Non-Programmable |
| Over Voltage Protection | In-built Over Voltage Cut-Off Device |
| Weight | 13.5 kg |
| Dimensions (L × W × H) | 14.5 × 39.7 × 22 |
| Warranty | 2 on Electronics & 1 Year on Battery |
