Microtek ONLINE UPS 6KVA 1PH:1PH 192V MAX+ 6000VA Pure Sine Wave UPS
Microtek ONLINE UPS 6KVA 1PH:1PH 192V MAX+ 6000VA Pure Sine Wave UPS
- Pan India Free Shipping
- Easy 7-Days Return Policy
- Original Brand Warranty
- 100% Genuine Product
- Highly ⭐ Rated on Trustpilot & Google
- > 15 Lakh Orders Fulfilled
Couldn't load pickup availability
Product Description:
⚡ 6KVA Online UPS: Provides 6000VA/4800W capacity with 1-phase input and 1-phase output for high-capacity power backup applications.
🔄 True Double Conversion: Delivers stable power conditioning with zero transfer time from AC mode to battery mode.
🔋 Flexible Battery Configuration: Uses VRLA/SMF batteries with 16 batteries by default and adjustable support for 18 or 20 batteries.

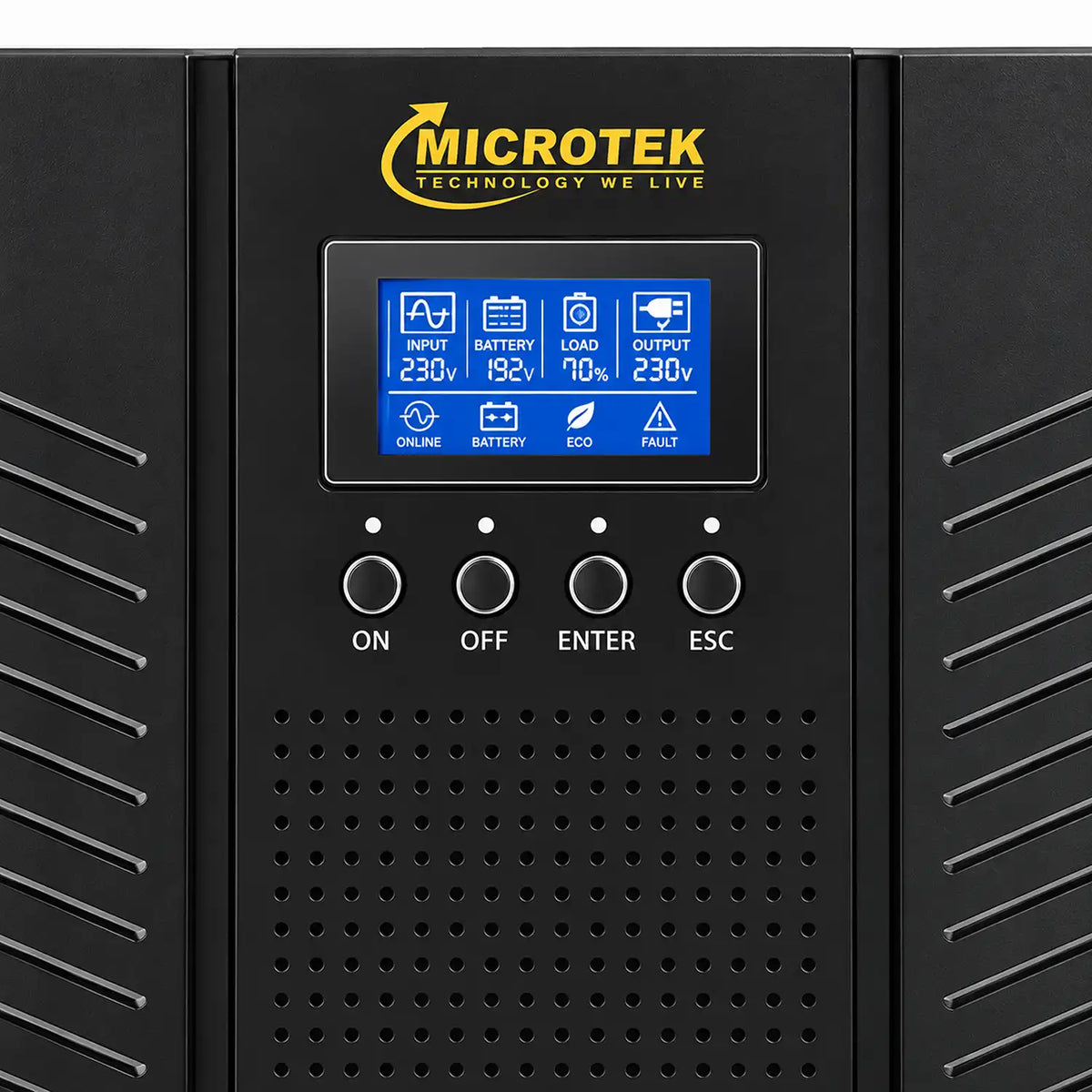

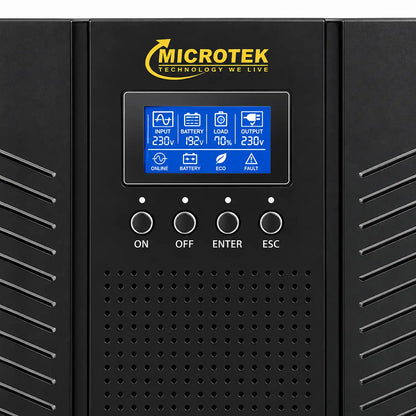

📟 Smart LCD & Connectivity: LCD displays UPS status, load, battery level, voltage, frequency, discharge timer and fault status, with RS-232/USB support.
🛡️ Wide Input & High Efficiency: Supports 110-300VAC input range at 50% load and delivers up to 94% efficiency in AC mode.
Microtek ONLINE UPS 6KVA 1PH:1PH 192V MAX+ is a 6000VA/4800W true double-conversion online UPS designed for high-capacity and voltage-sensitive applications. It provides pure sine wave output, zero transfer time, DSP technology, active input power factor correction and up to 94% AC-mode efficiency. With adjustable 16/18/20-battery configuration, LCD monitoring and RS-232/USB connectivity, it is suitable for offices, IT equipment and other sophisticated power backup requirements.
Product Specifications:
| Specification | Details |
|---|---|
| Brand | Microtek |
| Model | ONLINEUPS6KVA1PH:1PH192V(HF) |
| Product Name | ONLINE UPS 6KVA 1PH:1PH 192V MAX+ |
| SKU | 899-601-6001 |
| Capacity | 6000VA / 4800W |
| Phase | 1 Phase Input / 1 Phase Output |
| DC Voltage | Default: 192V DC; Adjustable: 216V DC & 240V DC |
| Technology | True Double-Conversion |
| Output Waveform | Pure Sine Wave |
| Input Nominal Voltage | 208/220/230/240 VAC |
| Input Voltage Range | 110-300VAC ±3% at 50% Load; 176-300VAC ±3% at 100% Load |
| Input Frequency Range | 46-54 Hz |
| Input Power Factor | >0.99 at 100% Load |
| Input THD | <4% at 100% Load; <6% at 50% Load |
| Output Power Factor | Default 0.8; Optional 0.9 with Battery; 1 with 20-Battery |
| Output Nominal Voltage | 280*/220/230/240 VAC |
| AC Voltage Regulation | ±1% in Battery Mode |
| Output Frequency | 46-54Hz synchronized; 50Hz ±0.1Hz in Battery Mode |
| Current Crest Ratio | 3:1 Maximum |
| Output THD | <1% Linear Load; <4% Non-Linear Load |
| Overload Capability | 100-110%: 10 min; 110-120%: 5 min; >130%: 10 sec |
| AC to Battery Transfer Time | Zero |
| Inverter to Bypass Transfer Time | Zero |
| Efficiency | AC Mode: 94%; Battery Mode: 91% |
| Battery Type | VRLA / SMF |
| Battery Quantity | Default: 16 Nos.; Adjustable: 18 & 20 Nos. |
| Maximum Charging Current | 4.0A |
| Charging Voltage | (13.65 VDC × Battery Number) + 1% |
| Frequency Converter Mode | 50Hz/60Hz |
| Emergency Power Off | EPO |
| ECO Mode | Available |
| Communications | SNMP / USB / RS-232 |
| Bypass | Maintenance Bypass & Static Bypass Available |
| Parallel Redundancy | Optional N+X Parallel Redundancy |
| Surge Protection | Inbuilt Surge Protection with OVCD Available |
| Generator Compatible | Yes |
| LCD Indication | UPS Status, Load Level, Battery Level, Input/Output Voltage, Input/Output Frequency, Discharge Timer, Fault Status |
| Smart RS-232 / USB | Supports Windows 2000/2003/XP/Vista/2008/7/8/10, Linux & Mac |
| Optional SNMP | Power management through SNMP Manager and Web Browser |
| Dimensions (L×W×H) | 555 × 250 × 830 mm |
| Net Weight | 32.5 kg |
| Operating Temperature | 0-40°C |
| Warranty | 2 Year Manufacturer Warranty |
