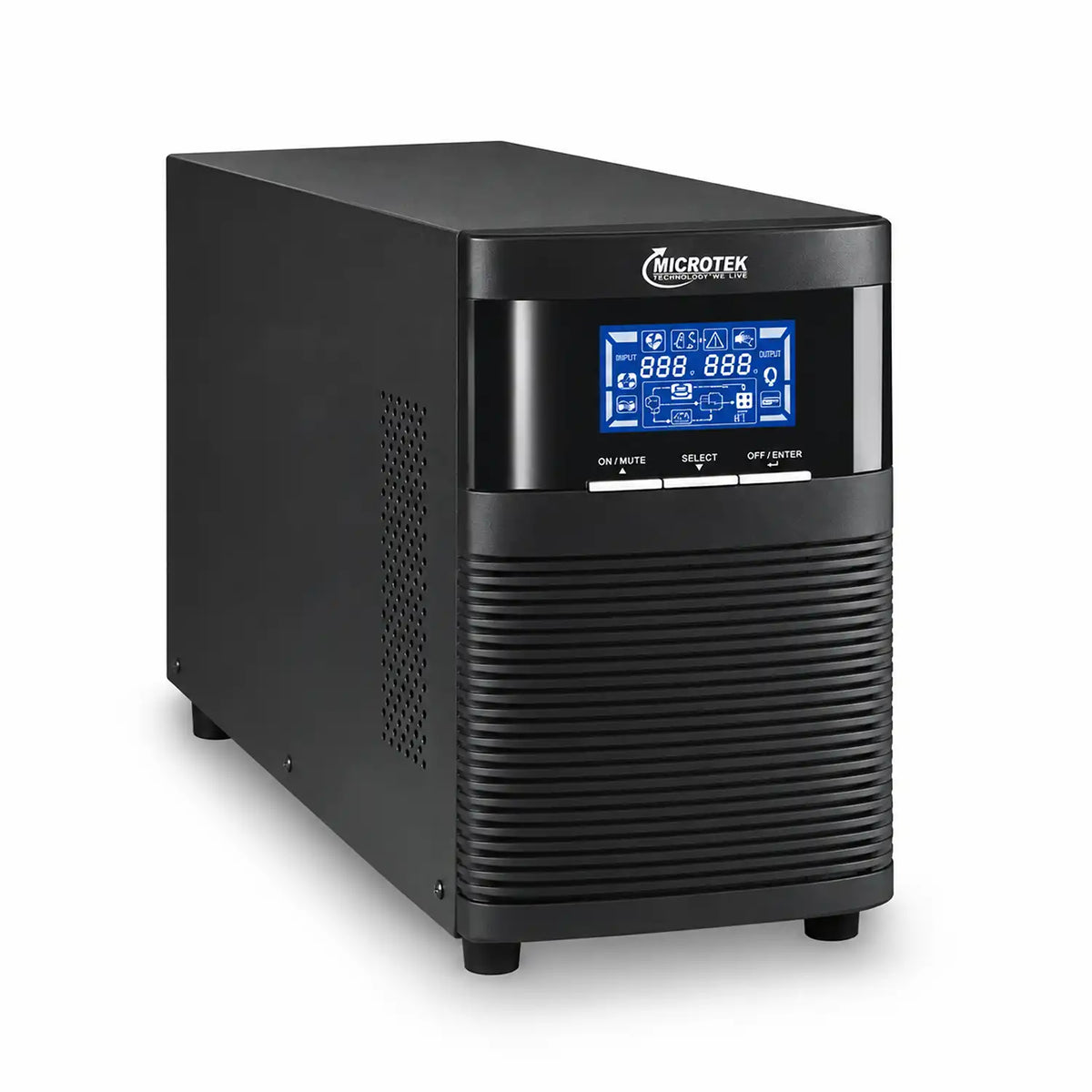

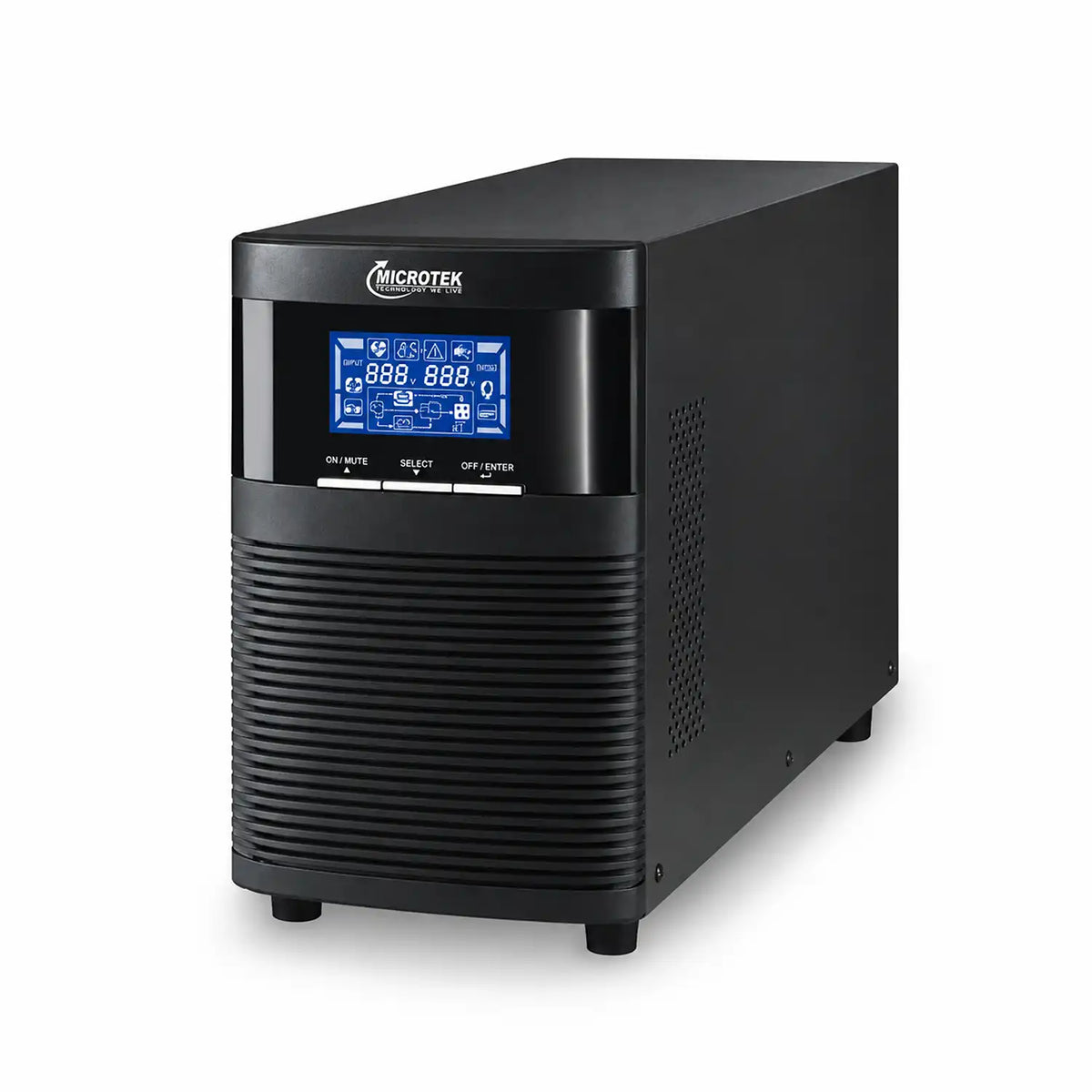

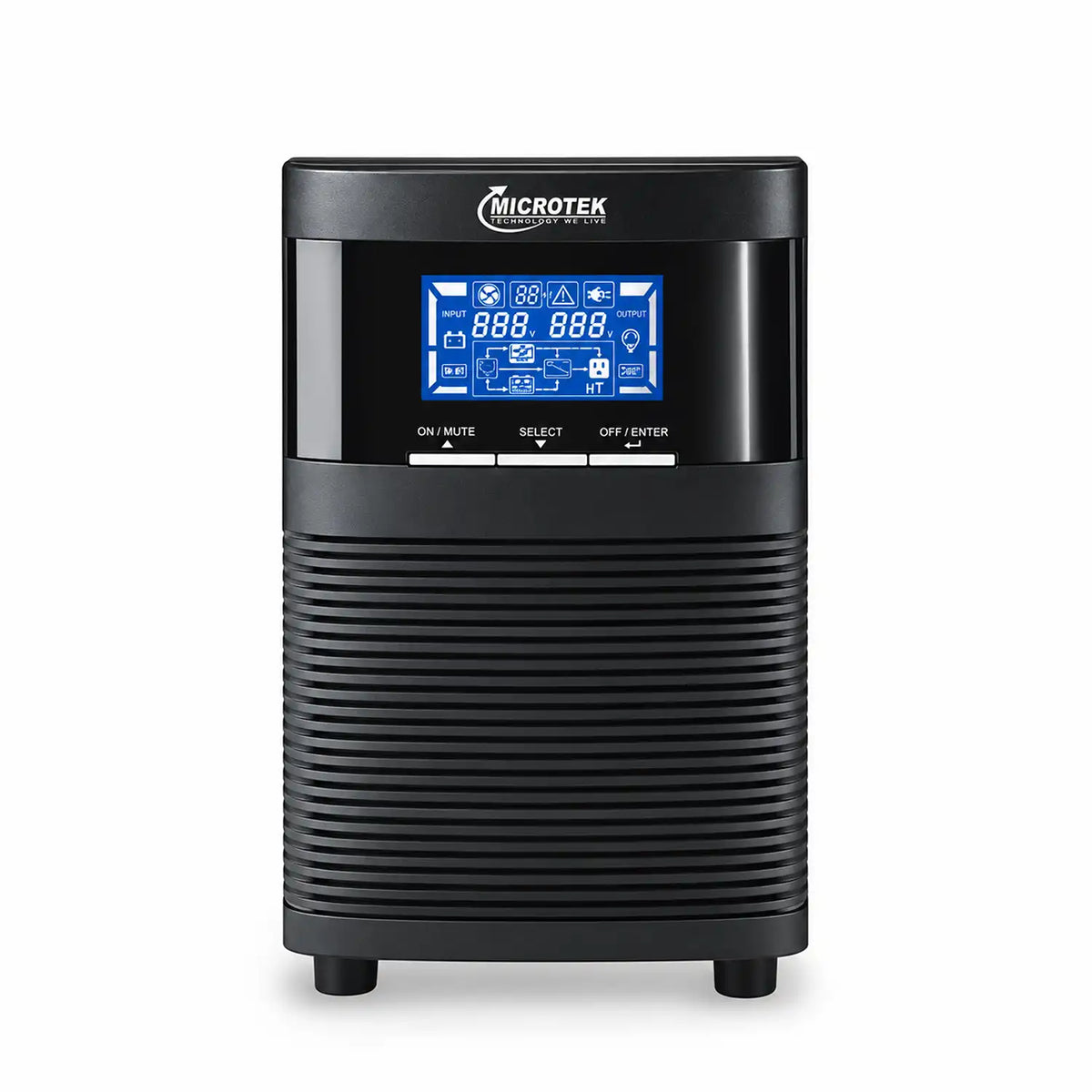

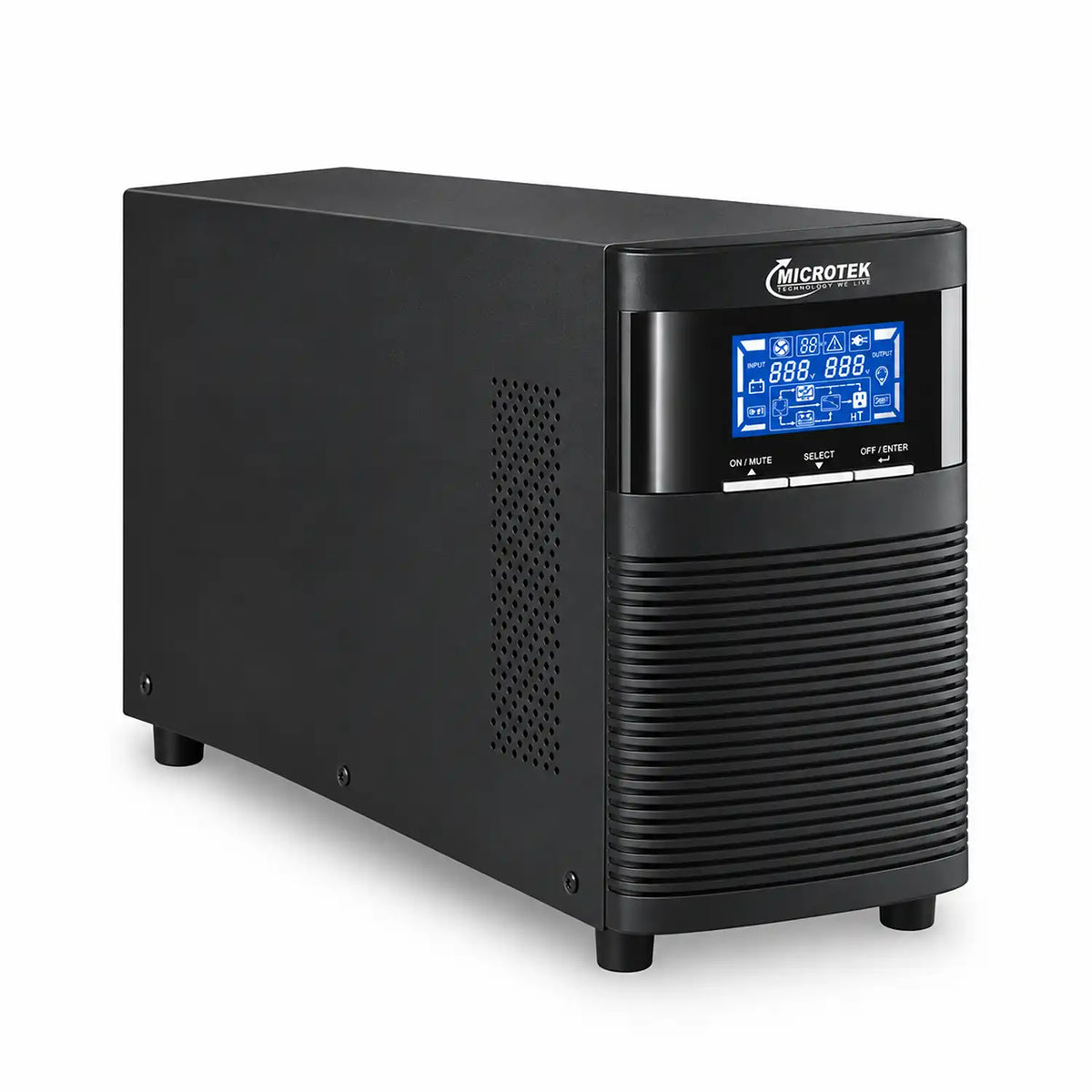

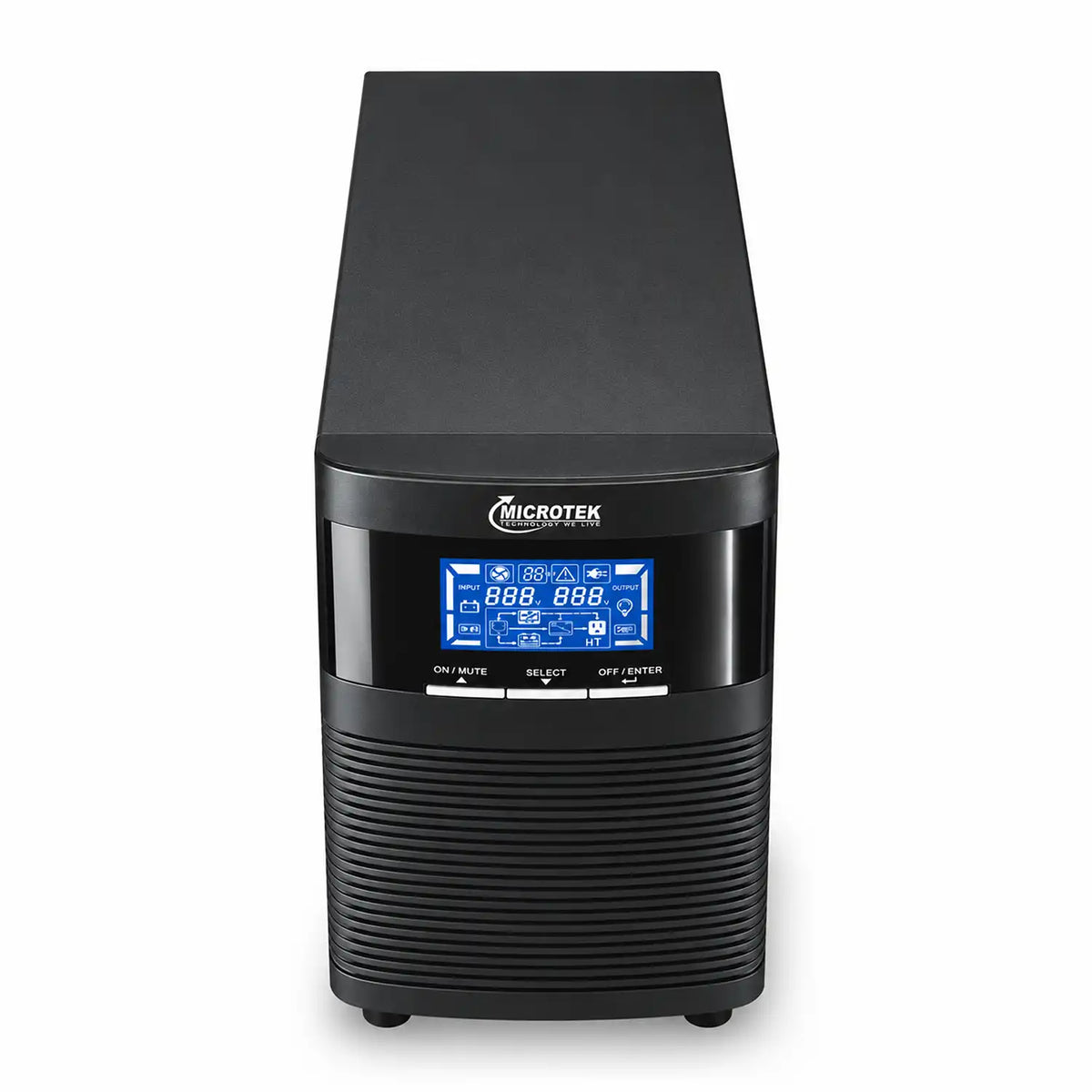

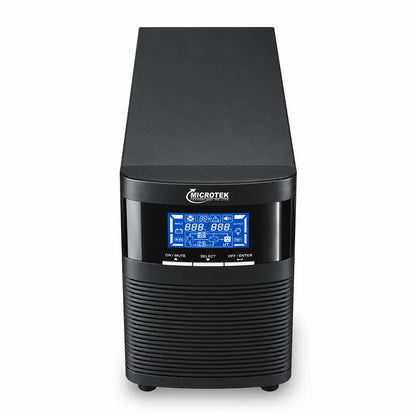

Microtek Online UPS E²-IB 1KVA 24VDC with Pure Sinewave Output
Microtek Online UPS E²-IB 1KVA 24VDC with Pure Sinewave Output
- Pan India Free Shipping
- Easy 7-Days Return Policy
- Original Brand Warranty
- 100% Genuine Product
- Highly ⭐ Rated on Trustpilot & Google
- > 15 Lakh Orders Fulfilled
Couldn't load pickup availability
Product Description:
🔋 24VDC In-Built Battery System: Includes 2 × 12V/9Ah SMF batteries, providing an integrated backup solution for critical equipment.
⚡ Pure Sinewave Online UPS: High-frequency double-conversion IGBT technology delivers pure sinewave output for sensitive electronic equipment.
🛡️ Reliable Power Protection: Inbuilt over-voltage cut-off with surge protection, static bypass and over-temperature protection help safeguard connected devices.

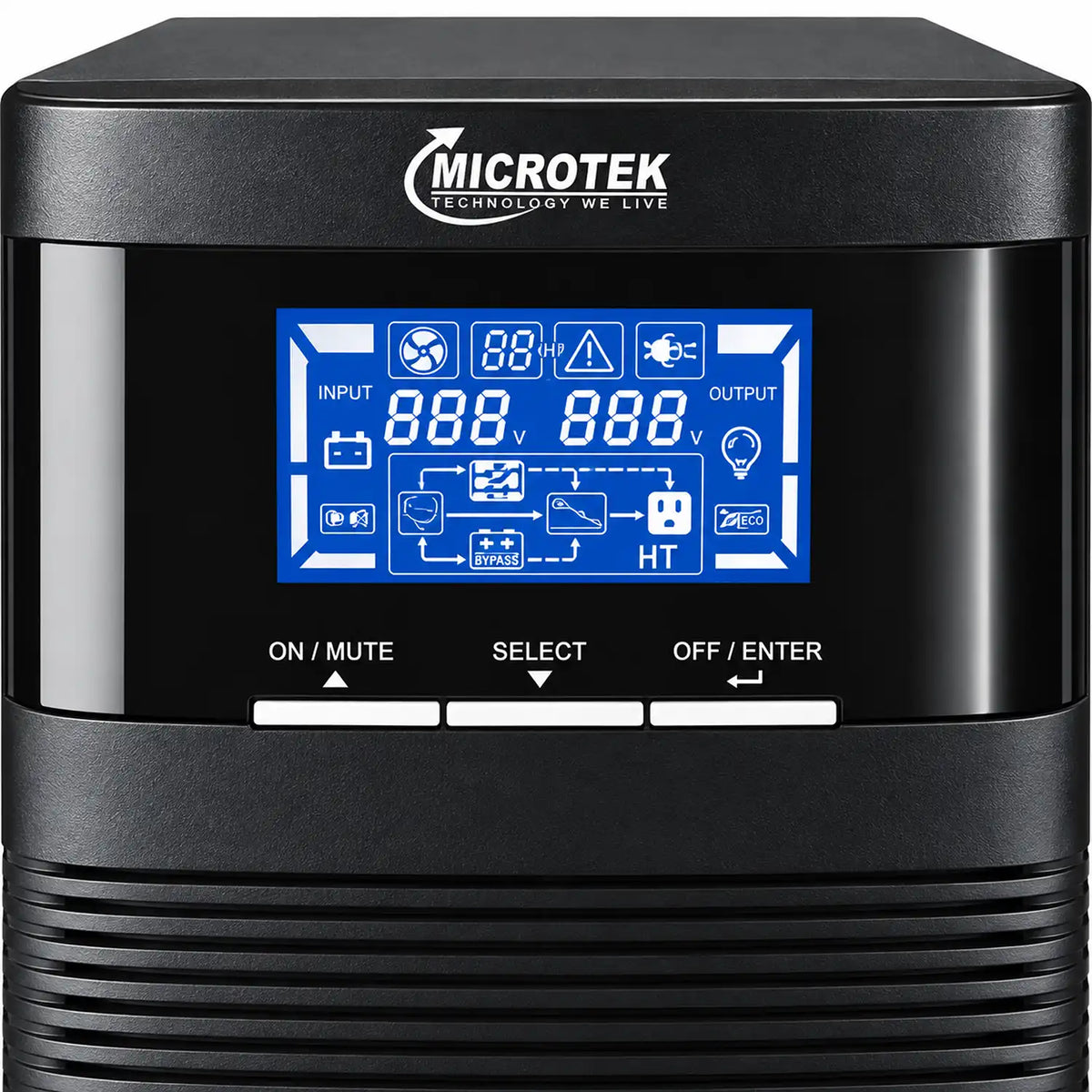

📺 Smart LCD Display: LCD indications provide real-time UPS status information for easier monitoring and operation.
🖥️ Critical Application Support: Designed for computer networks, servers, cyber cafés, ATM machines and CCTV applications, with optional SNMP management.
The Microtek Online UPS E²-IB 1KVA 24VDC is a high-frequency online UPS designed for critical applications requiring stable and uninterrupted power. Its double-conversion IGBT technology, pure sinewave output, static bypass and configurable output voltage support reliable operation of servers, computer networks, CCTV systems, ATMs and other sensitive equipment. Built-in 24V battery support and Smart LCD monitoring make it suitable for professional power-backup environments.
Product Specifications:
| Specification | Details |
|---|---|
| Brand | Microtek |
| Model Name / Number | Online UPS E²-IB |
| SKU | 899-581-1001 |
| Product Series | E² Series |
| Product Type | Online UPS |
| Rated Capacity | 1 KVA / 800 Watts |
| DC Voltage System | 24 VDC |
| Technology | High Frequency Double Conversion IGBT |
| Phase | Single Phase In, Single Phase Out |
| Input Voltage Range | 110VAC +5% to 300VAC +5% |
| Input Frequency Range | 40Hz - 70Hz |
| Input Phase | Single Phase with Ground |
| Power Factor | >0.99 @ Full Load |
| Output Voltage | 200 / 208 / 220 / 230 / 240VAC |
| AC Voltage Regulation | ±1% in Battery Mode |
| Output Frequency in Battery Mode | 50Hz ±0.25Hz or 60Hz ±0.3Hz |
| Current Crest Ratio | 3:1 |
| THD - Linear Load | <2% |
| THD - Non-Linear Load | 4% |
| Waveform in Battery Mode | Pure Sinewave |
| Transfer Time | AC Mode to Battery Mode: 0; Inverter to Bypass: <4ms, typical 2.5ms |
| Efficiency | 88% AC Mode / 83% Battery Mode |
| Battery Type | SMF |
| Battery Configuration | 12V / 9Ah × 2, In-Built |
| Charging Current | 1A |
| Overload Capability | 105%-110%: shutdown after 10 min; 110%-130%: shutdown after 1 min; >130%: shutdown after 3 sec |
| Protection | Inbuilt OVCD with Surge Protection, Over Temperature Indication & Protection |
| Bypass | Static Bypass |
| Display | Smart LCD Display |
| SNMP | Optional, on demand |
| SNMP Management | Power management through SNMP Manager & Web Browser |
| EMI Noise Filter | Yes |
| Isolation Transformer | Optional |
| PFC Technology | Advanced PFC |
| Generator Compatible | Yes |
| Output Voltage Settings | Configurable |
| External Charger | Up to 8 Amps, Optional |
| Output Frequency | Fixed at 50Hz or synchronized with input frequency |
| Operating Temperature | 0°C to 40°C |
| Operating Humidity | 20%-95% RH, non-condensing |
| Noise Level | Less than 50dBA at 1 meter with fan speed control |
| Dimensions (L × W × H) | 282 × 145 × 220 mm |
| Net Weight | 9.8 kg |
| Ideal Applications | Computer Networks, Servers, Cyber Cafes, ATM Machines, CCTV Cameras |
| Warranty | 1 Year Manufacturer Warranty |
