Microtek HF Supermax+ 40kVA Online UPS with IGBT & LCD
Microtek HF Supermax+ 40kVA Online UPS with IGBT & LCD
- Pan India Free Shipping
- Easy 7-Days Return Policy
- Original Brand Warranty
- 100% Genuine Product
- Highly ⭐ Rated on Trustpilot & Google
- > 15 Lakh Orders Fulfilled
Couldn't load pickup availability
Product Description:
⚡ 40kVA Pure Sinewave Power: Delivers clean online UPS output with 40kVA capacity and unity output power factor for demanding three-phase applications.

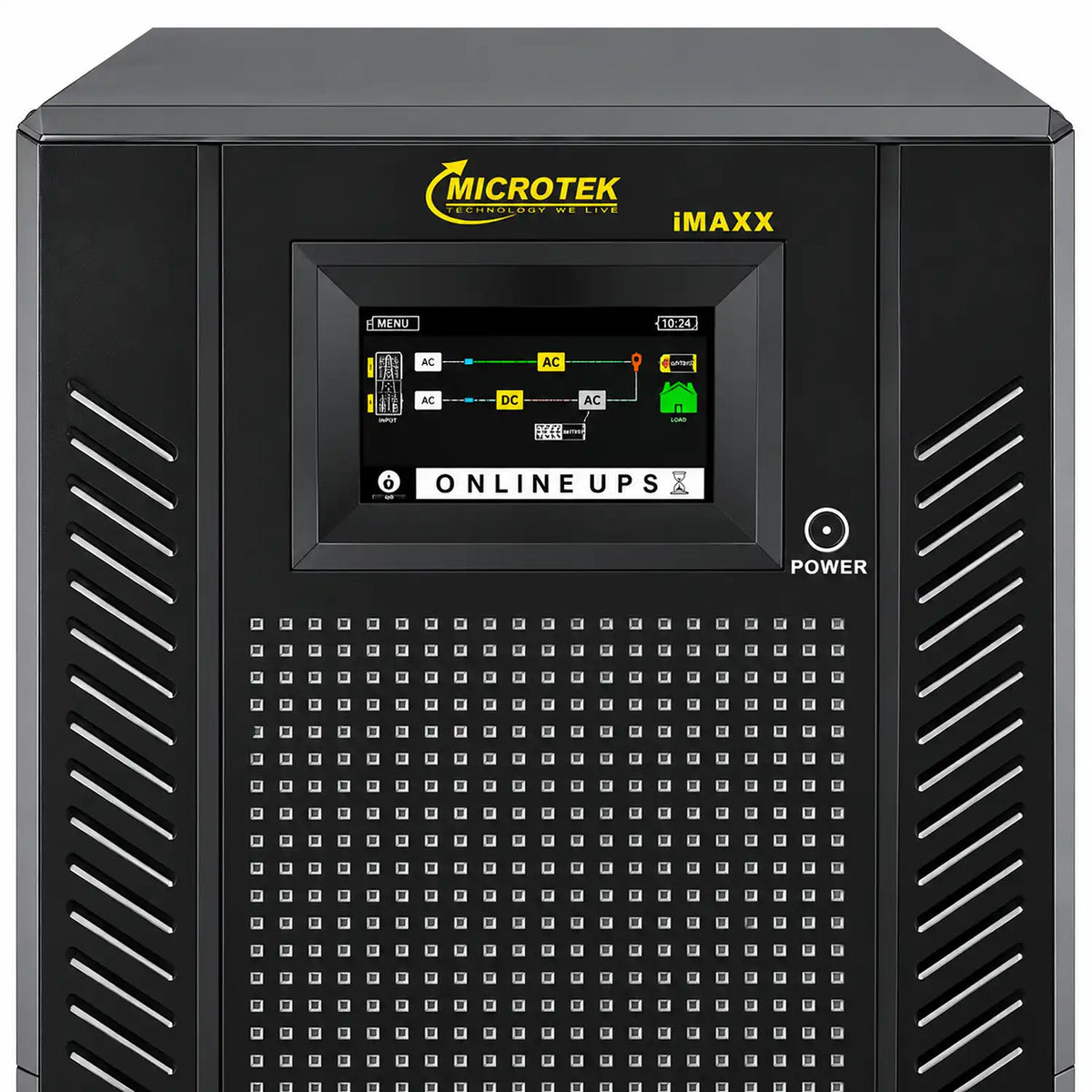

🖥️ 4.3-Inch Touch LCD Display: Provides real-time visibility of UPS status, load, battery, voltage, frequency, current, temperature and event data.
🔋 Flexible Battery Configuration: Supports 32 batteries as standard and can be adjusted up to 40 batteries for extended-runtime configurations.
⚙️ IGBT & DSP Technology: Uses DSP control with IGBT-based PFC and inverter sections plus three-level inverter topology for efficient operation.
🛡️ Built for Critical Power Loads: Includes input surge protection, EMI protection, EPO, maintenance and static bypass switches, and generator compatibility.
The Microtek HF Supermax Plus 40kVA is a three-phase online UPS designed for applications requiring stable, pure sinewave power and continuous monitoring. It features DSP-controlled IGBT technology, active power factor correction, a 4.3-inch touch LCD, three-level inverter topology and flexible battery configuration. With generator compatibility, bypass functionality and multiple protection features, it is suitable for critical commercial, IT and industrial power backup applications.
Product Specifications:
| Specification | Details |
|---|---|
| Brand | Microtek |
| Series | HF Supermax Plus |
| Model / Item Code | 899-430-4002 |
| Product Type | Online UPS |
| Capacity | 40 kVA |
| Power | 40 kW |
| Technology | Pure Sinewave |
| UPS Technology | DSP Technology with IGBT-based PFC & Inverter Section |
| Inverter Topology | 3-Level IGBT Inverter Topology |
| Phase | 3 Phase Input, 3 Phase Output |
| Nominal Input Voltage | 3 × 400 V AC, 3Ph + N |
| Output Voltage | 3 × 360/380/400/415 V AC, 3Ph-N |
| DC Voltage | Default: 192 V DC, 32 Batteries; Adjustable: 240 V DC, 40 Batteries |
| Battery Type | VRLA / Lead-Acid Type |
| Number of Batteries | Default: 32 Nos.; Adjustable: 40 Nos. |
| Charging Current | Maximum 12 A; Adjustable 1 A to 12 A; Factory Setting 4 A |
| Charging Voltage | ±13.65 V × N, N = 16-20 |
| Display | 4.3-Inch Touch Panel LCD |
| Display Information | UPS status, load percentage, phase-wise load amperes, output VA/wattage, battery level, charging/discharging current, input/output voltage and frequency, current, temperature and event data |
| AC Mode Efficiency | 95.5% |
| Eco Mode Efficiency | 98.5% |
| Battery Mode Efficiency | 94.5% |
| Input Power Factor | >0.99 at 100% Load |
| Input Frequency | 46-54 Hz or 56-64 Hz |
| Output Frequency | 46-54 Hz or 56-64 Hz, synchronized range |
| Battery Mode Frequency | 50 Hz ±0.1 Hz or 60 Hz ±0.1 Hz |
| Input Voltage Range | 190-520 V AC at 50% Load; 305-478 V AC at 100% Load |
| Output THD | <2% Linear Load; <5% Non-Linear Load |
| Noise Level | <65 dBA at 1 m |
| Operating Temperature | 0-40°C |
| Operating Humidity | 95%, Non-Condensing |
| Overload Capacity | 100-110%: 60 min; 110-125%: 10 min; 125-150%: 1 min; >150%: Immediate |
| Protection | EPO, EMI Protection, Input Surge Protection |
| Bypass | Built-in Maintenance Bypass & Static Bypass Switches |
| Generator Compatibility | Yes |
| Dimensions | 30 × 81.5 × 100 cm |
| Weight | 61 kg |
| Warranty | 1 Year Manufacturer Warranty |
