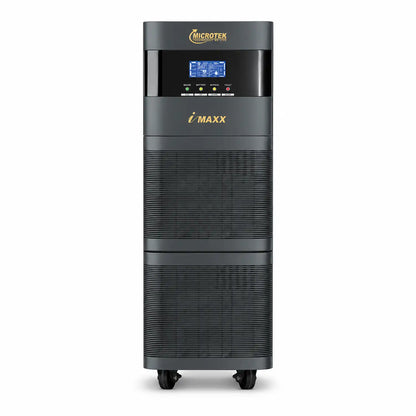

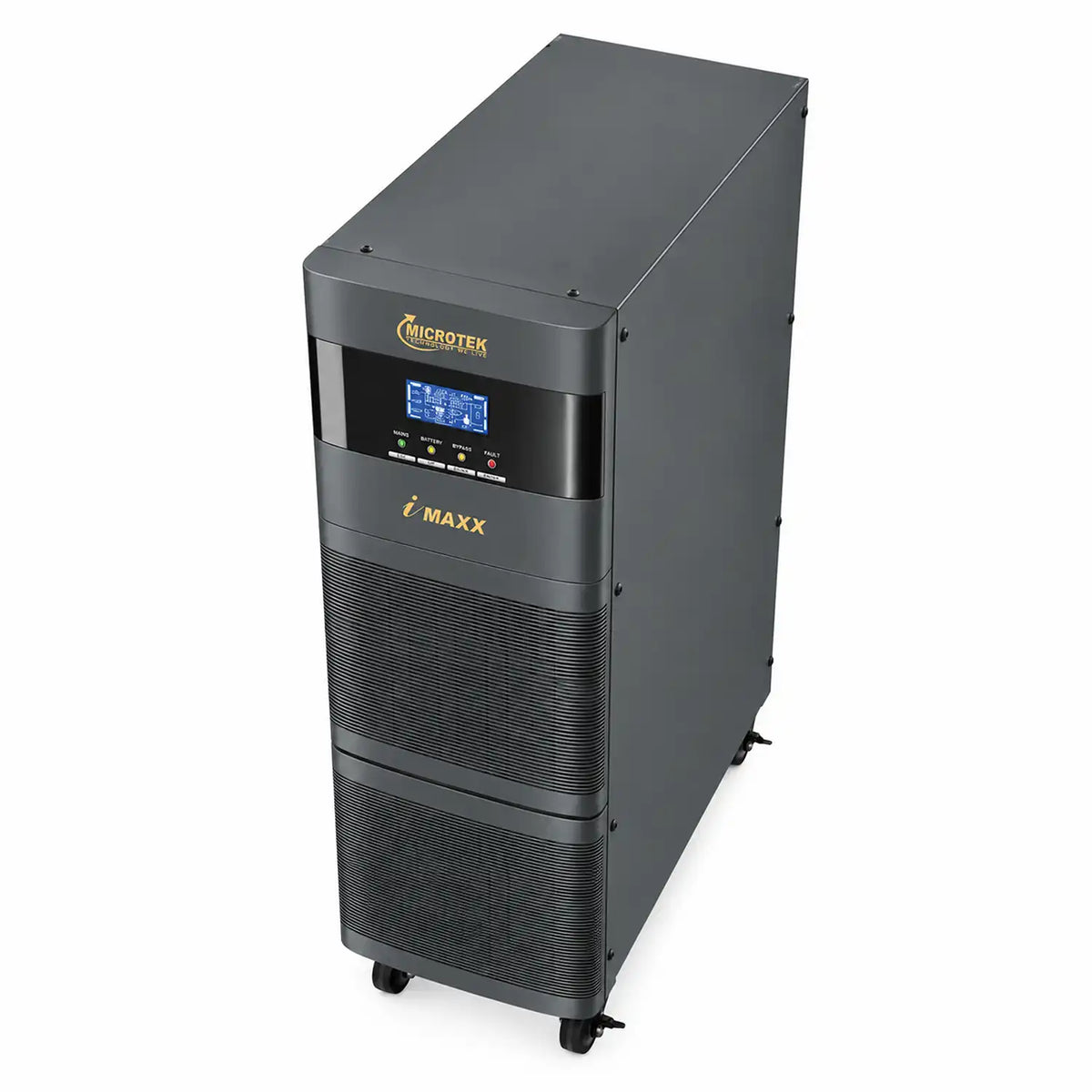

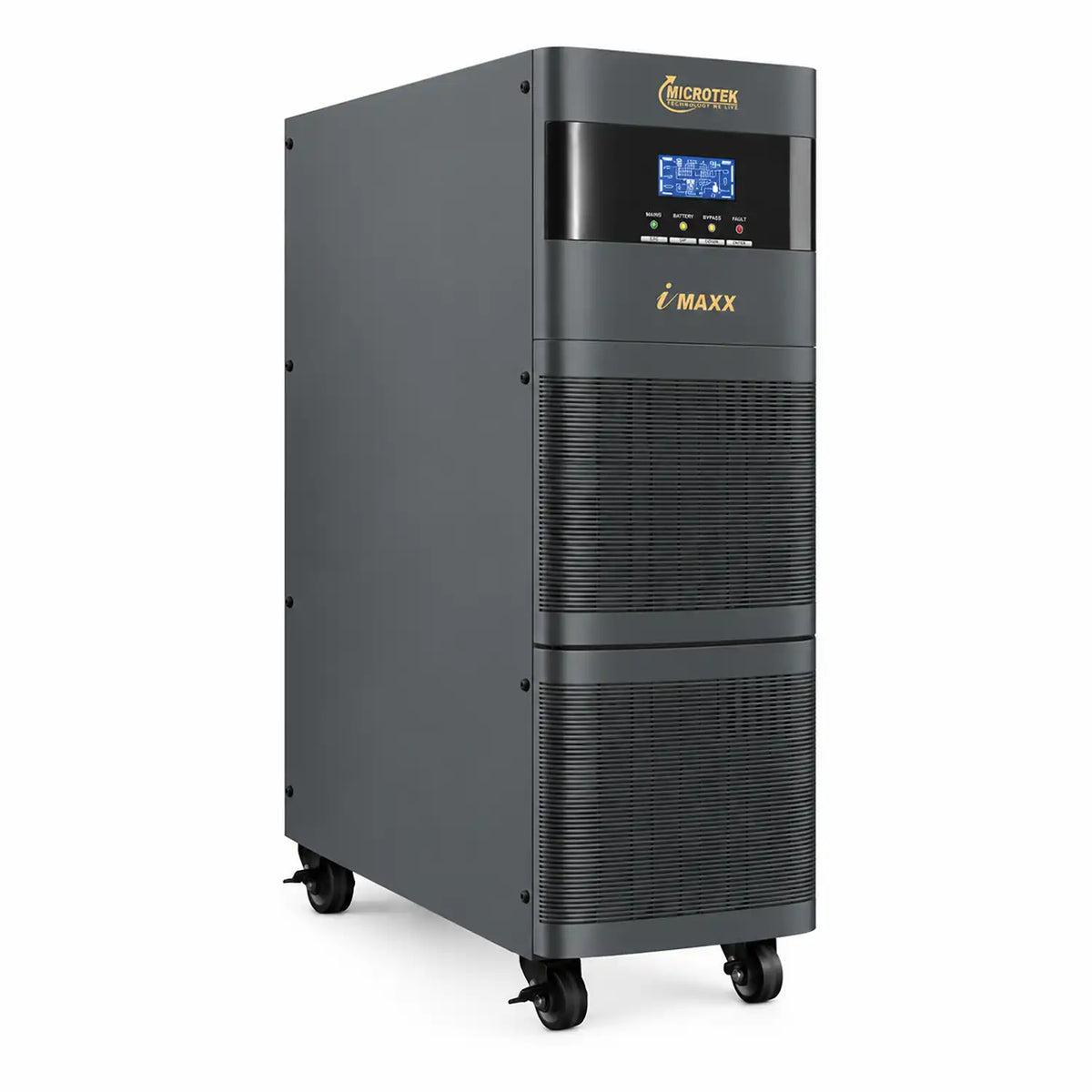

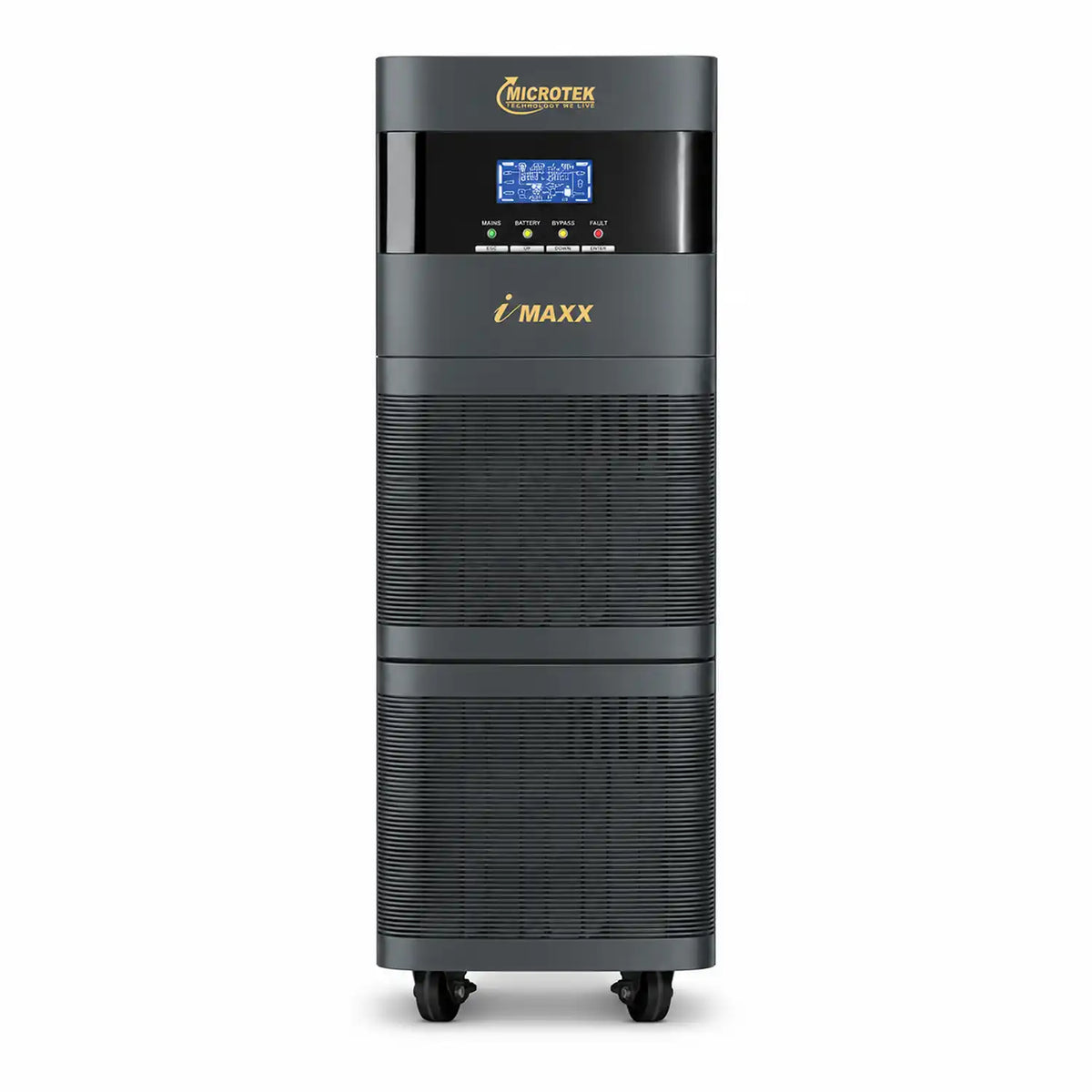

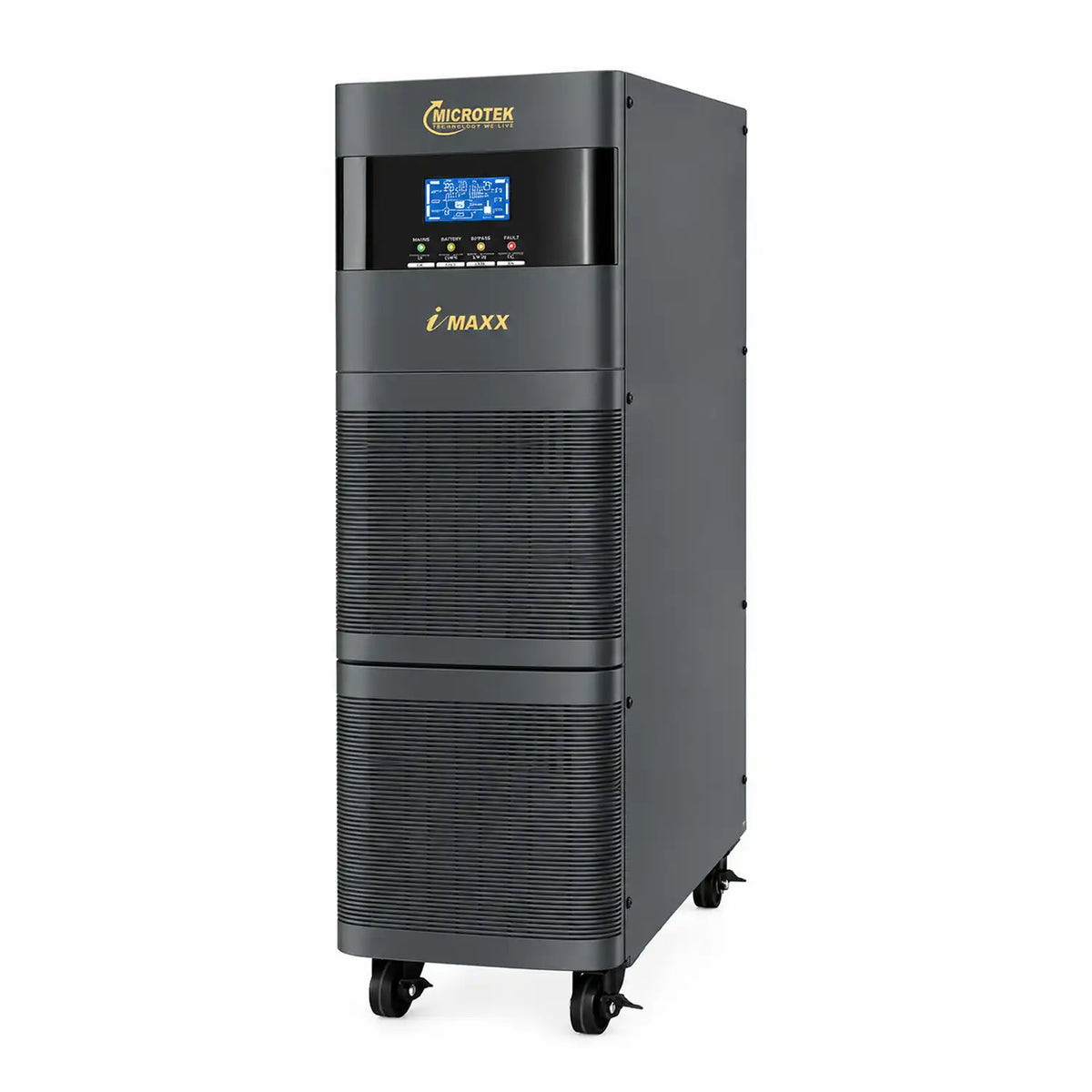

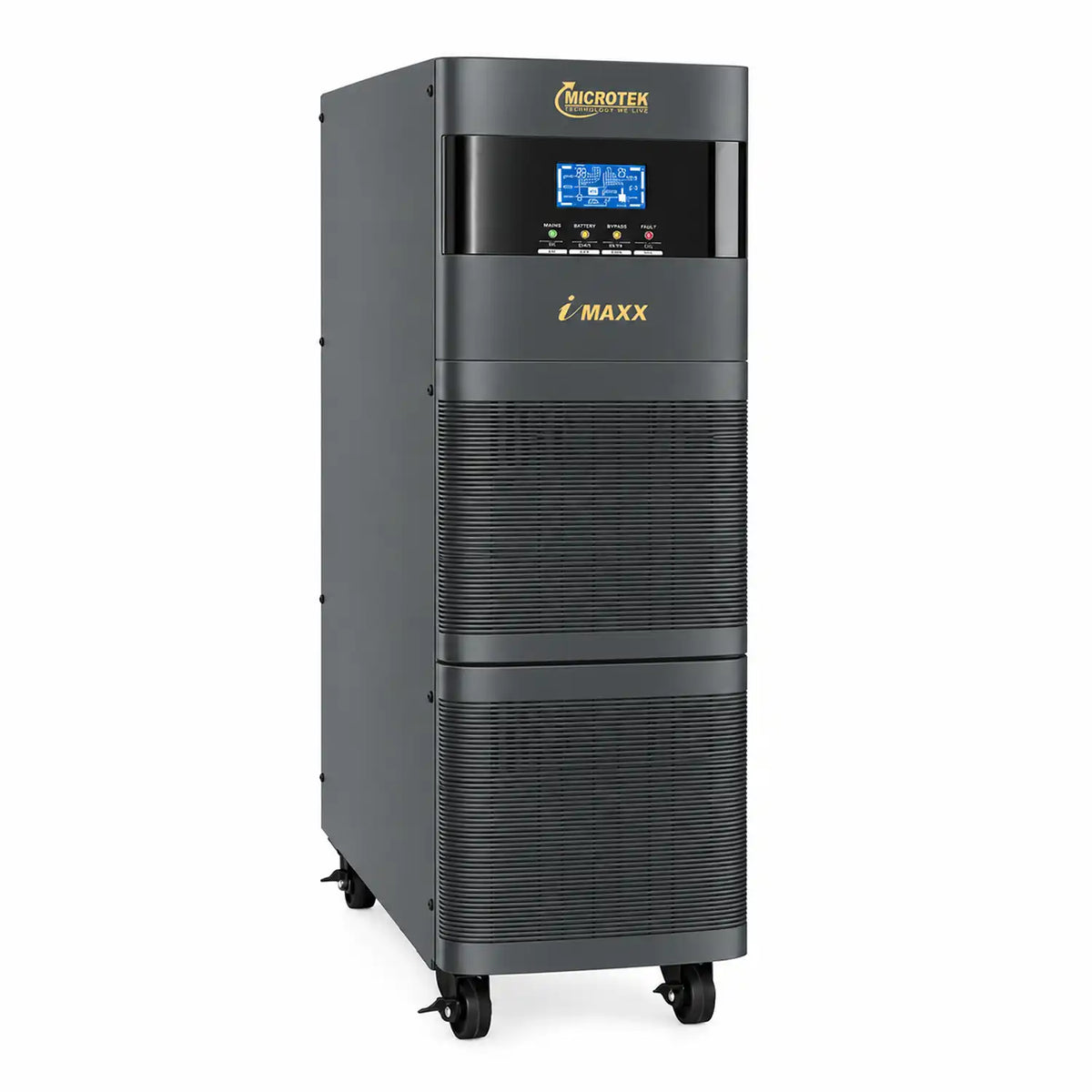

Microtek i-MAXX 10KVA Online UPS 192V for Servers & Critical Equipment
Microtek i-MAXX 10KVA Online UPS 192V for Servers & Critical Equipment
- Pan India Free Shipping
- Easy 7-Days Return Policy
- Original Brand Warranty
- 100% Genuine Product
- Highly ⭐ Rated on Trustpilot & Google
- > 15 Lakh Orders Fulfilled
Couldn't load pickup availability
Product Description:
⚡ 10kVA High-Capacity Backup: Delivers 10.0kVA / 8.0kW capacity for critical power applications such as servers, computer networks, labs and ATMs.
🛡️ Stable & Protected Power: DSP technology with an IGBT-based inverter, OVCD with surge protection and EMI/RFI noise filtering help provide dependable power conditioning.

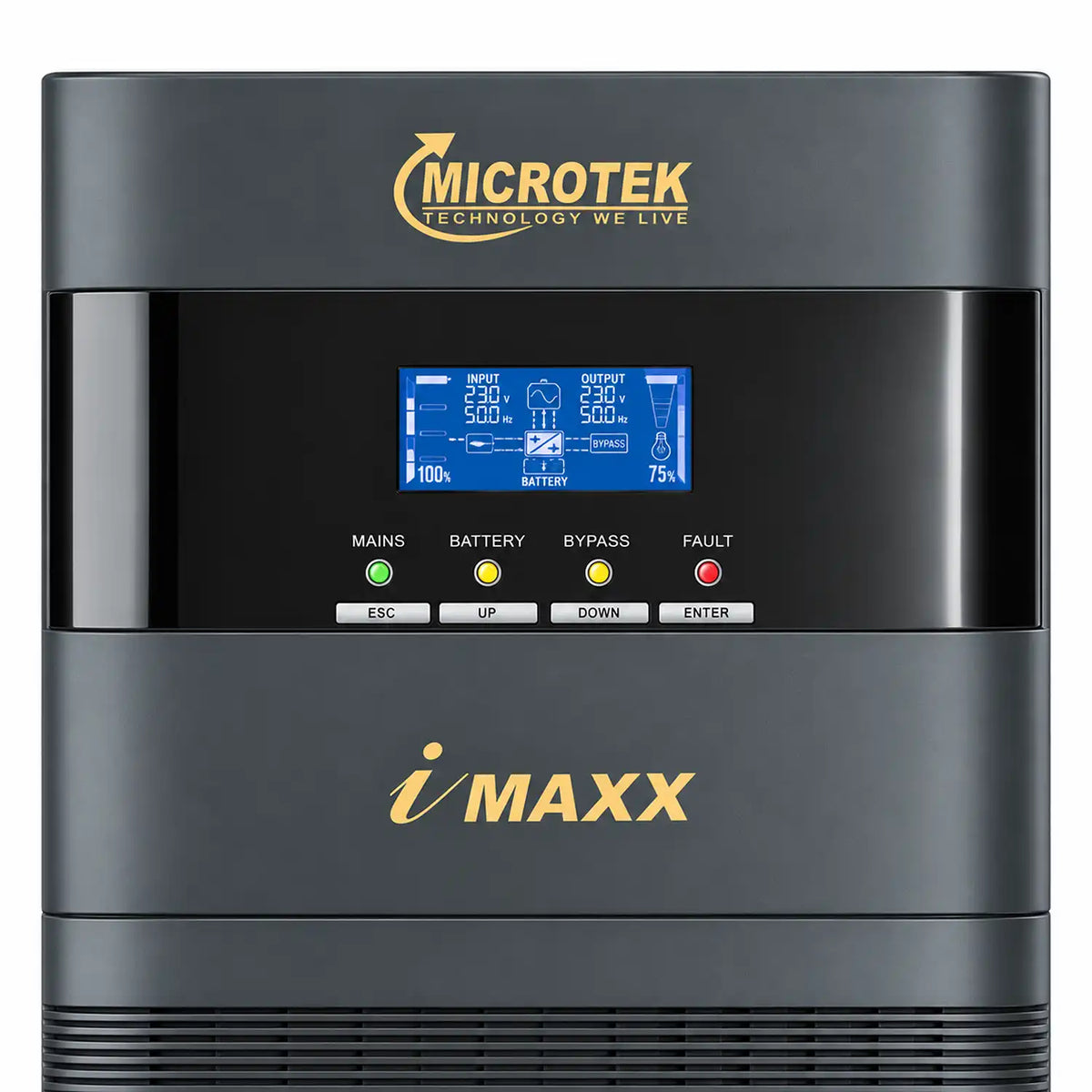

📟 Real-Time Monitoring: Smart LCD display shows load level, battery level, operating mode and fault indications for easier system monitoring.
🔋 Flexible Battery Support: Uses a default 192V DC battery system, supports 16/18 batteries and is compatible with VRLA/SMF or tubular batteries with adjustable charger cut-off voltage.
🔌 Online UPS Connectivity: Provides pure sinewave output in battery mode, zero AC-to-DC transfer time, RS-232/USB connectivity and optional SNMP support for compatible systems.
The Microtek i-MAXX 10KVA/192V is a transformer-based online UPS designed for critical power applications requiring reliable and conditioned power. It offers 10kVA/8kW capacity, single-phase operation, pure sinewave battery output, DSP and IGBT technology, smart LCD monitoring, surge protection and EMI/RFI filtering. With support for VRLA/SMF and tubular batteries, it is suitable for servers, computer networks, labs, ATMs and other critical equipment.
Product Specifications:
| Specification | Details |
|---|---|
| Brand | Microtek |
| Model | i-MAXX 10KVA/192V |
| SKU | 899-611-1002 |
| Product Type | Transformer Based Online UPS |
| Capacity | 10.0 KVA / 8.0 KW |
| Phase | Single Phase with Ground |
| DC Voltage System | Default: 192 VDC, Adjustable: 216 VDC |
| Input Nominal Voltage | 208VAC / 220VAC / 230VAC |
| Input Acceptable Voltage Range | 165~285 VAC |
| Input Frequency Range | 40Hz~55Hz @ 50Hz System |
| Output Nominal Voltage | 208VAC / 220VAC / 230VAC |
| AC Voltage Regulation | +1% in Battery Mode |
| Output Frequency | Mains Mode: 45Hz~55Hz synchronized range; Battery Mode: 50Hz ±0.1Hz |
| AC to DC Transfer Time | Zero |
| Inverter to Bypass Transfer Time | Zero |
| Bypass to Inverter Transfer Time | <5ms |
| Battery Mode Waveform | Pure Sinewave |
| Efficiency | AC Mode: 87% / Battery Mode: 91% |
| Recommended Battery Type | VRLA/SMF Battery |
| Tubular Battery Support | Yes, with charger cut-off voltage adjustable from LCD display |
| Battery Charging Current | 2/4/8 AMP, Default: 8 AMP |
| Number of Batteries | 16/18 Batteries |
| LCD Display | Load Level, Battery Level, AC Mode, Battery Mode, Bypass Mode & Fault Indicators |
| Management Interface | RS-232 / USB & Optional SNMP |
| Operating System Support | Windows 2000/2003/XP/Vista/2008/7/8, Linux and Mac |
| Inverter Technology | DSP Technology with IGBT Based Inverter |
| Surge Protection | Inbuilt OVCD with Surge Protection |
| Noise Filter | EMI/RFI Noise Filter |
| CVCF Operation | Operational Without Battery |
| PCB Protection | Conformal Coated PCB Assemblies |
| External Charger Capacity Expansion | Up to 4 Amps, Optional on Demand |
| Hot Standby | Available |
| Cold Start | Available |
| Maintenance Bypass | Built-in |
| Stick Bypass Switch | Built-in |
| Output Voltage Settings | Configurable |
| Generator Compatibility | Yes |
| Recommended Generator Capacity | 2.5 times the UPS capacity |
| Dimensions (L × W × H) | 562 × 250 × 830 mm |
| Net Weight | 86 kg |
| Warranty | 2 Year Manufacturer Warranty |
