Microtek iMAXX 10kVA Online UPS with Pure Sine Wave
Microtek iMAXX 10kVA Online UPS with Pure Sine Wave
- Pan India Free Shipping
- Easy 7-Days Return Policy
- Original Brand Warranty
- 100% Genuine Product
- Highly ⭐ Rated on Trustpilot & Google
- > 15 Lakh Orders Fulfilled
Couldn't load pickup availability
Product Description:
⚡ 10kVA / 8kW Capacity: Provides 10kVA capacity with 8kW power output for demanding power-backup requirements.
🔋 192V DC Battery System: Uses a 192V DC battery system with support for 16 batteries and adjustable 2A, 4A or 8A charging.
🌀 Pure Sine Wave Output: Pure sine wave operation delivers clean power suitable for sensitive electrical and electronic equipment.

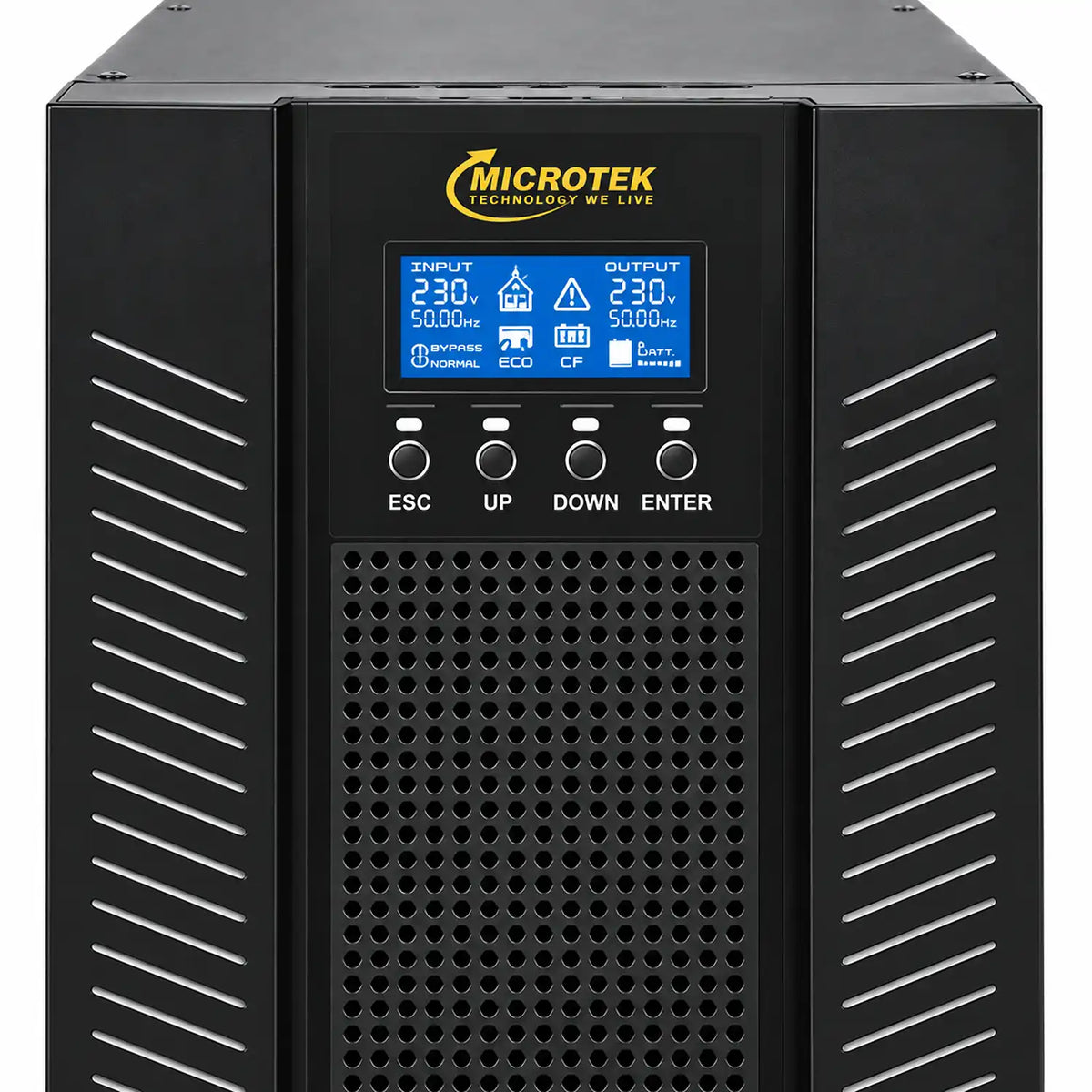

🖥️ Smart LCD Display: The LCD display provides real-time information including load, battery, operating mode and fault indications.
🛡️ Online UPS Protection: Built-in maintenance and static bypass switches, over-temperature protection and configurable output voltage improve operational continuity.
The Microtek iMAXX 10kVA Online UPS is a transformer-based online UPS designed for reliable power backup with 192V DC battery operation and pure sine wave output. It offers 10kVA/8kW capacity, 3-phase input with 1-phase output, LCD monitoring and configurable output voltage. With online UPS operation, bypass functionality and generator compatibility, it is suited to demanding commercial, industrial and critical power applications.
Product Specifications:
| Specification | Details |
|---|---|
| Brand | Microtek |
| Series | iMAXX |
| Model | i-MAXX Transformer Based Online UPS |
| Item Code | 899-380-0103 |
| Product Type | Transformer Based Online UPS |
| Capacity | 10 kVA / 8 kW |
| Technology | Pure Sine Wave |
| DC Voltage System | 192 V DC |
| Phase | 3 Phase Input - 1 Phase Output |
| Input Nominal Voltage | 3 x 360V / 380V AC, 400V AC (3Ph+N+G) |
| Input Voltage Range | 286V - 493V AC |
| Input Frequency Range | 40Hz - 55Hz |
| Output Nominal Voltage | Default 230V +1%; 208V / 220V / 230V AC adjustable |
| Output Voltage Regulation | +1% in Battery Mode |
| Output Frequency | Mains Mode: 45Hz - 55Hz synchronized range; Battery Mode: 50Hz ±0.1Hz |
| Waveform | Pure Sine Wave |
| AC Mode Efficiency | 83% |
| Battery Mode Efficiency | 92% |
| Battery Type | Lead Acid / Tubular / SMF |
| Number of Batteries | 16 Nos. |
| Battery Charging Current | Default 8A; Adjustable 2A / 4A / 8A |
| Output THD | <3% Linear Load; <5% Non-Linear Load |
| Power Factor | 0.8 |
| Crest Factor | 3.1 |
| Output Overload Capacity | 110% for 30 min; 125% for 5 min; 150% for 1 sec |
| Static Bypass Overload Capacity | 150% for 1 hr; 180% for 30 sec; >200% for 200 ms |
| Transfer Time, AC to DC | Zero |
| Transfer Time, Inverter to Bypass | Zero |
| Transfer Time, Bypass to Inverter | <5 ms |
| Display | LCD |
| Maintenance Bypass | Built-in |
| Static Bypass | Built-in |
| Generator Compatibility | Yes |
| Generator Capacity Requirement | 2.5 times UPS capacity for standby source |
| Management Interface | RS-232 / USB; Optional SNMP |
| Operating Systems Supported | Windows 2000/2003/XP/Vista/2008/7/8, Linux & Mac |
| Operating Humidity | 0-90% non-condensing |
| Noise Level | Less than 60 dBA at 1 metre |
| Dimensions (L × W × H) | 30 × 56.2 × 83 cm |
| Net Weight | 115 kg |
| Warranty | 2 Year Manufacturer Warranty |
