Product Description:
⚡ 10kVA Transformer-Based Power Backup: Delivers 10kVA capacity with a transformer-based online UPS design for demanding power-backup applications.

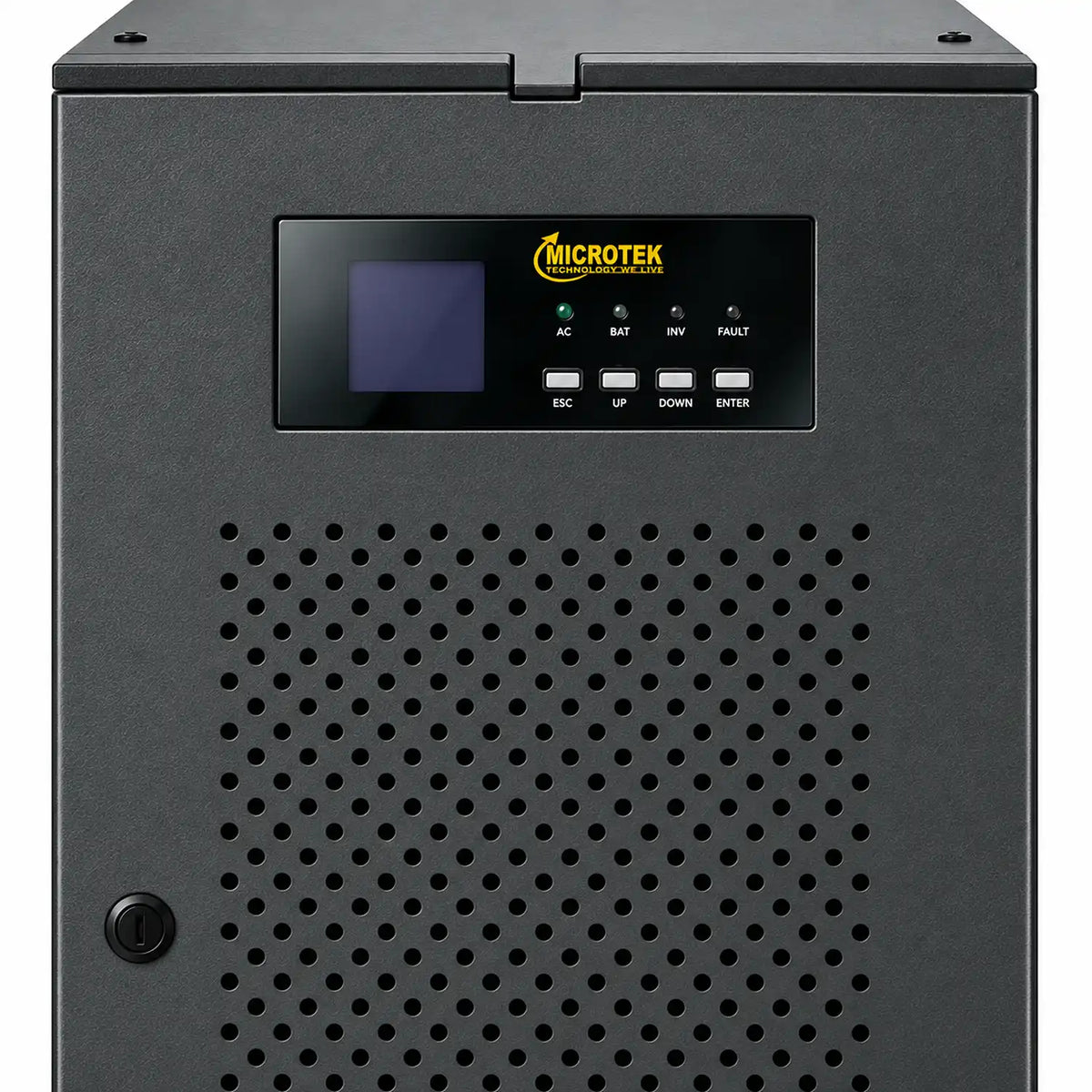

🖥️ DSP & Smart LCD Display: DSP technology with IGBT-based inverter and smart LCD display provides real-time operating information.
🔋 Flexible 360V Battery System: Supports 360VDC operation with adjustable battery configuration of 29, 30, 31 or 32 batteries.
🛡️ Built-In Protection & Bypass: Maintenance and static bypass switches, battery reverse protection and over-temperature protection support dependable operation.
🏭 Industrial & Generator Compatible: Designed for 3-phase input and 3-phase output applications and supports generator operation with the recommended generator capacity of 2.5 times UPS capacity.
The Microtek iMAXX 10kVA 360V Transformer Based Online UPS is designed for applications requiring controlled and uninterrupted three-phase power. It features DSP technology with an IGBT-based inverter, smart LCD display, pure sinewave output in battery mode, configurable output voltage and built-in maintenance and static bypass. Its 360V battery system supports 29 to 32 batteries, making it suitable for industrial equipment, automation systems, data centres and other critical loads.
Product Specifications:
| Specification | Details |
|---|---|
| Brand | Microtek |
| Series | iMAXX |
| Model | i-MAXX Transformer Based Online UPS |
| Item Code / MPN | 899-410-0103 |
| Capacity | 10kVA / 8kW |
| UPS Type | Transformer Based Online UPS |
| Phase | 3 Phase Input / 3 Phase Output |
| DC Voltage System | Default 360VDC, Adjustable 348VDC to 384VDC |
| Input Nominal Voltage | 3 × 360V / 380VAC / 400VAC, 3Ph + N |
| Input Voltage Range | 285VAC to 485VAC |
| Input Frequency Range | 50Hz to 60Hz ±10% |
| Output Nominal Voltage | 3 × 380VAC / 400VAC +1%, 3Ph + N; 415VAC Adjustable |
| Output Voltage Regulation | +1% in Battery Mode |
| Output Frequency in Mains Mode | 50Hz ±1Hz, Synchronized |
| Output Frequency in Battery Mode | 50Hz ±0.1Hz |
| Power Factor | 0.8 |
| Crest Factor | 3.1 |
| THD | <2% Linear Load, <5% Non-Linear Load |
| AC to DC Transfer Time | Zero |
| Inverter to Bypass Transfer Time | Zero |
| Overload Capability | 150% for 60 Seconds, >160% for 200ms |
| Waveform in Battery Mode | Pure Sinewave |
| Static Bypass | Available |
| Static Bypass Overload Capability | 150% for 1 Hour, 180% for 30 Seconds, >200% for 200ms |
| Connection Type | Solid-State |
| AC Mode Efficiency | 90% |
| Battery Mode Efficiency | 89% |
| Recommended Battery Type | Lead Acid / Tubular / SMF |
| Battery Configuration | Default 30 Batteries, Adjustable 29 / 30 / 31 / 32 Batteries |
| Battery Charging Current | Default 5A |
| Display | Smart LCD |
| Communication | USB, Modbus RS-232 / RS-485 |
| SNMP | Optional |
| Maintenance Bypass | Built-In |
| Static Bypass Switch | Built-In |
| Inverter Technology | DSP Technology with IGBT-Based Inverter |
| CVCF Operation | Available Without Battery |
| Generator Compatibility | Yes |
| Recommended Generator Capacity | 2.5 Times UPS Capacity |
| Operating Temperature | 0°C to 55°C |
| Operating Humidity | 0% to 90%, Non-Condensing |
| Noise Level | Less Than 60 dBA at 1 Metre |
| Dimensions (L × W × H) | 656 × 405 × 817 mm |
| Net Weight | 118 kg |
| Warranty | 2 Year Manufacturer Warranty |
