Product Description:
⚡ 15kVA High-Capacity Backup: Delivers 15kVA / 12kW capacity with a 3-phase input and 1-phase output configuration for demanding power applications.
🔋 Adjustable 360V Battery System: Supports a default 360V DC system with adjustable 348-384V DC and 29, 30, 31 or 32 batteries.

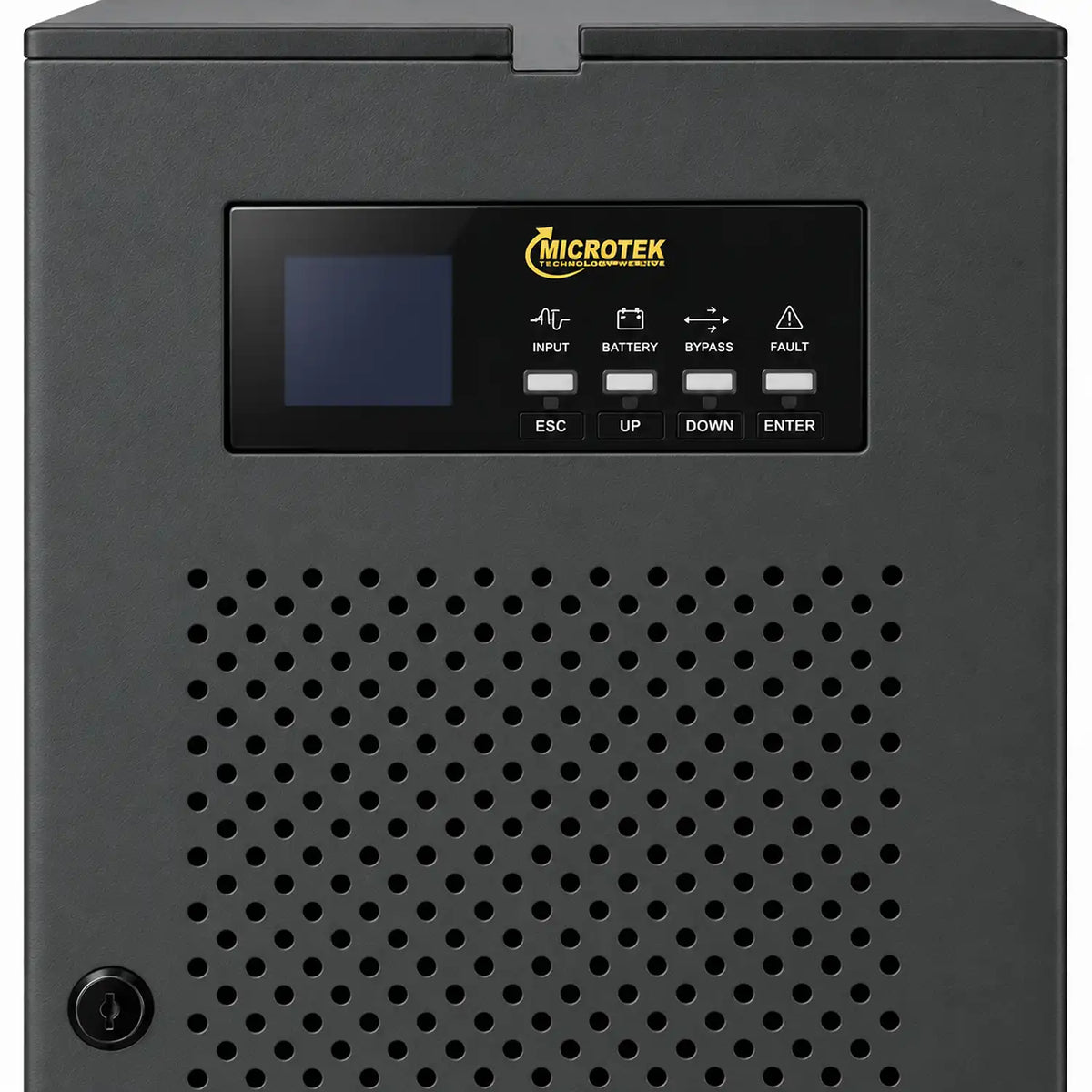

🖥️ Smart LCD Display: Provides real-time operating information through its smart LCD display for easier UPS monitoring.
🔄 Pure Sine Wave Online UPS: Provides pure sine wave output in battery mode with zero transfer time from AC to DC mode for uninterrupted power continuity.
🛡️ Industrial Protection & Bypass: Includes built-in maintenance and static bypass switches, battery reverse protection, over-temperature protection and generator compatibility.
The Microtek iMAXX 15kVA 360V Transformer Based Pure Sine Wave Online UPS is a high-capacity power backup solution offering 15kVA/12kW output with 3-phase input and 1-phase output. Its 360V DC battery system supports 29-32 batteries, while pure sine wave output, smart LCD monitoring, built-in bypass systems and generator compatibility make it suitable for demanding industrial and critical-power applications.
Product Specifications:
| Specification | Details |
|---|---|
| Brand | Microtek |
| Series | iMAXX |
| SKU | 899-380-0153 |
| Product Type | Transformer Based Online UPS |
| Capacity | 15kVA / 12kW |
| DC Voltage System | Default: 360VDC, Adjustable: 348~384VDC |
| Phase | 3 Phase In - 1 Phase Out |
| Input Nominal Voltage | 3 x 380V / 400VAC / 415VAC (3Ph+N+G) |
| Input Voltage Range | 165VAC~280VAC (Ph-N) / 285VAC~485VAC (Ph-Ph) |
| Input Frequency | 40Hz / 60Hz ±10% |
| Output Nominal Voltage | Default: 230V ±1%, Adjustable: 208VAC / 220VAC / 230VAC |
| Output Voltage Regulation | ±1% in Battery Mode |
| Output Frequency | Mains Mode: 50Hz ±1%; Battery Mode: 50Hz ±0.1Hz |
| Power Factor / Crest Factor | 0.8 / 3.1 |
| Total Harmonic Distortion | <2% Linear Load; <5% Non-Linear Load |
| Battery Mode Waveform | Pure Sinewave |
| AC to DC Transfer Time | Zero |
| Inverter to Bypass Transfer Time | Zero |
| Overload Capability | 110% for 10 min; 150% for 60 sec; 160% for 200 ms |
| Static Bypass Overload / Short-Circuit Capability | 150% for 1 hour; 180% for 30 sec; >200% for 200 ms |
| Connection Type | Hardwire 3 Wire (1Ph+N+G) / 220VAC |
| AC Mode Efficiency | >88% |
| Battery Mode Efficiency | 90% |
| Recommended Battery Type | Lead Acid / Tubular / SMF |
| Battery Charging Current | Default: 5A |
| Number of Batteries | Default: 30 Nos; Adjustable: 29, 30, 31 & 32 Nos |
| Display | Smart LCD Display |
| Technology | DSP Technology with IGBT Based Inverter |
| CVCF Operation | Available without Battery |
| Bypass | Built-In Maintenance Bypass & Static Bypass Switches |
| Charger | Inbuilt 20 Amp Charger |
| Protection | Battery Reverse Protection; Over Temperature Indication & Protection |
| Generator Compatibility | Yes |
| Recommended Generator Capacity | 2.5 Times the UPS Capacity |
| Communication Ports | RS-232 & USB; RS-485 available in 360V models |
| SNMP | Optional |
| PCB Protection | Conformal Coated PCB Assemblies |
| Phase Sequence | Immune to Reverse Phase Sequence & No Neutral Operation |
| Operating Temperature | 0~5°C |
| Operating Humidity | 0~90% non-condensing |
| Noise Level | Less Than 60 dBA @ 1 Meter |
| Dimensions (L × W × H) | 656 × 405 × 817 mm |
| Net Weight | 120 kg |
| Warranty | 2 Year Manufacturer Warranty |
