Microtek iMAXX 20kVA 360V Transformer Based Online UPS 3-Phase Power Backup
Microtek iMAXX 20kVA 360V Transformer Based Online UPS 3-Phase Power Backup
- Pan India Free Shipping
- Easy 7-Days Return Policy
- Original Brand Warranty
- 100% Genuine Product
- Highly ⭐ Rated on Trustpilot & Google
- > 15 Lakh Orders Fulfilled
Couldn't load pickup availability
Product Description:
🛡️ DSP & IGBT Technology: DSP technology with an IGBT-based inverter provides controlled online power conversion for critical loads.

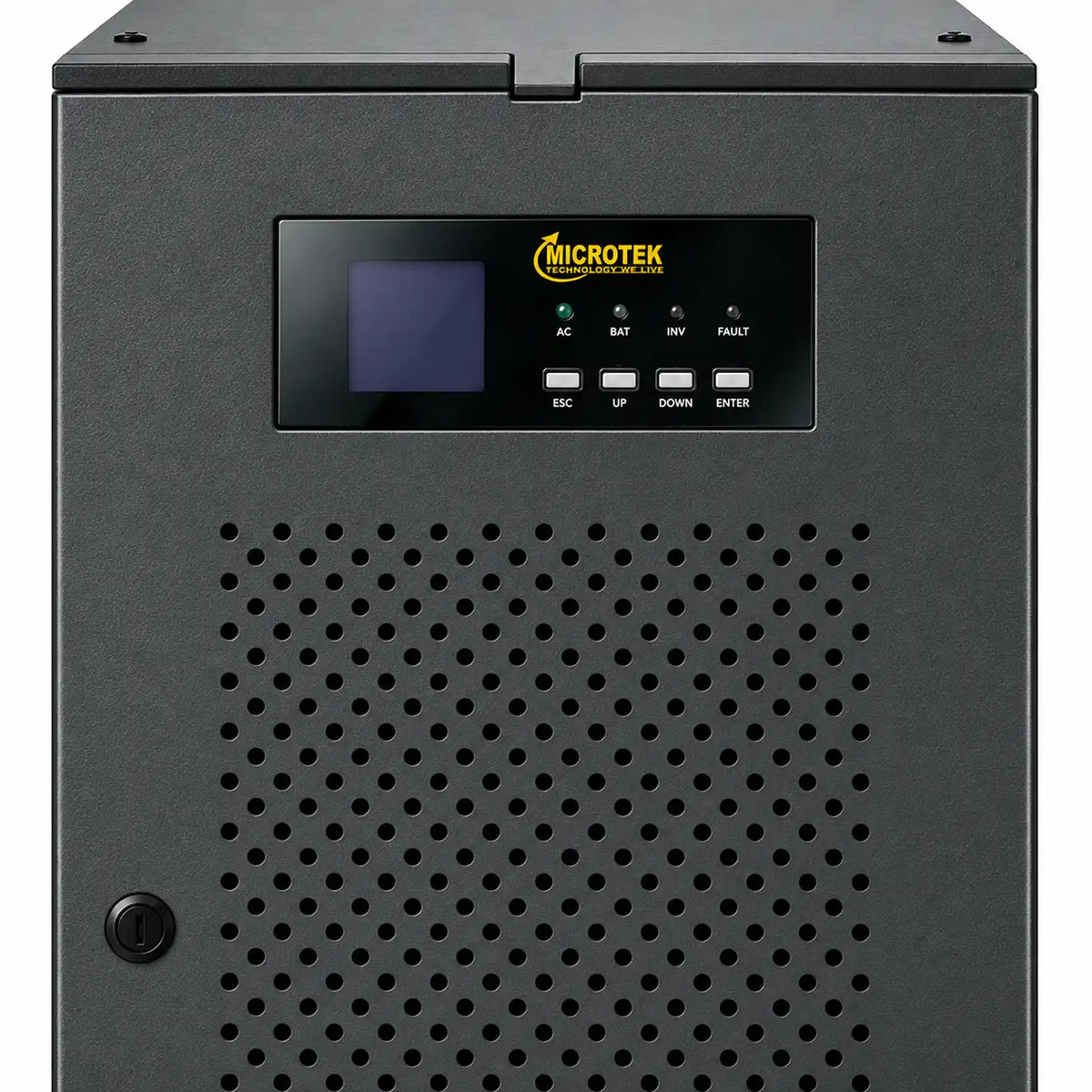

📟 Smart LCD Display: The smart LCD display provides real-time UPS information for easier monitoring of operating conditions.
🔋 Flexible 360V Battery System: Supports 29, 30, 31 or 32 batteries, allowing the 360V DC battery configuration to be adjusted to the application.
⚡ Pure Sine Wave & Zero Transfer: Pure sine-wave output in battery mode with zero transfer time between AC and DC modes helps maintain continuous power delivery.
🏭 Built for Critical Applications: Generator compatibility, bypass switches, conformal-coated PCB assemblies and over-temperature protection support demanding commercial and industrial environments.
The Microtek iMAXX 20kVA 360V Transformer Based Online UPS is a 20kVA/16kW three-phase online UPS designed for critical power applications. It uses DSP technology with an IGBT-based inverter, 360V DC battery system, smart LCD display and pure sine-wave battery output. With 91% efficiency in both AC and battery modes, configurable output voltage and generator compatibility, it suits offices, industrial systems, automation equipment and other critical loads.
Product Specifications:
| Specification | Details |
|---|---|
| Brand | Microtek |
| Series | iMAXX |
| Model | i-MAXX Transformer Based Online UPS |
| Item Code | 899-410-0203 |
| Capacity | 20 kVA / 16 kW |
| UPS Type | Transformer Based Online UPS |
| Phase | 3 Phase In - 3 Phase Out |
| DC Voltage System | 360VDC, adjustable from 348VDC to 384VDC |
| Input Nominal Voltage | 3 × 380V / 400VAC (3Ph + N) |
| Input Voltage Range | 285VAC to 485VAC |
| Input Frequency Range | 50Hz to 60Hz ±10% |
| Output Nominal Voltage | 3 × 380VAC / 400VAC ±1% (3Ph + N), 415VAC adjustable |
| Output Voltage Regulation | ±1% in Battery Mode |
| Output Frequency, Mains Mode | 50Hz ±1Hz, synchronized range |
| Output Frequency, Battery Mode | 50Hz ±0.1Hz |
| Power Factor / Crest Factor | 0.8 / 3.1 |
| Total Harmonic Distortion | <2% Linear Load; <5% Non-Linear Load |
| AC to DC Transfer Time | Zero |
| Inverter to Bypass Transfer Time | Zero |
| Overload Capability | 150% for 60 seconds; >160% for 200ms |
| Battery Mode Waveform | Pure Sinewave |
| Static Bypass Overload / Short-Circuit Capability | 150% for 1 hour; 180% for 30 seconds; >200% for 200ms |
| Connection Type | Solid State |
| AC Mode Efficiency | 91% |
| Battery Mode Efficiency | 91% |
| Recommended Battery Type | Lead Acid / Tubular / SMF |
| Battery Quantity | Default 30 Nos.; Adjustable 29, 30, 31 & 32 Nos. |
| Battery Charging Current | Default 5A |
| Technology | DSP Technology with IGBT Based Inverter |
| Display | Smart LCD Display |
| Communication Ports | USB, Modbus RS-232 / RS-485 |
| Dry Contacts | 6 Outputs and 2 Inputs |
| SNMP | Optional |
| Generator Compatibility | Yes |
| Operating Temperature | 0°C to 55°C |
| Operating Humidity | 0% to 90% Non-Condensing |
| Noise Level | Less than 60 dBA at 1 metre |
| Dimensions (L × W × H) | 656 × 405 × 941 mm |
| Net Weight | 179 kg |
| Warranty | 2 Year Manufacturer Warranty |
