Product Description:
⚡ 20kVA High-Capacity Backup: Delivers 20kVA / 16kW capacity for demanding power-backup requirements in critical applications.
🔋 Flexible 360V Battery System: Supports a default 360V DC system with adjustable 348-384V DC operation and 29 to 32 batteries.

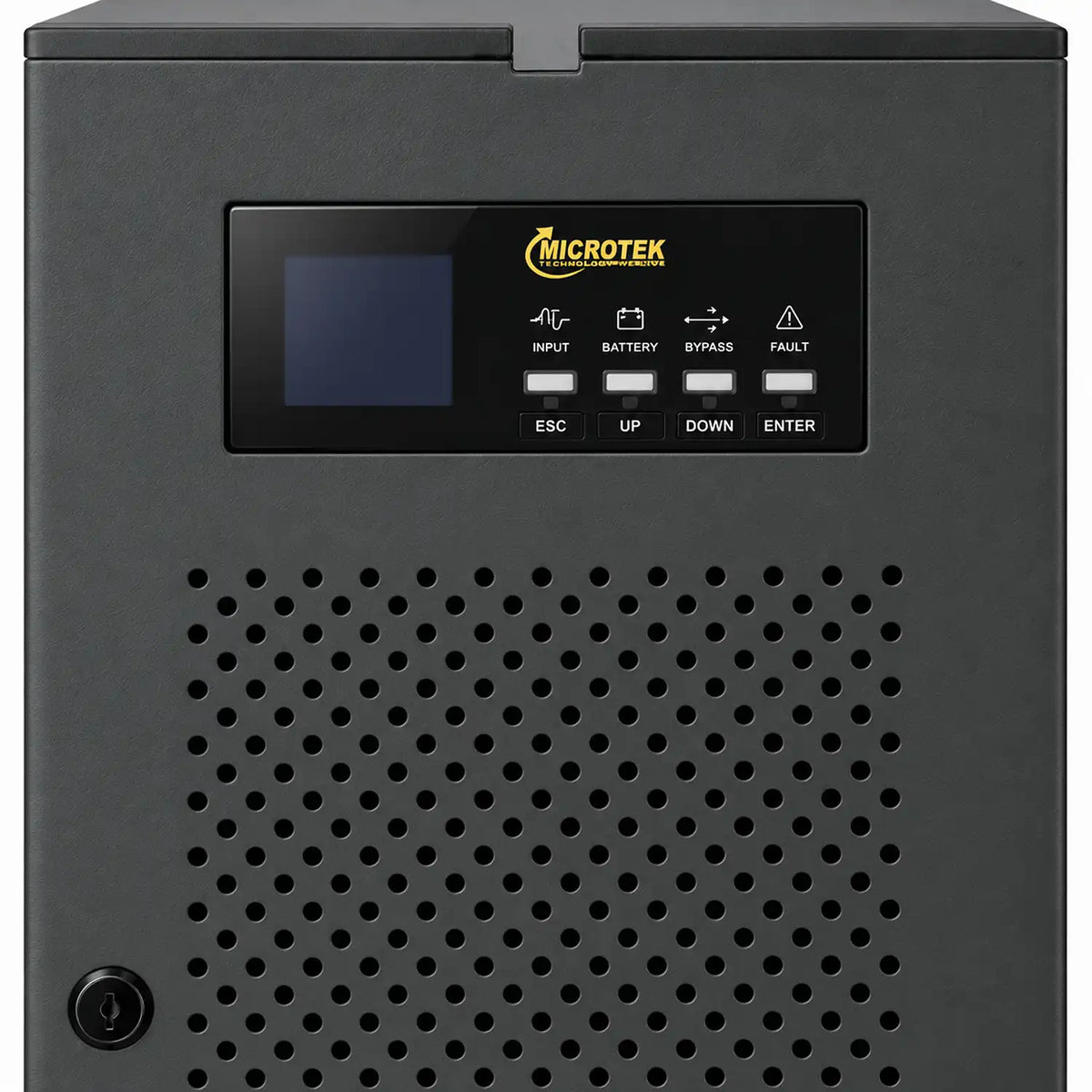

🖥️ Smart LCD Display: Provides real-time operating information through an easy-to-monitor LCD interface.
🛡️ Reliable Online Protection: Transformer-based design includes maintenance and static bypass switches, battery reverse protection and over-temperature protection.
🔌 Pure Sine Wave Output: Provides pure sine wave output in battery mode with 3-phase input and 1-phase output for compatible connected equipment.
The Microtek iMAXX 20kVA 360V Transformer Based Online UPS is a high-capacity power backup solution rated at 20kVA/16kW, designed for applications requiring stable and continuous power protection. It features DSP technology with an IGBT-based inverter, smart LCD display, adjustable 360V battery configuration, pure sine wave battery output and built-in bypass protection. Its 3-phase input and 1-phase output configuration makes it suitable for compatible critical power applications.
Product Specifications:
| Specification | Details |
|---|---|
| Brand | Microtek |
| Series | iMAXX |
| Model | i-MAXX Transformer Based Online UPS |
| Item Code / MPN | 899-380-0203 |
| Product Type | Transformer Based Online UPS |
| Capacity | 20 kVA / 16 kW |
| DC Voltage System | Default: 360V DC; Adjustable: 348-384V DC |
| Phase | 3 Phase Input / 1 Phase Output |
| Input Nominal Voltage | 3 x 380V / 400V / 415V AC (3Ph+N+G) |
| Input Voltage Range | 165-280V AC (Ph-N) / 285-485V AC (Ph-Ph) |
| Input Frequency Range | 40/60 Hz +10% |
| Output Nominal Voltage | Default: 230V ±1%; 208V / 220V / 230V AC Adjustable |
| Output Voltage Regulation | ±1% in Battery Mode |
| Output Frequency | Mains Mode: 50Hz ±1%; Battery Mode: 50 ±0.1Hz |
| Power Factor | 0.8 |
| Crest Factor | 3.1 |
| Waveform | Pure Sine Wave in Battery Mode |
| Total Harmonic Distortion | <2% Linear Load; <5% Non-Linear Load |
| AC to DC Transfer Time | Zero |
| Inverter to Bypass Transfer Time | Zero |
| Overload Capacity | 110% for 10 min; 150% for 60 sec; 160% for 200 ms |
| Static Bypass Overload / Short-Circuit Capability | 150% for 1 hour; 180% for 30 sec; >200% for 200 ms |
| Static Bypass Connection | Hardwire 3 Wire (1Ph+N+G) / 220V AC |
| AC Mode Efficiency | >88% |
| Battery Mode Efficiency | 90% |
| Recommended Battery Type | Lead Acid / Tubular / SMF |
| Number of Batteries | Default: 30; Adjustable: 29, 30, 31 & 32 |
| Battery Charging Current | Default: 5A; Maximum based on capacity, load and battery voltage |
| Display Type | LCD |
| Charger | Inbuilt 20A charger |
| Operating Humidity | 0-90% non-condensing |
| Noise Level | Less than 60 dBA at 1 metre |
| Dimensions (L × W × H) | 65.6 × 40.5 × 81.7 cm |
| Net Weight | 145 kg |
| Communication | RS-232, USB; RS-485 available on 360V models |
| SNMP | Optional |
| Generator Compatible | Yes |
| Warranty | 2 Year Manufacturer Warranty |
