Product Description:
⚙️ DSP & IGBT Technology: Uses DSP technology with an IGBT-based inverter for controlled and reliable online power conversion.

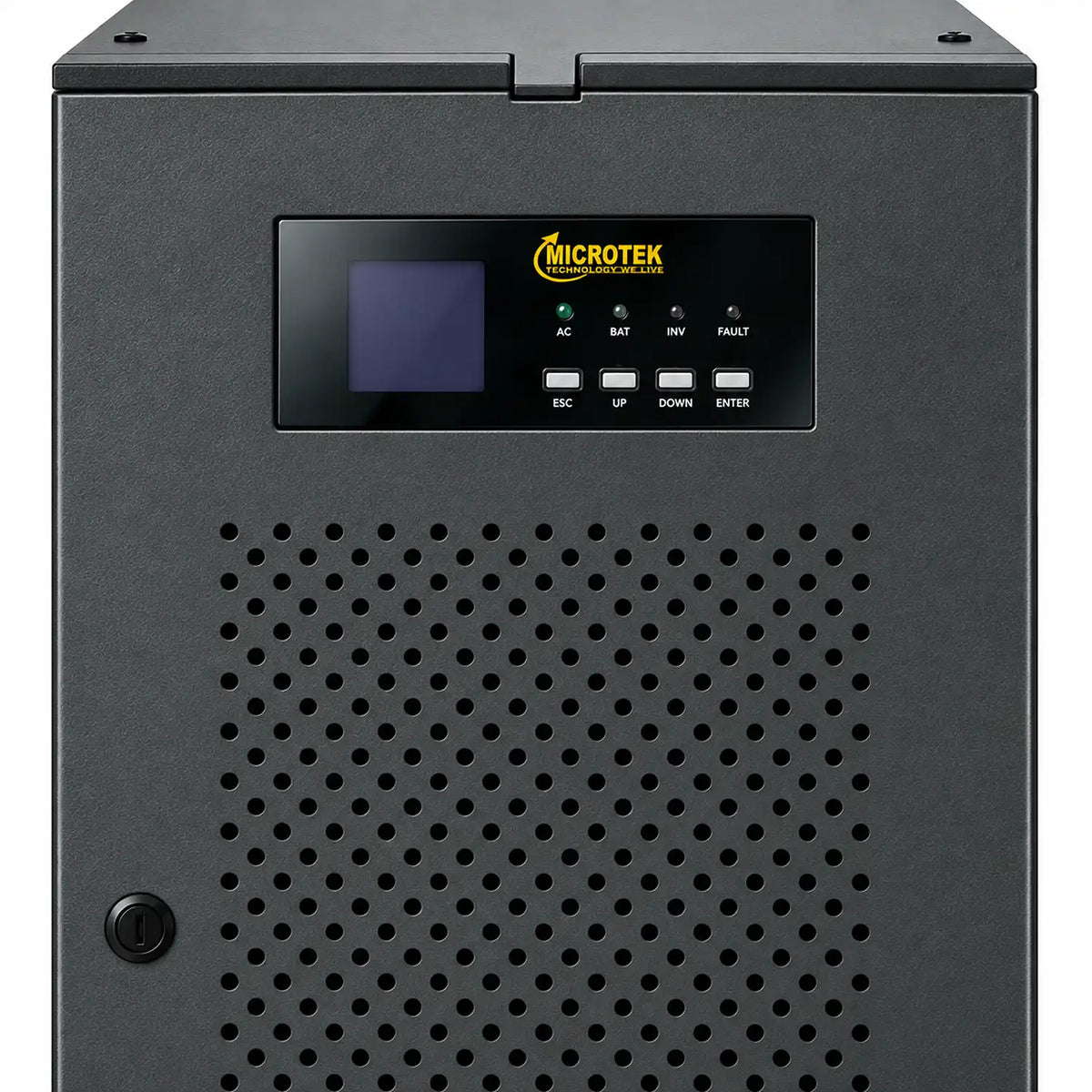

🖥️ Smart LCD Display: Provides real-time operating information through the built-in smart display for easier monitoring.
🔋 Flexible 360V Battery System: Supports 29, 30, 31 or 32 batteries, giving flexibility for 360V DC configurations.
🛡️ Built-In Protection & Bypass: Includes maintenance and static bypass switches, battery reverse protection and over-temperature indication and protection.
🔌 Industrial Connectivity: Provides RS-232, USB and RS-485 interfaces and supports generator operation with the specified generator capacity requirement.
The Microtek iMAXX 30kVA 360V Transformer Based Online UPS is a 3-phase input and 3-phase output UPS designed for high-capacity power backup applications. It delivers 30kVA/24kW capacity with a 360V DC battery system, pure sinewave output in battery mode and zero transfer time between AC and DC modes. Its DSP-based IGBT inverter, smart LCD display, bypass functionality and configurable battery arrangement make it suitable for industrial automation, process automation, medical equipment and other critical power applications.
Product Specifications:
| Specification | Details |
|---|---|
| Brand | Microtek |
| Series | iMAXX |
| Model / Item Code | 899-410-0303 |
| Product Type | Transformer Based Online UPS |
| Capacity | 30 kVA / 24 kW |
| DC Voltage System | Default: 360VDC; Adjustable: 348–384VDC |
| Phase | 3 Phase Input / 3 Phase Output |
| Input Nominal Voltage | 3 × 380VAC / 400VAC (3Ph+N) |
| Input Voltage Range | 285VAC–485VAC |
| Input Frequency Range | 50Hz–60Hz ±10% |
| Output Nominal Voltage | 3 × 380VAC / 400VAC ±1% (3Ph+N), 415VAC Adjustable |
| Output Voltage Regulation | ±1% in Battery Mode |
| Output Frequency | Mains Mode: 50Hz ±1Hz; Battery Mode: 50Hz ±0.1Hz |
| Power Factor | 0.8 |
| Crest Factor | 3.1 |
| Total Harmonic Distortion | <2% Linear Load; <5% Non-Linear Load |
| AC to DC Transfer Time | Zero |
| Inverter to Bypass Transfer Time | Zero |
| Overload Capability | 150% for 60 sec; >160% for 200 ms |
| Battery Mode Waveform | Pure Sinewave |
| Static Bypass | Solid State |
| Static Bypass Input Voltage | 3 × 380VAC / 400VAC (3Ph+N) |
| Static Bypass Overload Capability | 150% for 1 hour; 180% for 30 sec; >200% for 200 ms |
| AC Mode Efficiency | 91% |
| Battery Mode Efficiency | 93% |
| Recommended Battery Type | Lead Acid / Tubular / SMF |
| Number of Batteries | Default: 30; Adjustable: 29, 30, 31 & 32 |
| Battery Charging Current | Default: 5A; Maximum: 20A |
| Inbuilt Charger | 20A |
| Battery Reverse Protection | Yes |
| CVCF Operation | Operational Without Battery |
| Output Frequency Setting | Fixed at 50Hz or synchronizable with input frequency |
| Maintenance Bypass | Built-in |
| Static Bypass Switch | Built-in |
| Hot Standby | Available |
| Cold Start | Available |
| Output Voltage Setting | Configurable |
| Input Power Factor Filter | Optional, PF 0.9 |
| PCB Protection | Conformal Coated PCB Assemblies |
| Over Temperature Protection | Yes |
| SNMP Card | Optional |
| Communication Ports | RS-232, USB, RS-485 |
| Dry Contacts | 6 Outputs and 2 Inputs |
| Generator Compatibility | Yes |
| Recommended Generator Capacity | 2.5 × UPS Capacity for standby source |
| Operating Temperature | 0–55°C |
| Operating Humidity | 0–90% non-condensing |
| Noise Level | Less than 60 dBA at 1 metre |
| Dimensions (L × W × H) | 821 × 432 × 1159 mm |
| Net Weight | 241 kg |
| Warranty | 1 Year Manufacturer Warranty |
