Microtek iMAXX 5.5kVA Online UPS with Pure Sine Wave Single-Phase
Microtek iMAXX 5.5kVA Online UPS with Pure Sine Wave Single-Phase
- Pan India Free Shipping
- Easy 7-Days Return Policy
- Original Brand Warranty
- 100% Genuine Product
- Highly ⭐ Rated on Trustpilot & Google
- > 15 Lakh Orders Fulfilled
Couldn't load pickup availability
Product Description:
⚡ 5.5kVA High-Capacity Backup: Delivers 5.5kVA / 4.4kW capacity for reliable power protection in demanding applications.
🛡️ Advanced Power Protection: DSP technology with IGBT inverter, built-in over-voltage cut-off and surge protection helps safeguard connected equipment.

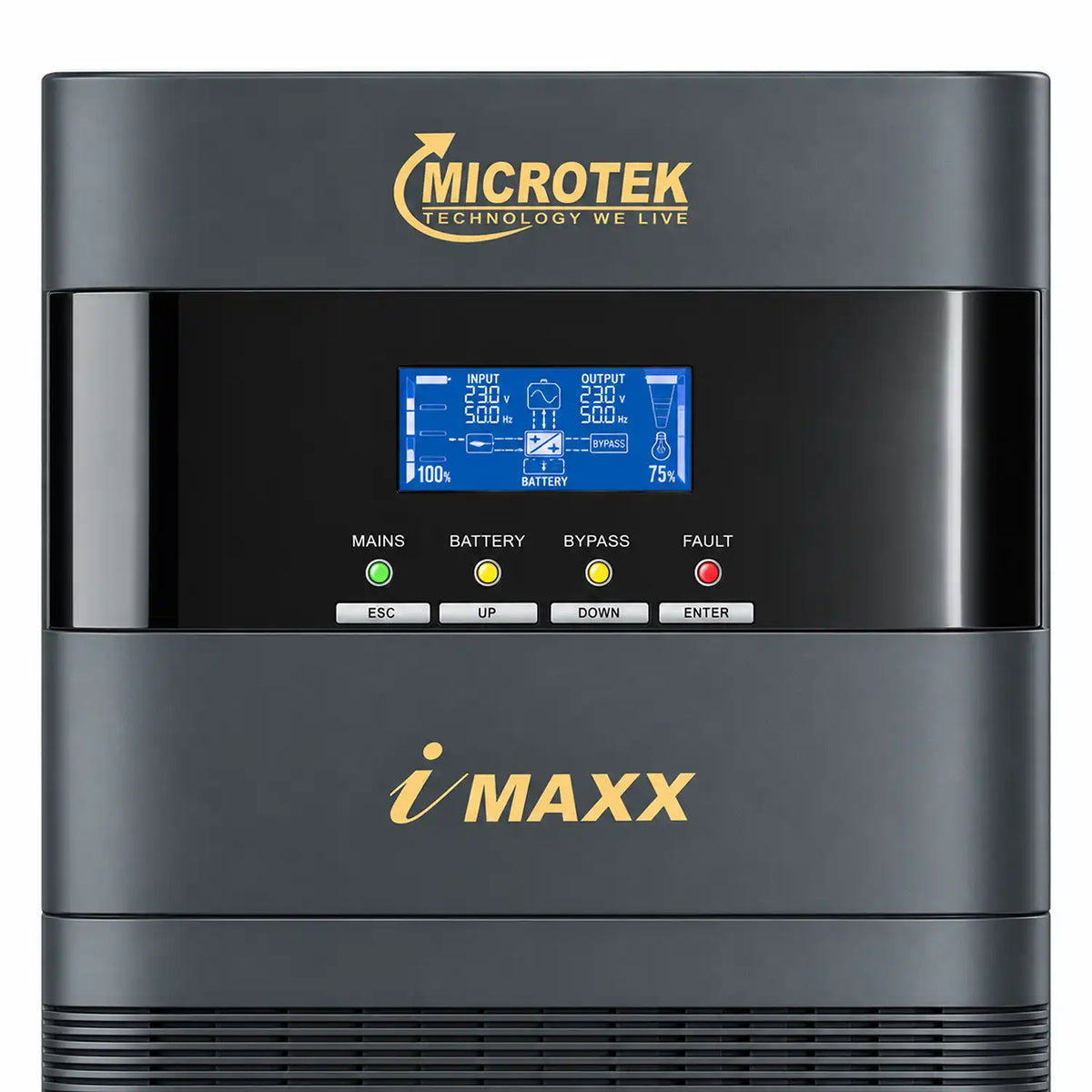

📟 Smart LCD Monitoring: Real-time LCD information displays load, battery, operating mode and fault status for easier system monitoring.
🔌 Pure Sine Wave Output: Provides pure sinewave power in battery mode with zero AC-to-DC and inverter-to-bypass transfer time.
🏢 Flexible Installation & Connectivity: Supports 16/18 external batteries, generator compatibility, RS-232/USB connectivity and optional SNMP management.

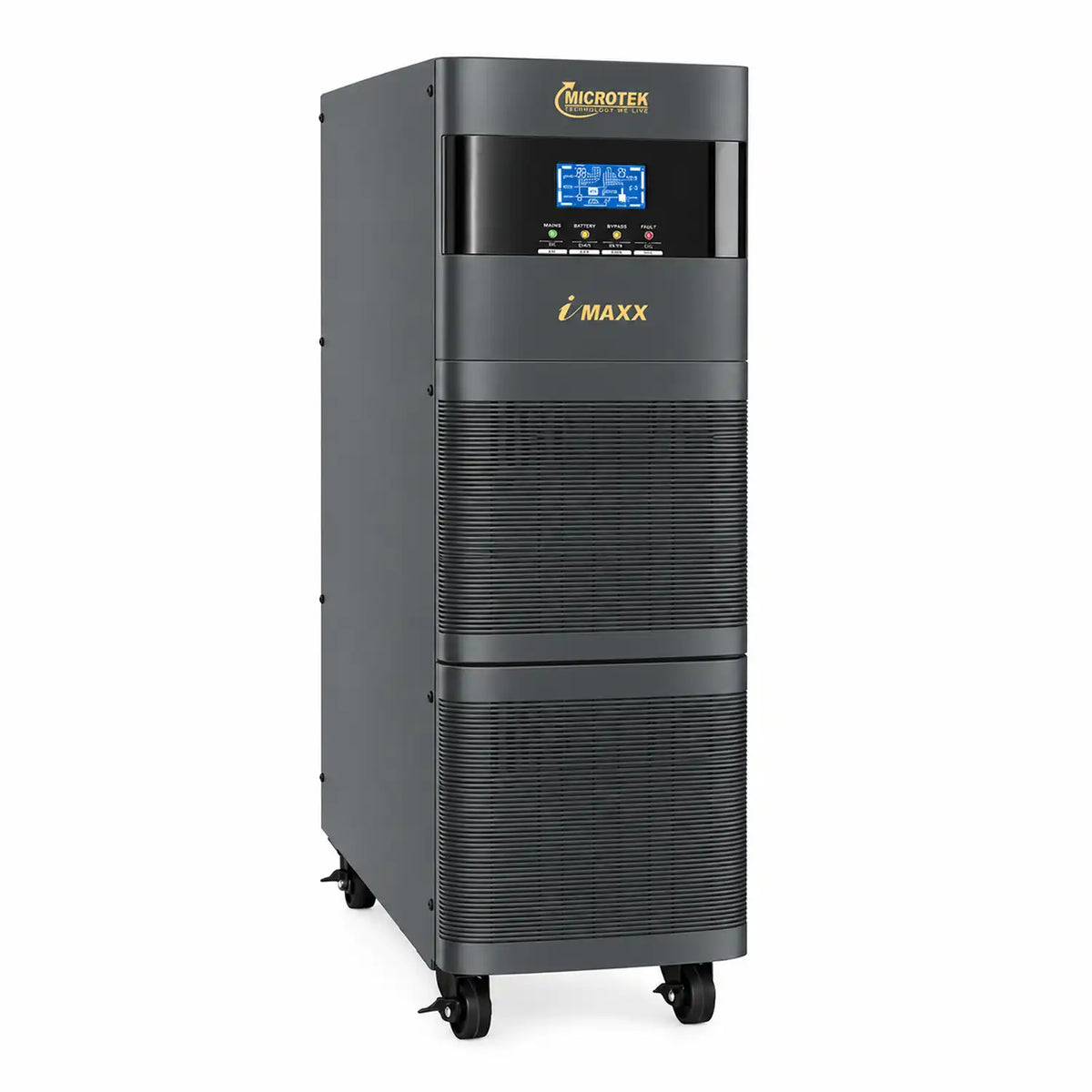

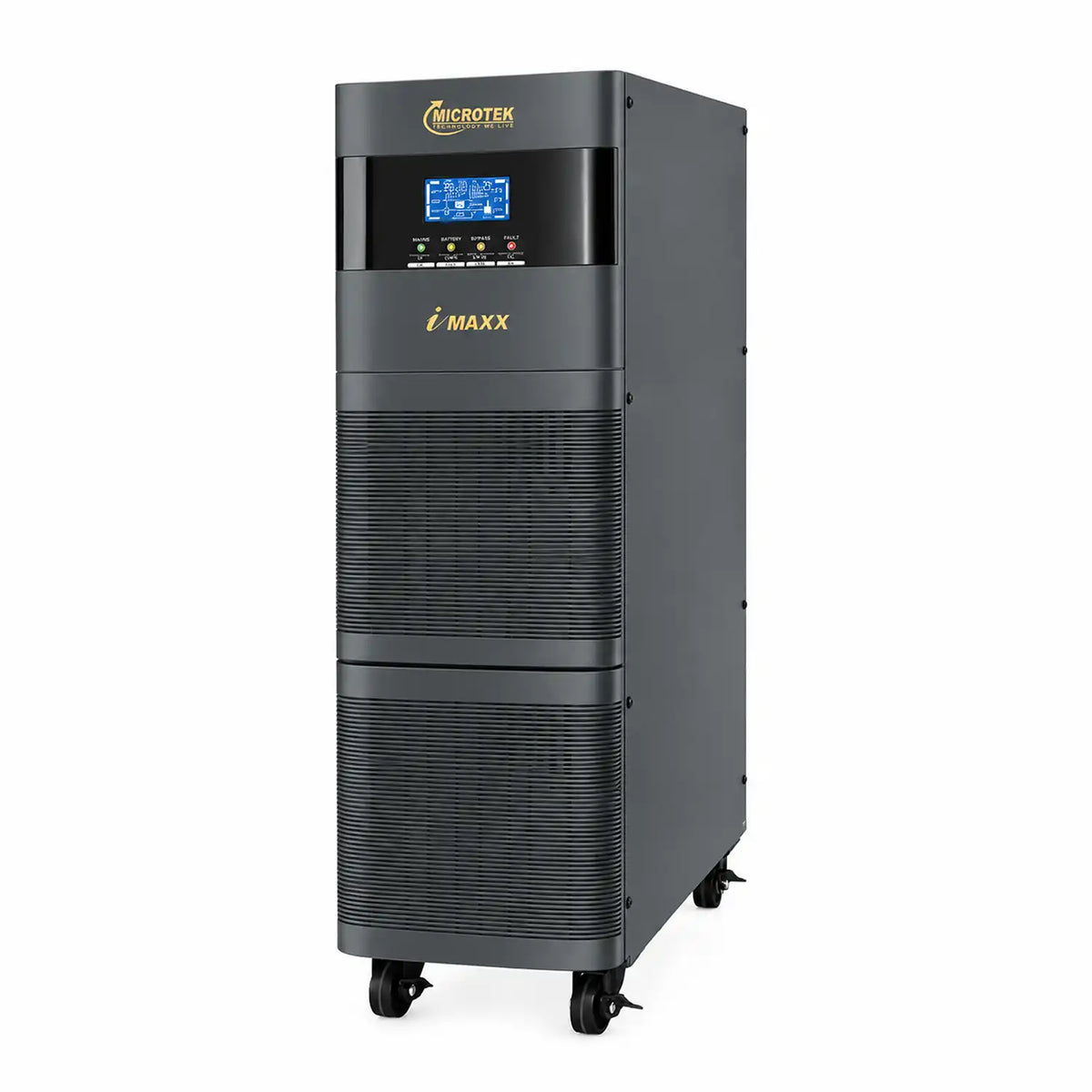

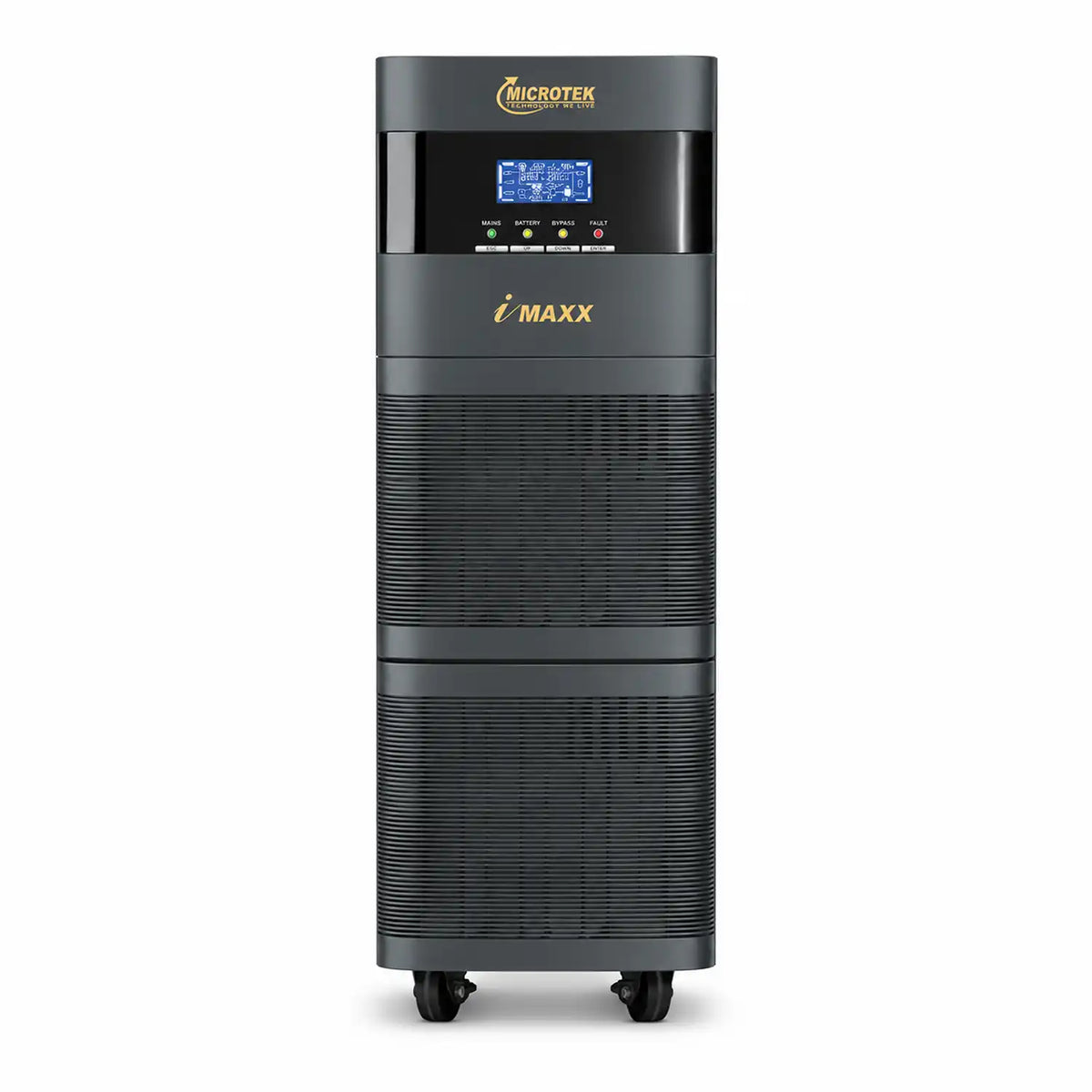

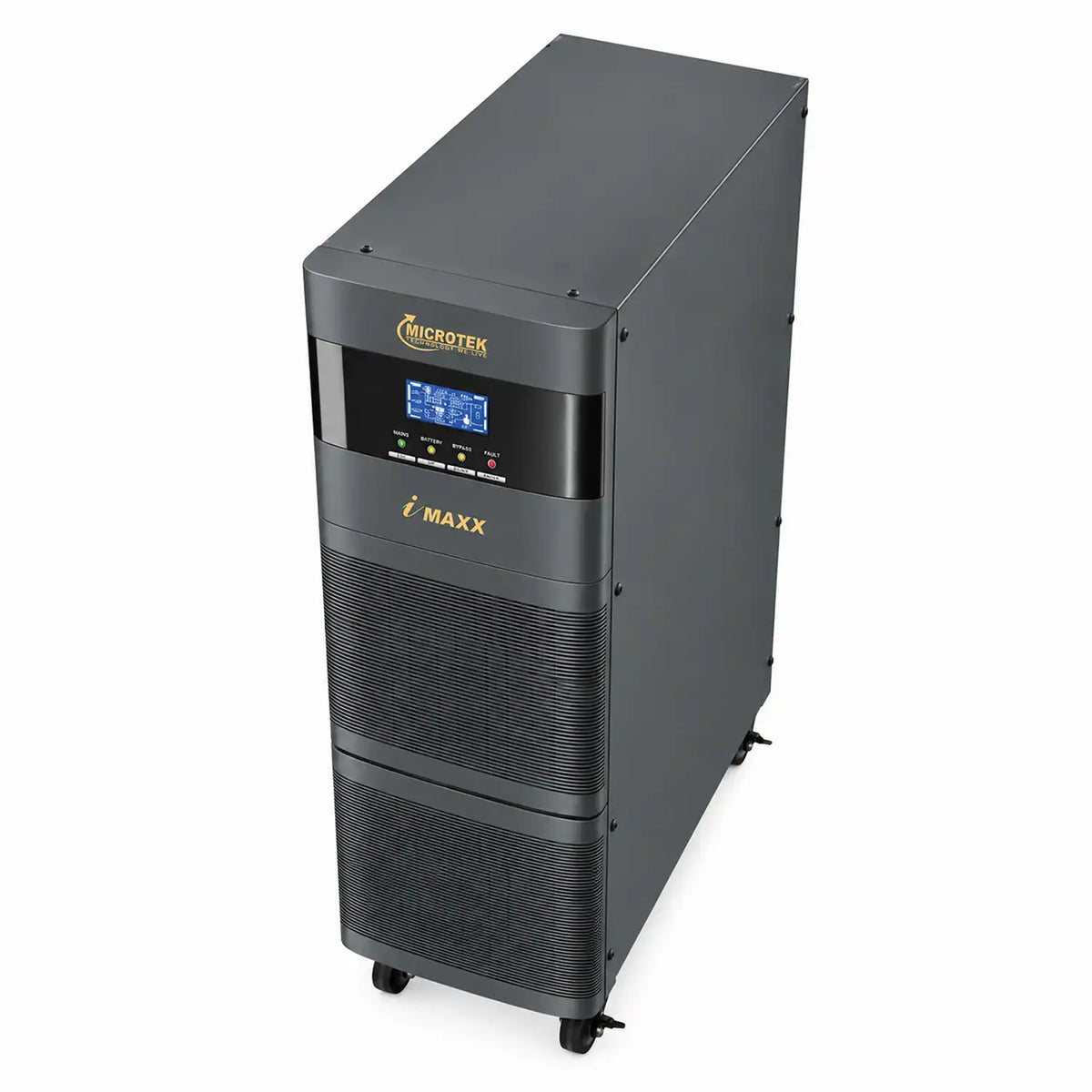

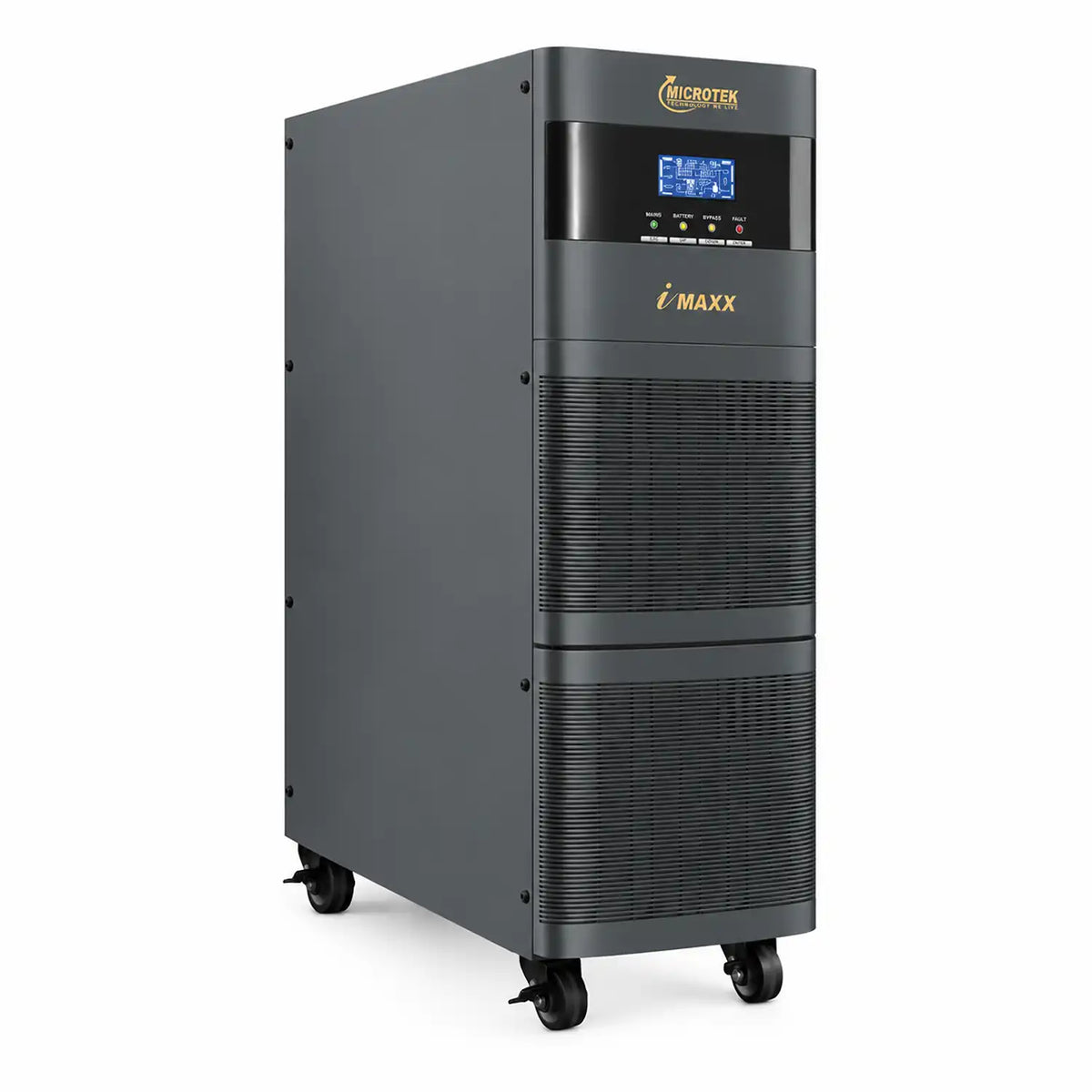

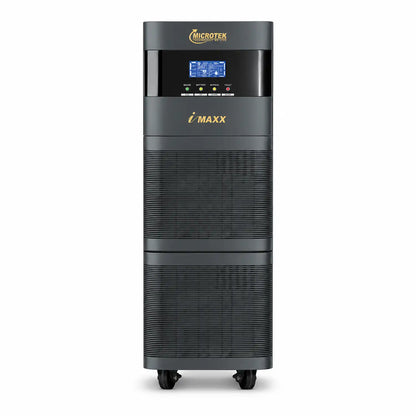

The Microtek iMAXX 5.5kVA Online UPS is a single-phase power backup solution rated at 5.5kVA/4.4kW, designed for applications requiring stable and protected power. It features DSP technology with an IGBT-based inverter, pure sinewave output, EMI/RFI filtering, surge protection and a smart LCD display. With support for 16/18 external batteries, generator compatibility and RS-232/USB connectivity, it suits offices and other critical power applications.
Product Specifications:
| Specification | Details |
| Brand | Microtek |
| Series | iMAXX Series |
| Product Type | Online UPS |
| Model | Online UPS 5.5KVA 1PH:1PH 192V |
| SKU | 899-611-5501 |
| Capacity | 5.5 KVA / 4.4 KW |
| DC Voltage System | Default: 192 VDC, Adjustable: 216 VDC |
| Phase | Single Phase with Ground |
| Input Nominal Voltage | 208VAC / 220VAC / 230VAC |
| Input Acceptable Voltage Range | 165~285 VAC |
| Input Frequency Range | 40Hz~55Hz @ 50Hz System |
| Output Nominal Voltage | 208VAC / 220VAC / 230VAC |
| AC Voltage Regulation | +1% in Battery Mode |
| Output Frequency Range | Mains Mode: 45Hz~55Hz; Battery Mode: 50Hz ±0.1Hz |
| AC to DC Transfer Time | Zero |
| Inverter to Bypass Transfer Time | Zero |
| Bypass to Inverter Transfer Time | <5ms |
| Battery Mode Waveform | Pure Sinewave |
| Efficiency | AC Mode: 87%; Battery Mode: 91% |
| Recommended Battery Type | Default: VRLA/SMF Battery |
| Tubular Battery | Supported with charger cut-off voltage adjustable from LCD display |
| Battery Charging Current | 2/4/8 Amp; Default: 8 Amp |
| Number of Batteries | 16/18 Batteries |
| LCD Display | Load Level, Battery Level, AC Mode, Battery Mode, Bypass Mode & Fault Indicators |
| Alarm Indications | Battery Mode, Low Battery, Overload and Fault |
| Communication | RS-232 / USB |
| SNMP | Optional |
| Supported Operating Systems | Windows 2000/2003/XP/Vista/2008/7/8, Linux and Mac |
| Dimensions (L × W × H) | 562 × 250 × 830 mm |
| Net Weight | 62 kg |
| Inverter Technology | DSP Technology with IGBT Based Inverter |
| Surge Protection | Inbuilt OVCD with Surge Protection |
| Noise Filtering | EMI/RFI Noise Filter |
| CVCF Operation | Available without battery |
| PCB Protection | Conformal Coated PCB Assemblies |
| External Charger Expansion | Up to 4A, optional on demand |
| Standby Features | Hot Stand-by and Cold Start |
| Bypass | Built-in Maintenance Bypass & Stick Bypass Switch |
| Output Voltage | Configurable |
| Output Frequency | Fixed at 50Hz or synchronizable with input frequency |
| Generator Compatibility | Compatible; standby generator capacity required is 2.5 times UPS capacity |
| Over Temperature Protection | Available |
| Warranty | 2 Year Manufacturer Warranty |
