Microtek i-MAXX 7.5kVA Online UPS with Pure Sinewave Output
Microtek i-MAXX 7.5kVA Online UPS with Pure Sinewave Output
- Pan India Free Shipping
- Easy 7-Days Return Policy
- Original Brand Warranty
- 100% Genuine Product
- Highly ⭐ Rated on Trustpilot & Google
- > 15 Lakh Orders Fulfilled
Couldn't load pickup availability
Product Description:
⚡ 7.5kVA / 6.0kW Capacity: Provides online power backup with a 7.5kVA capacity and 6.0kW rated output for demanding connected loads.
🛡️ Advanced Power Protection: DSP technology, IGBT-based inverter, built-in OVCD with surge protection, and EMI/RFI noise filtering help protect connected equipment.

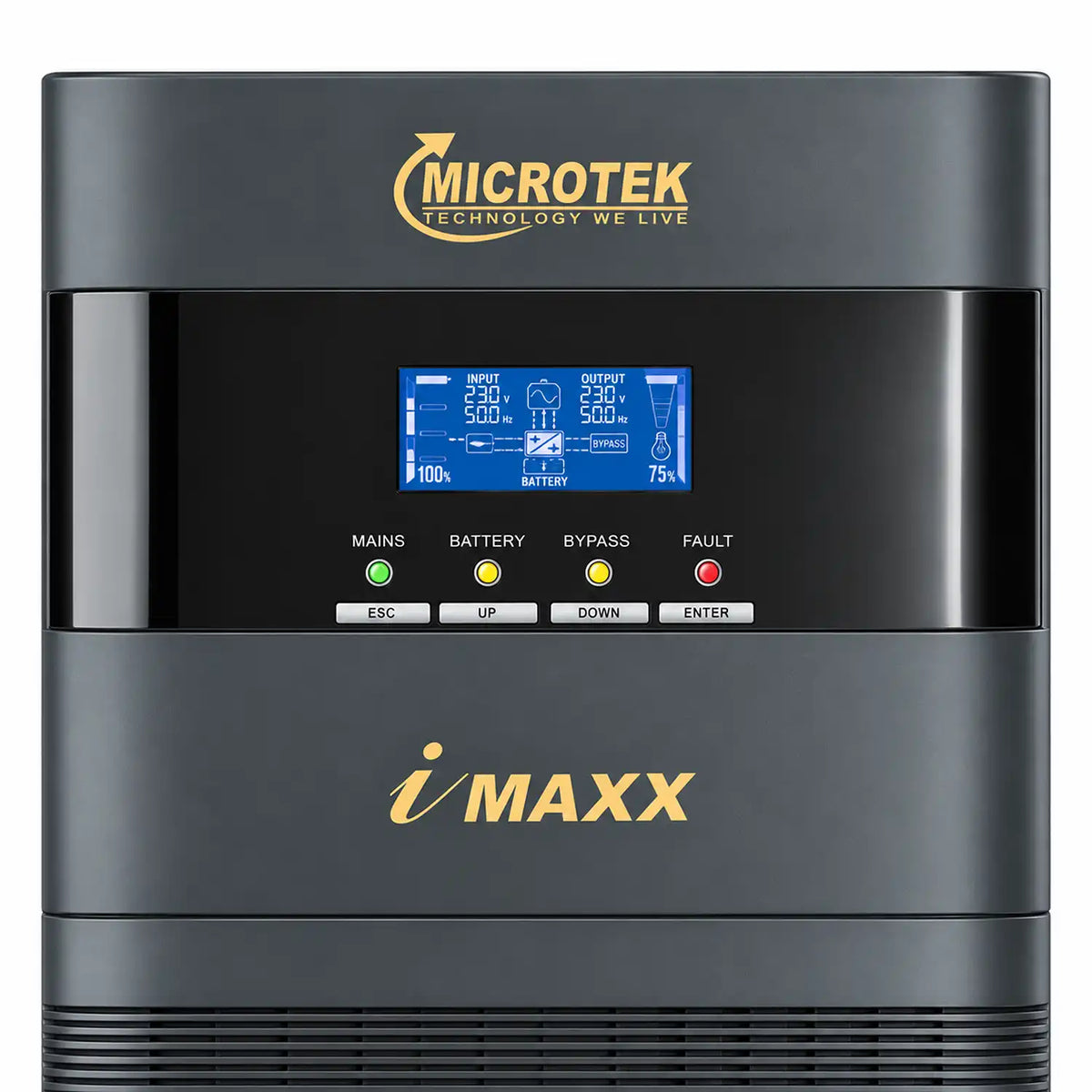

📟 Smart Monitoring & Control: Smart LCD displays load, battery, operating mode and fault information, while configurable output voltage improves installation flexibility.
🔋 Reliable Battery Operation: Supports 16/18 external batteries, default 192VDC adjustable to 216VDC, with pure sinewave output in battery mode.
🔌 Business-Ready Connectivity: Zero AC-to-DC and inverter-to-bypass transfer time, RS-232/USB management, optional SNMP and generator compatibility support professional installations.

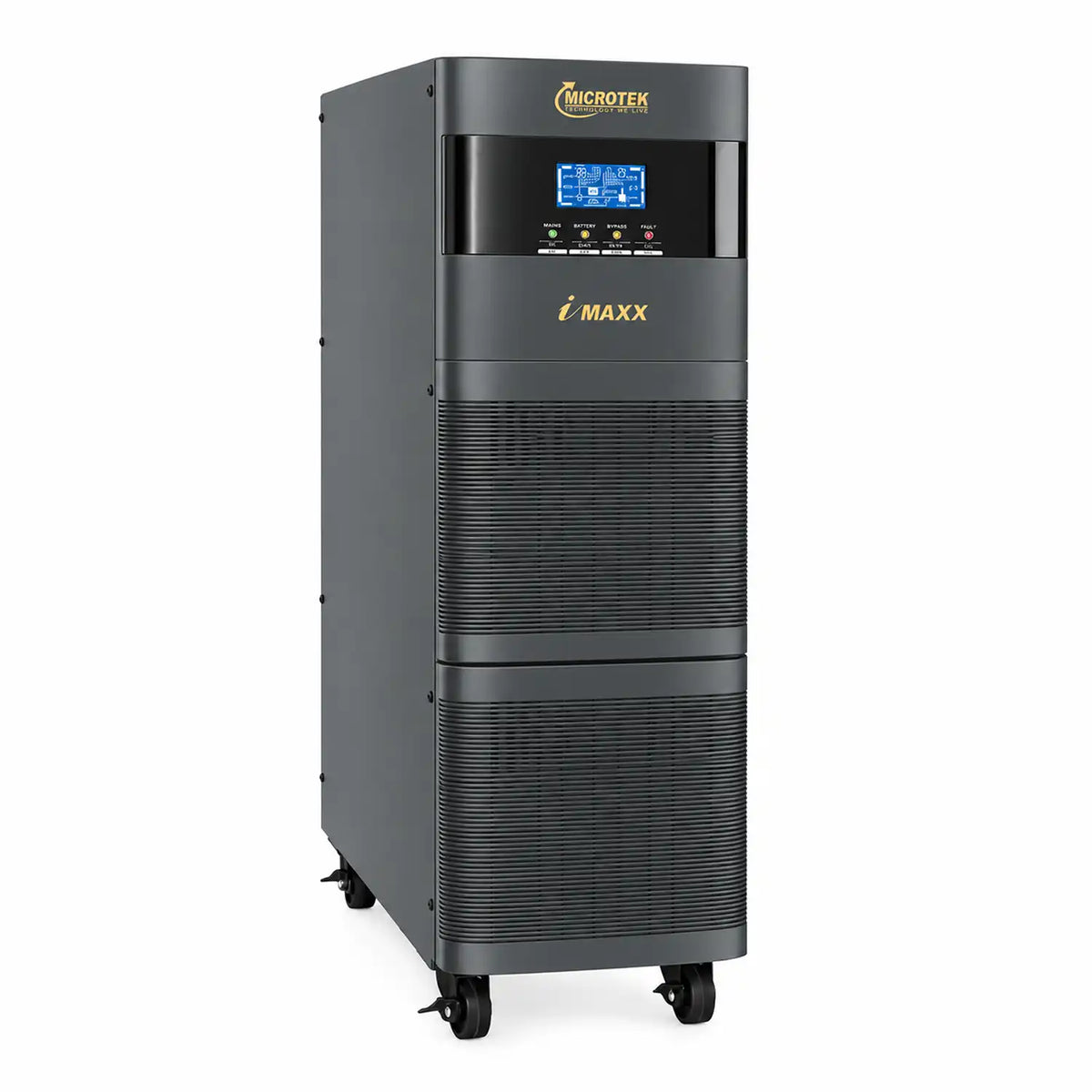

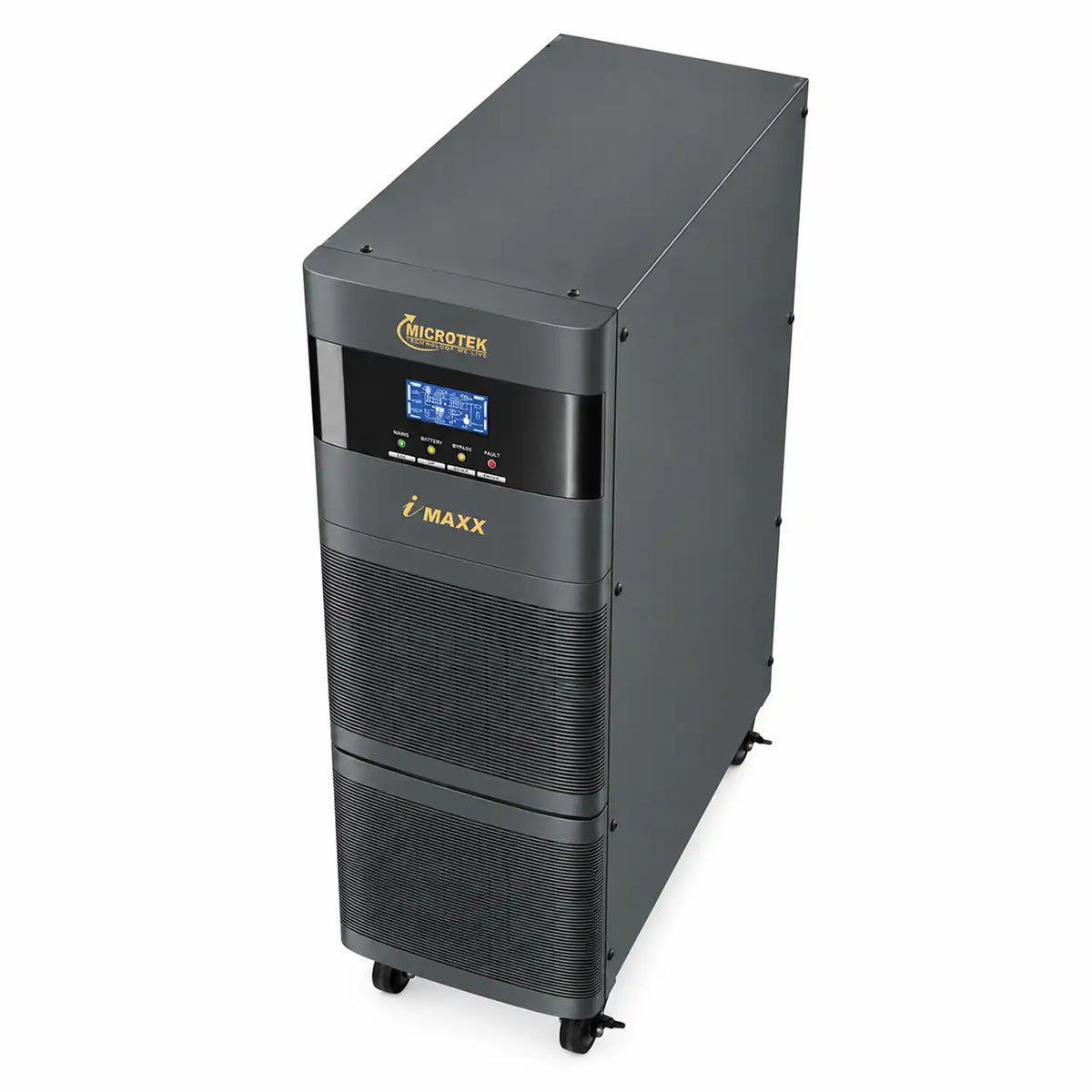

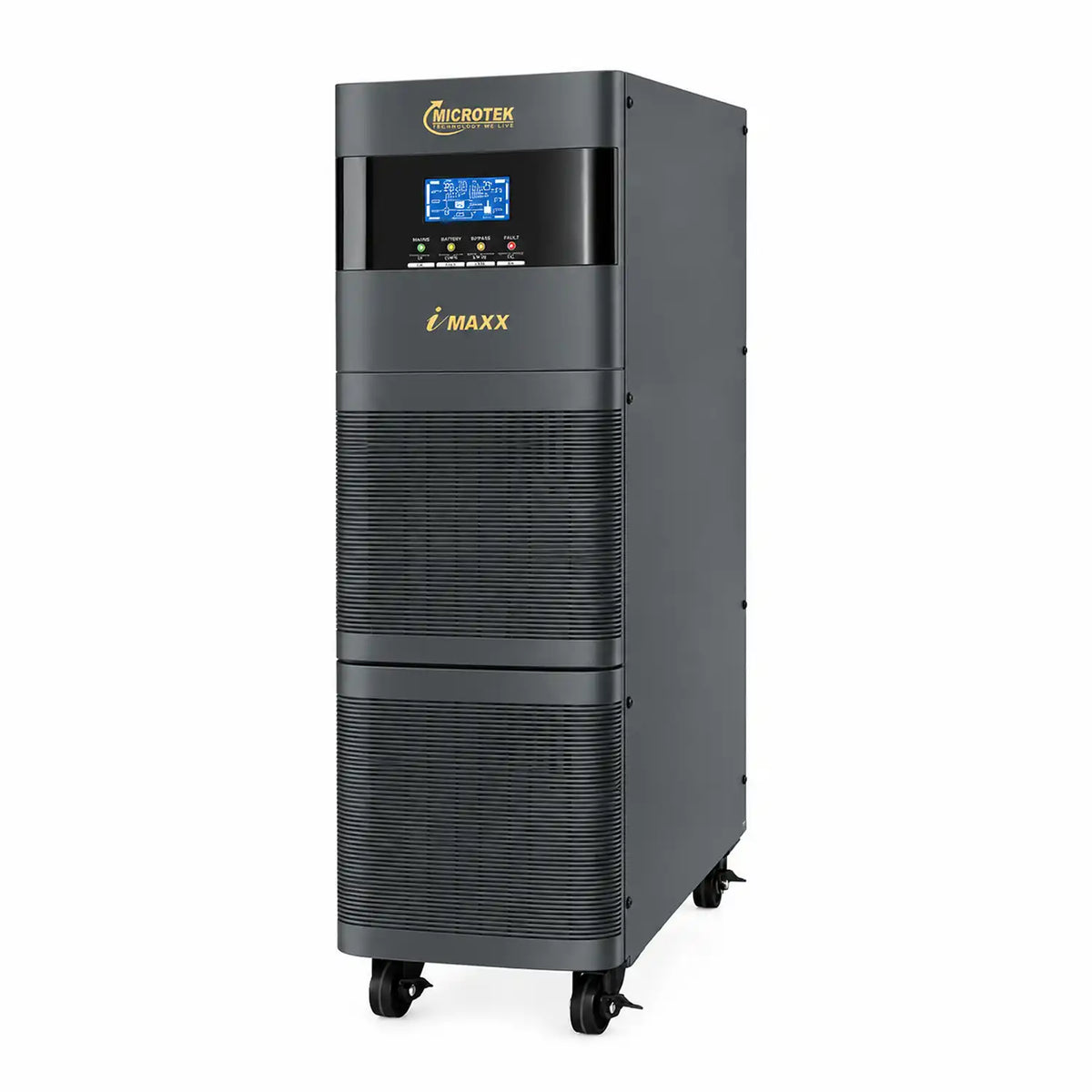

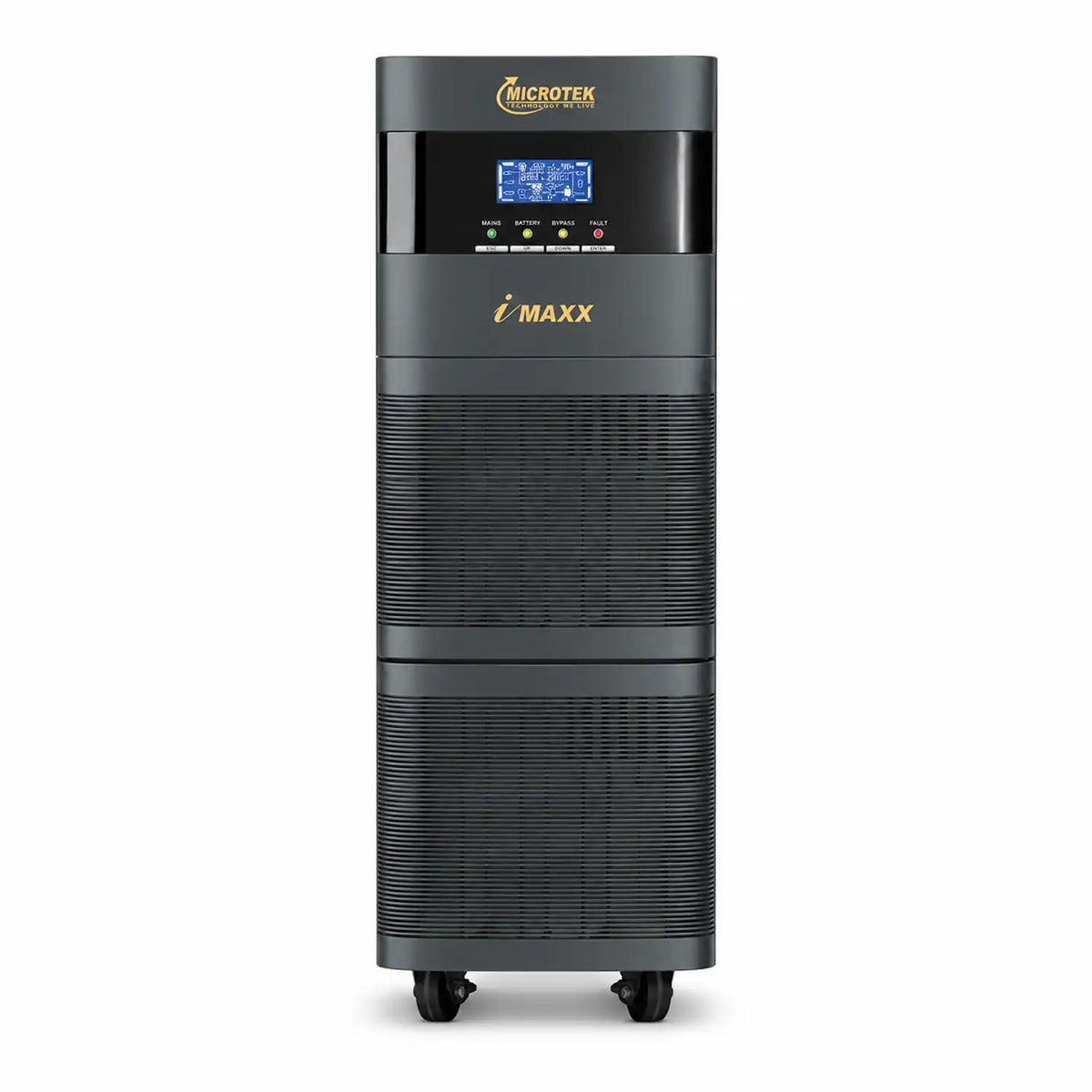

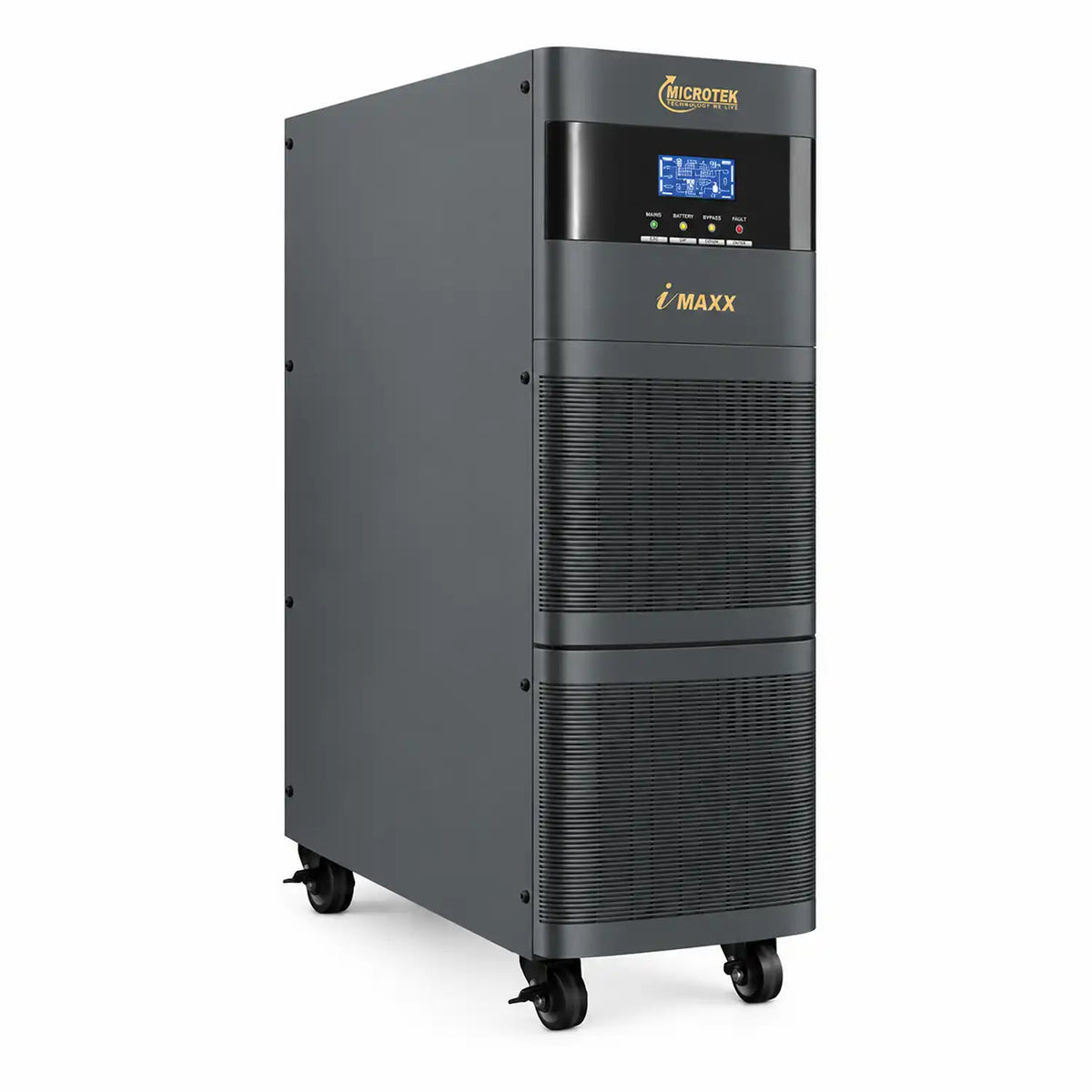

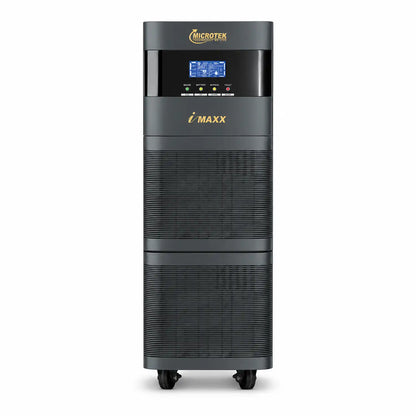

The Microtek i-MAXX 7.5kVA Online UPS is a single-phase transformer-based UPS rated at 7.5kVA/6.0kW, designed for applications requiring dependable power conditioning and backup. It features DSP and IGBT inverter technology, pure sinewave battery output, EMI/RFI filtering, surge protection and smart LCD monitoring. With 16/18 external batteries, configurable output voltage and generator compatibility, it is suitable for offices and other critical power applications.
Product Specifications:
| Specification | Details |
|---|---|
| Brand | Microtek |
| Model | i-MAXX Transformer Based Online UPS |
| Product Type | Online UPS |
| Capacity | 7.5 KVA / 6.0 KW |
| SKU | 899-611-7501 |
| Phase | Single Phase with Ground |
| DC Voltage System | Default: 192 VDC, Adjustable: 216 VDC |
| Input Nominal Voltage | 208VAC / 220VAC / 230VAC |
| Input Acceptable Voltage Range | 165~285 VAC |
| Input Frequency Range | 40Hz~55Hz @ 50Hz System |
| Output Nominal Voltage | 208VAC / 220VAC / 230VAC |
| AC Voltage Regulation | +1% in Battery Mode |
| Output Frequency Range | Mains Mode: 45Hz~55Hz; Battery Mode: 50Hz ±0.1Hz |
| AC to DC Transfer Time | Zero |
| Inverter to Bypass Transfer Time | Zero |
| Bypass to Inverter Transfer Time | <5ms |
| Battery Mode Waveform | Pure Sinewave |
| Efficiency | AC Mode: 87%; Battery Mode: 91% |
| Recommended Battery Type | Default: VRLA/SMF Battery |
| Tubular Battery Support | Yes, with charger cut-off voltage adjustable from LCD display |
| Battery Charging Current | 2/4/8 Amp; Default: 8 Amp |
| Number of Batteries | 16/18 |
| LCD Indications | Load Level, Battery Level, AC Mode, Battery Mode, Bypass Mode & Fault Indicators |
| Management Interface | RS-232 / USB |
| SNMP | Optional |
| Supported Operating Systems | Windows 2000/2003/XP/Vista/2008/7/8, Linux and Mac |
| Inverter Technology | DSP Technology with IGBT Based Inverter |
| Surge Protection | Inbuilt OVCD with Surge Protection |
| Noise Filtering | EMI/RFI Noise Filter |
| CVCF Operation | Constant Voltage Constant Frequency operation without battery |
| PCB Protection | Conformal Coated PCB Assemblies |
| External Charger Expansion | Up to 4A, optional on demand |
| Hot Standby | Available |
| Cold Start | Available |
| Maintenance Bypass | Built-in |
| Bypass Switch | Stick Bypass Switch |
| Alarm | Mute Mode and fault-related alarms |
| Over Temperature Protection | Available |
| Output Voltage Settings | Configurable |
| Output Frequency | Fixed at 50Hz or synchronizable with input frequency |
| Generator Compatibility | Compatible; standby generator capacity required is 2.5 times UPS capacity |
| Dimensions (L × W × H) | 562 × 250 × 830 mm |
| Net Weight | 78 kg |
| Warranty | 2 Year Manufacturer Warranty |
