Product Description:
⚡ True Double-Conversion: Provides continuous power conditioning with zero AC/DC transfer time for critical connected equipment.
🔋 Flexible Battery Compatibility: Supports a 48V battery system with Lithium-ion or Lead Acid battery compatibility.

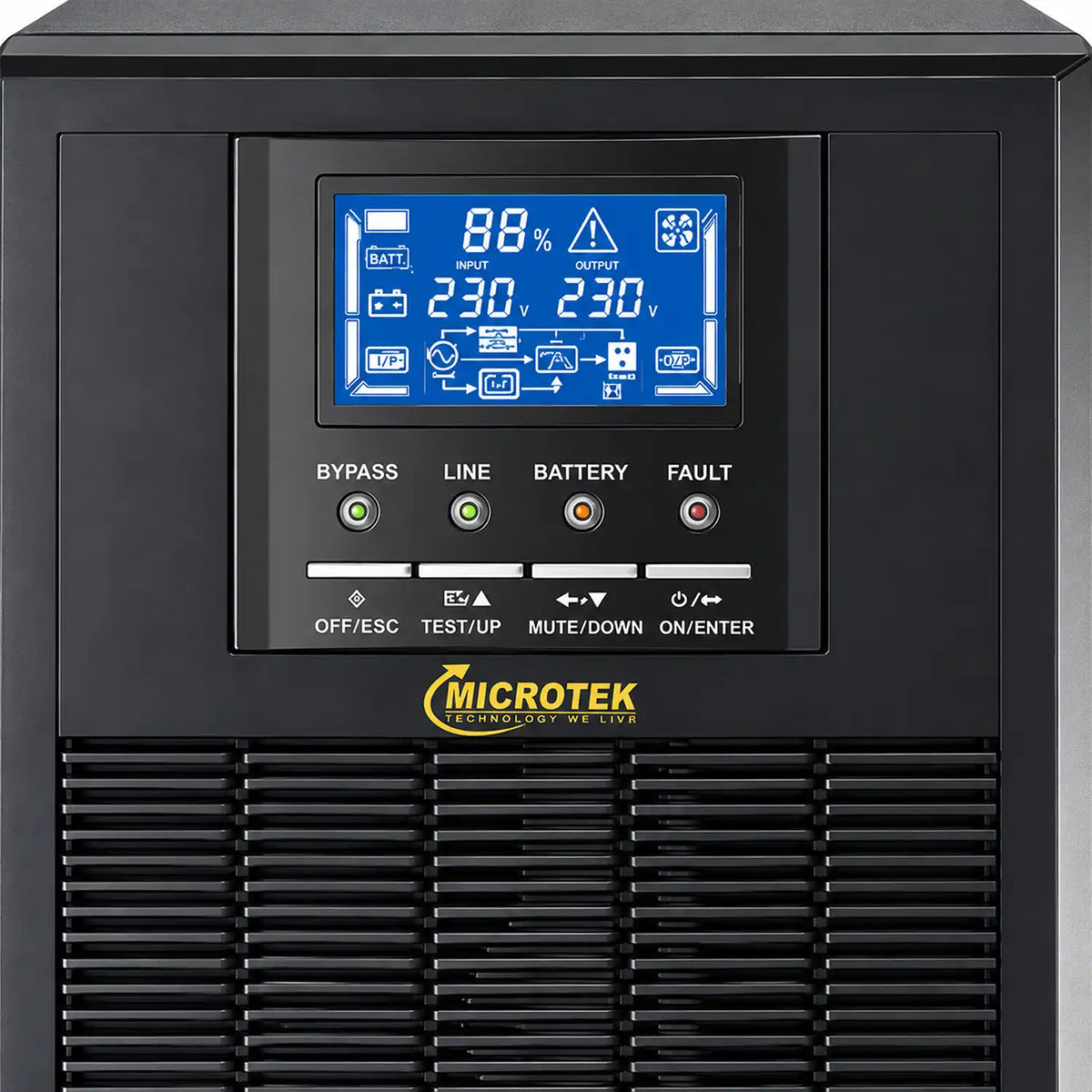

📺 LCD Monitoring: The LCD panel displays load level, battery level, operating mode and fault status for convenient monitoring.
🔌 High-Power Charging: The built-in AC charger supports charging current up to 60A with multiple configurable current settings through the LCD.
🛡️ Pure Sine Wave Output: Delivers pure sine wave output with 5000VA/5000W capacity and unity power factor for demanding power backup applications.
The Microtek Max LiFe 5kVA Online UPS is a 1-phase input and 1-phase output online UPS designed for critical power backup applications. It delivers 5000VA/5000W capacity, true double-conversion technology, pure sine wave output and a 48V battery system compatible with Lithium-ion or Lead Acid batteries. Configurable charging current, LCD monitoring, cold-start capability and optional parallel operation make it suitable for demanding office and space-critical power backup environments.
Product Specifications:
| Specification | Details |
|---|---|
| Brand | Microtek |
| Model | ONLINE UPS MAX LiFe 5KVA 1PH:1PH 48V |
| SKU | 899-460-5001 |
| Product Type | Online UPS |
| Capacity | 5000VA / 5000W |
| Input Voltage | 220/230/240 VAC |
| Input Voltage Range | 110-280 VAC @ 50% Load; 176-280 VAC @ 100% Load |
| Input Phase | Single Phase with Ground |
| Input Frequency Range | 46Hz-54Hz or 56Hz-64Hz |
| Input Power Factor | >0.98 @ Nominal Voltage, 100% Load |
| Input Current Harmonic Distortion | THD(i) >8% |
| Output Nominal Voltage | 220/230/240 VAC |
| AC Voltage Regulation | +1% in Battery Mode |
| Output Frequency Range | 50Hz System: 47-53Hz; 60Hz System: 57-63Hz |
| Battery Mode Frequency | 50Hz ±0.1% or 60Hz ±0.1% |
| Current Crest Ratio | 3:1 Max |
| Output Harmonic Distortion | <3% THD for Linear Load; <5% THD for Non-Linear Load |
| AC/DC Transfer Time | Zero |
| Inverter to Bypass Transfer Time | 4ms Typical |
| Waveform | Pure Sine Wave on AC Input Power Mode; 54 VDC on Battery Mode |
| Efficiency - Line Mode | 95% |
| Efficiency - ECO Mode | 99.5% |
| Efficiency - Battery Mode | 92.0% |
| Battery Voltage | 48V |
| Battery Type | Lithium-ion or Lead Acid Battery |
| Floating Charge Voltage | 52 VDC, configurable up to 58 VDC through LCD |
| Overcharge Protection | 60 VDC |
| Maximum Charging Current | 60A |
| Configurable Charging Current | 10A / 20A / 30A / 40A / 50A / 60A through LCD |
| LCD Panel | Load Level, Battery Level, AC Mode, Battery Mode, Bypass Mode and Fault Indicator |
| Battery Mode Alarm | Sounds every 5 seconds |
| Low Battery Alarm | Sounds every 2 seconds |
| Overload Alarm | Sounds every second |
| Fault Alarm | Continuous |
| Dimensions (L × W × H) | 465 × 190 × 318 mm |
| Net Weight | 15.5 kg |
| Operating Humidity | 0-95% RH, non-condensing |
| Operating Temperature | 0-50°C |
| Storage Temperature | -15°C to 60°C |
| Communication Interface | RS-232 and USB |
| Optional Communication | SNMP Card / MODBUS Card |
| Cold Start Capability | Yes |
| Parallel Operation | Optional, up to 9 units for Single Phase and Three Phase Applications |
| Parallel System Battery | Common 48V DC Battery Pack |
| Inverter Design | Full Bridge Inverter Design |
| AC Charger | 60A |
| Warranty | 2 Year Manufacturer Warranty |
