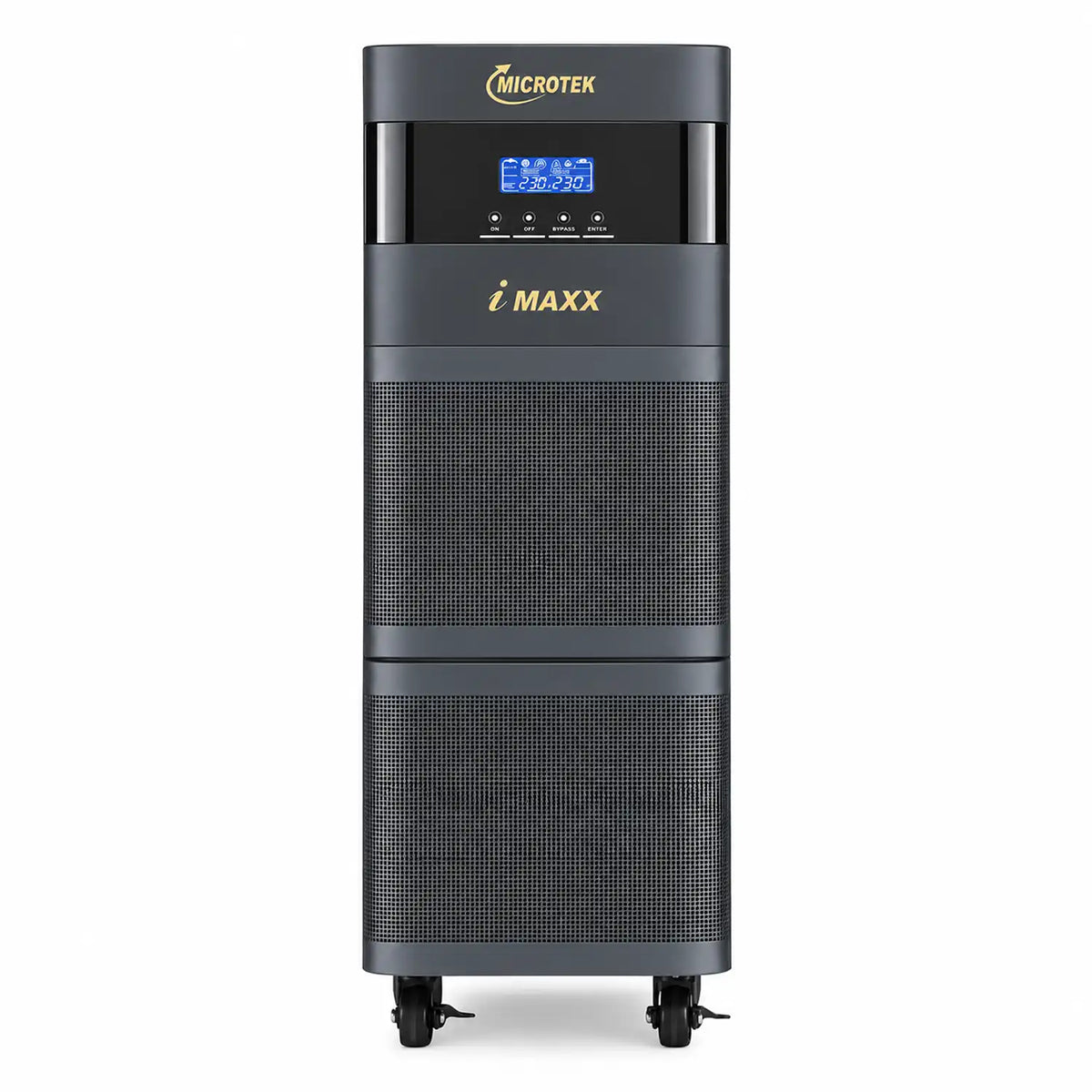

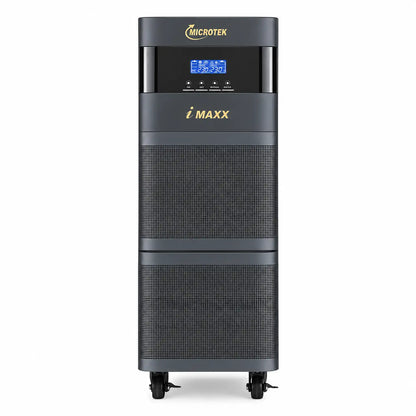

• Microtek i MAXX online UPS front view with Microtek branding, LCD display and ventilation grille -tpstech.in

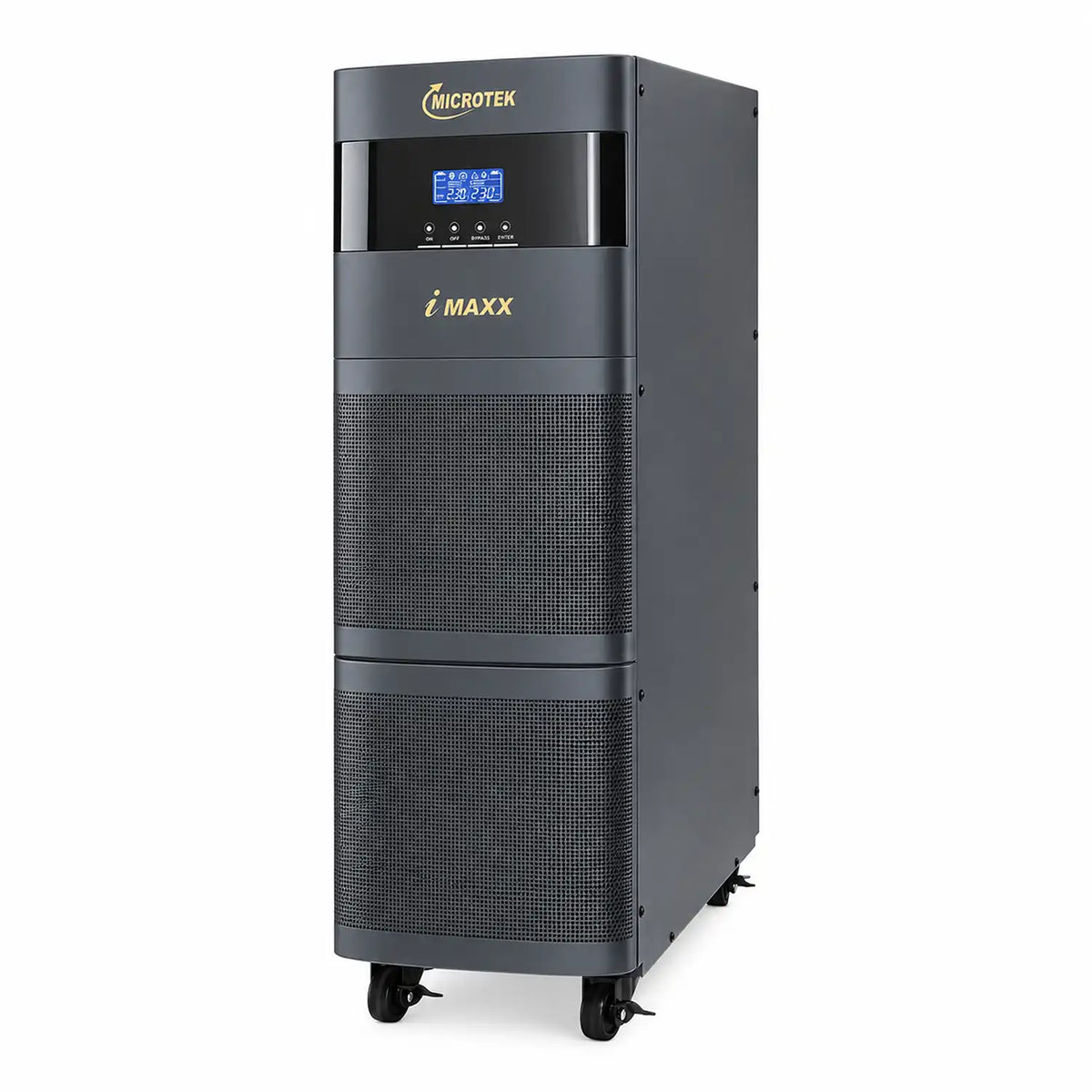

  • Microtek i MAXX online UPS front right angle view with digital display and caster wheels -tpstech.in

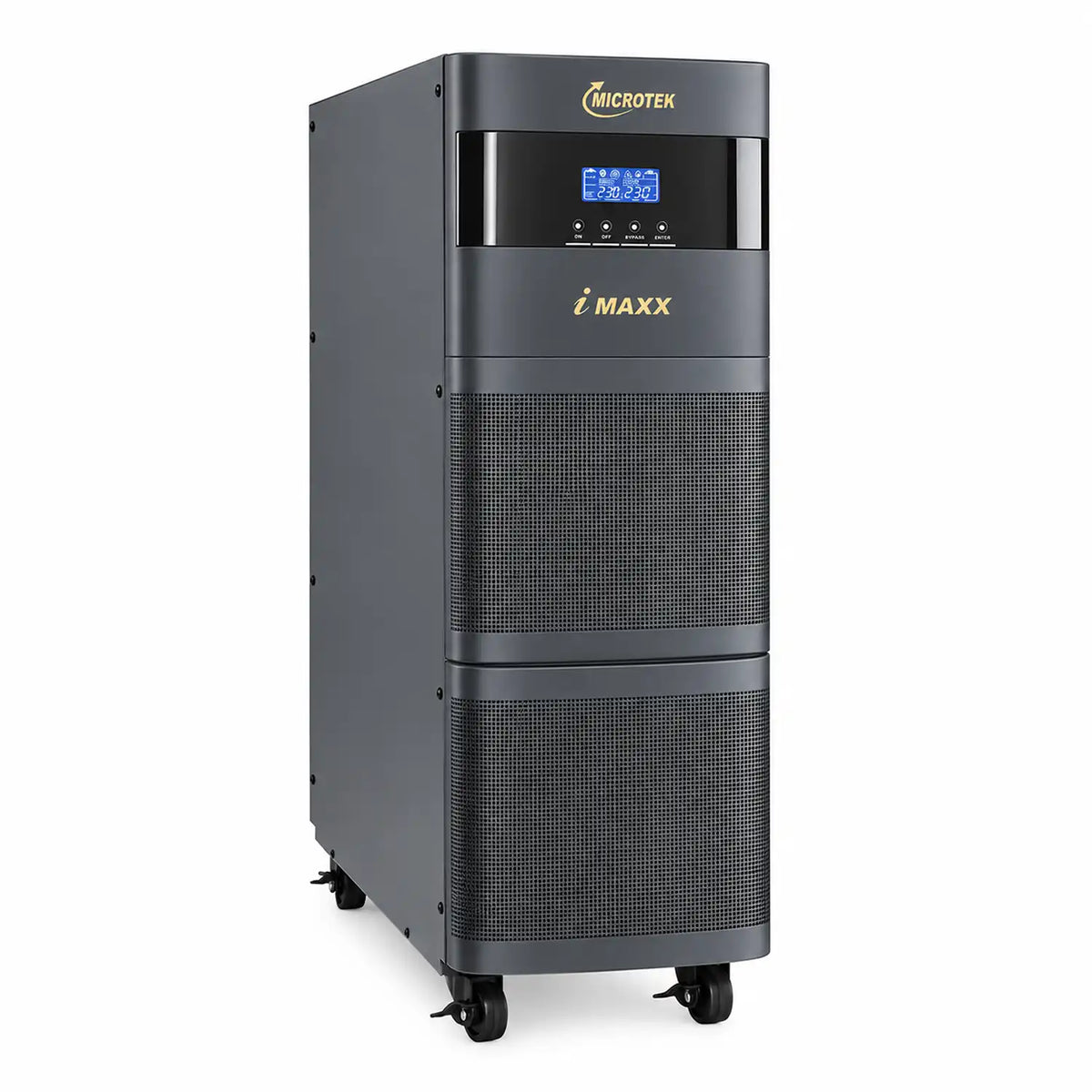

  • Microtek i MAXX online UPS front left angle view with digital display and ventilation panels -tpstech.in

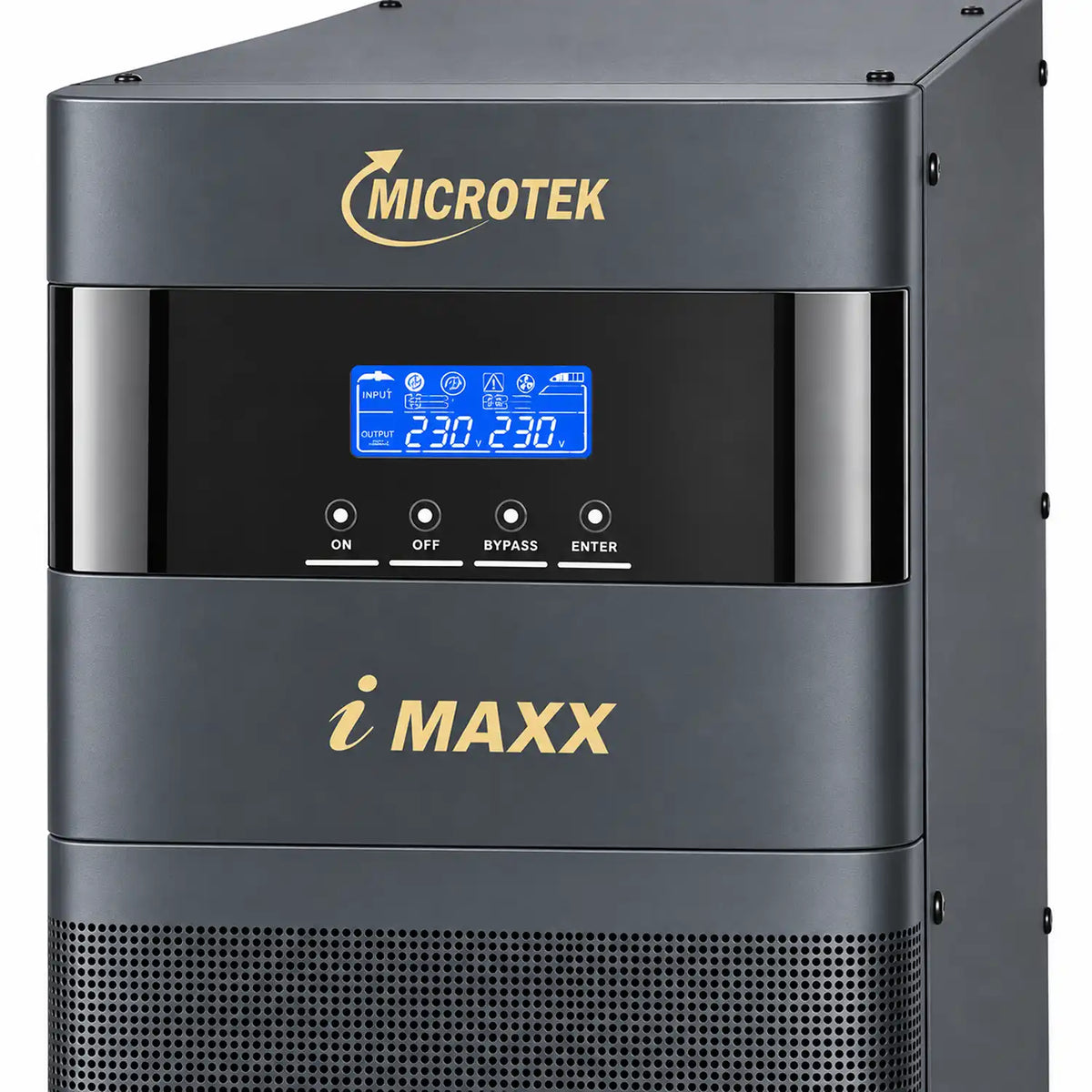

  • Microtek i MAXX online UPS close-up showing LCD display, ON, OFF, BYPASS and ENTER controls -tpstech.in

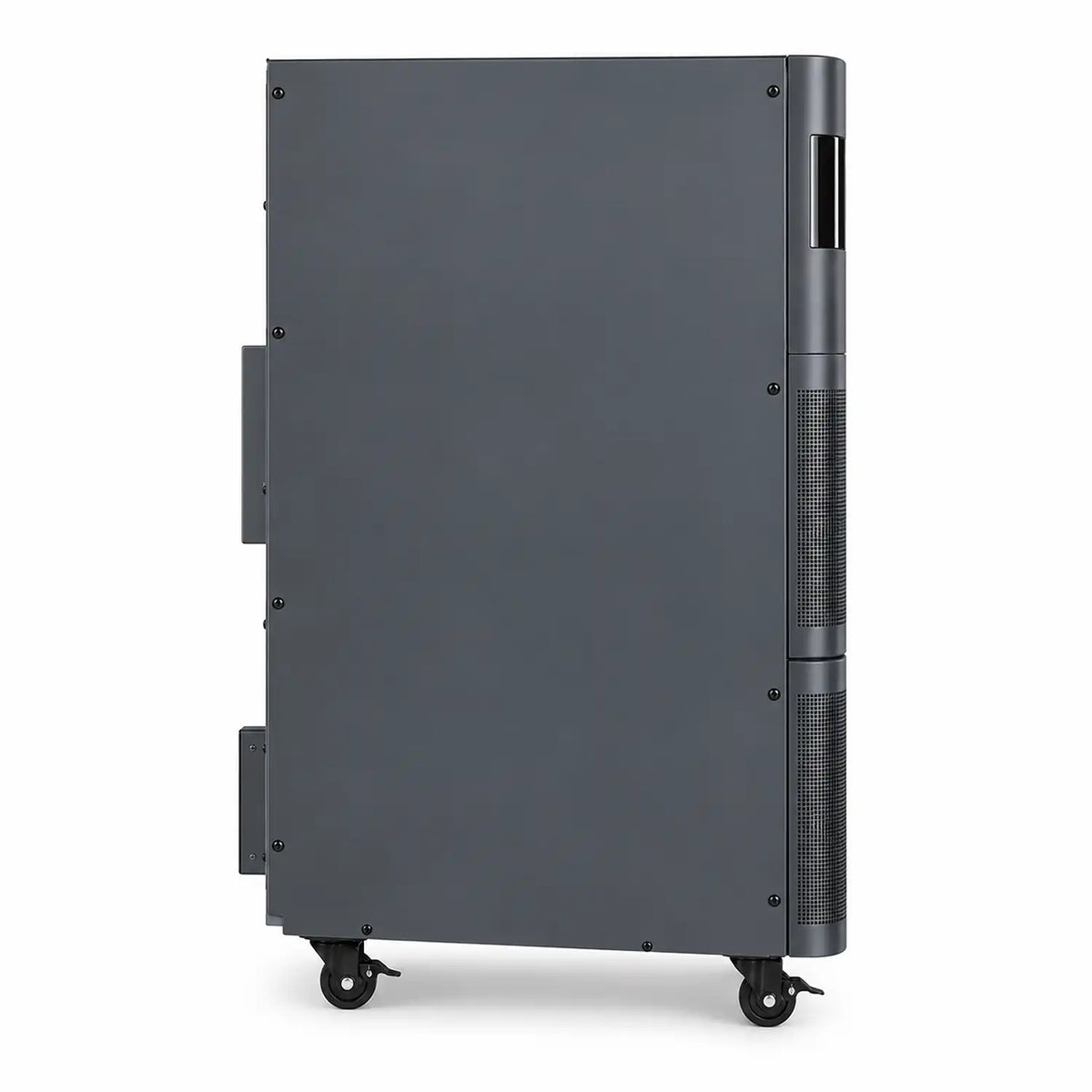

  • Microtek i MAXX online UPS full side profile showing enclosure, ventilation section and caster wheels -tpstech.in

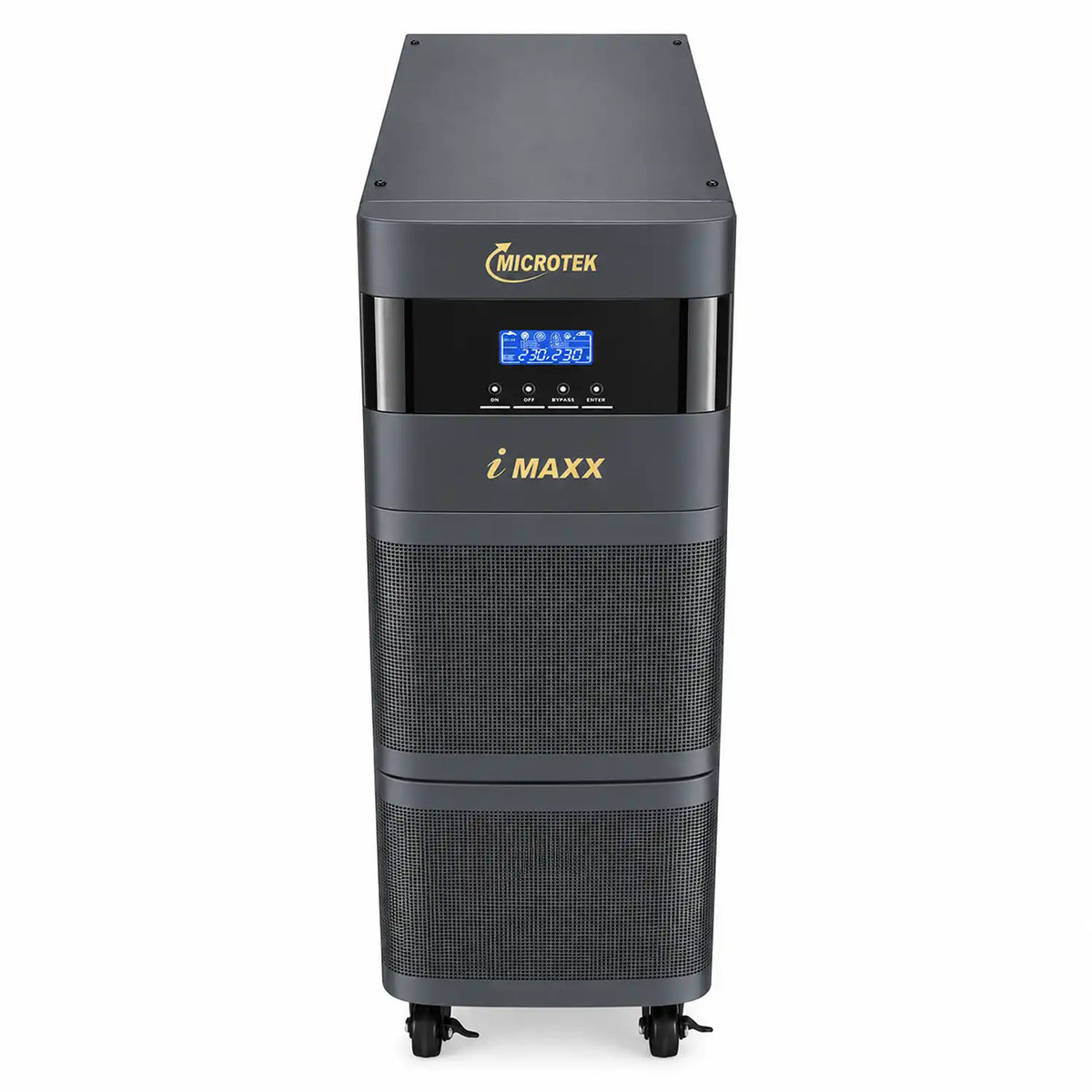

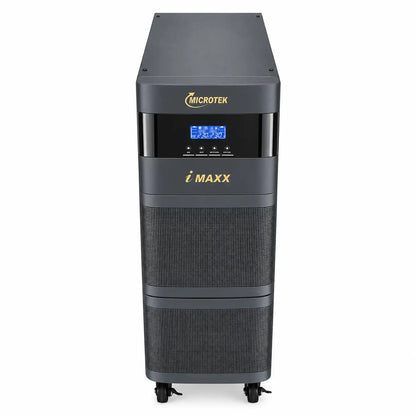

  • Microtek i MAXX online UPS top front view showing enclosure, control panel and LCD display -tpstech.in
1 6

Microtek SUPER MAX 80 KVA Online UPS with Isolation Transformer

Microtek SUPER MAX 80 KVA Online UPS with Isolation Transformer

Brand: Microtek
Rs. 980,000.00
56% off Rs. 2,199,999.00 Rs. 980,000.00
Sale Sold out
  • 100% Genuine Product
  • Highly ⭐ Rated on Trustpilot & Google
  • > 15 Lakh Orders Fulfilled
Loading Offers...
+ Offers

Product Description:

⚡ 80 KVA High-Capacity UPS: Provides 80 KVA/80 KW capacity for demanding three-phase power backup requirements.

🔌 Built-In Isolation Transformer: The 899-431-80TX variant incorporates an isolation transformer for the specified UPS configuration.

🔄 True Double-Conversion: Continuously converts incoming power to provide controlled output with zero AC-to-battery transfer time.

📊 Pure Sine Wave Output: Delivers Pure Sine Wave power in battery mode for compatibility with sensitive electrical and electronic loads.

🖥️ 5-Inch Touch LCD: Provides visibility of UPS status, load, battery, voltage, frequency and other operating information.

The Microtek SUPER MAX 80 KVA Online UPS with Isolation Transformer, model 899-431-80TX, is a three-phase online UPS designed for high-capacity power protection. It features 80 KVA/80 KW capacity, Pure Sine Wave output, true double-conversion technology, an inbuilt isolation transformer and adjustable 32 to 40 battery configuration. With a 5-inch touch LCD, generator compatibility, ECO mode and parallel operation support, it suits demanding commercial and industrial power applications.

Product Specifications:

Specification Details
Brand Microtek
Series SUPERMAX+ / SUPER MAX
Model / Part Number 899-431-80TX
Product Type Online UPS
Capacity 80 KVA / 80 KW
Phase Configuration 3 Phase Input / 3 Phase Output
Isolation Transformer Inbuilt
Nominal Input Voltage 3 × 400 VAC (3Ph + N)
Input Voltage Range 190 to 520 VAC at 50% load; 305 to 478 VAC at 100% load
Input Frequency Range 46 to 54 Hz or 56 to 64 Hz
Input Power Factor ≥ 0.99 at 100% load
Input Harmonic Distortion (THDi) < 4% at full linear load
Output Voltage 3 × 360 / 380 / 400 / 415 VAC (3Ph + N)
AC Voltage Regulation in Battery Mode ±1%
Output Frequency, Synchronized 46 to 54 Hz or 56 to 64 Hz
Output Frequency in Battery Mode 50 Hz ± 0.1 Hz or 60 Hz ± 0.1 Hz
Waveform in Battery Mode Pure Sine Wave
Output Power Factor 1
Battery Type SMF (VRLA) / Lead-Acid
Battery Quantity 32 to 40 batteries, adjustable
Charging Current Up to 32 A, adjustable
Charging Voltage ±13.65 V × N, N = 16 to 20
Transfer Time, AC to Battery Zero
Transfer Time, Inverter to Bypass Zero
Overload Capacity 100–110% for 60 min; 110–125% for 10 min; 126–150% for 1 min; >150% for 400 ms
Parallel Operation Up to 4 units
Parallel Battery Configuration Individual or common battery bank
Display 5-inch Touch Screen LCD
Communication Interfaces SNMP, USB, RS-232
Operating Temperature 0 to 40°C
Operating Humidity Up to 95%, non-condensing
Noise Level Less than 75 dB at 1 metre
Warranty 1 Year Manufacturer Warranty
