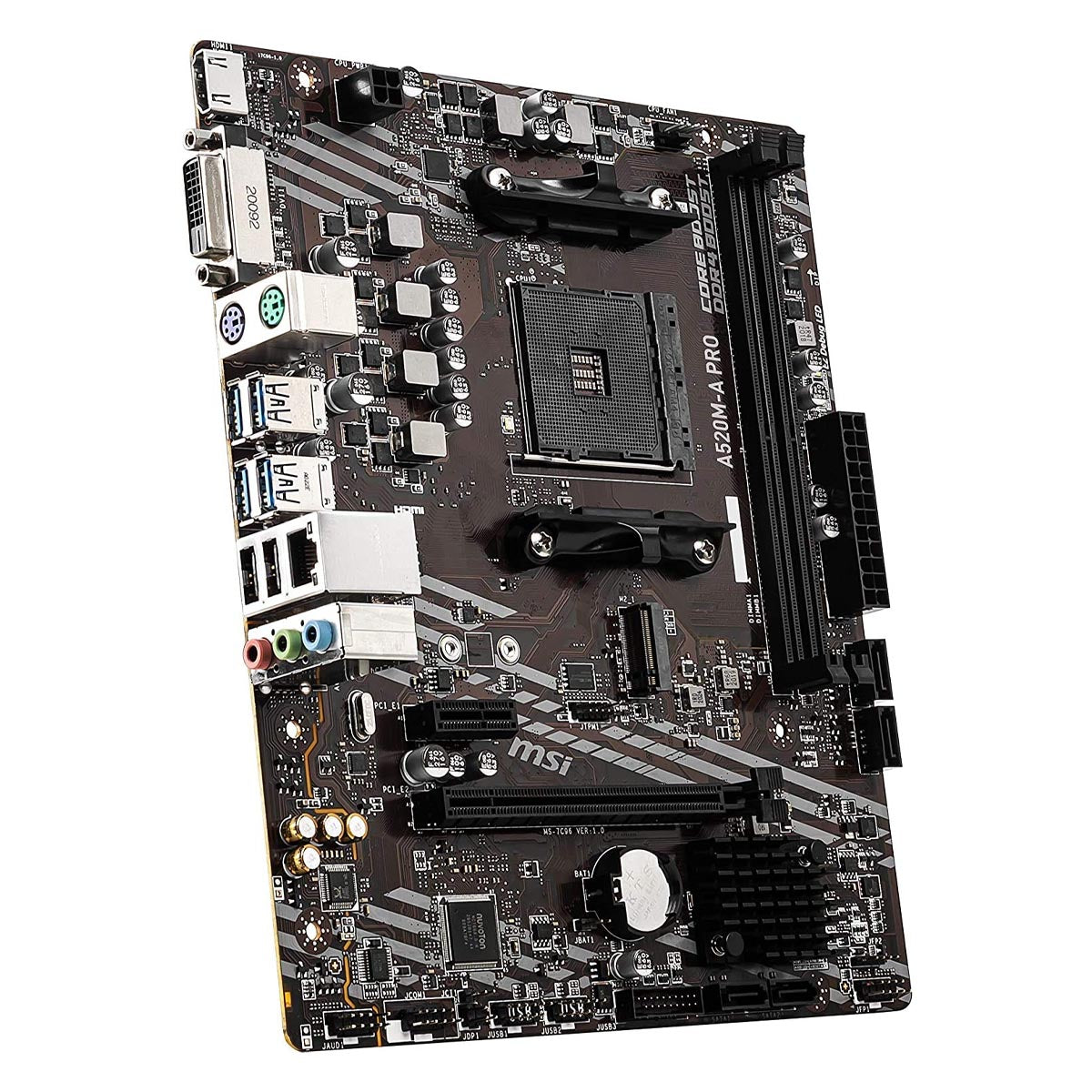

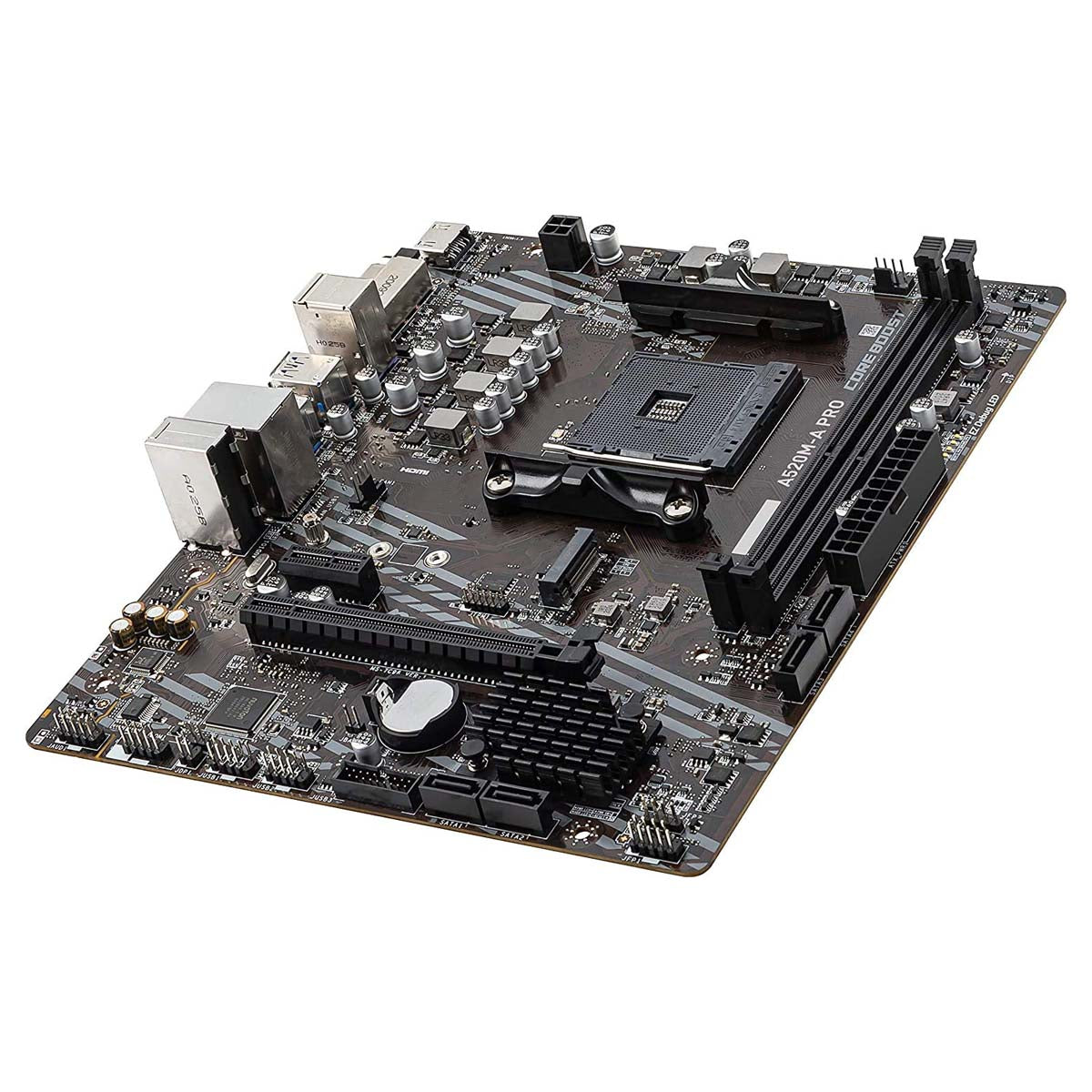

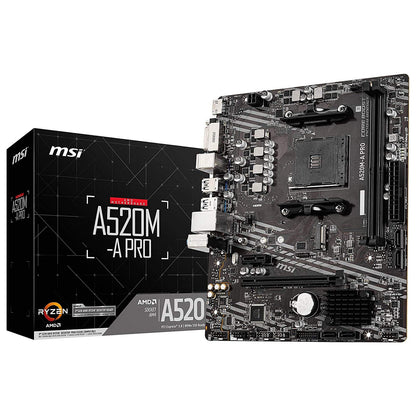

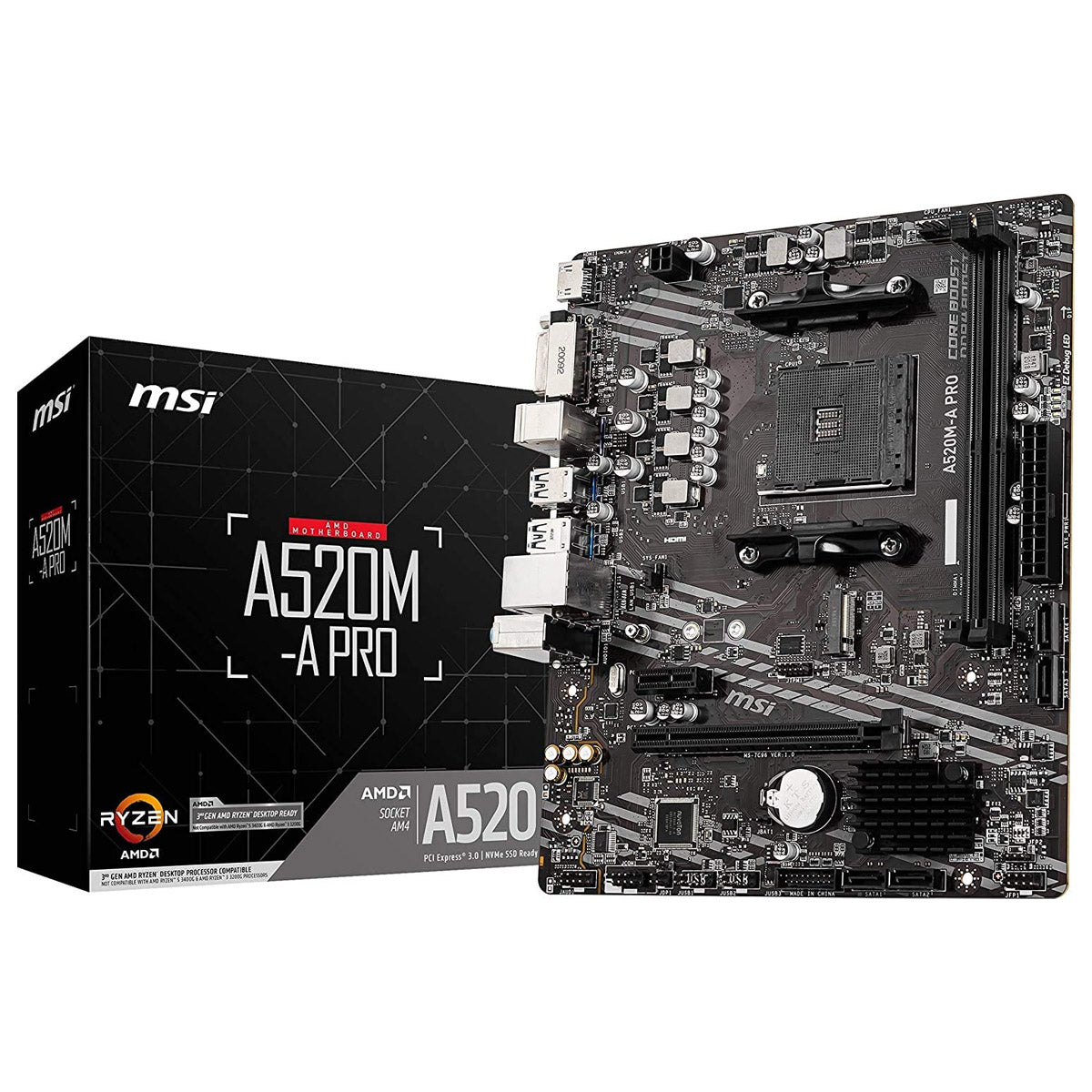

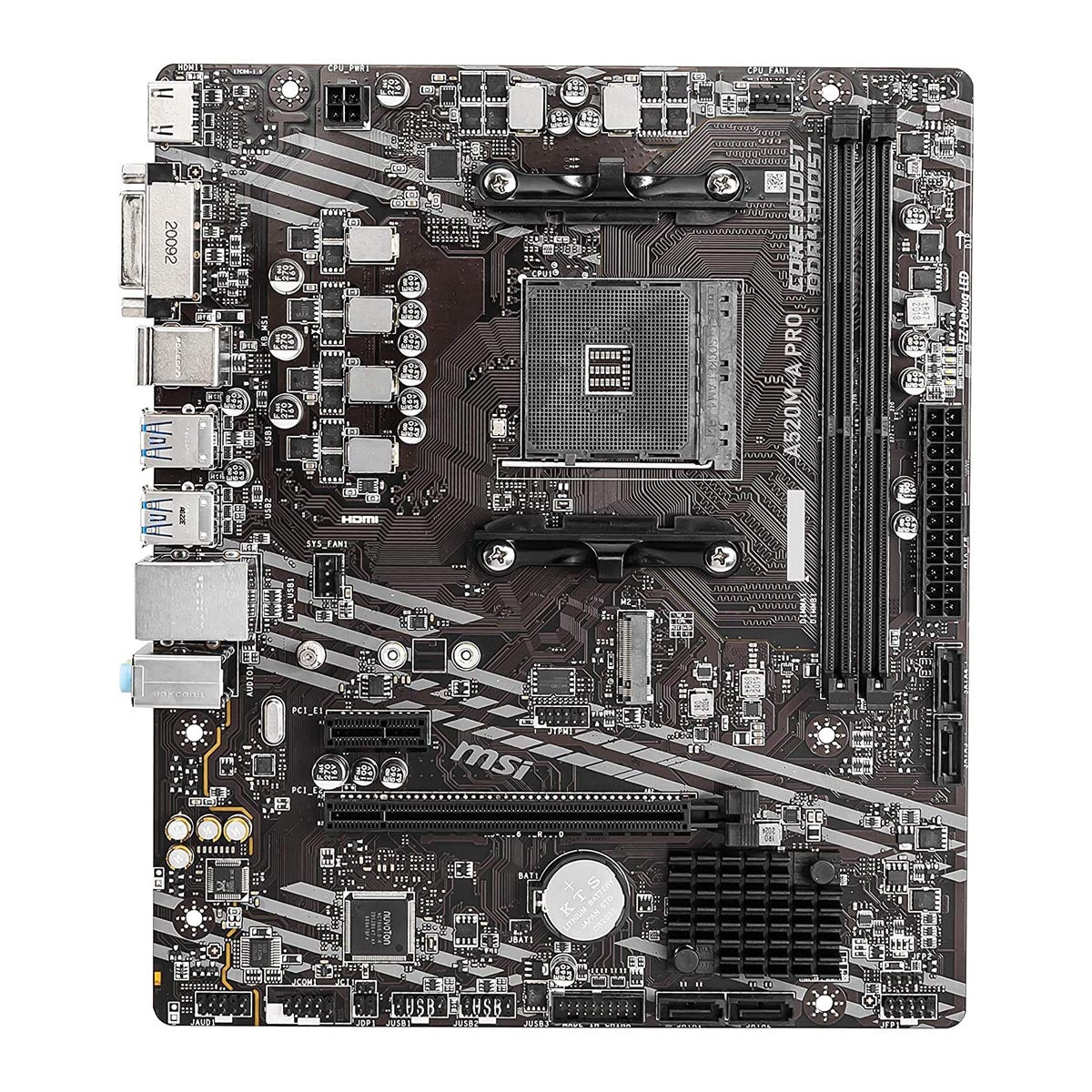

MSI A520M-A PRO AMD AM4 mATX Motherboard with Core Boost and Audio Boost

MSI A520M-A PRO AMD AM4 mATX Motherboard with Core Boost and Audio Boost

Brand: MSI
Regular price Rs. 4,899.00
Regular price Rs. 8,250.00 Sale price Rs. 4,899.00
Sale Sold out
  • Free Shipping: We deliver to 27000+ pin codes in India.
  • 10-Days Return: We got you covered with easy returns.
  • Original Warranty: This product has original Brand warranty.
Easy Returns Cancellation Policy Shipping Policy Trust Center
  • MSI A520M-A Pro mATX motherboard is designed to support the latest AMD Ryzen 5000 & 3000 Series desktop processors and AMD Ryzen 4000 G-Series desktop processors. The board comes with dual DDR4 memory slots which support up to 64GB at 4666+ MHz of speed.
  • Expand with your connectivity with the on-boarded 6x USB 3.2 Gen 1 ports and 6x USB 2.0 ports. with 1x M.2(32Gbps slot) and 4x SATA(6Gbps) slot allows users to connect any ultra-fast storage device. Higher efficiency makes your work easier and satisfies any professional workflow.
  • Core Boost technology combines MSI's premium layout and optimized power design which allows for faster and undistorted current delivery to the CPU at pin-point precision. Supporting both multi-core CPU and CPU overclocking.
  • With dedicated audio processor you can enjoy the purest sound quality in both stereo and surround sound. Using separated layers in the PCB ensures equally pristine sound quality for both left and right audio channels. Like a dedicated sound card, audio components and circuits have been laid on a reserved motherboard section.
  • Enjoy connectivity of multiple graphic devices with 1x HDMI 1.4 which supports a resolution of 4K @ 60Hz, 1x DVI-D port at Full-HD resolution and HDCP 2.3

~section~

MSI A520M-A Pro mATX AMD AM4 Motherboard - From TPS Tech
MSI A520M-A Pro mATX AMD AM4 Motherboard - From TPS Tech

MSI A520M-A Pro

The MSI PRO series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity.

MSI A520M-A Pro mATX AMD AM4 Motherboard - From TPS Tech

Cooling

Total Fan Control allows you check your primary system characteristics in a simplified graphical interface. You can also set up to 4 temperature targets for CPU and motherboard, which will adjust the fan speeds automatically.

MSI A520M-A Pro mATX AMD AM4 Motherboard - From TPS Tech

Connectivity

USB 3.2 ports are ready in both front and rear IO, provides wide variety of options to connect your USB 3.2 devices. Stable LAN, faster storage and USB transfer speed and other expandable connectors are ready to enlarge your flexibility.

MSI A520M-A Pro mATX AMD AM4 Motherboard - From TPS Tech

Storage

The board is integrated with 1x M.2(32Gbps slot) and 4x SATA(6Gbps) slot which allows users to connect any ultra-fast storage device. Higher efficiency makes your work easier and satisfies any professional workflow.

MSI A520M-A Pro mATX AMD AM4 Motherboard - From TPS Tech

Core Boost

Core Boost technology combines MSI's premium layout and optimized power design which allows for faster and undistorted current delivery to the CPU at pin-point precision. Supporting both multi-core CPU and CPU overclocking.

MSI A520M-A Pro mATX AMD AM4 Motherboard - From TPS Tech

Audio Boost

Equipped with dedicated high definition audio processor. HQ Capacitors gives a high fidelity sound experience with exceptional acoustics and realism for studio level headphones is ensured.

MSI A520M-A Pro mATX AMD AM4 Motherboard - From TPS Tech

Dragon Center

MSI brand new Dragon Center unifies a suite of MSI software utilities into a single centralized application. Take control of advanced motherboards features and unleash endless possibilities including Total Fan COntrol and Hardware Monitoring.

~section~

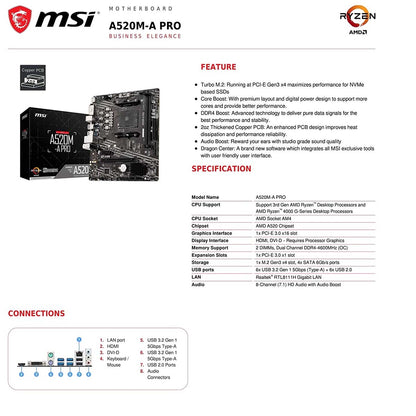

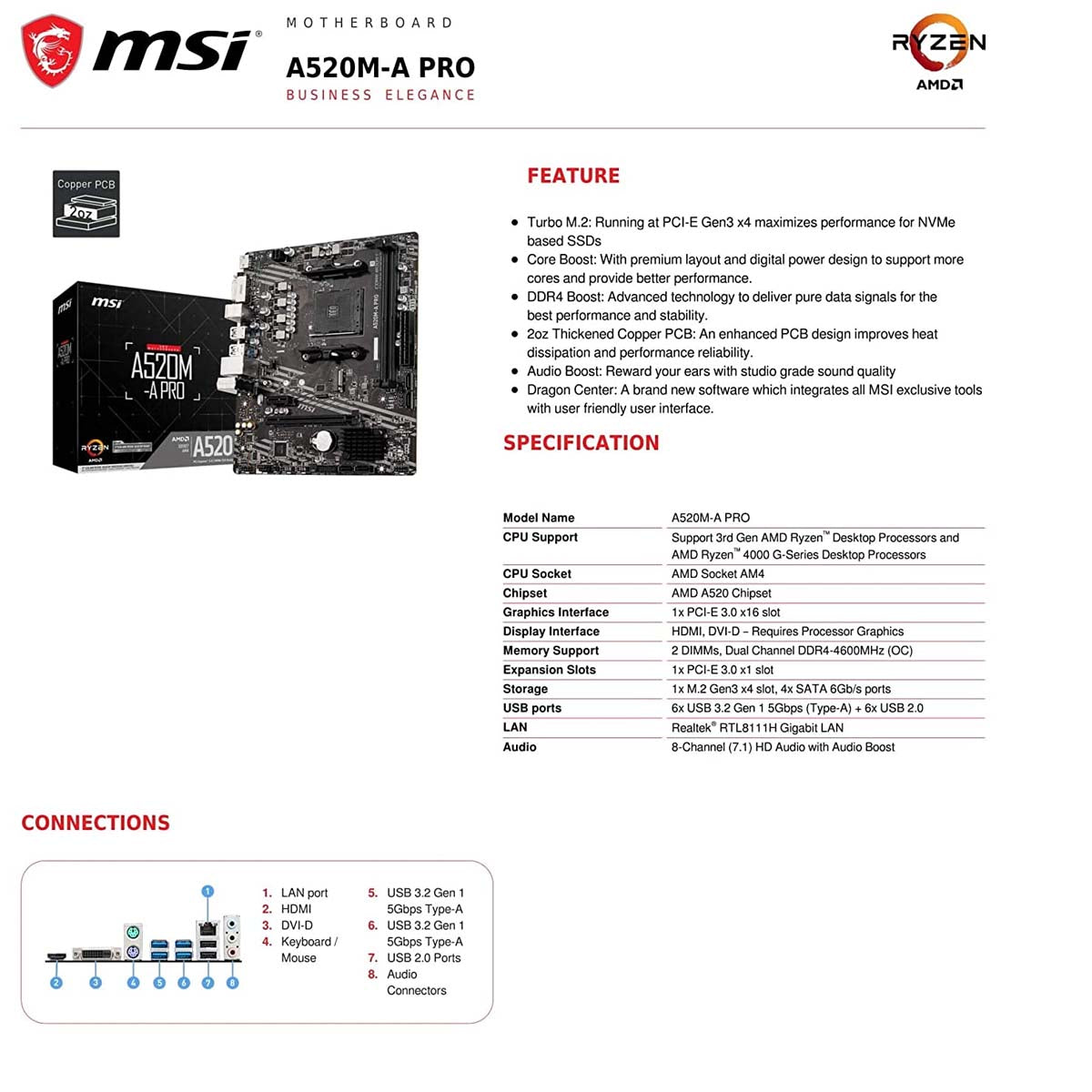

Model MSI A520M-A PRO m-ATX Motherboard
CPU Socket AM4
CPU Support Supports AMD Ryzen 5000 & 3000 Series desktop processors and AMD Ryzen 4000 G-Series desktop processors
Chipset AMD A520
Memory 2x DDR4 memory slots, support up to 64GB
Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC
Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400/ 4600+ MHz by A-XMP OC MODE
Dual channel memory architecture
Supports non-ECC UDIMM memory
Supports ECC UDIMM memory (non-ECC mode)
Supports un-buffered memory
Expansion Slots 1x PCIe 3.0 x1 slot
1x PCIe x16 slot
LAN 1x Realtek RTL8111H Gigabit LAN controller
Graphic Interface 1x HDMI 1.4 port, supports a maximum resolution of 4096x2160 @60Hz
Support for HDMI 1.4 version, HDCP 1.4 & 2.3
1x DVI-D port, supports a maximum resolution of 1920x1200@60Hz
Maximum shared memory of 16 GB
Storage 4x SATA 6Gb/s ports
1x M.2 slot (Key M) (from AMD Processor)
Supports PCIe 3.0
Supports SATA 6Gb/s
Supports 2242/ 2260/ 2280 storage devices
Audio Ports (Rear) Realtek ALC892/ALC897 Codec (7.1-Channel High Definition Audio)

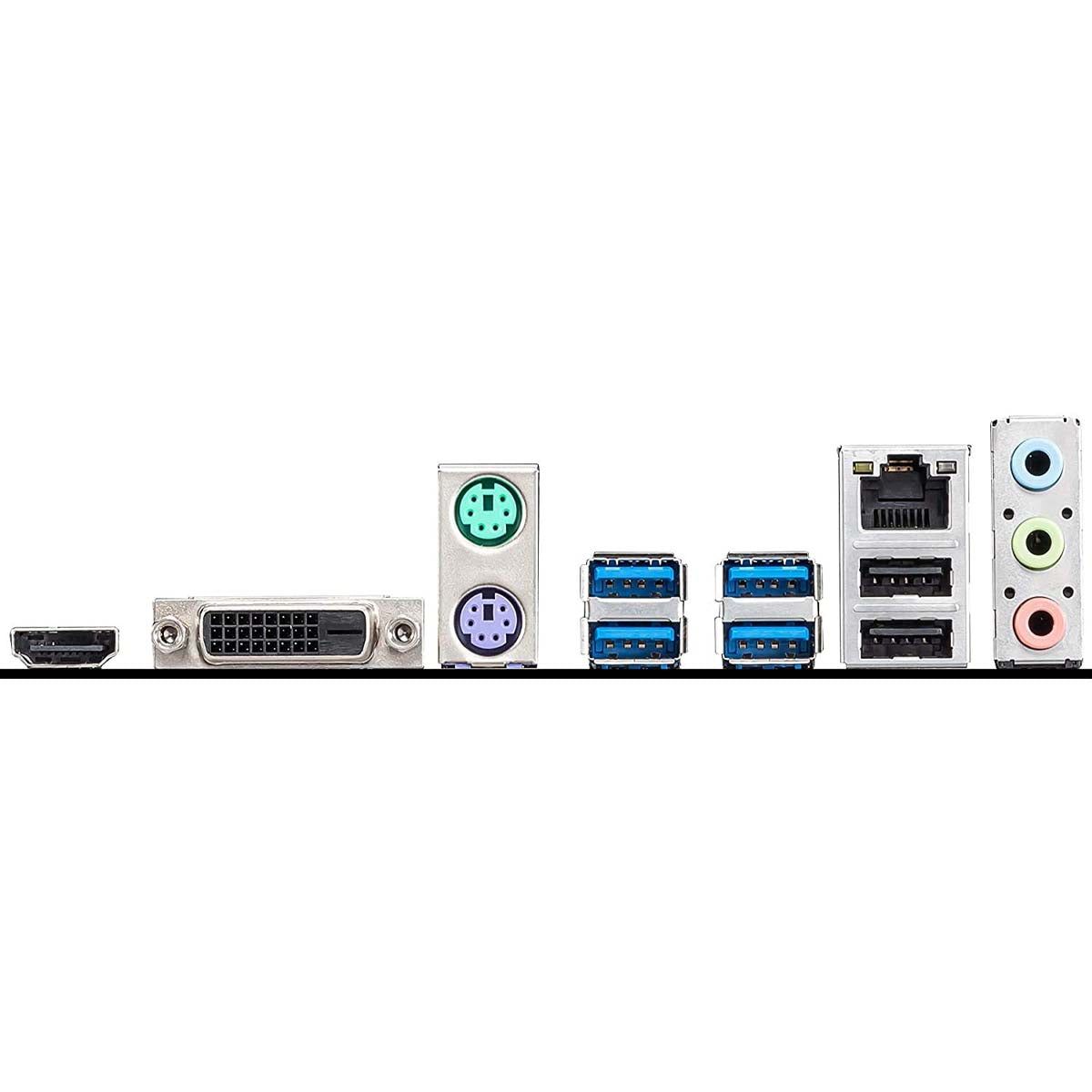

Rear Panel Ports LAN port
HDMI
DVI-D
Keyboard / Mouse
USB 3.2 Gen 1 5Gbps Type-A
USB 3.2 Gen 1 5Gbps Type-A
USB 2.0 Ports
Audio Connectors
Internal Ports 1x 24-pin ATX main power connector
1x 4-pin ATX 12V power connector
4x SATA 6Gb/s connectors
1x M.2 slots (M-Key)
1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
1x 4-pin CPU fan connector
1x 4-pin system fan connectors
1x Front panel audio connector
2x System panel connectors
1x Chassis Intrusion connector
1xTPM module connector
1x Clear CMOS jumper

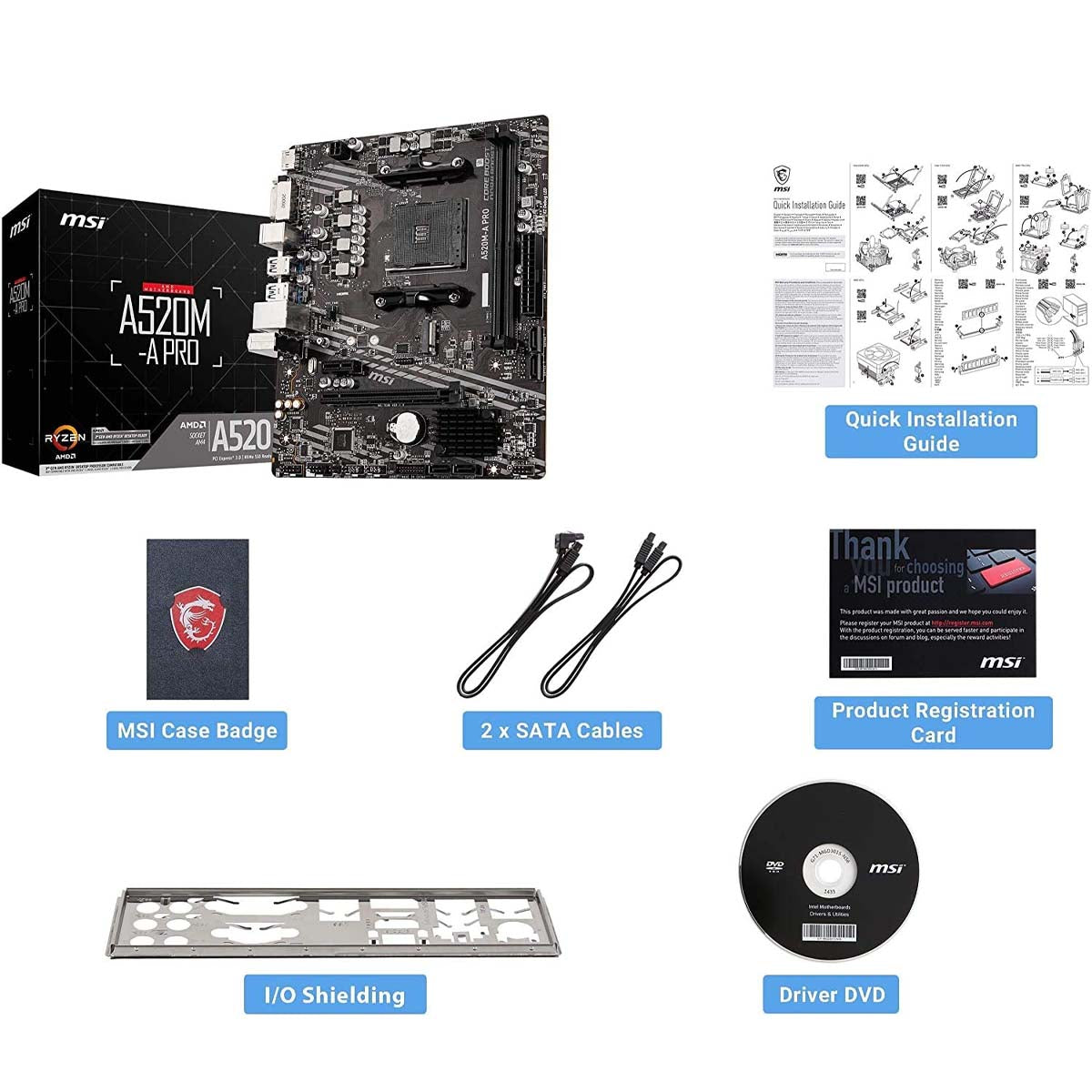

Accessories Quick Installation Guide, Support CD, I/O Shield
2 x SATA Data Cables
1 x MSI Case Badge
Dimension 23.6 cm x 20 cm
Micro-ATX
Warranty 3 Years of Brand Warranty
