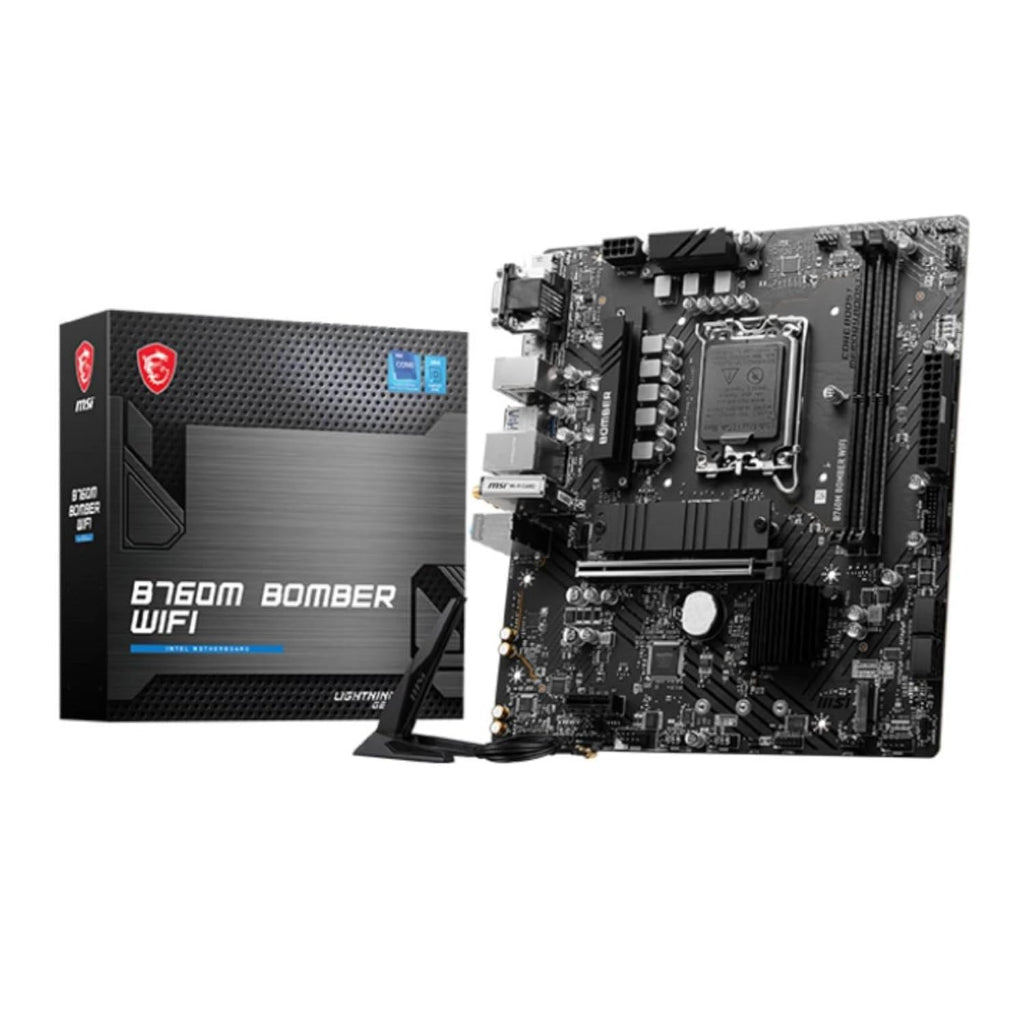

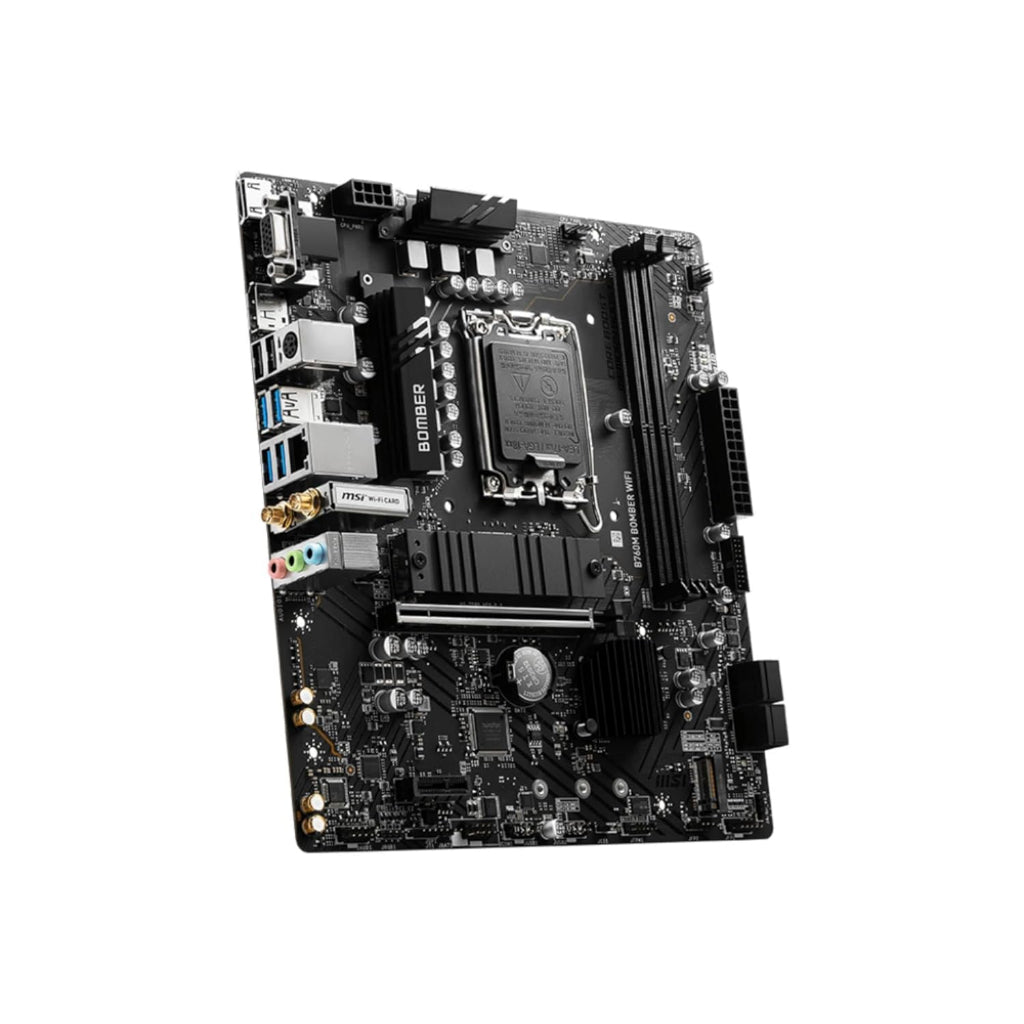

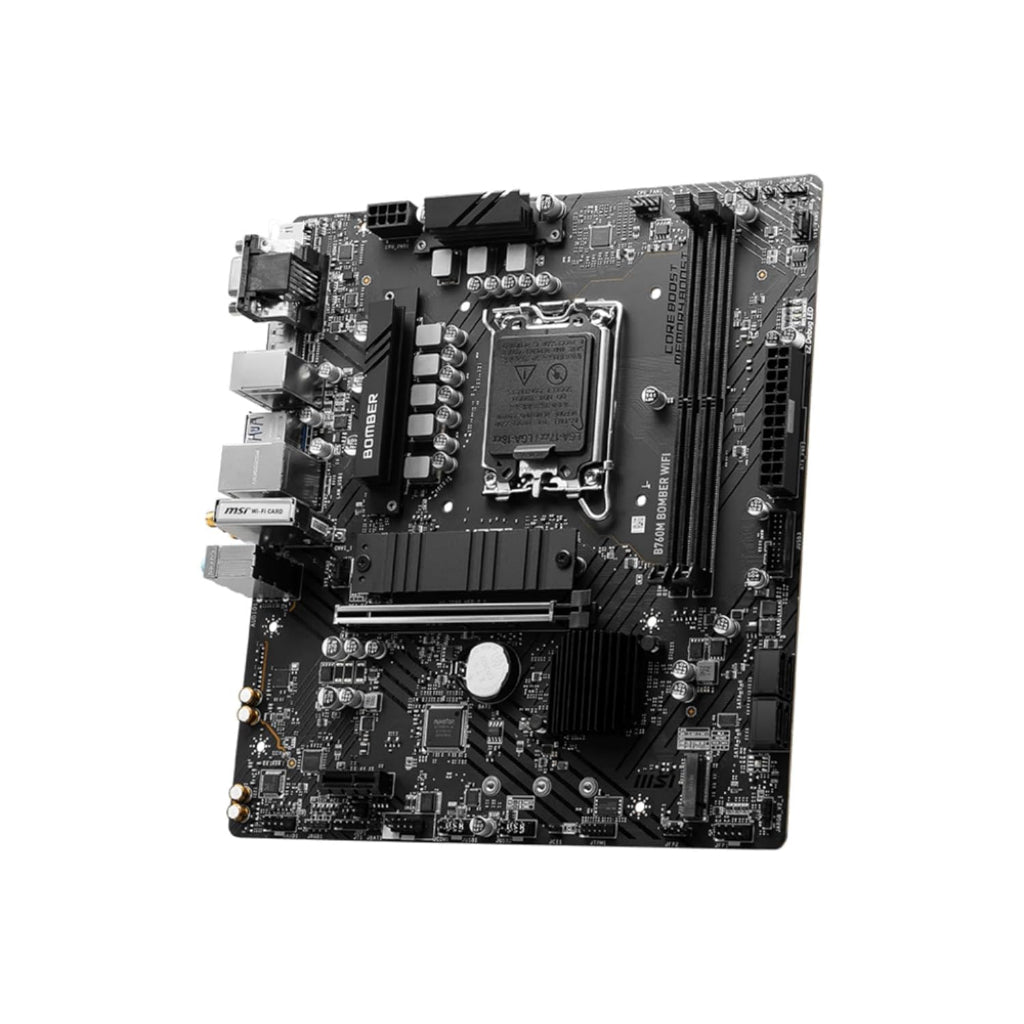

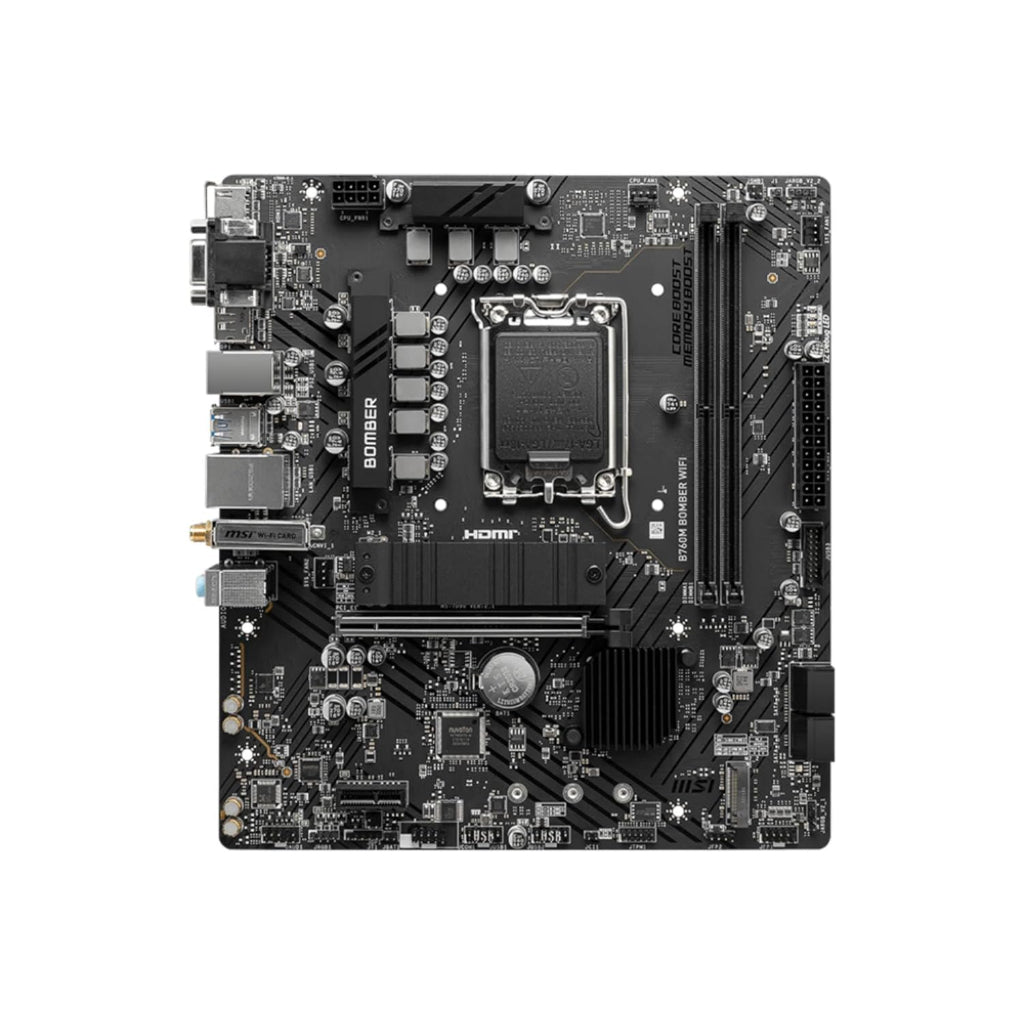

MSI B760M BOMBER WIFI LGA 1700 DDR5 Micro-ATX Motherboard
MSI B760M BOMBER WIFI LGA 1700 DDR5 Micro-ATX Motherboard
- Free Shipping
- 7-Days Return
- Original Warranty
Product Description:
Supports 12th/13th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket
Supports DDR5 Memory, Dual Channel DDR5-6400+MHz (OC)
Core Boost : With premium layout and digital power design to support more cores and provide better performance
Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
Lightning Fast Experience: PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr
2.5G LAN with Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength
Model | B760M BOMBER WIFI |
CPU Support | Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors |
CPU Socket | LGA 1700 |
Chipset | INTEL B760 |
Form Factor | Micro ATX |
Memory |
2x DDR5, Maximum Memory Capacity 128GB Memory Support DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) Max. overclocking frequency: • 1DPC 1R Max speed up to 6400+ MHz • 1DPC 2R Max speed up to 5600+ MHz Supports Intel® XMP 3.0 OC Supports Dual-Controller Dual-Channel mode Supports non-ECC, un-buffered memory |
Expansion Slot | 1x PCI-E x16 slot (Qty) 1x PCI-E x1 slot (Qty) PCI_E1 Gen PCIe 4.0 supports up to (From CPU) PCI_E2 Gen PCIe 4.0 supports up to (From Chipset) |
RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
Storage |
2x M.2 (Qty) M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G (Qty) |
USB |
2x USB 2.0 (Rear) 4x USB 2.0 (Front) 4x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) |
WIRELESS LAN & BLUETOOTH |
Intel® Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth® 5.3, FIPS, FISMA Supports Bluetooth® 5.4**, MLO, 4KQAM |
ONBOARD GRAPHICS |
1x HDMI Support HDMI 2.1 with HDR, maximum resolution of 4K 60Hz* 1x DisplayPort Support DP 1.4, maximum resolution of 4K 60Hz* 1x D-Sub Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz |
Audio |
Realtek® ALC897 Codec 7.1-Channel High Definition Audio |

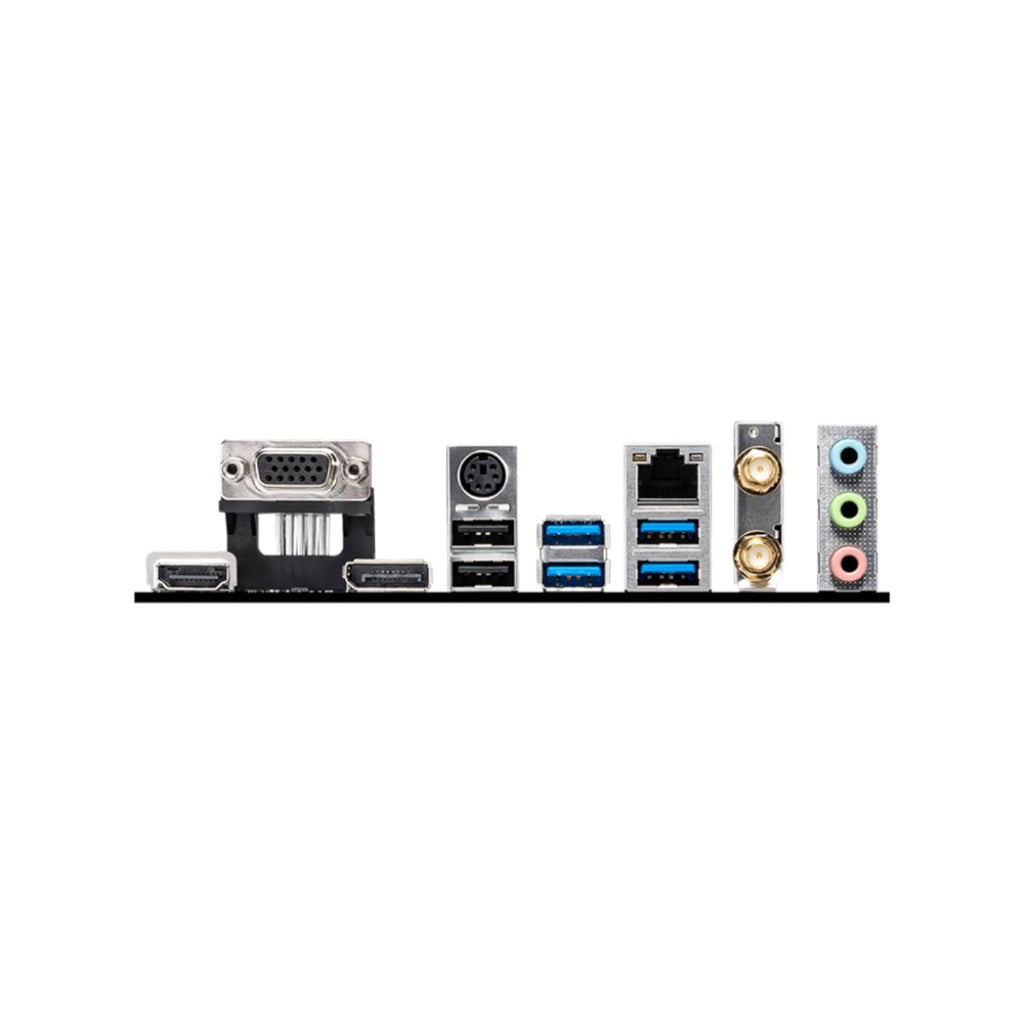

BackPanel Ports | HDMI VGA DisplayPort Keyboard / Mouse 2.5G LAN Wi-Fi / Bluetooth Audio Connectors USB 2.0 USB 3.2 Gen 1 5Gbps (Type-A) |
Internal I/O Connectors |
1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 2x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports |
PCB INFO |
mATX 220mmx243.84mm |
Operating System | Support for Windows 11 64-bit, Windows 10 64-bit |
LED Feature | 4x EZ Debug LED |
Warranty | 3 Year Manufacturer Warranty |
Package Contents | Motherboard Regulatory Notice Quick Installation Guide 2 x M.2 Screw / Standoff Sets SATS Cables Wi-Fi Antenna I/O Shield |
Dimensions | 24.4 x 22 x 5 cm; 1 kg |
