Msi Cubi N ADL S-213BIN with Intel Processor N100 Mini PC
Msi Cubi N ADL S-213BIN with Intel Processor N100 Mini PC
Couldn't load pickup availability
Couldn't load pickup availability
- Free Shipping (optional Express Shipping)
- Comes with 7-Days Returns Policy
- Original Brand Warranty
Product Description:

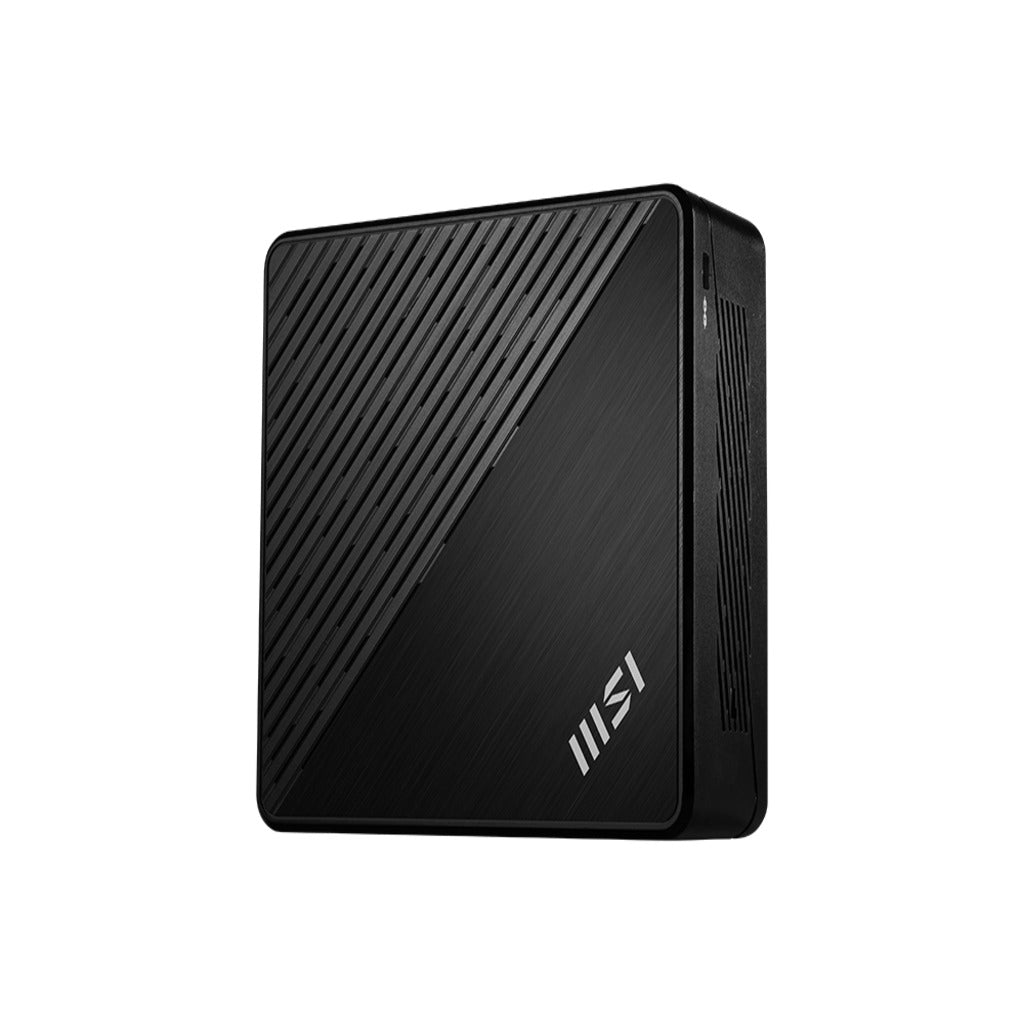

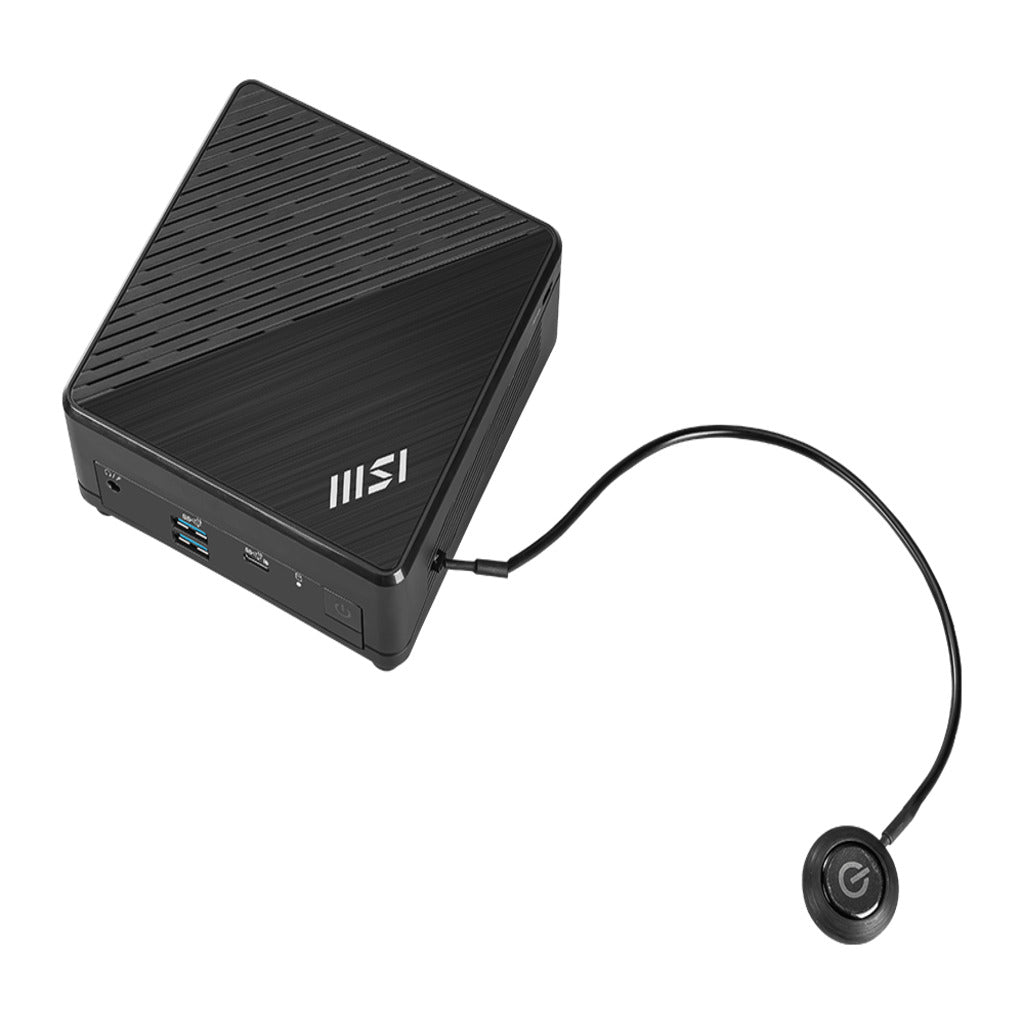

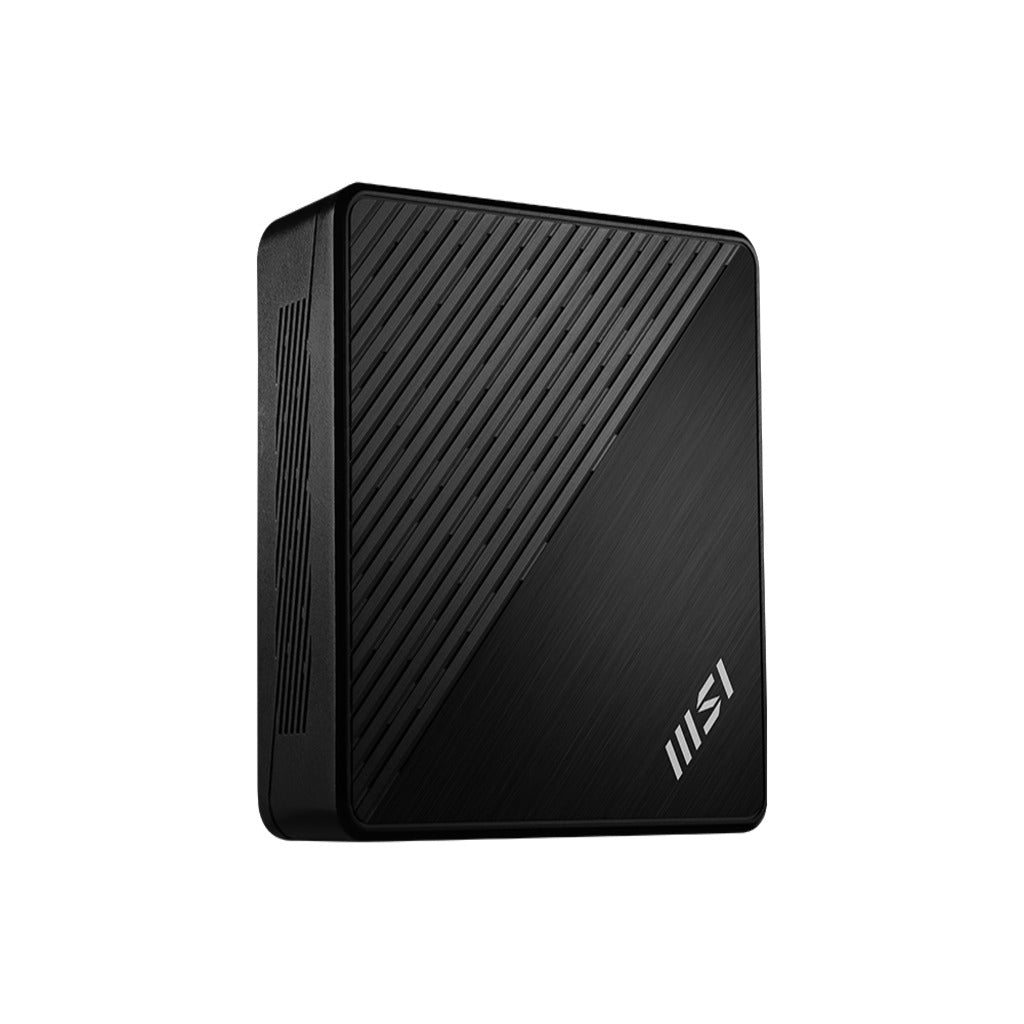

INTEL N100 MINI PC - The Cubi N ADL S is a palm-sized mini PC featuring an Intel N100 processor with 4-core architecture (6 MB Smart Cache, 0.8 GHz up to 3.4 GHz); Barebone configuration (software not included)
UHD GRAPHICS - The system does not include DDR4 memory (1 x SO-DIMM up to 16GB) but can support 8K UHD display - ideal for watching movies; HDMI 2.1, DP 1.4 & USB 3.2 Gen 2 Type-C ports (DP Alt.) support triple monitor setups
M.2 SSD SUPPORTED, VESA MOUNTABLE - The barebone system doe not include storage; A 100 x 100mm VESA mountable design is ideal for ultra-minimalist desktop layouts

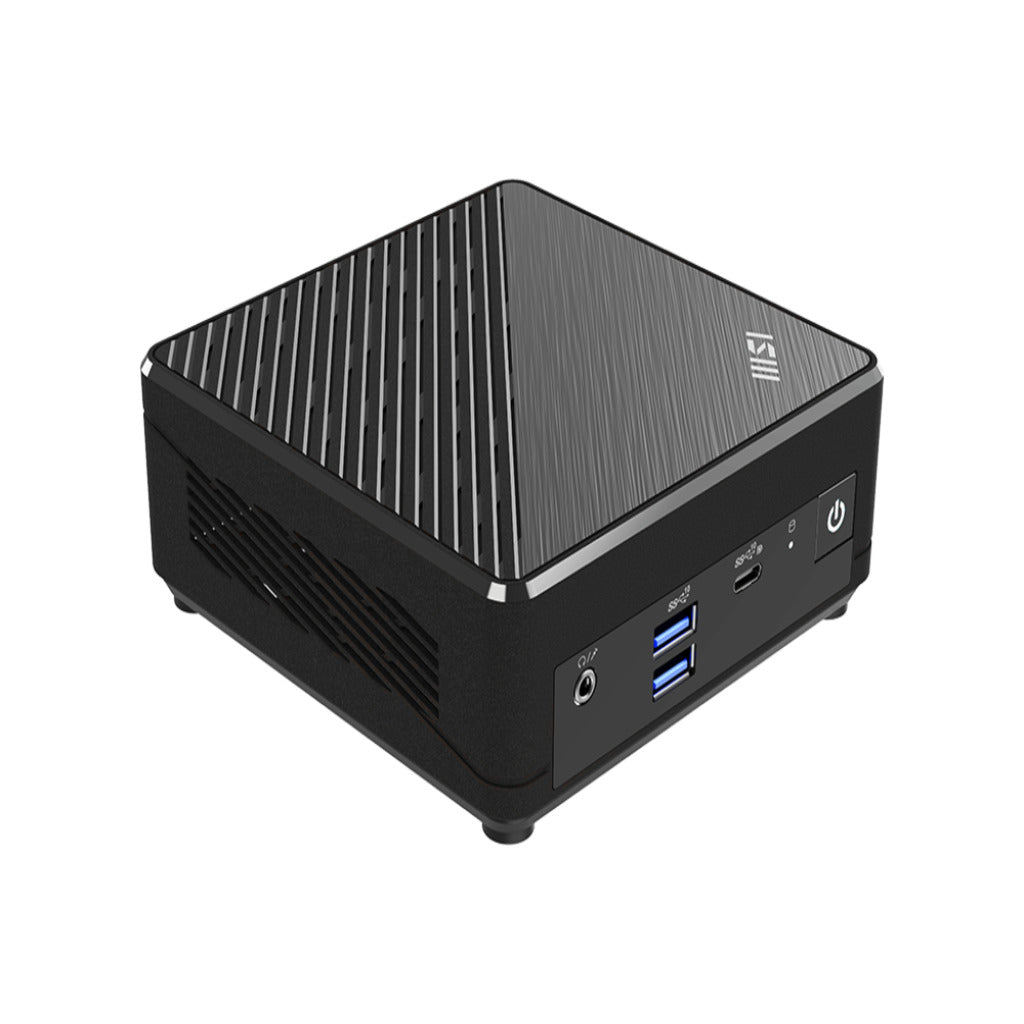

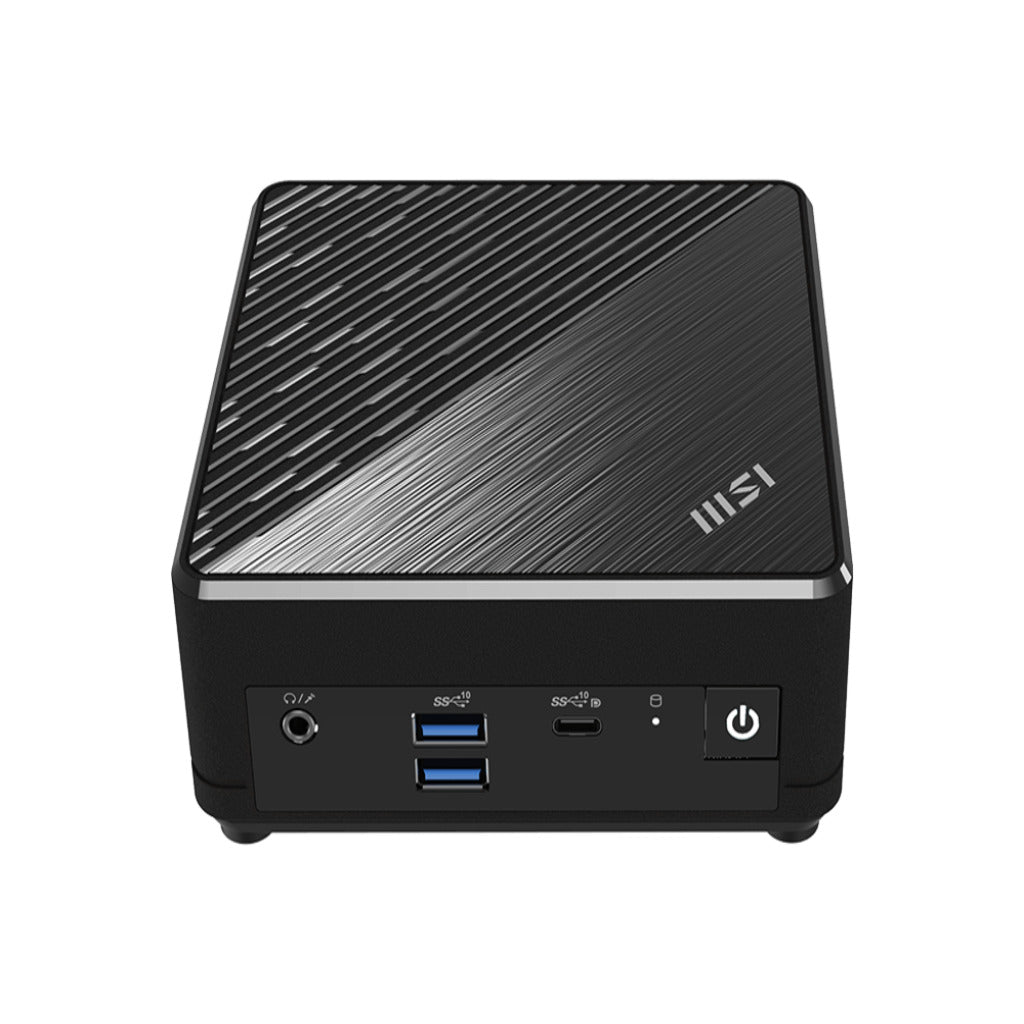

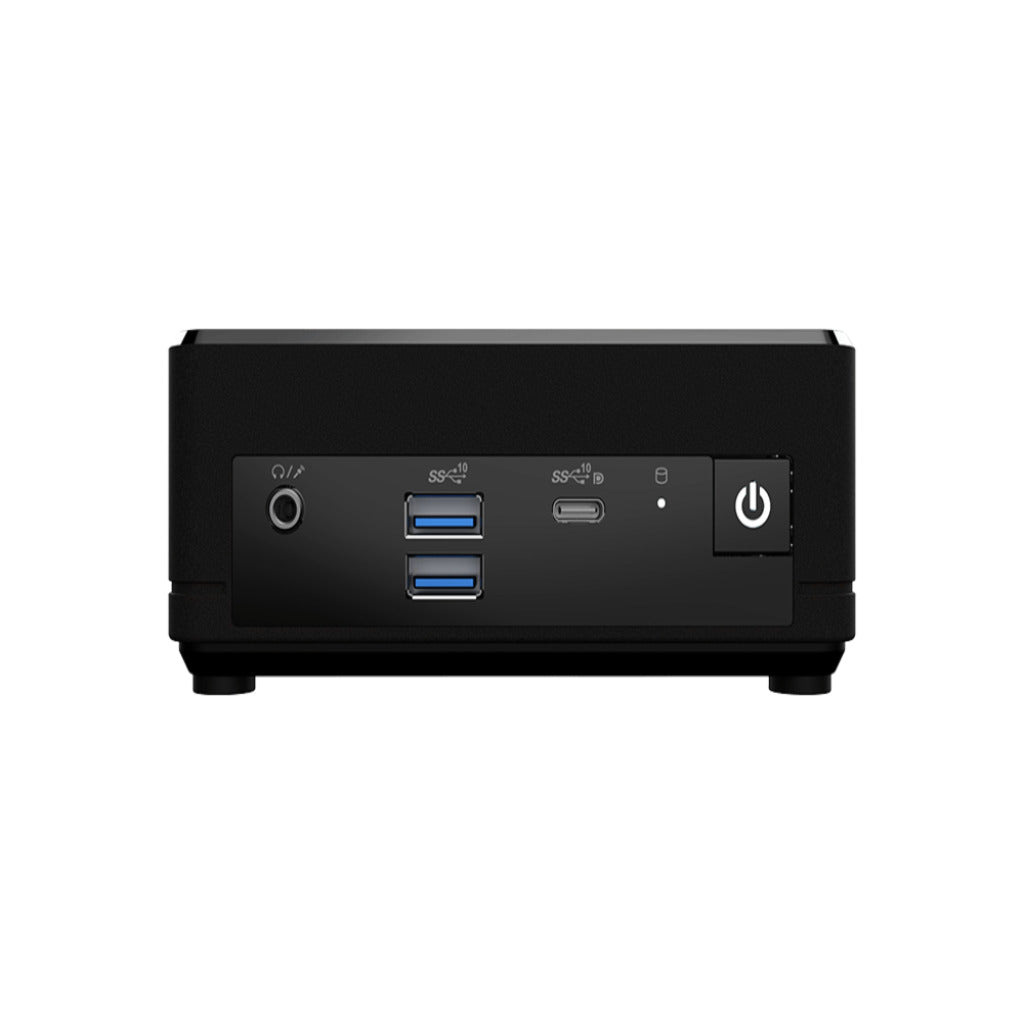

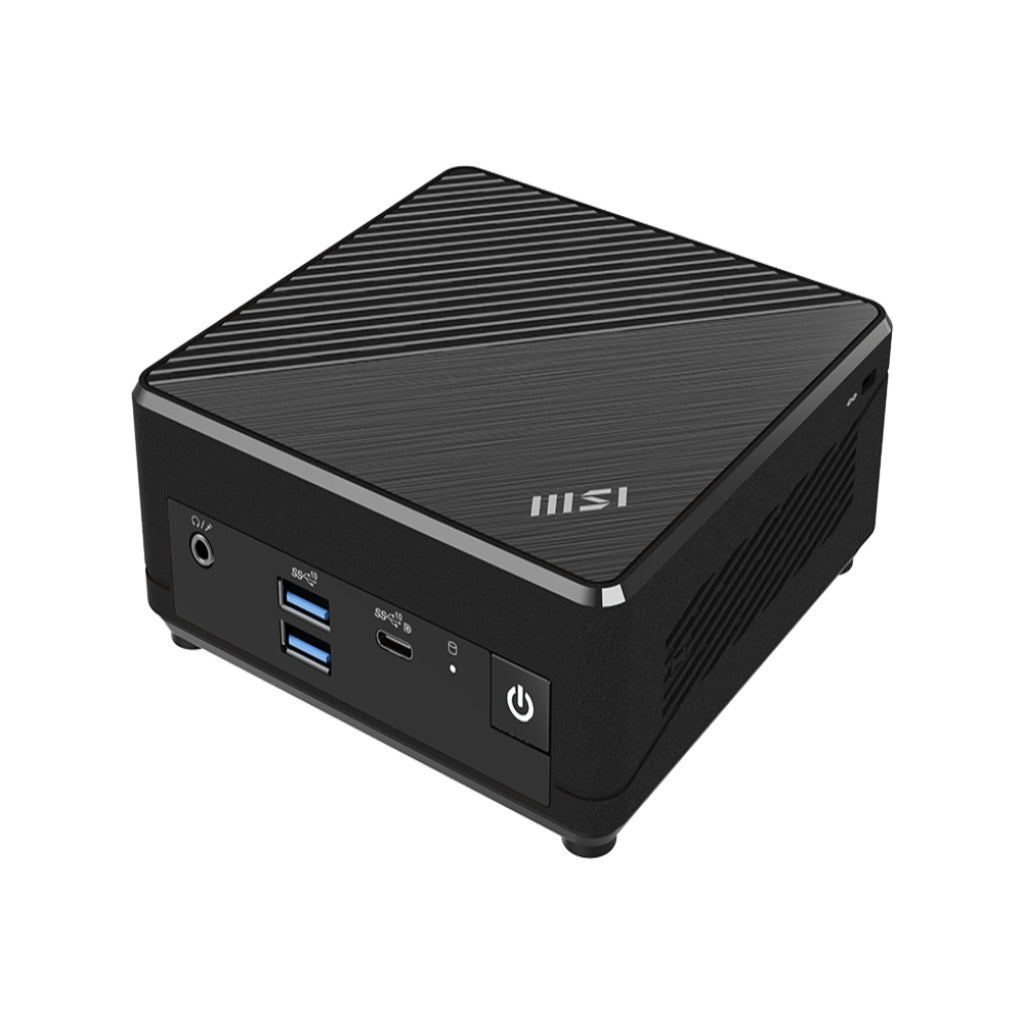

CONVENIENT & QUIETLY EFFICIENT - The front I/O panel features a USB 3.2 Gen 2 Type-C and 2 x USB 3.2 Gen 2 Type-A ports; The compact 0.66L SFF case incorporates an efficient thermal design & low-noise fan for whisper-quiet invironment

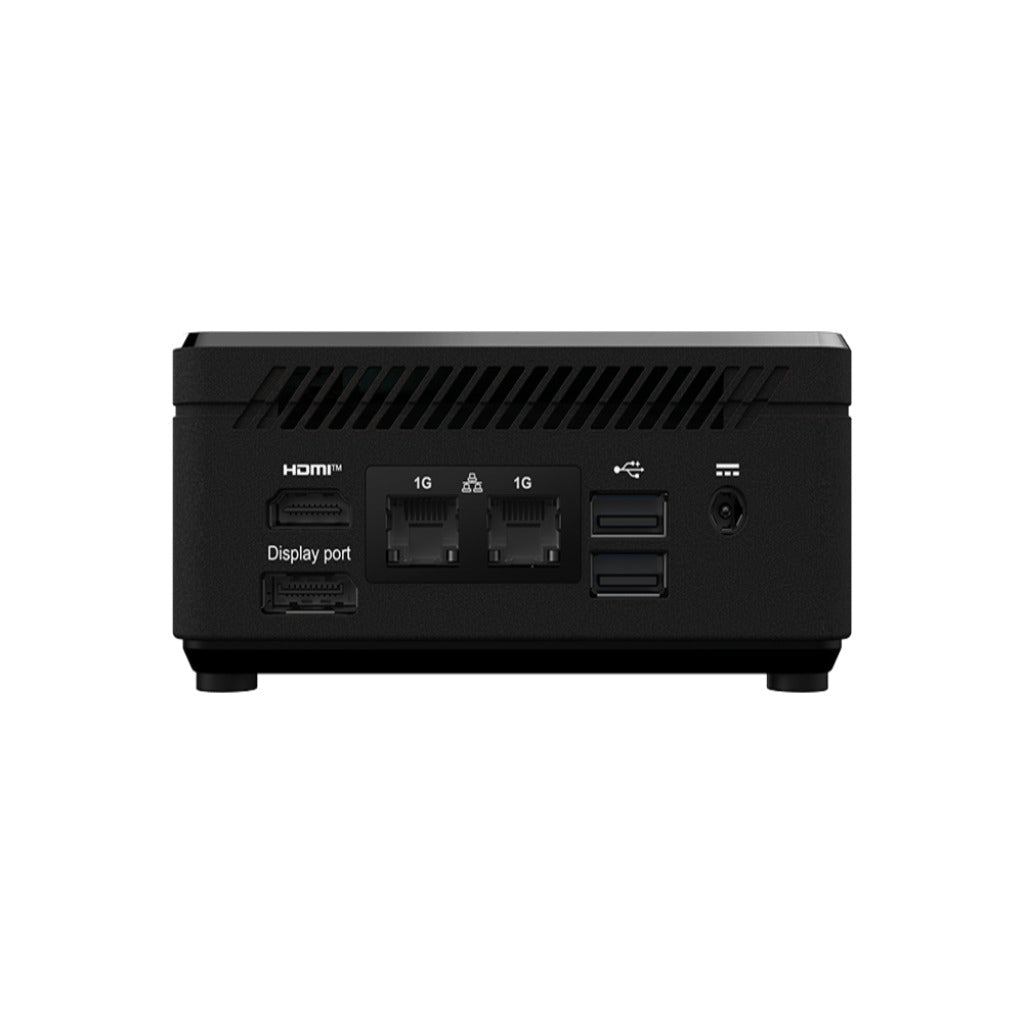

WI-FI AC 9462 & BLUETOOTH 5.1 - Network connectivity includes an Intel Wi-Fi AC 9462, Bluetooth 5.1, and dual 1G ethernet LAN ports; dTPM 2.0 (discrete Trusted Platform Module) hardware technology provides security for storing sensitive data & passwords
| Part No | 936-B0A921-213 |
| MKT Name | Cubi N ADL S |
| SKU Name | Cubi N ADL S-213BIN |
| Color | Black |
| Chipsets | Soc |
| Module Type | SO-DIMM |
| Memory Slot(Total) | 1 |
| Memory Slot(Free) | 1 |
| Max Capacity | Max 16GB |
| CPU Number | Intel Processor N100 |
| CPU Clock | 0.8GHz |
| CPU Cores | 4 |
| TDP | 6W |
| Max Turbo Frequency | up to 3.40 GHz |
| Cache | 6 MB |
| Threads | 4 |
| Audio Chipset | Realtek ALC256 |
| Audio Type | 2.1 Channel HD Audio |
| mSATA slots(Free) | 0 |
| M.2 slots(Total) | 1 |
| M.2 slots(Free) | 1 |
| 2.5" Drive Bays (Free) | 0 |
| 3.5" Drive Bays(Free) | 0 |
| LAN | 2x Realtek RTL8111H |
| WLAN Version | 802.11ac 1x1+BT |
| BT Version | 5 |
| USB 3.2 Gen 2 Type C | 1x USB 3.2 Gen 2 Type C (DisplayPort Alternate) |
| USB 3.2 Gen 2 Type A | 2 |
| Mic-in/Headphone-out combo | 1 |
| USB 2.0 Type A (R) | 2 |
| RJ45 | 2 |
| HDMI out | 1x (v2.1) |
| DP out | 1x (v1.4) |
| Weight (Net kg) | 0.54 |
| Weight (Gross kg) | 1.39 |
| Product Dimension (WxDxH) (mm) | 124 x 124 x 53.7 |
| Product Dimension (WxDxH) (inch) | 4.88 x 4.88 x 2.11 |
| Inside Carton Dimension (WxDxH) (mm) | 205 x 220 x 94 |
| Inside Carton Dimension (WxDxH) (inch) | 8.07 x 8.66 x 3.7 |
| Net Weight (lbs) | 1.19 |
| Gross Weight (lbs) | 3.06 |
| USB 3.2 Gen 2 (10G) Type C | 1x USB 3.2 Gen 2 Type C (DisplayPort Alternate) |
| USB 3.2 Gen 2 (10G) Type A | 2 |
| VESA size | 100 x 100 mm |
| Regulatory Compliance | FCC(Class B), CB/CE, UL(CUL), BSMI, VCCI, RCM(C-Tick) |
| AC Adaptor | 1 |
| Power Cord | 1 |
| Quick Guide | 1 |
| VESA Mount kit | 1 |
| Warranty | 24months |
