MSI MEG Z790 GODLIKE MAX LGA 1700 DDR5 PCIe 5.0 E-ATX Gaming Motherboard
MSI MEG Z790 GODLIKE MAX LGA 1700 DDR5 PCIe 5.0 E-ATX Gaming Motherboard
Brand: MSI
Regular price
Rs. 130,999.00
Sale price
37% off Rs. 130,999.00
Sale
Sold out
Regular price
Rs. 204,999.00
Unit price
/
per
- Free Shipping
- 7-Days Return
- Original Warranty
Product Description:
Experience the pinnacle of innovation with the best of the best MEG Z790 GODLIKE MAX Gaming Motherboard. Its black and robust heatsink design features an embedded crystal cutting pattern within black mirrors, setting a new standard for Intel Z790 motherboards. Equipped with Wi-Fi 7, high-speed data transmission, and the groundbreaking M-Vision Dashboard, this board is engineered to unleash the gaming potential of Intel® 14th Gen and 13th Gen Core processors. Dominate competitive tournaments and immerse yourself in unrivaled performance. Step into the future of gaming with MEG Z790 GODLIKE MAX.
- Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors for LGA 1700 socket
- Supports DDR5 Memory, Dual Channel DDR5 7800+MHz (OC)
- M-Vision Dashboard: The 4.5-inch full-color IPS touchpanel not only indicates the status of your gaming rig which combines hardware monitor and debug function, but also allows system operation and customization with touch control.
- Dual Thunderbolt 4 ports: Thunderbolt USB-C at true 40 Gb/s speeds, 8K display support, Daisy-Chaining and Multi-Port Accessory Architecture provide reliable connectivity and better user experience.
- Extreme Power Design: 26+2 phases power design with 105A Smart Power Stage and dual CPU power connectors are ready to unleash the maximum performance.
- Premium Thermal Module: Wavy fin design, Direct Touch Cross Heat-pipe, Aluminum Cover, 7W/mK thermal pads, Double-Sided M.2 Shield Frozr and Frozr AI software ensure the utmost performance with low temperature.
- Latest Wi-Fi 7 solution: The latest wireless solution with a new 320MHz channel, achieving a maximum transmission speed of 5.8Gbps, which is 2.4 times faster than Wi-Fi 6/6E.
- 10G Super LAN: Onboard 10G Super LAN and Intel 2.5G LAN provide incredible data transfer speed, delivering the best online gaming experience.
- Maximum 7 x M.2 Connectors: Onboard septuple M.2 connectors including one PCIe 5.0 solution for the maximum storage performance. The double-sided Shield Frozr design keeps M.2 SSDs safe while preventing throttling, making them run faster.
- Lightning Fast Game experience: PCIe 5.0 slots, Lightning Gen 5 x4 M.2, Dual Front USB 3.2 Gen 2x2 20G with one 60W USB Power Delivery.
- DIY Friendly Design: Patented Magnetic & Screwless M.2 Shield Frozr, EZ M.2 Clips, EZ Antenna, Smart Button, Pre-installed I/O Shield, Steel Armor, Metal Backplate
- Audio Boost 5 HD: Ultimate audio solution with the latest premium ALC4082 audio processor combining ESS audio DAC and amplifier deliver the breathtaking experience.
Model | MEG Z790 GODLIKE MAX |
CPU Support | Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors |
CPU Socket | LGA 1700 |
Chipset | Intel Z790 Chipset |
Form Factor | E-ATX |
Memory |
4x DDR5 UDIMM, Maximum Memory Capacity 256GB Memory Support 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 7800+ MHz • 1DPC 2R Max speed up to 6800+ MHz • 2DPC 1R Max speed up to 6400+ MHz • 2DPC 2R Max speed up to 6000+ MHz Supports Intel® XMP3.0 OC Supports Dual-Controller Dual-Channel mode Supports non-ECC, un-buffered memory |
Expansion Slot |
2x PCI-E x16 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 5.0 supports up to x8 (From CPU) |
RAID |
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices |
Storage |
7x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260 devices M.2_4 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280 devices M.2_5 Source (From Chipset) supports up to PCIe 3.0 x4 / SATA mode, supports 2280/2260 devices M.2_6 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_7 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 6x SATA 6G |
USB |
4x USB 2.0 (Front) 4x USB 5Gbps Type A (Front) 7x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Rear) 2x USB 20Gbps Type C (Front) |
WIRELESS LAN & BLUETOOTH |
Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth® 5.4**, MLO, 4KQAM |
ONBOARD THUNDERBOLT |
Thunderbolt chip JHL8540 2x Thunderbolt4 (USB-C) ports Q’ty Supports up to 40Gbps transfer rate with Thunderbolt devices Supports up to 20Gbps transfer rate with USB4 devices Supports up to 10Gbps transfer rate with USB 3.2 devices Supports up to 5V/3A,15W power charging Each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices Supports up to 8K display (need to connect the DisplayPort of the discrete graphics card to the Mini DisplayPort Input port on the back panel) |
Audio |
Realtek® ALC4082 Codec + ESS ES9280AQ Combo DAC/HPA 7.1-Channel USB High Performance Audio Supports S/PDIF output Supports up to 32-Bit/384 kHz playback on front panel |

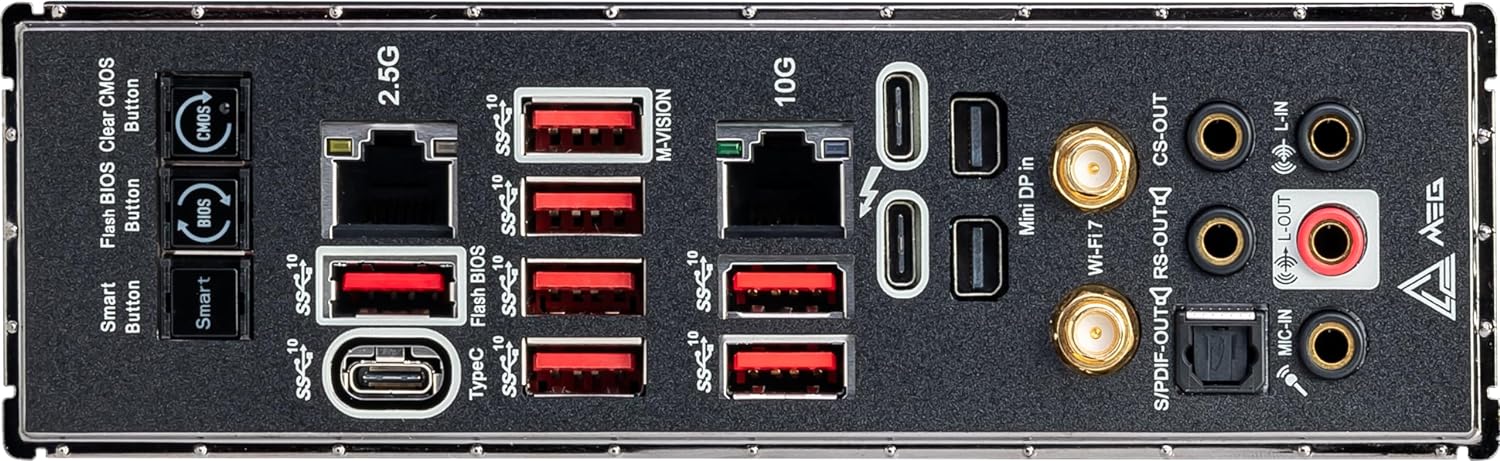

BackPanel Ports | Clear CMOS Button Flash BIOS Button 2.5G LAN 10G Super LAN Thunderbolt 4 40Gbps (Type-C) Wi-Fi / Bluetooth Audio Connectors Smart Button USB 3.2 Gen 2 10Gbps (Type-C) USB 3.2 Gen 2 10Gbps (Type-A) Mini DisplayPort Input (for Thunderbolt passthrough) Optical S/PDIF-Out |
Internal I/O Connectors |
1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Front Type-C Quick Charge Connector(PD_PWR1) 1x CPU Fan 2x Pump Fan 7x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Water Flow connector 1x Slow Mode Booting Jumper(JSLOW) 1x Front Audio (JAUD) 2x Thermal Sensor connectors(T_SEN) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) V-check point 1x ARGB+FAN Header (JAF_1) 4x USB 2.0 ports 4x USB 5Gbps Type A ports 2x USB 20Gbps Type C ports |
MULTI-GPU | AMD MULTI-GPU Support |
Operating System | Support for Windows 11 64-bit |
LED Feature |
1x EZ LED Control switch 4x EZ Debug LED 1x 2-Digit Debug Code LED |
Warranty | 3 Years Brand Warranty |

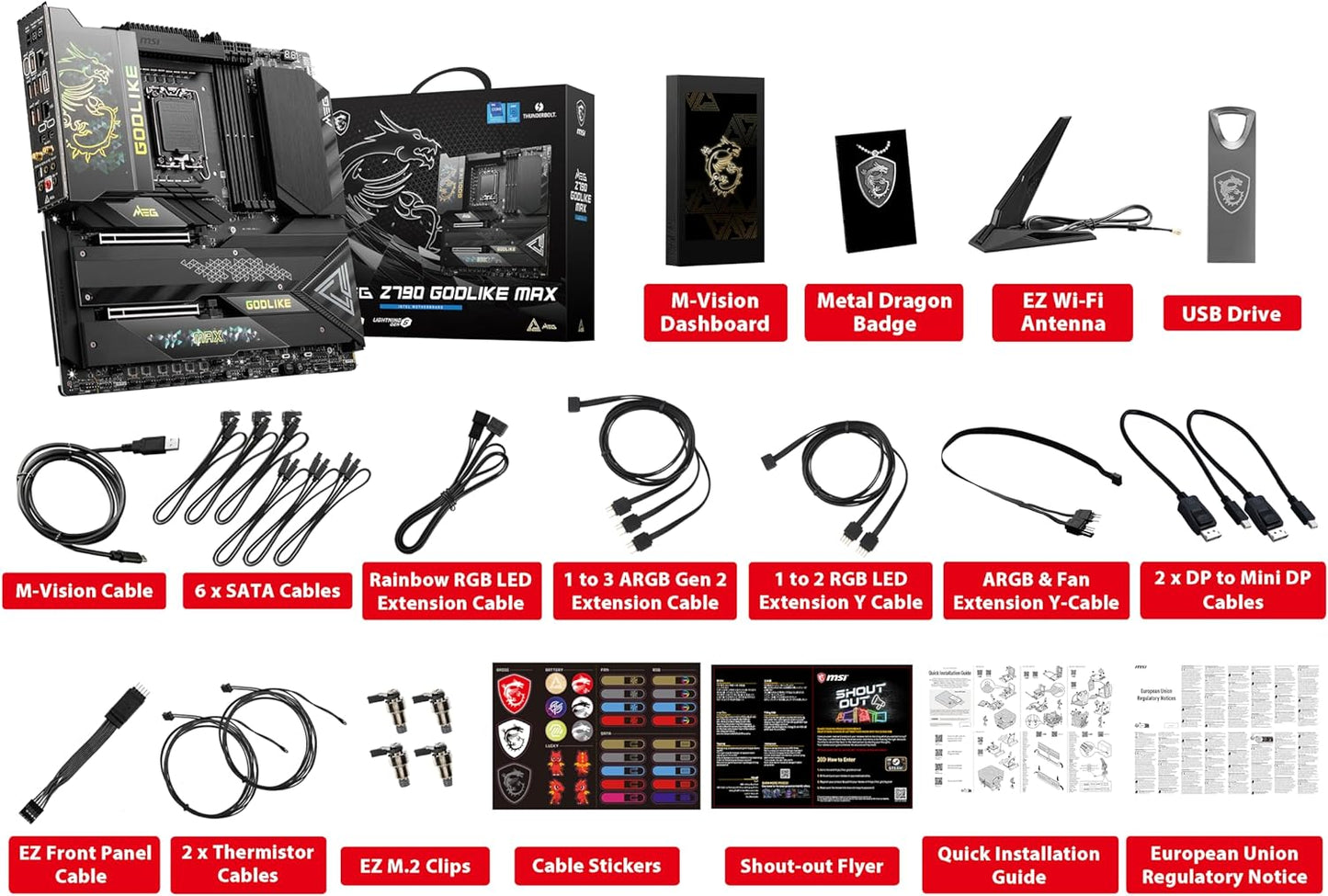

Package Contents | Motherboard M-Vision Dashboard Metal Dragon Badge EZ Wi-Fi Antenna USB Drive M-Vision Cable 6 x SATA Cables Rainbow RGB LED Extension Cable 1 to 3 ARGB Gen 2 Extension Cable ARGB & Fan Extension Y-Cable 2 x DP to Mini DP Cables EX Front Panel Cable 2 x Thermistor Cables EZ M.2 Clips Cable Stockers Shout-out Flyer Quick Installation Guide Regulatory Notice |
Dimensions | 14 x 12.5 x 3.5 inches |
