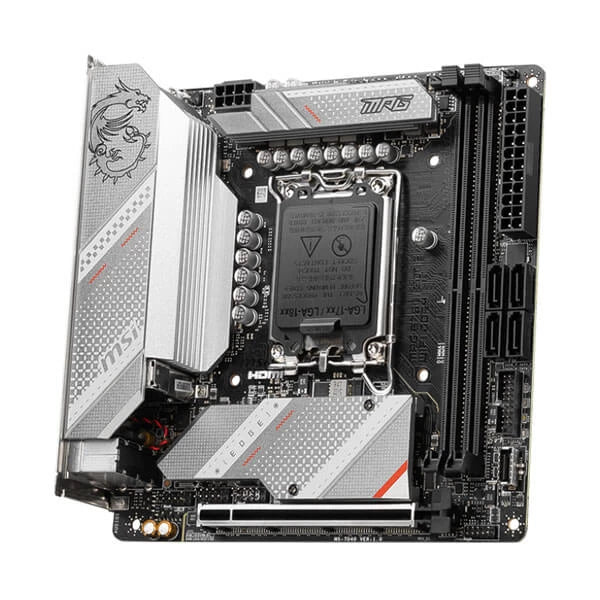

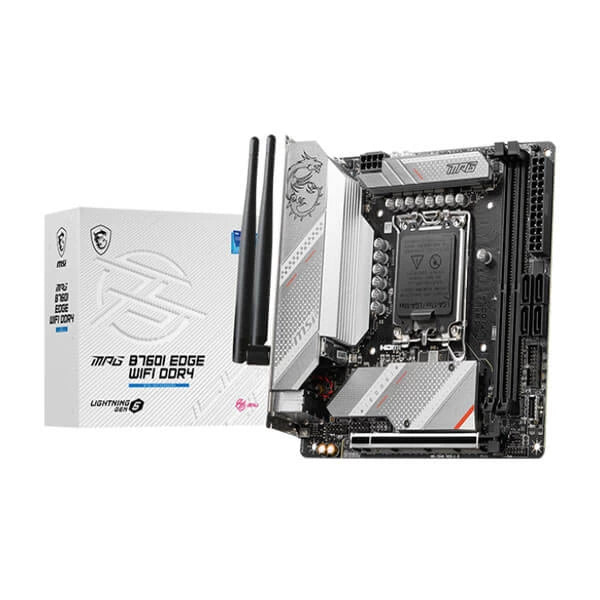

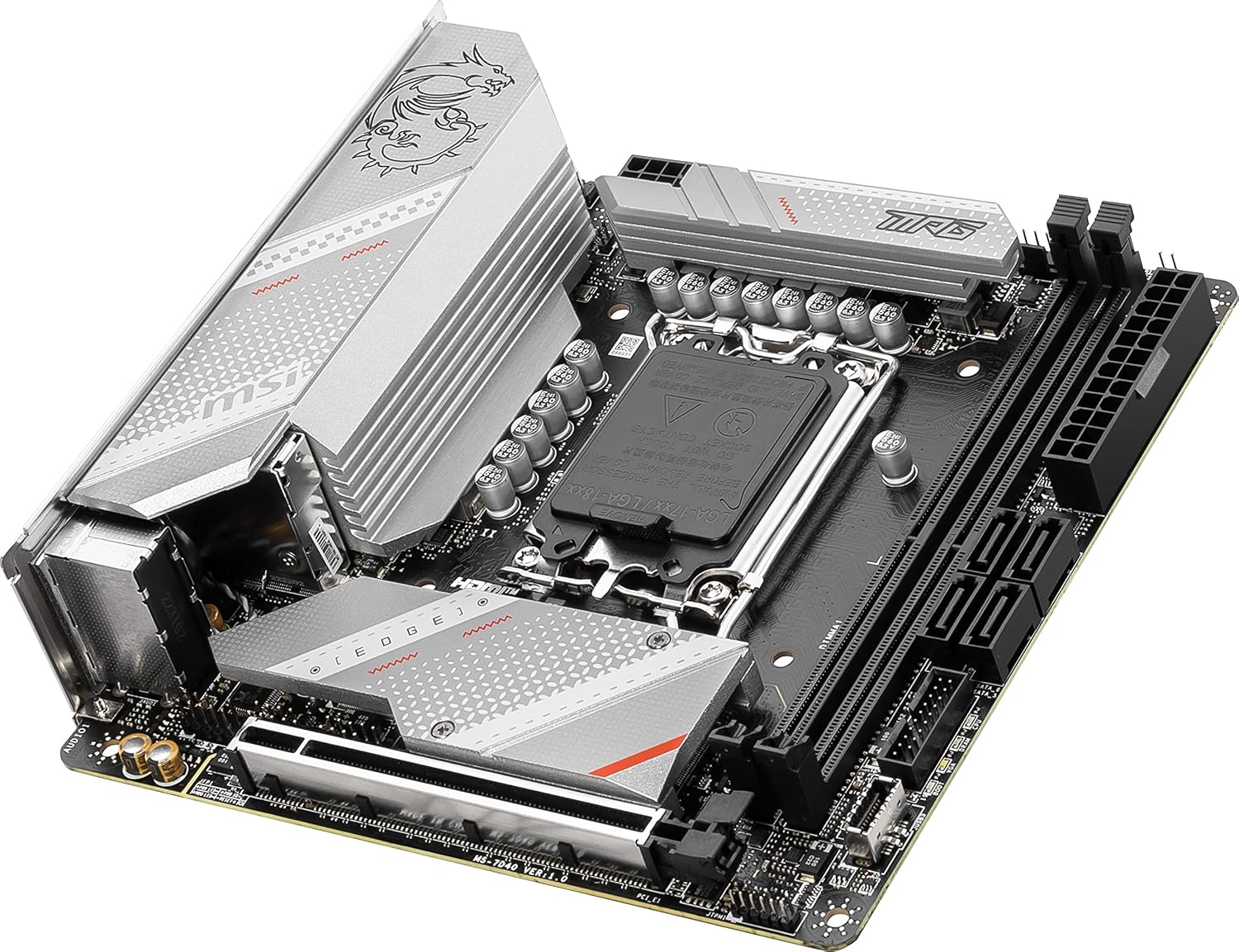

MSI MPG B760I EDGE WIFI DDR4 LGA 1700 Socket Mini-ITX Gaming Motherboard

MSI MPG B760I EDGE WIFI DDR4 LGA 1700 Socket Mini-ITX Gaming Motherboard

Brand: MSI
Regular price Rs. 25,799.00
Sale price 33% off Rs. 25,799.00 Sale Sold out Regular price Rs. 37,999.00
Taxes included. Free Shipping.

Product Description:

MPG B760I EDGE WIFI employs silver white color scheme to show off different personality and identity. Besides being stylish, it is also powerful. The MPG series brings out fashionable products by showing extremely unique styles and expressing a conceited attitude towards the challenge of the gaming world. With extraordinary performance and style, the MPG series defines the future of gaming fashion.

Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors for LGA 1700 socket

Supports DDR5 Memory, up to 7200+(OC) MHzLightning-Fast Game experience: PCIe 5.0 slots, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2

Enhanced Power Design: Direct 8+1+1 phases power, Core Boost, Memory Boost

Premium Thermal Solution: Enlarged heatsink, MOSFET thermal pads rated for 7W/mk, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience

2.5G LAN and Intel Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection

AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience

High Quality PCB: 8-layer PCB made by server grade level material

Pre-installed I/O Shield: Better EMI protection and more convenience for installation

Model MPG B760I EDGE WIFI
CPU Support Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors
CPU Socket LGA 1700
Chipset INTEL B760
PCB INFO Mini-ITX
170mmx170mm
Memory

2x DDR4, Maximum Memory Capacity 64GB
Memory Support 5333/ 5200/ 5066/ 5000/ 4800/ 4600/ 4533/ 4400/ 4266/ 4000/ 3866/ 3733/ 3600/ 3466/ 3333(O.C.)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133(By JEDCE & POR)
Max. overclocking frequency:
• 1DPC 1R Max speed up to 5333+ MHz
• 1DPC 2R Max speed up to 4800+ MHz

Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel® Extreme Memory Profile (XMP)

Audio Realtek ALC897 Codec
7.1-Channel High Definition Audio
Storage 2x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280 devices
4x SATA 6G
LAN Realtek RTL8125BG 2.5G LAN
ONBOARD GRAPHICS 1x HDMI
Support HDMI 2.1 with HDR, maximum resolution of 4K 60Hz*
1x DisplayPort
Support DP 1.4, maximum resolution of 8K 60Hz
Slot 1x PCI-E x16 slot
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
USB 2x USB 2.0 (Rear)
2x USB 2.0 (Front)
4x USB 3.2 Gen1 Type A (Rear)
2x USB 3.2 Gen1 Type A (Front)
1x USB 3.2 Gen2 Type A (Rear)
1x USB 3.2 Gen2 Type C (Rear)
1x USB 3.2 Gen2 Type C (Front)
INTERNAL IO 1x Power Connector(ATX_PWR)
1x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
1x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
2x USB 2.0 ports
2x USB 3.2 Gen1 Type A ports
1x USB 3.2 Gen2 Type C ports
WIRELESS LAN & BLUETOOTH

Intel® Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax

Supports Bluetooth® 5.3, FIPS, FISMA

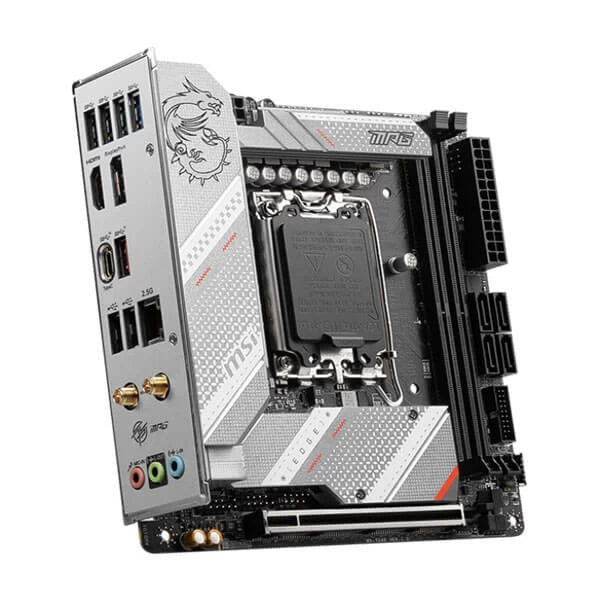

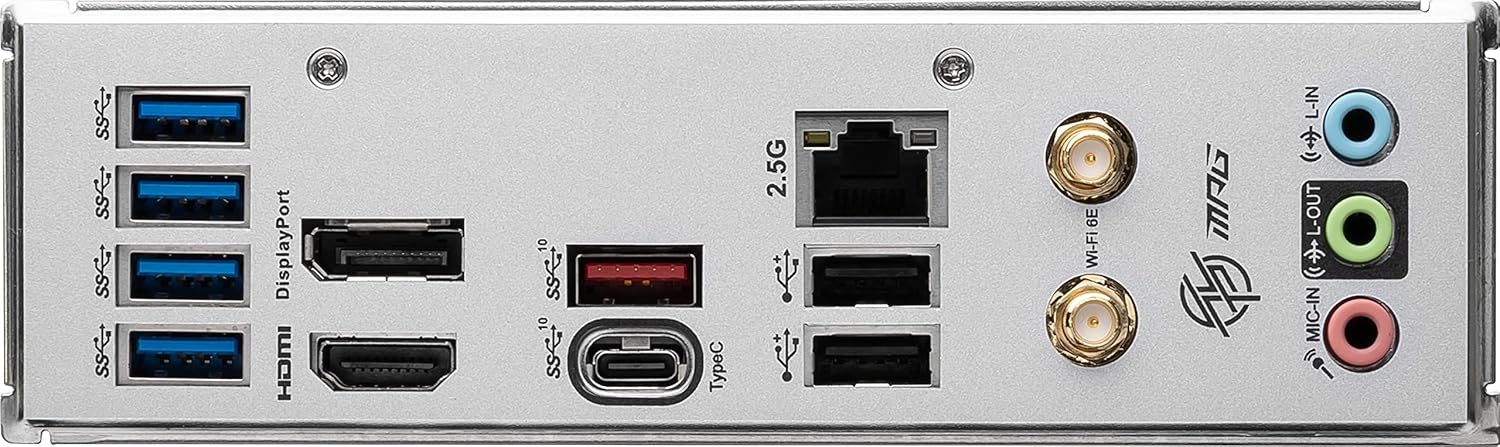

BACK PANEL PORTS USB 3.2 Gen 1 5Gbps
Display Port
USB 3.2 Gen 2 10Gbps
2.5G LAN
Audio Connectors
HDMI™
USB 3.2 Gen 2 10Gbps (Type-C)
USB 2.0
Wi-Fi / Bluetooth
OPERATING SYSTEM Support for Windows 11 64-bit, Windows 10 64-bit
Warranty 3 Years Brand Warranty

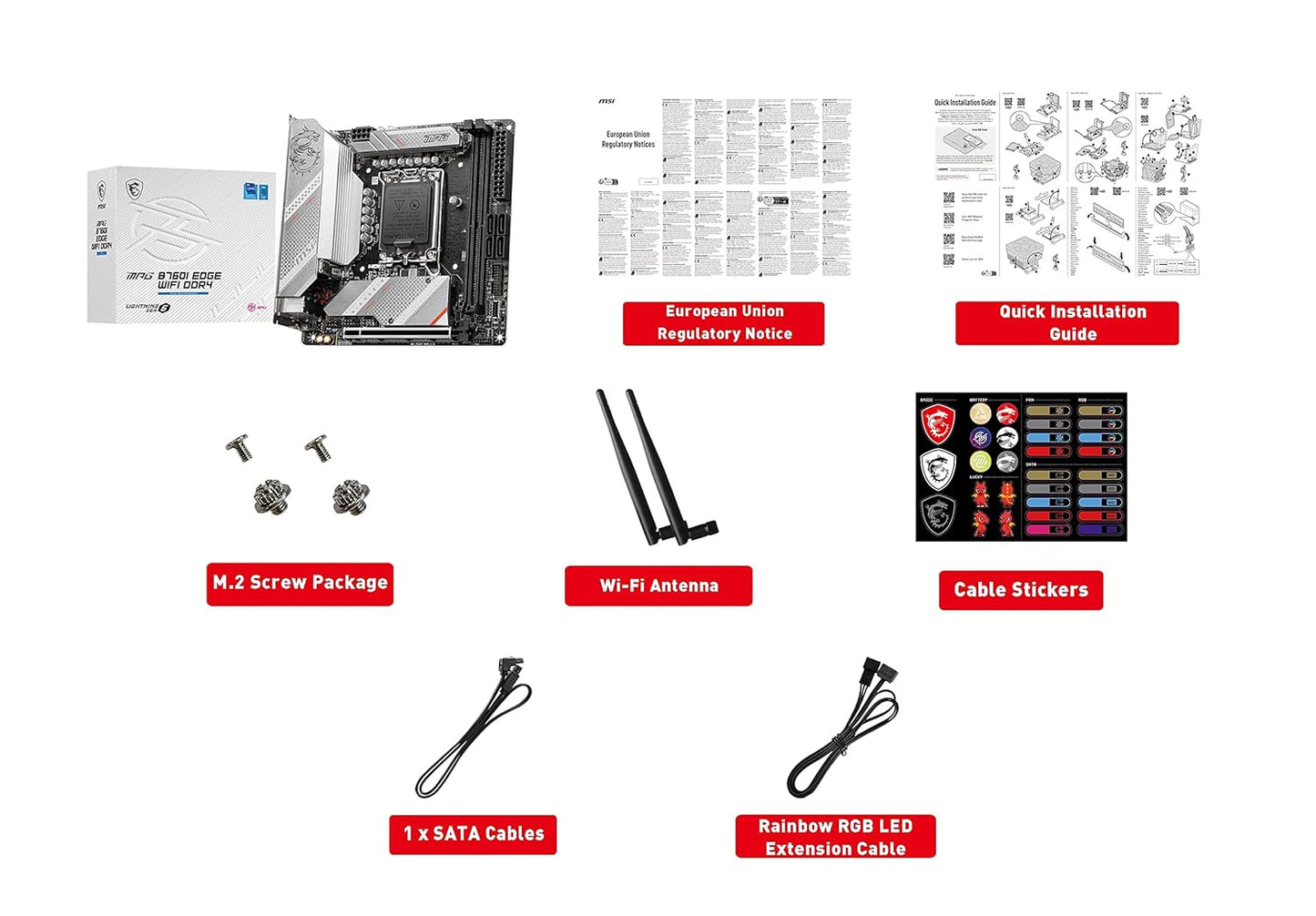

Package Contents Motherboard
European Regulatory Notice
Quick Installation Guide
M.2 Screw Package
1 x SATA Cable
Wi-Fi Antenna
Cable Stickers
Rainbow RGB LED Extension Cable
