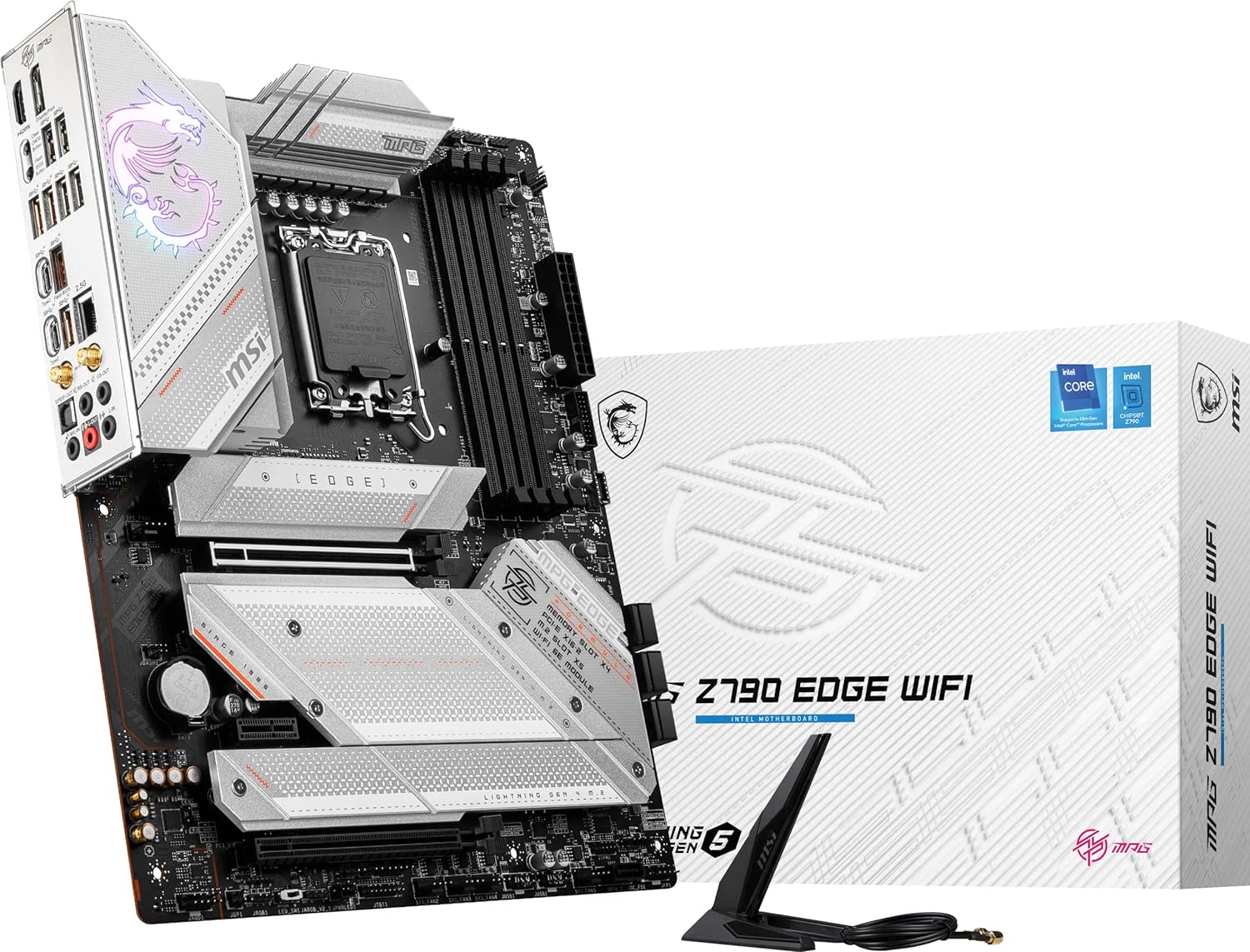

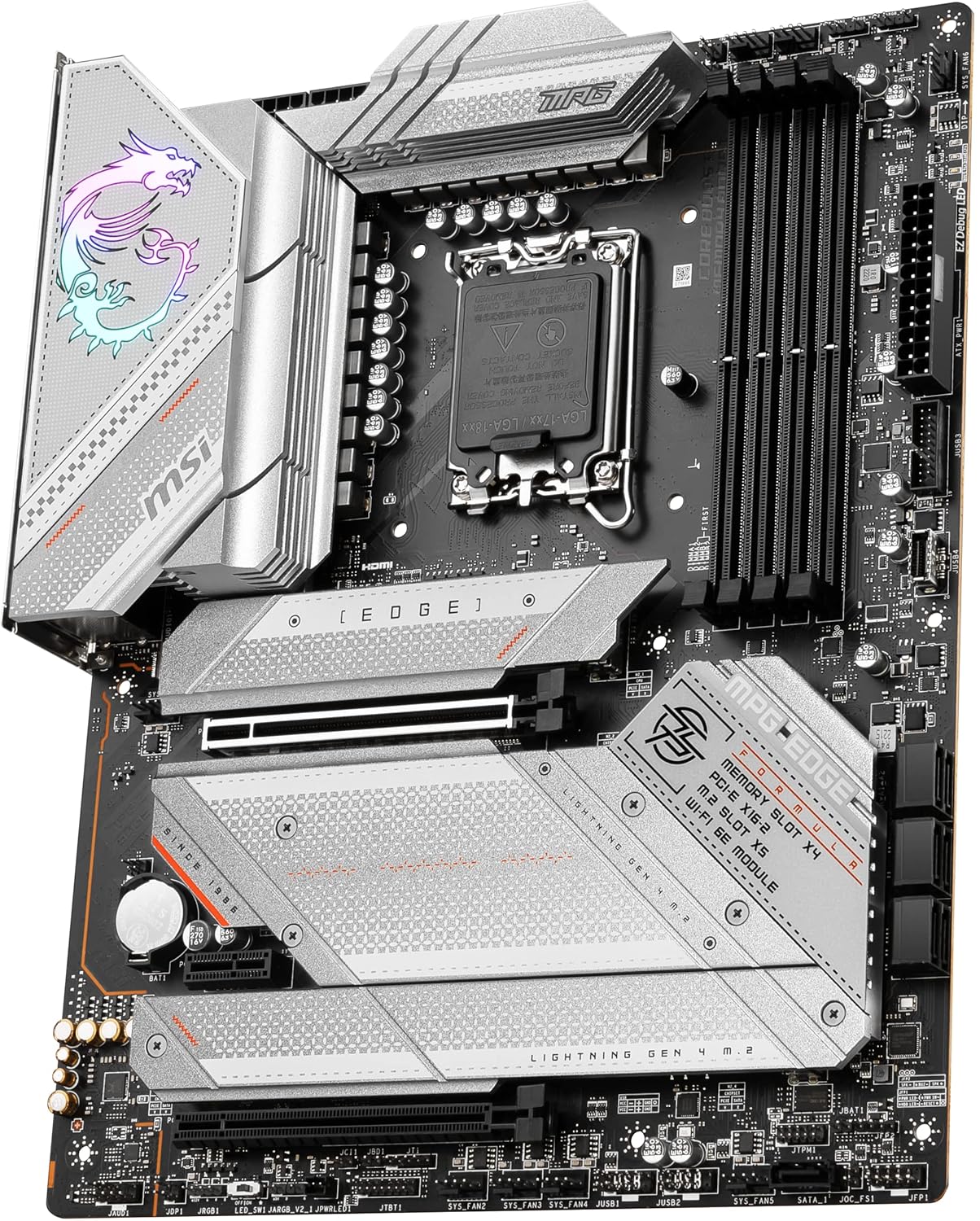

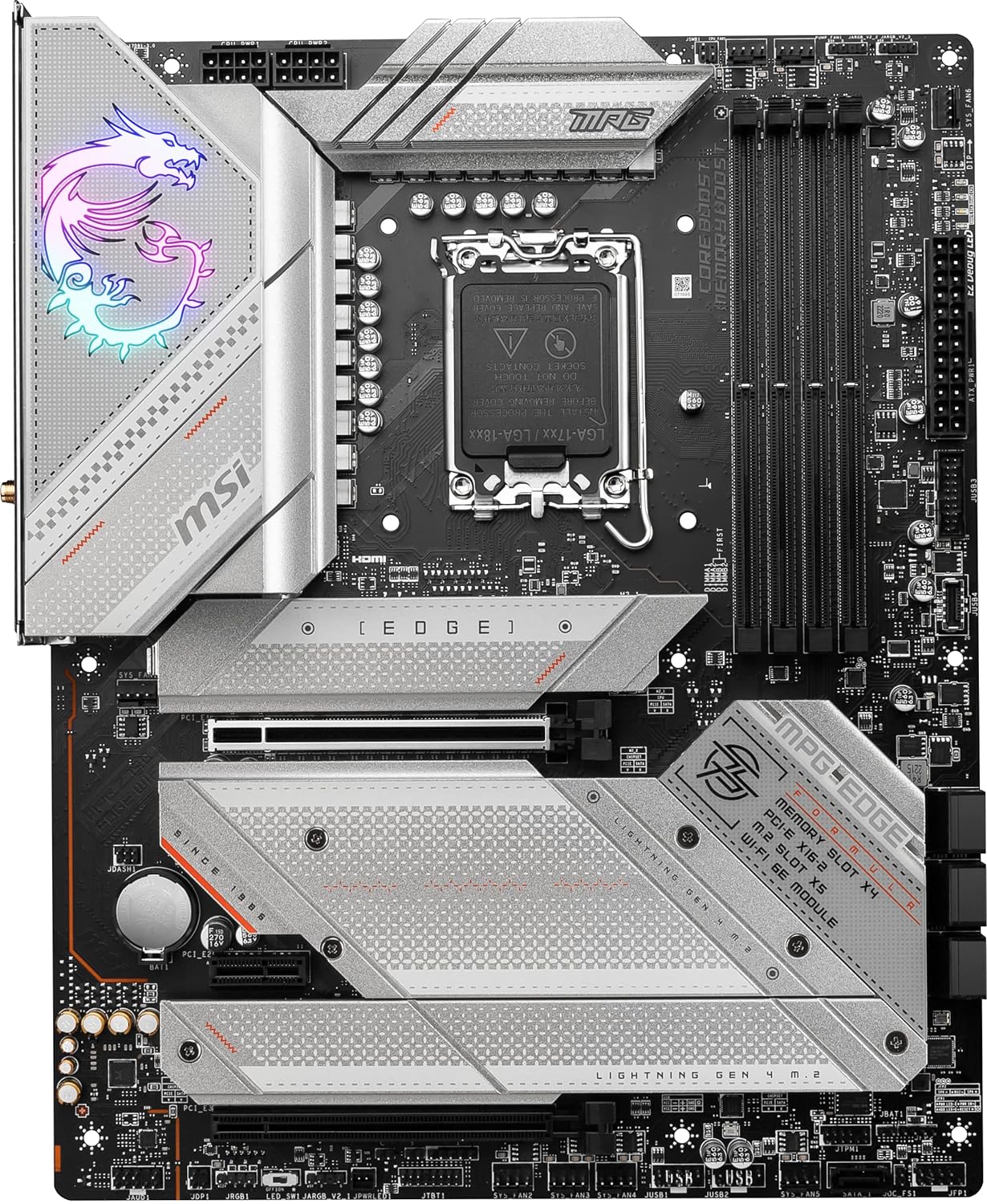

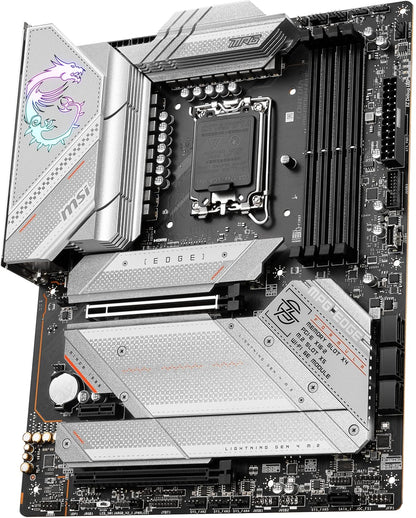

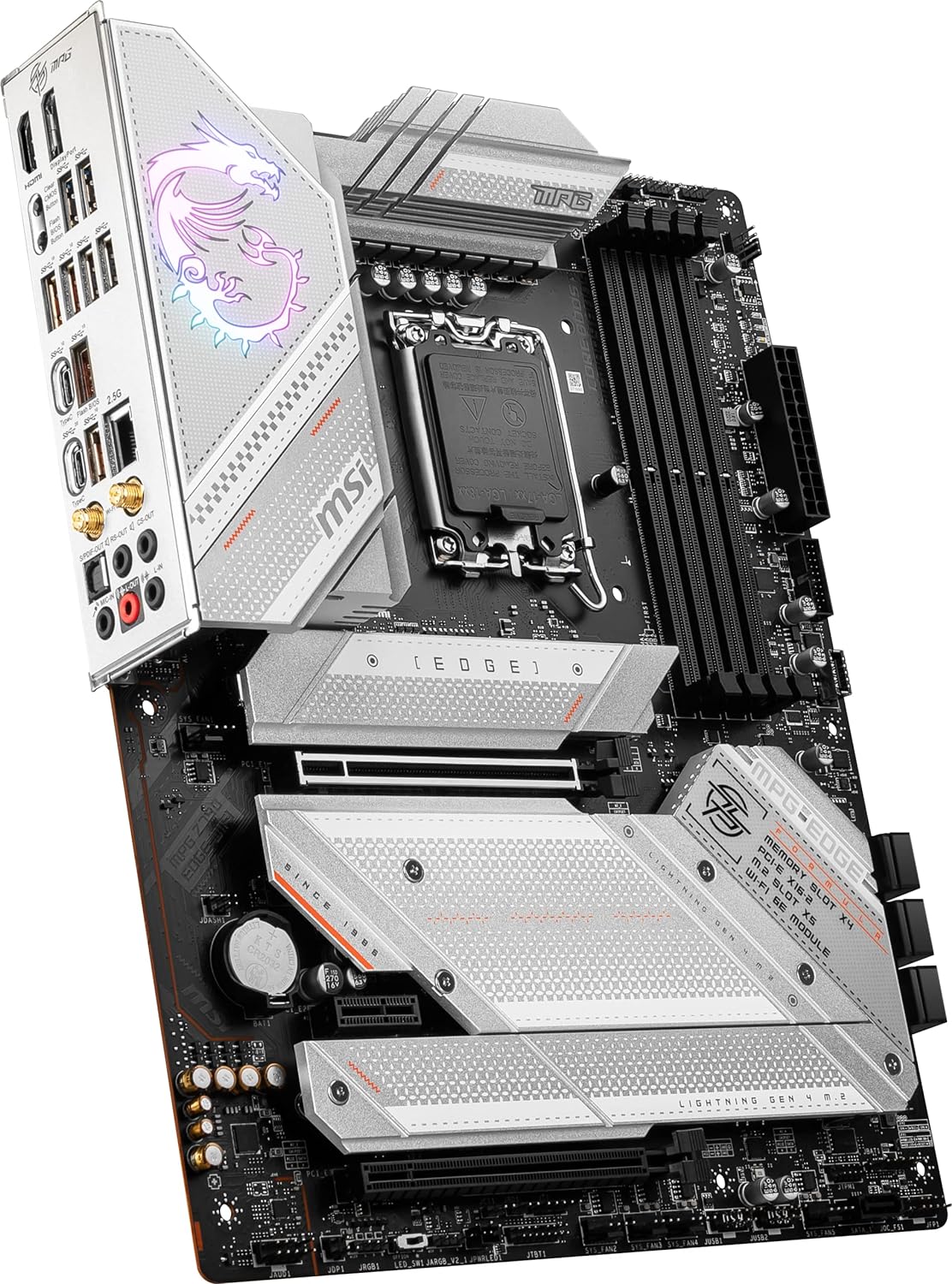

MSI MPG Z790 EDGE WIFI LGA 1700 DDR5 PCIe 5.0 ATX Gaming Motherboard

MSI MPG Z790 EDGE WIFI LGA 1700 DDR5 PCIe 5.0 ATX Gaming Motherboard

Brand: MSI
Regular price Rs. 40,999.00
Sale price 38% off Rs. 40,999.00 Sale Sold out Regular price Rs. 65,699.00
Taxes included. Free Shipping.

Product Description:

BE AHEAD, POP YOUR STYLE

The MPG series brings out fashionable products by showing extremely unique styles and expressing a conceited attitude towards the challenge of the gaming world. With extraordinary performance and style, the MPG series defines the future of gaming fashion.

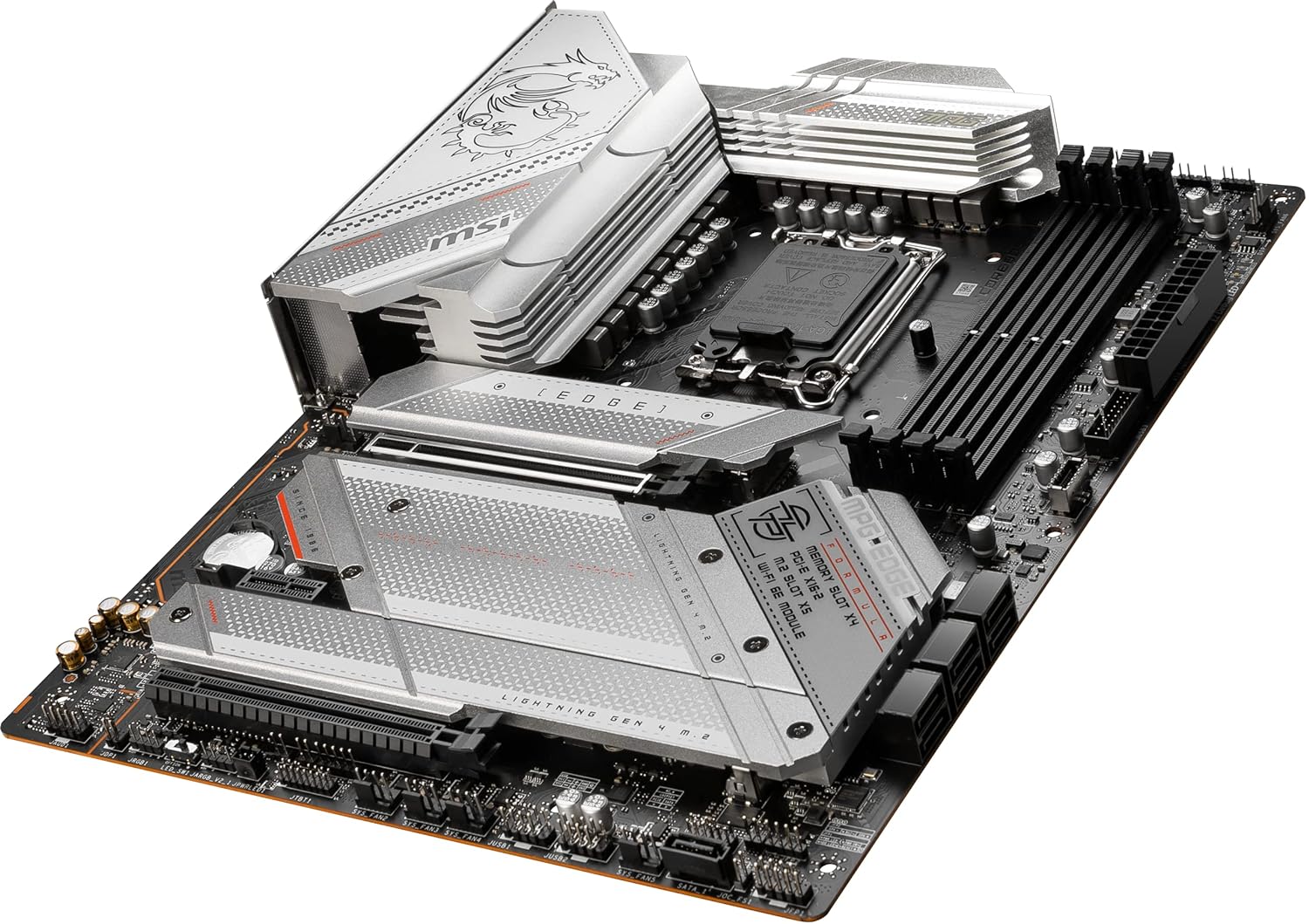

Extended Heatsink

Extended Heatsink enlarges the surface of heat dissipation, ensuring even high-end processors to run in full speed.

Direct Touch Heat-pipe

Connecting two MOS heatsinks to enlarge the surface of heat dissipation.

M.2 Shield Frozr

Keeps M.2 SSDs safe while preventing throttling, making them run faster.

7W/mK Thermal Pad

High quality 7W/mK MOSFET thermal pads and extra choke thermal pads ensure all cores running in high performance.

Enhanced M.2 Thermal

Double-sided M.2 Shield Frozr and Enlarged heatsink design keep PCIe 4.0 M.2 SSDs safe while preventing throttling.

Enlarged PCH Heatsink

The enlarged heatsink design to reduce dust and noise as well as maintain high heat dissipation efficiency.

LIGHTNING GEN 5 PCI-E

Doubling over the previous generation, the bandwidth of a x16 interface can reach 128GB/s.

Model MPG Z790 EDGE WIFI
CPU Support Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors
CPU Socket LGA 1700
Chipset Intel Z790
Form Factor ATX
Memory 4x DDR5, Maximum Memory Capacity 256GB
Memory Support 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
Max. overclocking frequency:
• 1DPC 1R Max speed up to 7200+ MHz
• 1DPC 2R Max speed up to 6600+ MHz
• 2DPC 1R Max speed up to 6400+ MHz
• 2DPC 2R Max speed up to 5600+ MHz

Supports Intel® XMP3.0 OC
Supports Dual-Controller Dual-Channel mode
Supports non-ECC, un-buffered memory
Expansion Slot 2x PCI-E x16 slot
1x PCI-E x1 slot
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
Storage 5x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
M.2_5 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
7x SATA 6G
USB 4x USB 2.0 (Front)
4x USB 5Gbps Type A (Rear)
2x USB 5Gbps Type A (Front)
4x USB 10Gbps Type A (Rear)
1x USB 10Gbps Type C (Rear)
1x USB 10Gbps Type C (Front)
1x USB 20Gbps Type C (Rear)
WIRELESS LAN & BLUETOOTH Intel Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax

Supports Bluetooth 5.3**, FIPS, FISMA
ONBOARD GRAPHICS 1x HDMI
Support HDMI™ 2.1, maximum resolution of 4K 60Hz*
1x DisplayPort
Support DP 1.4, maximum resolution of 8K 60Hz*
Audio Realtek ALC4080 Codec
7.1-Channel USB High Performance Audio
Supports up to 32-Bit/384 kHz playback on front panel

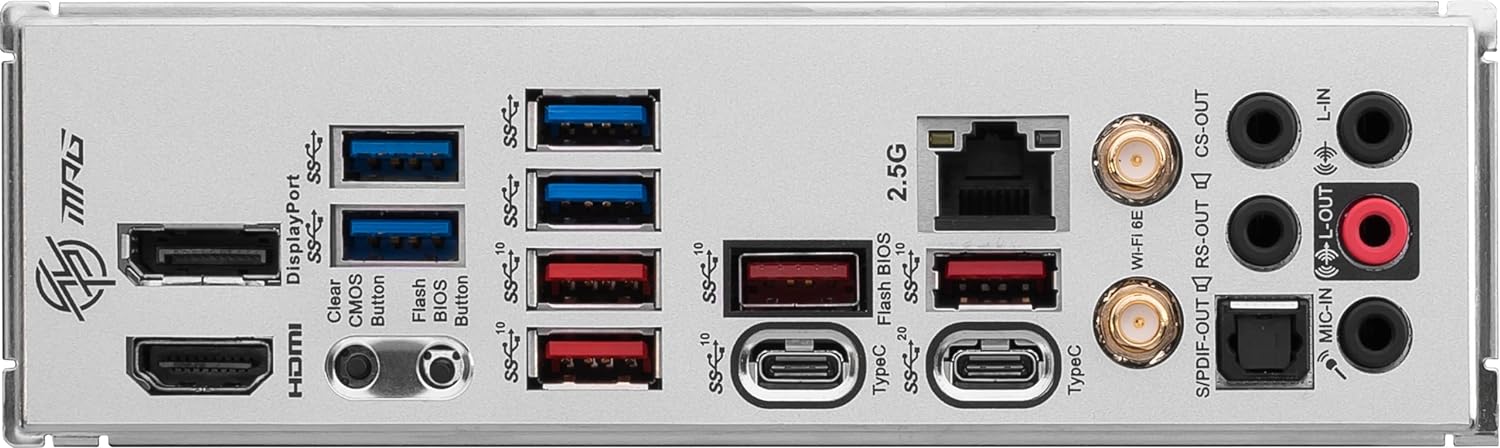

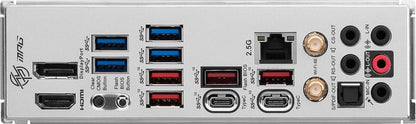

BackPanel Ports Display Port
USB 5 Gbps (Type-A)
USB 10Gbps (Type-A)
2.5G LAN
Wi-Fi / Bluetooth
Audio Connectors
HDMI™
Clear CMOS / Flash BIOS
USB 10Gbps (Type-A)
USB 10Gbps (Type-C)
USB 20Gbps (Type-C)
Optical S/PDIF Out
Internal I/O Connectors 1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
6x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x TBT connector (JTBT, supports RTD3)
1x Tuning Controller connector(JDASH)
3x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
2x USB 5Gbps Type A ports
1x USB 10Gbps Type C ports
LED Feature 4x EZ Debug LED
1x EZ LED Control switch
Operating System Support for Windows 11 64-bit, Windows 10 64-bit
PCB INFO ATX
243.84mmx304.8mm
Warranty 3 Years Brand Warranty

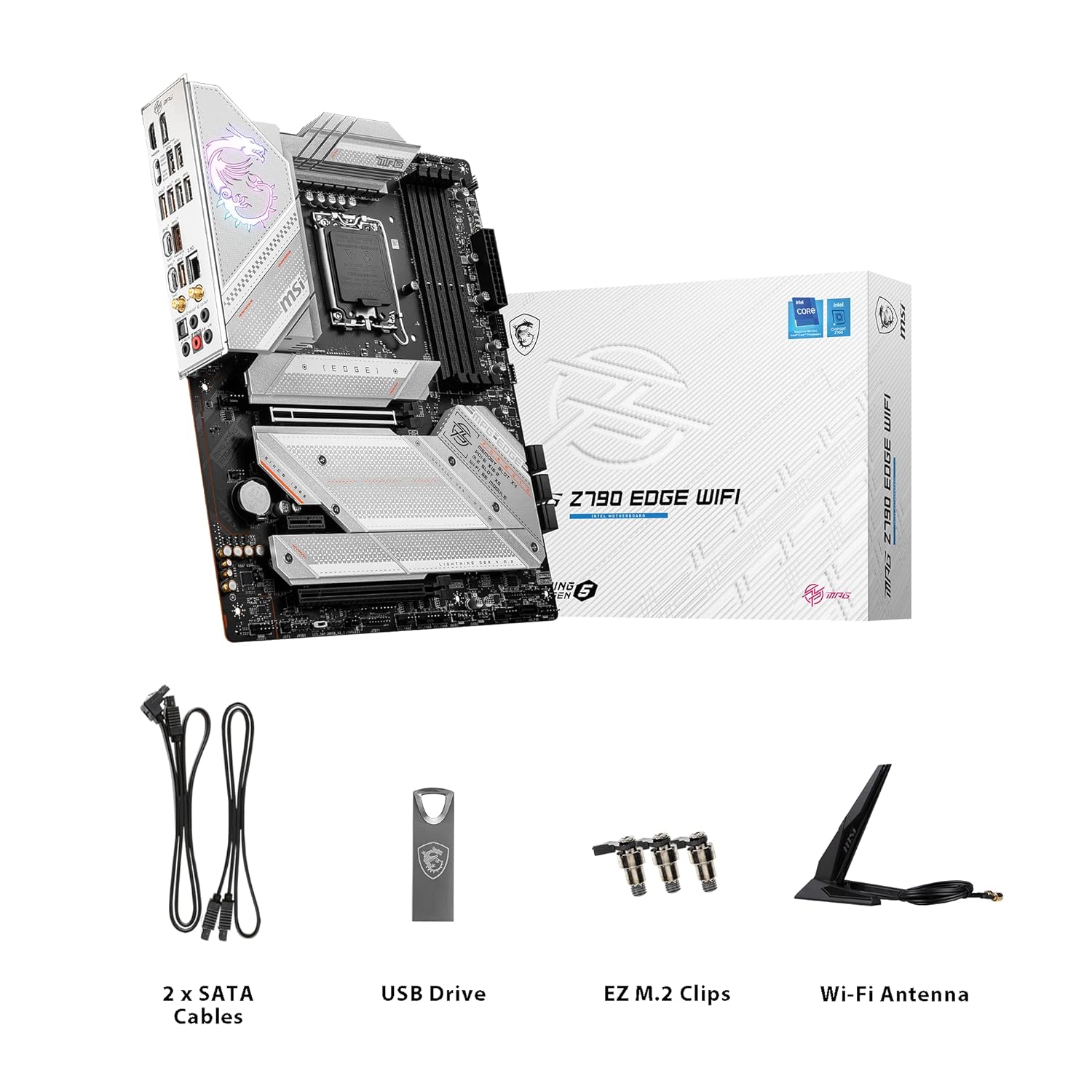

Package Contents Motherboard
Regulatory Notice
Quick Installation Guide
3 x EZ M.2 Clip Packages
Wi-Fi Antenna
Cable Sticker
USB Drive
2 x SATA Cables
Dimensions ‎30.48 x 24.38 x 6.35 cm; 2.04 kg
