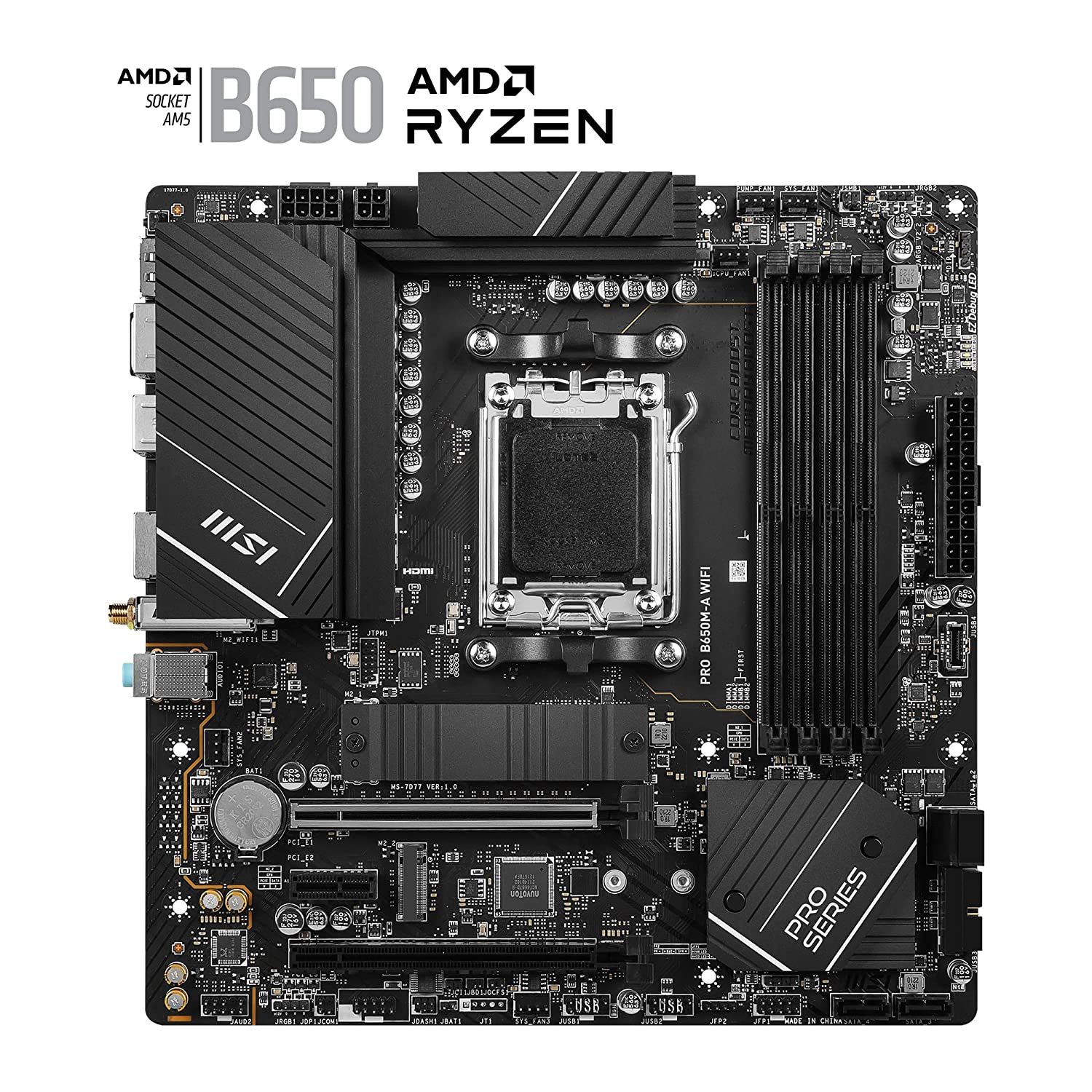

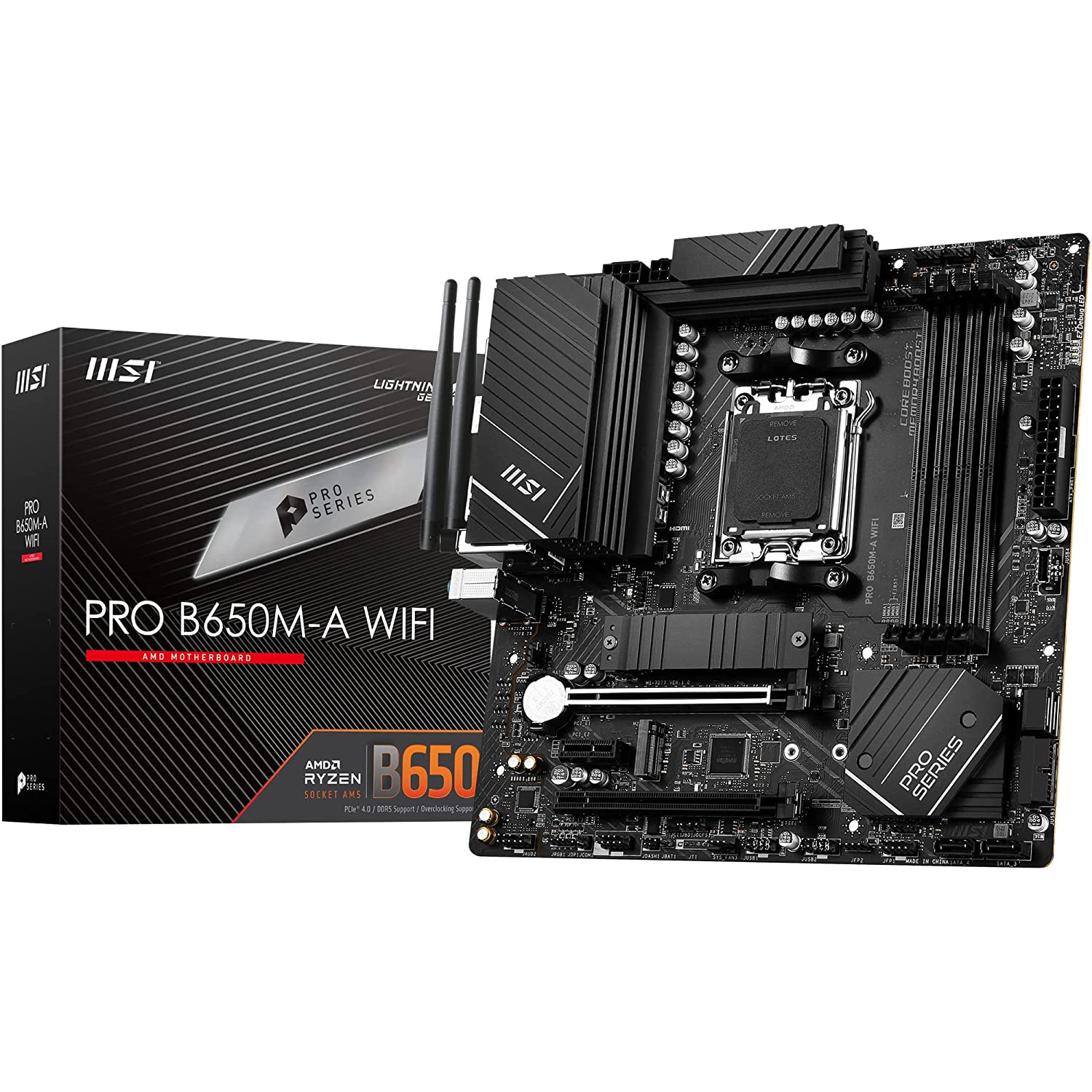

MSI PRO B650M-A WIFI AMD B650 AM5 Micro-ATX Motherboard
MSI PRO B650M-A WIFI AMD B650 AM5 Micro-ATX Motherboard
Couldn't load pickup availability
Couldn't load pickup availability
- Free Shipping
- 7-Days Easy Returns
- Brand Warranty
Product Description:
- The MSI motherboard is designed to support latest AMD Socket AM5 for Ryzen 7000 series Processors.
- The board is PCIe 4.0 storage Ready supporting up to 128GB DDR5 6400+MHz of memory and EXPO technology to push your gaming experience to its peak. The board support PCIe 4.0.
- Enjoy extended connectivity on with the next-gen technology of WIFI6E, PCIe 4.0, Realtek 2.5Gb Ethernet, USB 3.2 Gen 1 Type-C and Two M.2 slots.

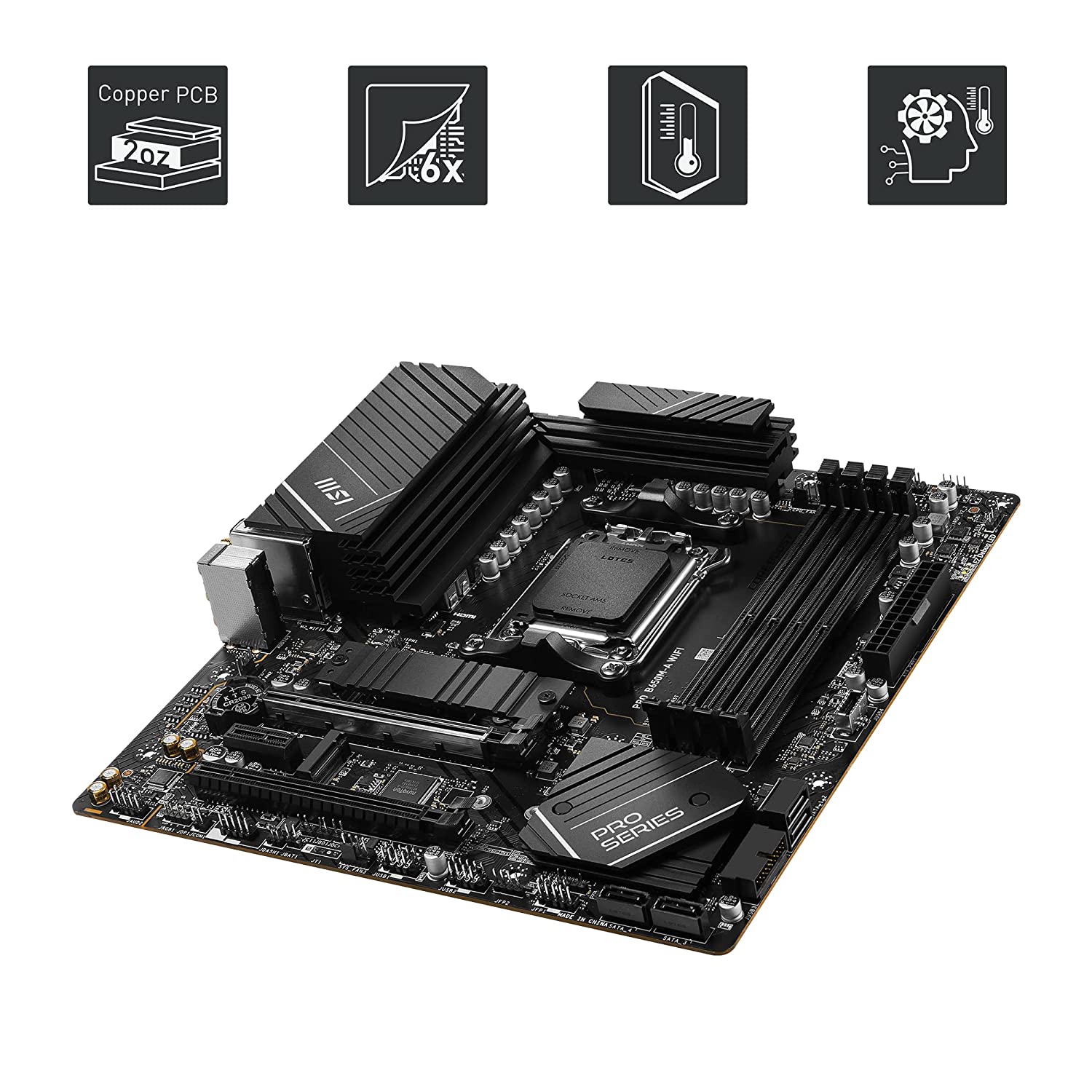

- The motherboard comes with comprehensive cooling options such as VRM heatsink, M.2 Shield, Chipset heatsink and Extended heatsink.

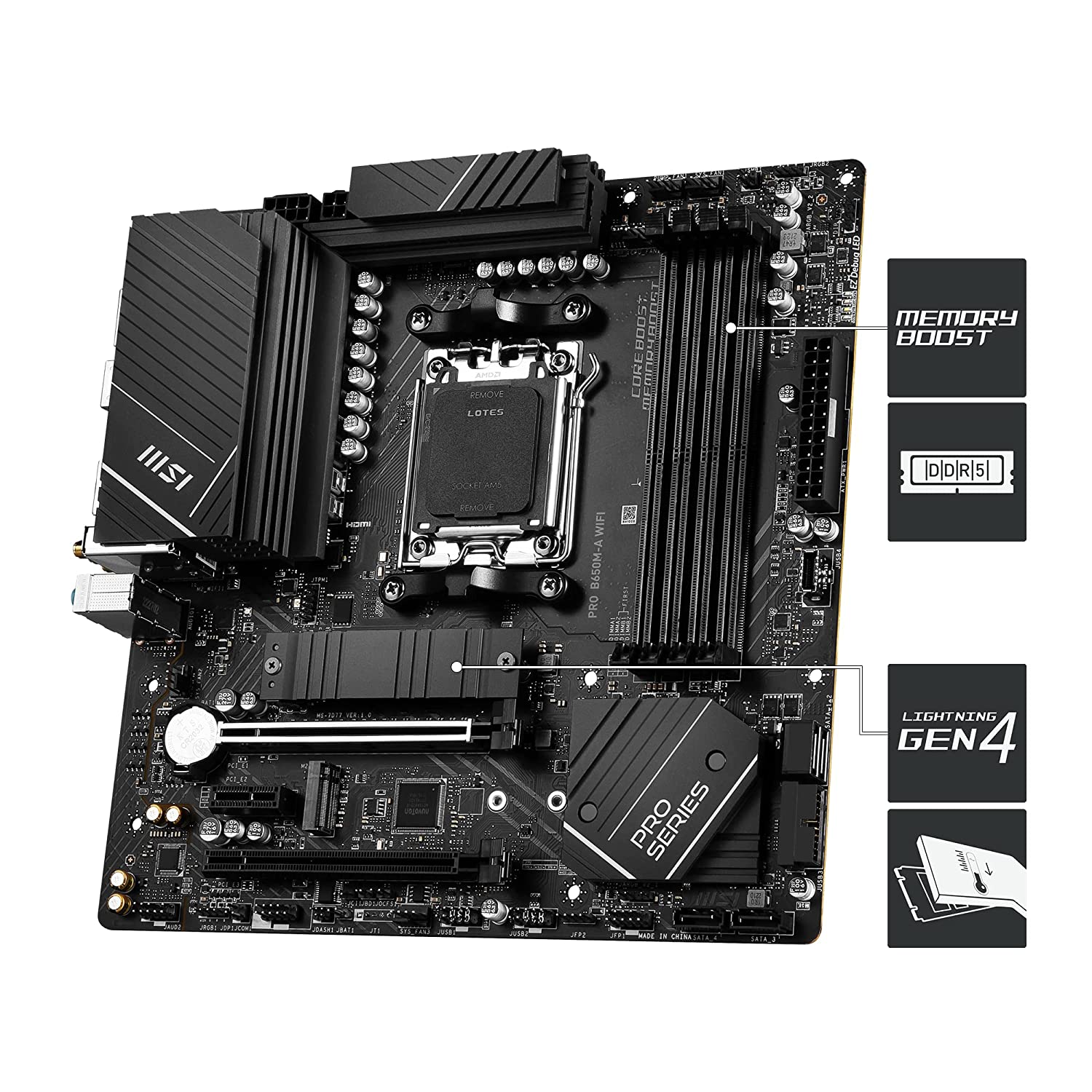

DDR5 Overclocking
For those who want to fly past stock DDR5 speeds, the MSI B650 is primed and ready for enthusiast-grade kits courtesy of vast AMD Extended Profiles for Overclocking (EXPO) support.

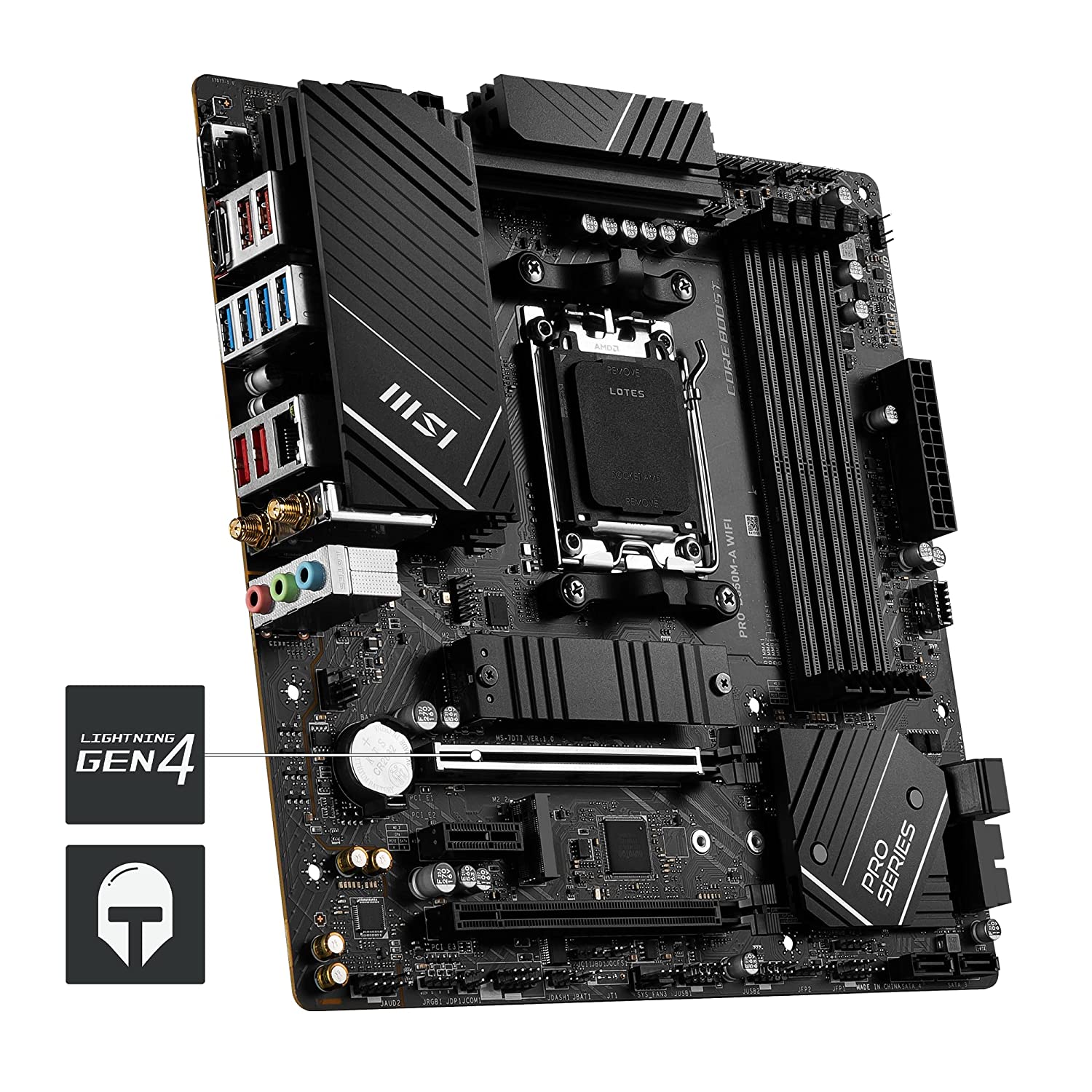

PCIe 4.0
MSI lightning Gen 4 PCI-E represents the bandwidth of a x16 interface to 64GB/s that has doubled compared to its previous generation.
Storage
MSI PRO series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster and have a real advantage over your enemies.
WIFI 6E
Onboard WIFI 6E technology takes advantage of newly available spectrum in the 6GHz band to provide up to seven 160 MHz channels for ultrafast throughput and better performance in dense wireless environments.
USB-C
MSI PRO motherboards support USB Front Type-C that allows gamers to connect with the latest USB devices. Built up a system with MSI PC case to have the most convenient experience.
BIOS FlashBack
BIOS FlashBack is a safe and simple way to update BIOS. Just drop the (UEFI) BIOS file onto a FAT32-formatted USB stick, plug it into the USB BIOS FlashBack port, and press the button.
~section~
| Model | MSI PRO B650M-A WIFI Gaming Motherboard |
| Part Number | PRO-B650M-A-WIFI |
| CPU Socket | AMD AM5 |
| CPU Support | AMD Socket AM5 for AMD Ryzen 7000 Series Desktop Processor. |
| Chipset | AMD B650 |
| Memory | 4 x DIMM, Max. 128GB, DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800, ECC and Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports AMD Extended Profiles for Overclocking (EXPO) OptiMem II |
| On-Board Graphics support | 1 x DisplayPort 1 x HDMI |
| Expansion Slot | 2x PCI-E x16 slot 1x PCI-E x1 slot |
| Wireless & Bluetooth | Wi-Fi 6E 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Supports 2.4/5GHz or 6GHz frequency band Bluetooth v5.3 |
| Ethernet | Realtek 8125BG 2.5G LAN |
| Storage | 2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G |
| Audio | Realtek ALC897 Codec 7.1-Channel High Definition Audio |
| USB Ports | 4x USB 2.0 (Front) 4x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front) 4x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Front) |

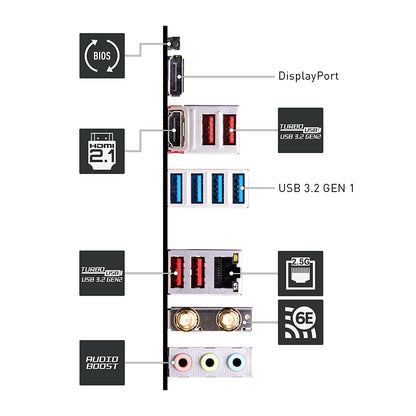

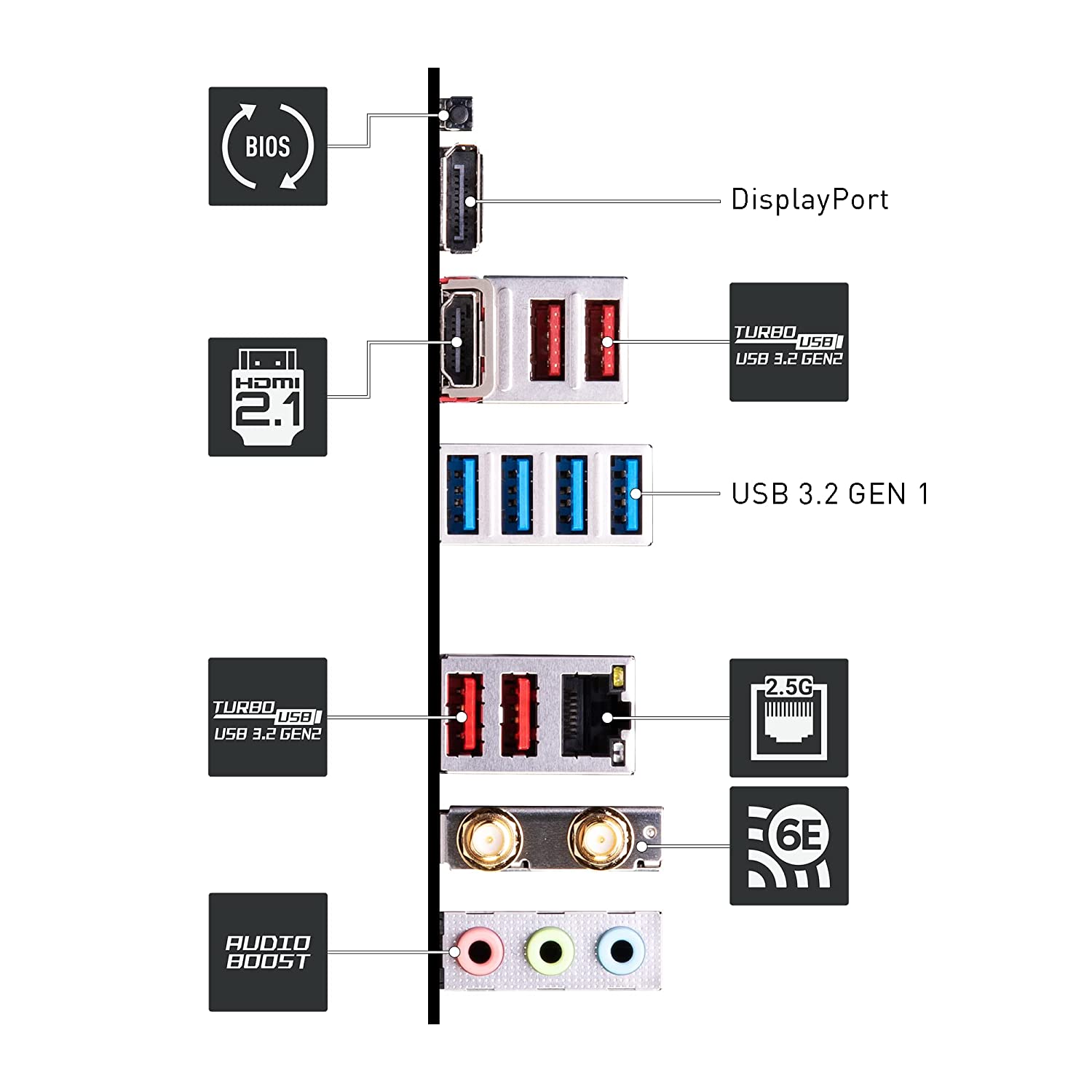

| Back Panel I/O Ports | 2x USB 3.2 Gen 2 10Gbps (Type-A) 4x USB 3.2 Gen 1 5Gbps (Type-A) 1x 2.5G LAN 2x Wi-Fi / Bluetooth 1x Audio connectors 1x Flash BIOS Button 1x DisplayPort 1x HDMI 2x USB 3.2 Gen 2 10Gbps (Type-A) |
| Internal I/O ports | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 3x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 2x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports 4x EZ Debug LED 1x USB 3.2 Gen2 Type C ports |

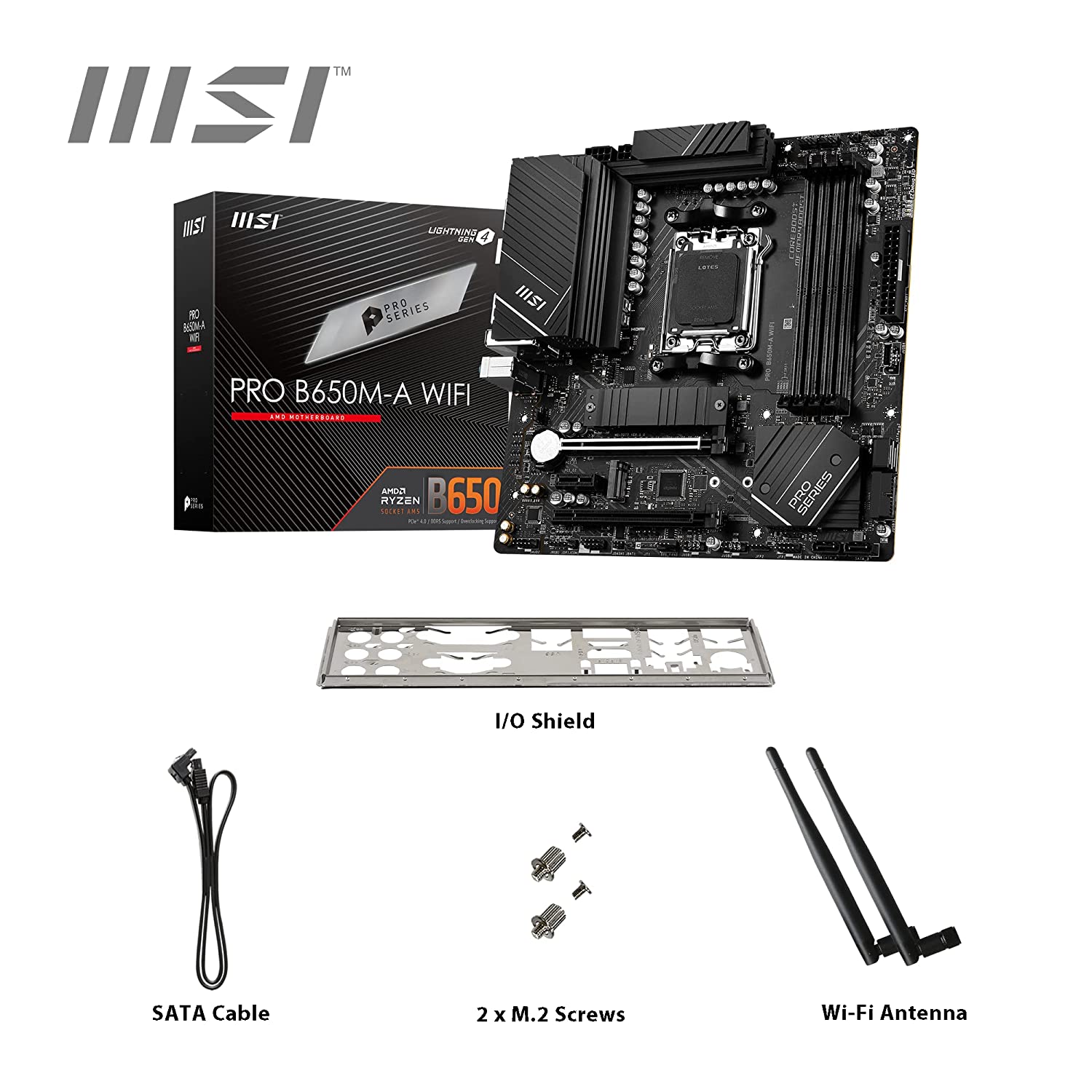

| Accessories | 2x M.2 screws 2x WIFI Antenna 1x SATA Cable 1x I/O Shield 1x Quick Installation Guide 1x Regulatory Notice |
| Operating System | Windows 11 64-bit Windows 10 64-bit |
| Dimensions | Micro-ATX Form Factor 24.4cm x 24.4cm |
| Warranty | 3 Years of Brand Warranty |
Best B650 Motherboard right now if you have a little more headroom on your budget. i'm running a 7800x3d in there it's running smoothly. my main reason to this one was it wasn't too expensive and the ram compatiblity, PCie gen 4 for ssd and gpu, and good quality VRMS which you'll need for such powerful CPU. i've been a long time user of MSI products and never had any issues. can blindly recommend this thing :D
Very good sign! It has good VRM and it rated the Ryzen 7900x3d 10
I brought this from offline store. Installation was super smooth. I have enabled DDR5-6400 and PBO on win11 . Bios is v17. I do not see any stability issue. My boot time are around 15s. Shorter boottime are after memory context restore enabled. One point to note, nvme heatsink is on m.2_3 which is connected to chipset. I moved nvme to m.2_2 which is connected to processor for improved latency. There are zero pcie-5 connectivity. This may not be necessarily a problem since pice4 is more than enough for most BW requirements in foreseeable future. There are 8 fan headers with custom curve control for each. This is a really useful feature to keep acoustic blanced with optimal cooling. Antenna connected to backpanel is useful. It's saves space, maintenance and is a neat solution.
I bought this motherboard in December 2022 for my all black build and this motherboard looks slick. I paired it with 7700X. This motherboard has good quality vrms. But It has no pcie5 lanes however pcie4 is plenty enough for my daily tasks. It has built in wifi and that too wifi 6, so my internet connectivity ha become blazing fast now. Msi has been rolling out frequent bios updates with good amount of improvements as AM5 is still an evolving platform. Their support team is also very customer service centric. Overall very happy with the purchase.
Overall, I would recommend
