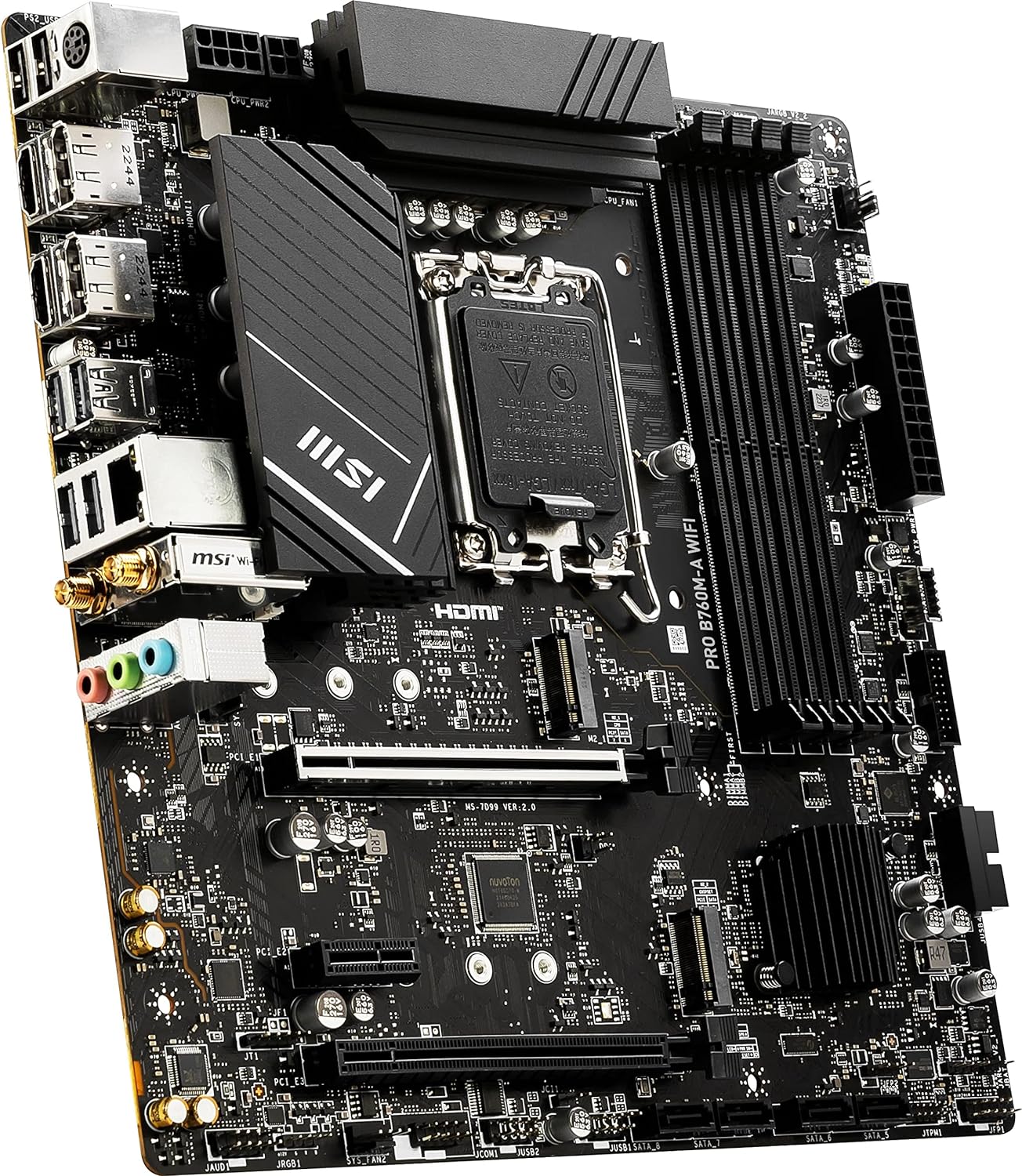

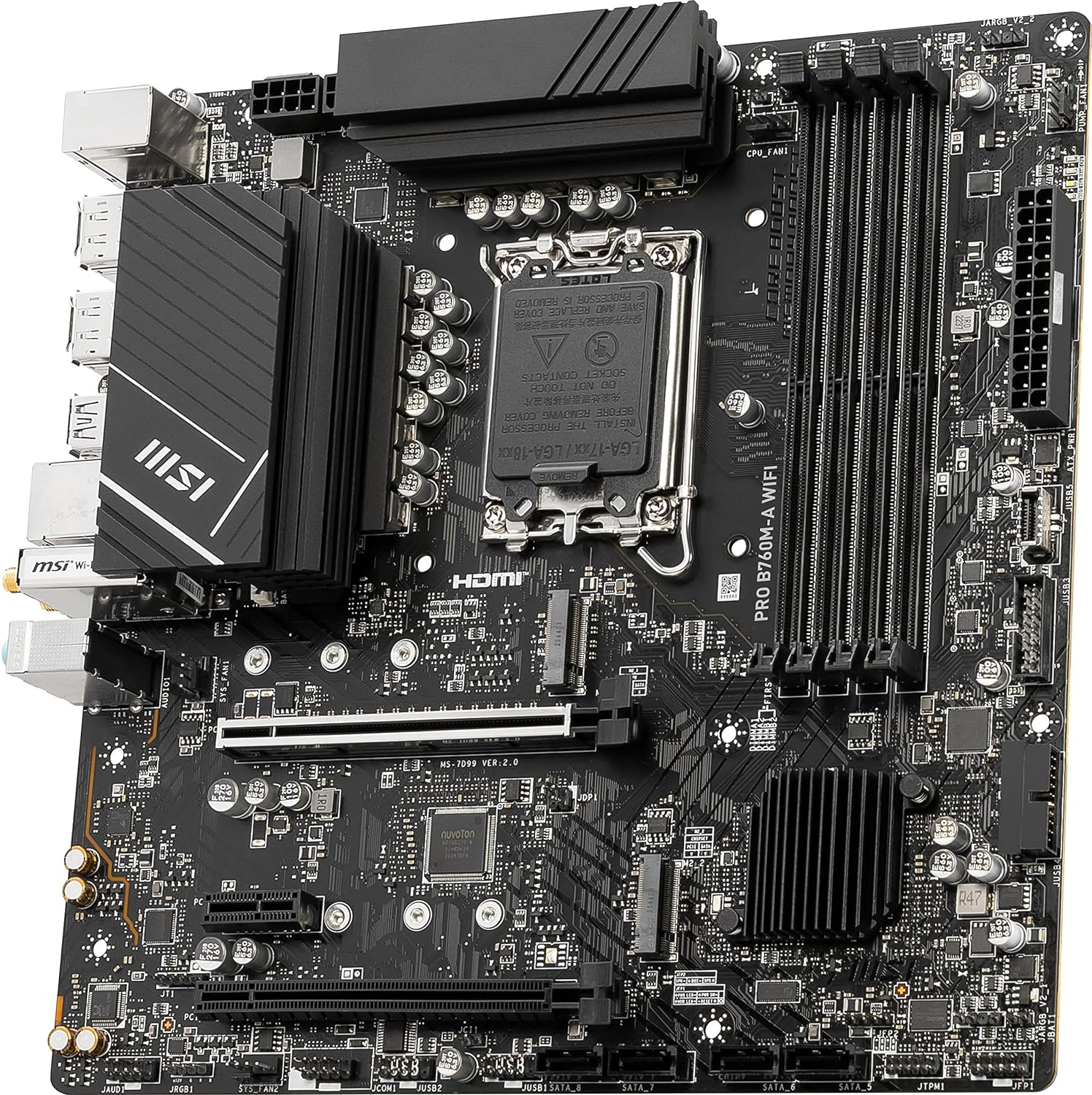

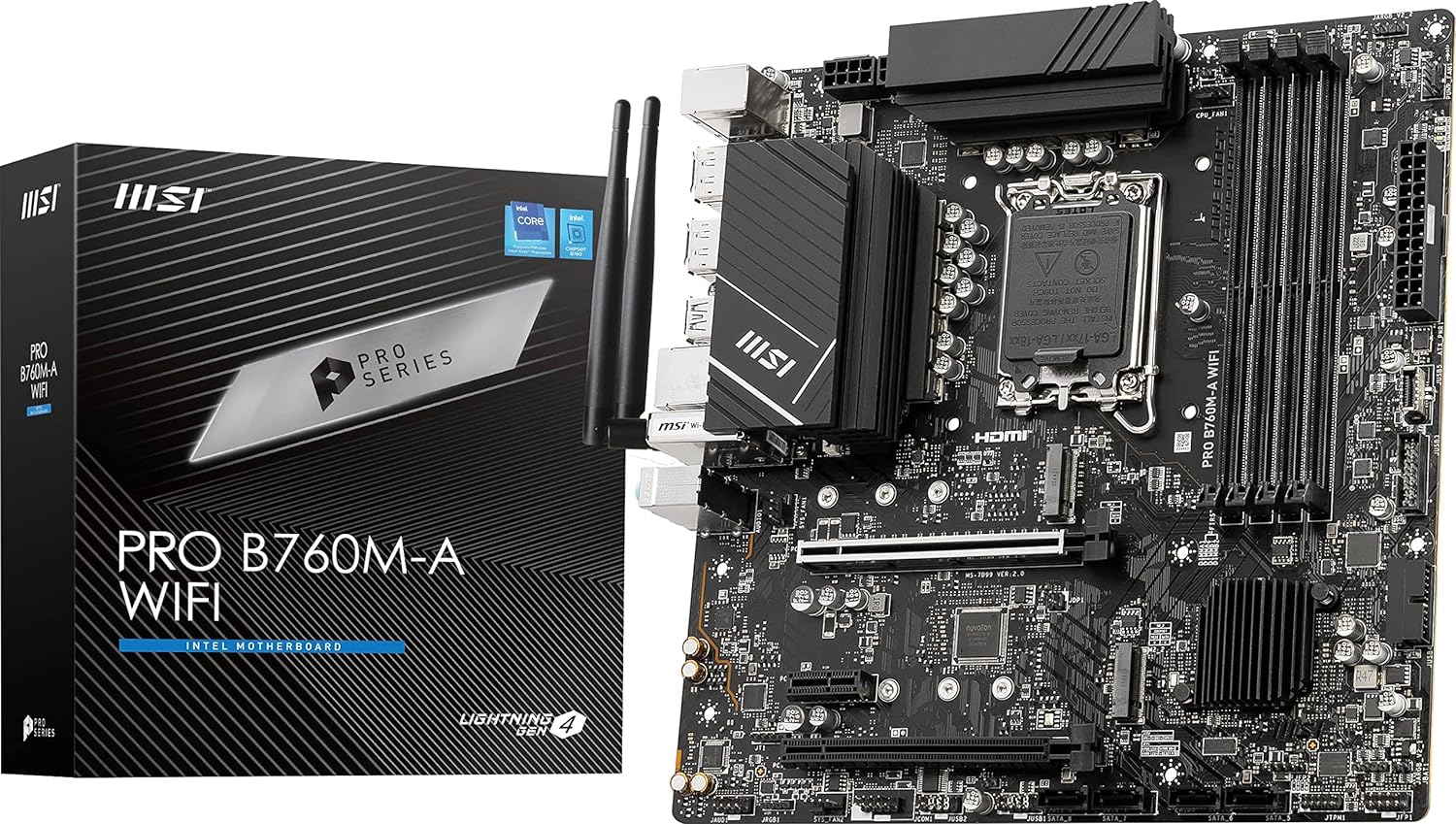

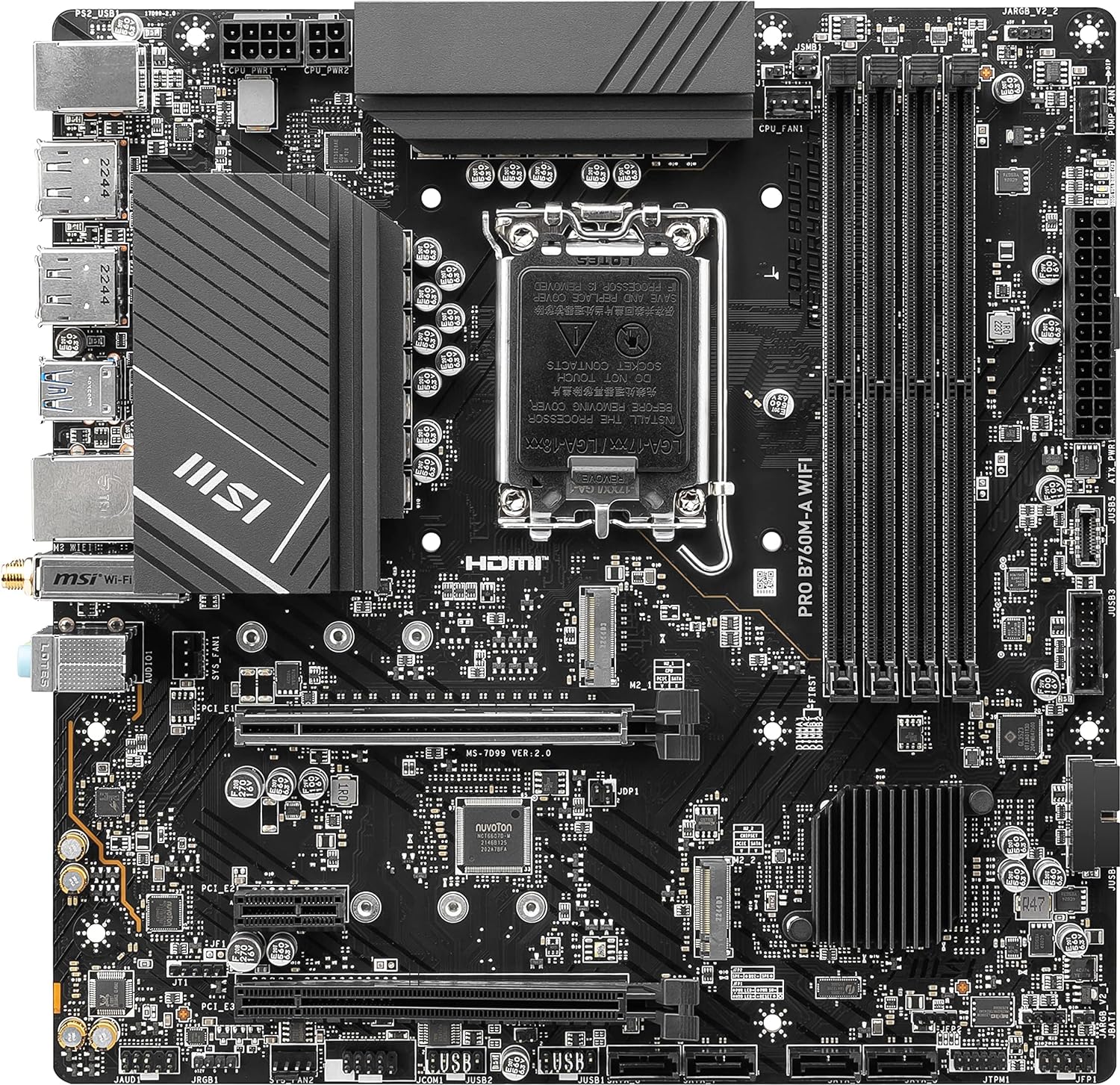

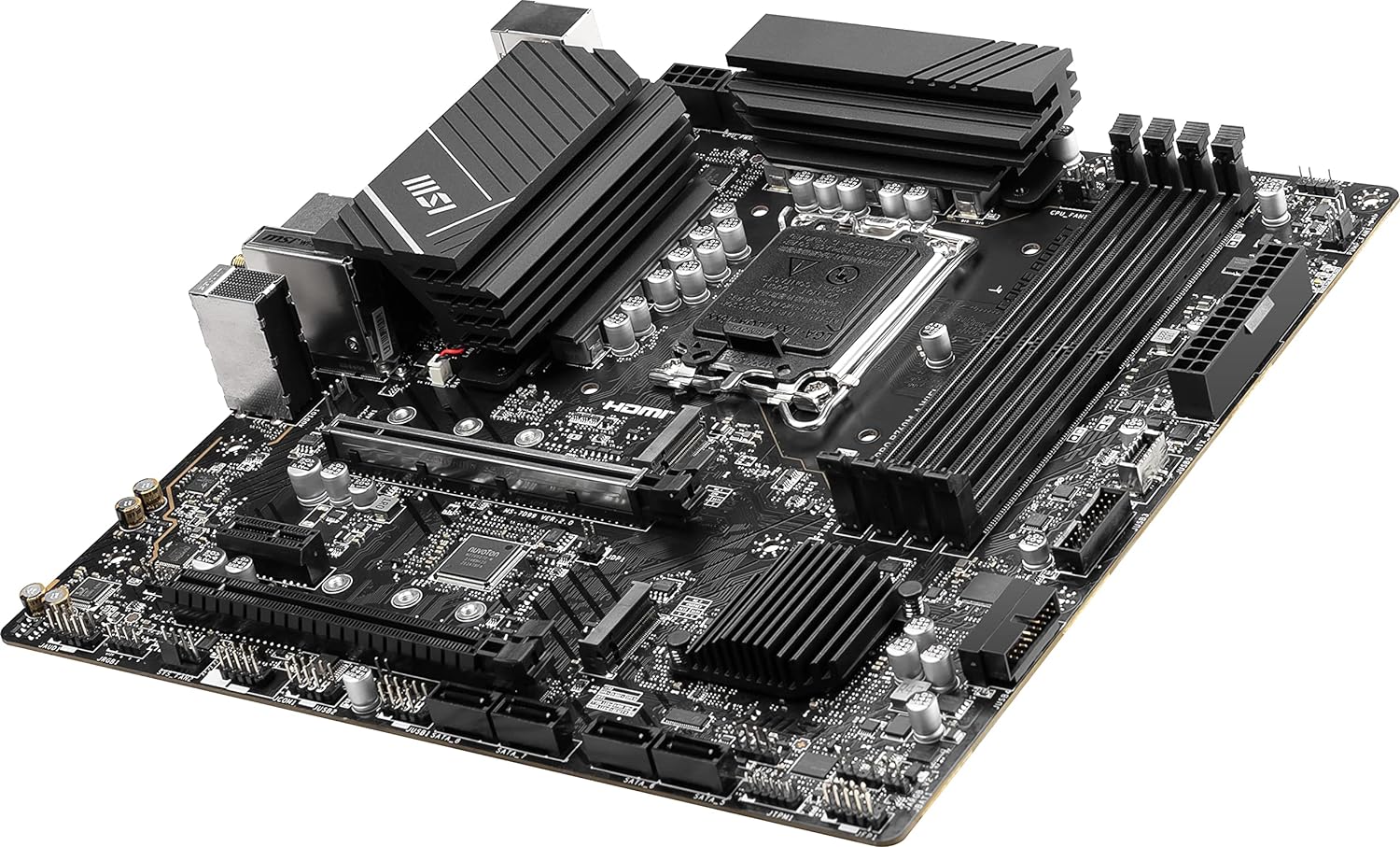

MSI PRO B760M-A Wi-Fi DDR5 Pro Series LGA 1700 Socket M-ATX Gaming Motherboard

MSI PRO B760M-A Wi-Fi DDR5 Pro Series LGA 1700 Socket M-ATX Gaming Motherboard

Brand: MSI
Rs. 15,499.00
49% off Rs. 15,499.00 Sale Sold out Rs. 29,999.00
Taxes included. Free Shipping.

Product Description:
    • Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors for LGA 1700 socket
    • Supports DDR5 Memory, Dual Channel DDR5 6800+MHz (OC)
    • Enhanced Power Design: 12+1 Duet Rail Power System with P-PAK, 8-pin + 4-pin CPU power connectors, Core Boost, Memory Boost
    • Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK and additional choke thermal pads are built for high performance system and non-stop gaming experience
    • High Quality PCB: 6-layer PCB made by 2oz thickened copper
    • Lightning Fast Game experience: PCIe 4.0 slot, Lightning Gen 4 x4 M.2
    • Intel Turbo USB 3.2 Gen 2: Powered by Intel USB 3.2 Gen2 controller, Turbo USB ensures an uninterrupted connection with more stability and fastest USB speeds
    • 2.5G LAN with Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
    • AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience.
    Model MSI PRO B760M-A WIFI DDR5
    CPU Support Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors
    CPU Socket LGA1700
    Chipset INTEL B760
    PCB INFO mATX
    243.84mmx243.84mm
    Memory 4x DDR5, Maximum Memory Capacity 256GB
    Memory Support DDR5 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
    Max. overclocking frequency:
    • 1DPC 1R Max speed up to 6800+ MHz
    • 1DPC 2R Max speed up to 6400+ MHz
    • 2DPC 1R Max speed up to 6000+ MHz
    • 2DPC 2R Max speed up to 5600+ MHz

    Supports Intel XMP 3.0 OC
    Supports Dual-Controller Dual-Channel mode
    Supports non-ECC, un-buffered memory
    Audio Realtek ALC897 Codec
    7.1-Channel High Definition Audio
    Storage 2x M.2
    M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
    M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
    4x SATA 6G
    LAN Realtek RTL8125BG 2.5G LAN
    ONBOARD GRAPHICS 2x HDMI
    Support HDMI 2.1, maximum resolution of 4K 60Hz
    2x DisplayPort
    Support DP 1.4, maximum resolution of 4K 60Hz
    Slot 2x PCI-E x16 slot
    1x PCI-E x1 slot
    PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
    PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
    PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
    RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
    USB 2x USB 2.0 (Rear)
    4x USB 2.0 (Front)
    2x USB 5Gbps Type A (Rear)
    4x USB 5Gbps Type A (Front)
    1x USB 5Gbps Type C (Front)
    2x USB 10Gbps Type A (Rear)
    INTERNAL IO 1x Power Connector(ATX_PWR)
    2x Power Connector(CPU_PWR)
    1x CPU Fan
    1x Pump Fan
    2x System Fan
    2x Front Panel (JFP)
    1x Chassis Intrusion (JCI)
    1x Front Audio (JAUD)
    1x Com Port (JCOM)
    2x Addressable V2 RGB LED connector (JARGB_V2)
    1x RGB LED connector(JRGB)
    1x TPM pin header(Support TPM 2.0)
    4x USB 2.0 ports
    4x USB 5Gbps Type A ports
    1x USB 5Gbps Type C ports
    WIRELESS LAN & BLUETOOTH Intel Wi-Fi 6E
    The Wireless module is pre-installed in the M.2 (Key-E) slot
    Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
    Supports 802.11 a/ b/ g/ n/ ac/ ax

    Supports Bluetooth 5.3, FIPS, FISMA

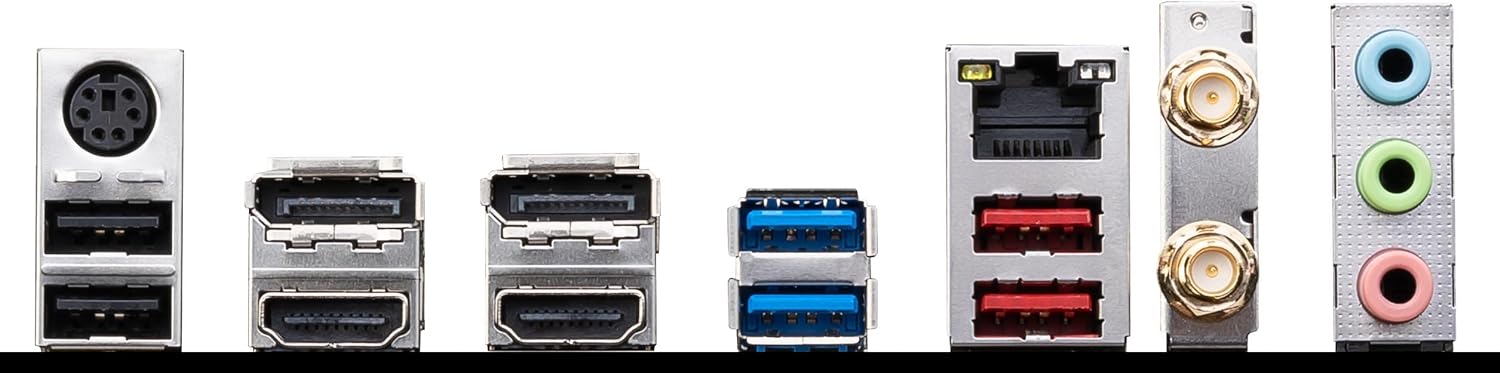

    BACK PANEL PORTS Keyboard / Mouse
    DisplayPort
    USB 3.2 Gen 1 5Gbps (Type-A)
    2.5G LAN
    Wi-Fi / Bluetooth
    Audio Connectors
    USB 2.0
    HDMI™
    USB 3.2 Gen 2 10Gbps (Type-A)
    OPERATING SYSTEM Support for Windows 11 64-bit, Windows 10 64-bit
    Warranty 3 Years Brand Warranty
    Package Contents Motherboard
    European Regulatory Notice
    Quick Installation Guide
    2 x M.2 Screw / Standoff Sets
    SATA Cable
    Wi-Fi Antenna
    I/O Shield
