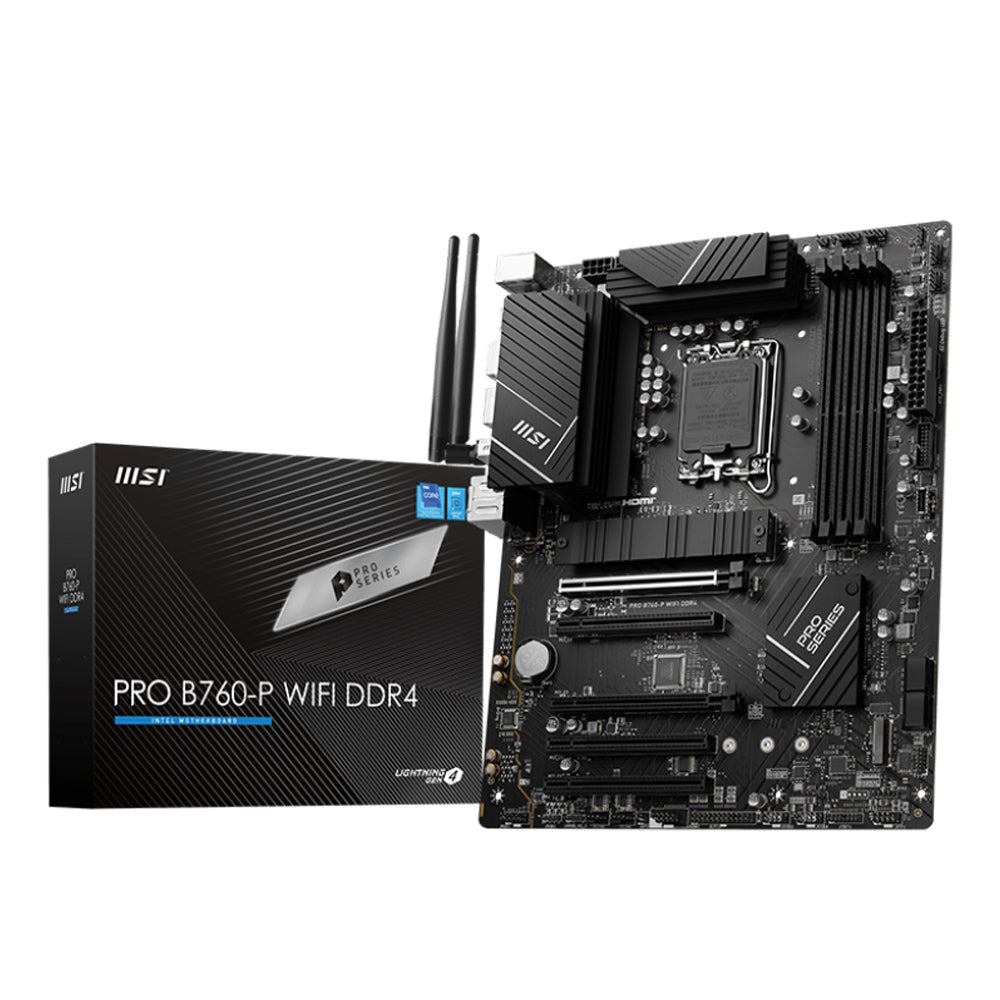

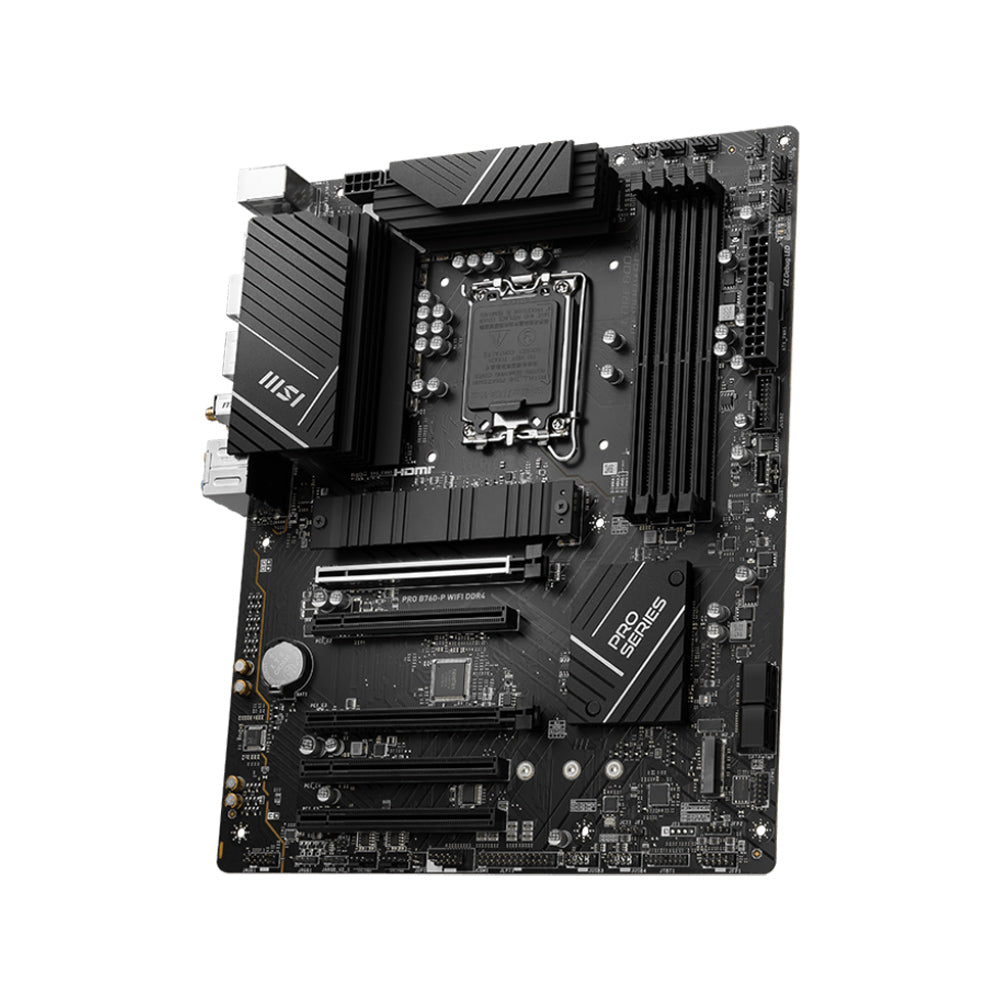

MSI PRO B760-P WIFI DDR4 Intel B760 LGA 1700 ATX Motherboard

MSI PRO B760-P WIFI DDR4 Intel B760 LGA 1700 ATX Motherboard

Brand: MSI
Regular price Rs. 19,799.00
Sale price 42% off Rs. 19,799.00 Sale Sold out Regular price Rs. 33,999.00
  • The MSI motherboard is designed to support latest Intel Socket LGA 1700 for 13th Gen, 12th Gen Intel Core processors and Pentium Gold and Celeron Processors.
  • The motherboard is PCIe 4.0 Ready supporting up to 128GB DDR4 5333+MHz (OC) of memory and Intel Extreme Memory Profile (XMP). The motherboard support next gen PCIe 4.0 M.2 slots making it future proof.
  • Enjoy extended connectivity with the next-gen technology of WIFI 6E, PCIe 4.0, Realtek 2.5Gb Ethernet, USB 3.2 Gen 2 connector, Dual M.2 slots and USB Type-C.
  • Features the most comprehensive cooling options ever that are configurable via FROZR AI Cooling. We can also set up to 4 temperature targets for CPU and motherboard, which will adjust the fan speeds automatically.
  • The motherboard comes with DIY Friendly features. The EZ Debug LED will indicate the source of the problem, so you know exactly where to look to get up and running again.

~section~

MSI PRO B760-P WIFI DDR4 Intel B760 ATX Motherboard - From tpstech.in
MSI PRO B760-P WIFI DDR4 Intel B760 ATX Motherboard - From tpstech.in

DDR4 Memory

With MSI Memory Boost technology and premium layout design, MSI PRO Series motherboards are ready to deliver the world-class memory performance.

MSI PRO B760-P WIFI DDR4 Intel B760 ATX Motherboard - From tpstech.in

Fast Future Ready Storage

MSI PRO series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Higher efficiency makes your work easier.

MSI PRO B760-P WIFI DDR4 Intel B760 ATX Motherboard - From tpstech.in

Lightning Gen 4 PCI-E

MSI lightning Gen 4 PCI-E is the latest and the fastest PCI-E data transfer solution with 64GB/s of unidirectional transfer bandwidth that has doubled compared to its previous generation.

MSI PRO B760-P WIFI DDR4 Intel B760 ATX Motherboard - From tpstech.in

AIDA64 Extreme

AIDA64 Extreme is an almighty application for system information, diagnostics and benchmarks. With the application, you can monitor the detailed hardware and software information on PC and save it to file in multiple formats such as CSV and HTML.

MSI PRO B760-P WIFI DDR4 Intel B760 ATX Motherboard - From tpstech.in

2.5Gb LAN and Wi-Fi 6E

Onboard dual 2.5Gbps LAN with LAN manager and WIFI 6E provides up to 4X network capacity and incredible data transfer speed faster than general Gigabit LAN, delivering the best online gaming experience.

MSI PRO B760-P WIFI DDR4 Intel B760 ATX Motherboard - From tpstech.in

USB 3.2 GEN 2

MSI Pro series motherboard offer a wide variety of options to connect and boost your USB devices, offering never before seen USB speeds up to 10Gb/s when connecting the Rear USB Type-C.

MSI PRO B760-P WIFI DDR4 Intel B760 ATX Motherboard - From tpstech.in

USB Front Type-C

MSI Pro series motherboard support USB Front Type-C that allows gamers to connect with the latest USB devices. Built up a system with MSI PC case to have the most convenient experience.

MSI PRO B760-P WIFI DDR4 Intel B760 ATX Motherboard - From tpstech.in

MSI Center

MSI brand new MSI Center unifies a suite of MSI software utilities into a single centralized application. Take control of advanced motherboards features and unleash endless possibilities.

~section~

Model MSI PRO B760-P WIFI DDR4 Motherboard
CPU Support Supports 13th Gen, 12th Gen Intel Core Processors, Pentium Gold and Celeron Processors
CPU Socket LGA 1700
Chipset Intel B760 Chipset
Form Factor ATX
Memory 4x DDR4 memory slots, supporting up to 128GB
Supports 5333(OC)/ 5200(OC)/ 5066(OC)/ 5000(OC)/ 4800(OC)/
4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/
3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(JEDEC)/
2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) non-ECC, un-buffered memory
Supports Dual-Channel mode
Supports Intel Extreme Memory Profile (XMP)
Display Interface 1x HDMI 2.1, maximum resolution of 4K 60Hz
1x DisplayPort 1.4, maximum resolution of 4K 60Hz
Expansion Slots 2x PCIe 4.0 x16 slots
3x PCIe 3.0 x1 slots
Storage 2x M.2 Gen4 x4 64Gbps slots
4x SATA 6Gbps ports
USB 3x USB 3.2 Gen 2 10Gbps
3x USB 3.2 Gen 1 5Gbps
8x USB 2.0
LAN 1x Realtek RTL8125BG 2.5G LAN
WIFI / Bluetooth Intel Wi-Fi 6E, Bluetooth 5.3
Audio Realtek ALC897 Codec
7.1-Channel High-Definition Audio

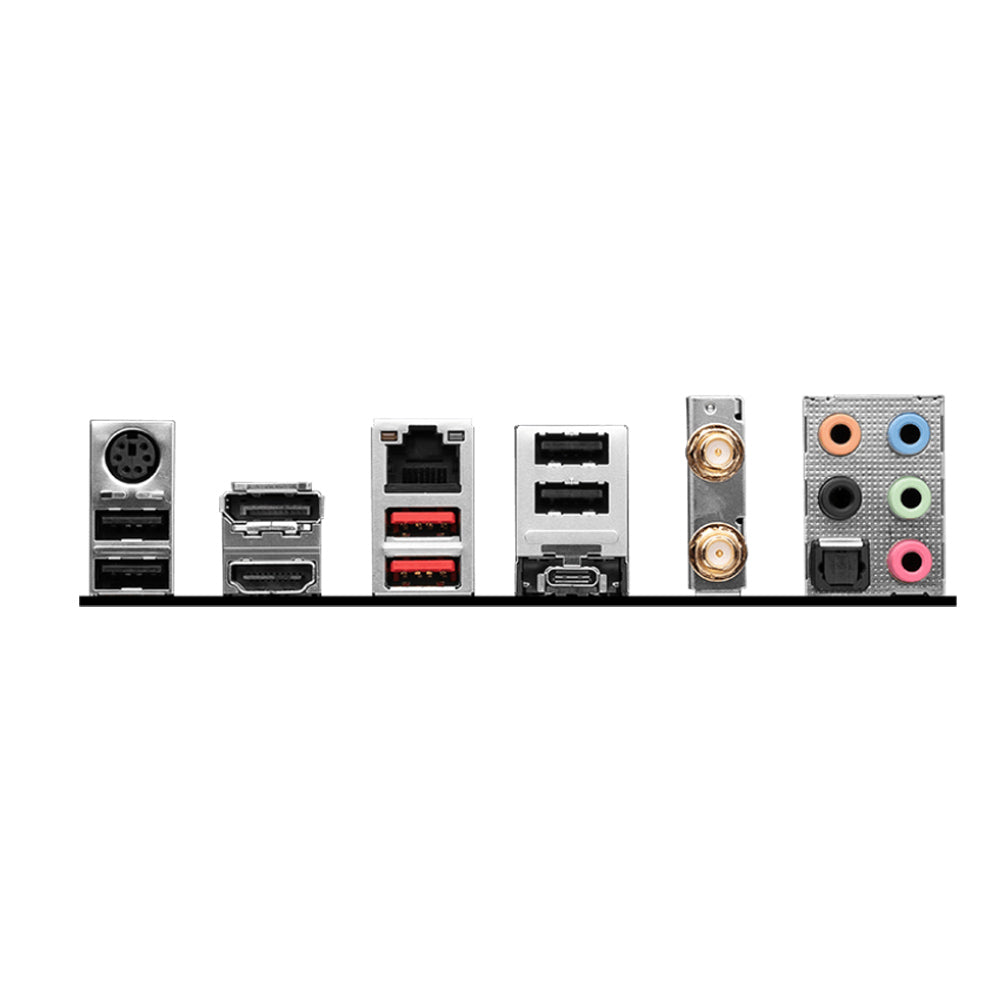

BackPanel Ports 1 x DisplayPort
1 x HDMI 2.1
1 x 2.5G LAN
2 x Wi-Fi / Bluetooth
1 x Keyboard / Mouse
4 x USB 2.0
2 x USB 3.2 Gen 2 10Gbps (Type-A)
1 x USB 3.2 Gen 2 10Gbps (Type-C)
5 x Audio Jacks
1 x Optical S/PDIF Out
Internal I/O Connectors 1x Power Connector (ATX_PWR)
2x Power Connector (CPU_PWR)
1x CPU Fan
1x Pump Fan
5x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Com Port (JCOM)
1x Printer Port (JLPT)
1x TBT connector (JTBT, supports RTD3)
2x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
2x USB 3.2 Gen1 Type A ports
1x USB 3.2 Gen1 Type C ports
LED Features 4x EZ Debug LED
Operating System Support for Windows 11 64-bit, Windows 10 64-bit
Dimension 243.84mm x 304.8mm
Warranty 3 Years Brand Warranty
Package Contents MSI PRO B760-P DDR4 ATX Motherboard
User Manual
Installation Guide
