Product Description:
⭐ Intel LGA1851 Support – Compatible with Intel® Core™ Ultra (Series 2) processors for next‑generation performance.
⚡ High‑Speed DDR5 Support – Dual‑channel DDR5 memory with ultra‑fast bandwidth for smooth multitasking.
🚀 PCIe 5.0 x16 Slot – Supports the latest high‑performance graphics cards with maximum transfer speeds.
🔥 Dual M.2 Slots – Includes one PCIe Gen5 x4 and one Gen4 x4 slot for lightning‑fast SSD storage.
🌐 5G LAN Connectivity – Realtek 5Gbps LAN ensures stable, ultra‑fast wired networking.
🛠️ DIY‑Friendly Features – Includes EZ Debug LEDs and AI‑assisted cooling for easy troubleshooting and optimized thermal performance.
The MSI PRO B860M‑B is a powerful mATX motherboard designed for modern Intel® Core™ Ultra processors. Equipped with DDR5 memory support, PCIe 5.0 graphics capability, and ultra‑fast dual M.2 slots including a Gen5 SSD slot, it delivers exceptional performance for productivity, gaming, and professional workloads. With reliable 5G LAN connectivity, advanced cooling features, and DIY‑friendly enhancements, this board provides a dependable and efficient foundation for high‑performance PC builds.
Product Specifications:
| Specification | Details |
| Chipset | Intel B860 |
| CPU Support | Supports Intel® Core™ Ultra Processors (Series 2) |
| CPU Socket | LGA 1851 |
| Memory | 2× DDR5 UDIMM, Max 128GB |
| Memory Speed Support | DDR5 9066–6400 (OC) MT/s / 6400–4800 (JEDEC) MT/s |
| Max Overclocking | 1DPC 1R: Up to 9066+ MT/s 1DPC 2R: Up to 7200+ MT/s |
| Memory Features | Supports Intel POR Speed, JEDEC Speed, XMP 3.0, Dual‑Channel, Non‑ECC Unbuffered, CUDIMM |
| Additional Memory Notes | Double‑sided latch DIMM slots, speeds vary by CPU configuration |
| Onboard Graphics | 1× HDMI 2.1 (4K@60Hz) 1× DisplayPort 1.4 (4K@60Hz) Requires CPU with integrated graphics |
| Expansion Slots | 1× PCIe 5.0 x16 (CPU) 1× PCIe 4.0 x1 (Chipset) |
| Audio | Realtek® ALC897 7.1‑Channel HD Audio |
| Storage | 2× M.2 (1× PCIe 5.0 x4, 1× PCIe 4.0 x4) 4× SATA 6Gbps |
| USB (Rear) | 4× USB 2.0 2× USB 5Gbps Type‑A 1× USB 20Gbps Type‑C |
| USB (Front) | 4× USB 2.0 2× USB 5Gbps Type‑A 1× USB 10Gbps Type‑C |
| LAN | Realtek® 8126 5Gbps LAN |
| Internal I/O | ATX_PWR, CPU_PWR, 1× CPU Fan, 2× System Fan, 2× JFP, JCI, JAUD, JCOM, JDASH, 3× ARGB (JARGB_V2), 1× RGB (JRGB), TPM 2.0 Header, 4× USB 2.0, 2× USB 5Gbps Type‑A, 1× USB 10Gbps Type‑C |
| LED Features | 4× EZ Debug LED, 1× EZ Memory Detection LED |

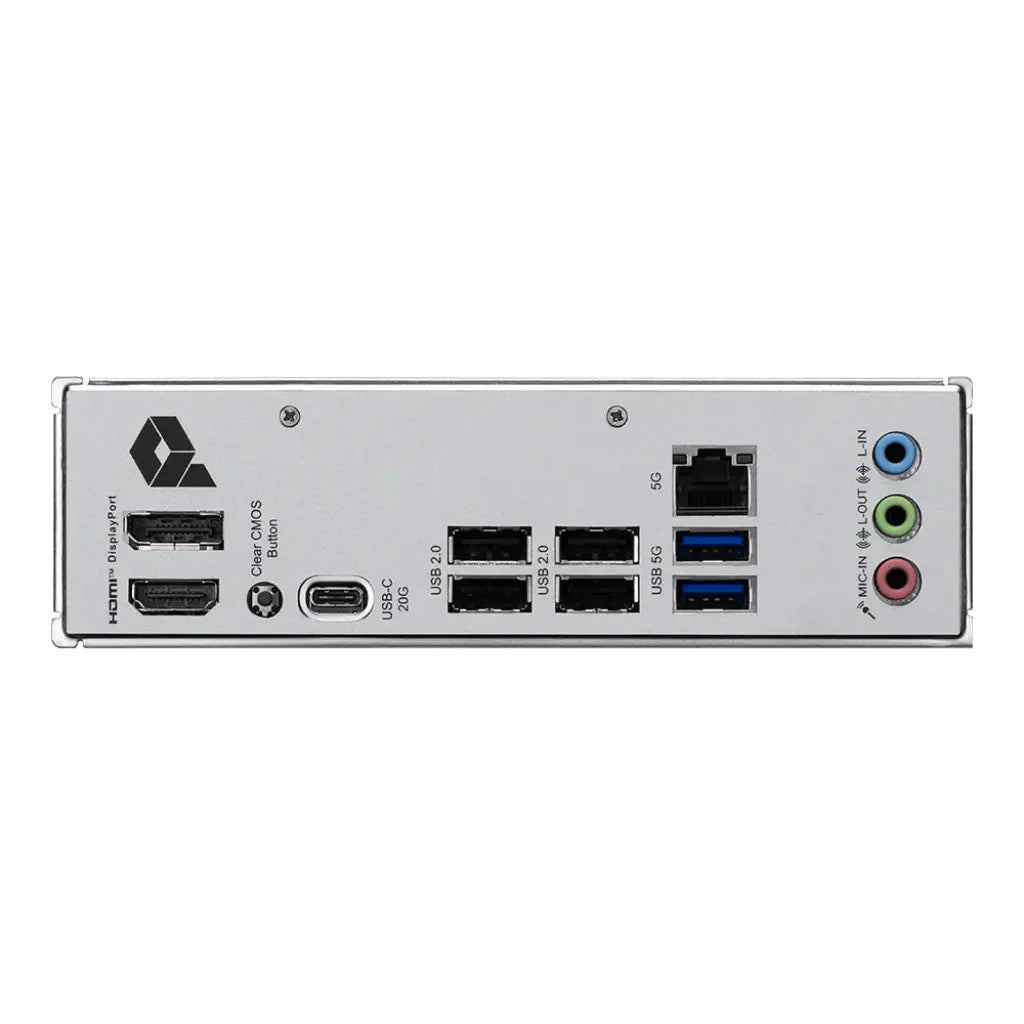

| Back Panel Ports | DisplayPort, HDMI, Clear CMOS Button, USB 20Gbps Type‑C, USB 5Gbps Type‑A, USB 2.0, 5G LAN, Audio Jacks |
| Operating System Support | Windows® 11 64‑bit |
| Country of Origin | Taiwan |
| Warranty | 3 Years |
| Weight | 1.2 kg |
