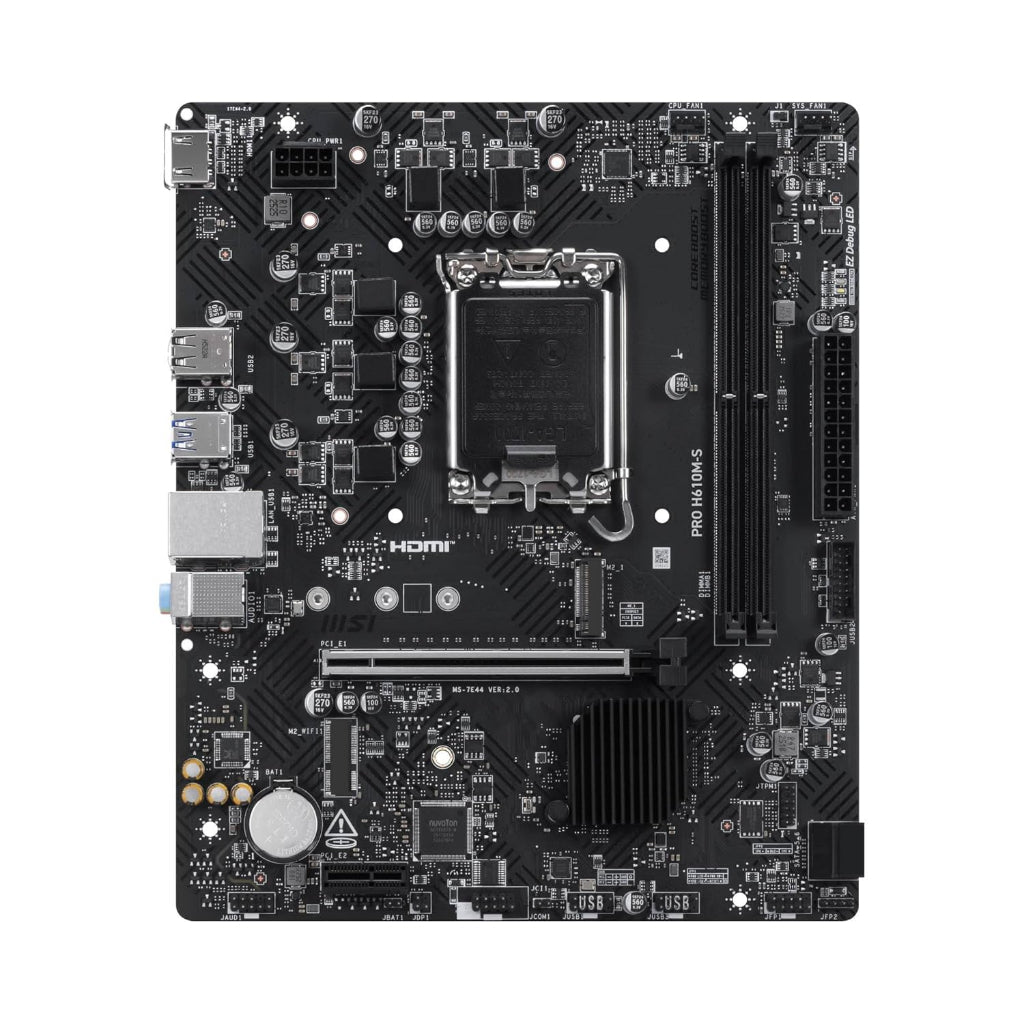

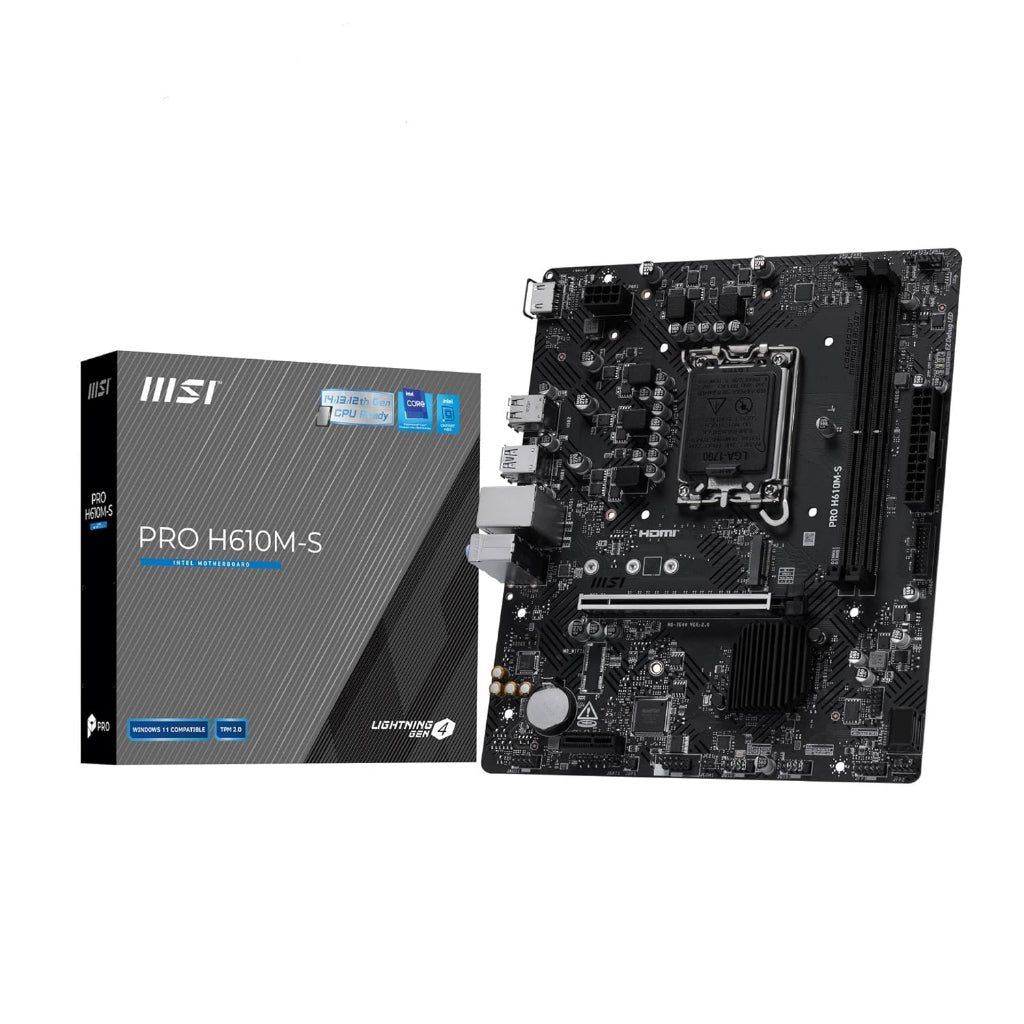

MSI PRO H610M-S DDR5 Intel H610 Micro-ATX Motherboard
MSI PRO H610M-S DDR5 Intel H610 Micro-ATX Motherboard
- Pan India Free Shipping
- Easy 7-Days Return Policy
- Original Brand Warranty
- 100% Genuine Product
- Highly ⭐ Rated on Trustpilot & Google
- > 15 Lakh Orders Fulfilled
Couldn't load pickup availability
Product Description:
MSI PRO H610M-S DDR5 — Next-Gen Memory, Proven Stability
The MSI PRO H610M-S DDR5 is a compact Micro-ATX motherboard built on the Intel H610 chipset, engineered for users who want to step into the DDR5 era without breaking the bank. Supporting Intel 12th and 13th Gen Core processors via the LGA1700 socket, this board combines modern connectivity, fast storage options, and MSI's renowned build quality into an affordable, space-efficient package.
Whether you're assembling a productivity workstation, a home office PC, or an entry-level gaming rig, the PRO H610M-S DDR5 delivers the essentials — DDR5 memory bandwidth, PCIe 4.0 GPU support, M.2 NVMe storage, and reliable Gigabit LAN — all in a form factor that fits virtually any standard case. MSI's EZ Debug LED and user-friendly BIOS make it a builder-friendly choice for first-timers and experienced enthusiasts alike.
- ✅ DDR5 Memory Support for Future-Ready Performance: Two DIMM slots support up to 32GB of DDR5 memory (up to 4800MHz), delivering significantly higher bandwidth over DDR4 for faster multitasking, content creation, and responsive everyday computing.
- ✅ Intel 12th & 13th Gen Core Compatibility: LGA1700 socket supports the full range of Alder Lake and Raptor Lake processors — from Core i3 to Core i9 — giving you flexibility to upgrade your CPU without changing the board.
- ✅ PCIe 4.0 x16 & M.2 NVMe Storage: One PCIe 4.0 x16 slot accommodates the latest discrete GPUs, while the onboard M.2 slot (PCIe 4.0 x4) enables ultra-fast NVMe SSD speeds for near-instant boot times and rapid file transfers.

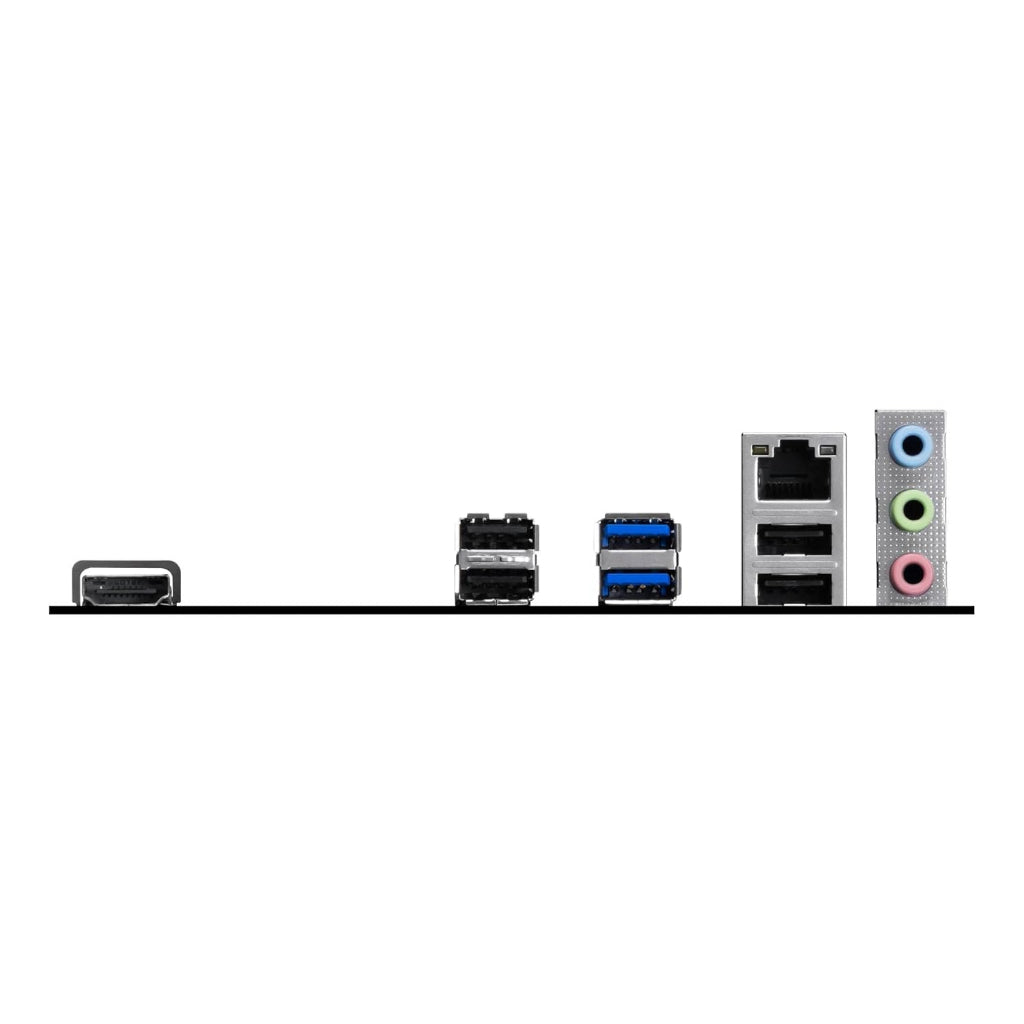

- ✅ Comprehensive I/O & Display Outputs: Rear I/O includes USB 3.2 Gen 1, USB 2.0, HDMI 1.4, and D-Sub (VGA) ports, plus Realtek Gigabit LAN and 7.1-channel HD audio — covering all essential peripherals and integrated graphics display needs.
- ✅ Micro-ATX Form Factor with EZ Debug LED: The compact 226 x 226mm board fits Micro-ATX and ATX cases, while MSI's EZ Debug LED simplifies troubleshooting by instantly indicating CPU, DRAM, VGA, or boot device issues during POST.
Technical Specifications
| Specification | Details |
|---|---|
| Model | PRO H610M-S DDR5 |
| Chipset | Intel H610 |
| CPU Socket | LGA1700 (Intel 12th & 13th Gen Core) |
| Form Factor | Micro-ATX (226 x 226mm) |
| Memory Slots | 2 x DDR5 DIMM |
| Max Memory | 32GB DDR5 (up to 4800MHz) |
| PCIe Slots | 1 x PCIe 4.0 x16 (GPU), 1 x PCIe 3.0 x1 |
| M.2 Slots | 1 x M.2 (PCIe 4.0 x4 / SATA) |
| SATA Ports | 4 x SATA 6Gb/s |
| USB (Rear I/O) | 2 x USB 3.2 Gen 1 Type-A, 4 x USB 2.0 |
| Display Output | 1 x HDMI 1.4, 1 x D-Sub (VGA) |
| LAN | Realtek 8125AG 2.5G Ethernet |
| Audio | Realtek ALC897 7.1-Ch HD Audio |
| Power Connectors | 1 x 24-pin ATX, 1 x 8-pin CPU |
| Fan Headers | 1 x CPU Fan, 2 x System Fan |
| Debug Feature | EZ Debug LED (CPU / DRAM / VGA / BOOT) |
| BIOS | 1 x 256Mb Flash (AMI UEFI BIOS) |
