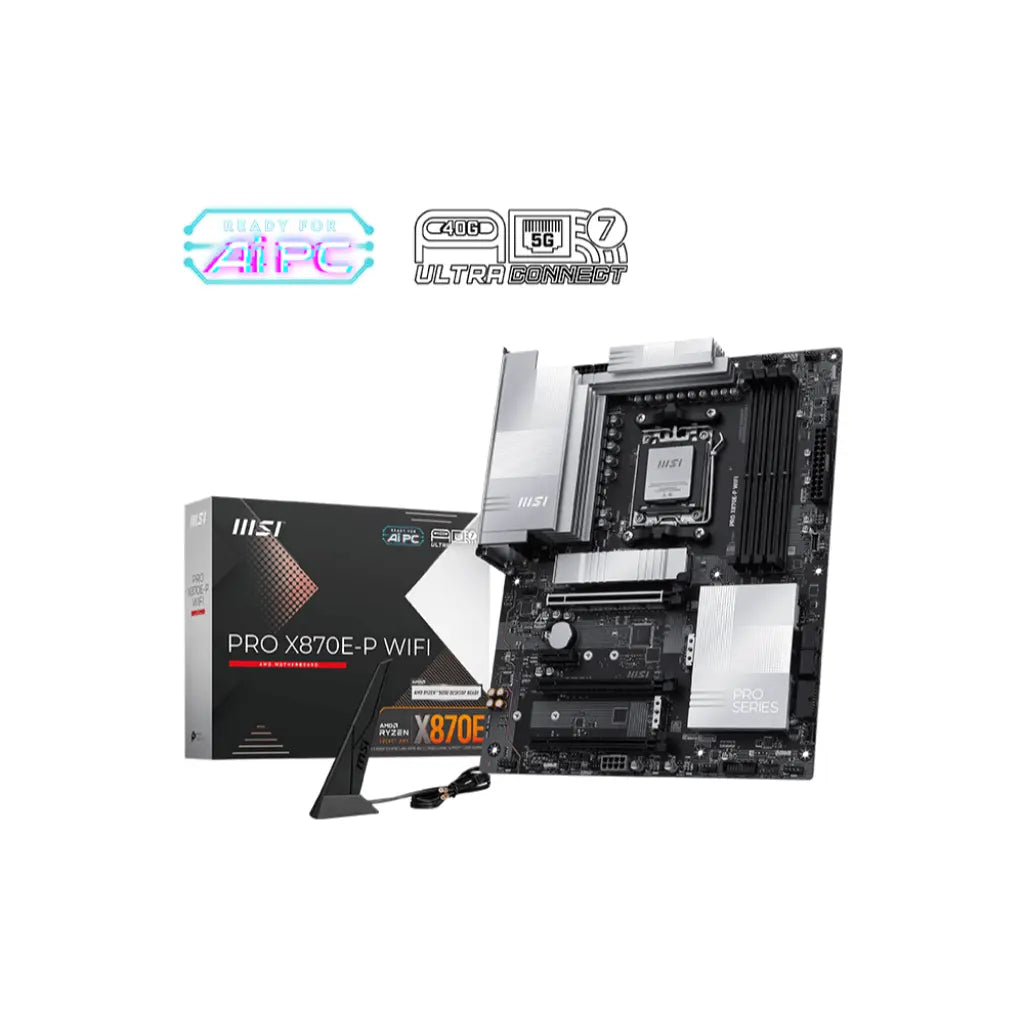

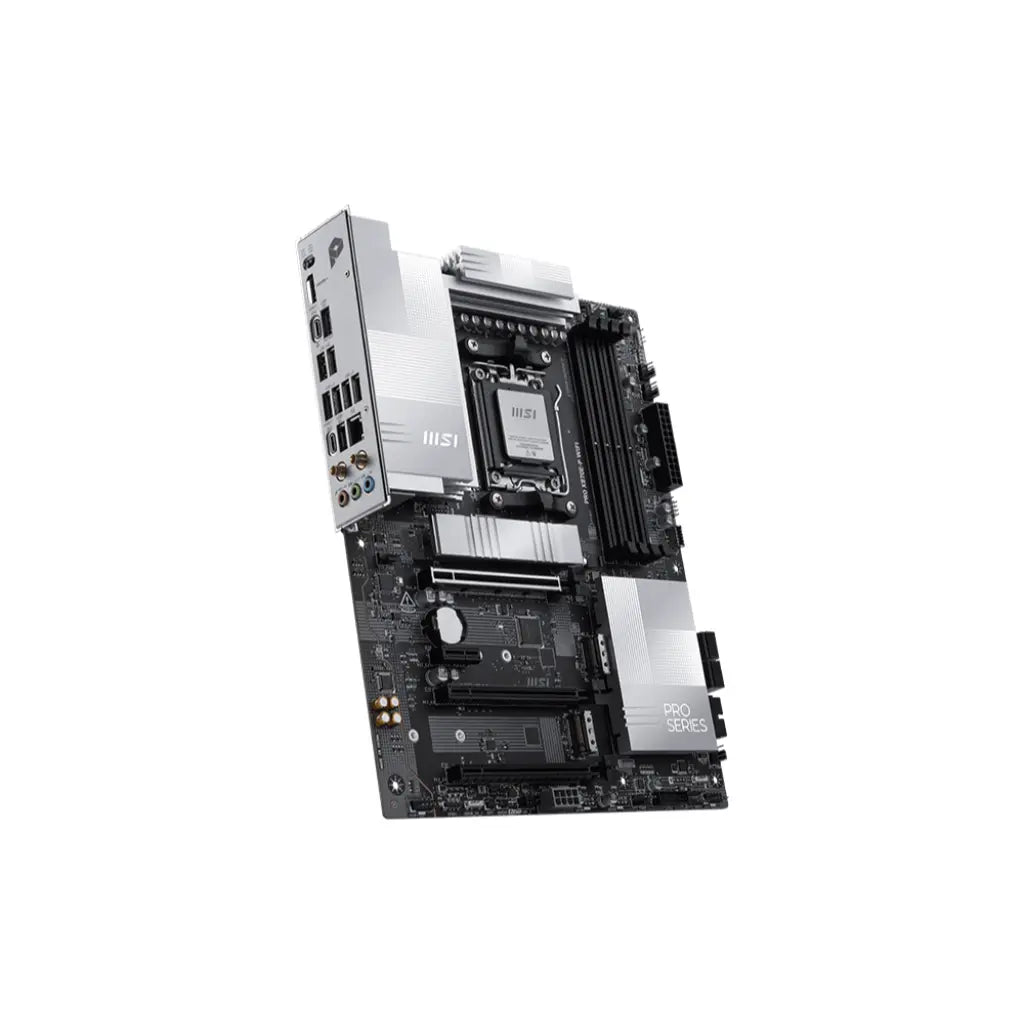

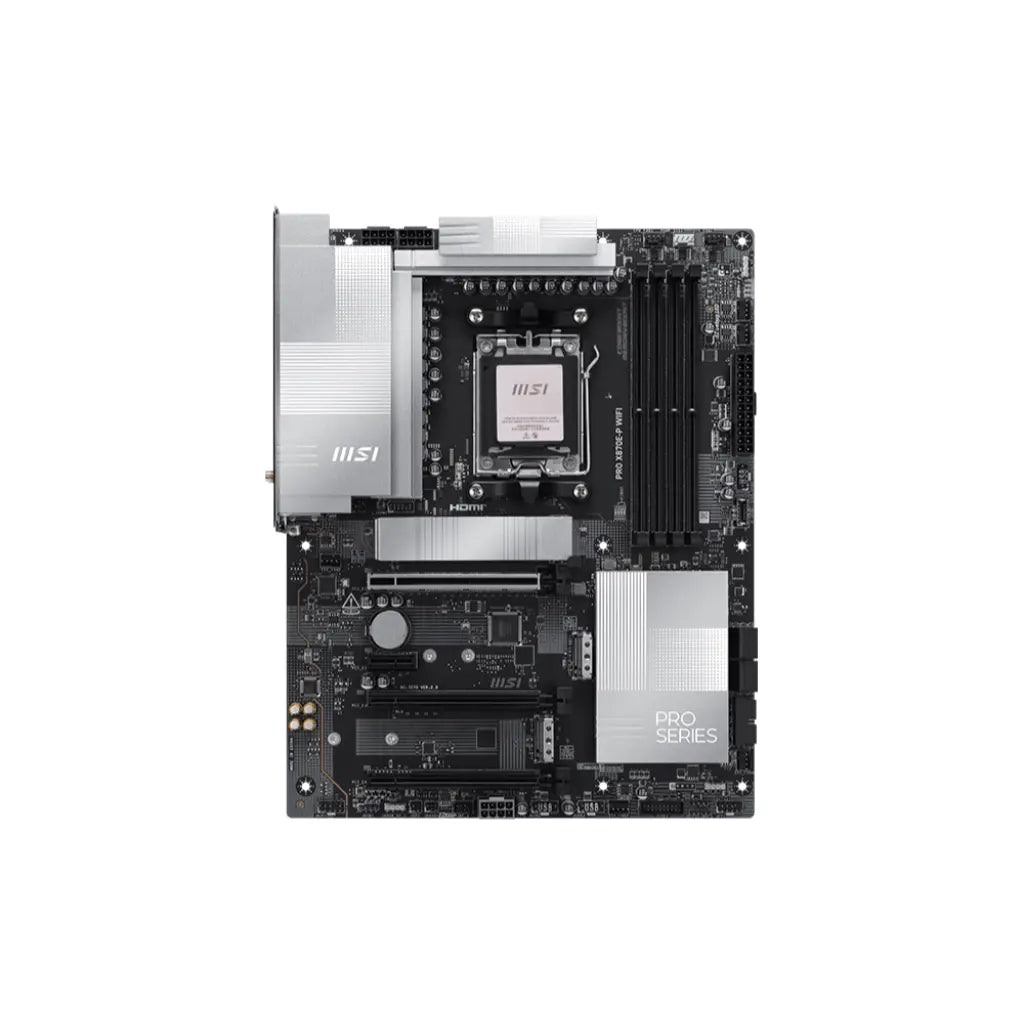

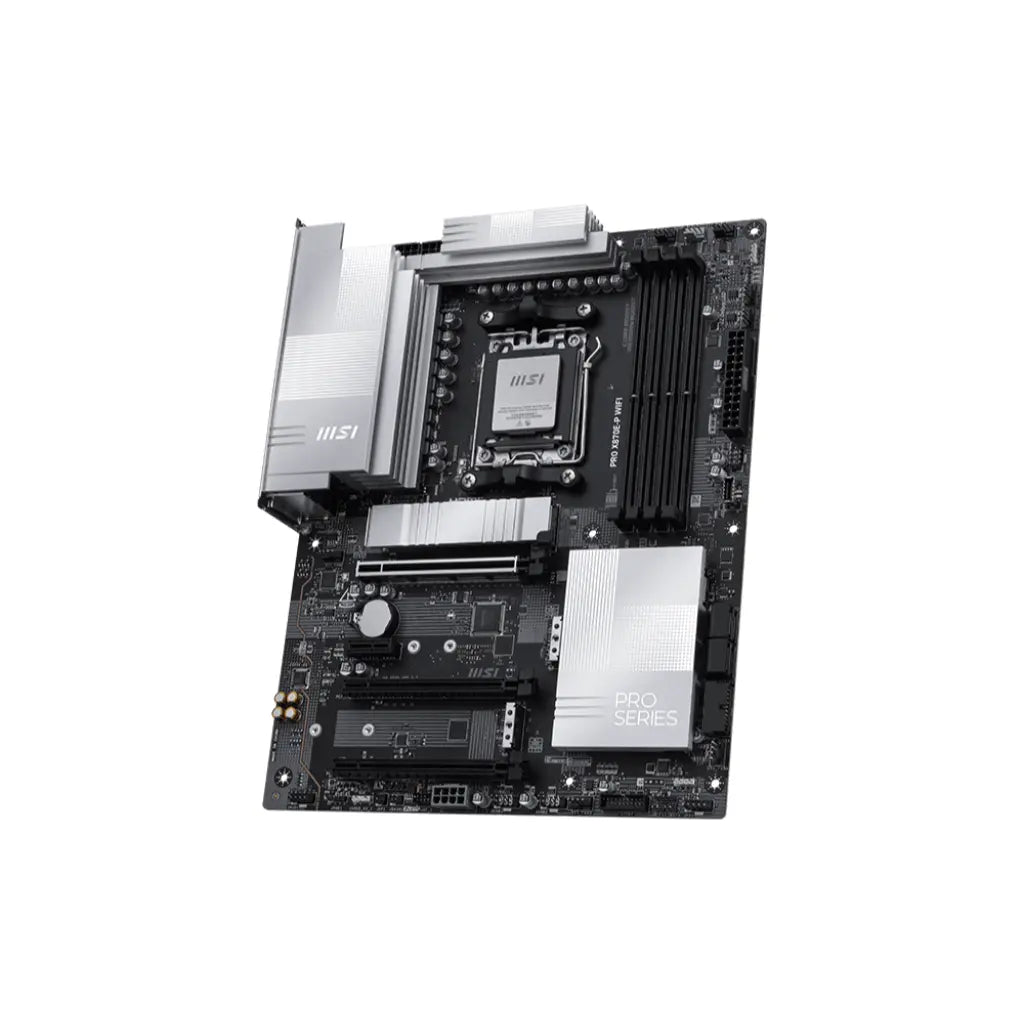

MSI PRO X870E-P WIFI X870E AM5 DDR5 ATX WiFi 7 Motherboard

MSI PRO X870E-P WIFI X870E AM5 DDR5 ATX WiFi 7 Motherboard

Brand: MSI
Rs. 24,460.00
50% off Rs. 47,999.00 Rs. 24,460.00
Sale Sold out
  • 100% Genuine Product
  • Highly ⭐ Rated on Trustpilot & Google
  • > 15 Lakh Orders Fulfilled

Product Description:
🔥 High‑Performance Chipset: X870E chipset delivers ultra‑fast data handling and next‑gen platform stability

⚡ AM5 Ready: Supports AMD Ryzen 9000/8000/7000 processors for extreme multitasking power

🚀 DDR5 Boost: 4‑DIMM slots supporting high‑speed DDR5 for enhanced speed and efficiency

📶 WiFi 7 & 5G LAN: Blazing‑fast wireless connectivity with next‑gen WiFi 7 and 5G network support

🧊 Advanced Cooling: Extended heatsink design with optimized thermal control for stable performance

🔗 PCIe 5.0 & M.2 Gen5: High‑bandwidth PCIe 5.0 slot and Gen5 M.2 for lightning‑fast storage

The MSI PRO X870E-P WIFI is a high‑performance ATX motherboard designed for next‑gen AMD Ryzen processors on the AM5 platform. Featuring the advanced X870E chipset, ultra‑fast DDR5 memory support, PCIe 5.0 expansion, and M.2 Gen5 storage compatibility, it delivers exceptional speed and reliability. Equipped with WiFi 7, 5G LAN, extended heatsinks, and robust power delivery, this motherboard ensures smooth multitasking, superior connectivity, and efficient cooling—perfect for professional, gaming, and productivity‑focused PC builds.

Product Specifications:

Specification Details
Chipset AMD X870E
CPU Support AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
Socket AM5
Memory Slots & Capacity 4× DDR5 UDIMM, Max Capacity 256GB
Memory Speeds DDR5 8200–5600 (OC) MT/s / 5600–4800 (JEDEC) MT/s
Ryzen 9000 OC Guidance 1DPC 1R: up to 8200+ MT/s; 1DPC 2R: up to 6400+ MT/s; 2DPC 1R: up to 6400+ MT/s; 2DPC 2R: up to 6000+ MT/s
Memory Features Supports AMD POR & JEDEC speeds; Memory Overclocking; AMD EXPO™; Dual‑Channel mode; Non‑ECC, Unbuffered; CUDIMM (Clock Driver bypass only)*
Memory Notes *CUDIMM support and POR boot frequency vary by CPU; manual OC available after boot; some CPUs may fail to boot—future BIOS updates will improve compatibility. DIMM slots have double‑sided latches. Speeds may vary by CPU and memory configuration.
Onboard Graphics 1× HDMI™ (HDMI 2.1, up to 4K@60Hz*); 1× Type‑C DisplayPort via USB4® (DP 1.4 HBR3, up to 4K@60Hz*)
Graphics Notes *Available only with processors featuring integrated graphics; specifications vary by CPU.
Expansion Slots 3× PCIe x16, 1× PCIe x1
PCIe Lane Mapping PCI_E1: PCIe 5.0 up to x16 (from CPU); PCI_E2: PCIe 3.0 up to x1 (from chipset); PCI_E3: PCIe 4.0 up to x4 (from chipset); PCI_E4: PCIe 3.0 up to x1 (from chipset)
PCI_E1 Support by CPU Ryzen™ 9000/7000: PCIe 5.0 x16; Ryzen™ 8700/8600/8400: PCIe 4.0 x8; Ryzen™ 8500/8300: PCIe 4.0 x4
Audio Realtek® ALC897, 7.1‑Channel HD Audio
Storage 3× M.2 and 4× SATA 6G
M.2 Slot Details M.2_1 (from CPU): up to PCIe 5.0 x4, 2280/2260; M.2_2 (from chipset): up to PCIe 4.0 x4, 2280/2260; M.2_3 (from chipset): up to PCIe 4.0 x4, 22110/2280
M.2 by CPU M2_1: up to PCIe 5.0 x4 (Ryzen™ 9000/7000); up to PCIe 4.0 x4 (Ryzen™ 8000)
M.2 Note Refer to manual for M.2 SSD heatsink restrictions.
RAID (SATA) RAID 0, RAID 1, RAID 10
RAID (NVMe M.2) RAID 0, RAID 1, RAID 5**
RAID Note **RAID 5 supported only on Ryzen™ 9000 Series processors.
USB (Rear Panel) 4× USB 2.0; 2× USB 5Gbps Type‑A; 2× USB 10Gbps Type‑A; 1× USB 20Gbps Type‑C; 1× USB 40Gbps Type‑C
USB (Front Panel Headers) 6× USB 2.0; 4× USB 5Gbps Type‑A; 1× USB 10Gbps Type‑C
LAN Realtek® 8126VB 5G LAN
Wireless LAN Wi‑Fi 7 (802.11be), pre‑installed in M.2 Key‑E; MU‑MIMO TX/RX; 2.4/5/6 GHz (320 MHz) up to 5.8 Gbps; Supports 802.11 a/b/g/n/ac/ax/be
Bluetooth Bluetooth® 5.4***, MLO, 4KQAM
Wireless Notes 6 GHz band depends on country regs; Wi‑Fi 7 ready in Windows 11 24H2. ***Bluetooth version may be updated; Bluetooth 5.4 ready in Windows 11 24H2.
Internal I/O & Headers 1× ATX_PWR; 2× CPU_PWR; 1× PCIE_PWR (8‑pin); 1× CPU Fan; 1× Pump_Sys (Combo Fan); 6× System Fan; 1× EZ Conn‑header (JAF_1); 2× Front Panel (JFP); 1× Chassis Intrusion (JCI); 1× Front Audio (JAUD); 1× Tuning Controller (JDASH); 3× Addressable V2 RGB (JARGB_V2); 1× RGB (JRGB); 1× TPM header (TPM 2.0)
LED Features 4× EZ Debug LED, 1× EZ Memory Detection LED

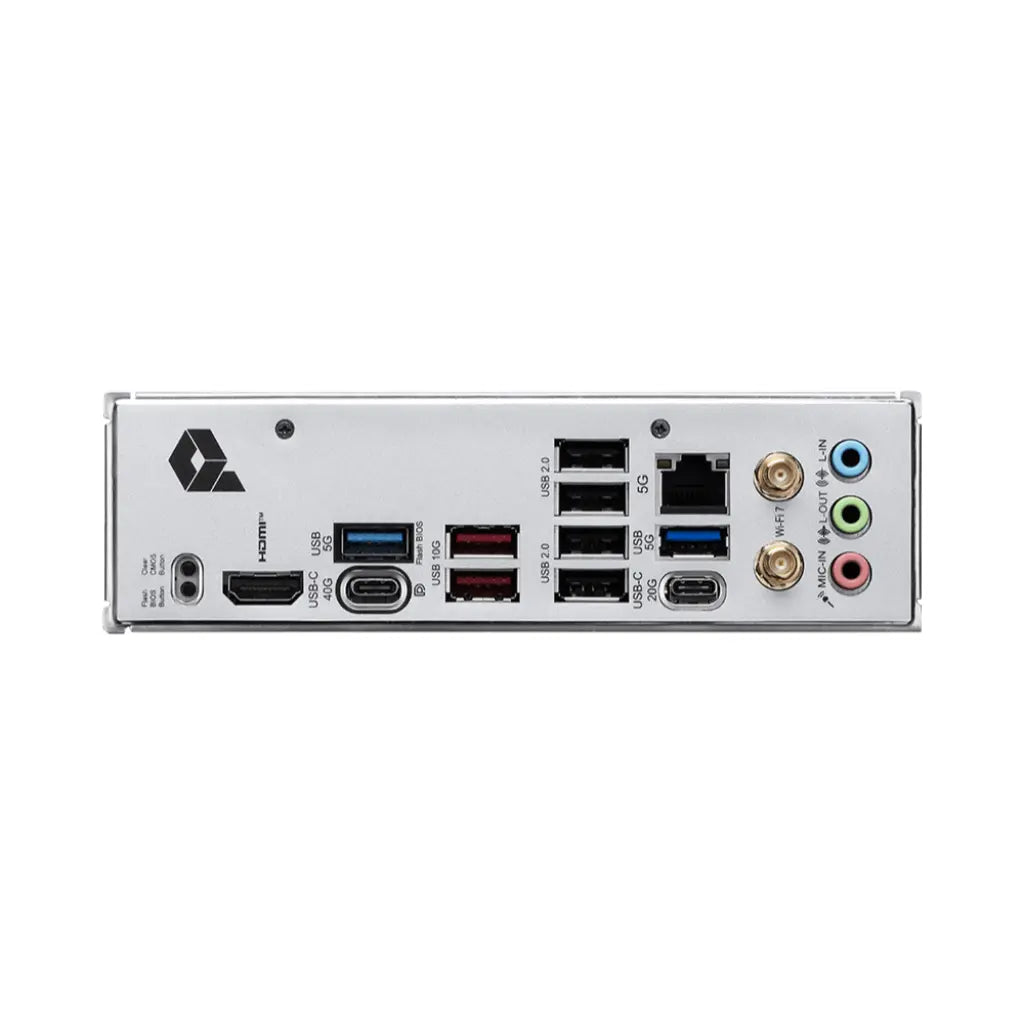

Back Panel I/O Clear CMOS Button; USB 5Gbps Type‑A; USB 2.0; 5G LAN; Wi‑Fi/Bluetooth; Audio connectors; Flash BIOS Button; HDMI™; USB 40Gbps Type‑C; USB 10Gbps Type‑A; USB 20Gbps Type‑C; USB 5Gbps Type‑A
Operating System Windows® 11 64‑bit
Country of Origin China
Weight 2.5 kg
Warranty 3 Years
