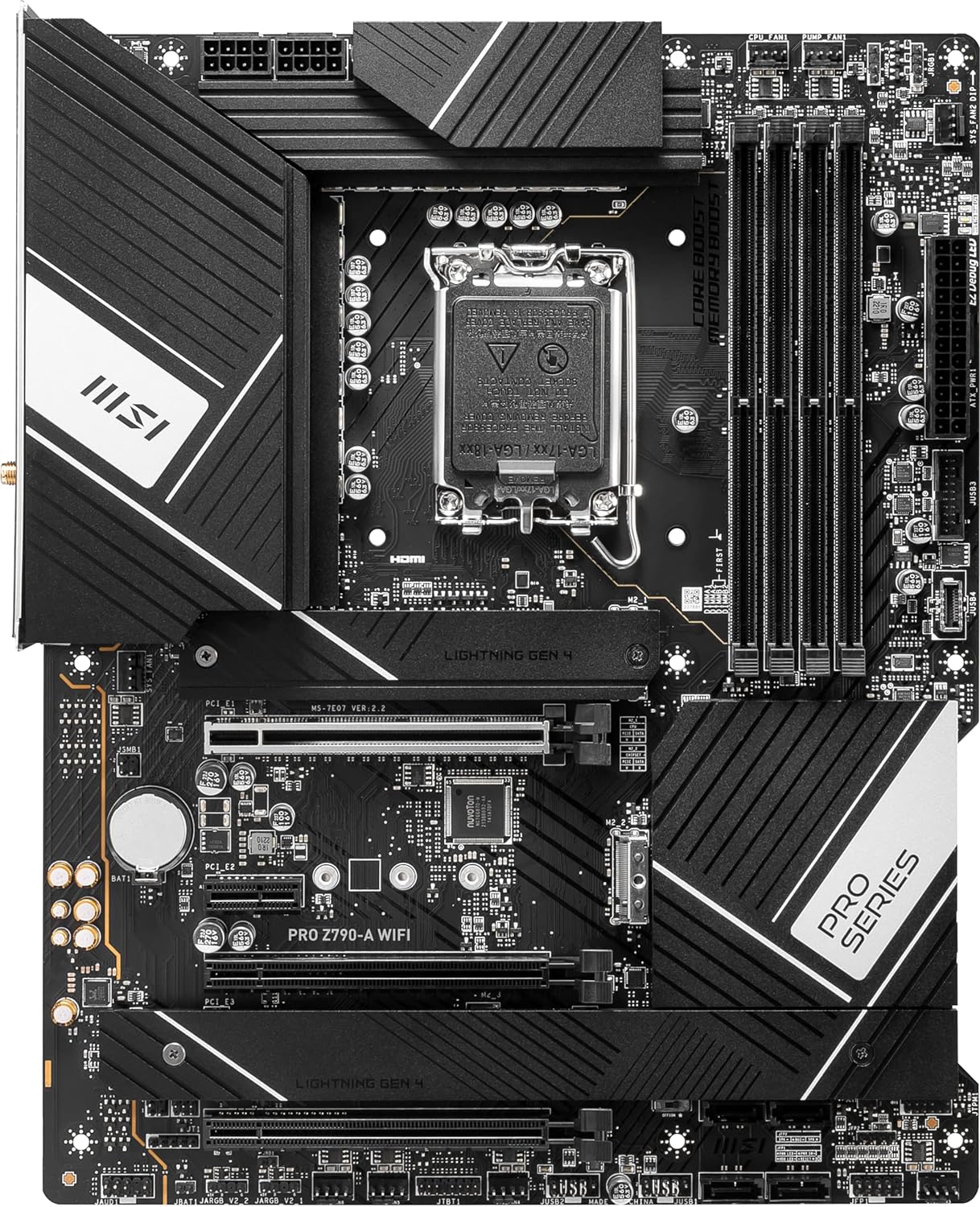

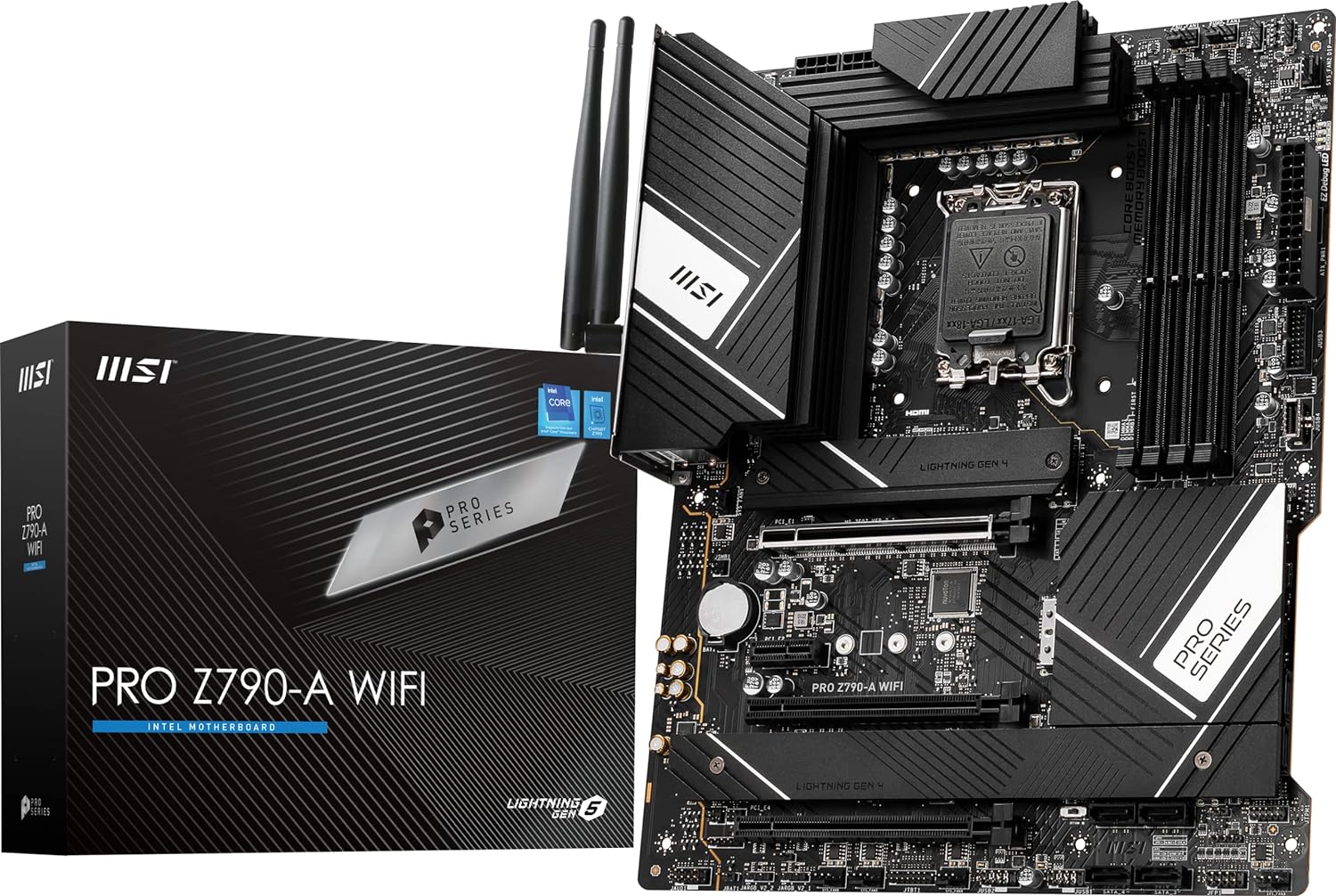

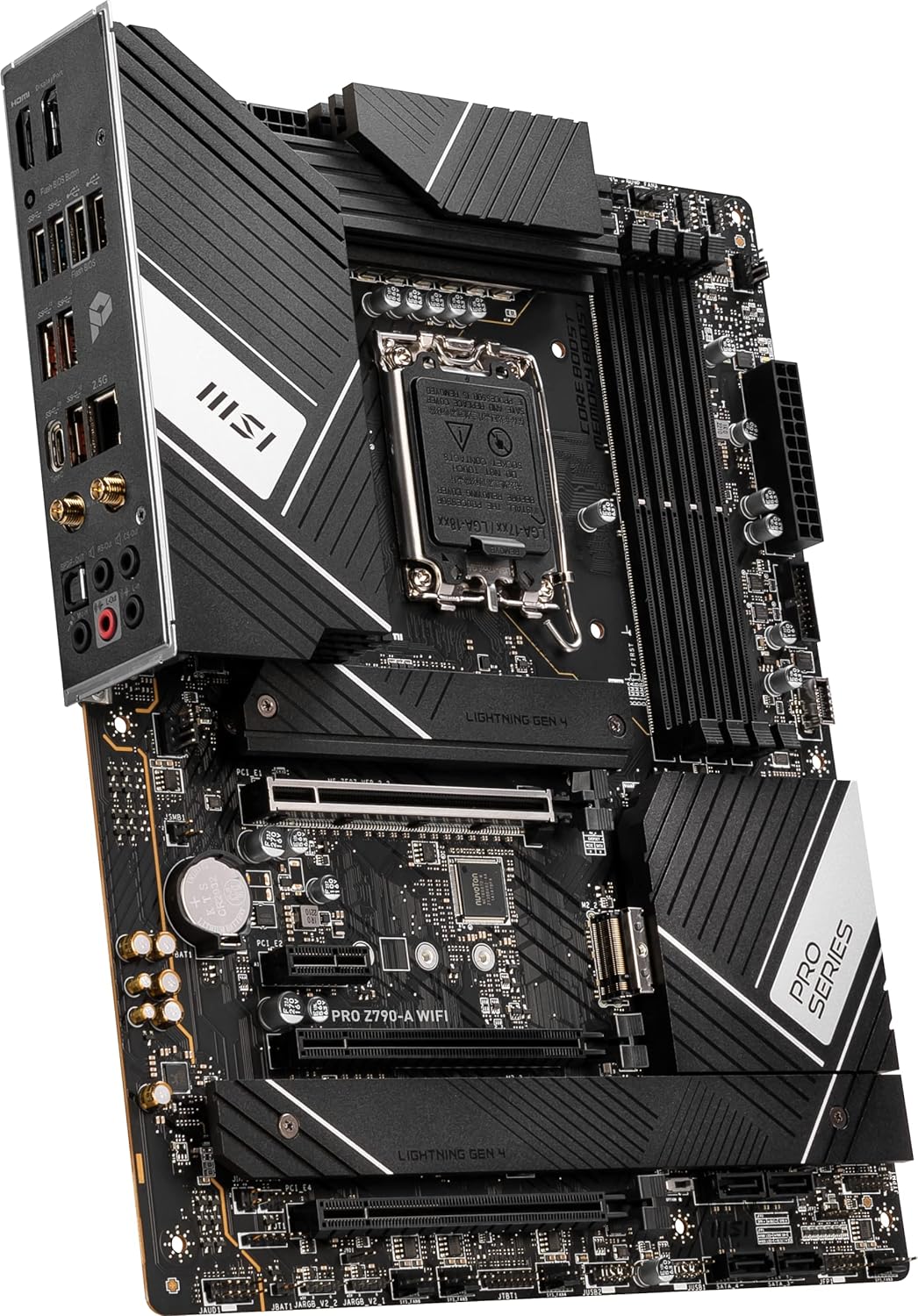

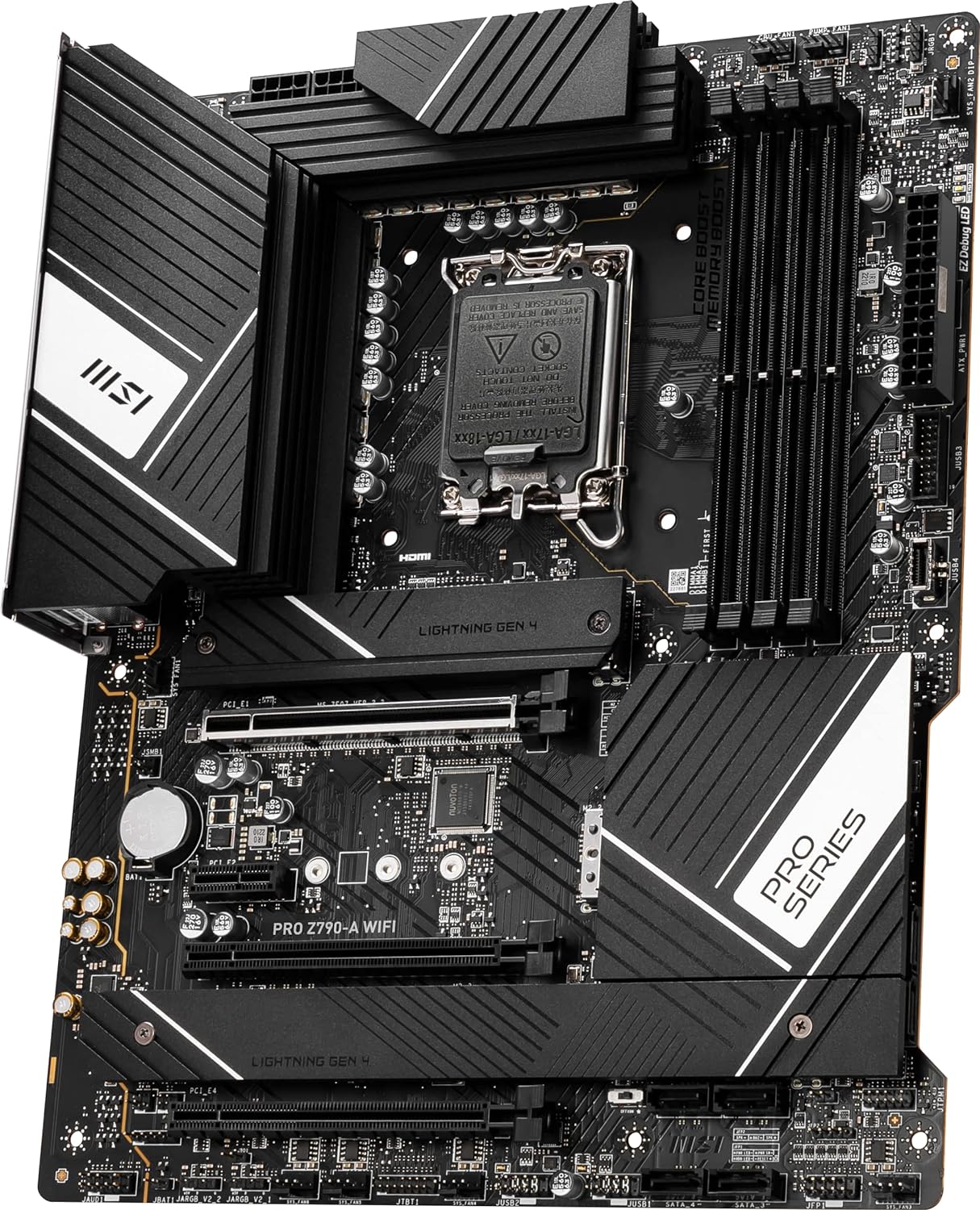

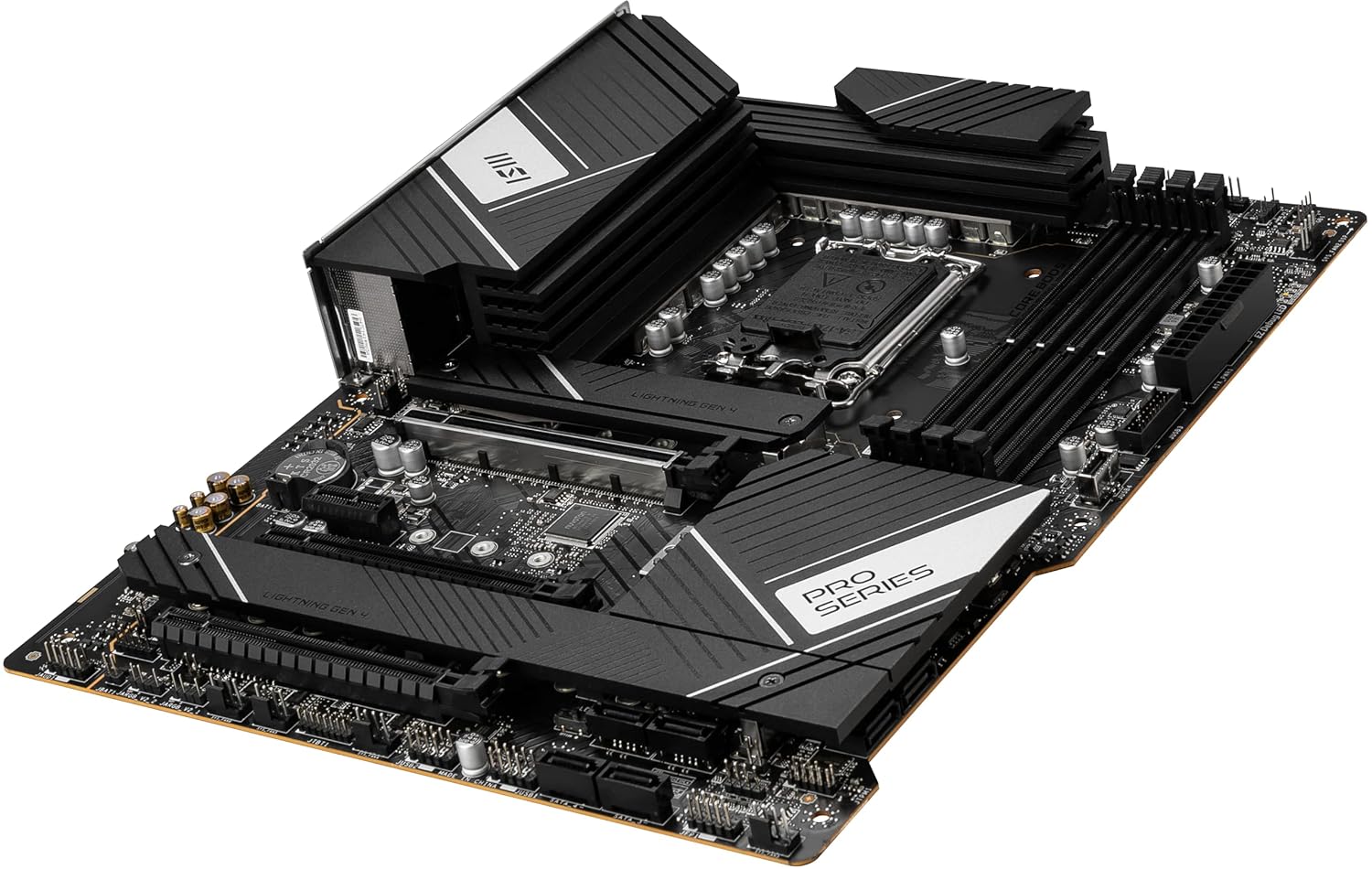

MSI PRO Z790-A WiFi Intel Chipset LGA1700 DDR5 ATX Gaming Motherboard
MSI PRO Z790-A WiFi Intel Chipset LGA1700 DDR5 ATX Gaming Motherboard
Regular price
Rs. 28,940.00
Regular price
40% off
Rs. 47,899.00
Sale price
Rs. 28,940.00
Utsav Offer
Quantity
- Free Pan-India Shipping
- Easy 7-Day Returns
- GST Invoice on Every Order
- 100% Genuine, Brand New & Sealed
- Original Manufacturer Warranty
- Trusted Since 2014 Ā· 15 Lakh+ Orders
Couldn't load pickup availability
Extended Heatsink
Extended Heatsink enlarges the surface of heat dissipation and maintain the performance at heavy loads.
Heavy Plated VRM Heatsink
The VRM heatsink covers the upper MOS and helps dissipate the heat.
M.2 Shield Frozr
Strengthened M.2 thermal solution helps keep M.2 SSD safe and ensures incredible performance.
7W/mK Thermal Pad & Additional Choke Pad
High-quality 7W/mK MOSFET thermal pads and additional choke thermal pads ensure stable performance when all cores are runnging at high speed.
Enlarged Chipset Heatsink
The enlarged heatsink is designed to reduce dust and noise and capable of maintaining high efficiency of heat dissipation.
OPTIMIZED FOR WATER COOLING
Designed to support the most popular All-In-One & customized water cooling solutions on the market. A dedicated water pump PIN header supports up to 3 amp, giving you full control of the water pump speed. A clearly marked ākeep-out-zoneā allows for easy and safe installation and a perfect fit.
| Model | MSI PRO Z790-A ATX Motherboard |
| CPU Support | Support IntelĀ® Coreā¢ 14th/ 13th/ 12th Gen Processors, IntelĀ® PentiumĀ® Gold and CeleronĀ® Processors LGA 1700 |
| CPU Socket | LGA 1700 |
| Chipset | Intel Z790 Chipset |
| Form Factor | ATX |
| Memory |
4x DDR5, Maximum Memory Capacity 256GB Memory Support 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz Max. overclocking frequency: ā¢ 1DPC 1R Max speed up to 7200+ MHz ā¢ 1DPC 2R Max speed up to 6600+ MHz ā¢ 2DPC 1R Max speed up to 6400+ MHz ā¢ 2DPC 2R Max speed up to 5600+ MHz Supports IntelĀ®Ā XMP 3.0 OC Supports Dual-Controller Dual-Channel mode Supports non-ECC, un-buffered memory |
| Expansion Slot |
3x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset) |
| RAID |
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices |
| Storage |
4x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 6x SATA 6G |
| USB |
2x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 2.0 ports (Rear) 4x USB 2.0 ports (Front) 2x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) 3x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Front) 1x USB 20Gbps Type C (Rear) |
| LAN | Intel 2.5Gbps LAN |
| WIFI / Bluetooth | Intel Wi-Fi 6E Bluetooth 5.3 |
| Audio |
RealtekĀ ALC4080 Codec 7.1-Channel USB High Performance Audio Supports S/PDIF output |

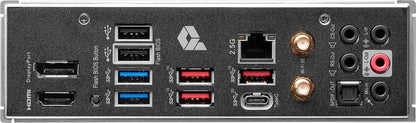

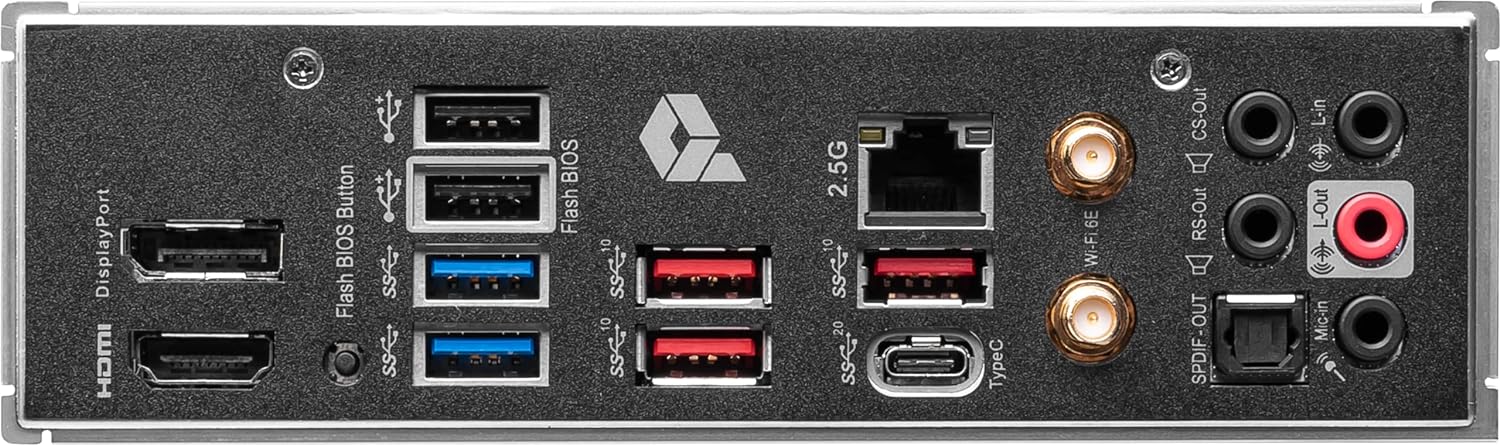

| BackPanel Ports | DisplayPort USB 2.0 2.5G LAN Wi-Fi / Bluetooth Audio Connectors HDMIā¢ Flash BIOS Button USB 3.2 Gen 1 5Gbps (Type-A) USB 3.2 Gen 2 10Gbps (Type-A) USB 3.2 Gen 2x2 20Gbps (Type-C) S/PDIF-OUT |
| Internal I/O Connectors |
1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 6x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x TBT connector (JTBT, supports RTD3) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports |
| LED Features | 4x EZ Debug LED |
| Operating System | Support for Windows 11 64-bit, WindowsĀ 10 64-bit |
| PCB INFO |
ATX 243.84mmx304.8mm |
| Warranty | 3 Years Brand Warranty |

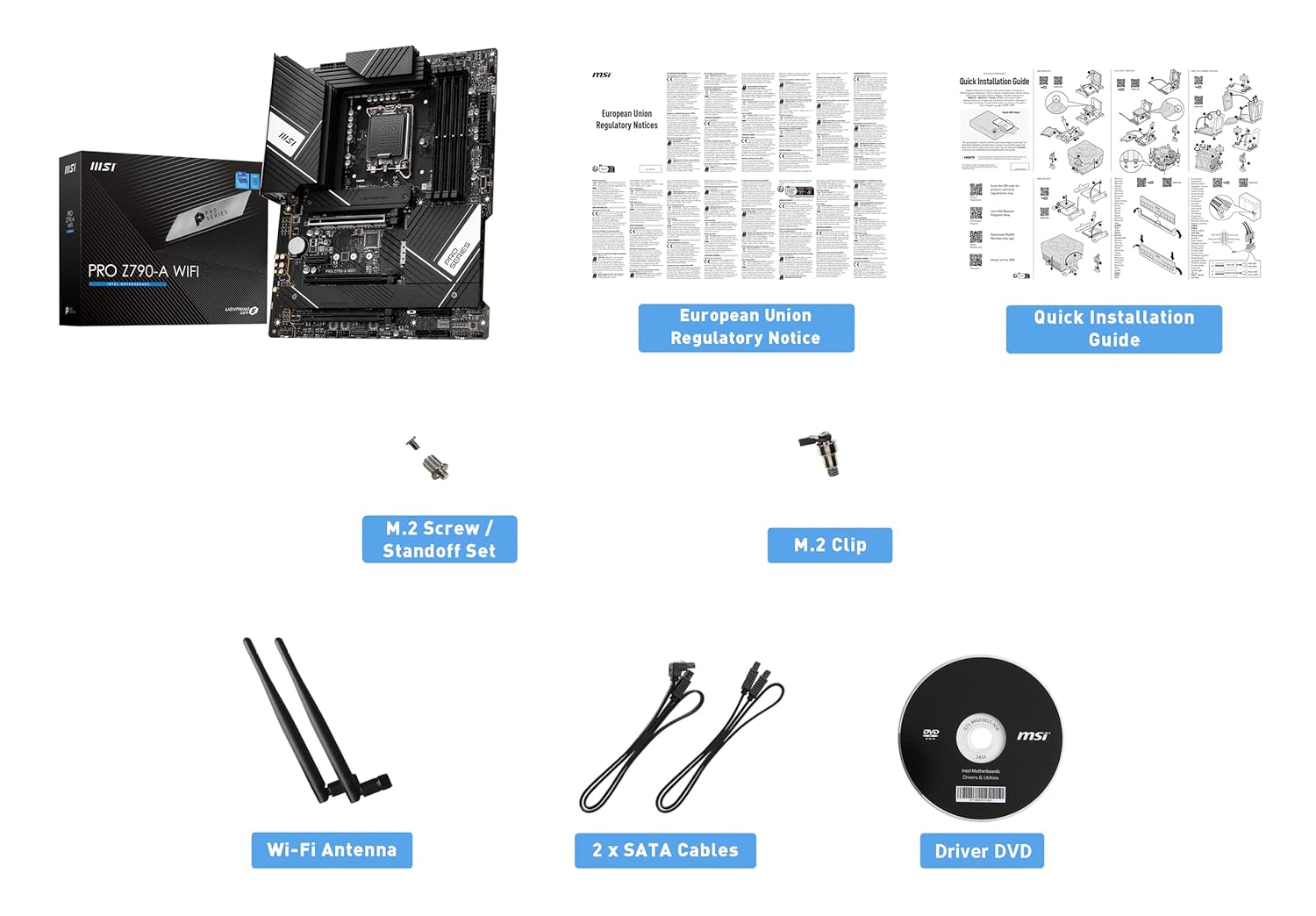

| Package Contents | MSI PRO Z790-A WIFI ATX Motherboard Regulatory Notice Installation Guide M.2 Screw M.2 Clip Wi-Fi Antenna 2x SATA Cables Driver DVD |
