MSI PRO Z790-A MAX WIFI LGA 1700 DDR5 PCIe 5.0 ATX Motherboard

Name: MSI PRO Z790-A MAX WIFI LGA 1700 DDR5 PCIe 5.0 ATX Motherboard
Brand: MSI
SKU: PRO-Z790-A-MAX-WIFI-D5
Price: 28641.00 INR
Availability: OutOfStock

MSI PRO Z790-A MAX WIFI LGA 1700 DDR5 PCIe 5.0 ATX Motherboard

Brand: MSI

Rs. 28,641.00

41% off ~~Rs. 47,899.00~~ Rs. 28,641.00 Utsav Offer

Sale Sold out

Currently out of stock

Ask us for the restock date or an in-stock alternative.

Check stock

Free Pan-India Shipping
Easy 7-Day Returns
GST Invoice on Every Order

100% Genuine, Brand New & Sealed
Original Manufacturer Warranty
Trusted Since 2014 · 15 Lakh+ Orders

View full details

Support Intel^® Core™ 14th/ 13th/ 12th Gen Processors, Intel^® Pentium^® Gold and Celeron^® Processors for LGA 1700 socket

Supports DDR5 Memory, up to 7200+(OC) MHz

Enhanced Power Design: 14+1+1 Duet Rail Power System with DrMOS, dual 8-pin CPU power connectors, Core Boost, Memory Boost

Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads are built for high performance system and non-stop gaming experience

Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr, USB 3.2 Gen 2x2 20G

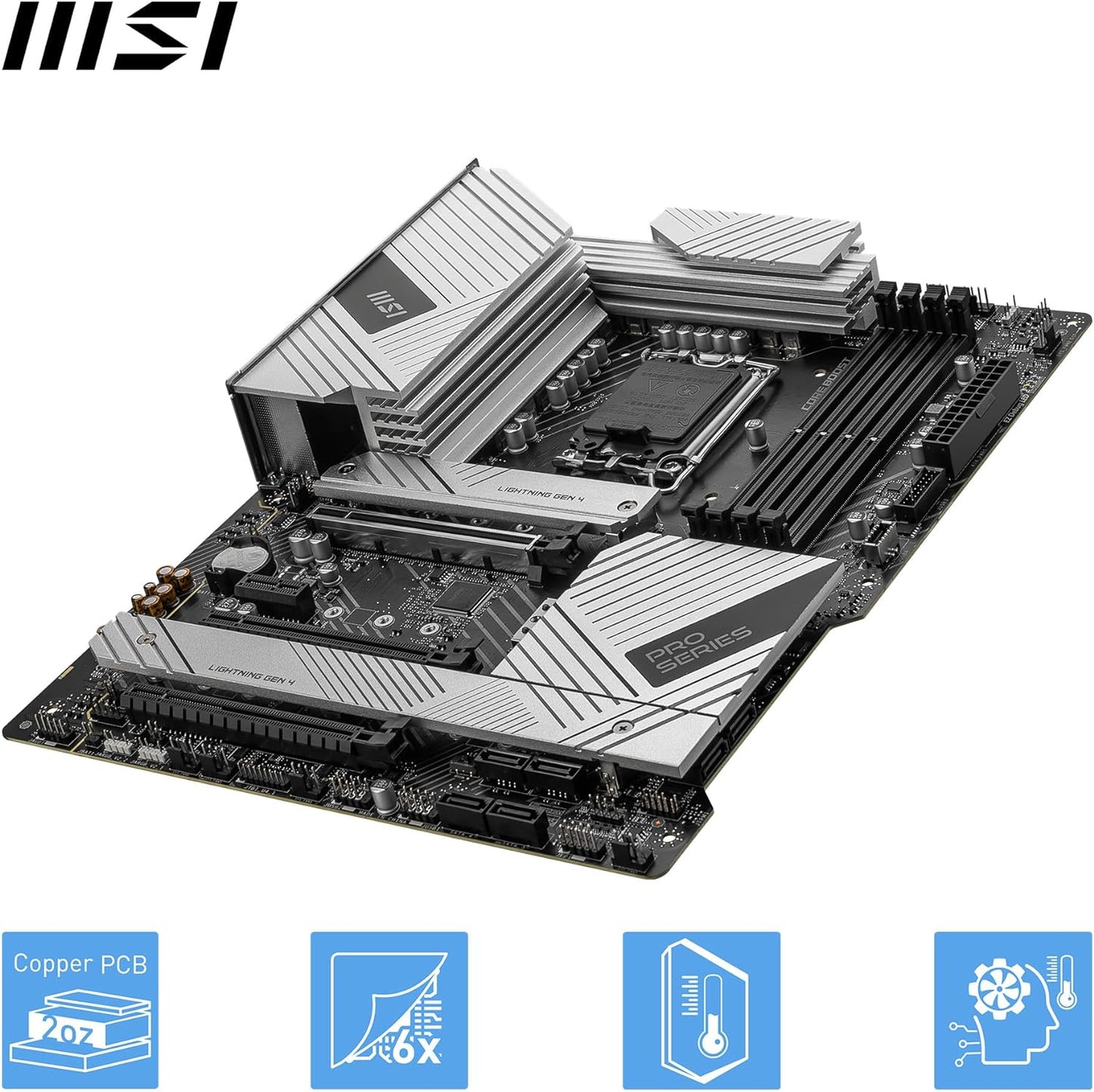

High Quality PCB: 6-layer PCB made by 2oz thickened copper

Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience.

Model	Z790 GAMING PLUS WIFI
CPU Support	Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors
CPU Socket	LGA 1700
Chipset	Intel Z790
Form Factor	ATX
Memory	4x DDR5, Maximum Memory Capacity 256GB Memory Support 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 7200+ MHz • 1DPC 2R Max speed up to 6600+ MHz • 2DPC 1R Max speed up to 6400+ MHz • 2DPC 2R Max speed up to 5600+ MHz Supports Intel XMP3.0 OC Supports Dual-Controller Dual-Channel mode Supports non-ECC, un-buffered memory
Expansion Slot	3x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset)
RAID	Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
Storage	4x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 6x SATA 6G
USB	4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 5Gbps Type A (Rear) 4x USB 5Gbps Type A (Front) 1x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Front) 1x USB 20Gbps Type C (Rear)
WIRELESS LAN & BLUETOOTH	Intel^® Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth^® 5.3, FIPS, FISMA
ONBOARD GRAPHICS	1x HDMI Support HDMI 2.1 HDR, maximum resolution of 4K 60Hz* 1x DisplayPort Support DP 1.4, maximum resolution of 4K 60Hz*
Audio	Realtek ALC897 Codec 7.1-Channel High Definition Audio

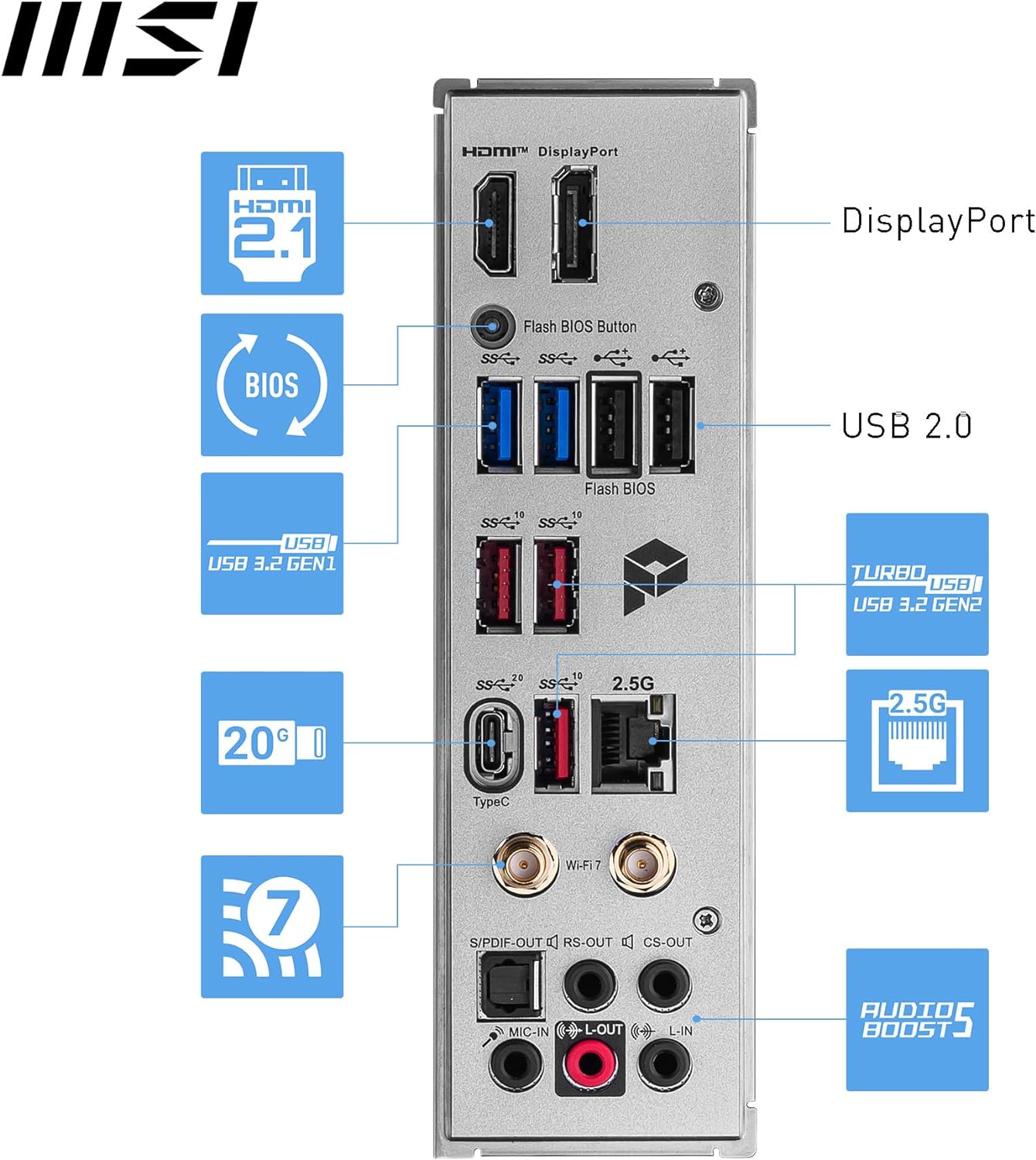

BackPanel Ports	Keyboard / Mouse DisplayPort USB 2.0 2.5G LAN Port Wi-Fi / Bluetooth Antenna Audio Connectors Flash BIOS Button USB 2.0 HDMI™ 2.1 Port USB 3.2 Gen 1 5Gbps Type-A USB 3.2 Gen 2x2 20Gbps Type-C USB 3.2 Gen 2 10Gbps Type-A
Internal I/O Connectors	1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 6x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x TBT connector (JTBT, supports RTD3) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 2x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 1x USB4 card connector (JTBT_U4_1, supports RTD3) 4x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports
LED Feature	4x EZ Debug LED
OPERATING SYSTEM	Support for Windows 11 64-bit, Windows 10 64-bit
PCB INFO	ATX 243.84mmx304.8mm
Warranty	3 Years Brand Warranty

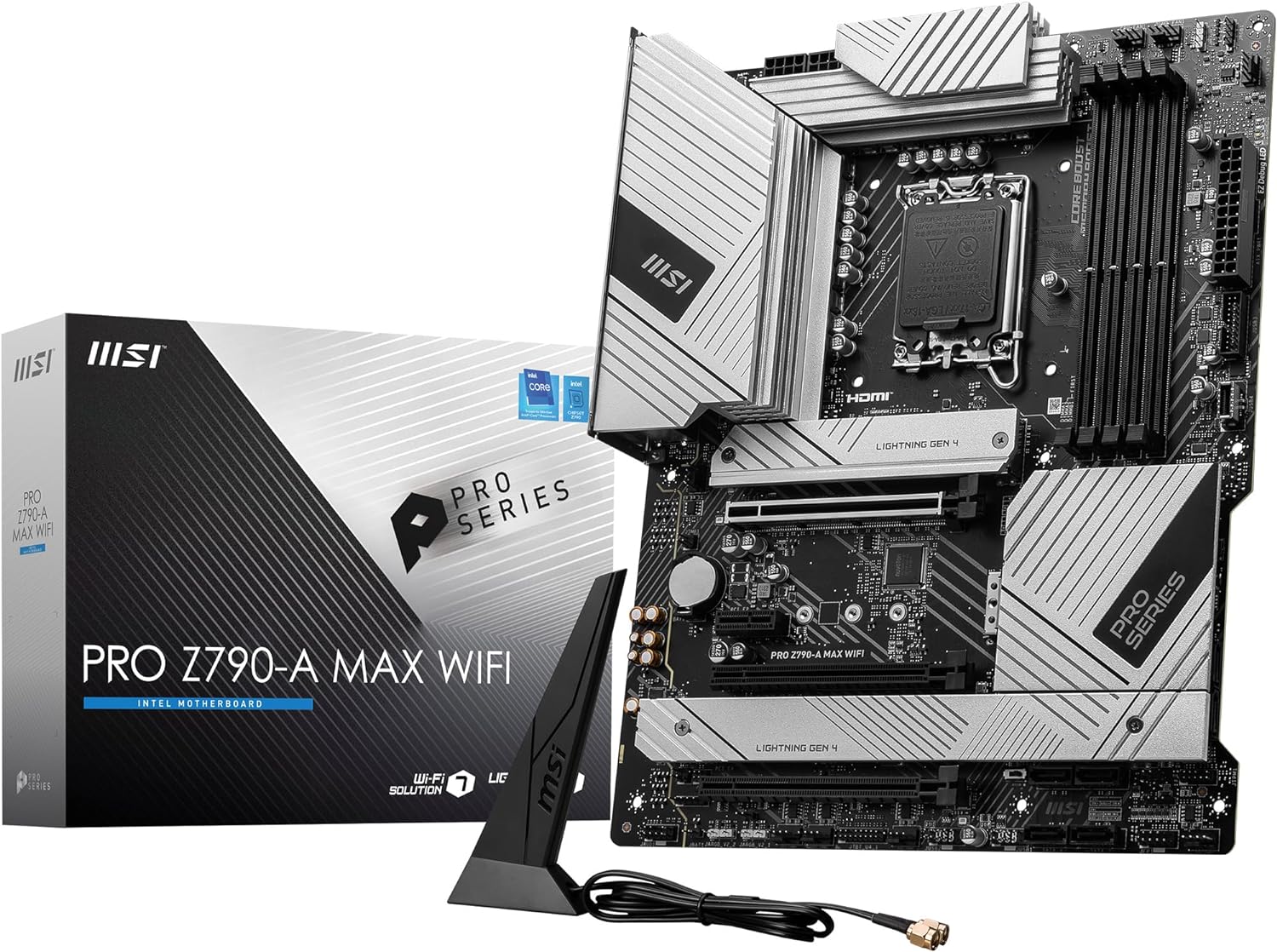

Package Contents	Regulatory Notice Quick Installation Guide M.2 Screw / Standoff Set EZ M.2 Clips Wi-Fi Antenna 2 x SATA Cables Driver DVD Cable Sticker
Thunderbolt Header	Yes
