Highlights:
- MSI PRO Z790-P WIFI DDR4 motherboard is designed to support latest Intel Socket LGA 1700 for 13th Gen, 12th Gen Intel Core processors and Pentium Gold and Celeron Processors.
- The MSI Z790 motherboard is PCIe 5.0 Ready supporting up to 192GB DDR4 7800+MHz (OC) of memory and Intel Extreme Memory Profile 3.0(XMP). The DDR4 MSI motherboard support next gen PCIe 4.0 M.2 slots making it future proof.
- Enjoy extended connectivity with the next-gen technology of WIFI 6E, PCIe 4.0, Intel 2.5Gb Ethernet, USB 3.2 Gen 2 connector, Five M.2 slots and Three USB Type-C.
- The ATX motherboard comes with DIY Friendly features. The EZ Debug LED will indicate the source of the problem, so you know exactly where to look to get up and running again.
| Model | MSI PRO Z790-P ATX Motherboard |
| CPU Support | Supports 13th Gen, 12th Gen Intel Core Processors, Pentium Gold and Celeron Processors |
| CPU Socket | LGA 1700 |
| Chipset | Intel Z790 Chipset |
| Form Factor | ATX |
| Memory | 4x DDR5 memory slots, supporting up to 192GB 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz Supports Dual-Channel mode Supports Intel Extreme Memory Profile (XMP) |
| Expansion Slot | 3x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset) |
| Onboard Graphics | 1x HDMI 1x DisplayPort |
| Storage | 4x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 6x SATA 6G |
| USB | 4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 3.2 Gen1 Type A (Rear) 4x USB 3.2 Gen1 Type A (Front) 1x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Front) 1x USB 3.2 Gen2x2 Type C (Rear) |
| LAN | Intel 2.5Gbps LAN |
| WIFI / Bluetooth | Intel Wi-Fi 6E Bluetooth 5.3 |
| Audio | Realtek ALC897 Codec 7.1-Channel High-Definition Audio |

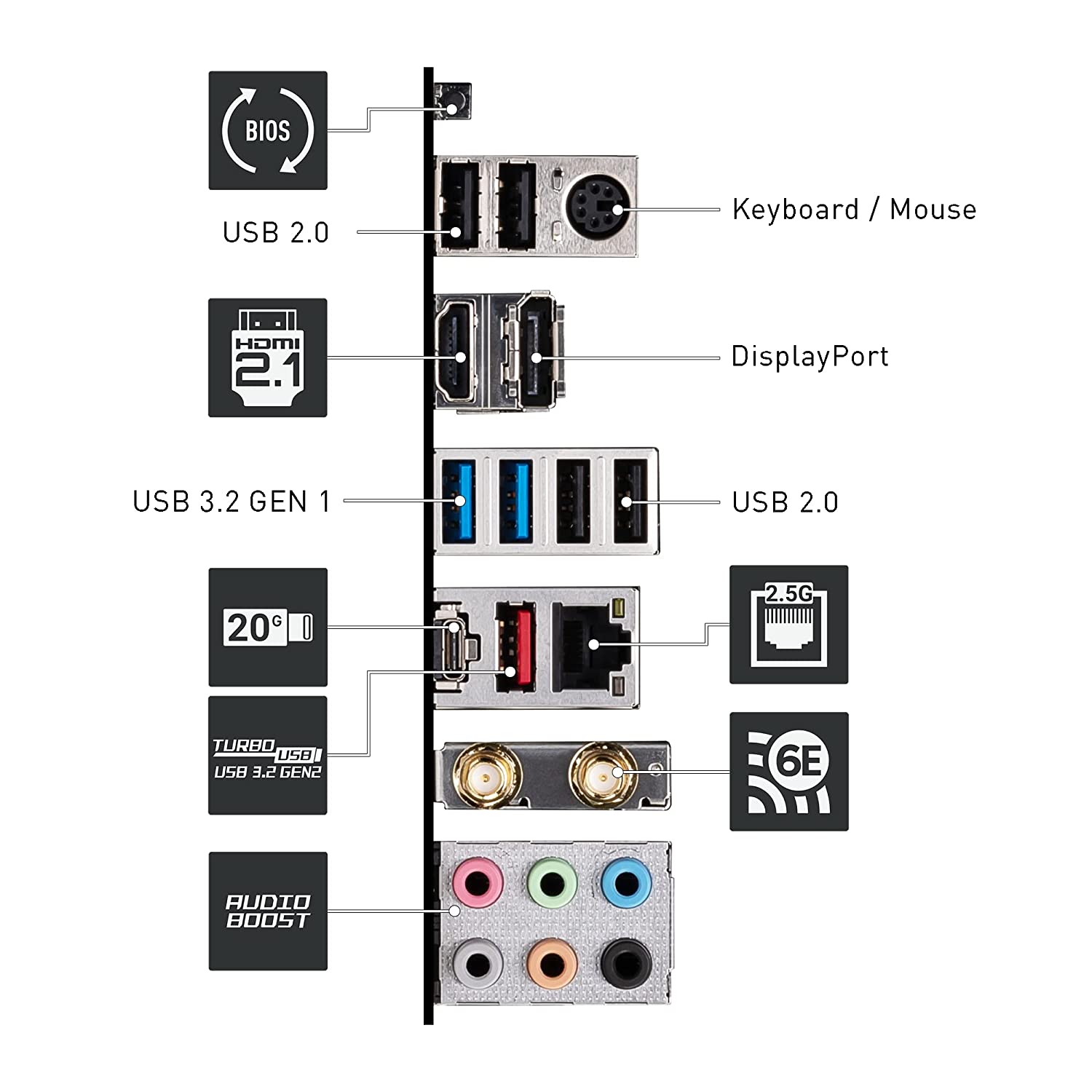

| BackPanel Ports | 1x PS-2 Keyboard and Mouse 1x DisplayPort 3x USB 2.0 1x 2.5G LAN 1x Wi-Fi / Bluetooth 1x Audio Connectors 1x Flash BIOS Button 1x USB 2.0 2x USB 2.0 1x HDMI 2x USB 3.2 Gen 1 5Gbps (Type-A) 1x USB 3.2 Gen 2x2 20Gbps (Type-C) 1x USB 3.2 Gen 2 10Gbps (Type-A) |
| Internal I/O Connectors | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 6x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x TBT connector (JTBT, supports RTD3) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 4x USB 3.2 Gen1 Type A ports 1x USB 3.2 Gen2 Type C ports |
| LED Features | 4x EZ Debug LED |
| Operating System | Support for Windows 11 64-bit, Windows 10 64-bit |
| Dimension | ATX 243.84mm x 304.8mm |
| Warranty | 3 Years Brand Warranty |

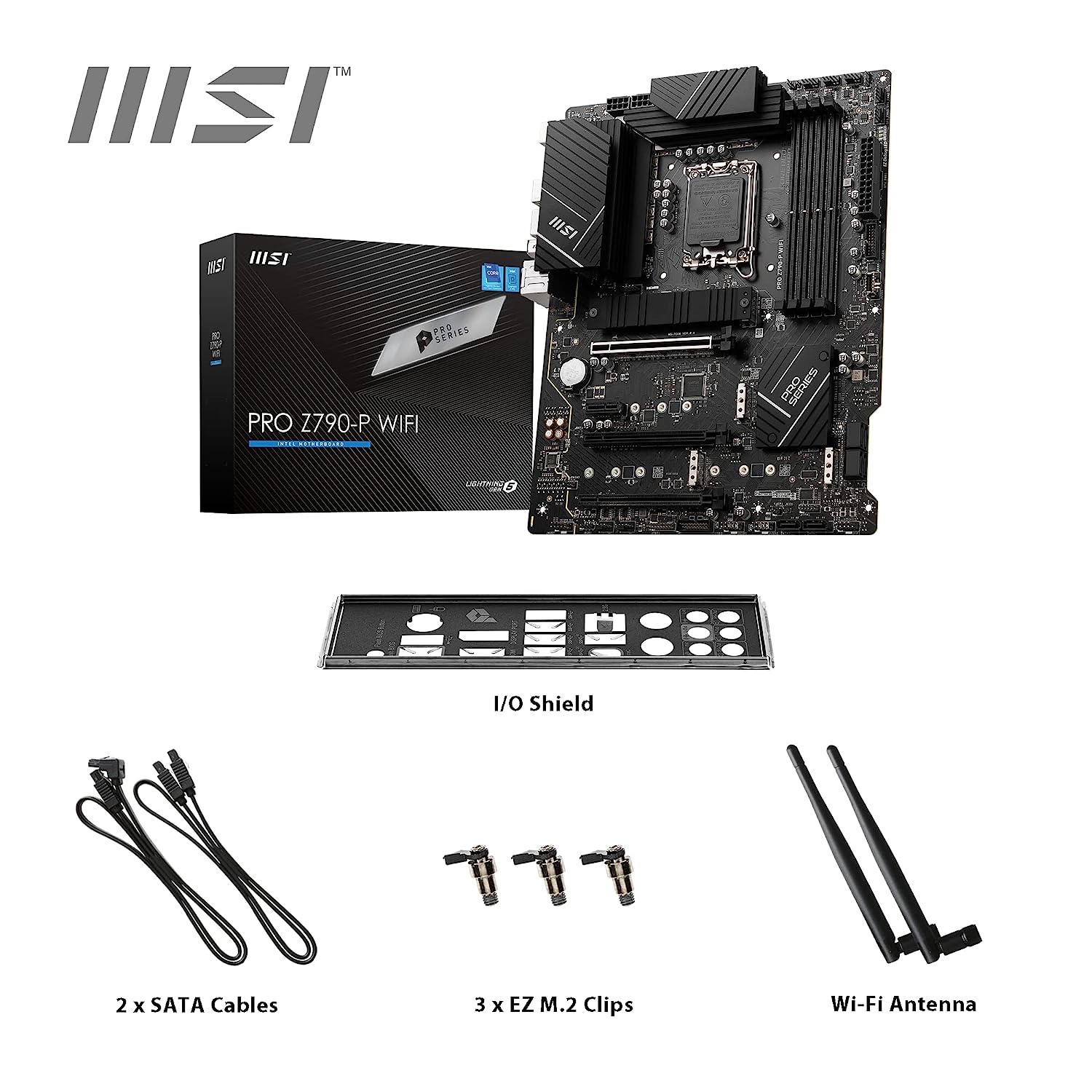

| Package Contents | MSI PRO Z790-P WIFI ATX Motherboard User Manual Installation Guide |
