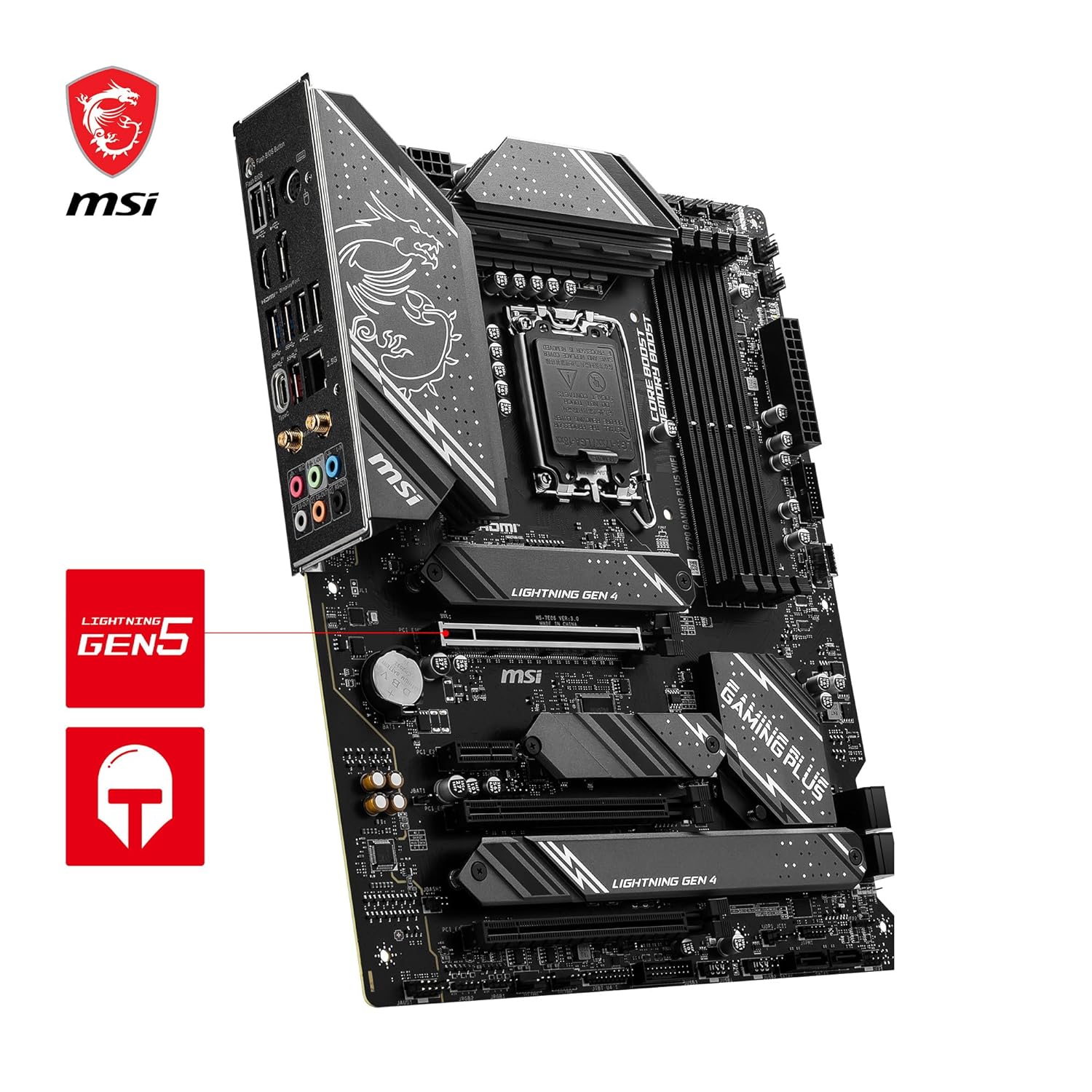

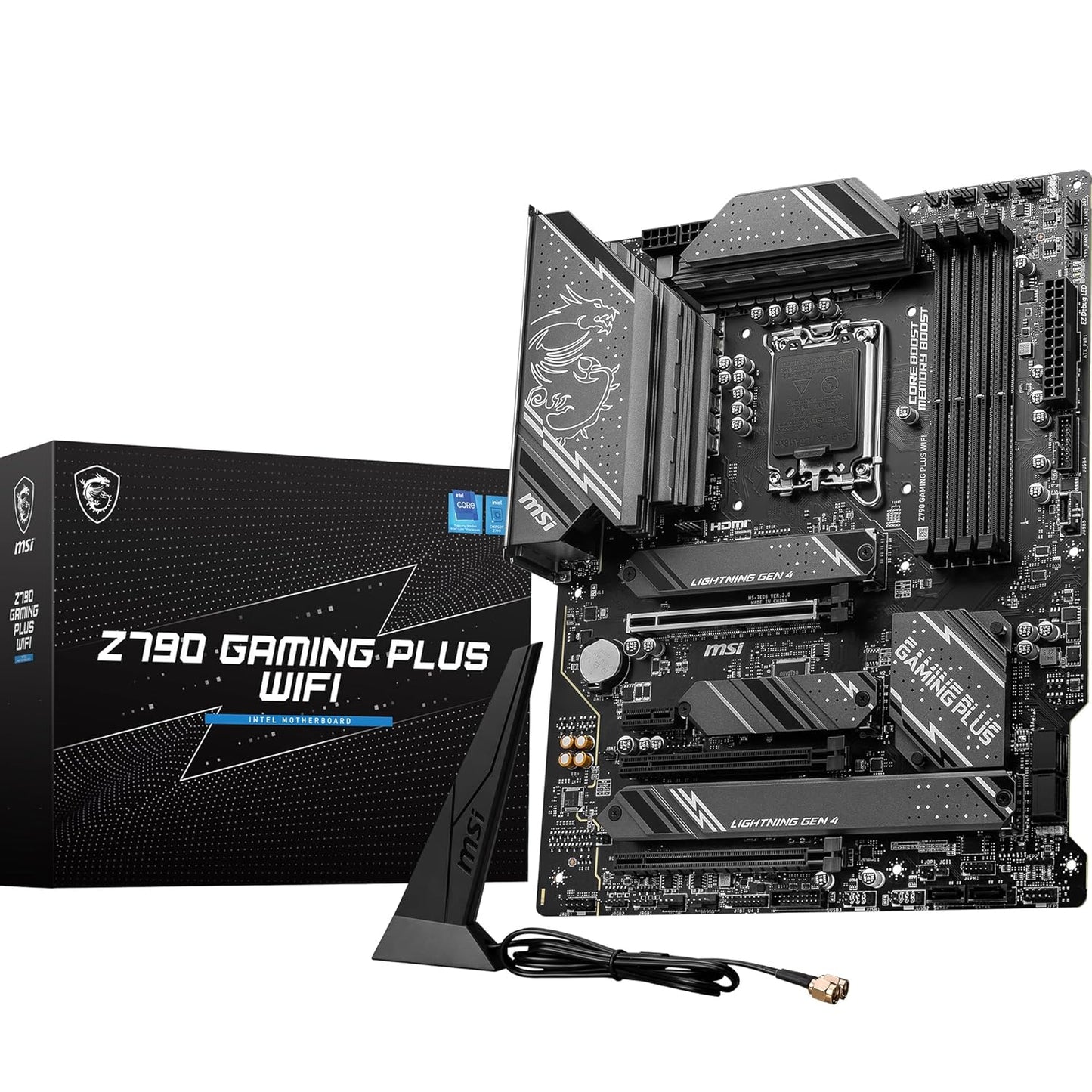

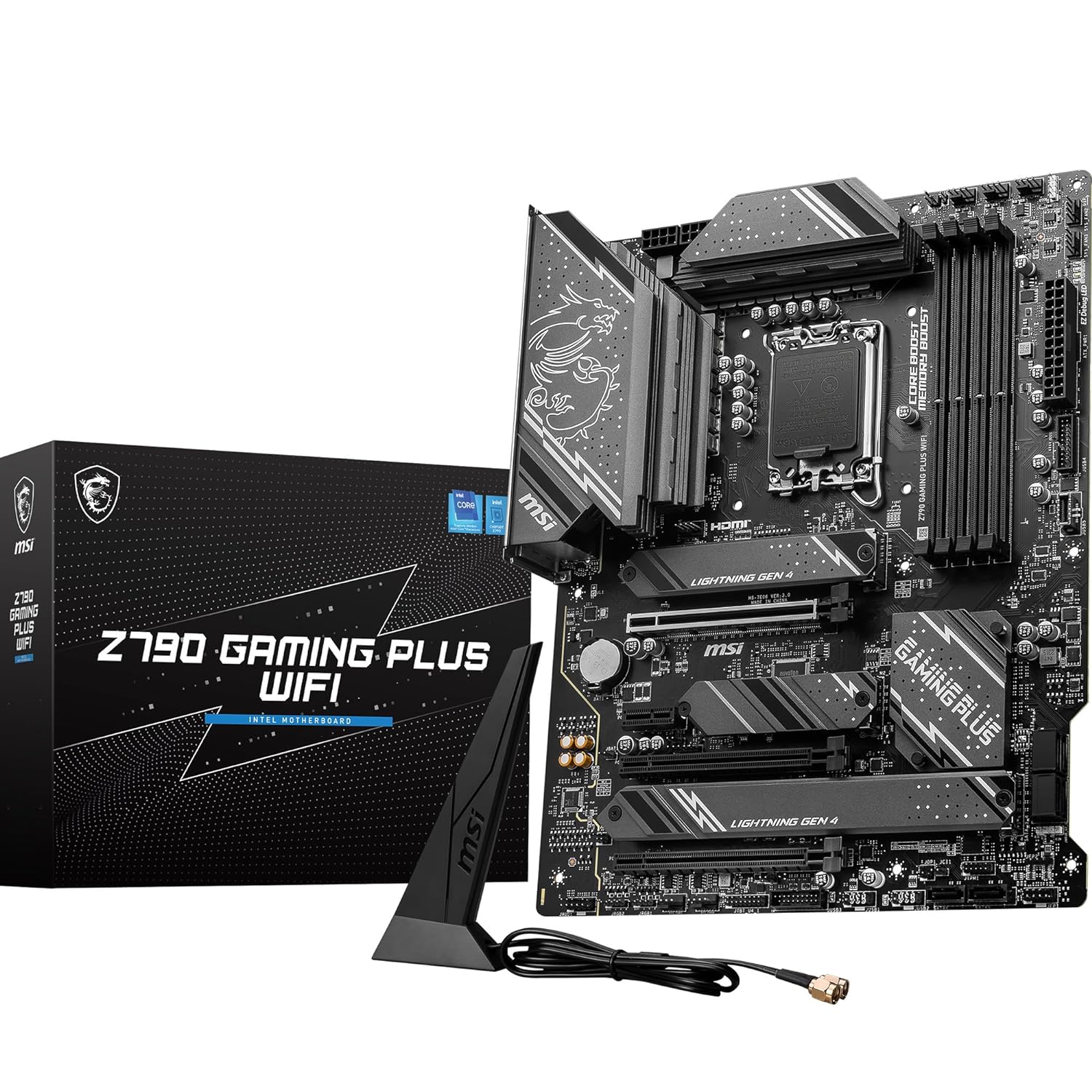

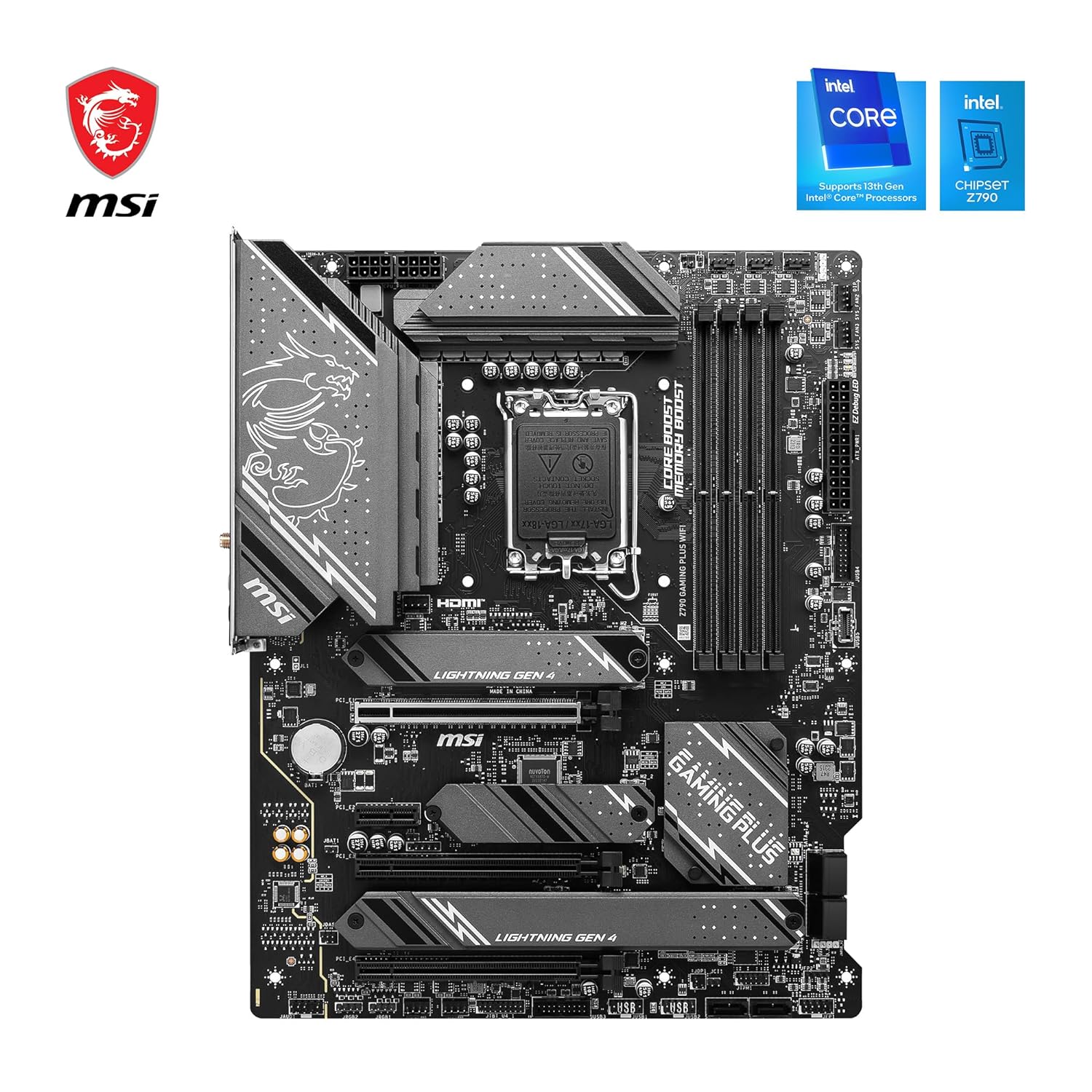

MSI Z790 Gaming Plus Wi-Fi LGA 1700 DDR5 PCIe 5.0 ATX Motherboard

MSI Z790 Gaming Plus Wi-Fi LGA 1700 DDR5 PCIe 5.0 ATX Motherboard

Brand: MSI
Regular price Rs. 24,349.00
Sale price 46% off Rs. 24,349.00 Sale Sold out Regular price Rs. 44,999.00
Taxes included. Free Shipping.

Product Description:

Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors for LGA 1700 socket

Supports DDR5 Memory, up to 7200+(OC) MHz

Enhanced Power Design: 14+1+1 Duet Rail Power System with DrMOS, dual 8-pin CPU power connectors, Core Boost, Memory Boost

Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads are built for high performance system and non-stop gaming experience

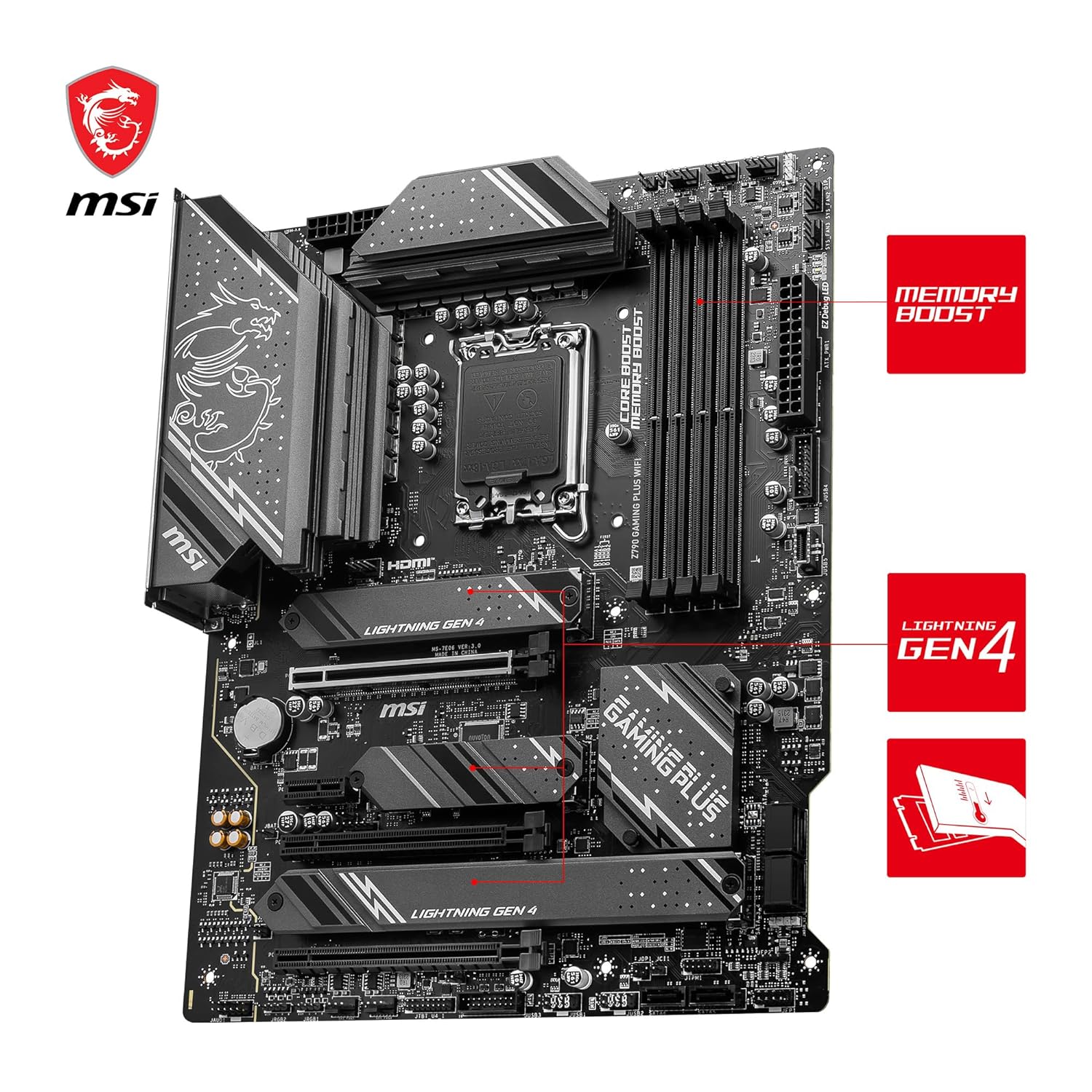

Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr, USB 3.2 Gen 2x2 20G

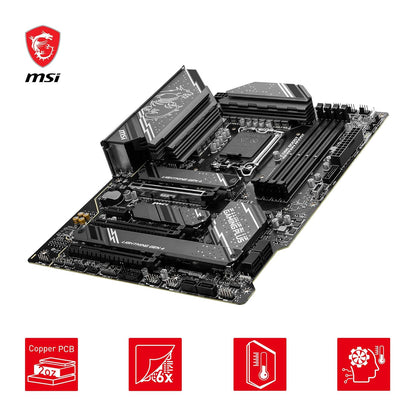

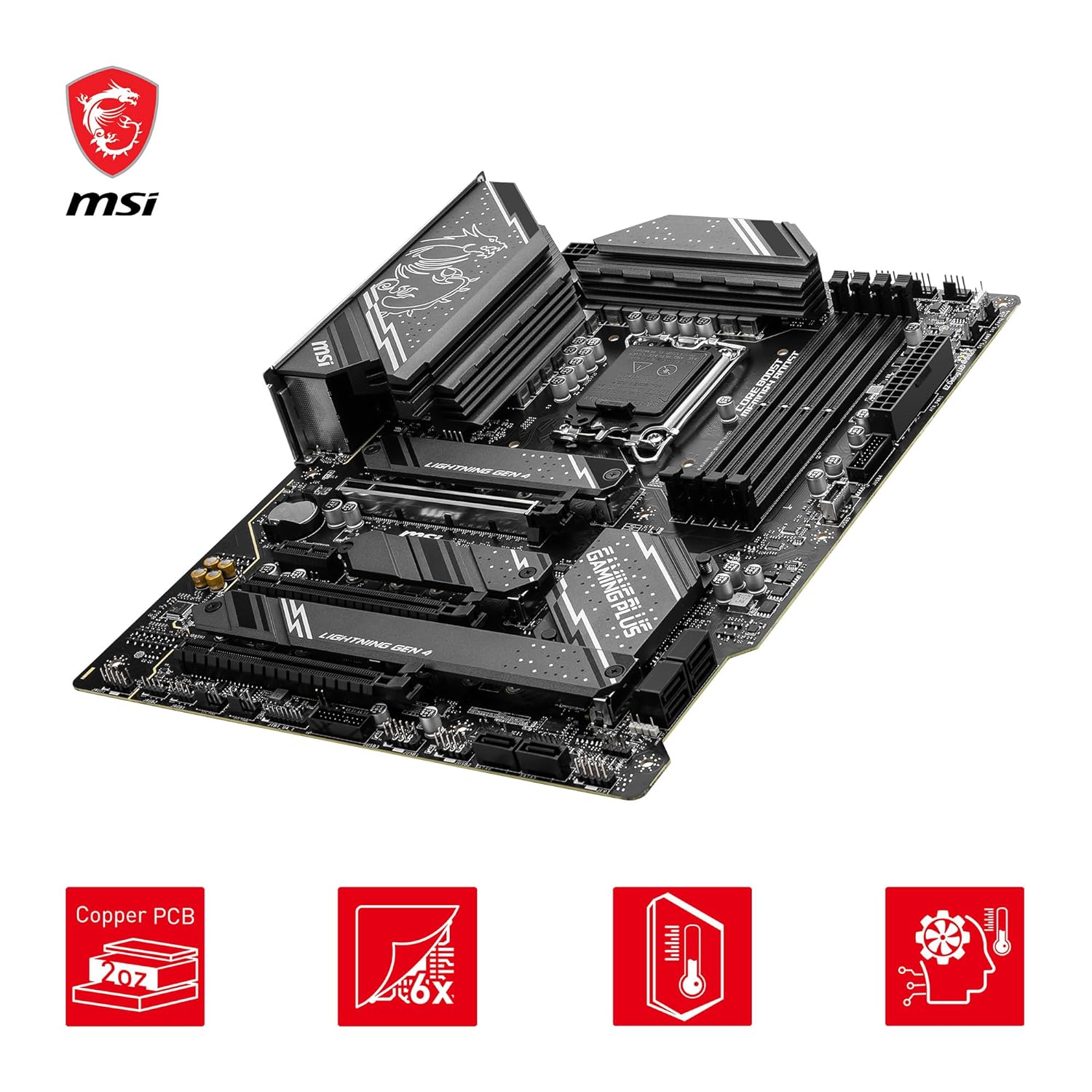

High Quality PCB: 6-layer PCB made by 2oz thickened copper

Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience.

Model Z790 GAMING PLUS WIFI
CPU Support Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors
CPU Socket LGA 1700
Chipset Intel Z790
Form Factor ATX
Memory 4x DDR5, Maximum Memory Capacity 256GB
Memory Support 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
Max. overclocking frequency:
• 1DPC 1R Max speed up to 7200+ MHz
• 1DPC 2R Max speed up to 6600+ MHz
• 2DPC 1R Max speed up to 6400+ MHz
• 2DPC 2R Max speed up to 5600+ MHz

Supports Intel XMP3.0 OC
Supports Dual-Controller Dual-Channel mode
Supports non-ECC, un-buffered memory
Expansion Slot 3x PCI-E x16 slot
1x PCI-E x1 slot
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset)
RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
Storage 4x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
6x SATA 6G
USB 4x USB 2.0 (Rear)
4x USB 2.0 (Front)
2x USB 5Gbps Type A (Rear)
4x USB 5Gbps Type A (Front)
1x USB 10Gbps Type A (Rear)
1x USB 10Gbps Type C (Front)
1x USB 20Gbps Type C (Rear)
WIRELESS LAN & BLUETOOTH Intel® Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax

Supports Bluetooth® 5.3, FIPS, FISMA
ONBOARD GRAPHICS 1x HDMI
Support HDMI 2.1 HDR, maximum resolution of 4K 60Hz*
1x DisplayPort
Support DP 1.4, maximum resolution of 4K 60Hz*
Audio Realtek ALC897 Codec
7.1-Channel High Definition Audio

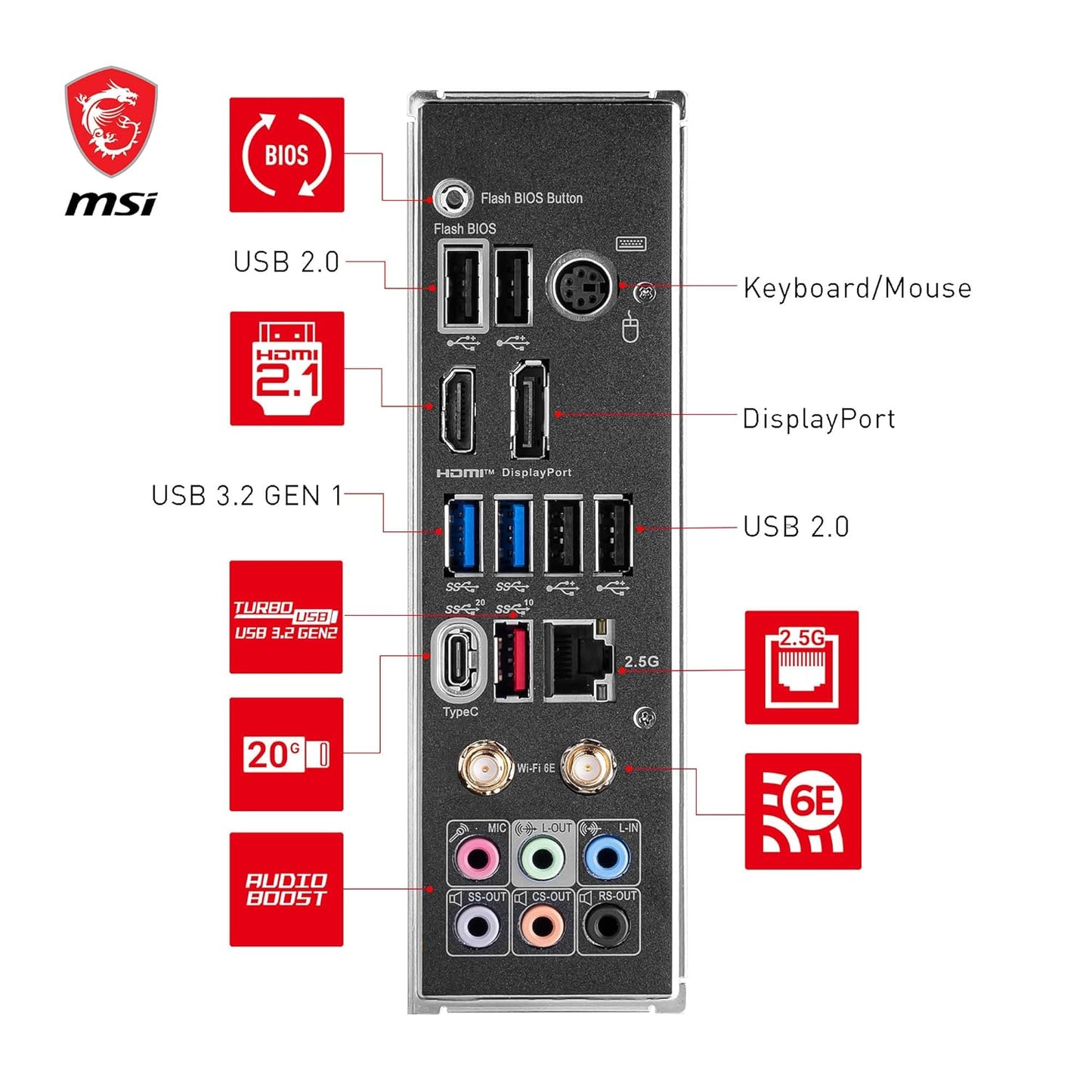

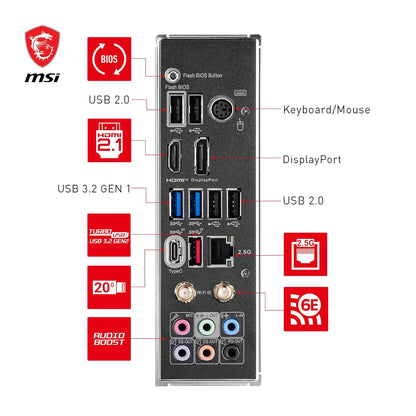

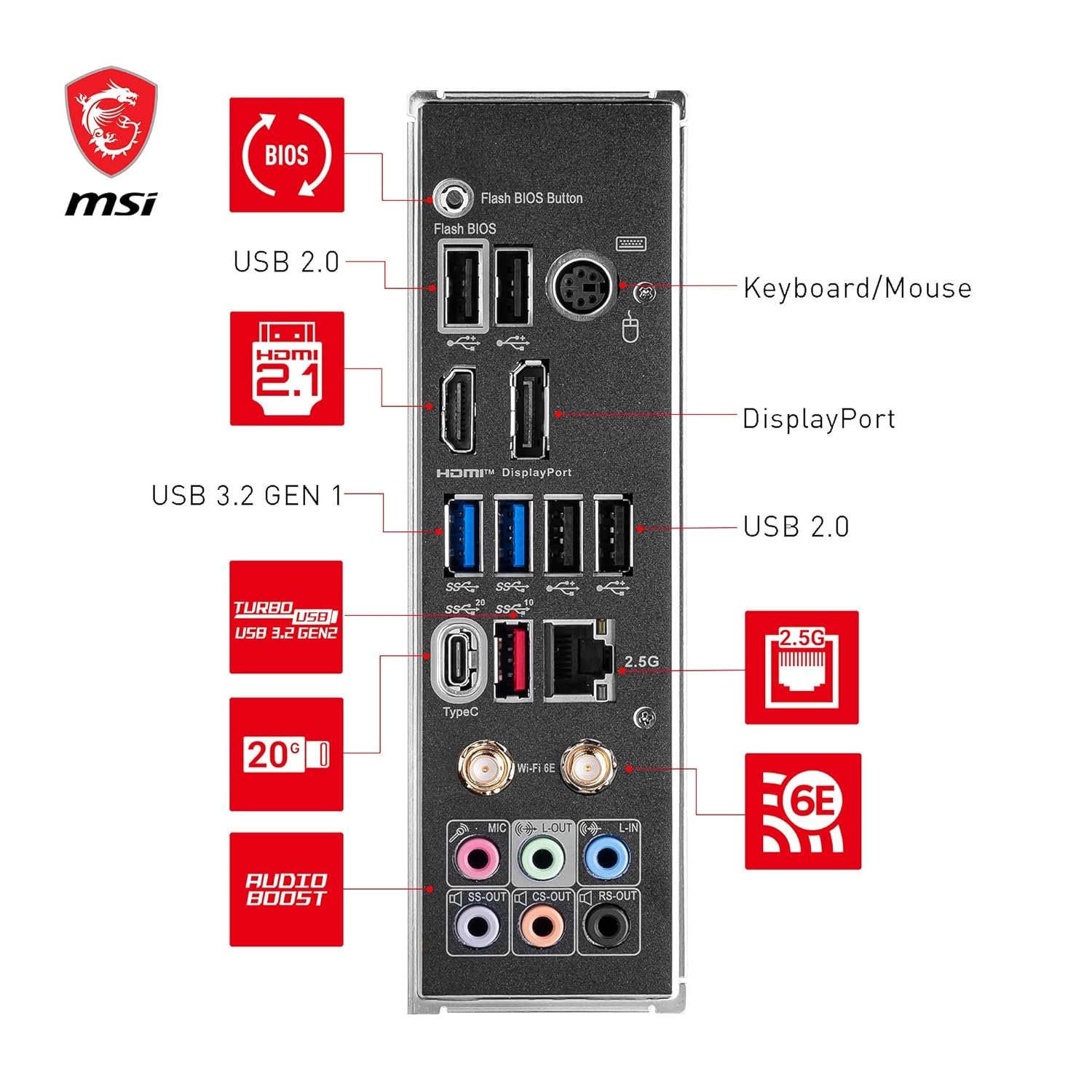

BackPanel Ports Keyboard / Mouse
DisplayPort
USB 2.0
2.5G LAN Port
Wi-Fi / Bluetooth Antenna
Audio Connectors
Flash BIOS Button
USB 2.0
HDMI™ 2.1 Port
USB 3.2 Gen 1 5Gbps Type-A
USB 3.2 Gen 2x2 20Gbps Type-C
USB 3.2 Gen 2 10Gbps Type-A
Internal I/O Connectors 1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
6x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x TBT connector (JTBT, supports RTD3)
1x Tuning Controller connector(JDASH)
2x Addressable V2 RGB LED connector (JARGB_V2)
2x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
1x USB4 card connector (JTBT_U4_1, supports RTD3)
4x USB 2.0 ports
4x USB 5Gbps Type A ports
1x USB 10Gbps Type C ports
LED Feature 4x EZ Debug LED
OPERATING SYSTEM Support for Windows 11 64-bit, Windows 10 64-bit
PCB INFO ATX
243.84mmx304.8mm
Warranty 3 Years Brand Warranty

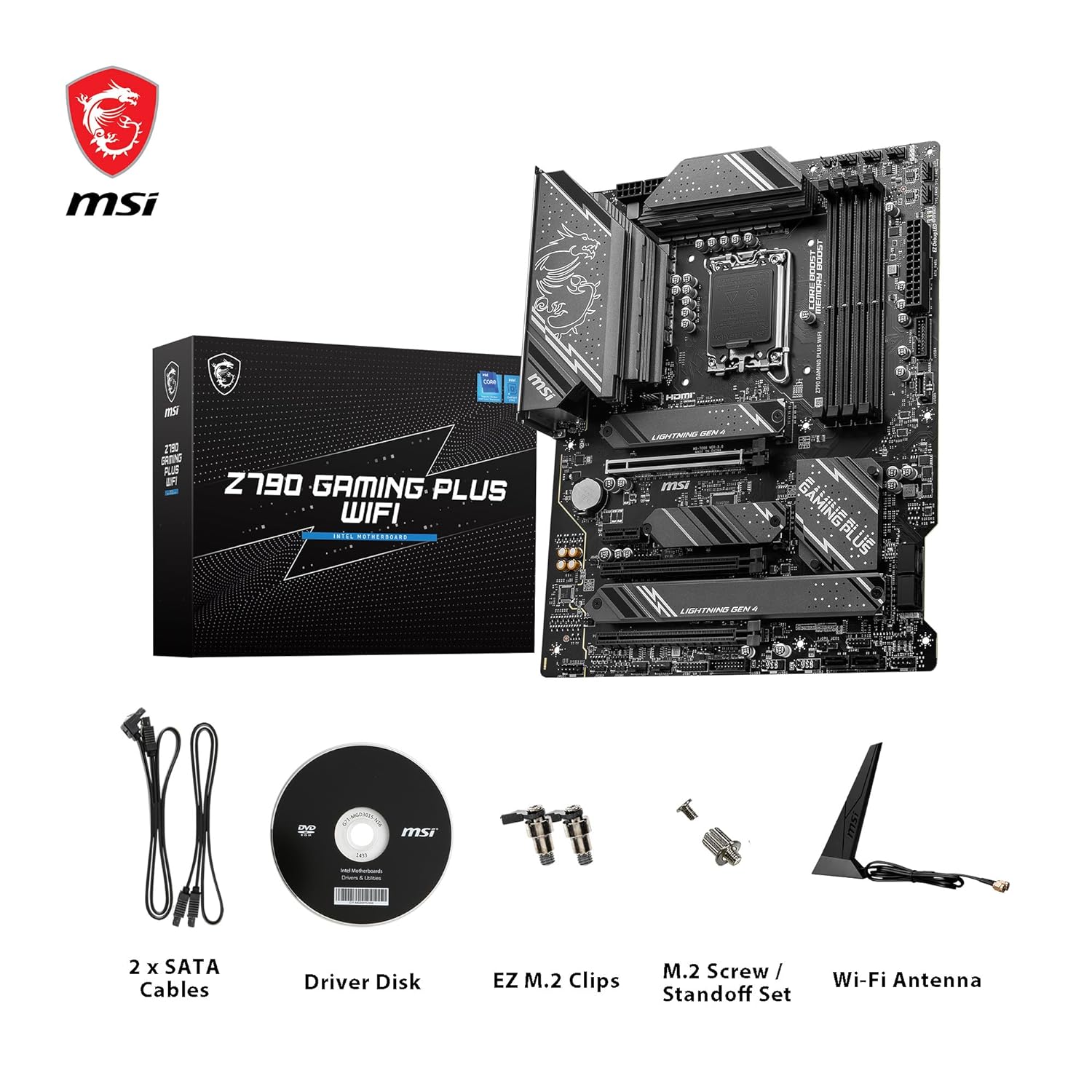

Package Contents Regulatory Notice
Quick Installation Guide
M.2 Screw / Standoff Set
EZ M.2 Clips
Wi-Fi Antenna
2 x SATA Cables
Driver DVD
Cable Sticker
Thunderbolt Header Yes
