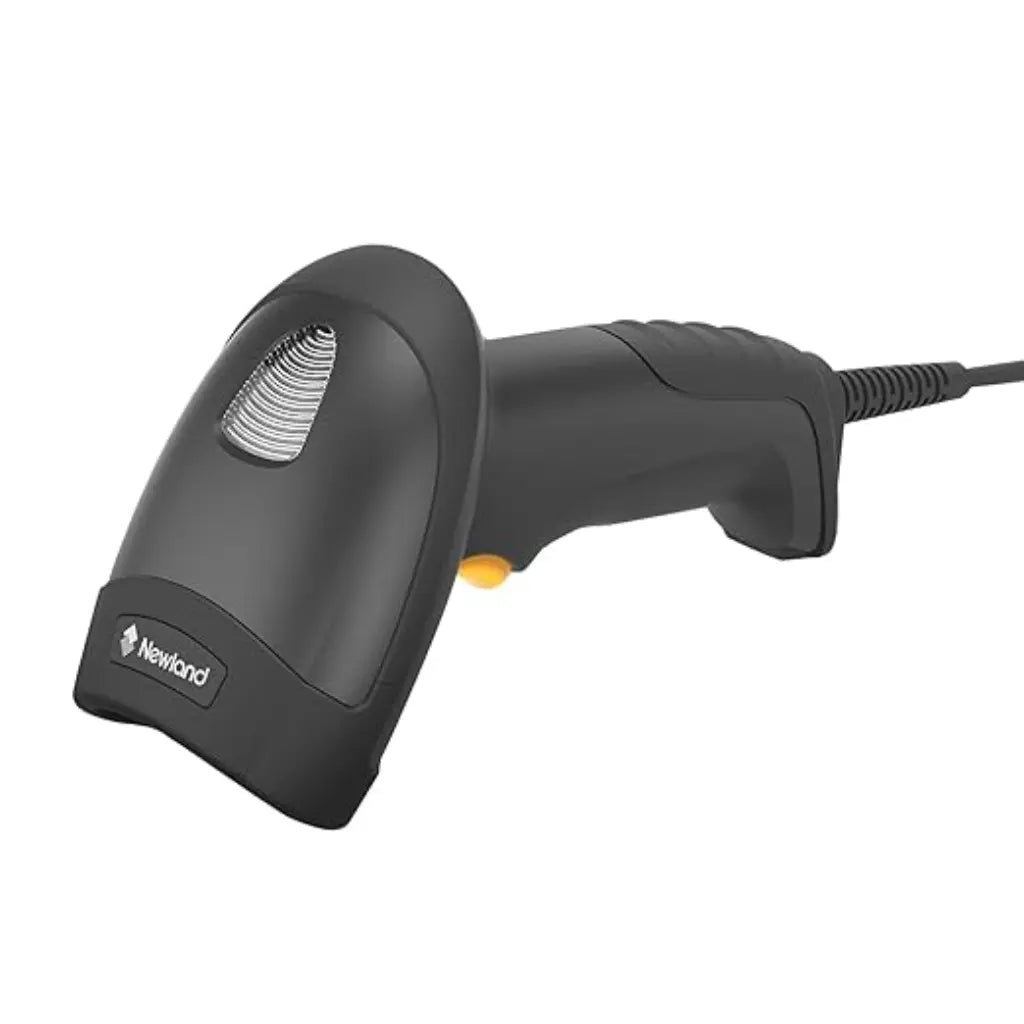

Newland HR3280 S5 2D Megapixel Handheld Barcode Scanner
Newland HR3280 S5 2D Megapixel Handheld Barcode Scanner
Regular price
Rs. 6,917.00
Regular price
31% off
Rs. 9,999.00
Sale price
Rs. 6,917.00
Quantity
Loading Offers...
+ Offers
Couldn't load pickup availability
- Free Shipping (optional Express Shipping)
- Service Center Replacement
- Original Brand Warranty
Product Description:
⭐ Megapixel Scanning Power: High‑precision CMOS sensor for fast 1D & 2D barcode capture
⚡ Dual‑Color Illumination: Red & white LED lighting ensures accurate reads in any environment
🛡️ Durable IP42 Build: Resistant to dust, minor splashes, and 1.5m accidental drops
📱 Superior Screen Scanning: Reads barcodes from digital screens with exceptional clarity

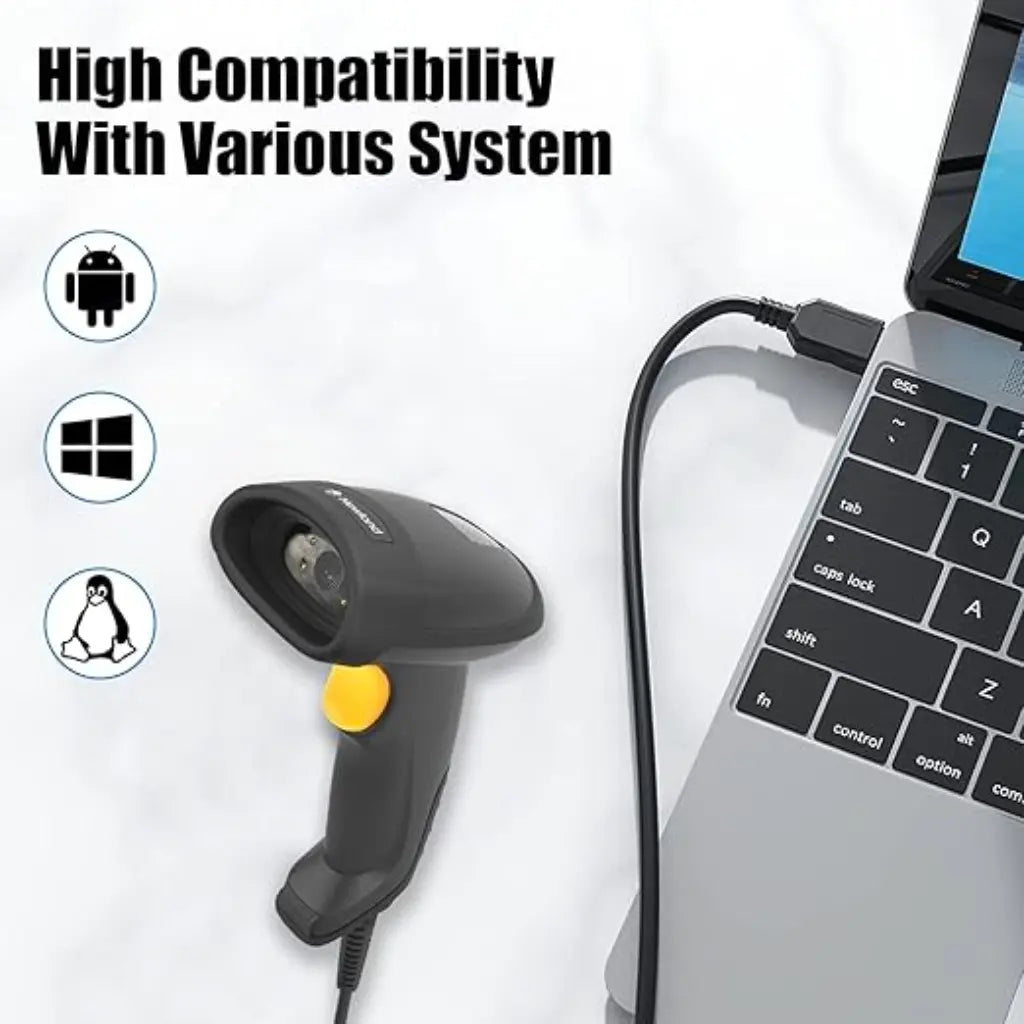

🔌 Versatile Connectivity: Supports USB & RS‑232 interfaces for seamless device integration
🎯 Fast Aiming Indicator: Green aiming LED enhances quick and accurate scan targeting
⚡ Dual‑Color Illumination: Red & white LED lighting ensures accurate reads in any environment
🛡️ Durable IP42 Build: Resistant to dust, minor splashes, and 1.5m accidental drops
📱 Superior Screen Scanning: Reads barcodes from digital screens with exceptional clarity
🔌 Versatile Connectivity: Supports USB & RS‑232 interfaces for seamless device integration
🎯 Fast Aiming Indicator: Green aiming LED enhances quick and accurate scan targeting

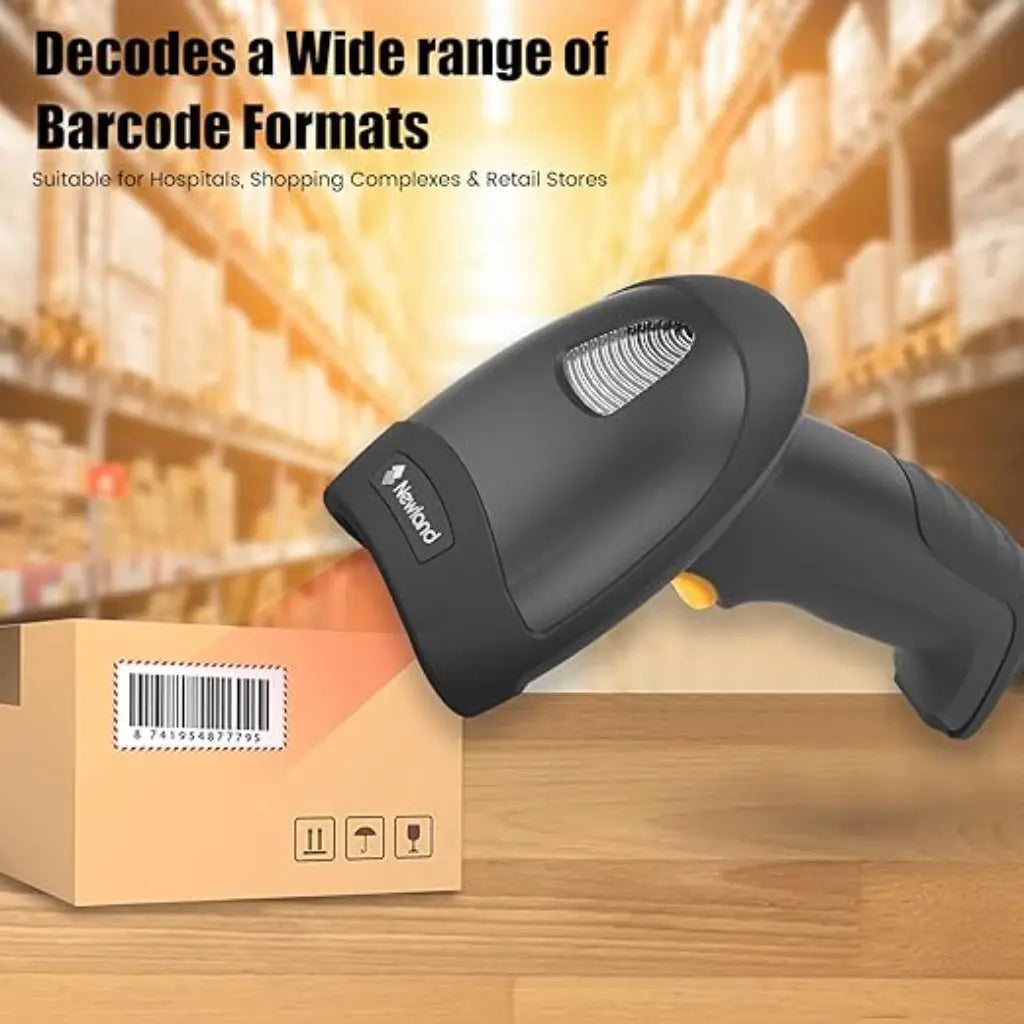

The Newland HR3280 is a powerful 2D megapixel handheld barcode scanner designed for fast, accurate, and versatile scanning performance. Equipped with dual‑color illumination and a high‑resolution CMOS sensor, it captures 1D and 2D barcodes effortlessly, even from screens. Its durable IP42‑rated housing and 1.5m drop resistance make it ideal for retail, logistics, and industrial environments. With user‑friendly operation, strong decoding capability, and reliable connectivity options, the HR3280 ensures smooth and efficient workflow productivity.
Product Specifications:
| Specification | Details |
| Model / Part Number | NLS‑HR3280 |
| Product Type | 2D Megapixel Handheld Barcode Scanner |
| Country of Origin | China |
| Image Sensor | 1280 × 800 Megapixel CMOS Sensor |
| Illumination | Dual‑color Red LED & White LED |
| Aiming | Green LED Aimer |
| Supported Symbologies | 1D & 2D (EAN‑13, UPC‑A, Code128, QR, Data Matrix, PDF417, Aztec, Maxicode, Postal Codes, etc.) |
| Minimum Resolution | ≥ 3 mil |
| Scan Angle | Pitch ±55°, Skew ±55°, Roll 360° |
| Field of View | Horizontal 39°, Vertical 24° |
| Typical Depth of Field | 55mm–570mm (13mil) and multiple ranges for various barcode sizes |
| Interfaces | USB, RS‑232 |
| Operating Voltage | 5VDC ±5% |
| Power Consumption | 1289.6 mW typical |

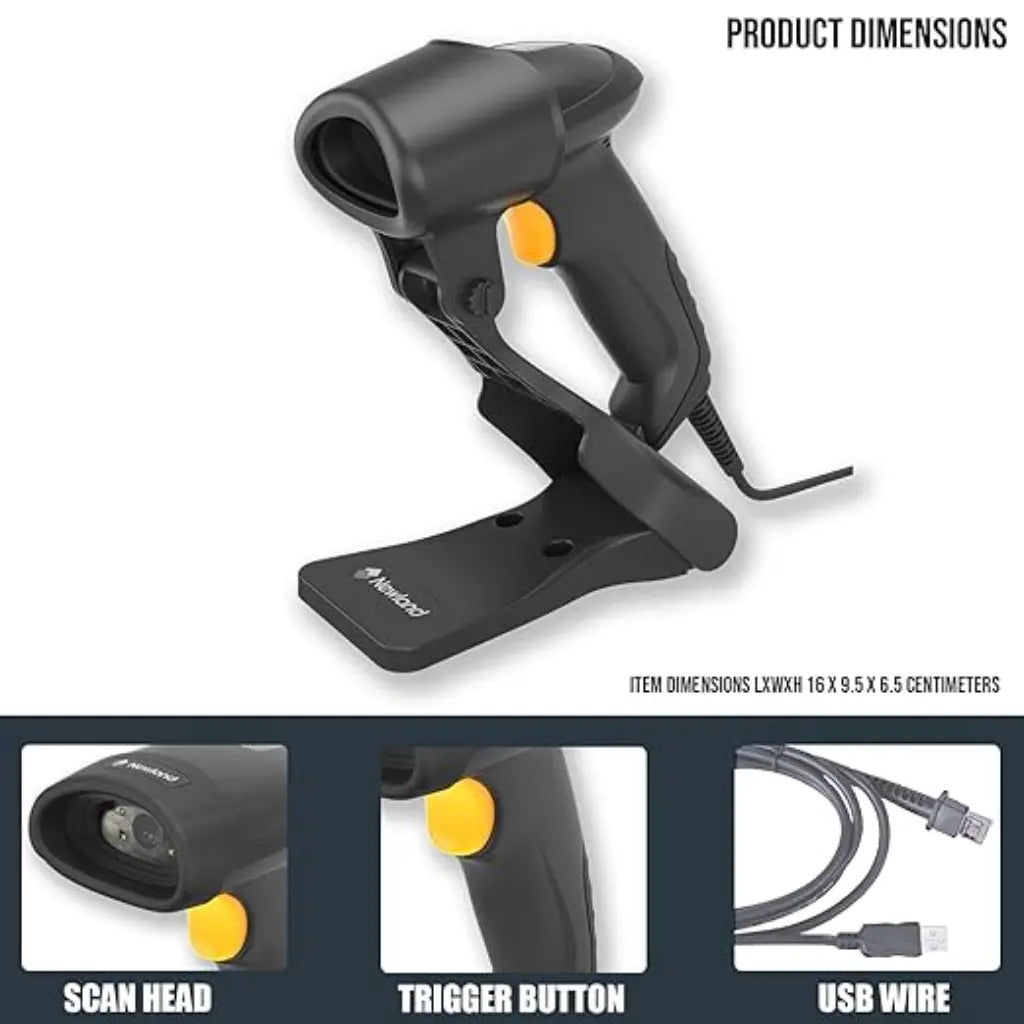

| Dimensions (L×W×H) | 113.5 × 73.3 × 159 mm |
| Weight | 162g |
| Durability | 1.5m drop resistance, IP42 protection |
| Operating Temperature | –20°C to 60°C |
| Humidity | 5%–95% non‑condensing |
| ESD Protection | ±15 kV (air), ±8 kV (contact) |
| Notifications | Beeper & LED indicators |
| Warranty | 5 Years |
