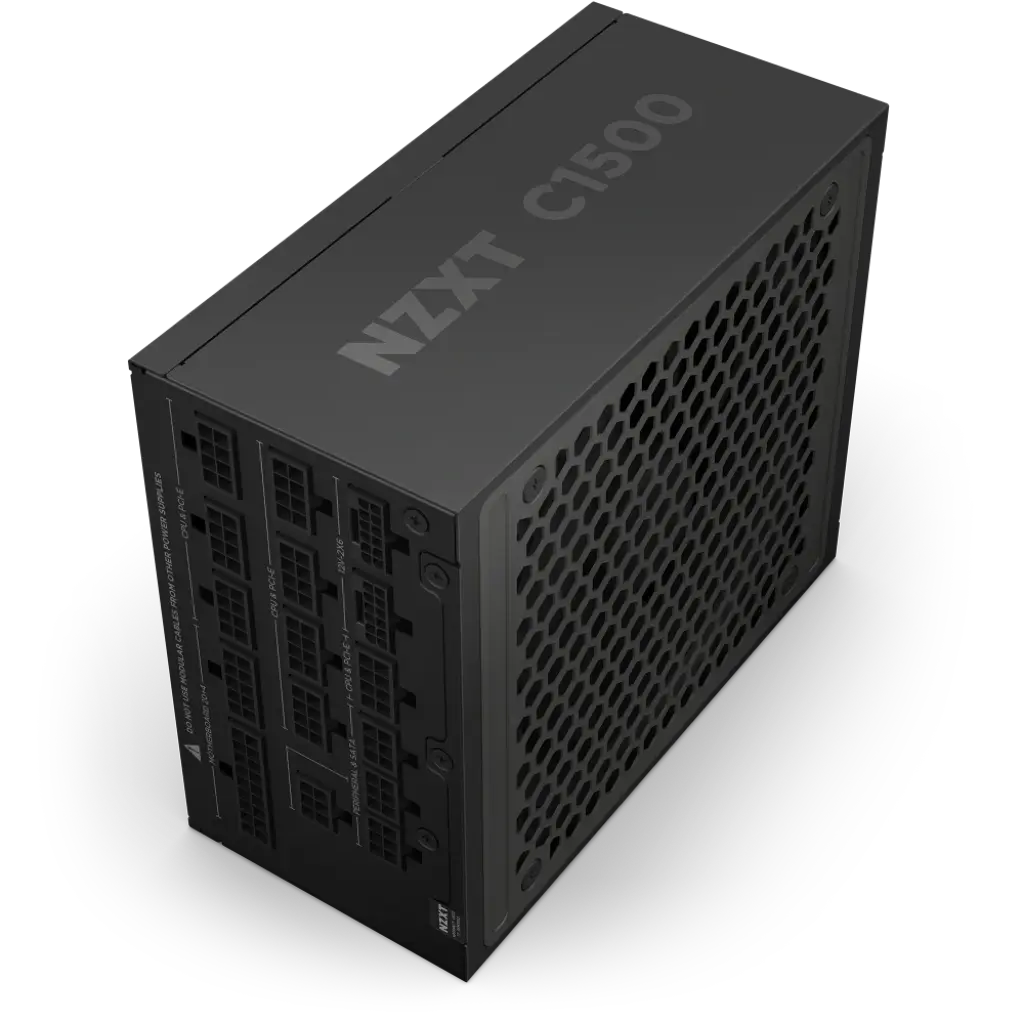

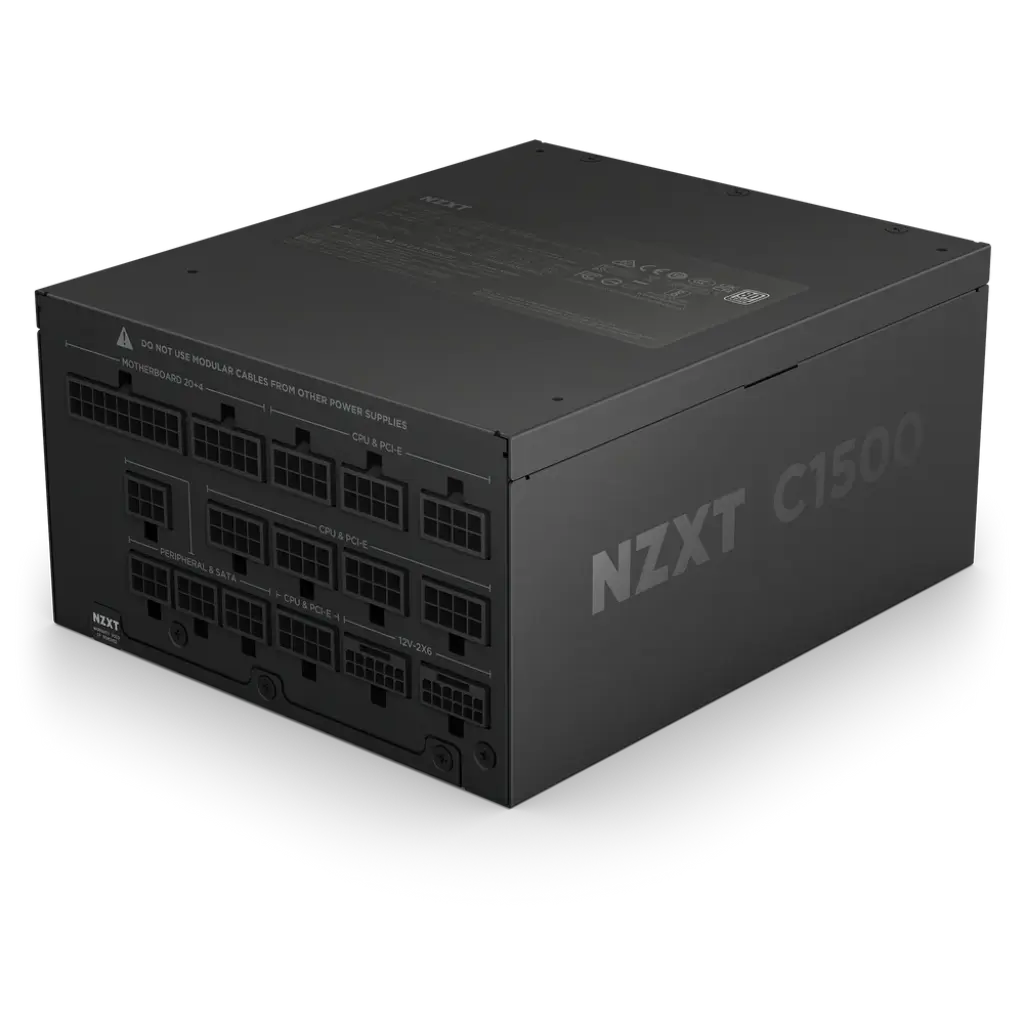

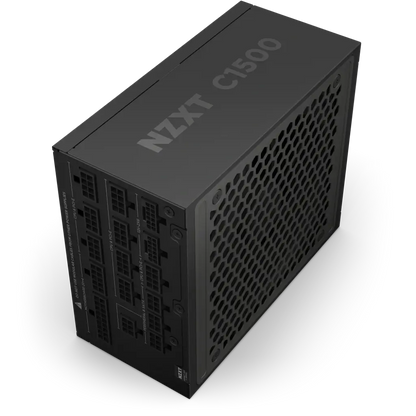

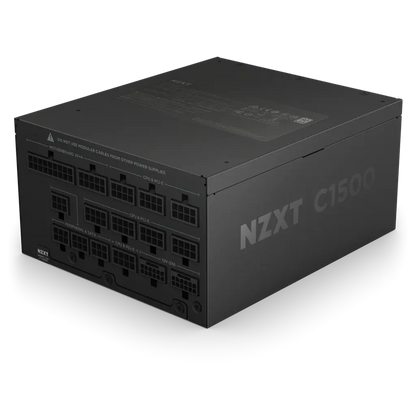

NZXT C1500 1500W Full Modular 80 Plus Platinum ATX 3.1 SMPS Power Supply
NZXT C1500 1500W Full Modular 80 Plus Platinum ATX 3.1 SMPS Power Supply
Couldn't load pickup availability
- Free Shipping (optional Express Shipping)
- Comes with 7-Days Returns Policy
- Original Brand Warranty
Product Description:
ATX 3.1 & PCIe 5.1 Compliant – Built to power current and next-gen GPUs and CPUs with enhanced stability and future-proofing.
Dual 12V-2x6 PCIe 5.1 Cables – Supports up to 600W per cable for NVIDIA® GeForce RTX™ 50 Series and other high-performance GPUs.
Digital Power Regulation – Enables precise voltage control, reducing ripple noise and improving overall efficiency.
80 PLUS Platinum Certified – Exceeds Platinum standards with up to 94% efficiency, reducing heat and energy costs.
Cybenetics Titanium Efficiency & A- Noise Rating – Ultra-efficient and whisper-quiet even under load.
140mm Magnetic Levitation Fan – Air-suspended blades ensure low noise, high airflow, and long lifespan.

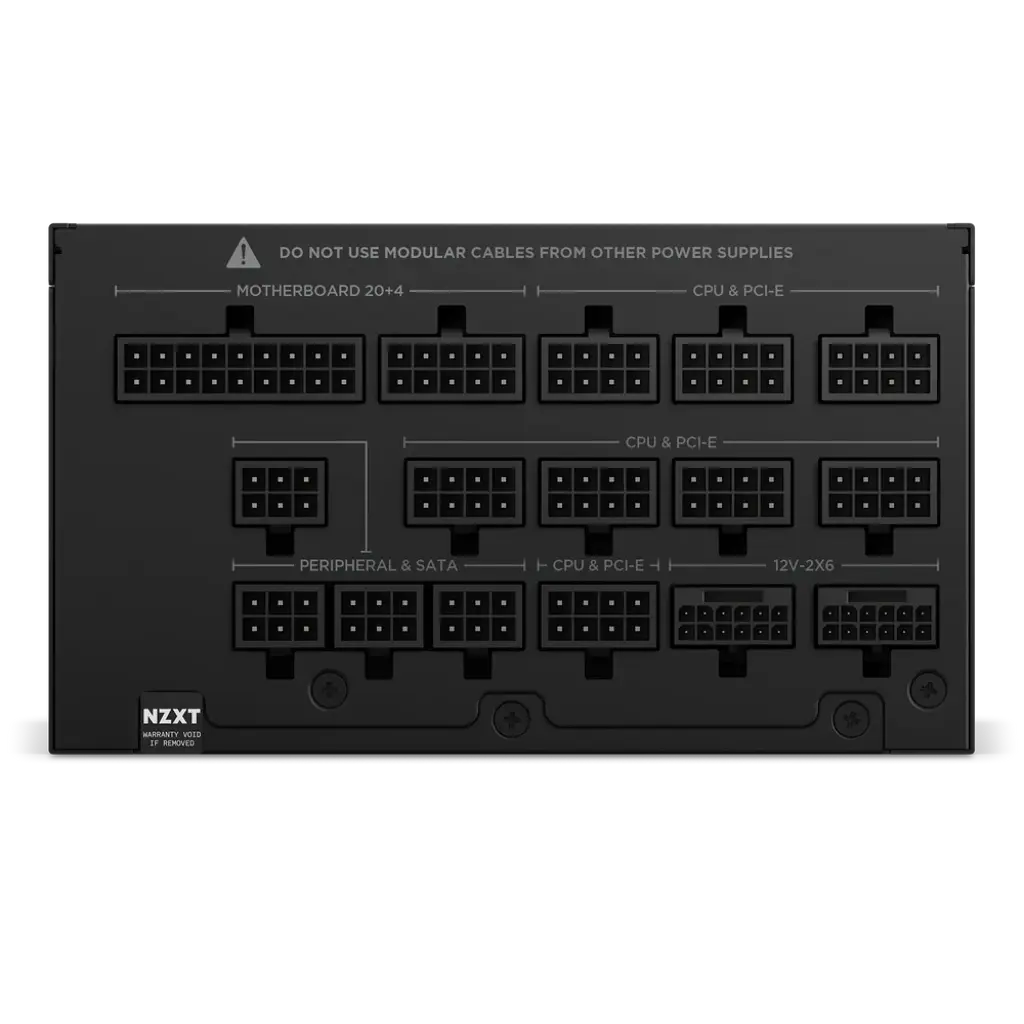

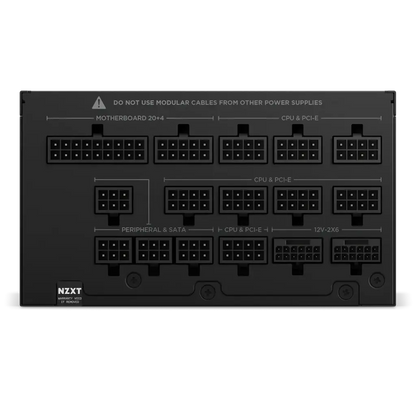

Fully Modular Design – Connect only the cables you need for a cleaner, more efficient build.

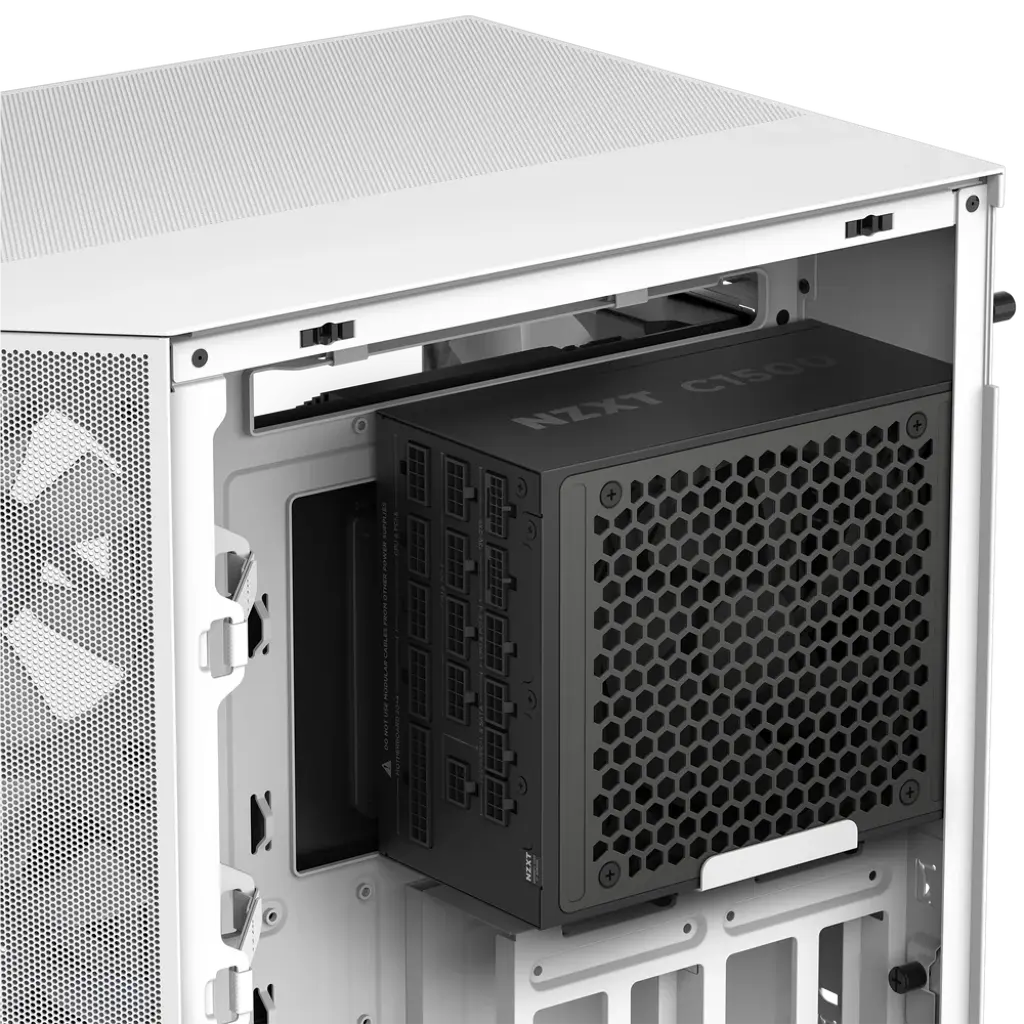

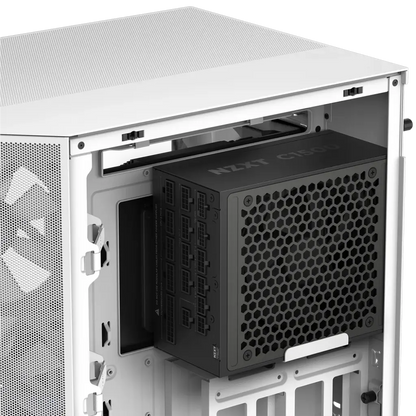

Compact 180mm Form Factor – Saves space and improves airflow in high-performance PC builds.
Premium Japanese Capacitors – Rated at 105°C for long-term reliability and stability.
| Specification | Details |
| Model Number | PA-5P1BB-UK (Black) |
| Form Factor | ATX 3.1 Compliant |
| Wattage | 1500W |
| Efficiency Certification | 80 PLUS Platinum, Cybenetics Titanium |
| Modularity | Fully Modular |
| Cooling | 140mm Magnetic Levitation Fan with Zero Fan Mode |
| Capacitors | 100% Japanese, 105°C rated |
| GPU Support | 2 × 16-pin (12V-2x6) PCIe 5.1 cables – up to 600W each |
| Motherboard Connectors | 1 × 24-pin ATX, 1 × 4+4-pin CPU, 1 × 8-pin CPU |
| PCIe Connectors | 6 × 6+2-pin |
| SATA Connectors | 12 |
| Peripheral (Molex) | 4 |
| Input Voltage | 100V – 240V |
| +12V Rail | Single Rail |
| Protections | OVP, UVP, OPP, OTP, OCP, SCP |
| Dimensions (L × W × H) | 180 × 150 × 86 mm |
| Weight | Approx. 2.1 kg |
| Noise Level | Cybenetics A- (Silent under 900W load) |
| Certifications | FCC, CE, UKCA, CB, BSMI, BIS, RCM, TUV, cTUVus, KC, CP65 |
| Warranty | 10 Years from Brand |
