ProLab Design PL-1U-650L 1U Rackmount Server Chassis
ProLab Design PL-1U-650L 1U Rackmount Server Chassis
- Free Pan-India Shipping
- Easy 7-Day Returns
- GST Invoice on Every Order
- 100% Genuine, Brand New & Sealed
- Original Manufacturer Warranty
- Trusted Since 2014 · 15 Lakh+ Orders
Couldn't load pickup availability
Product Description:
🖥️ Enterprise Motherboard Support: Supports up to SSI-EEB (E-ATX) motherboards for enterprise server and workstation-grade configurations.
💾 4x 3.5-Inch HDD Bays: Provides four internal 3.5-inch HDD bays for NAS, backup, surveillance storage, and data archival applications.
🌬️ Hot-Swap Cooling: Uses 5x 4028 hot-swap ball-bearing fans on the middle fan wall to provide focused airflow for critical components.
🔌 1U Power Supply Support: Supports standard 1U power supplies, allowing compatibility with standard enterprise PSU solutions.

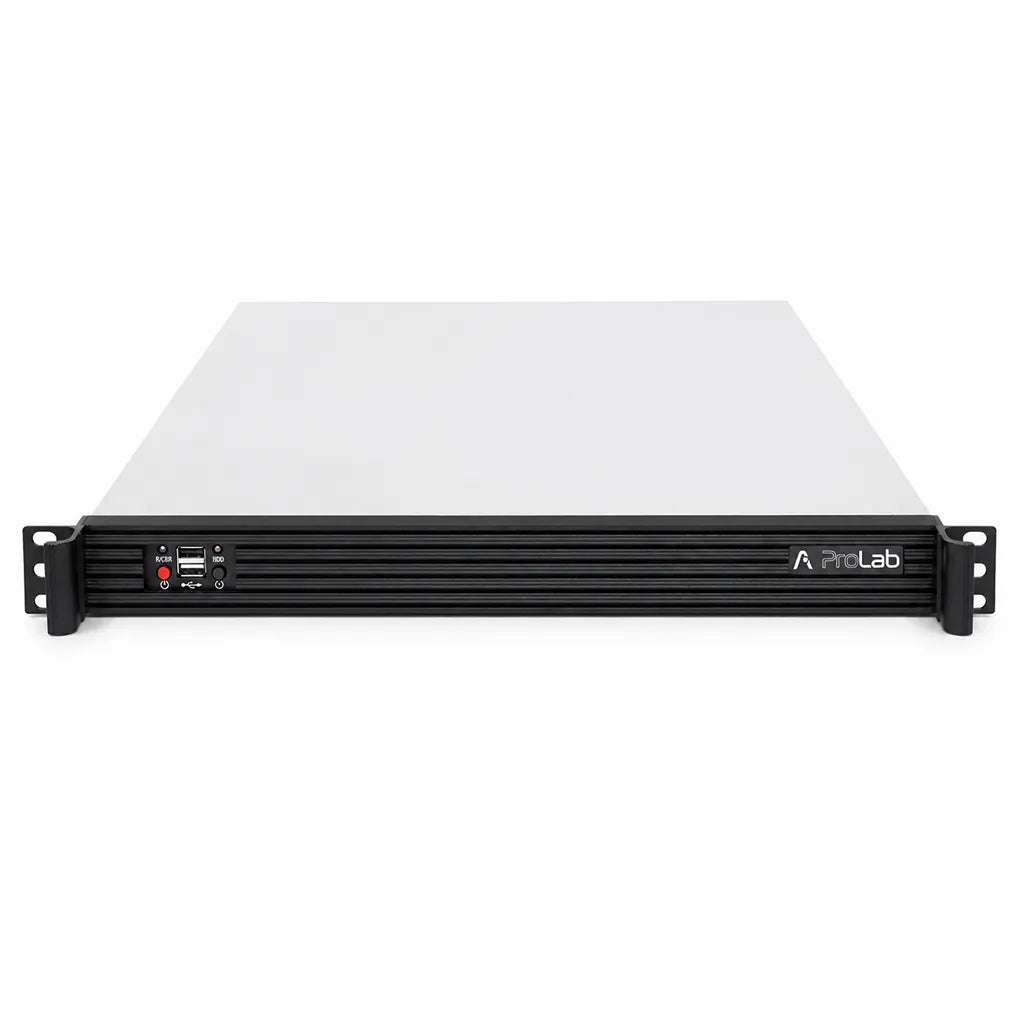

🔧 Front Access & Monitoring: Includes 2x front USB 2.0 ports, Power/HDD/NIC LEDs, Power Switch, and Reset controls for easier access and system monitoring.
The ProLab Design PL-1U-650L is a compact 1U rackmount server chassis designed for dense enterprise deployments. It supports SSI-EEB (E-ATX) motherboards, four internal 3.5-inch HDDs, standard 1U power supplies, and one horizontal expansion slot or customized expansion layouts. Its five hot-swap 4028 ball-bearing fans support focused cooling. The chassis is suitable for servers, networking appliances, edge computing, storage servers, NAS, backup, surveillance storage, and embedded enterprise platforms.
Product Specifications:
| Specification | Details |
|---|---|
| Brand | ProLab Design |
| Model | PL-1U-650L |
| Product Type | 1U Rackmount Server Chassis |
| Form Factor | 1U Rackmount |
| Motherboard Support | Up to SSI-EEB (E-ATX) |
| Expansion Support | 1x horizontal expansion slot or customized expansion layouts |
| Storage Bays | 4x internal 3.5-inch HDD drive bays |
| Cooling Fans | 5x 4028 hot-swap ball-bearing fans |
| Fan Location | Middle fan wall |
| Power Supply Support | Standard 1U power supplies |
| Front USB | 2x USB 2.0 |
| Front Controls | Power Switch, Reset |
| Front Indicators | Power LED, HDD LED, NIC LEDs |
| Intended Applications | Servers, Networking Appliances, Edge Computing Systems, Storage Servers, Embedded Enterprise Platforms |
| Suitable Storage Applications | Compact NAS, Backup Servers, Surveillance Storage, Data Archival |
| Warranty | 1-year limited warranty |
