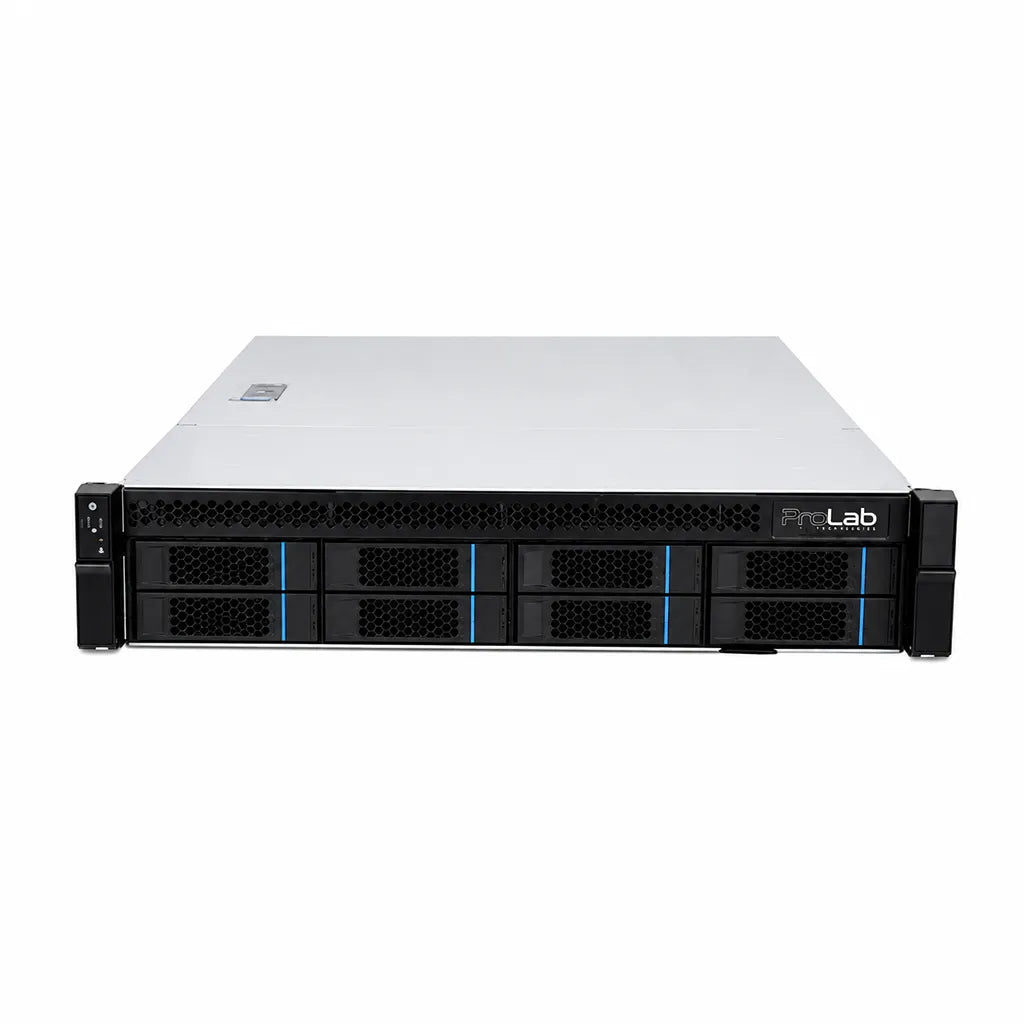

• ProLab PL-265-08 2U server chassis front view showing eight hot-swap storage bays -tpstech.in
  • ProLab PL-265-08 2U rackmount server chassis front 3/4 view with hot-swap drive bays -tpstech.in
  • ProLab PL-265-08 2U rackmount server chassis with 8 x 3.5-inch or 2.5-inch hot-swap storage bays -tpstech.in
  • ProLab PL-265-08 2U rackmount server chassis with 4 x 8038 fan mounts -tpstech.in
  • ProLab PL-265-08 2U server chassis with redundant CRPS power supply configuration -tpstech.in
  • ProLab PL-265-08 12 Gb/s Mini SAS backplane for hot-swap storage bays -tpstech.in
  • ProLab PL-265-08 2U rackmount server chassis supporting SSI-EEB E-ATX motherboard -tpstech.in
  • ProLab PL-265-08 2U rackmount server chassis with included rail kit for rack installation -tpstech.in

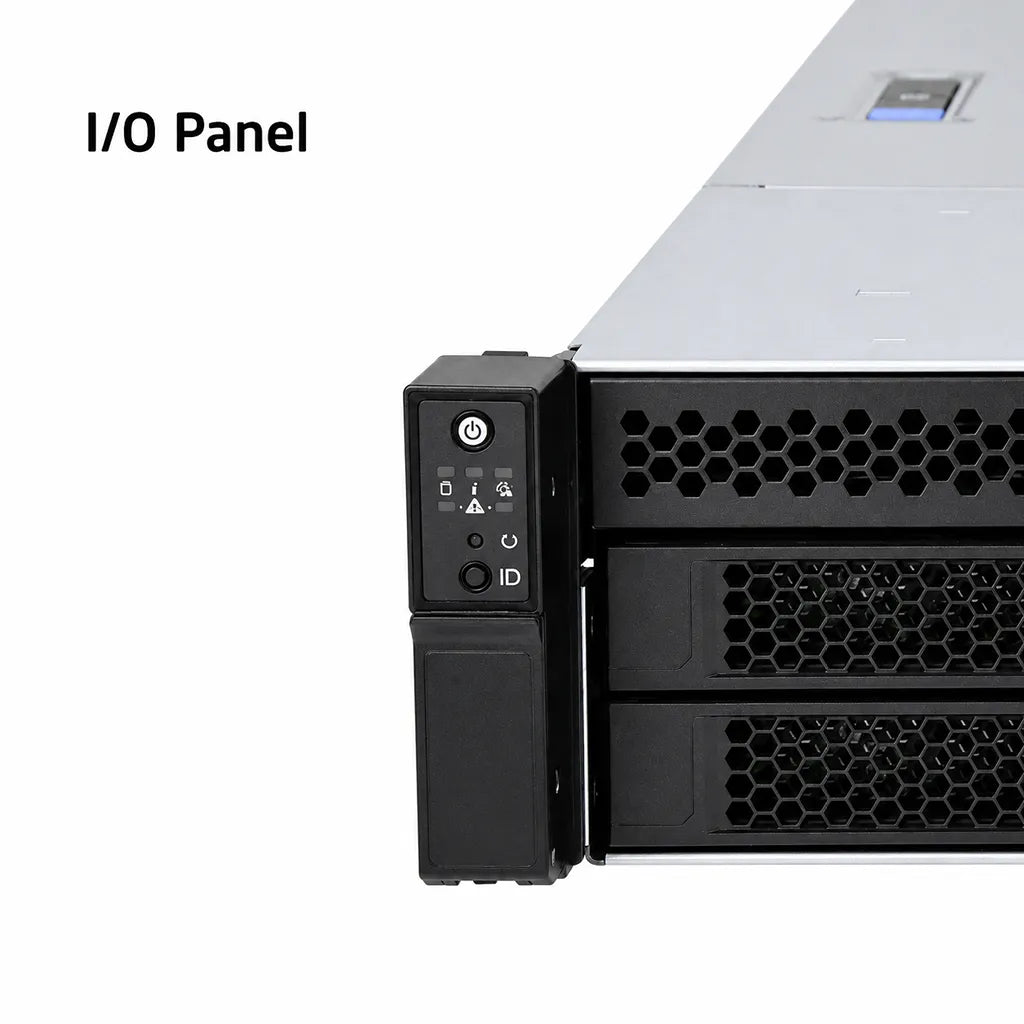

  • ProLab PL-265-08 2U rackmount server chassis I/O panel with power and system control indicators -tpstech.in
  • ProLab PL-265-08 2U rackmount server chassis with 7 half-height PCI PCIe expansion slots -tpstech.in
  • ProLab PL-265-08 2U rackmount server chassis dimensions 437.5 x 650 x 88 mm -tpstech.in
1 11

ProLab Design PL-265-08 2U Rackmount Server Chassis for E-ATX

ProLab Design PL-265-08 2U Rackmount Server Chassis for E-ATX

Brand: Prolab Design
Rs. 34,999.00
41% off Rs. 58,600.00 Rs. 34,999.00
Sale Sold out
  • 100% Genuine Product
  • Highly ⭐ Rated on Trustpilot & Google
  • > 15 Lakh Orders Fulfilled
Loading Offers...
+ Offers

Product Description:

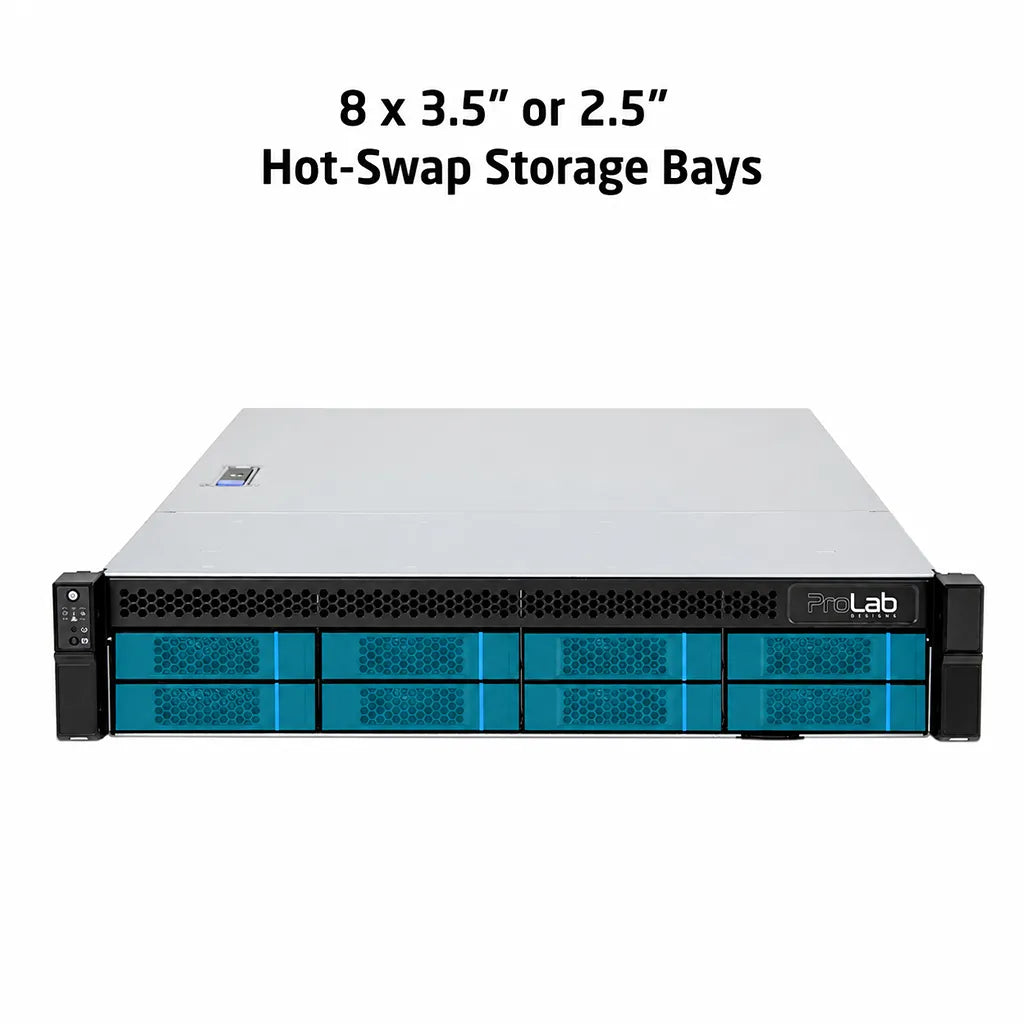

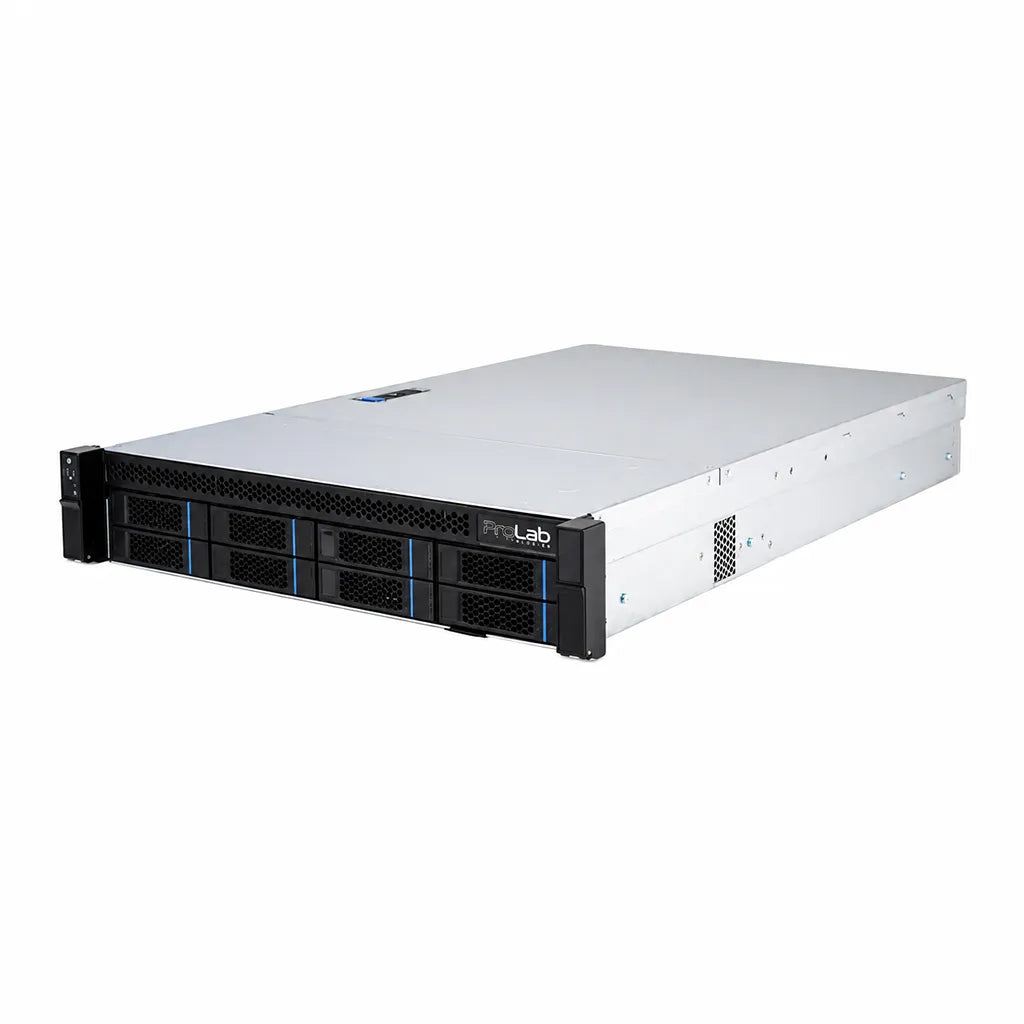

🗄️ 8 Hot-Swap Drive Bays: Supports up to 8 front hot-swap 3.5-inch or 2.5-inch SATA/SAS drives for flexible, high-density storage deployments.

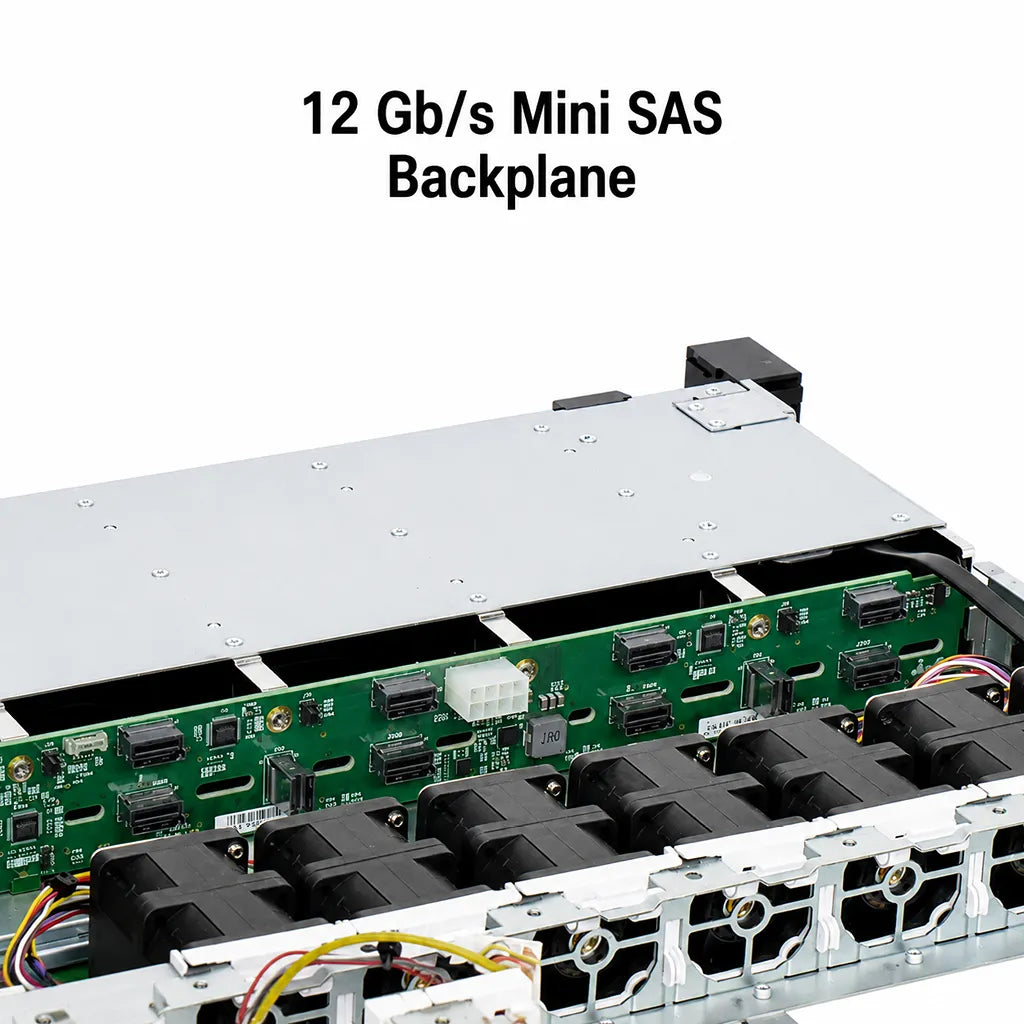

⚡ 12 Gb/s Mini-SAS Backplane: Provides a high-bandwidth Mini-SAS interface for connecting the front drive bays to the motherboard.

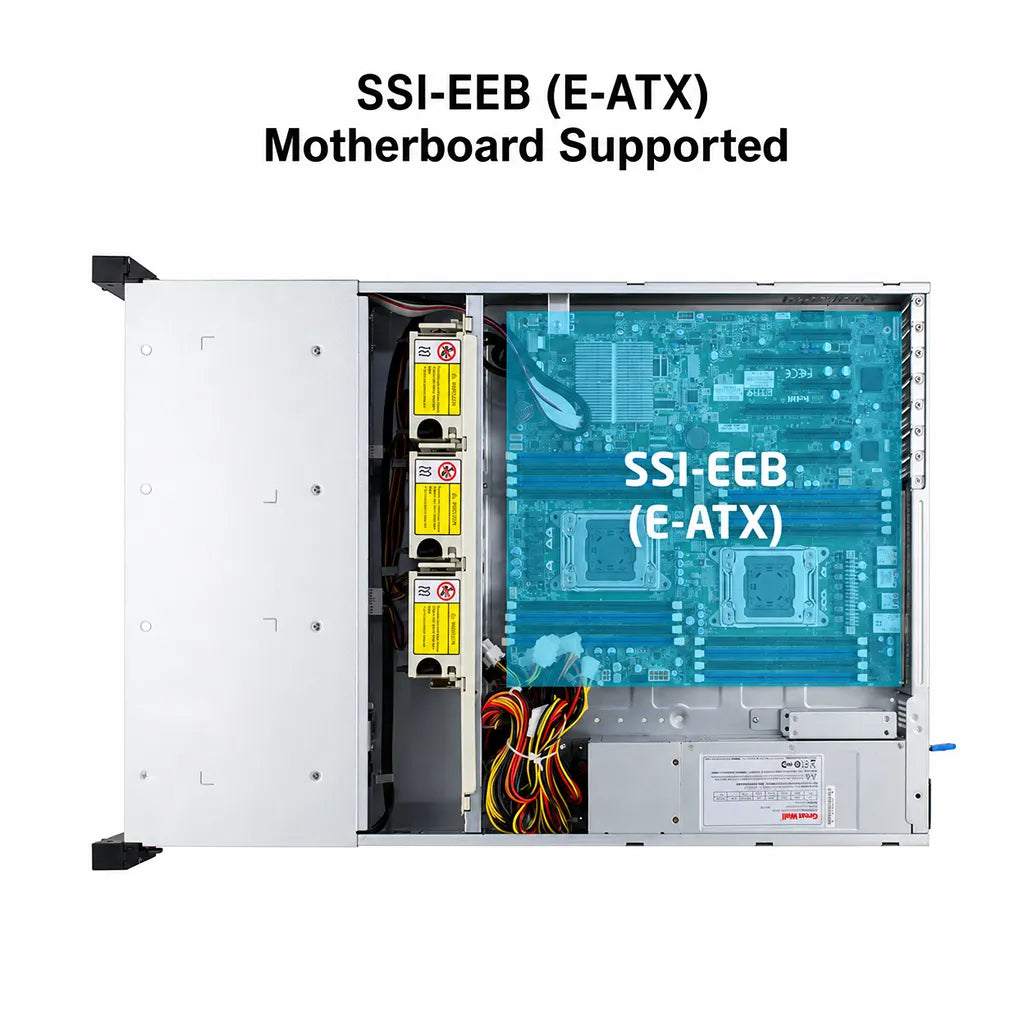

🖥️ SSI-EEB Motherboard Support: Supports 12 x 13-inch SSI-EEB/E-ATX server and workstation motherboards for Intel Xeon, AMD EPYC and Threadripper platforms.

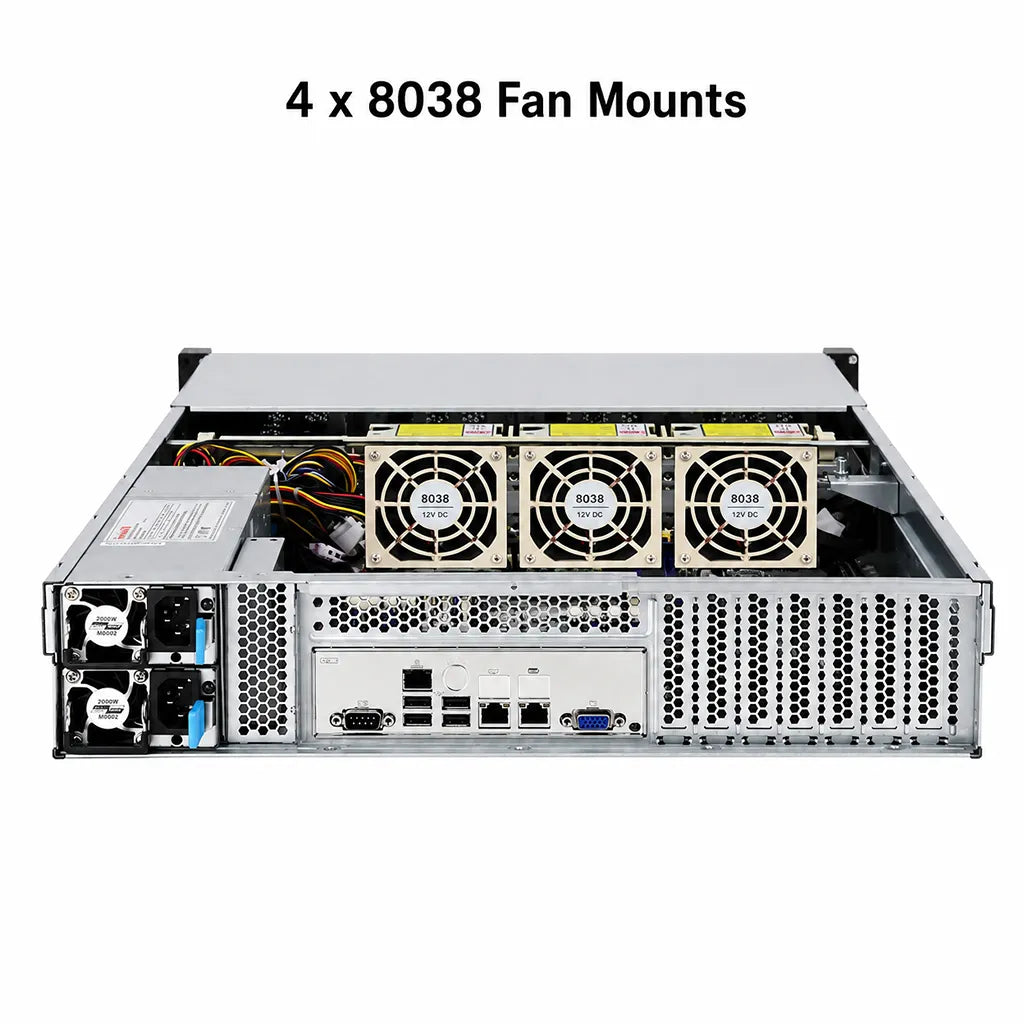

❄️ Focused Rack Cooling: Includes 3 pre-installed 80 x 80 x 38 mm cooling fans and supports up to 4 x 80 mm fans for airflow across critical components.

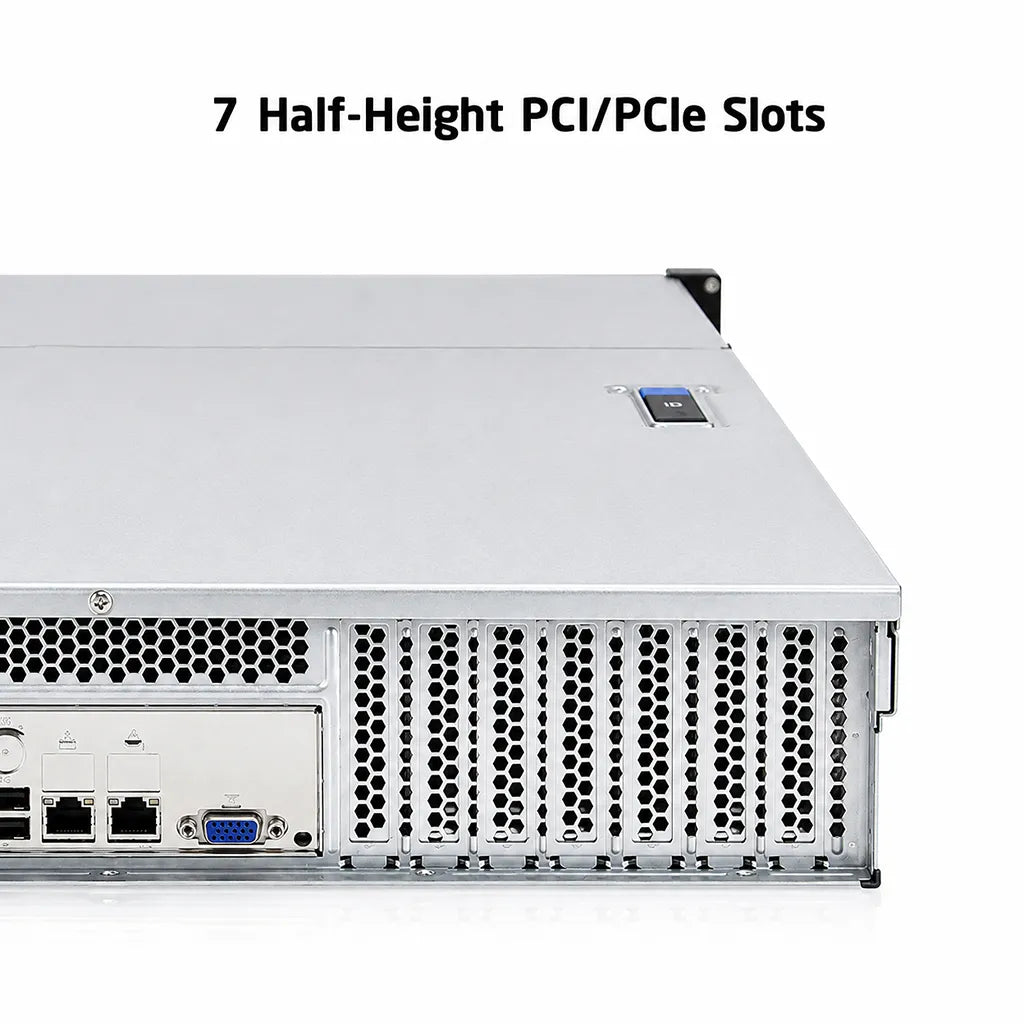

🔌 Enterprise Expansion & Redundancy: Supports 1+1 CRPS redundant PSUs, 7 half-height PCI/PCIe slots and low-profile GPU configurations depending on the motherboard.

The ProLab Design PL-265-08 is a compact 2U rackmount server chassis built for servers, NAS systems, edge computing, AI inference, virtualization, surveillance storage and professional workstations. It supports SSI-EEB/E-ATX motherboards, up to 8 hot-swap 3.5/2.5-inch drives, a 12 Gb/s Mini-SAS backplane, 1+1 CRPS redundant PSUs and 7 half-height PCI/PCIe slots. The included rail kit simplifies rack installation and maintenance.

Product Specifications:

Specification Details
Brand ProLab Design
Model PL-265-08
Product Type 2U Rackmount Server Chassis
Motherboard Support SSI-EEB (E-ATX)
Motherboard Size SSI-EEB 12 x 13 inches
3.5-inch Drive Bays 8 Hot-Swap Front Bays
Drive Support Up to 8 Hot-Swap 3.5-inch or 2.5-inch SATA/SAS Drives
Backplane 12 Gb/s Mini-SAS Backplane

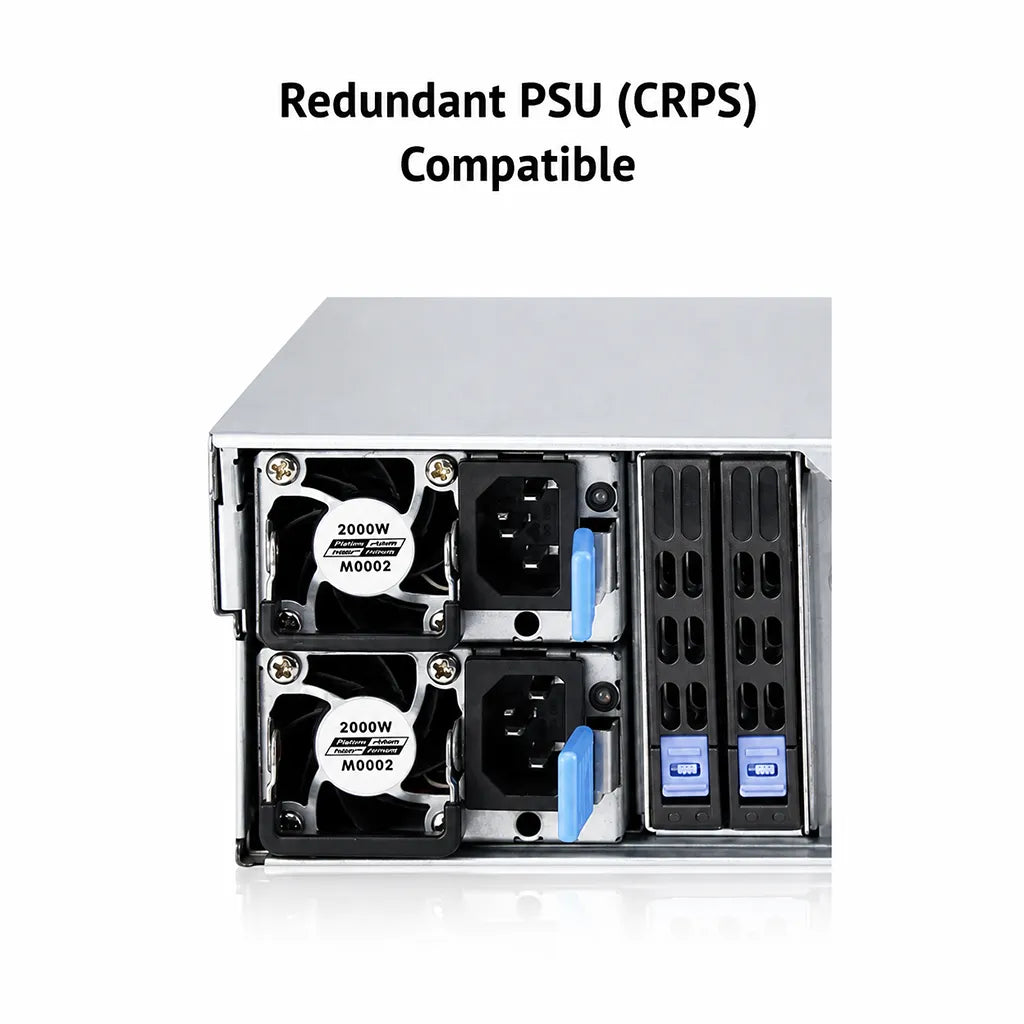

Power Supply Support 1+1 CRPS Redundant PSU
GPU Support Low-Profile, depending on motherboard
Pre-Installed Cooling Fans 3 x 80 mm Hot-Swap Fans
Cooling Fan Size 80 x 80 x 38 mm
Maximum Fan Support Up to 4 x 80 mm Fans
USB Ports 2 x USB 3.0
USB Combined Bandwidth 5 Gb/s
Expansion Slots 7 x Half-Height PCI/PCIe Slots

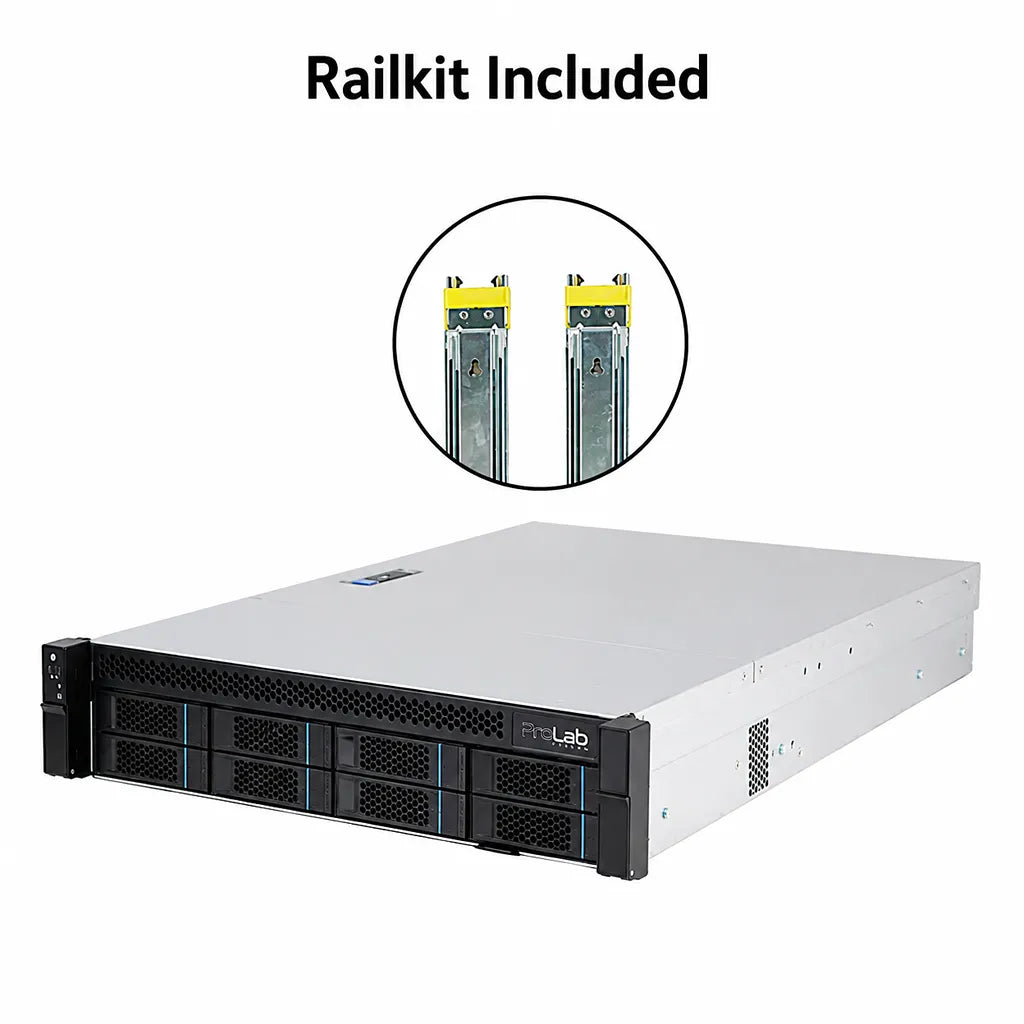

Rail Kit Included, PL-2U-660-RK

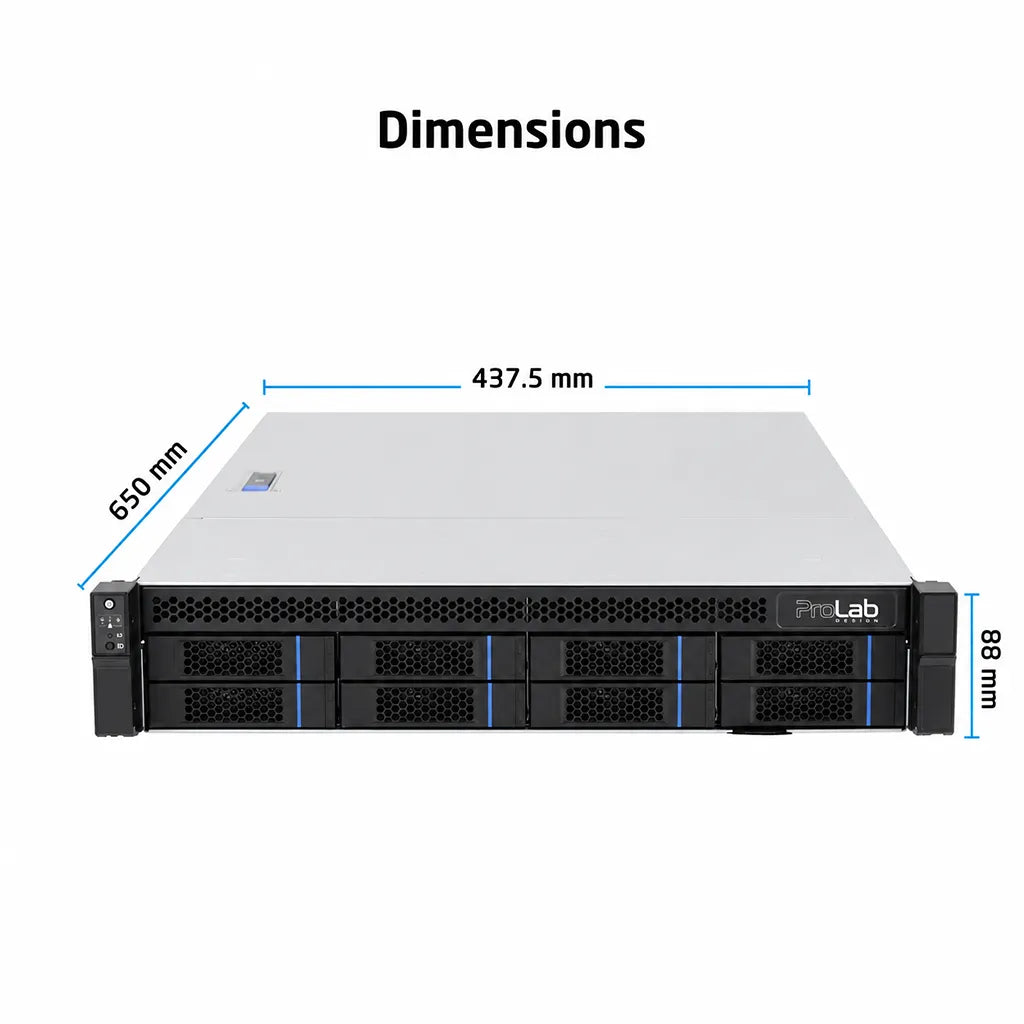

Dimensions 430 x 650 x 88 mm
Warranty 1 Year Limited
