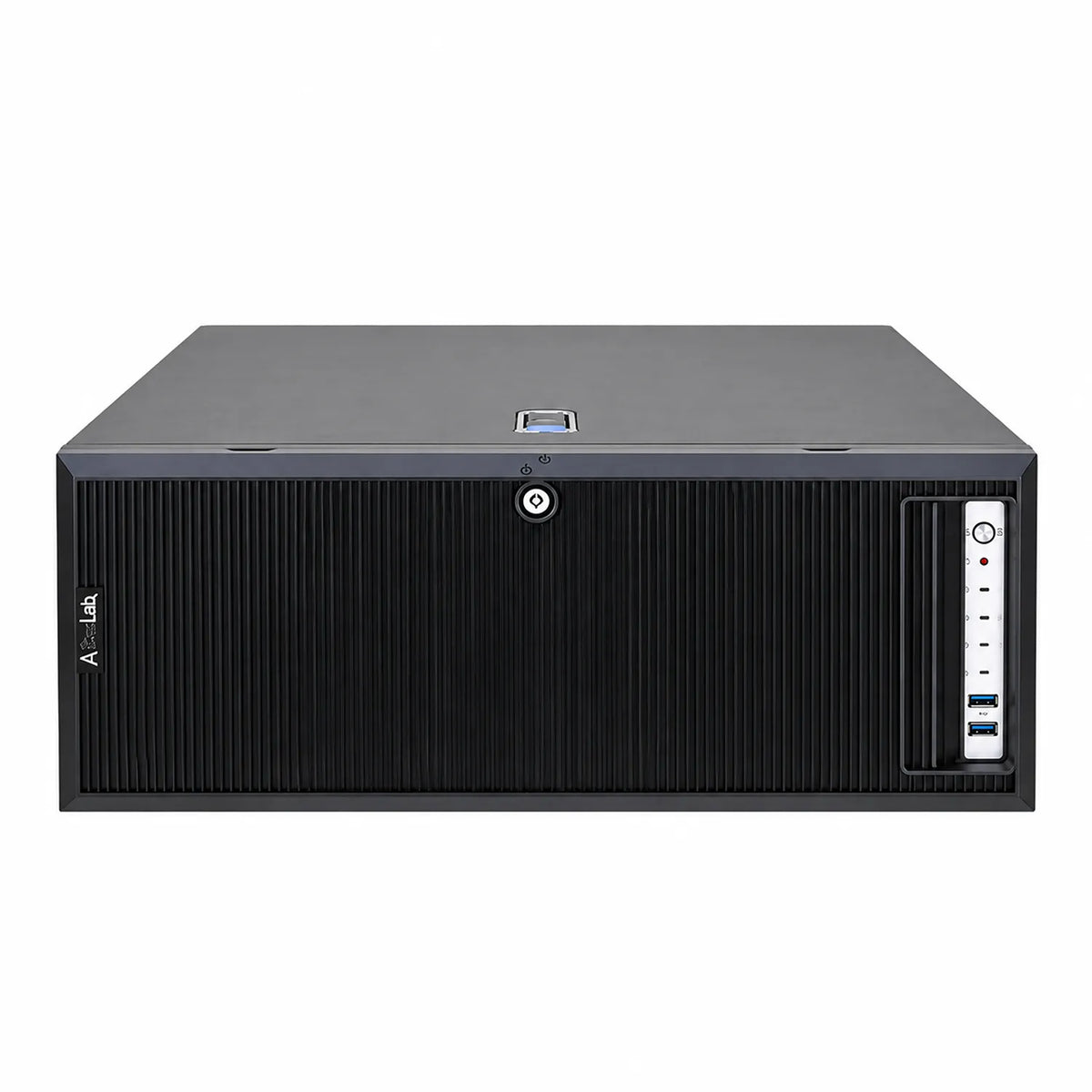

• ProLab Design PL-ATX-08 4U Tower Rackmount Server Chassis front view -tpstech.in

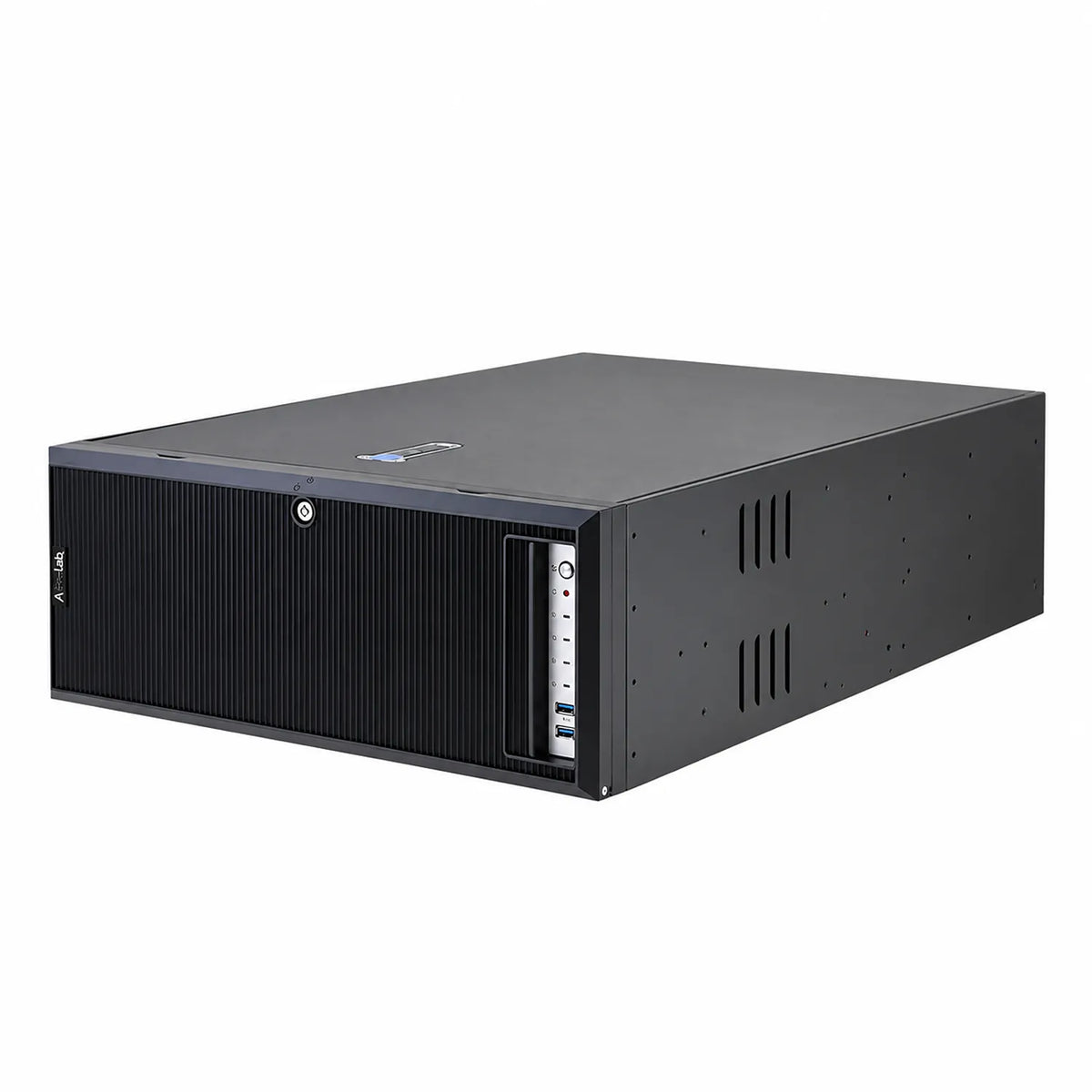

  • ProLab Design PL-ATX-08 4U Tower Rackmount Server Chassis front angle view -tpstech.in

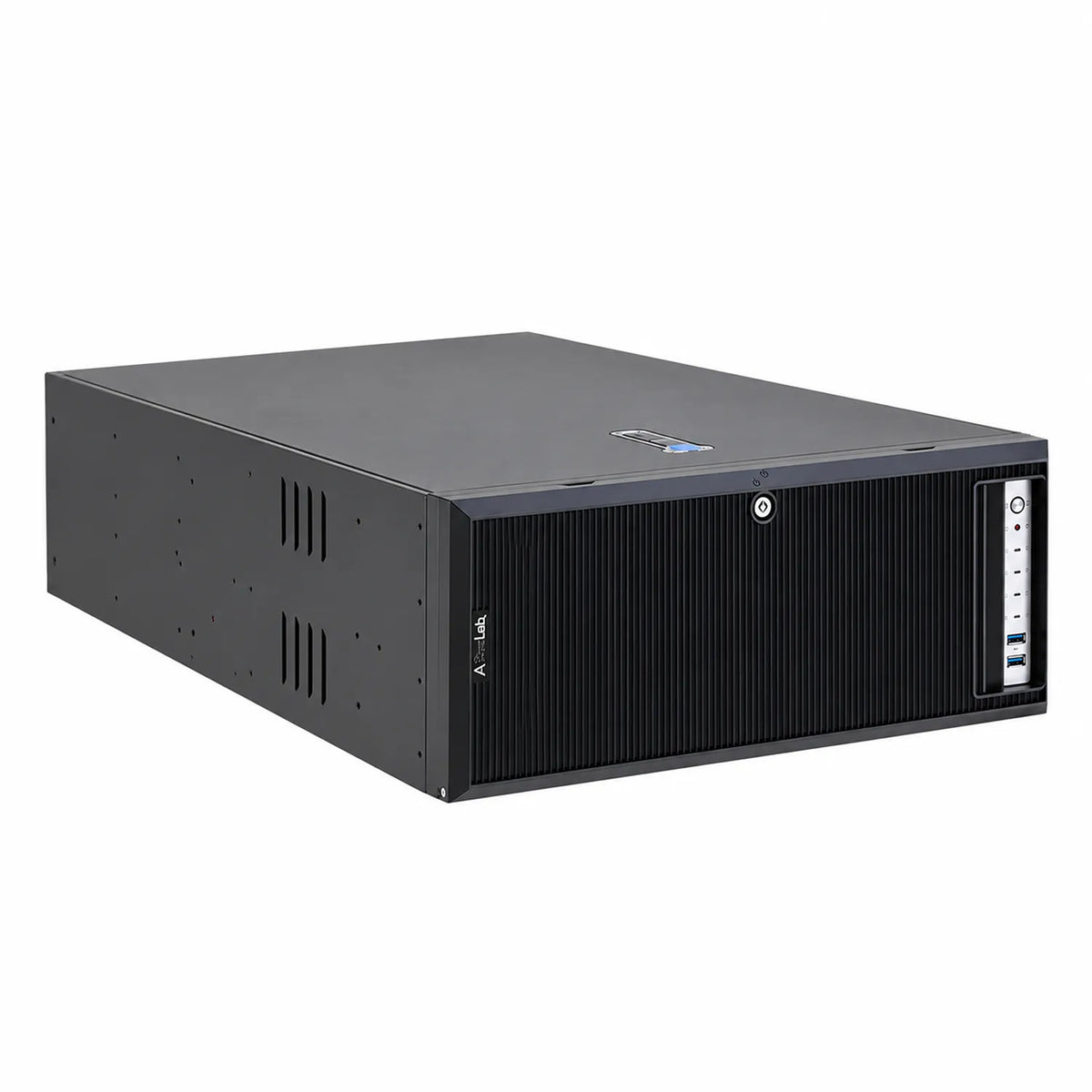

  • ProLab Design PL-ATX-08 4U Tower Rackmount Server Chassis left angle view -tpstech.in
  • ProLab Design PL-ATX-08 4U server chassis with 8 x 3.5 or 2.5 inch hot-swap storage bays -tpstech.in

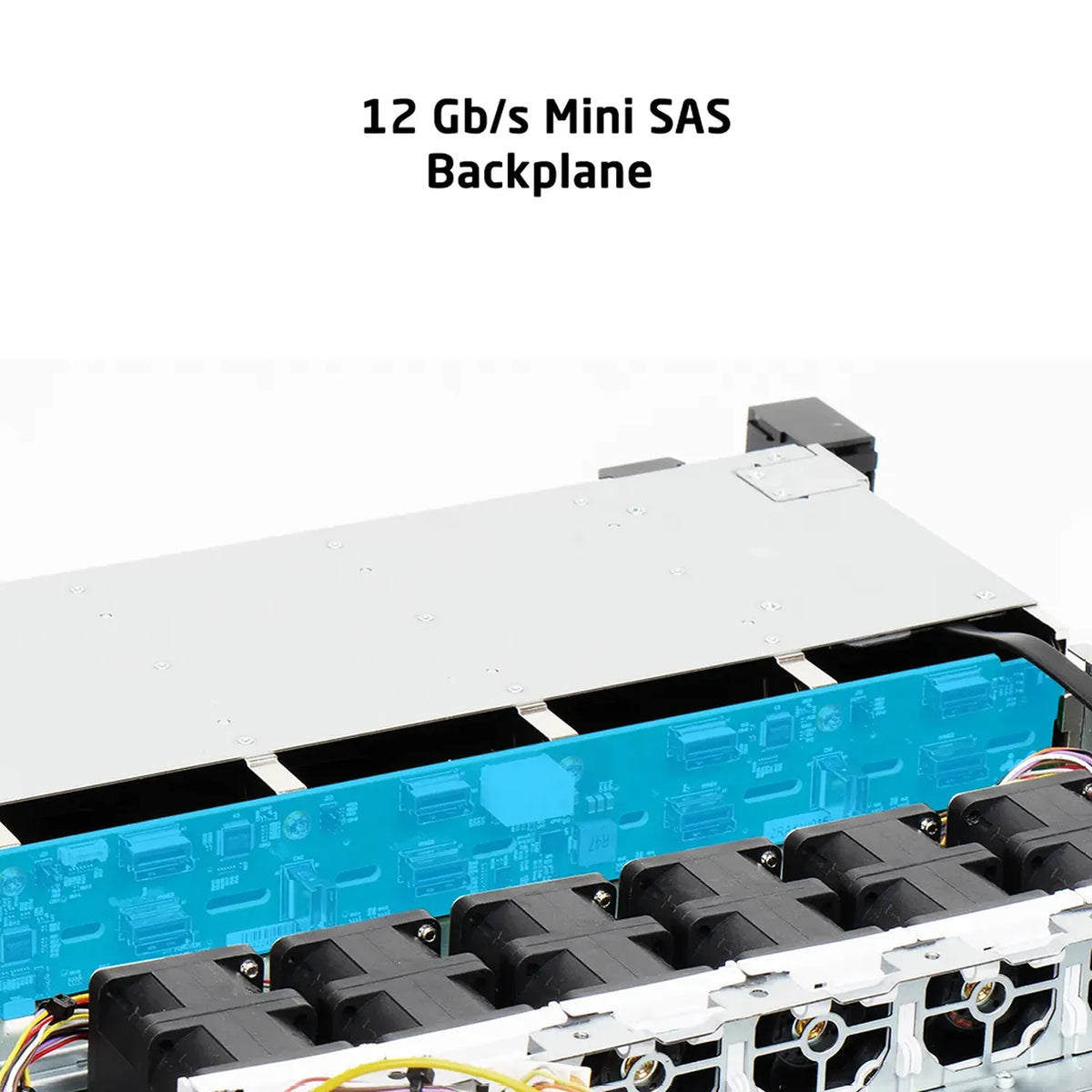

  • ProLab Design PL-ATX-08 12 Gb/s Mini SAS backplane for hot-swap storage drives -tpstech.in

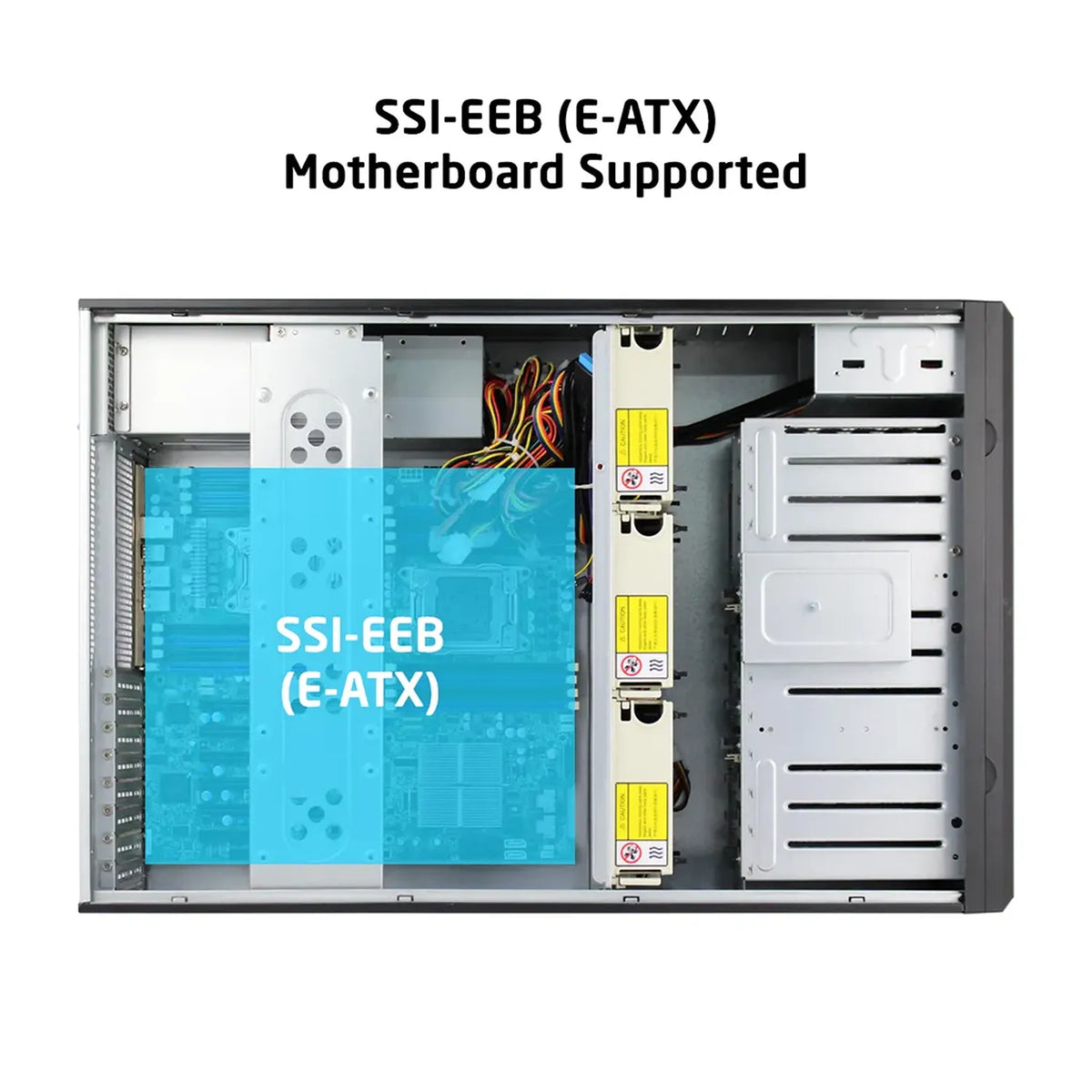

  • ProLab Design PL-ATX-08 SSI-EEB E-ATX motherboard supported 4U server chassis -tpstech.in

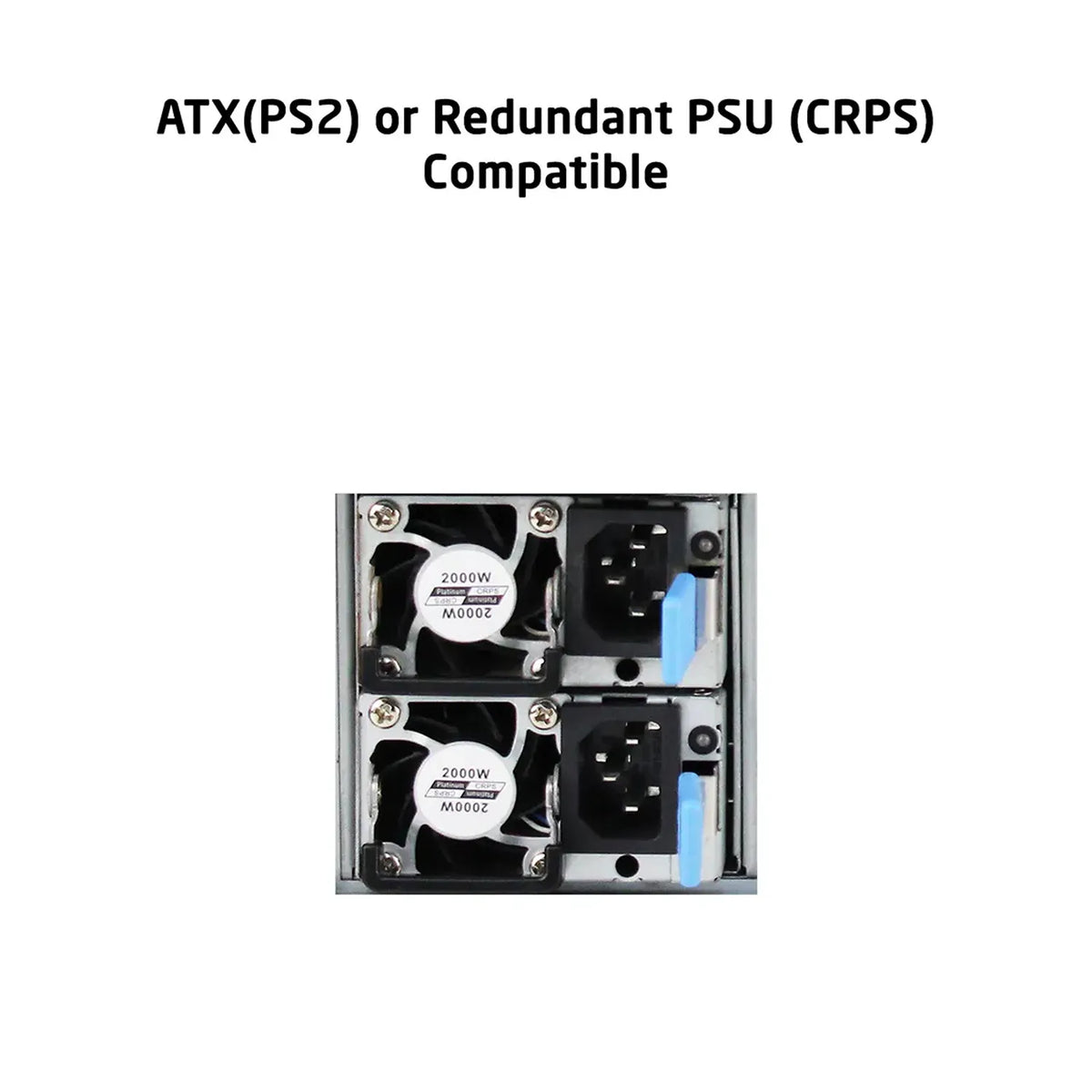

  • ProLab Design PL-ATX-08 ATX PS2 or redundant CRPS PSU compatible server chassis -tpstech.in
  • ProLab Design PL-ATX-08 with 3 x 12028 hot-swap fans pre-installed -tpstech.in

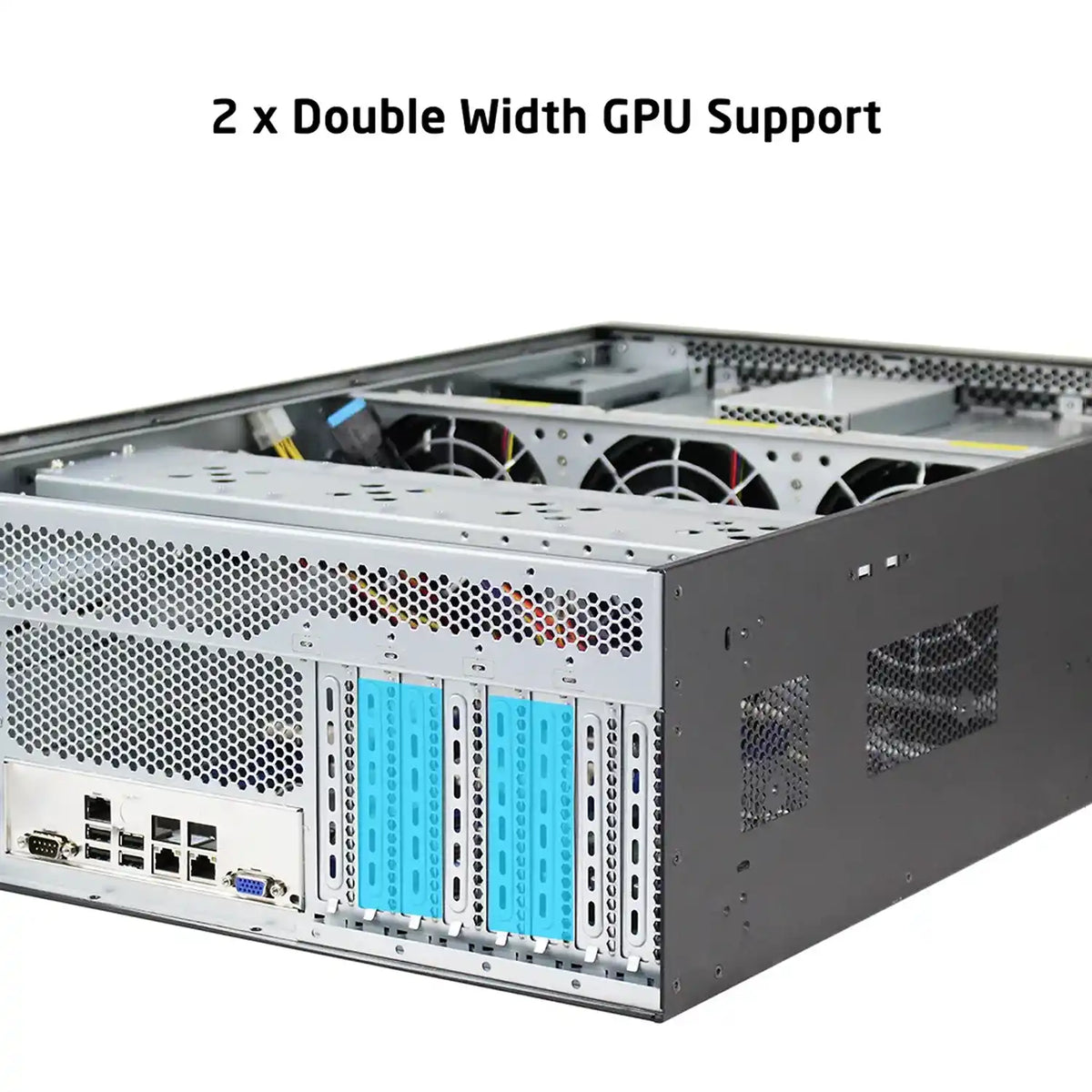

  • ProLab Design PL-ATX-08 4U server chassis with support for 2 double-width GPUs -tpstech.in

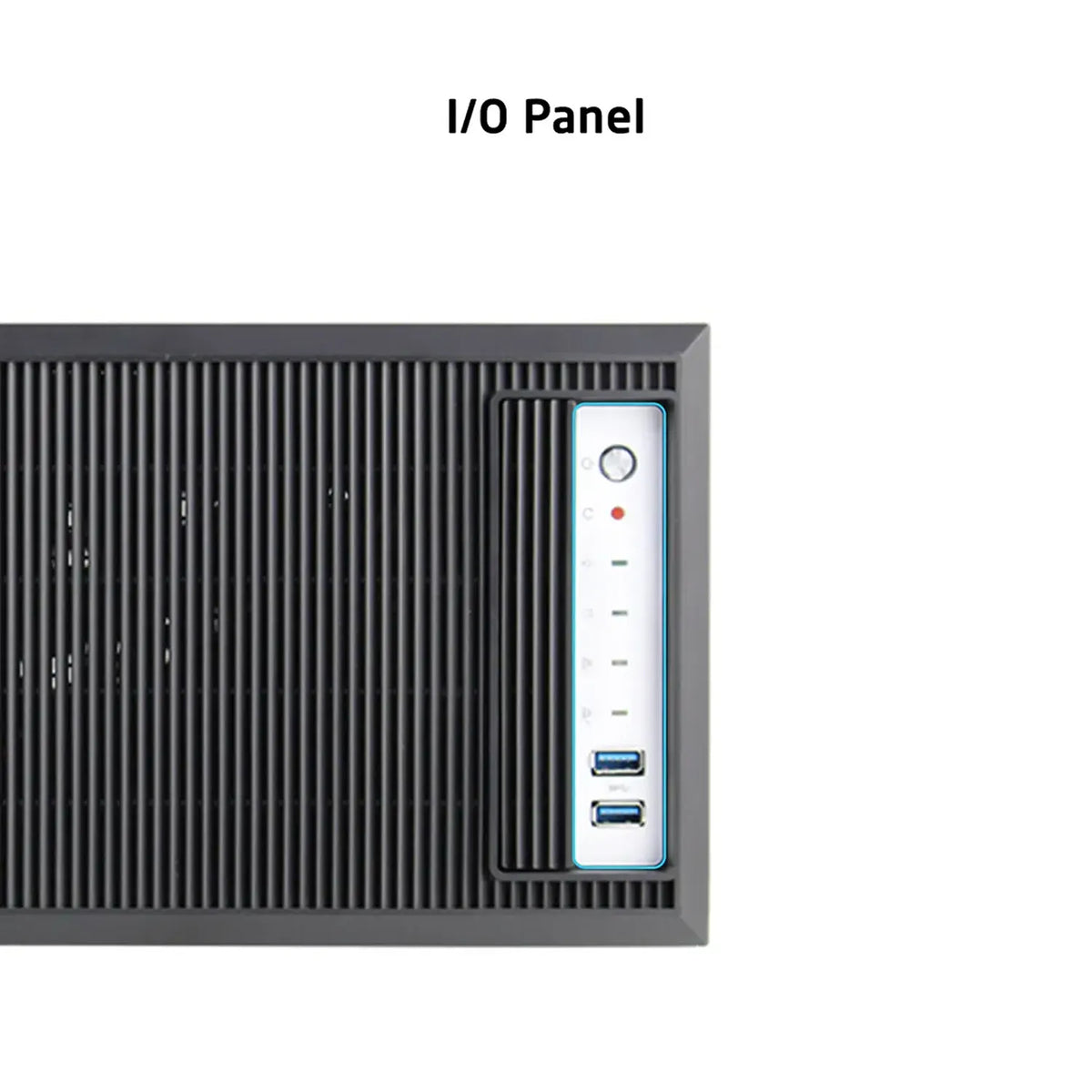

  • ProLab Design PL-ATX-08 front I/O panel with USB 3.0 ports and power controls -tpstech.in

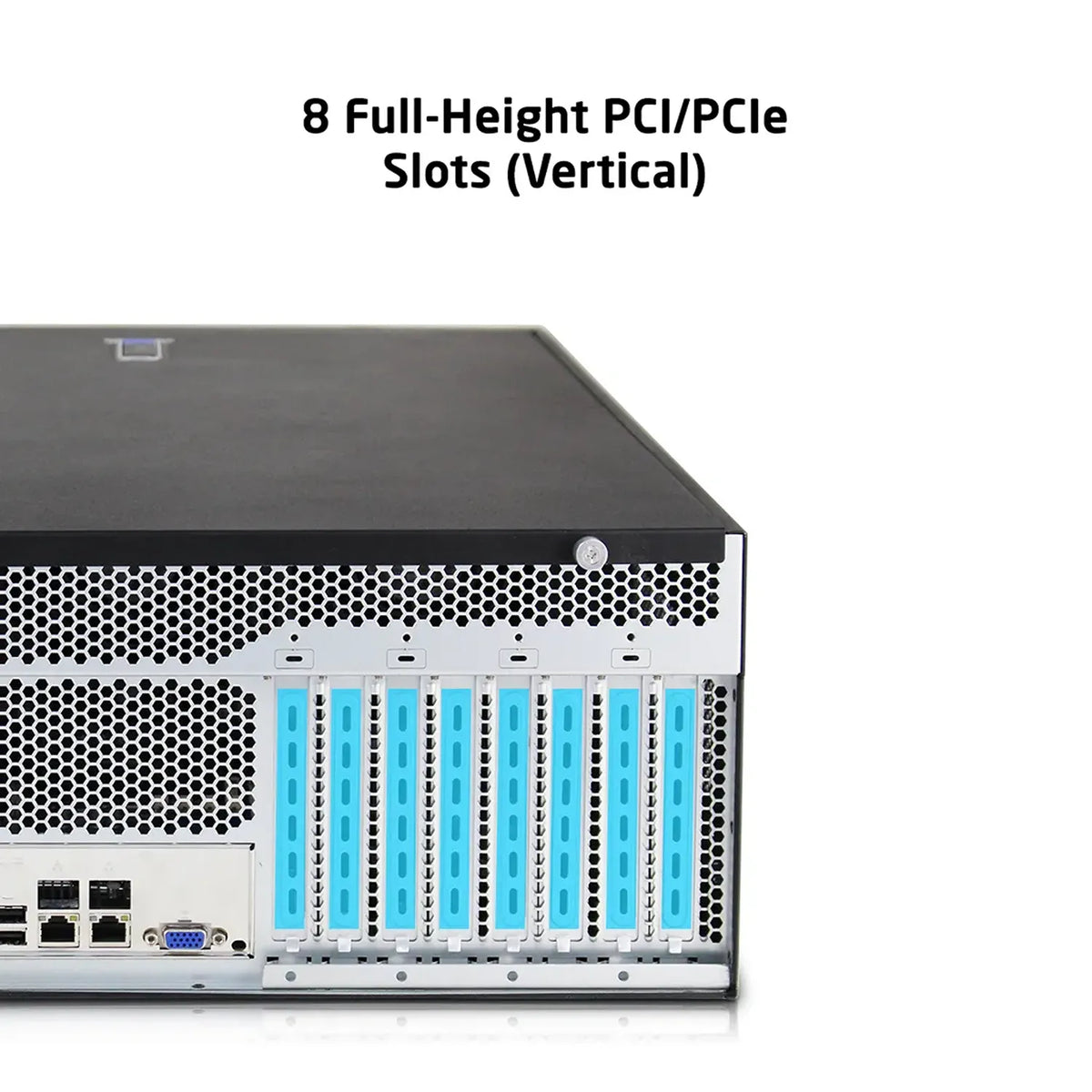

  • ProLab Design PL-ATX-08 8 full-height PCI PCIe expansion slots in vertical configuration -tpstech.in
1 11

ProLab Design PL-ATX-08 4U Tower Rackmount Server Chassis with E-ATX Support

ProLab Design PL-ATX-08 4U Tower Rackmount Server Chassis with E-ATX Support

Brand: Prolab Design
Rs. 46,999.00
20% off Rs. 58,600.00 Rs. 46,999.00
Sale Sold out
  • 100% Genuine Product
  • Highly ⭐ Rated on Trustpilot & Google
  • > 15 Lakh Orders Fulfilled
Loading Offers...
+ Offers

Product Description:

🗄️ 4U Tower/Rackmount Design: Supports flexible tower or rackmount deployment for servers, NAS systems, workstations and enterprise infrastructure.

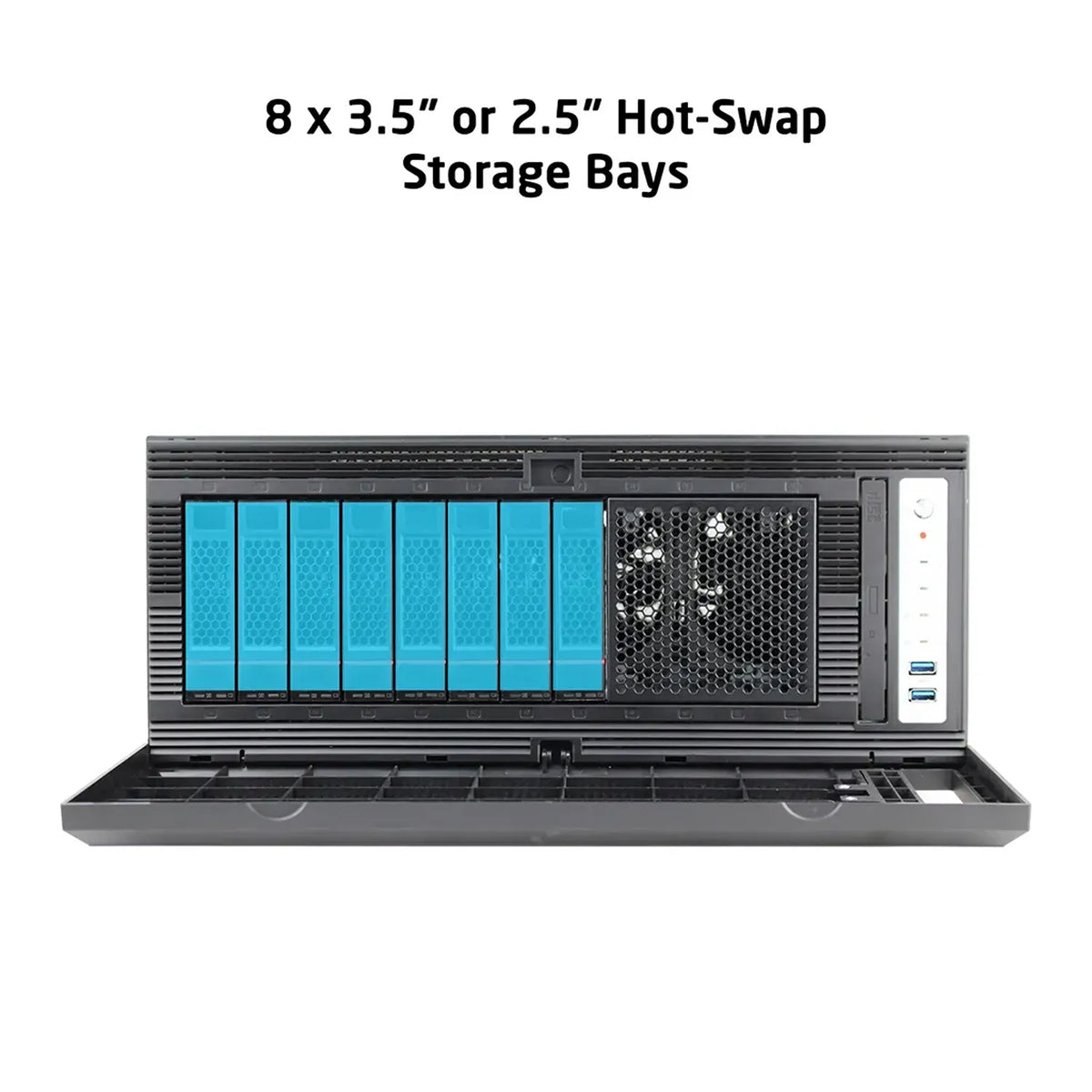

💾 8 Hot-Swap Drive Bays: Accommodates up to 8 front hot-swap 3.5-inch/2.5-inch SATA or SAS drives for scalable storage configurations.

🧩 SSI-EEB Motherboard Support: Supports SSI-EEB (12 × 13-inch) E-ATX motherboards used with Intel Xeon, AMD EPYC and Threadripper platforms.

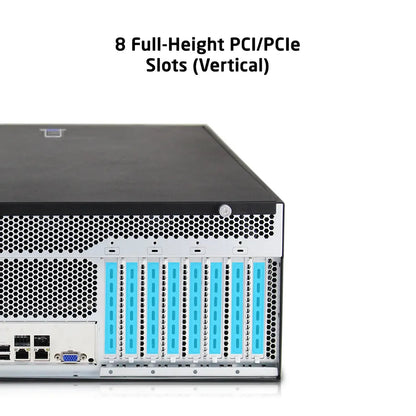

🎮 GPU & Expansion Ready: Provides support for up to 2 double-width GPUs and 8 full-height PCI/PCIe expansion slots for computer, networking and storage expansion.

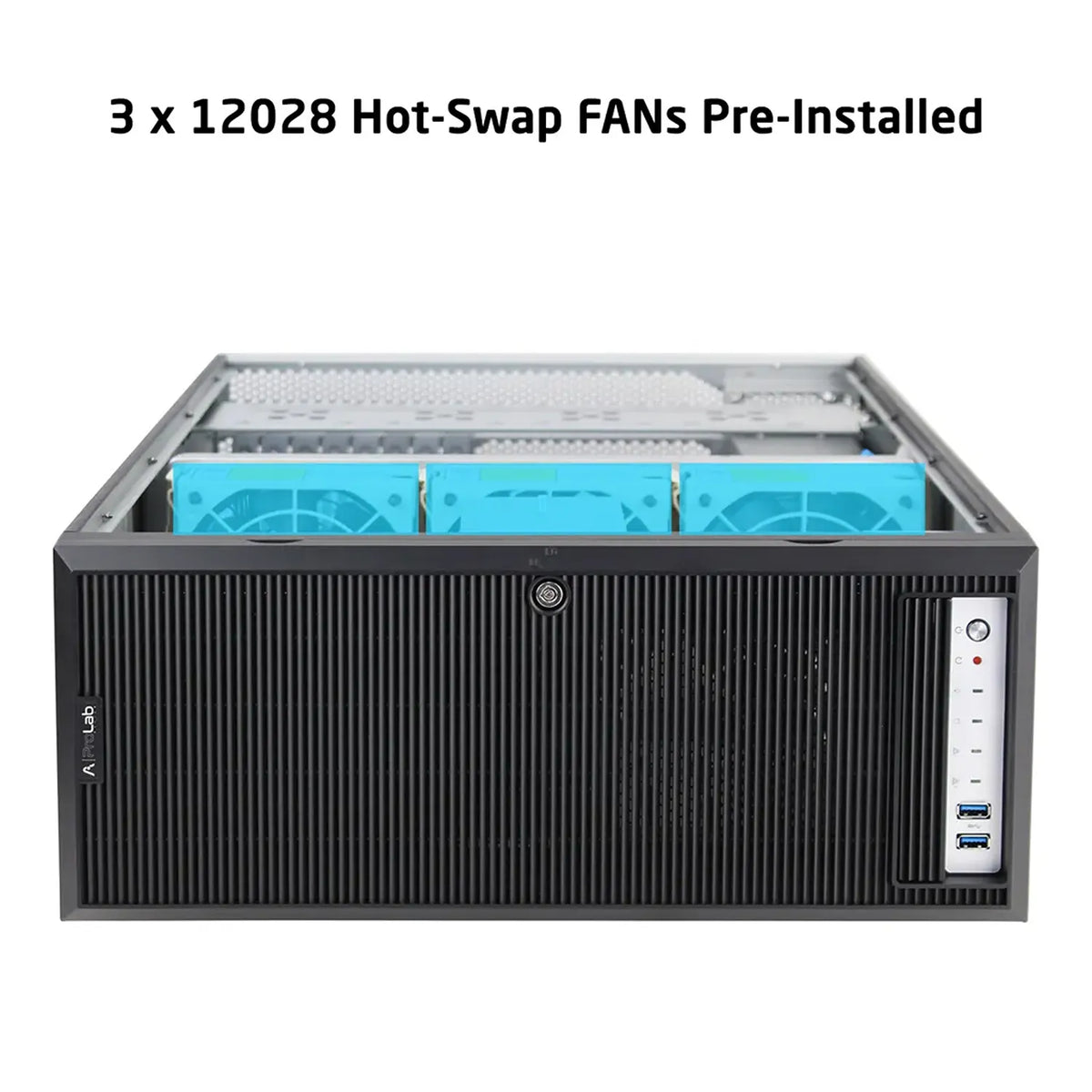

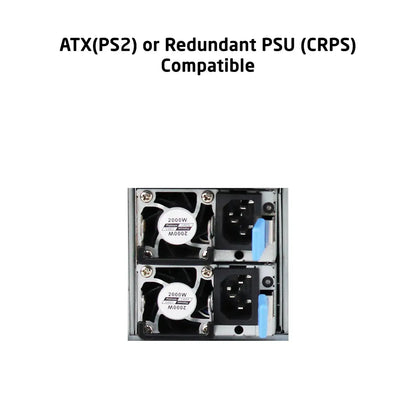

🌬️ Server-Focused Cooling: Includes 3 pre-installed 120 mm hot-swap fans and supports ATX (PS2) or 1+1 CRPS redundant power supplies for demanding deployments.

The ProLab Design PL-ATX-08 is a 4U Tower/Rackmount Server Chassis designed for enterprise servers, NAS systems, workstations, virtualization, AI inference and storage applications. It supports SSI-EEB (E-ATX) motherboards, 8 hot-swap drive bays, 8 full-height PCI/PCIe slots and up to 2 double-width GPUs. Its 650 mm depth, hot-swap cooling and flexible PSU support make it suitable for rack and tower deployments.

Product Specifications:

Brand ProLab Design
Model PL-ATX-08
Product Type 4U Tower/Rackmount Server Chassis
Form Factor 4U Rackmount Chassis
Deployment Tower or Rackmount
Motherboard Support SSI-EEB (E-ATX)
Supported Motherboard Size 12 × 13 inches
3.5-inch Drive Bays 8 Hot-Swap Front Bays
2.5-inch Drive Support Supports 2.5-inch Drives
Drive Interface Compatibility SATA or SAS
Backplane 12 × Mini-SAS
Backplane Speed Up to 12 Gb/s
PSU Support ATX (PS2) or 1+1 CRPS Redundant
GPU Support Up to 2 × Double-Width GPUs
Expansion Slots 8 × Full-Height PCI/PCIe Slots
Cooling 3 × 120 mm Hot-Swap Fans Pre-Installed
Fan Size 120 × 120 × 28 mm
Front I/O 2 × USB 3.0
Chassis Dimensions 437.5 × 650 × 177 mm
Rail Kit Available
Weight 11 kg
Warranty 1 Year Limited
