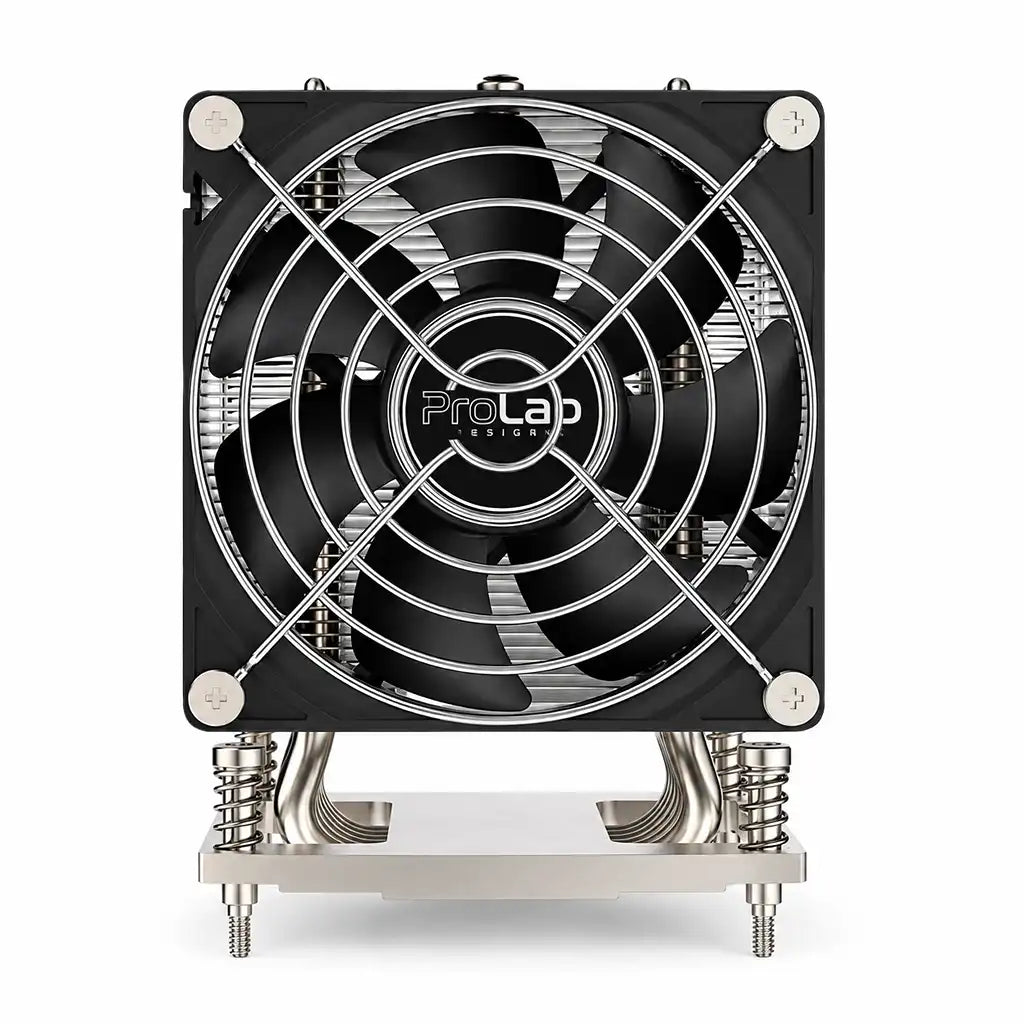

• ProLab Design PL LGA1700 4US 4U Server CPU Cooler front view with cooling fan and wire guard -tpstech.in

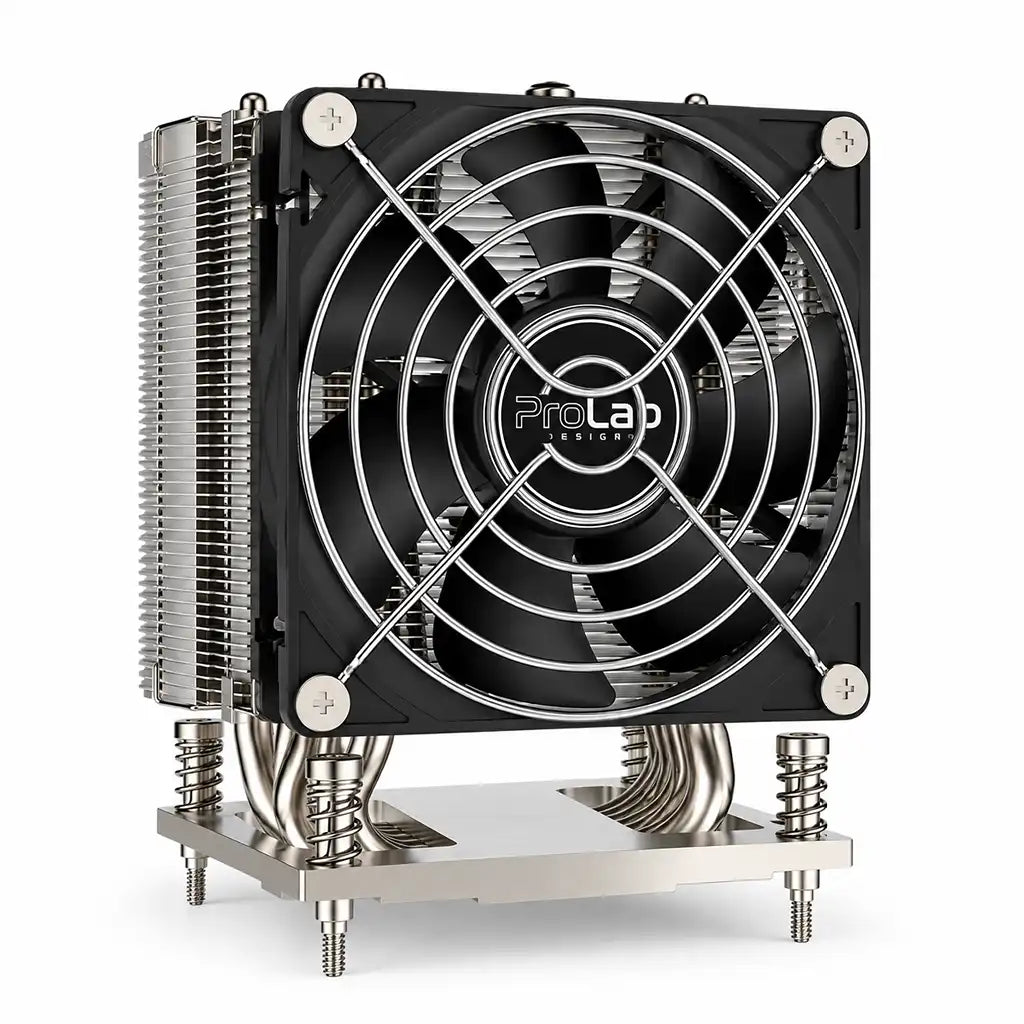

  • ProLab Design PL LGA1700 4US server CPU cooler right perspective view showing heatsink fins and mounting screws -tpstech.in

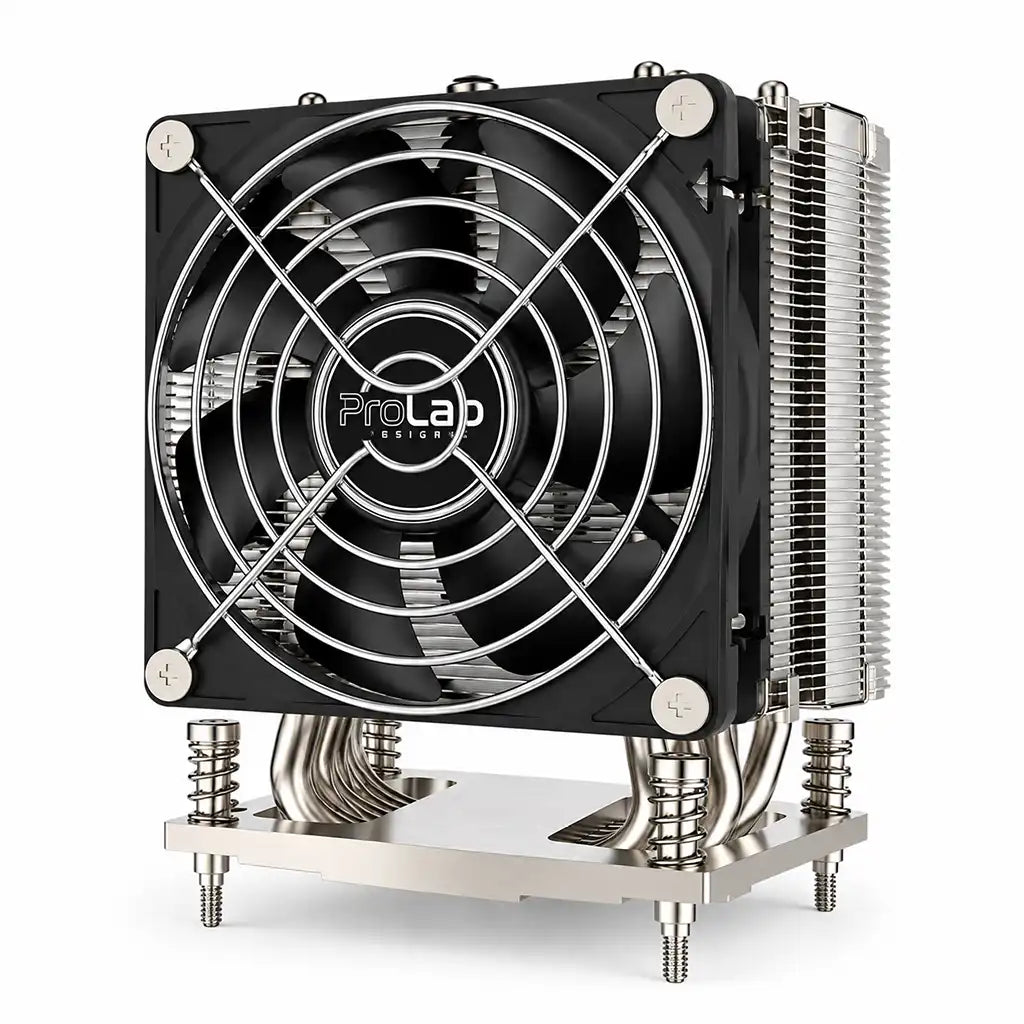

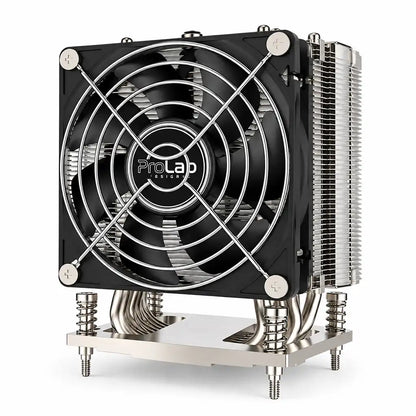

  • ProLab Design PL LGA1700 4US 4U server heatsink cooler left perspective view with copper heat pipes -tpstech.in

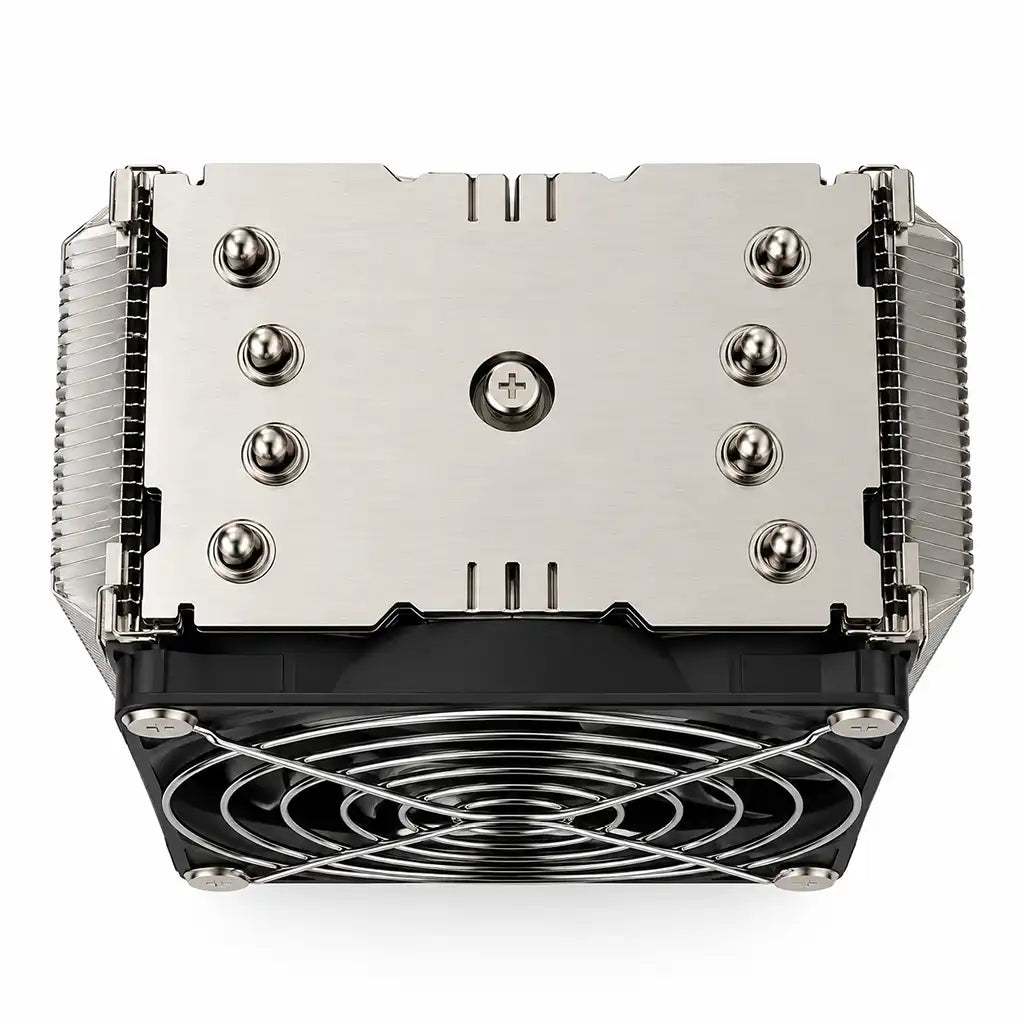

  • ProLab Design PL LGA1700 4US server CPU cooler top view highlighting nickel plated heat pipe caps and top fin plate -tpstech.in

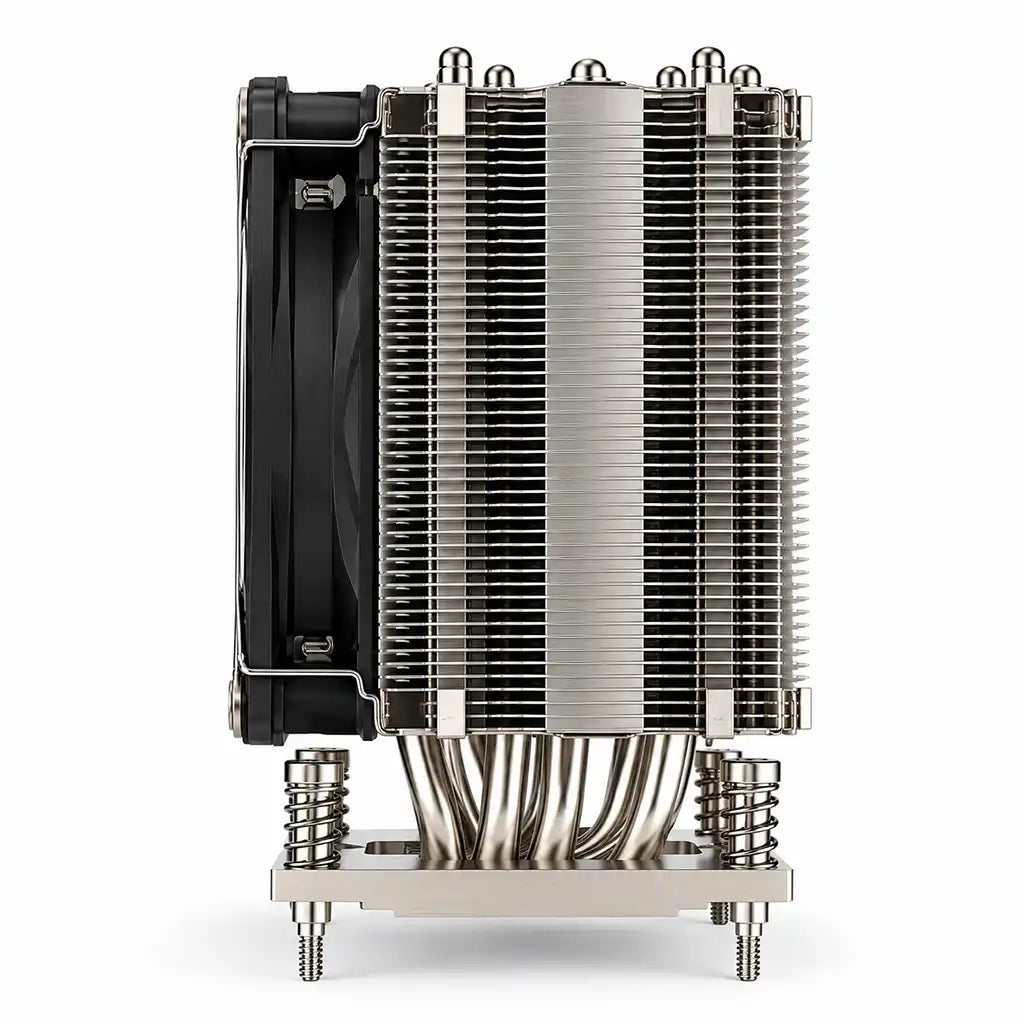

  • ProLab Design PL LGA1700 4US 4U server CPU cooler side profile displaying dense aluminum fin stack and spring loaded screws -tpstech.in
1 5

ProLab Design PL-LGA1700-4US 4U Server CPU Cooler for Intel LGA1700/LGA1851

ProLab Design PL-LGA1700-4US 4U Server CPU Cooler for Intel LGA1700/LGA1851

Brand: Prolab Design
Rs. 4,899.00
41% off Rs. 8,299.00 Rs. 4,899.00
Sale Sold out
  • 100% Genuine, Brand New & Sealed
  • Original Manufacturer Warranty
  • Trusted Since 2014 · 15 Lakh+ Orders
Loading Offers...
+ Offers

Product Description:

4U Server Cooling: Designed specifically for 4U or larger rackmount chassis used in server and workstation deployments.

Intel Socket Compatibility: Supports Intel LGA1700 and LGA1851 platforms for compatible Core and Xeon-class processor systems.

245W TDP Support: Pure copper baseplate and 6 copper heatpipes provide thermal transfer for processors up to 245W TDP.

High-Airflow PWM Fan: Industrial-grade 92mm PWM fan operates from 1300 to 3800 RPM with up to 61.46 CFM airflow and 3.5 mmH₂O static pressure.

Professional Workloads: Suitable for rendering, virtualization, edge computing, AI edge systems, cloud infrastructure and media production servers.

The ProLab Design PL-LGA1700-4US is a 4U server CPU cooler designed for Intel LGA1700 and LGA1851 platforms. It combines a pure copper baseplate, 6 copper heatpipes and a 92mm PWM fan to support processors up to 245W TDP. With up to 61.46 CFM airflow, it is suited for 4U rackmount servers, professional workstations, virtualization, rendering and edge computing systems.

Product Specifications:

Brand ProLab Design
Model PL-LGA1700-4US
Product Type 4U Server CPU Cooler
Compatible Platforms Intel LGA1700 and LGA1851
Compatible Chassis 4U or larger rackmount chassis
Maximum Supported TDP Up to 245W
Baseplate Material Pure Copper
Heatpipes 6 Copper Heatpipes
Fan Size 92mm
Fan Type PWM Fan
Fan Speed 1300 to 3800 RPM
Maximum Airflow 61.46 CFM
Static Pressure 3.5 mmH₂O
Mounting Mechanism Reinforced Mounting Mechanism
Processor Compatibility Intel Core and Xeon-class Processors
Recommended Applications Professional Workstations, Rendering Systems, Virtualization Servers, Edge Computing, AI Edge Systems, Cloud Infrastructure, Media Production Servers
Weight 710 g
Warranty 1 Year Limited Brand Warranty
