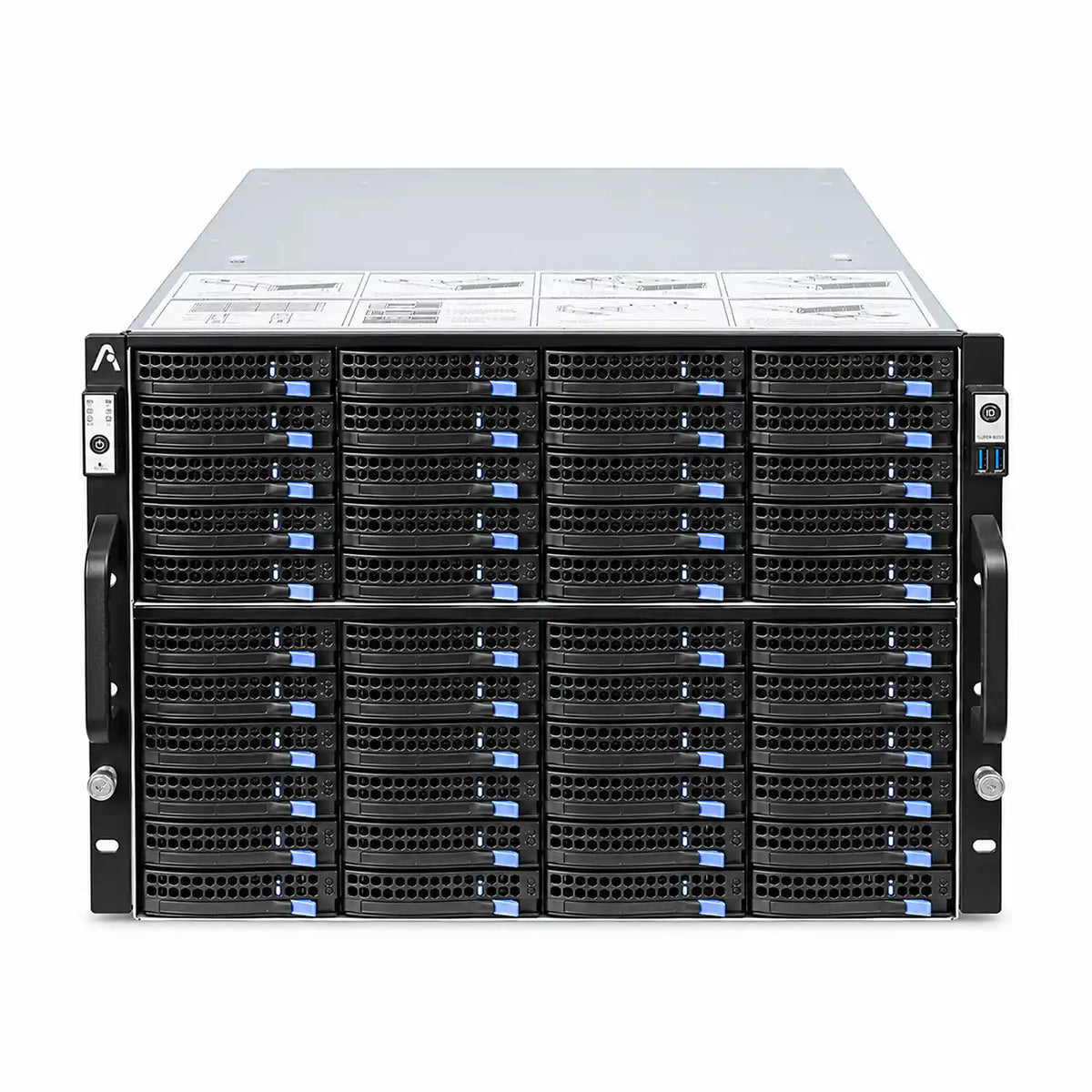

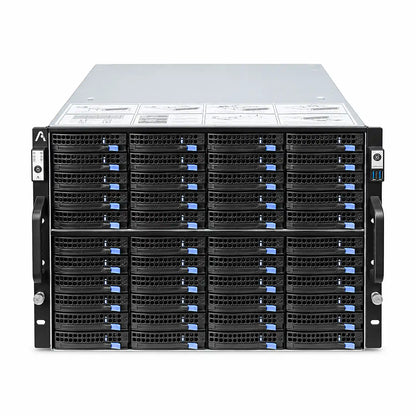

• ProLab Design PL-S865-72 8U Rackmount Server Chassis 72-Bay Storage front view showing hot swappable drive caddies -tpstech.in

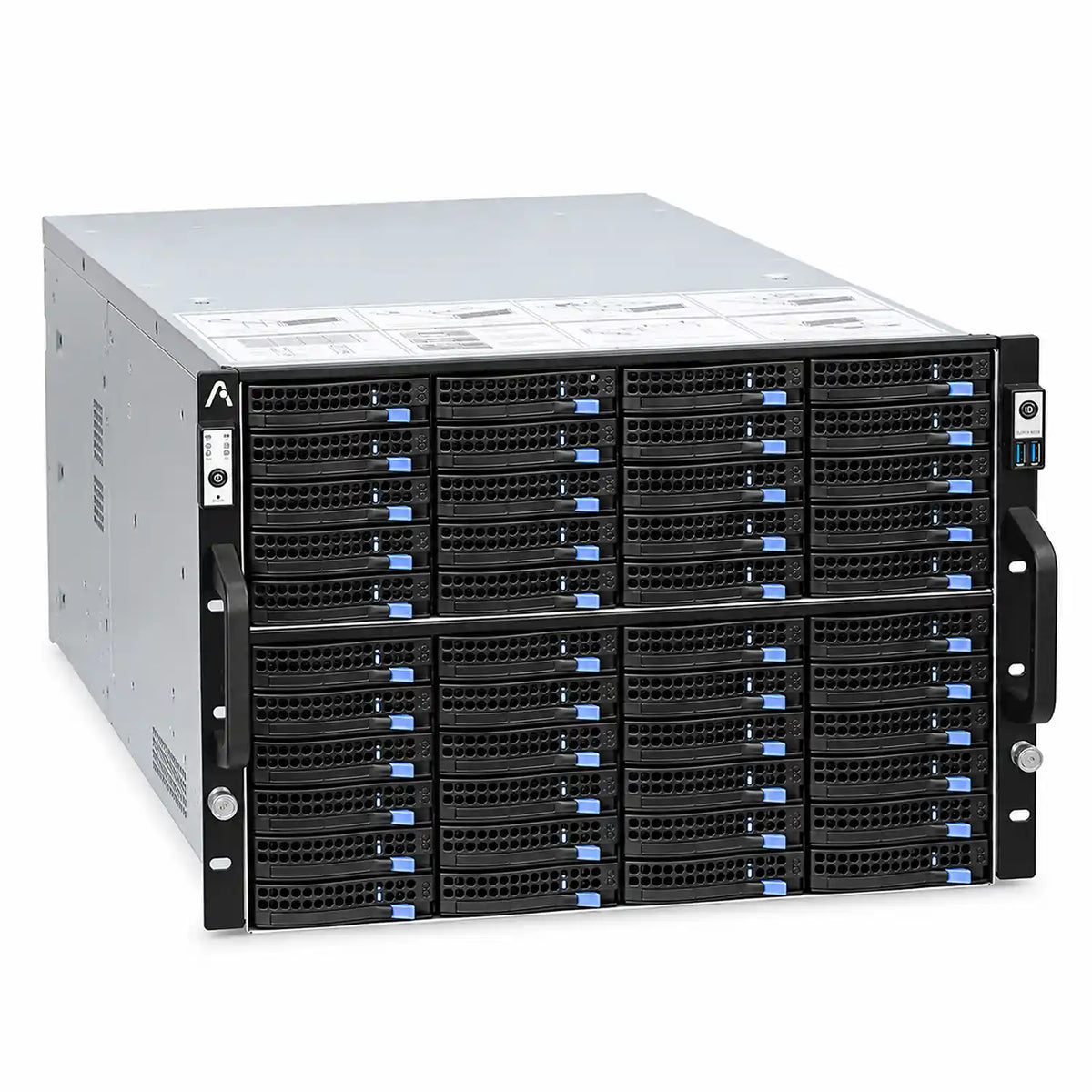

  • ProLab Design PL-S865-72 8U Rackmount Server Chassis 72-Bay Storage left isometric angle view with rack ears -tpstech.in

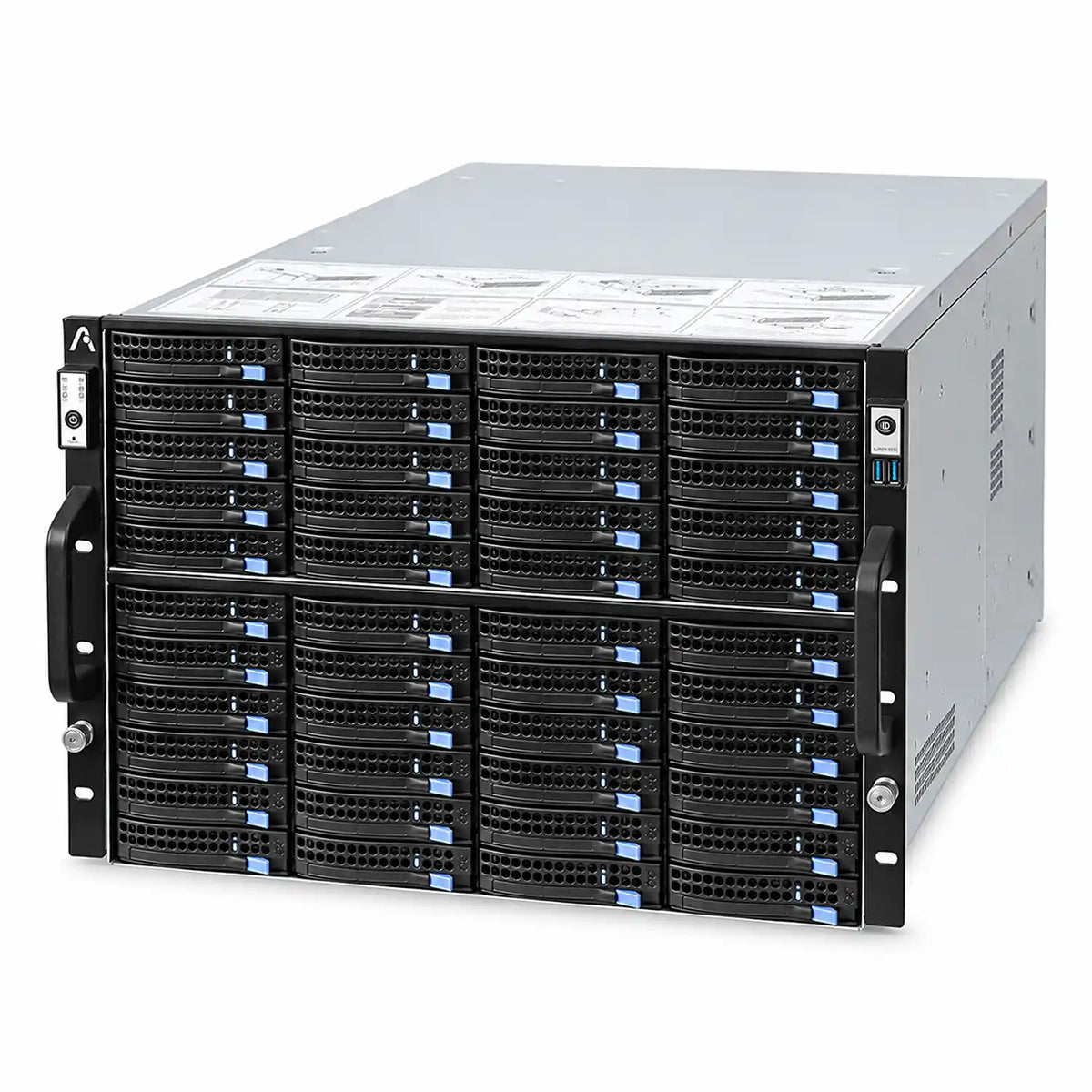

  • ProLab Design PL-S865-72 8U Rackmount Server Chassis 72-Bay Storage right angle view displaying heavy duty handles -tpstech.in

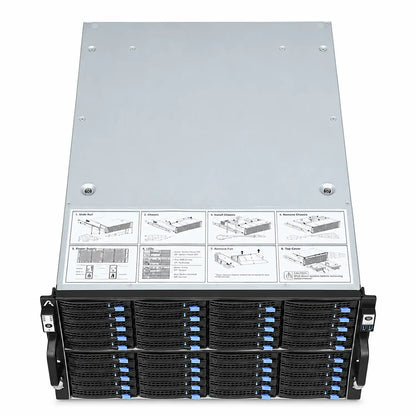

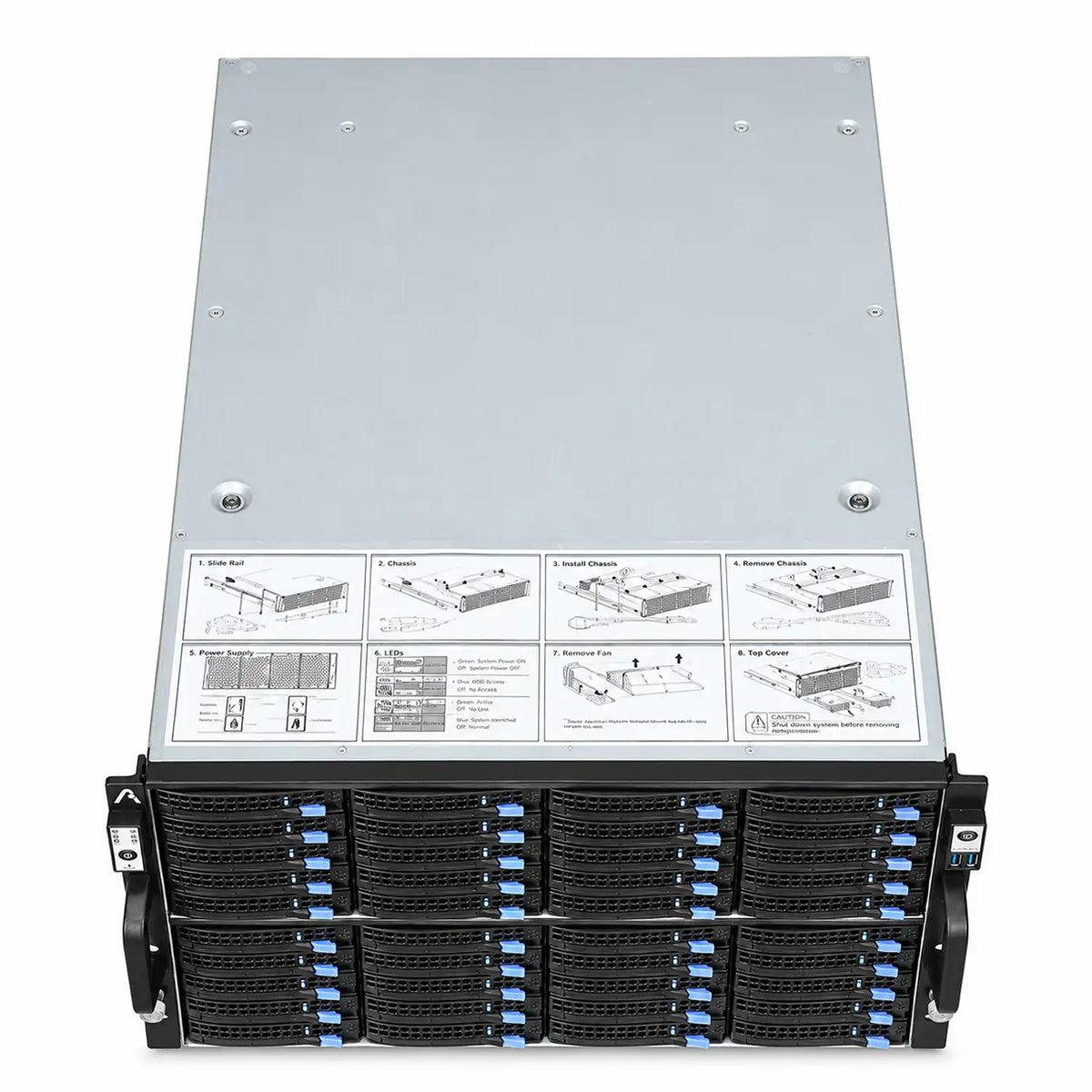

  • ProLab Design PL-S865-72 8U Rackmount Server Chassis 72-Bay Storage top view with service and installation diagram -tpstech.in

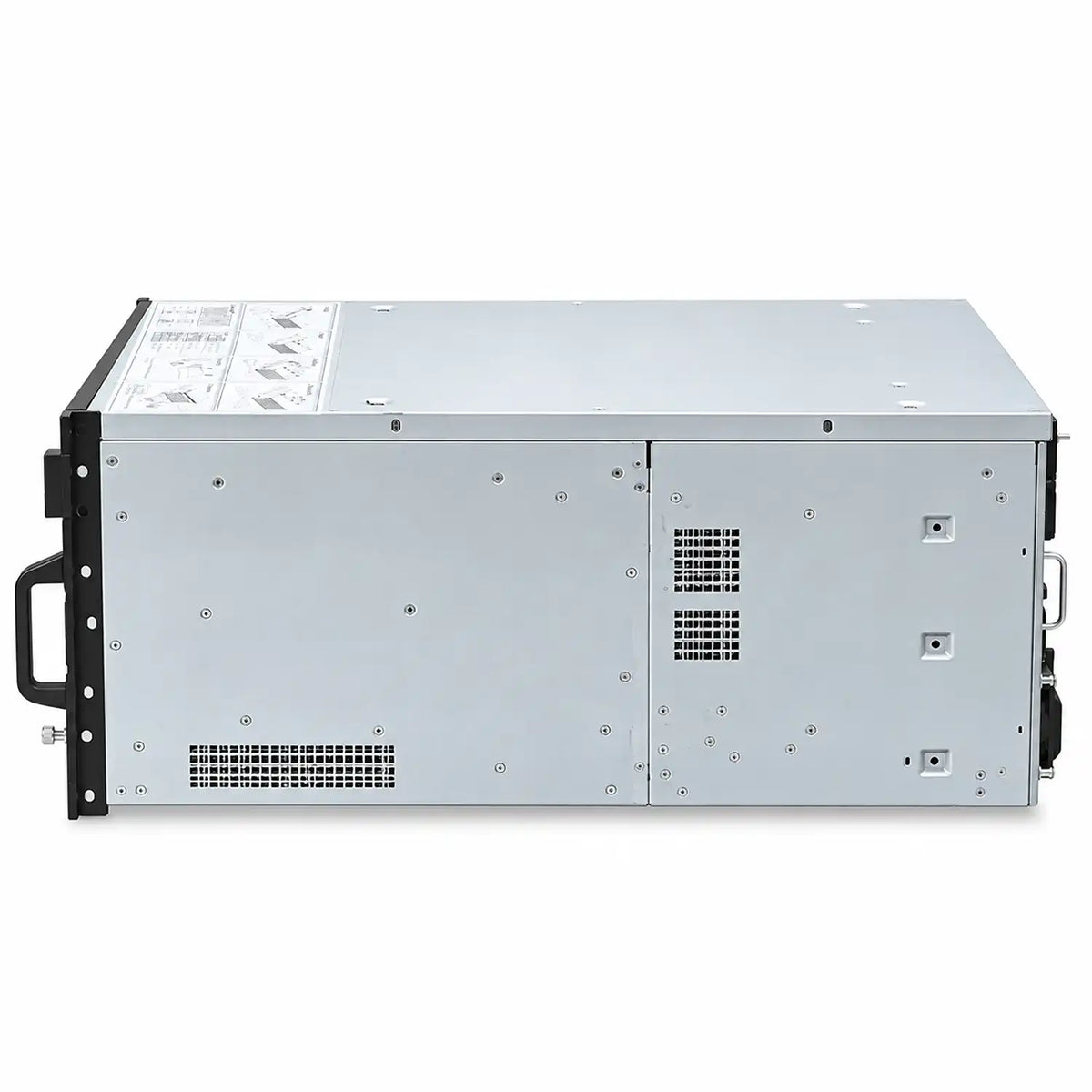

  • ProLab Design PL-S865-72 8U Rackmount Server Chassis 72-Bay Storage side panel view showing ventilation cutouts -tpstech.in

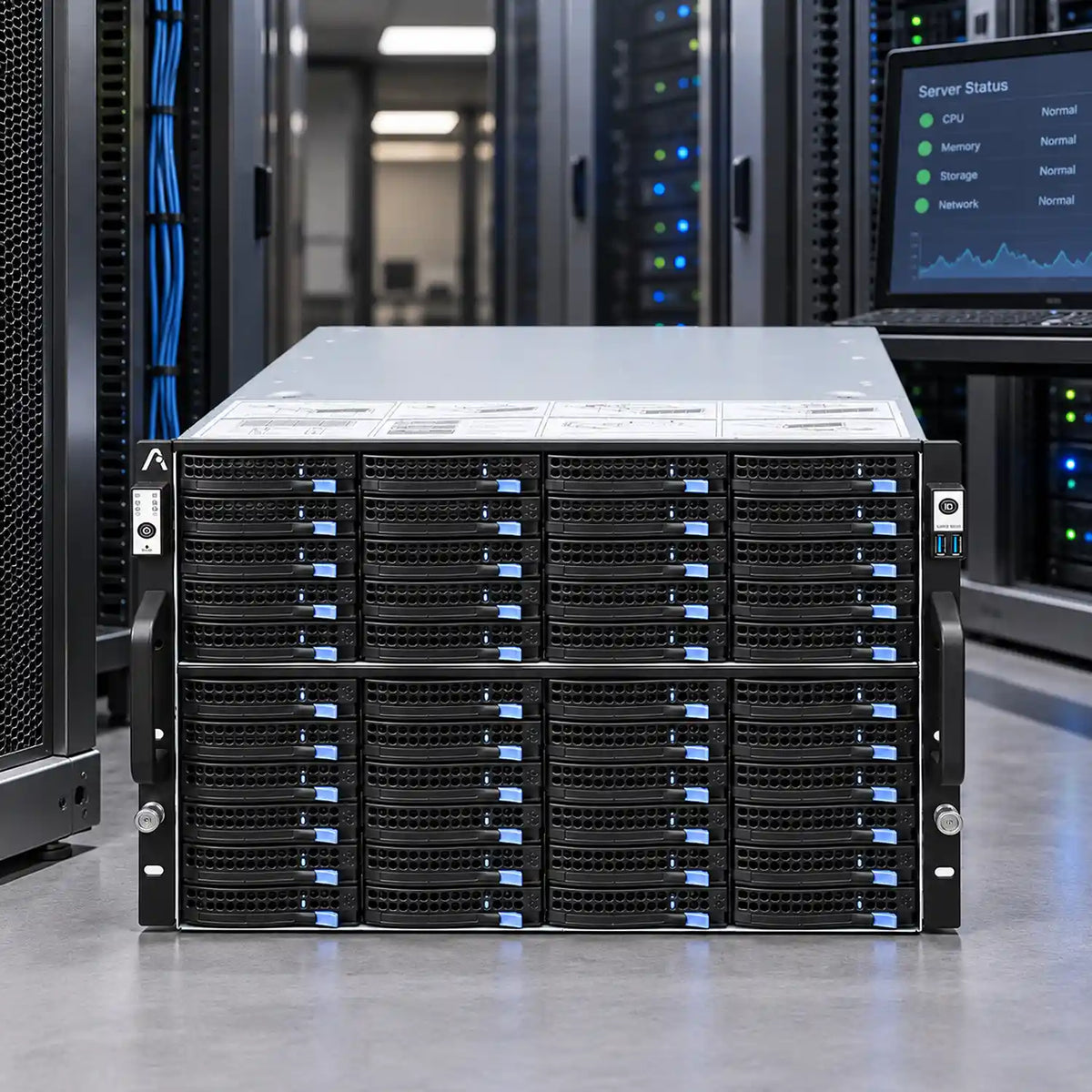

  • ProLab Design PL-S865-72 8U Rackmount Server Chassis 72-Bay Storage placed in server farm data center environment -tpstech.in
1 6

ProLab Design PL-S865-72 8U Rackmount Server Chassis 72-Bay Storage

ProLab Design PL-S865-72 8U Rackmount Server Chassis 72-Bay Storage

Brand: Prolab Design
Rs. 290,000.00
26% off Rs. 389,900.00 Rs. 290,000.00
Sale Sold out
  • 100% Genuine, Brand New & Sealed
  • Original Manufacturer Warranty
  • Trusted Since 2014 · 15 Lakh+ Orders
Loading Offers...
+ Offers

Product Description:

🗄️ Ultra-High Storage Capacity: Supports up to 72 front-accessible 3.5-inch hot-swap drive bays plus 2 internal 2.5-inch drive bays for large-scale storage deployments.

⚡ High-Speed Storage Connectivity: Integrated 12 Gb/s Mini SAS backplane supports high-speed connectivity for enterprise NAS, archival and storage infrastructure.

🌬️ Enterprise Cooling: Six pre-installed 12038 hot-swap fans provide high-volume airflow across the CPU, memory, storage and expansion hardware.

🔌 Redundant Power: Dual pre-installed 1600W CRPS power supplies provide redundant power delivery for high-capacity enterprise storage systems.

🖥️ Flexible Server Platform: Supports SSI-EEB (E-ATX) motherboards, 7 half-height expansion slots and conditional low-profile GPU support depending on system configuration.

The ProLab Design PL-S865-72 is an 8U rackmount server chassis designed for high-density enterprise storage applications. It supports up to 72 front-accessible 3.5-inch hot-swap drives, 2 internal 2.5-inch drives and a 12 Gb/s Mini SAS backplane. With six hot-swap fans, dual 1600W CRPS power supplies, SSI-EEB motherboard support and 7 half-height expansion slots, it suits NAS, backup, archival, surveillance storage and data center deployments.

Product Specifications:

Brand ProLab Design
Model PL-S865-72
Product Type Rackmount Server Chassis
Form Factor 8U Rackmount
Motherboard Support SSI-EEB (E-ATX)
Server Platform Compatibility Intel Xeon and AMD EPYC server platforms
3.5-inch Drive Bays Up to 72 front-accessible hot-swap bays
2.5-inch Drive Bays 2 internal bays
Backplane 12 Gb/s Mini SAS
Cooling Fans 6 x 12038 hot-swap fans, pre-installed
Power Supply 2 x 1600W CRPS, pre-installed
Expansion Slots 7 x Half-Height
GPU Support Low-profile GPU support, depending on motherboard compatibility and system configuration
Front I/O 2 x USB 3.0
Rail Kit Included
Chassis Depth 650mm
Applications Enterprise storage, NAS, backup infrastructure, surveillance storage, archival systems, virtualization storage and data center deployments
Weight 32kg
Warranty 1-year limited brand warranty
