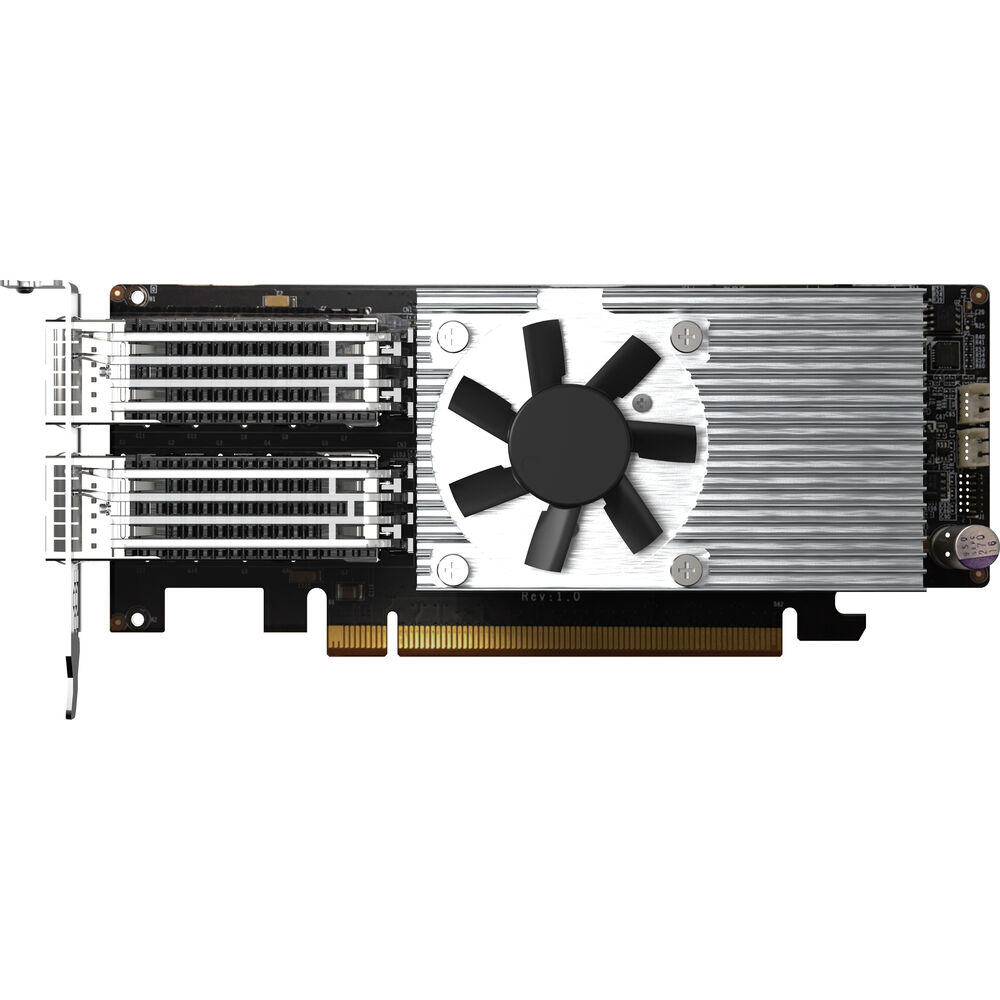

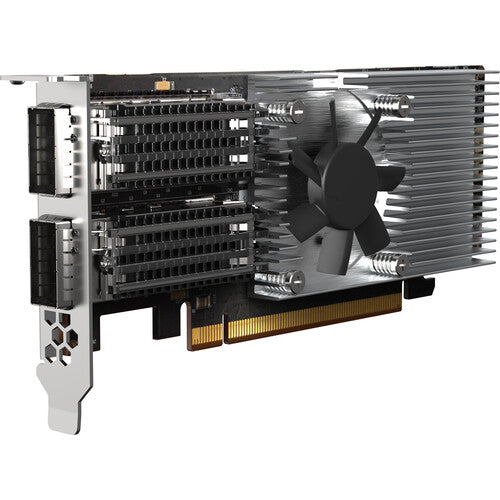

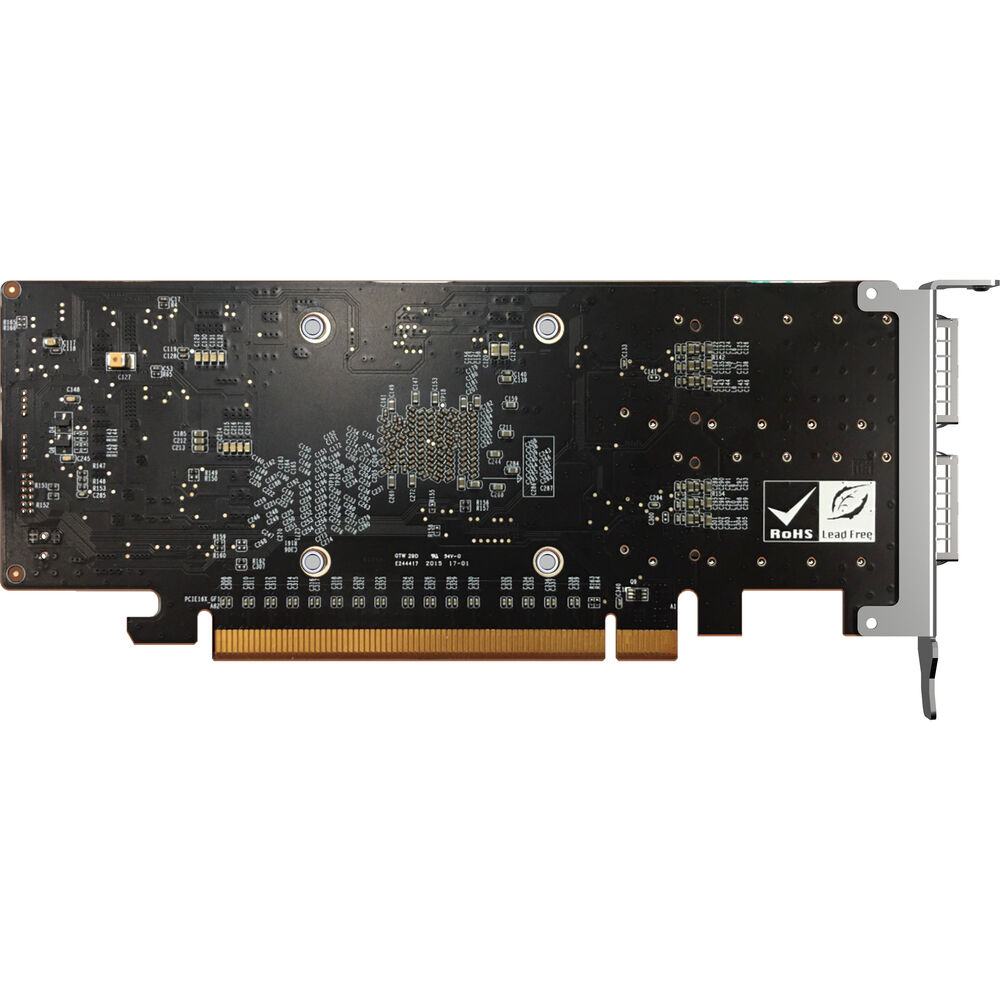

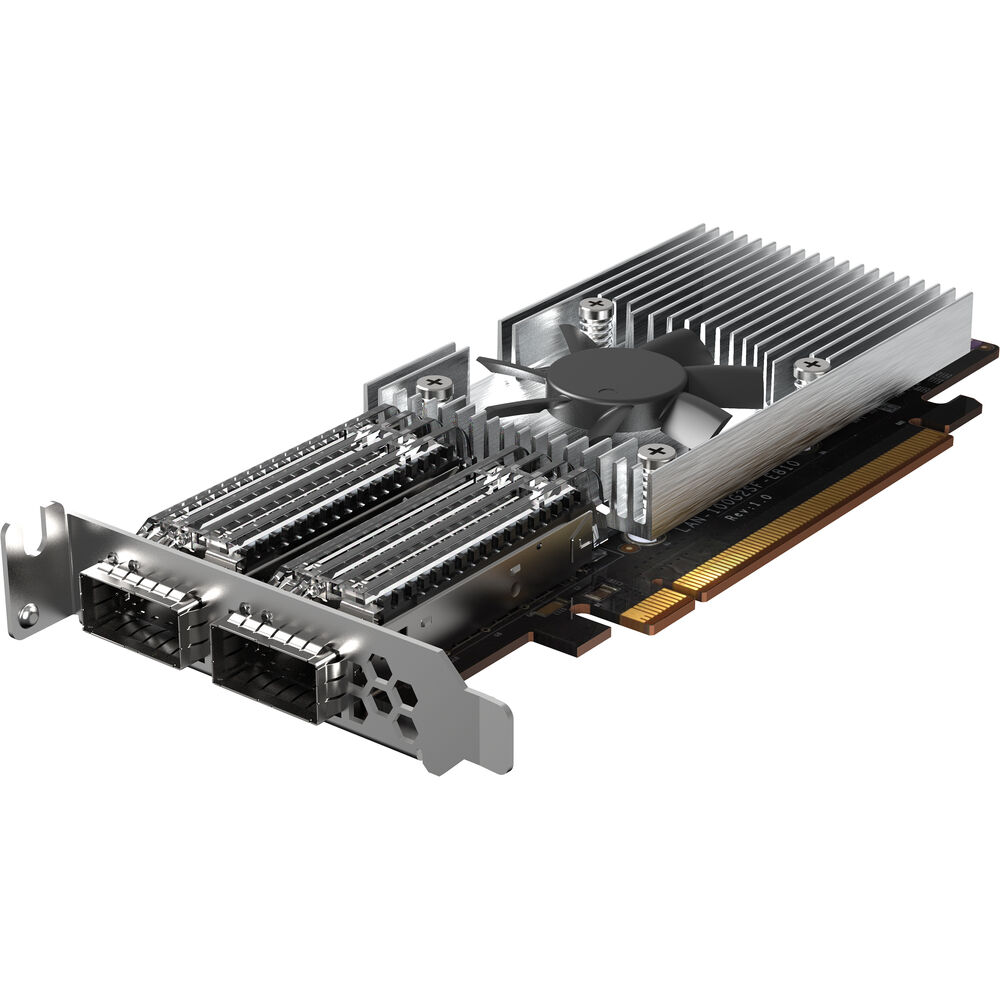

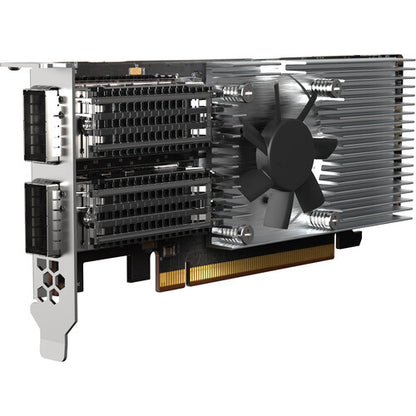

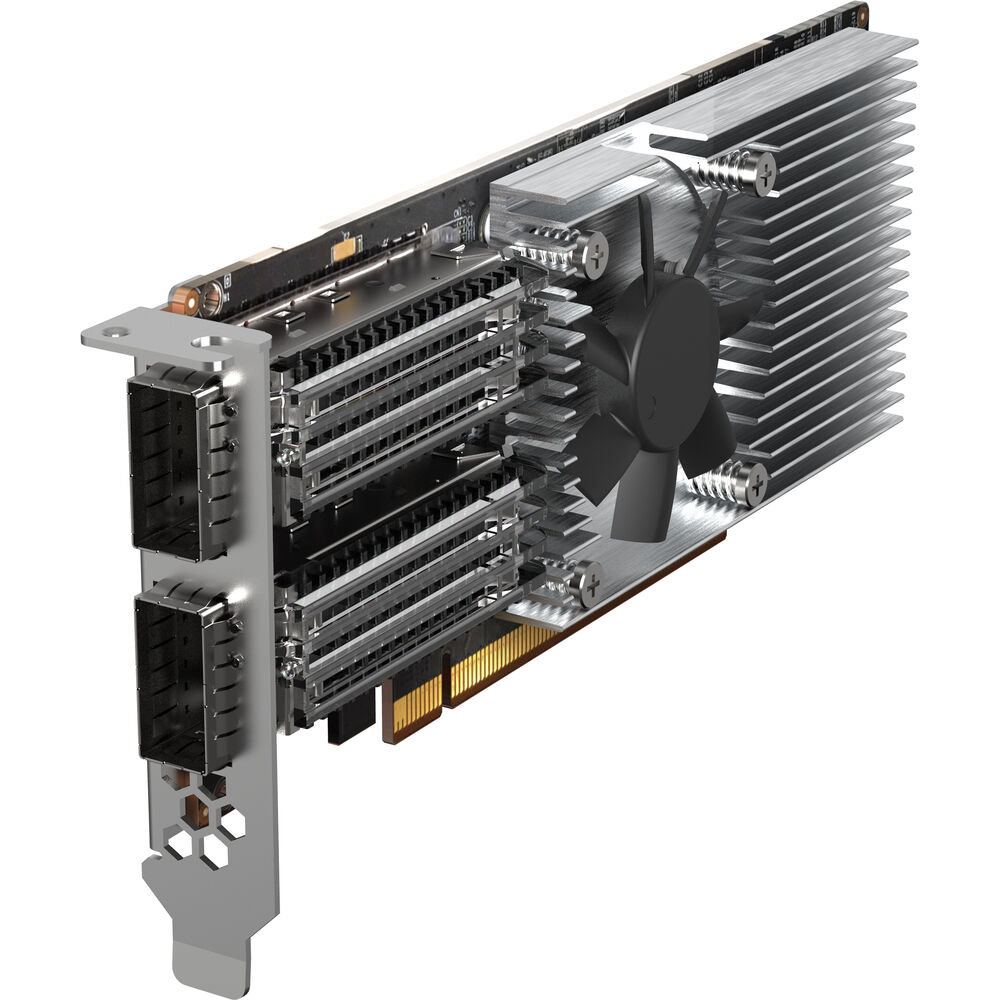

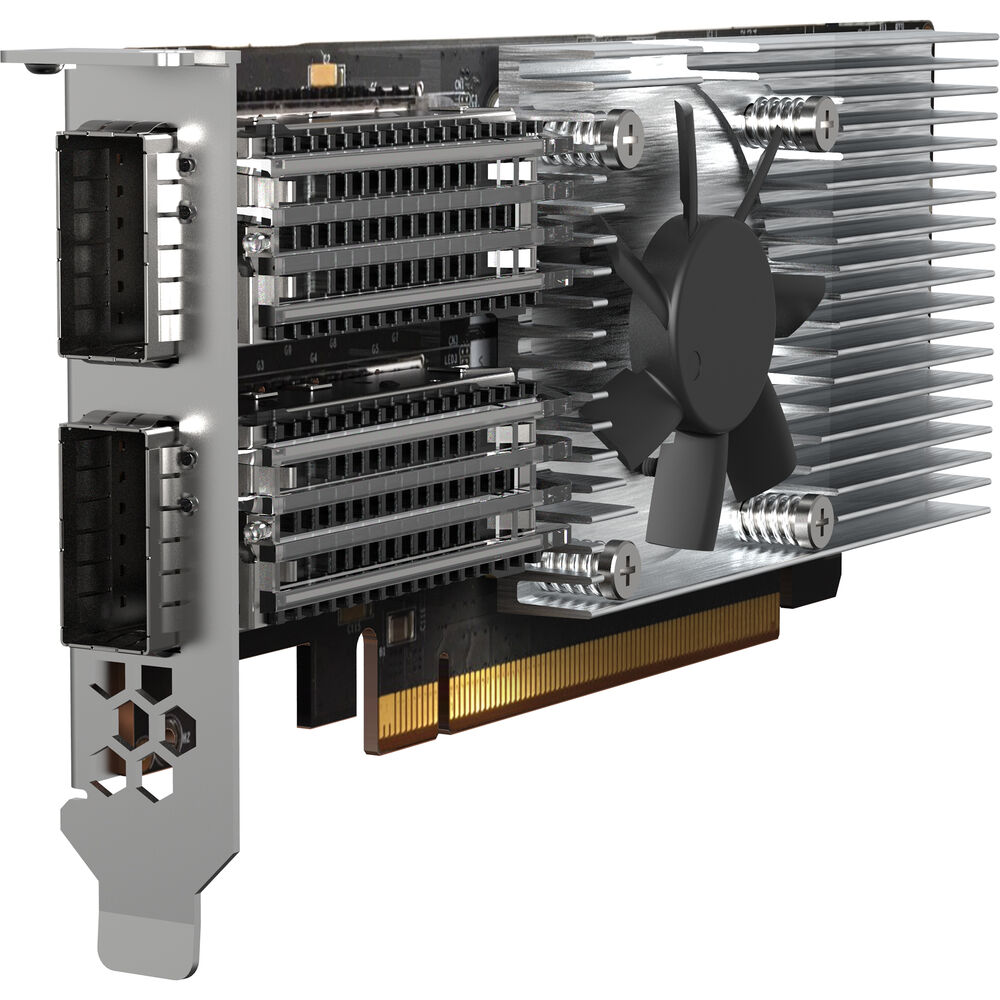

QNAP QXG-100G2SF-E810 Dual Port 100GbE PCIe 4.0 x16 Network Expansion Card
QNAP QXG-100G2SF-E810 Dual Port 100GbE PCIe 4.0 x16 Network Expansion Card
- Free NAS Consultation, right enclosure for your use case
- Compatibility-Assured Drives, NAS & drives verified together
- RAID Guidance & Pro Installation, configured right
- 100% Genuine, sealed with Manufacturer Warranty
- Free Pan-India Delivery, safely packed
- GST Invoice on Every Order
Complete NAS Solutions
Complete NAS Solutions
We are NAS solution providers, not just device sellers. From private cloud and photo backup to business storage, CCTV surveillance and enterprise deployments, we help you plan, purchase and configure the complete NAS solution.
✓ The right enclosure, matched to your capacity, performance and budget
✓ Compatibility-assured, NAS-grade drives verified to work together
✓ RAID and volume planning for the right balance of capacity and data protection
✓ Professional installation and configuration on request
✓ Nationwide support, from first setup to future expansion
✓ Genuine products, manufacturer warranty and GST invoicing
Not sure where to start? Talk to our NAS experts.
Couldn't load pickup availability
Product Description:
Ultra-High-Speed Connectivity: This network expansion card is equipped with dual 100GbE ports, offering an impressive total bandwidth of up to 200Gbps. This ultra-high-speed connectivity is essential for handling large volumes of data transfer, making it ideal for data centers, high-performance computing, and other data-intensive applications.
Advanced PCIe 4.0 Interface: Utilizing the PCIe 4.0 x16 interface, the QXG-100G2SF-E810 provides double the data transfer rate compared to its PCIe 3.0 counterparts. This ensures that the card can fully leverage the available bandwidth, minimizing bottlenecks and maximizing throughput for demanding network tasks.
Intel Ethernet Controller E810: The card features the Intel Ethernet Controller E810, known for its robust performance and reliability. This controller supports advanced networking features such as iWARP/RDMA (Remote Direct Memory Access) and SR-IOV (Single Root I/O Virtualization), which enhance network efficiency, reduce latency, and improve overall system performance.
Forward Error Correction (FEC): To ensure reliable data transmission, the QXG-100G2SF-E810 supports Forward Error Correction. FEC helps detect and correct errors in data packets during transmission, which is crucial for maintaining data integrity, especially over long distances and in high-speed network environments.
Versatile Compatibility: This network expansion card is designed to be compatible with a wide range of systems, including QNAP NAS devices, as well as Windows and Linux platforms. Its versatility makes it suitable for various applications such as virtualization, multimedia streaming, and mission-critical backup and restore operations, providing a flexible solution for enhancing network performance.
| Model | QXG-100G2SF-E810 |
| Controller | Intel Ethernet Controller E810-CAM2 |
| Number of Ports | 2 x QSFP28 ports |
| Connector | QSFP28 |
| PCIe and Lanes | PCIe 4.0 x16 (Compatible to PCIe 3.0 x16) |
| Transmission Rates | 100Gbps |
| IEEE Standards |
IEEE Std 802.3-2018 IEEE Std 802.3cd-2018 IEEE P802.3bd-2011 IEEE Std 802.1D-2004 IEEE Std 802.1Q-2011 IEEE Std 802.1AX-2008 IEEE P802.1Qbb-2011 IEEE P802.1Qbg-2012 IEEE P802.1BR/D3.3 IEEE Std 802.1AB-2009 |
| Bracket | Low-profile bracket pre-installed Full-height and specialized (for selected QNAP NAS) brackets are bundled |
| Support Windows Server | Windows Server 2019 |
| Supported NAS Operating Systems | QTS/QuTS hero (recommend an upgrade to the latest version Windows (Driver required Linux (Driver required) |
| Port and Cable | QSFP28 DAC cable or OPTIC transceiver |
| Standard Warranty | 3 Years |
| Package Contents | 1 x Network card 1 x QIG 2 x Brackets |
