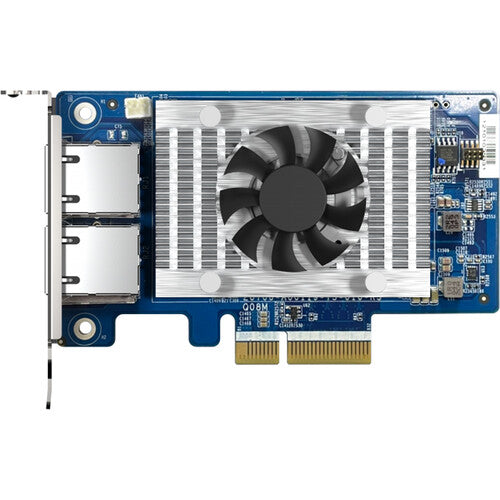

QNAP QXG-10G2T-X710 Dual Port 10GbE PCIe Network Expansion Card
QNAP QXG-10G2T-X710 Dual Port 10GbE PCIe Network Expansion Card
- Free NAS Consultation, right enclosure for your use case
- Compatibility-Assured Drives, NAS & drives verified together
- RAID Guidance & Pro Installation, configured right
- 100% Genuine, sealed with Manufacturer Warranty
- Free Pan-India Delivery, safely packed
- GST Invoice on Every Order
Complete NAS Solutions
Complete NAS Solutions
We are NAS solution providers, not just device sellers. From private cloud and photo backup to business storage, CCTV surveillance and enterprise deployments, we help you plan, purchase and configure the complete NAS solution.
✓ The right enclosure, matched to your capacity, performance and budget
✓ Compatibility-assured, NAS-grade drives verified to work together
✓ RAID and volume planning for the right balance of capacity and data protection
✓ Professional installation and configuration on request
✓ Nationwide support, from first setup to future expansion
✓ Genuine products, manufacturer warranty and GST invoicing
Not sure where to start? Talk to our NAS experts.
Couldn't load pickup availability
Product Description:
Dual High-Speed Ports: Featuring two 10GbE ports, this card significantly boosts network speeds, making it ideal for data-intensive tasks and environments that require high bandwidth, such as large-scale data transfers and media production.
Wide System Compatibility: It supports a variety of operating systems, including Windows 10, Windows Server, and several Linux distributions, ensuring seamless integration into different computing environments.
Advanced Networking Capabilities: The card includes support for SR-IOV, iSCSI, PXE boot, and Wake-on-LAN (WoL). These features enhance network management, allowing for virtual machine optimization, remote booting, and improved data packet handling.
Flexible Installation Options: With a low-profile bracket pre-installed and additional full-height and specialized brackets included, it can fit into various system configurations, including QNAP NAS devices, providing versatility in installation.
Reliable Performance: Powered by the Intel X710 Ethernet controller, the card ensures stable and efficient network performance. It supports multiple transmission rates, from 100Mbps to 10Gbps, catering to a range of network requirements.
| Model | QXG-10G2T-X710 |
| Controller | Intel Ethernet Controller X710 |
| Number of Ports | 2 x NBASE-T (RJ45) |
| Connector | NBASE-T (RJ45) |
| PCIe and Lanes | PCIe 3.0 x4 |
| Transmission Rates | 10Gbps/5Gbps/2.5Gbps/1Gbps/100Mbps |
| IEEE Standards | IEEE 802.1Q IEEE 802.3x IEEE 802.1p IEEE 802.3ad IEEE 802.3ae IEEE 1588 IEEE 802.1as |
| Bracket | Low-profile bracket pre-installed; full-height and specialized (for selected QNAP NAS) brackets are bundled |
| Supported Windows | Windows 8/10 |
| Supported NAS Operating Systems | QTS 4.4.3 or later (recommend an upgrade to the latest version Windows 10 (1809 or later Linux Stable Kernel 4.20/5.x Windows Server 2019 (Driver required) |
| Port and Cable | RJ-45; over CAT-6 class cable |
| Standard Warranty | 3 Years |
| Package Contents | 1 x Network card 1 x QIG 3 x Brackets |
