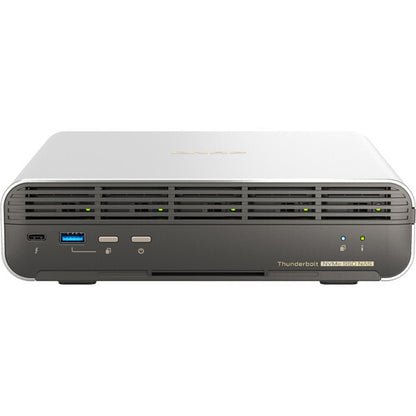

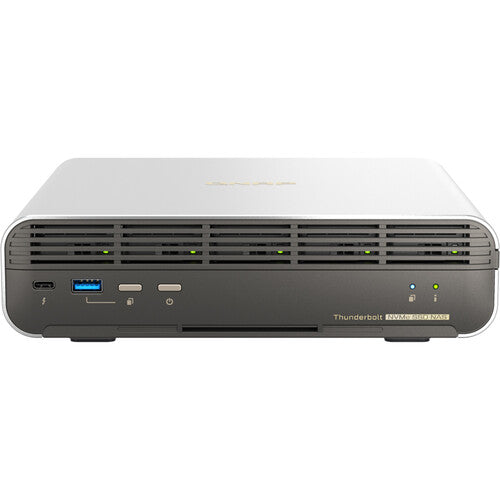

QNAP TBS-h574TX-i3-12G 5 Bay 10GbE High-Performance Thunderbolt 4 E1.S All-Flash NASbook

QNAP TBS-h574TX-i3-12G 5 Bay 10GbE High-Performance Thunderbolt 4 E1.S All-Flash NASbook

Brand: QNAP
Regular price Rs. 134,000.00
Sale price 56% off Rs. 134,000.00 Sale Sold out Regular price Rs. 300,000.00
Loading Offers...

Product Description:

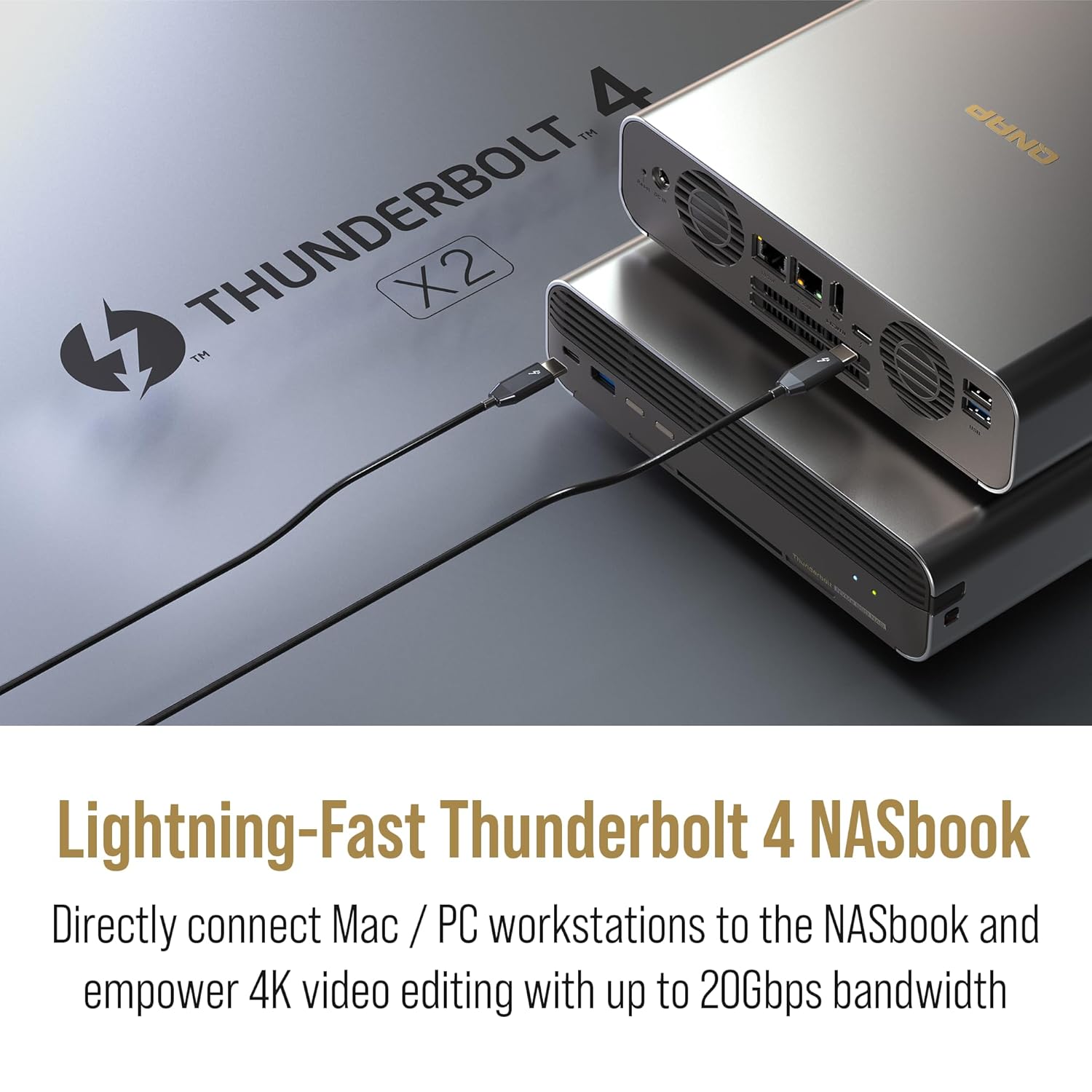

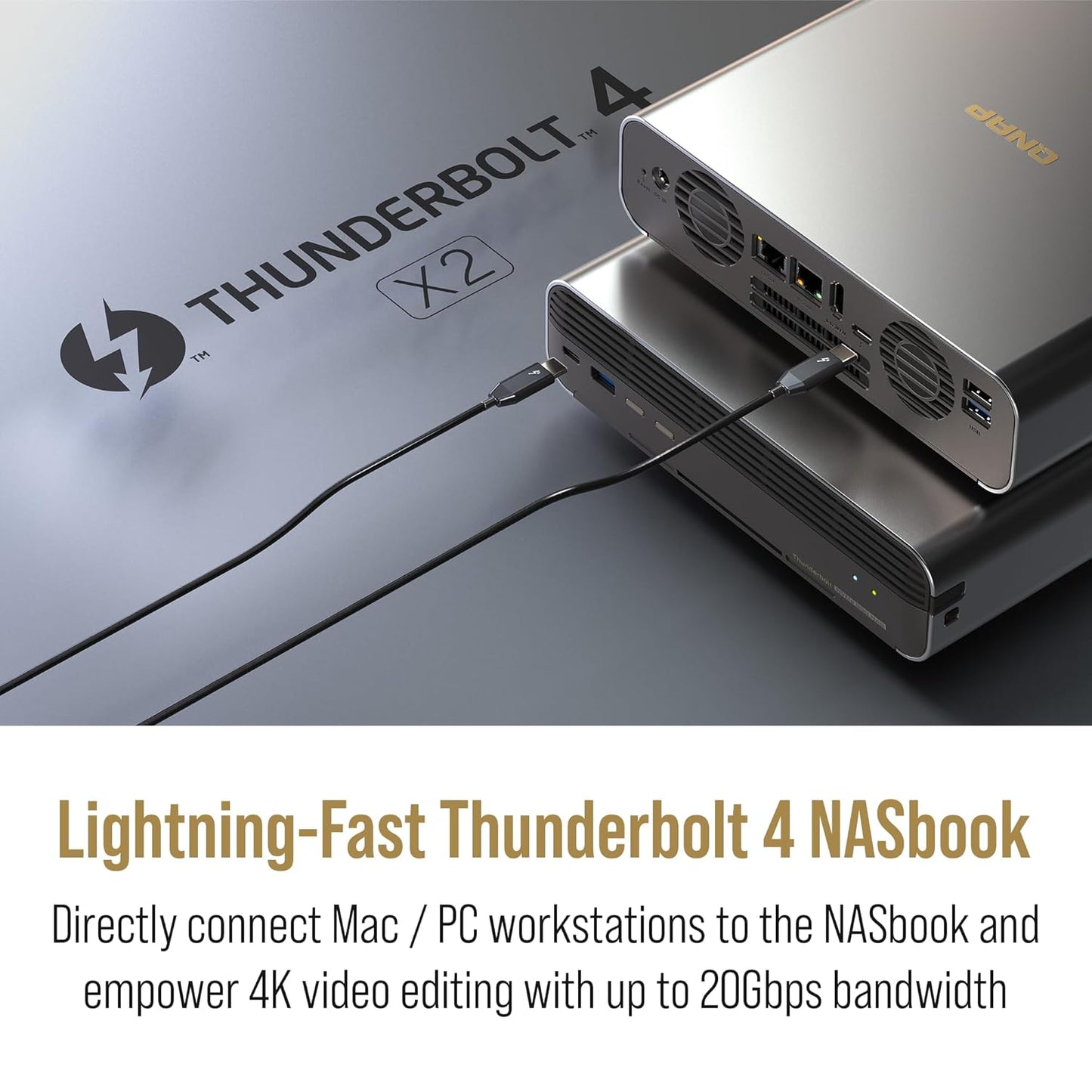

Blazing-Fast Connectivity: The TBS-h574TX is equipped with dual Thunderbolt 4 ports, offering up to 40Gbps data transfer speeds. This high-speed connectivity is perfect for tasks such as 4K video editing and large file transfers, ensuring that creative professionals can work efficiently without bottlenecks.

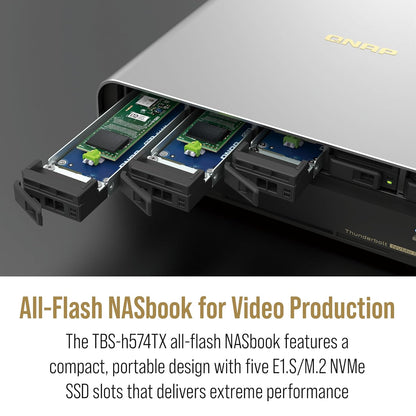

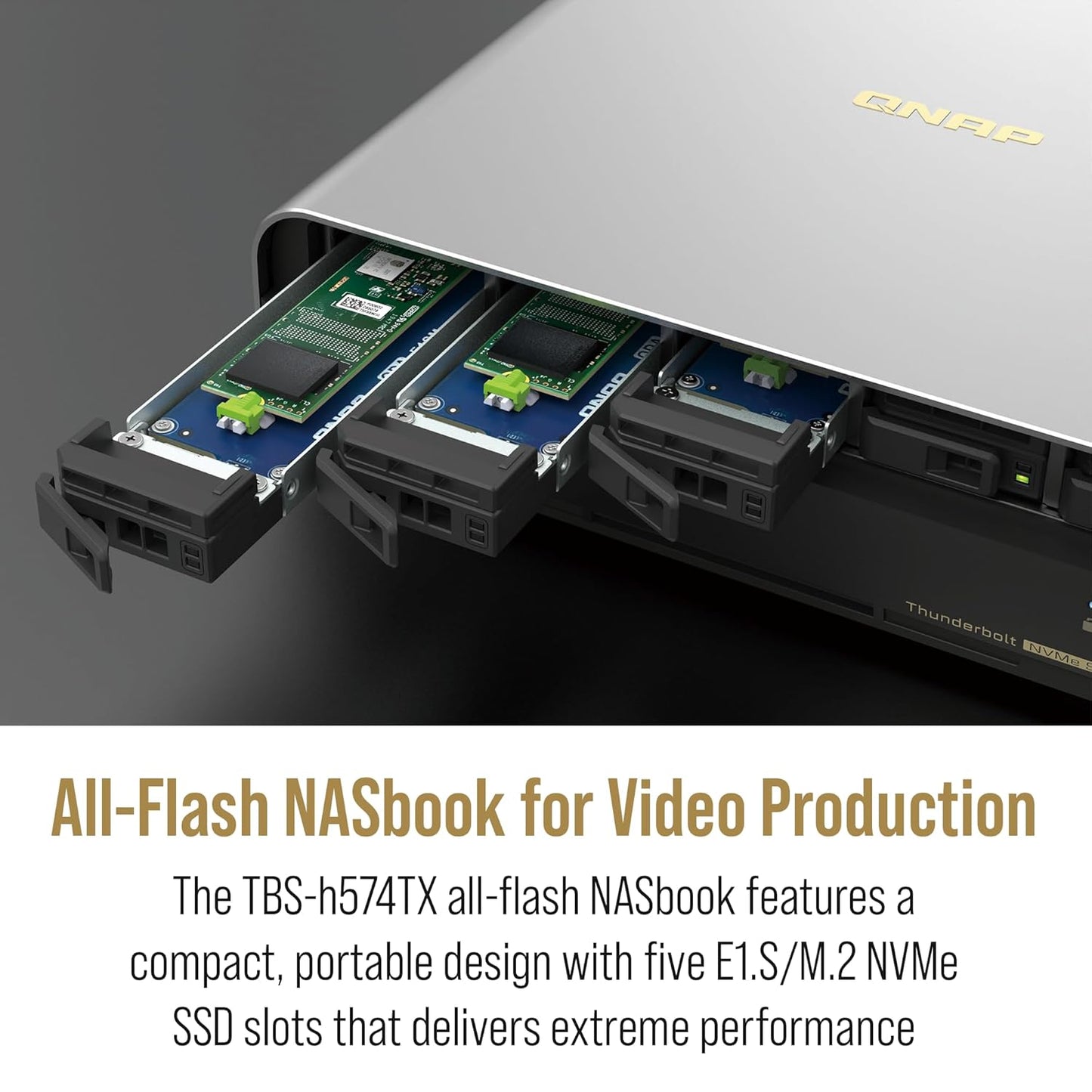

Versatile Storage Capabilities: This NASbook supports up to five E1.S or M.2 PCIe NVMe SSDs, providing flexible and high-speed storage options. The hot-swappable design allows for easy SSD replacement without downtime, and the automatic RAID disk replacement feature enhances data protection and system reliability.

Robust Performance: Powered by the latest 13th Gen Intel® Core™ processors, the TBS-h574TX delivers exceptional performance with its hybrid architecture, combining performance cores (P-cores) and efficiency cores (E-cores). This ensures smooth multitasking and the ability to handle demanding applications with ease.

Advanced Networking Features: The NASbook includes both 2.5GbE and 10GbE network ports, significantly boosting network performance. This is particularly beneficial for environments with multiple users or devices, as it supports faster data transfers and improved network efficiency, making it ideal for collaborative projects.

Enhanced Collaboration and Media Capabilities: Running on the ZFS-based QuTS hero operating system, the TBS-h574TX ensures data integrity and offers advanced file sharing and synchronization features. It also supports real-time transcoding and 4K media playback via HDMI, making it a versatile tool for media production teams and enhancing collaborative workflows.

Model TBS-h574TX-i3-12G
CPU Intel Core i3-1320PE 8C(4P+4E)/12T up to 4.50GHz
CPU Architecture     64-bit x86
Graphic Processors Intel UHD Graphics for 13th Gen Intel Processors
System Memory 12 GB on board (non-expandable)
Maximum Memory 12 GB on board (non-expandable)
Flash Memory 5GB (Dual boot OS protection)
Drive Bay 5 x E1.S up to 15mm (5x PCIe Gen3 x2)

Pre-install adapter to support M.2 2280 for each slots
Drive Compatibility E1.S or M.2 2280 PCIe NVMe
M.2 Slot 5 x M.2 2280 PCIe Gen 3 slots (via pre-installed adapter)

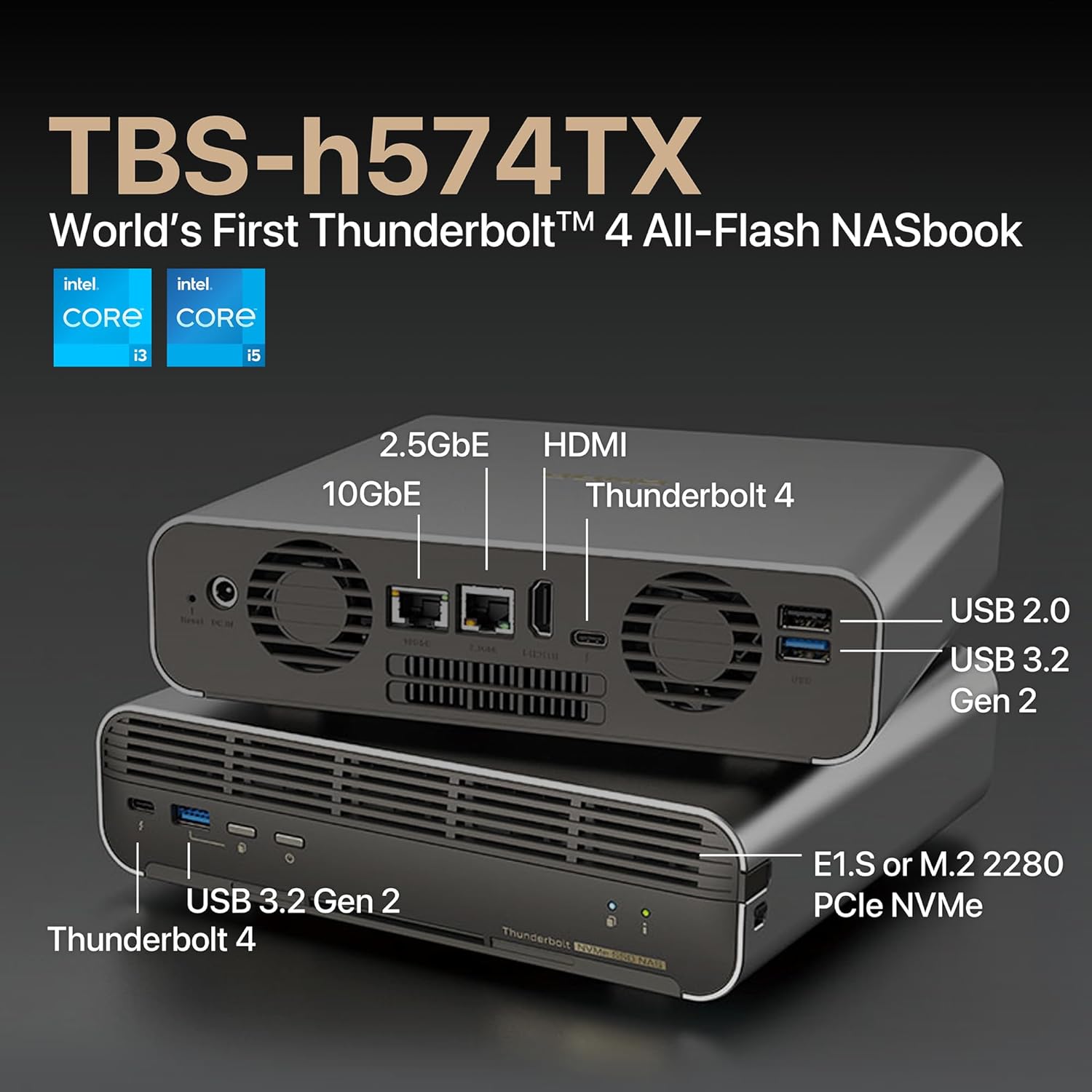

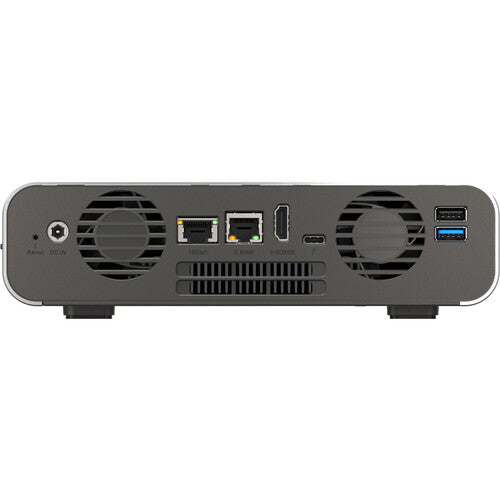

2.5 Gigabit Ethernet Port (2.5G/1G/100M) 1
10 Gigabit Ethernet Port 1 x 10GBASE-T (10G/5G/2.5G/1G/100M)
Thunderbolt Port 2 (Thunderbolt 4)
USB 2.0 port 1
USB 3.2 Gen 2 (10Gbps) Port 2
HDMI Output 1, HDMI 1.4b
Form Factor Set-top design
LED Indicator Status, USB copy, SSD 1-5
Buttons Status, USB copy, Reset
Power Consumption 46W
Fan System fan: 2 x 40mm
CPU fan: 1 x 75mm
System Warning Buzzer

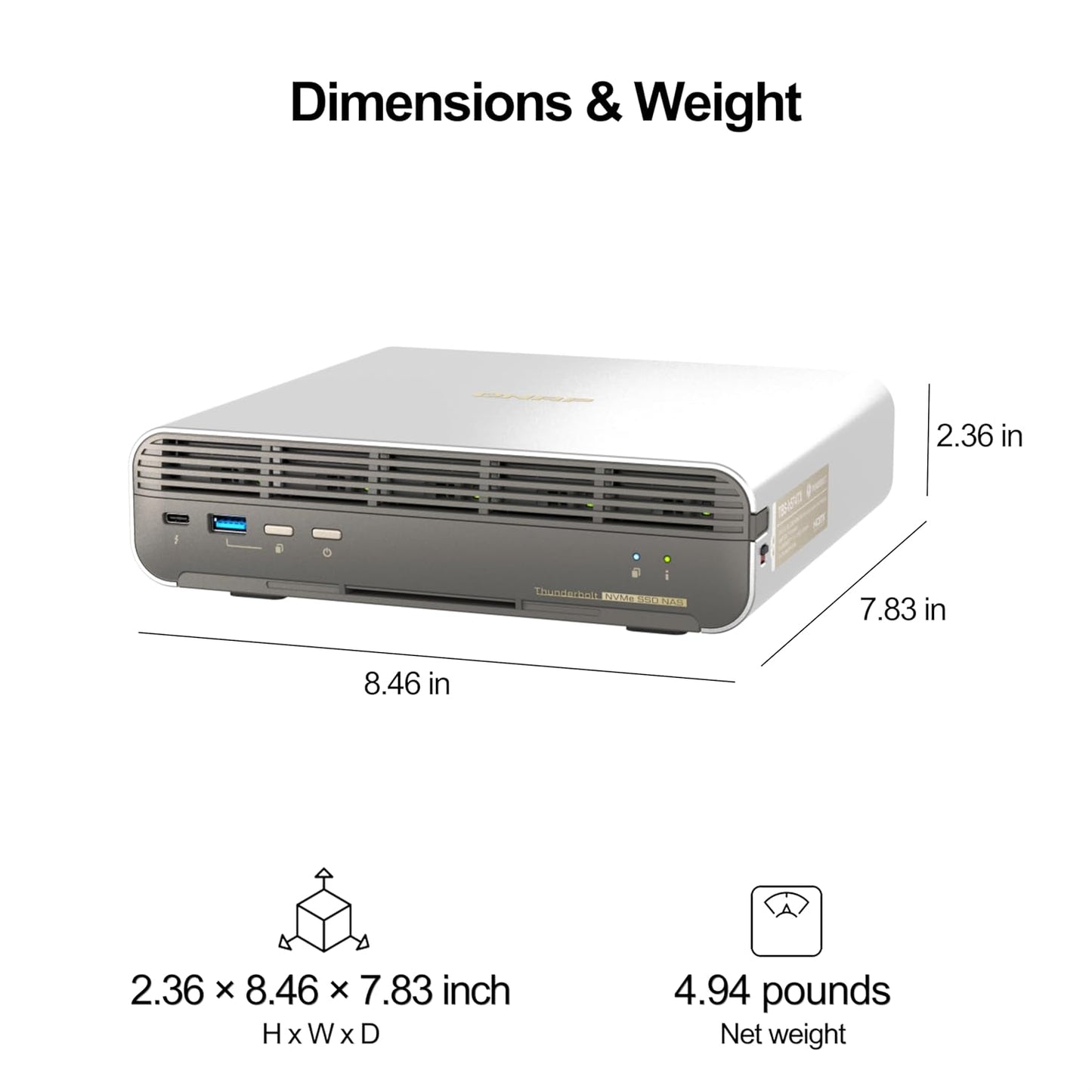

Dimensions 60 × 215 × 199 mm
Weight (Net) 2.24 kg
Package Contents TBS-h574TX
10GBASE-T Ethernet cable x 1
AC Adapter x 1
Quick Installation Guide (QIG)
