Product Description:

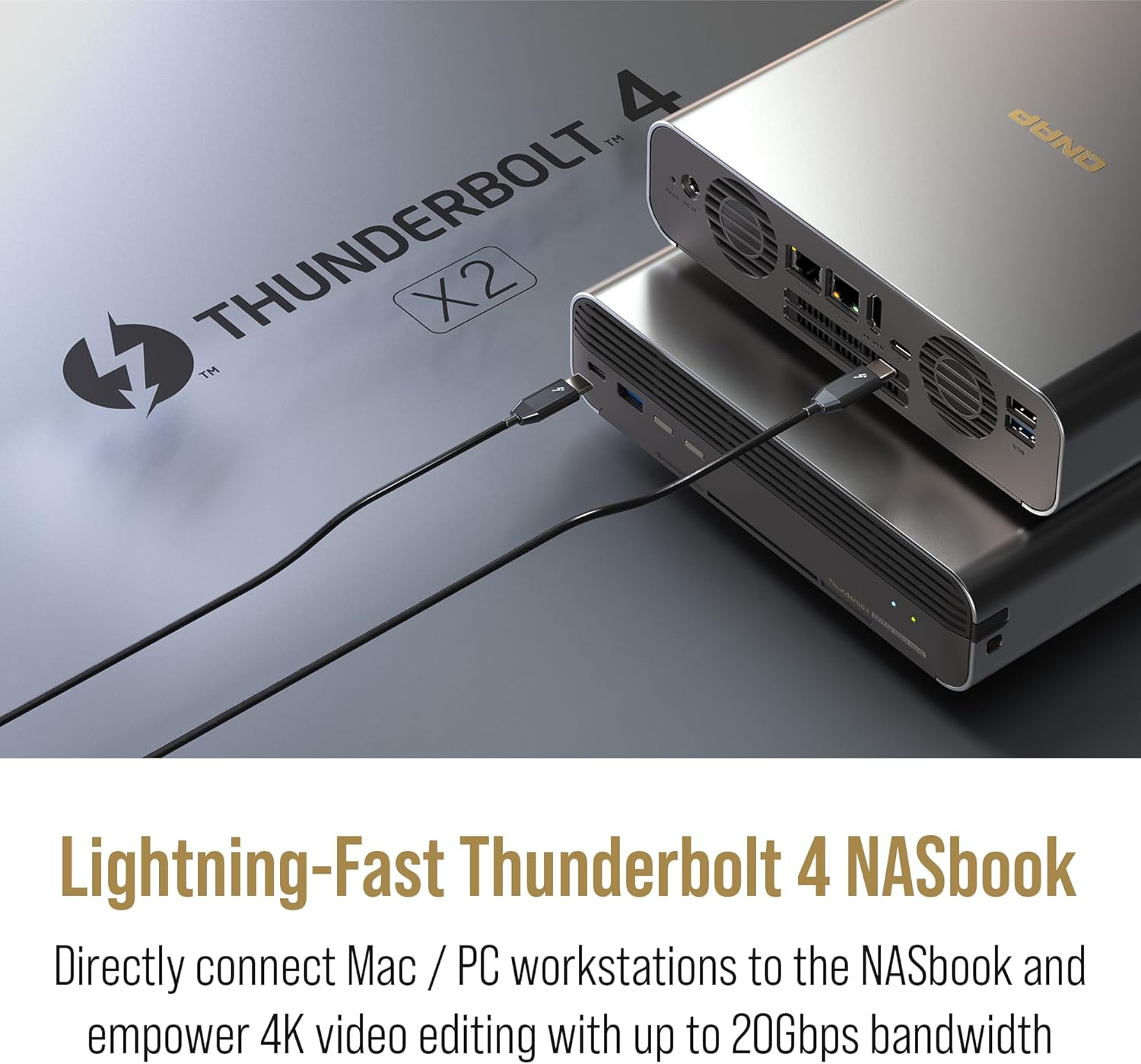

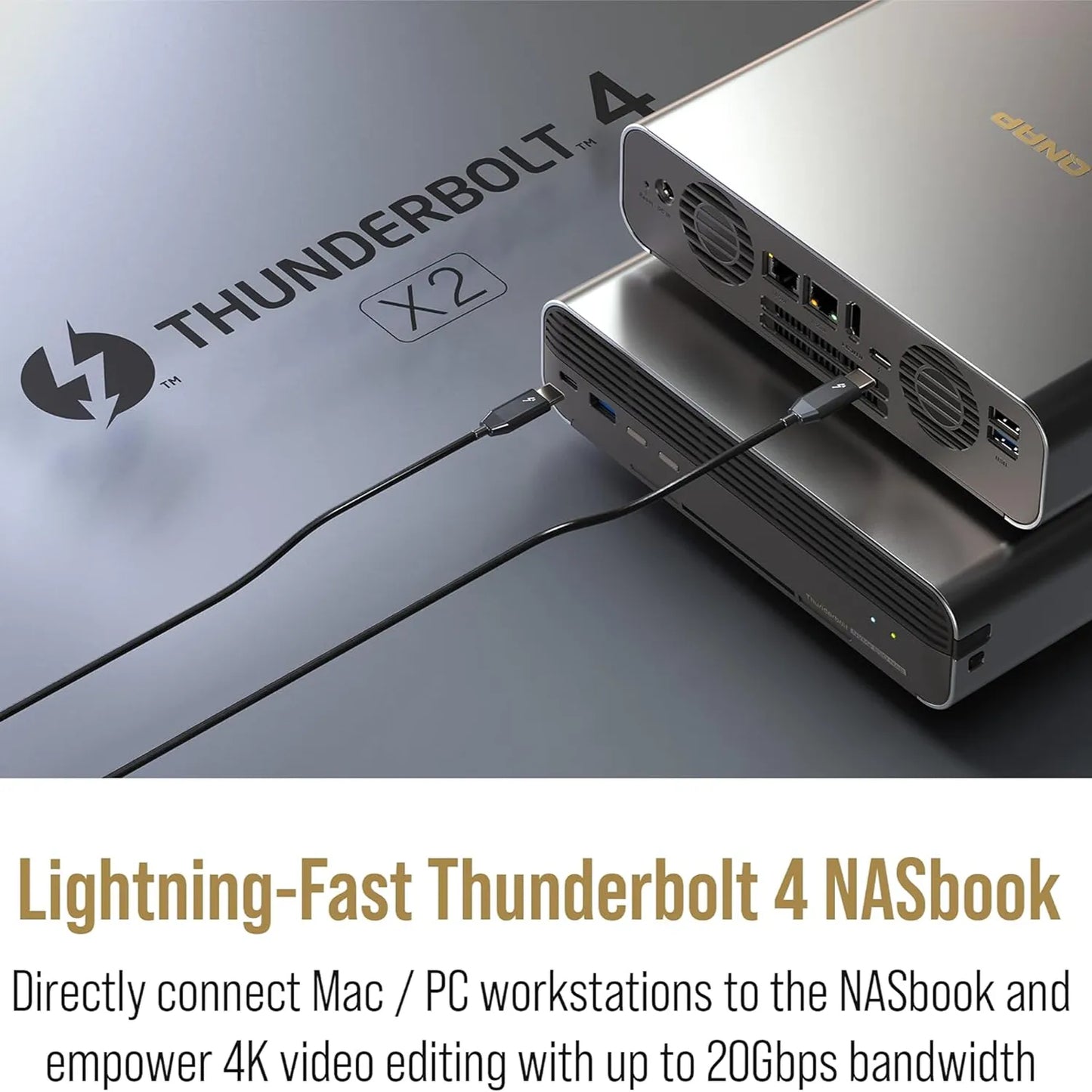

Blazing-Fast Connectivity: The TBS-h574TX is equipped with dual Thunderbolt 4 ports, offering up to 40Gbps data transfer speeds. This high-speed connectivity is perfect for tasks such as 4K video editing and large file transfers, ensuring that creative professionals can work efficiently without bottlenecks.

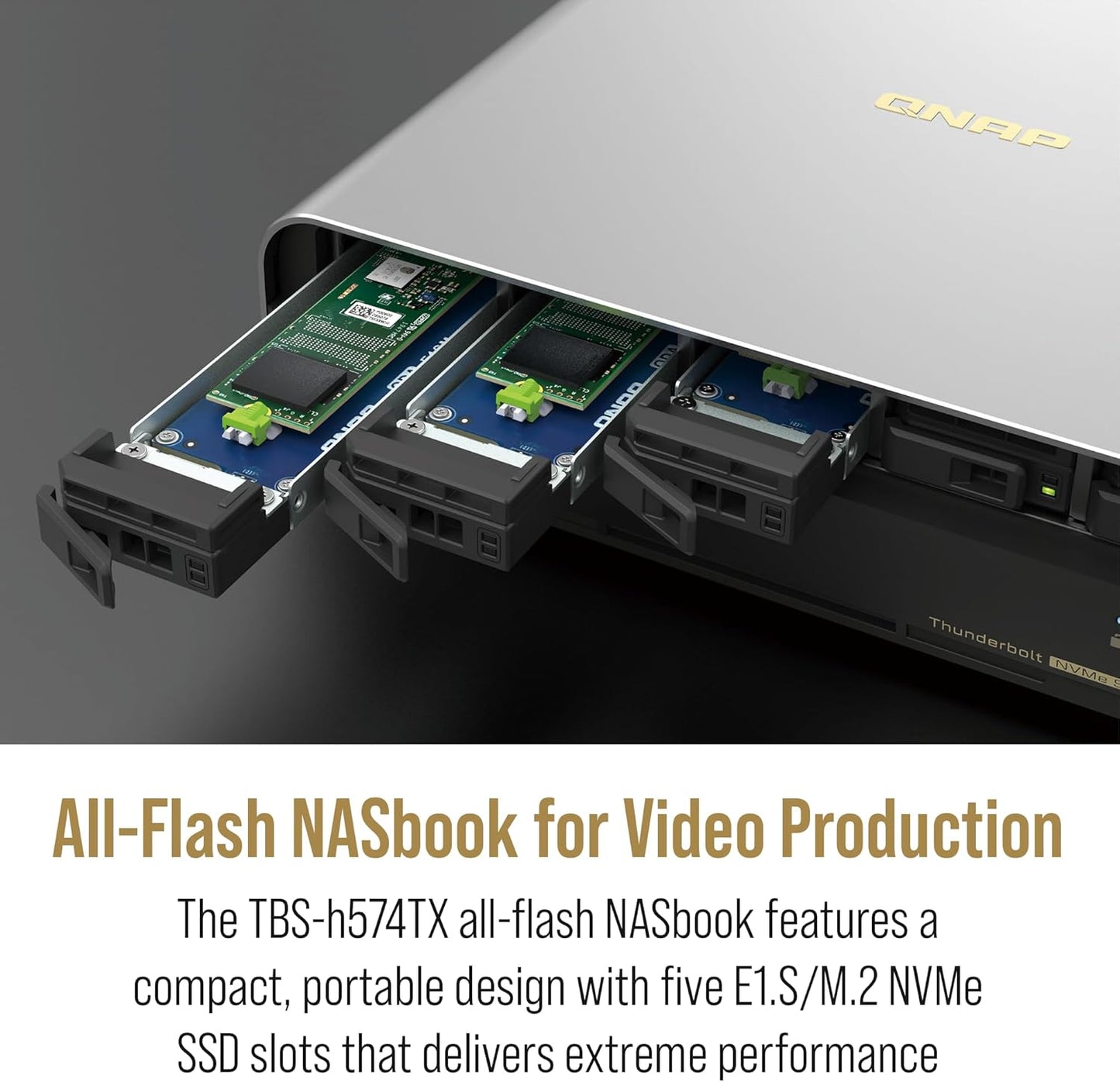

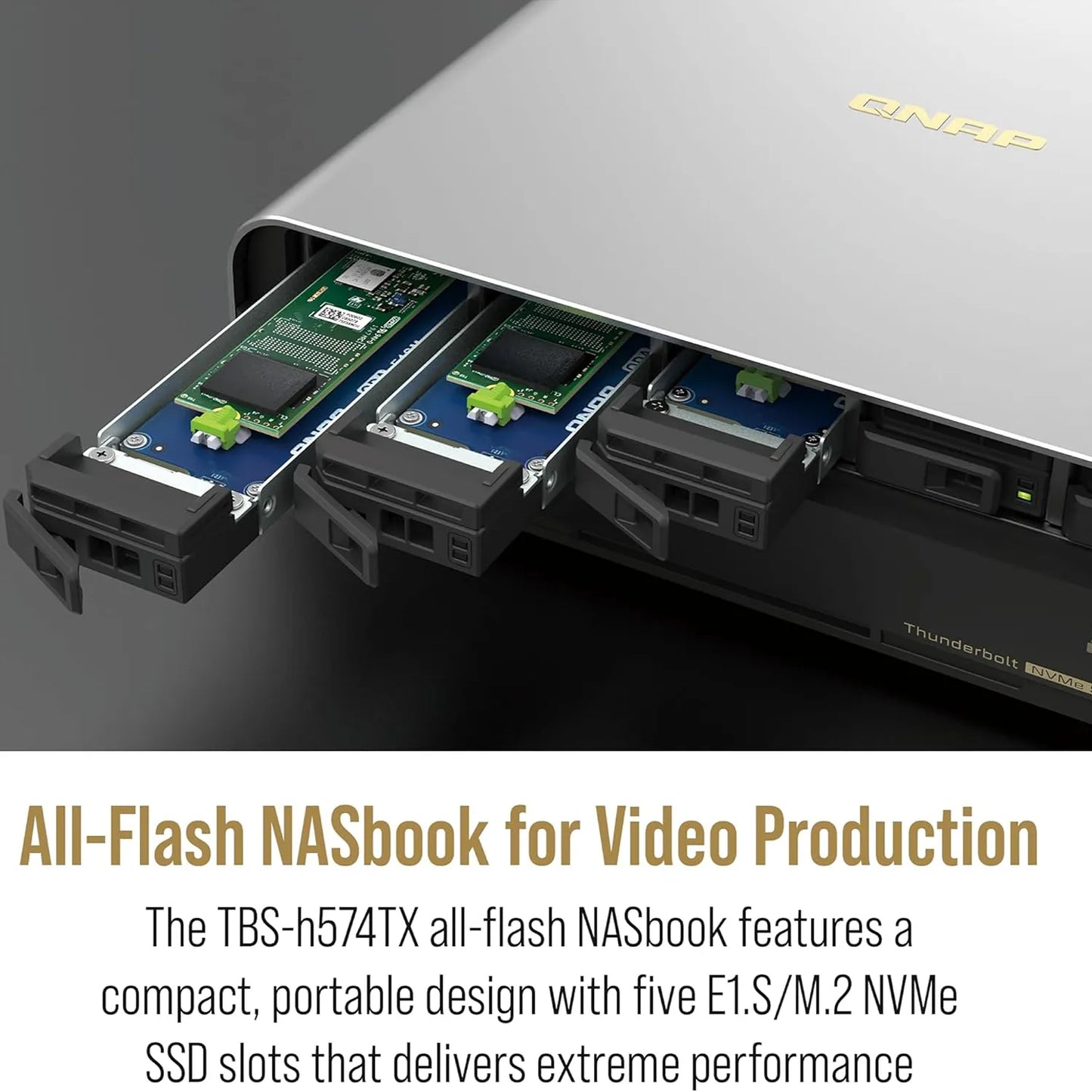

Versatile Storage Capabilities: This NASbook supports up to five E1.S or M.2 PCIe NVMe SSDs, providing flexible and high-speed storage options. The hot-swappable design allows for easy SSD replacement without downtime, and the automatic RAID disk replacement feature enhances data protection and system reliability.
Robust Performance: Powered by the latest 13th Gen Intel® Core™ processors, the TBS-h574TX delivers exceptional performance with its hybrid architecture, combining performance cores (P-cores) and efficiency cores (E-cores). This ensures smooth multitasking and the ability to handle demanding applications with ease.
Advanced Networking Features: The NASbook includes both 2.5GbE and 10GbE network ports, significantly boosting network performance. This is particularly beneficial for environments with multiple users or devices, as it supports faster data transfers and improved network efficiency, making it ideal for collaborative projects.
Enhanced Collaboration and Media Capabilities: Running on the ZFS-based QuTS hero operating system, the TBS-h574TX ensures data integrity and offers advanced file sharing and synchronization features. It also supports real-time transcoding and 4K media playback via HDMI, making it a versatile tool for media production teams and enhancing collaborative workflows.
Model | TBS-h574TX-i5-16G |
CPU | Intel Core i5-1340PE 12C(4P+8E)/16T up to 4.50GHz |
CPU Architecture | 64-bit x86 |
Graphic Processors | Intel Iris Xe Graphics eligible |
System Memory | 16 GB on board (non-expandable) |
Maximum Memory | 16 GB on board (non-expandable) |
Flash Memory | 5GB (Dual boot OS protection) |
Drive Bay | 5 x E1.S up to 15mm (5x PCIe Gen3 x2) Pre-install adapter to support M.2 2280 for each slots |
Drive Compatibility | E1.S or M.2 2280 PCIe NVMe |
M.2 Slot | 5 x M.2 2280 PCIe Gen 3 slots (via pre-installed adapter) |

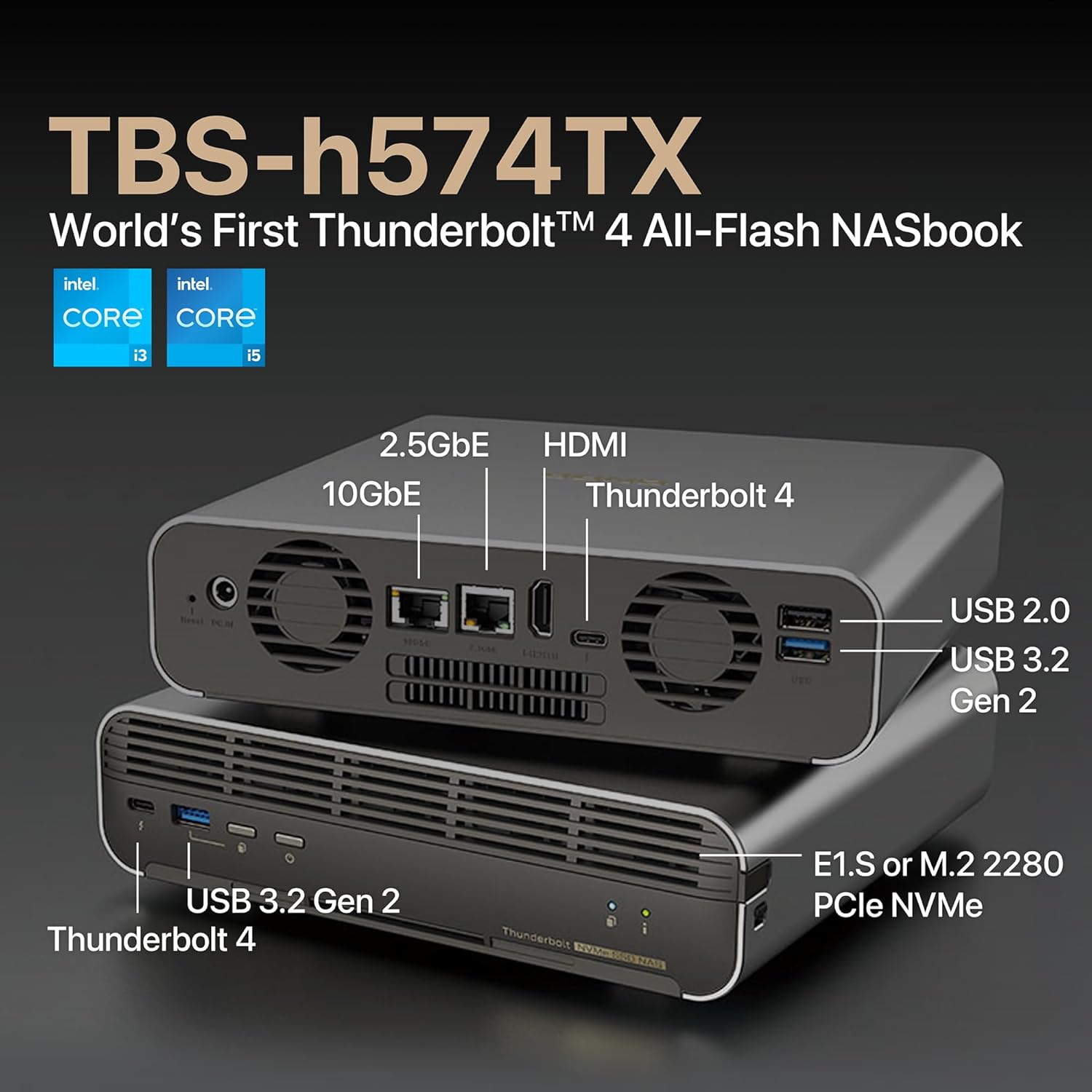

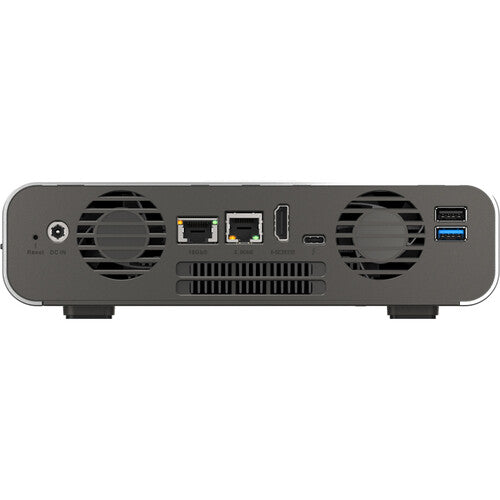

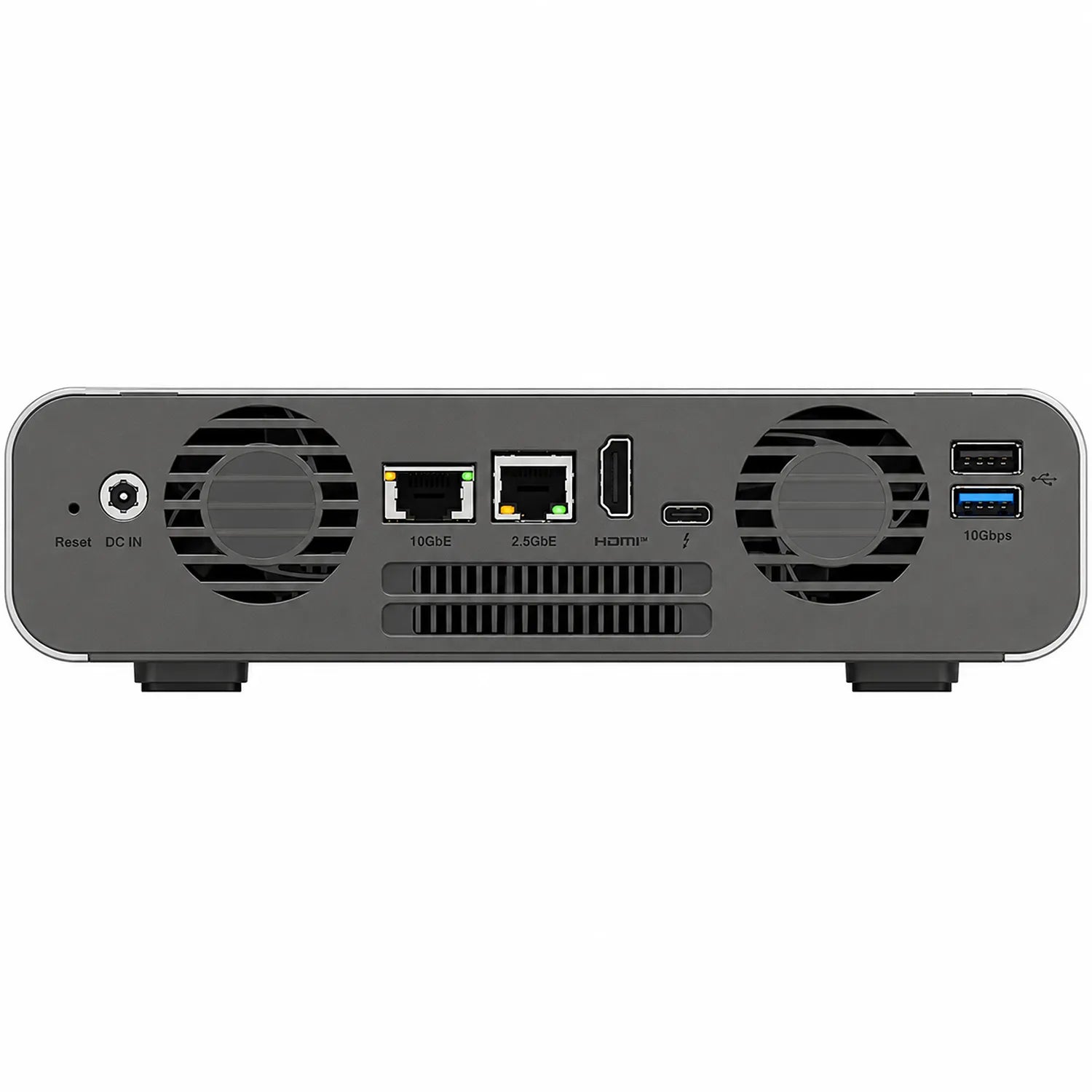

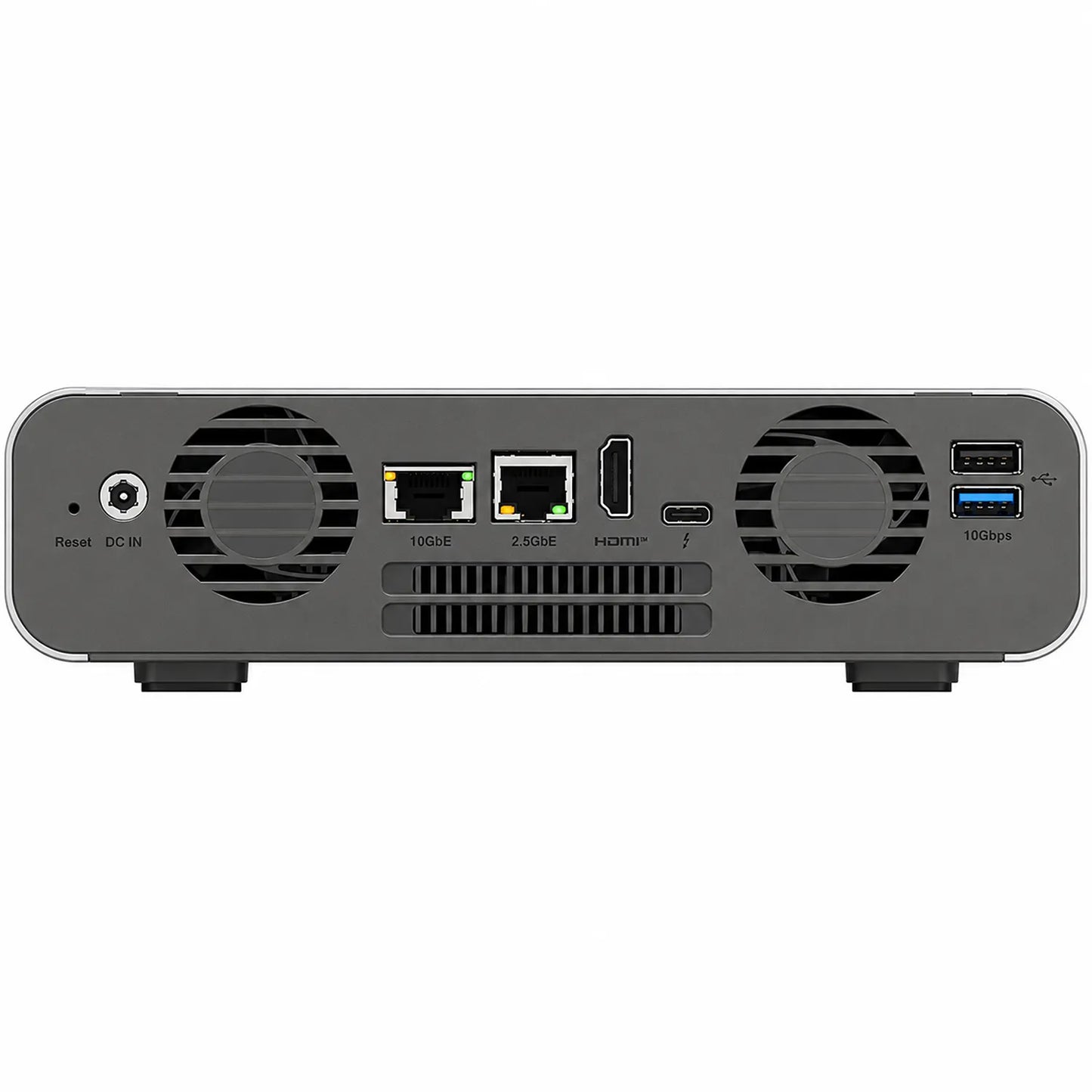

2.5 Gigabit Ethernet Port (2.5G/1G/100M) | 1 |
10 Gigabit Ethernet Port | 1 x 10GBASE-T (10G/5G/2.5G/1G/100M) |
Thunderbolt Port | 2 (Thunderbolt 4) |
USB 2.0 port | 1 |
USB 3.2 Gen 2 (10Gbps) Port | 2 |
HDMI Output | 1, HDMI 1.4b |

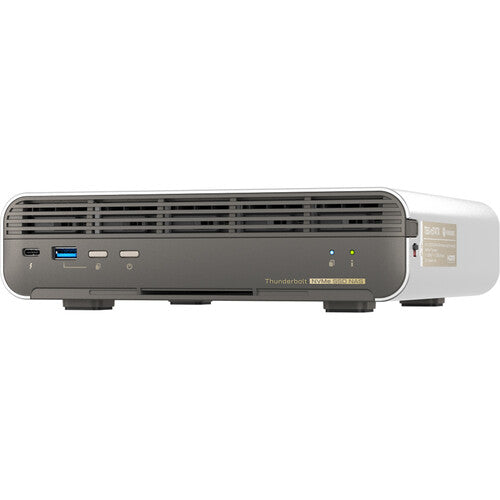

Form Factor | Set-top design |
LED Indicator | Status, USB copy, SSD 1-5 |
Buttons | Status, USB copy, Reset |
Power Consumption | 46W |
Power Supply Unit | 120W Adapter (19VDC output, 100-240VAC input) |
Fan | System fan: 2 x 40mm CPU fan: 1 x 75mm |
System Warning | Buzzer |

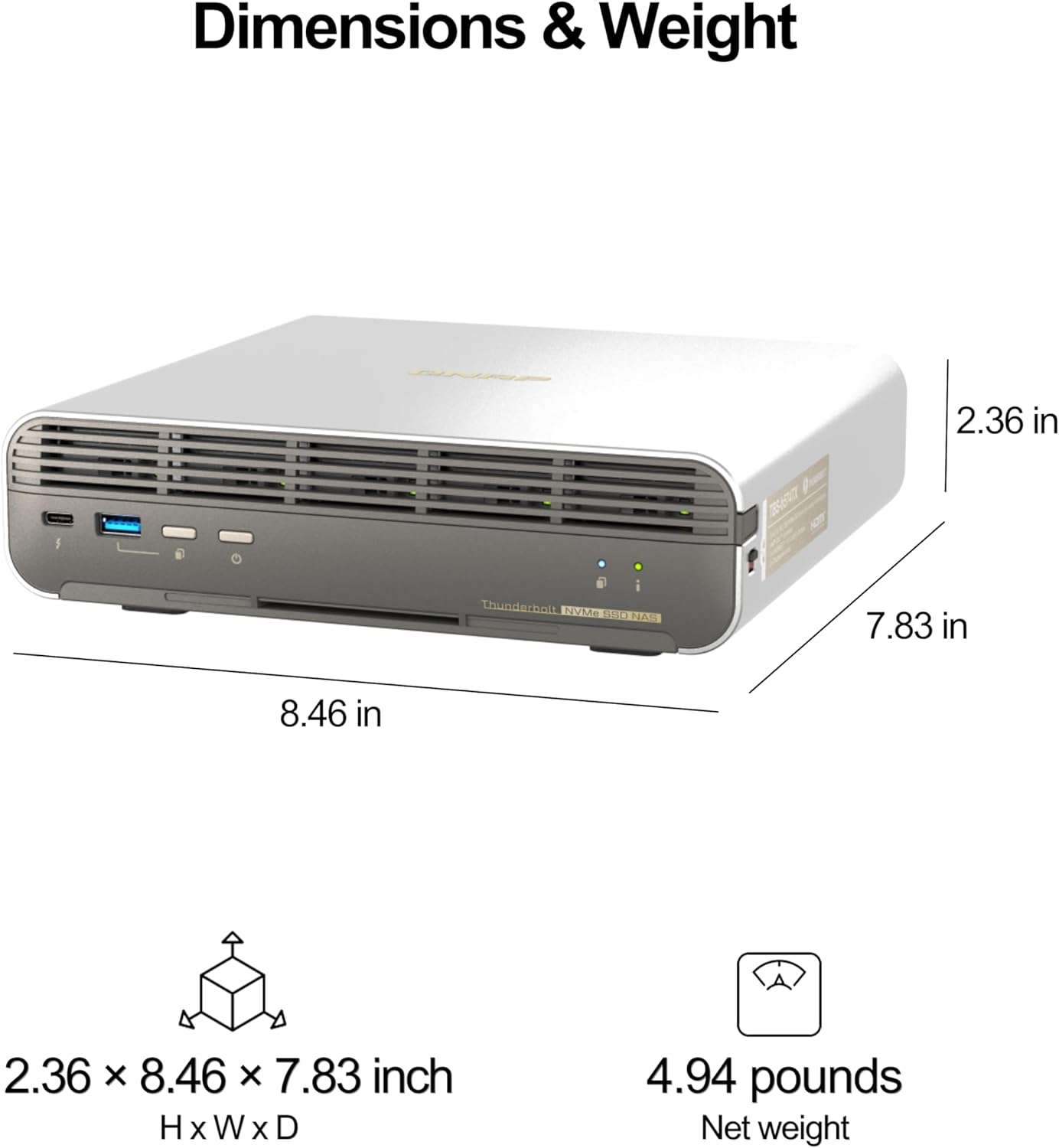

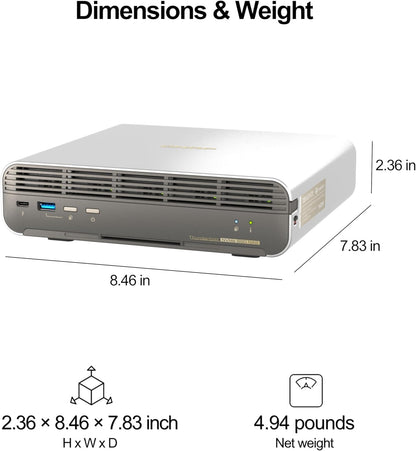

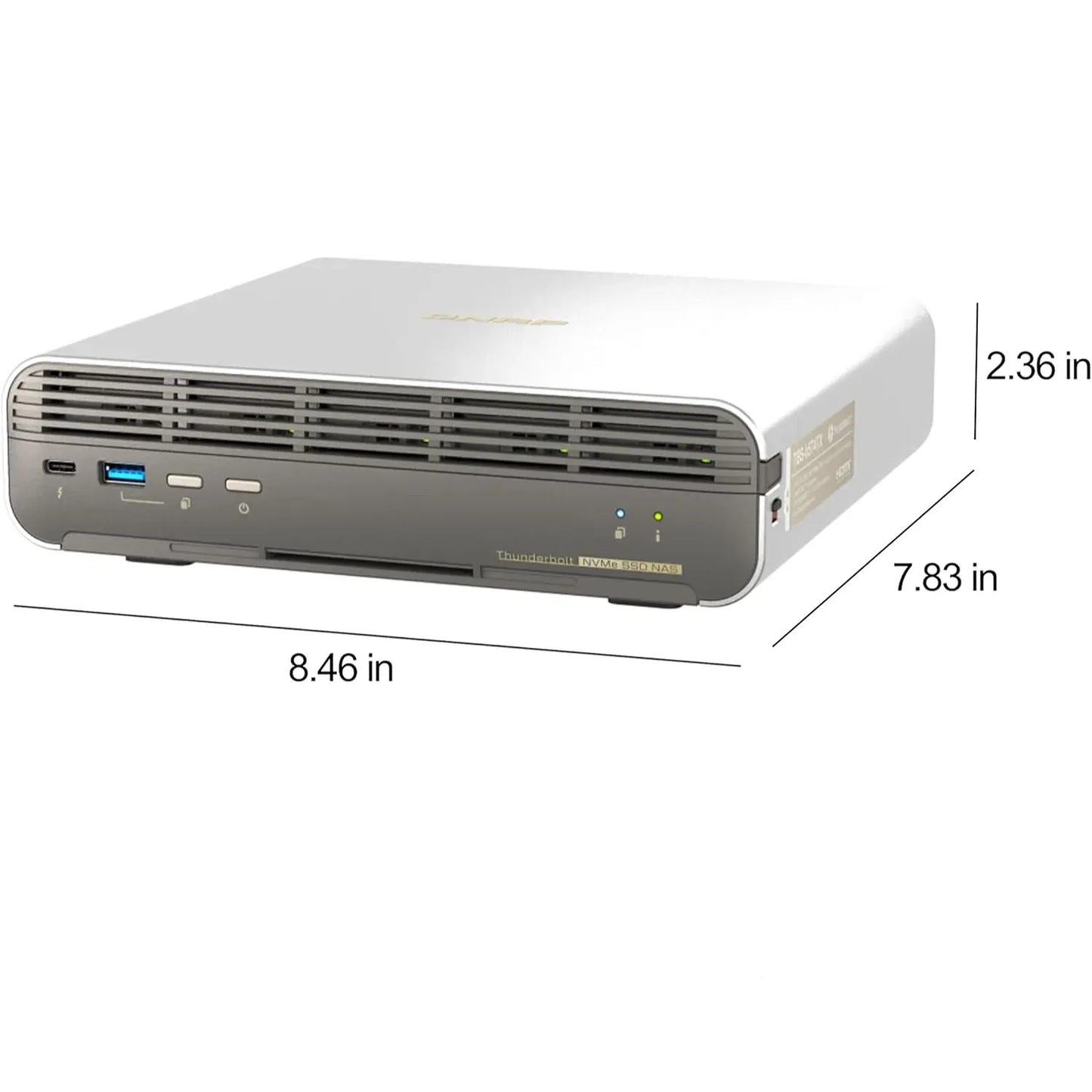

Dimensions | 60 × 215 × 199 mm |
Weight (Net) | 2.24 kg |

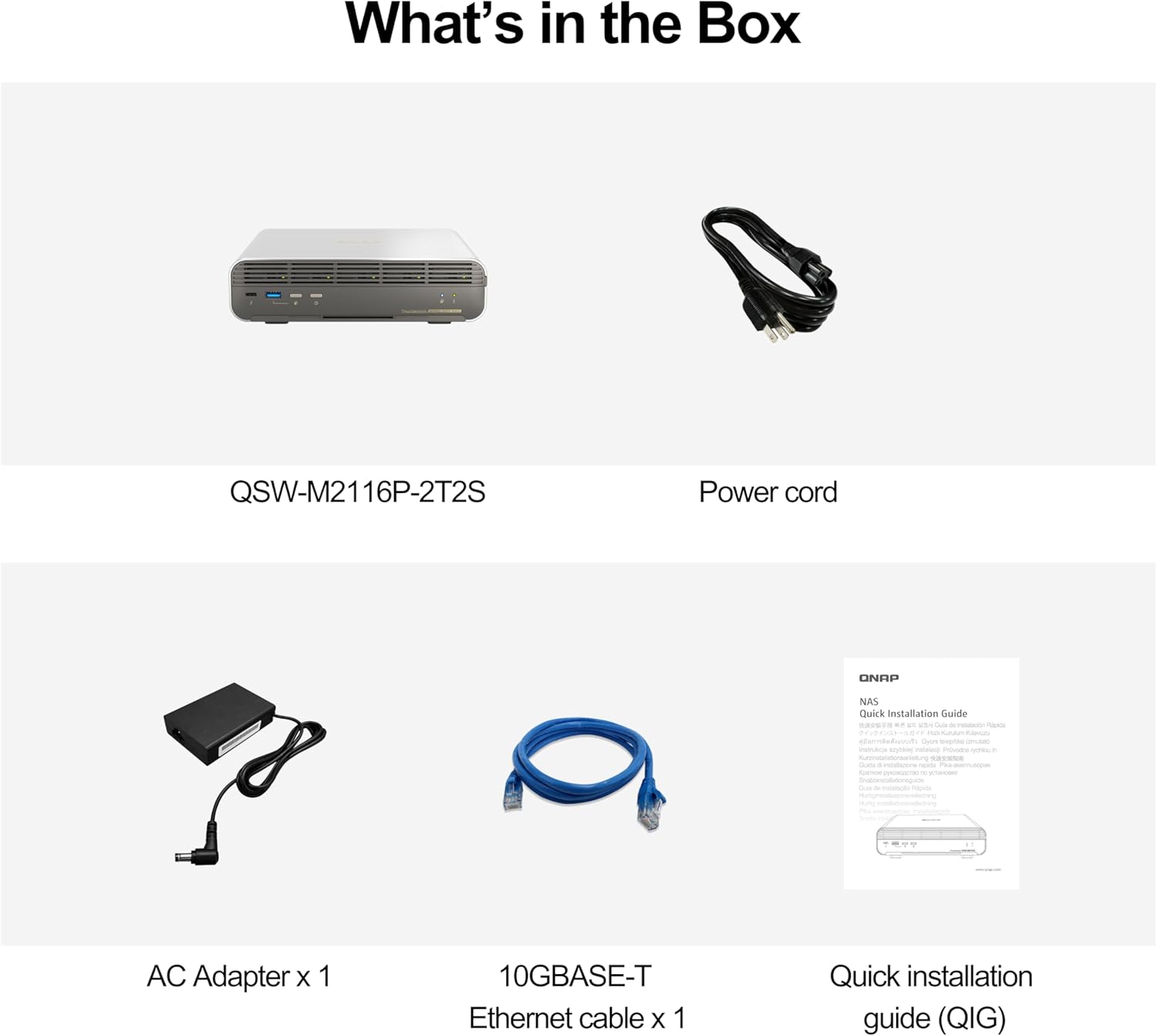

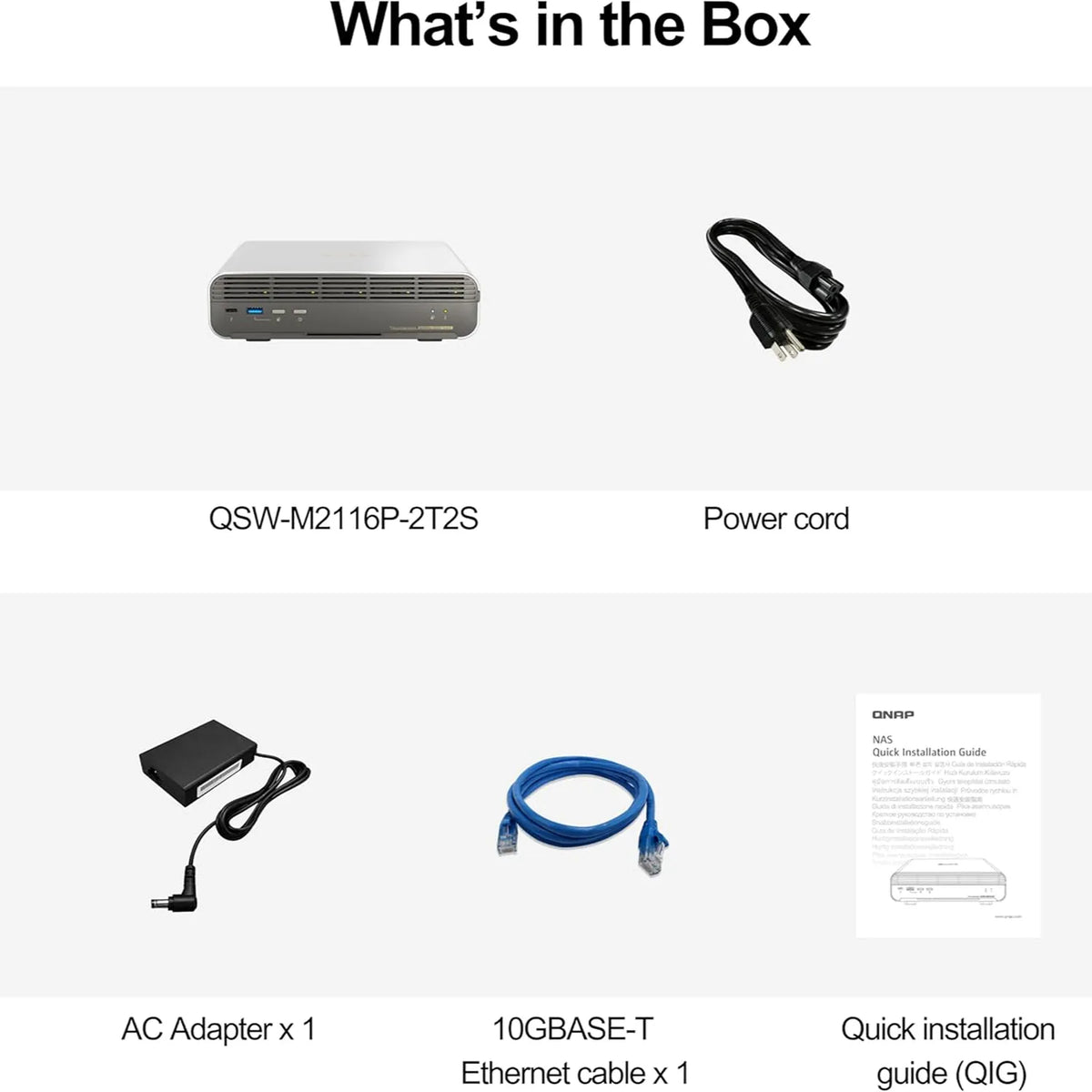

Package Contents | TBS-h574TX 10GBASE-T Ethernet cable x 1 AC Adapter x 1 Quick Installation Guide (QIG) |
