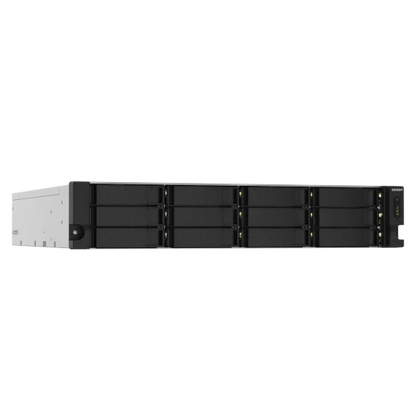

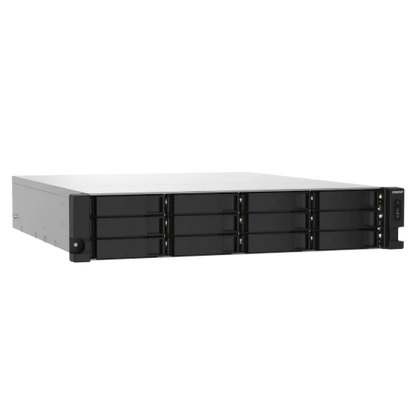

QNAP TS-1232PXU-RP-4G 12 Bay Quad Core High Speed SMB Rackmount NAS
QNAP TS-1232PXU-RP-4G 12 Bay Quad Core High Speed SMB Rackmount NAS
- Free NAS Consultation, right enclosure for your use case
- Compatibility-Assured Drives, NAS & drives verified together
- RAID Guidance & Pro Installation, configured right
- 100% Genuine, sealed with Manufacturer Warranty
- Free Pan-India Delivery, safely packed
- GST Invoice on Every Order
Complete NAS Solutions
Complete NAS Solutions
We are NAS solution providers, not just device sellers. From private cloud and photo backup to business storage, CCTV surveillance and enterprise deployments, we help you plan, purchase and configure the complete NAS solution.
✓ The right enclosure, matched to your capacity, performance and budget
✓ Compatibility-assured, NAS-grade drives verified to work together
✓ RAID and volume planning for the right balance of capacity and data protection
✓ Professional installation and configuration on request
✓ Nationwide support, from first setup to future expansion
✓ Genuine products, manufacturer warranty and GST invoicing
Not sure where to start? Talk to our NAS experts.
Couldn't load pickup availability
Product Description:
Robust Processing Power: This NAS is equipped with a quad-core 1.7 GHz ARM Cortex-A57 processor and 4GB of DDR4 RAM, which can be expanded up to 16GB. This ensures smooth and efficient performance, even when handling multiple tasks simultaneously.
High-Speed Network Connectivity: Featuring dual 10GbE SFP+ and dual 2.5GbE network ports, the TS-1232PXU-RP-4G offers exceptional network bandwidth. This allows for rapid file transfers and seamless collaboration across your team.
Redundant Power Supply for Reliability: The redundant power supply design provides an extra layer of reliability, ensuring that the NAS remains operational even if one power supply fails. This is crucial for maintaining continuous access to your data in mission-critical environments.
Flexible Expansion Options: With a PCIe Gen 2 x2 slot, you can enhance the NAS's capabilities by adding QNAP expansion cards. These cards can provide additional network connectivity, SSD caching, or even wireless functionality, making the NAS highly adaptable to your needs.
Comprehensive Data Protection: The TS-1232PXU-RP-4G supports Hybrid Backup Sync for efficient data backup and synchronization to other NAS devices, servers, or cloud storage. Additionally, it offers snapshot protection to safeguard your data against accidental deletions and malware attacks.
| Model | TS-1232PXU-RP-4G |
| CPU | Alpine AL324 64-bit ARM® Cortex-A57 4-core 1.7GHz processor |
| CPU Architecture | 64-bit ARM |
| System Memory | 4 GB UDIMM DDR4 (1 x 4 GB) |
| Maximum Memory | 16 GB (1 x 16 GB) |
| Memory Slot | 1 x UDIMM DDR4 |
| Flash Memory | 512 MB (Dual boot OS protection) |
| Drive Bay | 12 x 3.5-inch SATA 6Gb/s, 3Gb/s |
| Drive Compatibility |
3.5-inch bays: 3.5-inch SATA hard disk drives 2.5-inch SATA hard disk drives 2.5-inch SATA solid state drives |
| M.2 Slot | Optional via a PCIe adapter |
| 2.5 Gigabit Ethernet Port | 2 (2.5G/1G/100M/10M) |
| 10 Gigabit Ethernet Port | 2 x 10GbE SFP+ |
| PCIe Slot | Slot 1: PCIe Gen 2 x2 |
| USB 3.2 Gen 1 port | 4 |
| Form Factor | 2U Rackmount |
| LED Indicators | HDD 1-12 Status LAN Storage expansion |
| Buttons | Power, Reset |
| Operating Temperature | 0 - 40 °C (32°F - 104°F) |
| Power Supply Unit | 250W (x2) PSU, 100 - 240V |
| Power Consumption | Operating Mode: 83.57 W |
| Fan | 2 x 70mm, 12VDC |
| System Warning | Buzzer |
| Standard Warranty | 3 Years |
| Dimensions | 88.6 × 432 × 511 mm |
| Package Contents | TS-1232PXU-RP Ethernet Cable x 1 Power Cord x 2 Flat head screw x 48 (for 3.5" HDD) Flat head screw x 36 (for 2.5" HDD) Quick Installation Guide (QIG) |
