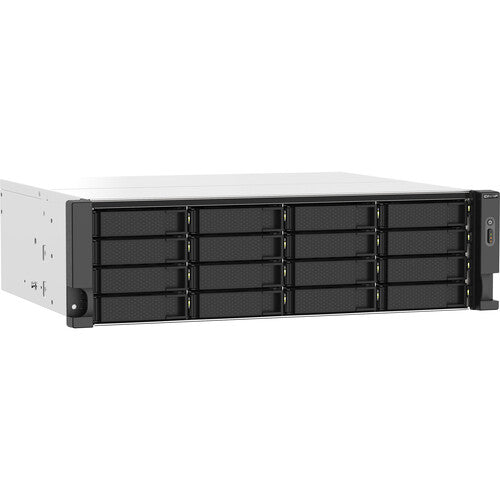

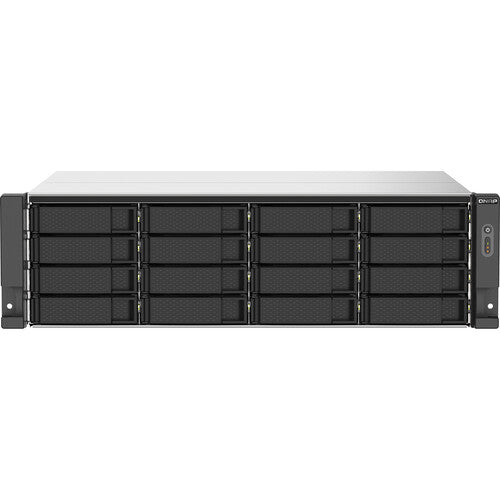

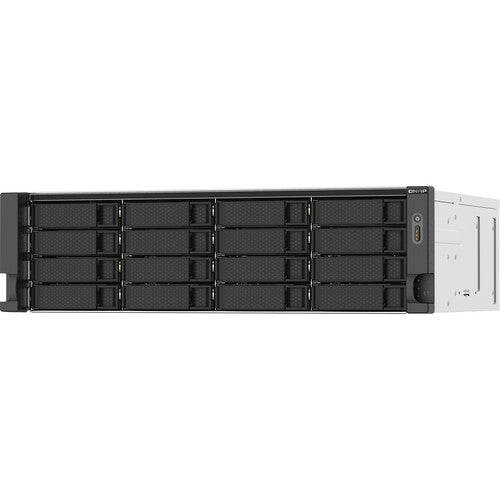

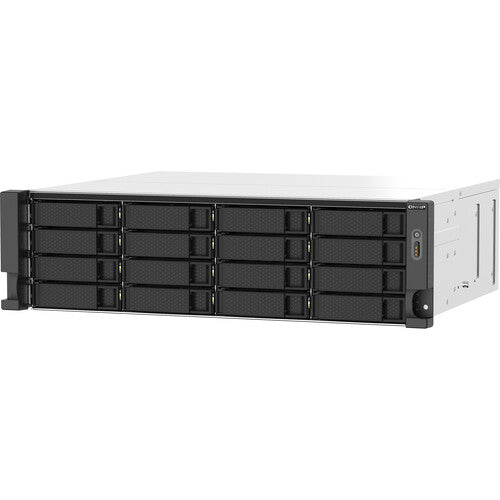

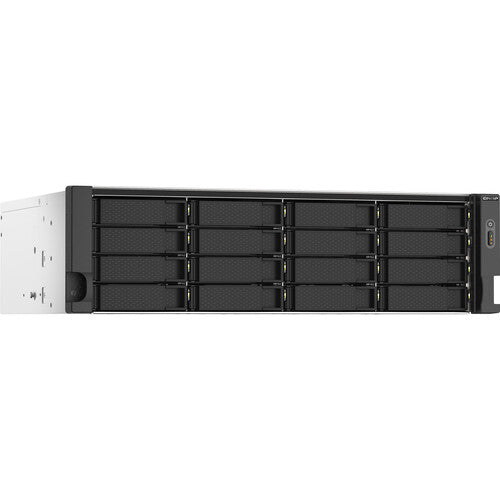

QNAP TS-1673AU-RP-16G 16 Bay Quad Core High Performance 3U Rackmount NAS
QNAP TS-1673AU-RP-16G 16 Bay Quad Core High Performance 3U Rackmount NAS
- Free NAS Consultation, right enclosure for your use case
- Compatibility-Assured Drives, NAS & drives verified together
- RAID Guidance & Pro Installation, configured right
- 100% Genuine, sealed with Manufacturer Warranty
- Free Pan-India Delivery, safely packed
- GST Invoice on Every Order
Complete NAS Solutions
Complete NAS Solutions
We are NAS solution providers, not just device sellers. From private cloud and photo backup to business storage, CCTV surveillance and enterprise deployments, we help you plan, purchase and configure the complete NAS solution.
✓ The right enclosure, matched to your capacity, performance and budget
✓ Compatibility-assured, NAS-grade drives verified to work together
✓ RAID and volume planning for the right balance of capacity and data protection
✓ Professional installation and configuration on request
✓ Nationwide support, from first setup to future expansion
✓ Genuine products, manufacturer warranty and GST invoicing
Not sure where to start? Talk to our NAS experts.
Couldn't load pickup availability
Product Description:
Powerful AMD Ryzen Processor: The NAS is equipped with an AMD Ryzen V1500B quad-core/eight-thread 2.2 GHz processor. This ensures robust performance, allowing it to handle resource-demanding applications and multitasking efficiently.
High-Speed Network Connectivity: Featuring dual 2.5GbE ports, the TS-1673AU-RP-16G supports port trunking, providing up to 5Gbps combined bandwidth. This results in fast data transfer speeds and reliable network performance, suitable for demanding network environments.
Versatile Expansion Options: The NAS includes two PCIe Gen 3 slots, which allow for the installation of additional cards such as 10GbE/25GbE network cards, QM2 cards for M.2 SSD caching, or USB 3.2 Gen 2 cards. This flexibility enhances the NAS's functionality to meet various performance needs.

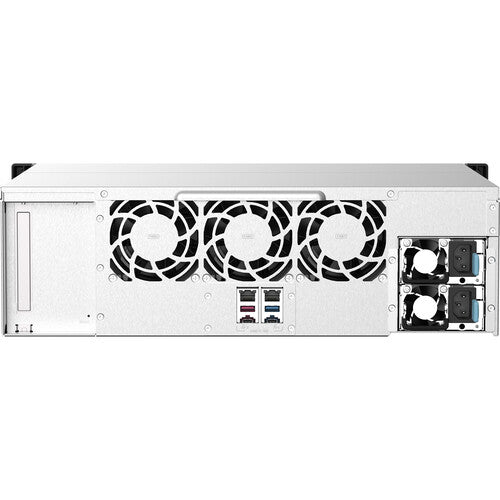

Redundant Power Supply for Reliability: The TS-1673AU-RP-16G comes with redundant power supplies, ensuring maximum system uptime and reliability. This feature is crucial for maintaining continuous access to your data in mission-critical environments.
Comprehensive Data Protection: The NAS supports AES 256-bit encryption to protect sensitive business data without impacting system performance. Additionally, it offers snapshot technology to safeguard your files and data from accidental deletion and malware attacks.
| Model | TS-1673AU-RP-16G |
| CPU | AMD Ryzen Embedded V1500B 4-core/8-thread 2.2 GHz processor |
| CPU Architecture | 64-bit x86 |
| System Memory | 16 GB UDIMM DDR4 (1 x 16 GB) |
| Maximum Memory | 64 GB (2 x 32 GB) |
| Memory Slot | 2 x UDIMM DDR4 Support ECC memory |
| Flash Memory | 5GB (Dual boot OS protection) |
| Drive Bay | 16 x 3.5-inch SATA 6Gb/s, 3Gb/s |
| Drive Compatibility |
3.5-inch SATA hard disk drives 2.5-inch SATA solid state drives |
| M.2 Slot | Optional via a QNAP QM2 PCIe card |
| 2.5 Gigabit Ethernet Port | 2 (2.5G/1G/100M/10M) |
| PCIe Slot | 2 x PCIe Gen3 x4 |
| USB 3.2 Gen 1 port | 1 x Type-A |
| USB 3.2 Gen 2 (10Gbps) Port | 2 x Type-C 1 x Type-A |
| Form Factor | 3U Rackmount |
| LED Indicators | HDD 1-16 Status LAN USB Power |
| Buttons | Power, Reset |
| Operating Temperature | 0 - 40 °C (32°F - 104°F) |
| Power Supply Unit | 550W (x2), 100-240V AC, 50-60Hz, 7-3.5A |
| Power Consumption | Disk Standby Mode: 47.75 Operating Mode: 97.34 W |
| Fan | 3 x 80mm, 12VDC |
| System Warning | Buzzer |
| Standard Warranty | 3 Years |
| Dimensions | 131.3 × 432 × 370.9 mm |
| Package Contents | TS-1673AU-RP Ethernet Cable x 1 Power Cord x 2 Flat head screw (for 3.5" HDD) x 64 Flat head screw (for 2.5" HDD) x 48 Quick Installation Guide (QIG) |
