Product Description:
Robust Processing Power: The QNAP TS-253E-8G is equipped with an Intel Celeron J6412 quad-core processor, clocked at up to 2.6 GHz, and 8GB of DDR4 RAM. This combination ensures that the NAS can handle intensive tasks such as running multiple virtual machines, managing large file transfers, and supporting complex applications without performance bottlenecks.
Enhanced Network Speed: Featuring dual 2.5GbE ports, the TS-253E-8G offers significantly faster network speeds compared to standard Gigabit Ethernet. This allows for quicker data transfers, smoother streaming, and improved overall network efficiency. The dual ports can also be combined using port trunking to achieve up to 5Gbps throughput, making it ideal for high-demand environments.

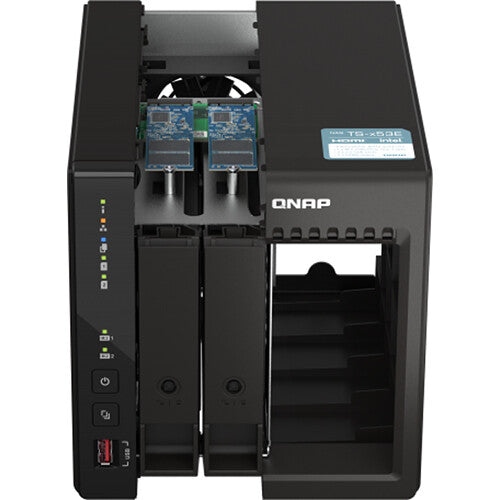

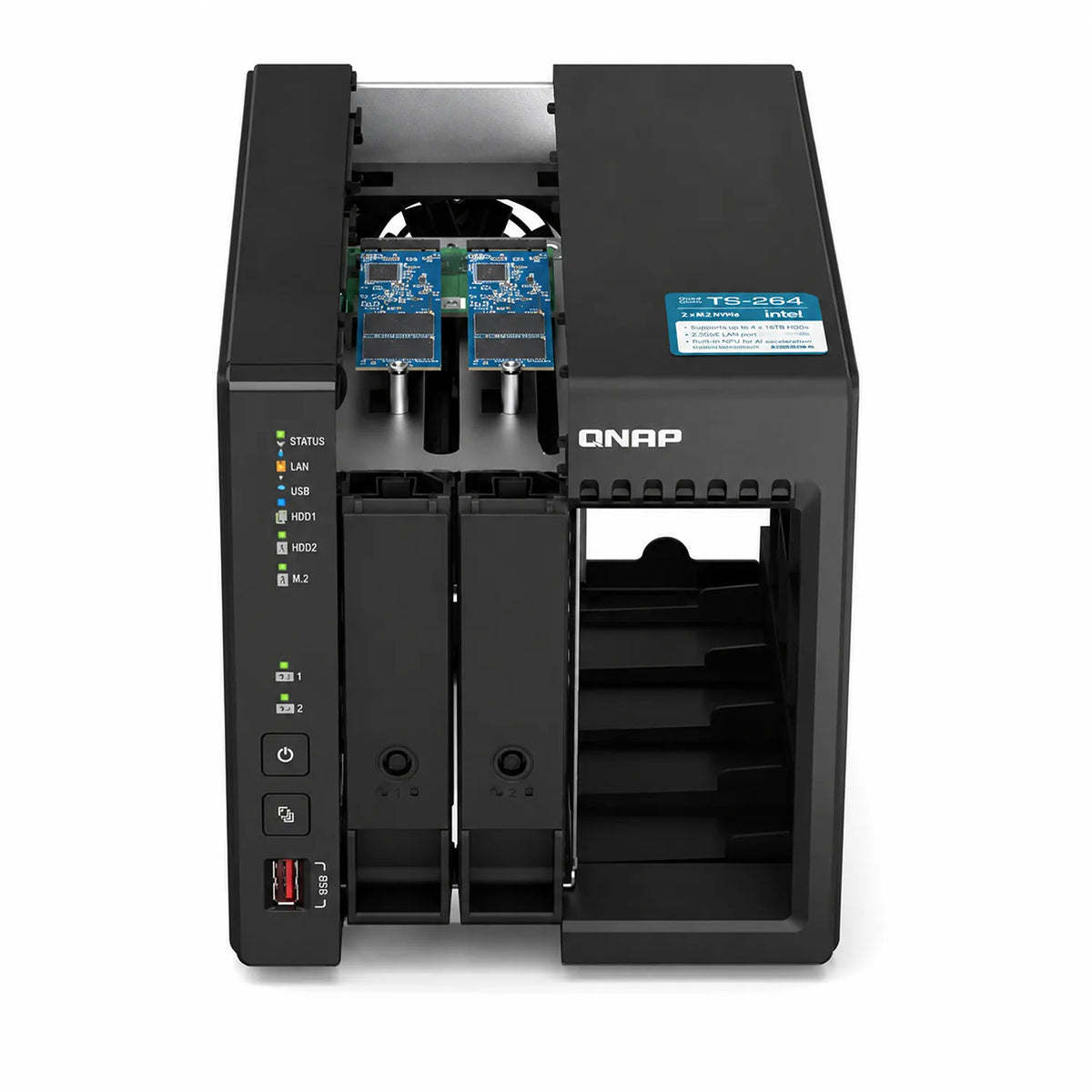

Advanced Storage Capabilities: The NAS includes dual M.2 2280 PCIe slots for NVMe SSDs, which can be used for caching to accelerate system performance. This feature is particularly beneficial for applications requiring high-speed data access, such as databases and video editing, as it reduces latency and improves read/write speeds.
Versatile Multimedia Support: With dual HDMI outputs, the TS-253E-8G supports direct 4K video playback and real-time transcoding. This makes it an excellent choice for multimedia enthusiasts who want to stream high-definition content directly to their TV or monitor. Additionally, it can be used for surveillance monitoring, providing clear and detailed video feeds.
Reliable and Future-Proof: QNAP ensures that the TS-253E-8G will be available and supported for an extended period, making it a dependable choice for businesses that need consistent NAS models across different locations. This long-term support helps in maintaining uniformity and reliability in IT infrastructure, reducing the need for frequent upgrades.
Model | TS-253E-8G |
CPU | |
CPU Model | Intel Celeron J6412 4-core/4-thread processor Burst up to 2.6 GHz |
CPU Architecture | 64-bit x86 |
CPU Core | 4 |
CPU Frequency | 2.6 GHz |
Hardware Encryption Engine | Yes(AES-NI) |
Memory | |
System Memory | 8 GB SODIMM DDR4 (1 x 8 GB) |
Maximum Memory Capacity | 16 GB (2 x 8GB) |
Memory Slot | 2 x SODIMM DDR4 |
Flash Memory | 4GB (Dual boot OS protection) |
Storage | |
Drive Bays | 2 x 3.5-inch SATA 6Gb/s |
Compatible Drive Type |
3.5-inch SATA hard disk drives 2.5-inch SATA solid state drives |
M.2 Slot | 2 x M.2 2280 PCIe Gen 3 x2 |

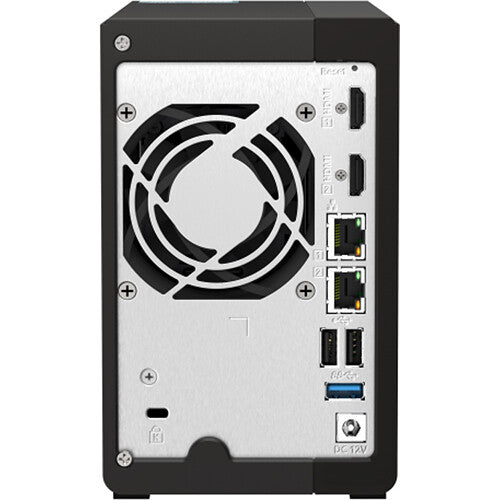

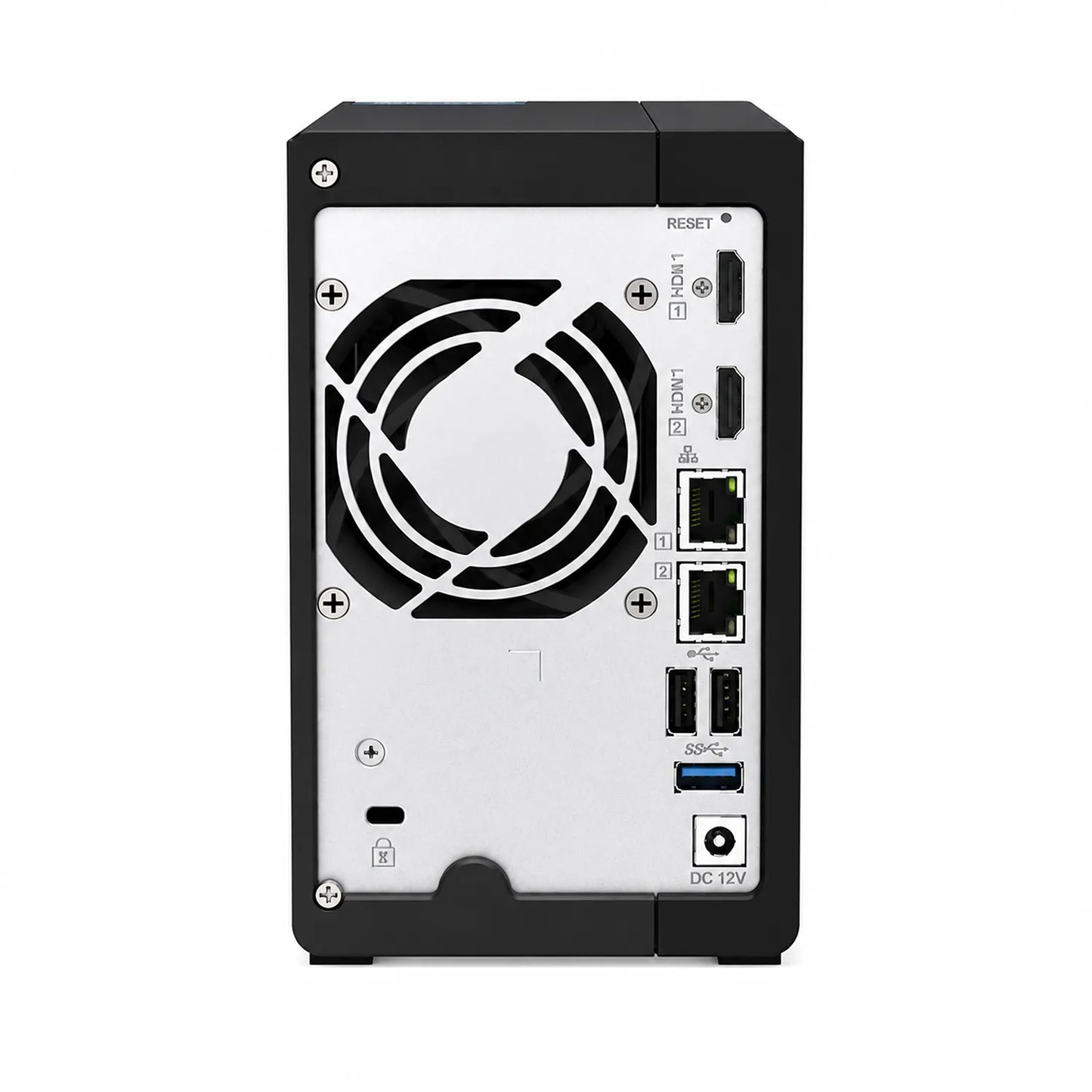

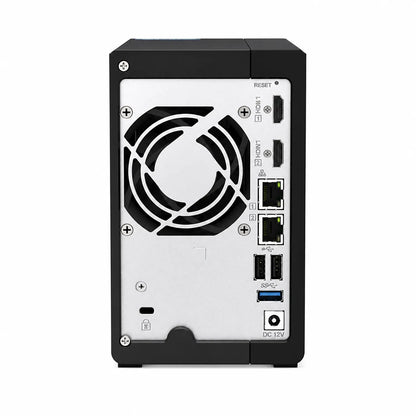

External Ports | |
2.5 Gigabit Ethernet Port (2.5G/1G/100M) | 2 (2.5G/1G/100M/10M) |
USB 2.0 port | 2 |
USB 3.2 Gen 2 (10Gbps) Port | 2 x Type-A |
HDMI Output | 2 x HDMI 1.4b ( up to 3840 x 2160 @30Hz ) |
File System | |
Supported Client OS |
Apple Mac OS 10.10 or later
Ubuntu 14.04, CentOS 7, RHEL 6.6, SUSE 12 or later Linux
IBM AIX 7, Solaris 10 or later UNIX
Microsoft Windows 7, 8, 10 and 11
Microsoft Windows Server 2008 R2, 2012, 2012 R2, 2016, 2019 and 2022
|
Supported Browsers |
Apple Safari (latest version)
Google Chrome (latest version)
Microsoft Edge (latest version)
Mozilla Firefox (latest version)
|
LUN feature | LUN Mapping LUN Masking WWPN Aliases Import/Export Multipath IO (MPIO) Online LUN capacity expansion LUN snapshot LUN snapshot replication and clone |
RAID Type | 8-bay (and more): JBOD, Single, RAID 0, 1, 5, 6, 10, 50, 60 6-bay: JBOD, Single, RAID 0, 1, 5, 6, 10, 50 4-bay: JBOD, Single, RAID 0, 1, 5, 6, 10 2-bay: JBOD, Single, RAID 0, 1 |
Others | |
System Fan | 1 x 70mm, 12VDC |
Power Supply Unit / Adapter | 60W/65W adapter, 100-240V |
System Warning | Buzzer |
Buttons | Power Reset USB Auto Copy |
AC Input Power Voltage | 100V to 240V AC |
Operating Temperature | 0 - 40 °C (32°F - 104°F) |
Storage Temperature | -20 - 70°C (-4°F - 158°F) |
LED Indicators | Power/Status LAN USB HDD1-2 |
Miscellaneous | |
Dimensions(Height x Width x Depth) | 165 × 102 × 220.6 mm |
Net Weight | 2.57 kg |
Warranty | 2 Year Standard Warranty |
Package Contents |
TS-632X Ethernet Cable x 1 AC Adapter x 1 Power Cord x 1 Flat head screw x 32 (for 3.5" HDD) Flat head screw x 24 (for 2.5" HDD) Quick Installation Guide (QIG) |
